Product Type	Cordless Impact Wrench
Brand	Hilti
Model	SIW 9A22
Reference Voltage	21.6 V DC
No-load Speed	1,400 rpm
Impact Rate	2,200 bpm
Weight (with B22/8.0 battery)	4.7 kg
Drive Square	3/4" with through hole
Battery Type	Li-ion series B22
Operating Temperature	-17 °C to 60 °C
Storage Temperature	-20 °C to 70 °C (battery: -20 °C to 40 °C)
Variable Speed Control	Electronic, variable
Direction of Rotation	Reversible (right/left with center lock)
Work Area Lighting	Yes
Belt Hook	Optional, can be mounted on right or left
Fall Protection	Available (anchor cable recommended)
Charge Status Display	4 LEDs on battery
Intended Use	Tightening/loosening nuts, bolts, anchors, wood screws (without precise torque requirement)
Maintenance and Cleaning	Slightly damp cloth, no silicone; clean ventilation slots with brush
Manufacturer Warranty	Contact local Hilti partner

Frequently Asked Questions - SIW 9A22 HILTI

What type of battery to use with the Hilti SIW 9A22?

Use exclusively Hilti Li-ion batteries from the B 22 series.

How to charge the battery?

Recharge the battery with an approved Hilti charger. Ensure the contacts are clean and dry. Refer to the charger's operating instructions.

How to install or remove a socket?

Place the socket on the drive square. Align the holes to insert the locking pin and O-ring or retaining ring depending on the equipment.

What to do if the device does not start?

Check that the battery is properly inserted and charged. If an LED flashes, the battery may be empty, too hot, or too cold. Allow it to return to ambient temperature.

How to reverse the direction of rotation?

Use the right/left switch located above the trigger. The middle position locks the start.

What is the maximum speed of the tool?

The no-load speed is 1,400 rpm, with an impact rate of 2,200 bpm.

How to maintain the Li-ion battery?

Keep the battery clean and dry. Clean the casing with a slightly damp cloth. Avoid extreme temperatures and do not expose it to fire.

Can I use a metal chain as a safety harness?

No, never use a metal chain. Use a Hilti fall protection with an anchor cable of length ≤ 2.0 m.

Where to find spare parts?

Spare parts, consumables, and authorized accessories are available at the Hilti Store or at www.hilti.group.

How to dispose of the device and battery at end of life?

Do not dispose of electrical/electronic devices or batteries in household waste. Take them to a Hilti Store or an approved recycling center. For damaged batteries, insulate the contacts.

USER MANUAL SIW 9A22 HILTI

Original operating instructions

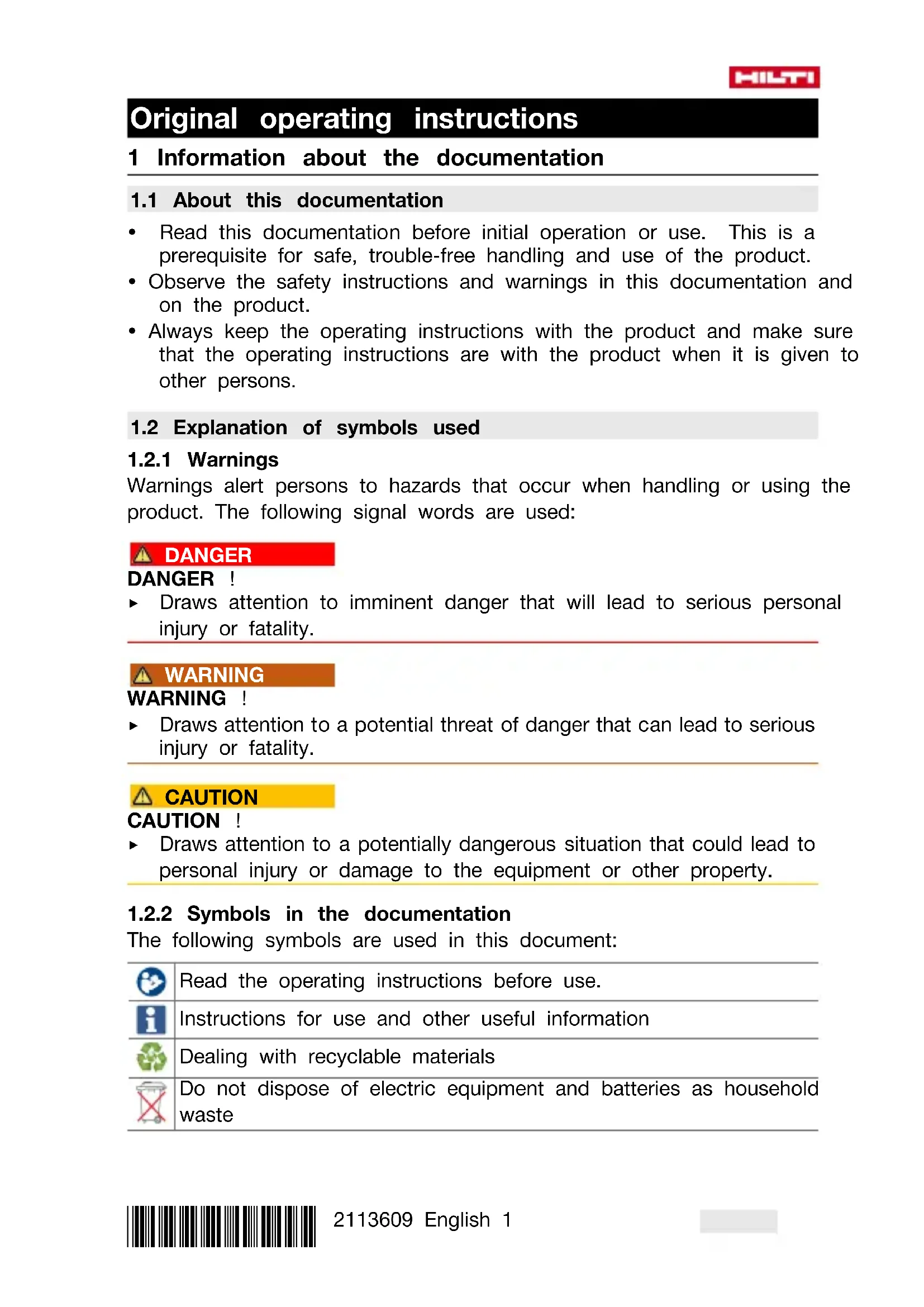

1 Information about the documentation

1.1 About this documentation

• Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions are with the product when it is given to other persons.

1.2 Explanation of symbols used

1.2.1Warnings

Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used:

DANGER

DANGER !

Draws attention to imminent danger that will lead to serious personal injury or fatality.

WARNING

WARNING !

Draws attention to a potential threat of danger that can lead to serious injury or fatality.

CAUTION

CAUTION !

Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the documentation

The following symbols are used in this document:

Read the operating instructions before use.

Instructions for use and other useful information

Dealing with recyclable materials

Do not dispose of electric equipment and batteries as household waste

1.2.3 Symbols in the illustrations

The following symbols are used in illustrations:

2	These numbers refer to the corresponding illustrations found at the beginning of these operating instructions
3	The numbering reflects the sequence of operations shown in the illustrations and may deviate from the steps described in the text
11	Item reference numbers are used in the overview illustrations and refer to the numbers used in the product overview section
®!	This symbol is intended to draw special attention to certain points when handling the product.

1.3 Product-dependent symbols

1.3.1 Symbols on the product

The following symbols can be used on the product:

	The power tool supports near-field communication (NFC) technology, which is compatible with iOS and Android platforms.
Li-ion	Li-ion battery
	Hilti Li-ion battery type series used. Observe the information given in the section headed Intended use.
	Never use the battery as a striking tool.
	Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any other way.
	Protection class II (double-insulated)
=	Direct current (DC)
n0	Rated speed under no load
/min	Revolutions per minute

1.4 Product information

products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.

The type designation and serial number are printed on the rating plate.

• Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product.

Product information

Cordless impact wrench SIW 9-A22
Generation: 01
Serial no.:

1.5 Declaration of conformity

We declare, on our sole responsibility, that the product described here complies with the applicable directives and standards. A copy of the declaration issued by the certification department can be found at the end of this documentation.

The technical documentation is filed here:

Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | 86916
Kaufering, Germany

2 Safety

2.1 General power tool safety warnings

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

HILTI

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tire or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil a grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If

HILTI

liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperatu Exposure to fire or temperature above 130^ (265 F) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

2.2 Additional safety precautions for screwdrivers

Personal safety

Use the product only when it is in perfect working order.
- Never tamper with or modify the tool in any way.
- Use the auxiliary grips supplied with the power tool. Loss of control can cause personal injury.
Always hold the tool firmly with both hands on the grips provided. Keep the grips clean and dry.
Do not touch rotating parts - risk of injury!
- Wear suitable protective glasses, a hard hat, ear protection, protective gloves and light respiratory protection while using the power tool.
- Wear protective gloves also when changing the tool. Touching the accessory tool can result in cuts and burns.
- Wear eye protection. Flying fragments can injure the body and eyes.
- Before starting work, check the hazard class of the dust that will be produced when working. Use an industrial vacuum cleaner with an officially approved protection class in compliance with the locally applicable dust protection regulations. Dust from materials such as lead-based paint, certain types of wood and concrete/masonry/stone containing quartz, minerals or metal can be harmful to health.
- Make sure that the workplace is well ventilated and, where necessary, wear a respirator appropriate for the type of dust generated. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory or other diseases among operators or bystanders. Certain kinds of dust are classified as carcinogenic such as oak and beech dust, especially

in conjunction with additives for wood conditioning (chromate, wood preservative). Only specialists are permitted to handle material containing asbestos.

Take breaks and do physical exercises to improve the blood circulation in your fingers. Exposure to vibration during long periods of work can lead to disorders of the blood vessels and nervous system in the fingers, hands and wrists.

Electrical safety

• Before beginning work, check the working area for concealed electric cables or gas and water pipes. External metal parts of the power tool may give you an electric shock if you damage an electric cable accidentally.

Power tool use and care

• Immediately switch off the power tool if the accessory tool jams. The power tool might twist off-line.
  Wait until the power tool stops completely before you lay it down.

2.3 Careful handling and use of batteries

• Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries.
• Do not expose batteries to high temperatures, direct sunlight or fire.
• Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80^ (176 F).
• Do not use or charge batteries that have suffered mechanical impact, have been dropped from a height or show signs of damage. In this case, always contact your Hilti Service.
• If the battery is too hot to touch it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Contact Hilti Service.

3 Description

3.1 Product overview

① 3 / 4'' square drive with through hole
⑥ Belt hook (optional)
② Forward/reverse switch with switch-on interlock
⑦ Battery
③ Control switch
Charge-status and fault indicator (Li-ion battery)
(4) Grip
Release button with additional function (charge status display activation)
⑤ Work-area light

3.2 Intended use

The product described is a hand-held cordless impact wrench. It is designed for tightening and releasing nuts, bolts and anchors and for driving wood screws. Accessory tools (e.g. sockets) are attached by way of a square drive with through hole.

The impact wrench may be used only for applications that require no precise / specified torque. Failure to observe this point presents a risk of overtightening and damage to the bolt, screw or workpiece.

• Use only Hilti lithium-ion batteries of the B 22 series with this product.
• Use only Hilti-approved battery chargers to charge these batteries. More information is available from your Hilti Store or from www.hilti.group

3.3 Items supplied

Impact wrench, operating instructions.

Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group

3.4 Li-ion battery display

The Li-ion battery state of charge and malfunctions of the power tool are indicated by the display on the Li-ion battery. The Li-ion battery state of charge is displayed after pressing one of the two battery release buttons.

Status Meaning
4 LEDs light. State of charge: 75	% to 100 %
3 LEDs light. State of charge: 50	% to 75 %
2 LEDs light. State of charge: 25	% to 50 %
1 LED lights. State of charge: 10	% to 25 %
1 LED blinks, the power tool is ready for use.	State of charge: < 10 %
1 LED blinks, the power tool is not The battery has overheated. ready for use.
4 LEDs blink, the power tool is not The power tool is overloaded or h ready for use.

Battery charge state cannot be displayed while the control switch is pressed and for up to 5 seconds after releasing the control switch. If the battery display LEDs blink, please observe the instructions given in the Troubleshooting section.

4 Technical data

4.1 Impact wrench

Rated voltage	21.6 VDC
Weight including battery B22/8.0	4.7 kg (10.4 lb)
Rated speed under no load	1,400 /min
Impact frequency	2,200 bpm
Ambient temperature for operation	-17 °C ... 60 °C (1 °F ... 140 °F)
Storage temperature	-20 °C ... 70 °C (-4 °F ... 158 °F)

4.2 Battery

Battery operating voltage	21.6 V
Ambient temperature for operation	-17 °C ... 60 °C (1 °F ... 140 °F)
Storage temperature	-20 °C ... 40 °C (-4 °F ... 104 °F)
Battery charging starting temperature	-10 °C ... 45 °C (14 °F ... 113 °F)

5 Preparations at the workplace

5.1 Charging the battery

1. Before charging the battery, read the operating instructions for the charger.
2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry.
3. Use an approved charger to charge the battery. page 8

5.2 Inserting the battery

WARNING

Risk of injury by short circuit or falling battery!

Before inserting the battery, make sure that the contacts on the battery and the contacts on the product are free of foreign matter.
Make sure that the battery always engages correctly.

1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.

HILTI

5.3 Removing the battery

1. Press the battery release buttons.
2. Remove the battery from the tool.

5.4 Fitting the socket 2

CAUTION

Risk of injury through use of the wrong type of accessory tool!

Do not use worn or damaged accessory tools.

CAUTION

Risk of injury By worn or damaged locking ring

• Never use a worn or damaged locking ring.

• Set the forward/reverse switch to the middle position or remove the battery from the power tool.

• Place the socket on the square drive spindle of the tool.

i Turn the socket until the hole in the recess of the socket is in line with the hole in the square drive spindle.

1. If the following conditions are met, also take this action:

Conditions: With O-ring and locking pin.

• Remove the O-ring from the groove in the socket. Insert the locking pin into the holes in the socket and the square drive spindle. Then re-insert the O-ring in the groove in the socket.

• If the following conditions are met, also take this action:

Conditions: With locking ring.

Fit the locking ring into the socket.

5.5 Removing the socket 3

1. Set the forward/reverse switch to the middle position or remove the battery from the power tool.
2. Remove the locking ring or the O-ring complete with locking pin from the socket.
3. Remove the socket from the square drive spindle of the tool.

5.6 Fitting the belt hook (option)

WARNING

Risk of injury! Hazard presented by a falling power tool.

A falling power tool may present a risk of injury to yourself and others. Check that the belt hook is fitted securely before beginning work.

The belt hook allows the power tool to be attached to a belt worn by the operator. The belt hook can be fitted to allow attachment on the left or right side of the body.

1. Remove the battery. page 10
2. Insert the belt hook into the opening provided at the base of the product.
3. Secure the belt hook with the two screws.

5.7 Hilti Installing the retaining strap (optional)

ATTENTION

Damage to the product and / or the retaining leash. Incorrect handling can result in damage to the product and/or retaining leash.

• Do not use a metal chain as a retaining leash. Do not use a retaining leash with a length of more than 2,0m (6 ft).

To avoid damage and injury, when working at a height it is advisable to use the Hilti retaining strap.

The retaining strap allows a securing cord or lanyard to be attached. When working with the product, you must comply with national regulations for working at heights.

1. Remove the battery. page 10
2. Insert the two tabs on the retaining strap into the slots on each side of the base.
3. Secure the retaining strap with the screws supplied.
4. Insert the battery. page 9

6 Operation

CAUTION

Burn hazard due to hot discharged air! Heat generated during operation is discharged through air vents and can lead to minor burns or to damage to the power tool.

• Wear personal protective equipment (e.g. protective gloves, eye protection) when you are in the immediate vicinity of the air vents while the power tool is in operation.
• Keep all air vents clear at all times while the power tool is in operation. This will prevent heat build-up in the power tool.

6.1 Setting forward or reverse rotation 6

In the middle position, the forward / reverse selector switch serves as a safety lock.

HILTI

Set the forward / reverse selector switch to forward or reverse rotation.

6.2 Switching on

Press the control switch.

• Speed of rotation is regulated by the distance the control switch is pressed in.

Do not overload the product. If the product becomes very warm, allow it to cool down for a few minutes.

6.3 Switching off

Release the control switch.

7 Care and maintenance

WARNING

Risk of injury with battery inserted !

Always remove the battery before carrying out care and maintenance tasks!

Care and maintenance of the tool

• Carefully remove stubborn dirt.
• Clean the air vents carefully with a dry brush.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as these can attack the plastic parts.

Care of the Li-ion batteries

• Keep the battery free from oil and grease.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as these may attack the plastic parts.
• Avoid ingress of moisture.

Maintenance

• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all function correctly.
• Do not operate the product if signs of damage are found or if parts malfunction. Have it repaired immediately by Hilti Service.
• After cleaning and maintenance, fit all guards or protective devices and check that they function correctly.

To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group.

8 Transport and storage of cordless tools

Transport

CAUTION

Accidental starting during transport!

Always transport your products with the batteries removed!

Remove the battery.
- Never transport batteries in bulk form (loose, unprotected).
- Check the tool and batteries for damage before use after long periods of transport.

Storage

WARNING

Accidental damage caused by defective or leaking batteries !

Always store your products with the batteries removed!
- Store the tool and batteries in a place that is as cool and dry as possible.
- Never store batteries in direct sunlight, on heating units or behind a window pane.
- Store the tool and batteries in a place where they cannot be accessed by children or unauthorized persons.
- Check the tool and batteries for damage before use after long periods of storage.

9 Troubleshooting

If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service.

Trouble or fault	Possible cause	Action to	be taken
The power tool doesn’t start.	1 LED blinks: The battery is empty.	Remove the battery and charge it.
	The battery is not fitted correctly.	The battery must be heard to engage. Remove the battery and refit it.
	1 LED blinks: The battery is too hot or too cold.	Allow the battery to cool down / warm up to its working temperature.
	4 LEDs blink: The power tool was overloaded briefly.	Release the control switch and then press it again.
The control switch cannot be pressed.	The forward / reverse selector switch is in the middle position.	Push the forward / reverse switch to the left or right.
Trouble or fault	Possible cause	Action to be taken
Speed of rotation drops considerably.	Low battery.▶Remove	the battery and charge it.
The battery is not heard to engage.	The retaining lugs on the battery are dirty.	Clean the retaining lugs.
The battery runs low more quickly than usual.	Very low ambient temperature.	Warm up the battery slowly to room temperature.

10 Disposal

WARNING

Risk of injury due to incorrect disposal! Health hazards due to escaping gases or liquids.

DO NOT send batteries through the mail!
- Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.
- Dispose of your battery out of the reach of children.
- Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.

Most of the materials from which Hilti products are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti sales representative for further information.

• Do not dispose of power tools, electronic equipment or batteries as household waste!

11 Manufacturer's warranty

• Please contact your local Hilti representative if you have questions about the warranty conditions.

Pressione o interruptor on/off.

• Solte o interruptor on/off.

CERTIFIED TO CAN/CSA STD C22.2 NO.

62841-1

62841-2-2

Hitti Corporation

LI-9494 Schaan

Tel.:[phone]

Fax:[phone]

www.hilti.group
