USER MANUAL AWS8440AW AEG

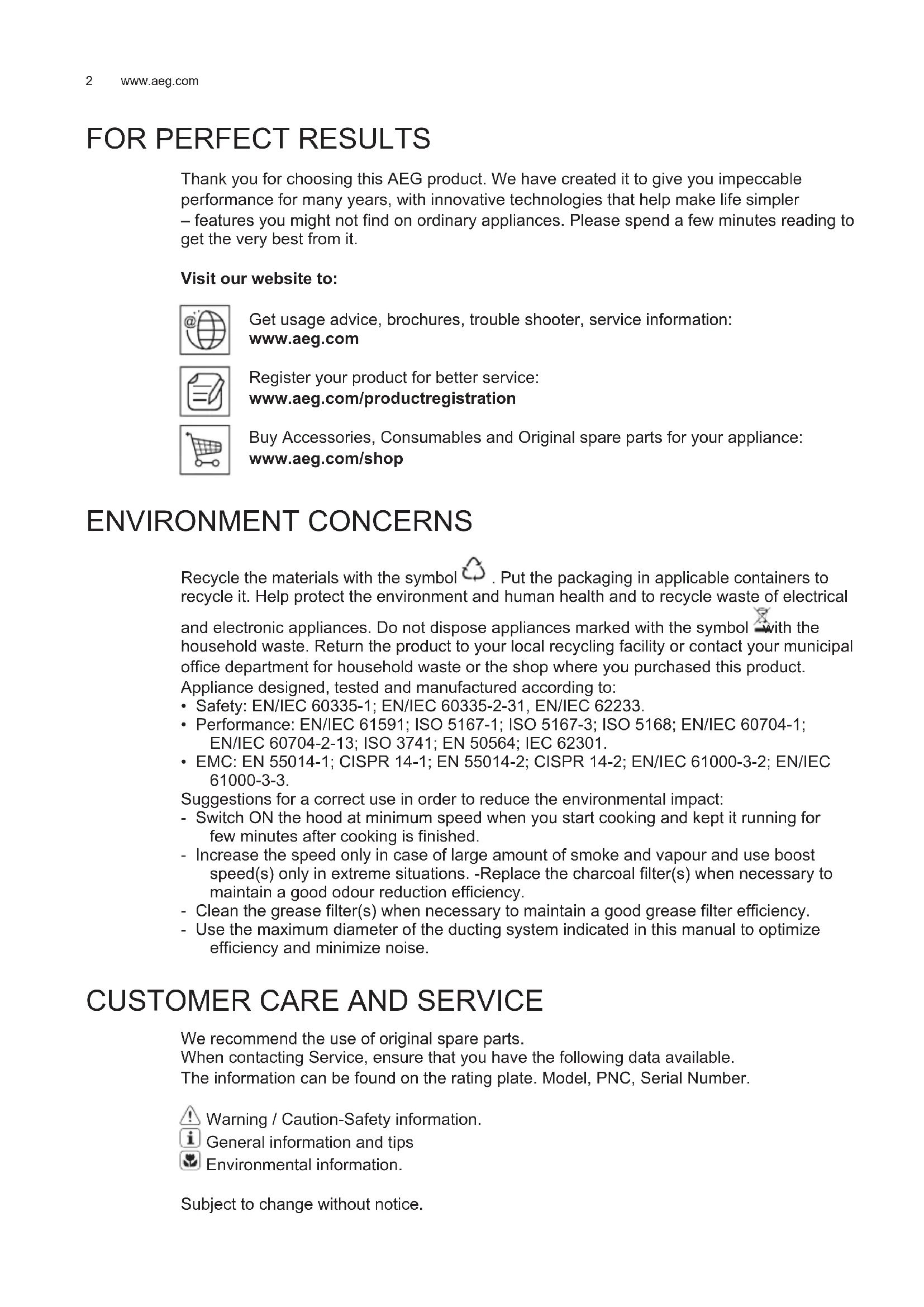

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information: www.aeg.com
Register your product for better service: www.aeg.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop
ENVIRONMENT CONCERNS
Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.
Appliance designed, tested and manufactured according to:
- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.
Suggestions for a correct use in order to reduce the environmental impact:
- Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished.
- Increase the speed only in case of large amounts of smoke and vapour, and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain good odour reduction efficiency.
- Clean the grease filter(s) when necessary to maintain good grease filter efficiency.
- Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate: Model, PNC, Serial Number.
Warning / Caution - Safety information.
General information and tips.
Environmental information.
Subject to change without notice.
SAFETY INSTRUCTIONS
Caution! Closely follow the instructions set out in this manual. All responsibility for any eventual inconveniences, damages, or fires caused by not complying with the instructions in this manual is declined. The extractor hood has been designed exclusively for domestic use.
Caution! Do not connect the appliance to the mains until the installation is fully complete.
Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply.
Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
Caution! Accessible parts of the hood may become hot when used with cooking appliance.
With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.
Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
2. USE
The hood serves to aspirate the fumes and vapors resulting from cooking. The attached installation manual indicates the version to be used depending on the model you have, the suction version with
external evacuation of filtering with internal recirculation
3. INSTALLATION
The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.
Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.
The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45 cm from electric cookers and 50 cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
4. MAINTENANCE
ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!
Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

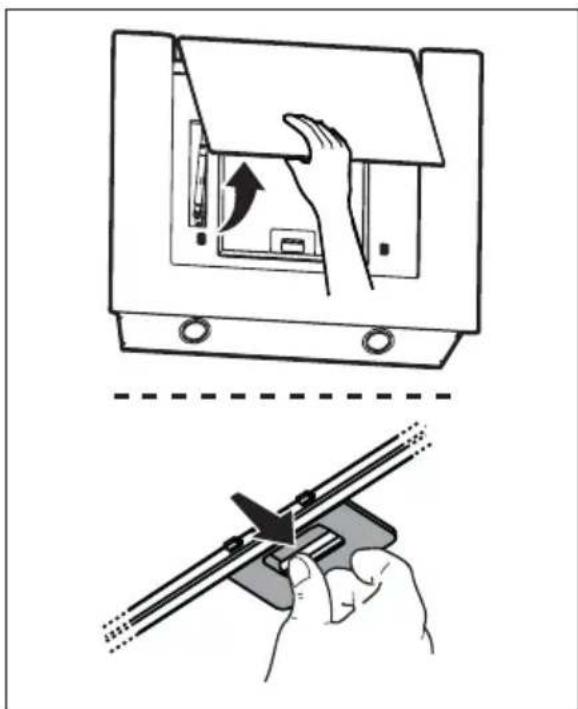

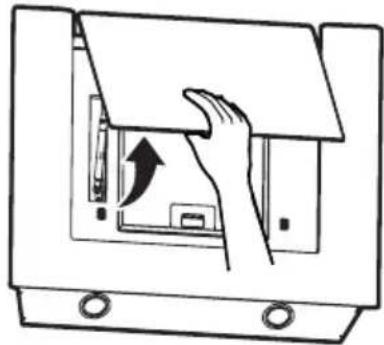

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

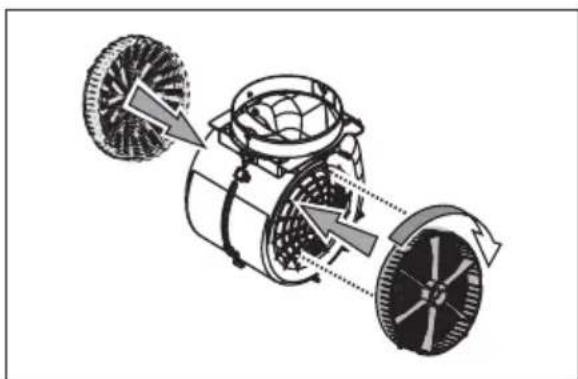

4.2 NON-washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months. The charcoal filter may NOT be washed or regenerated.
5. CONTROLS
The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

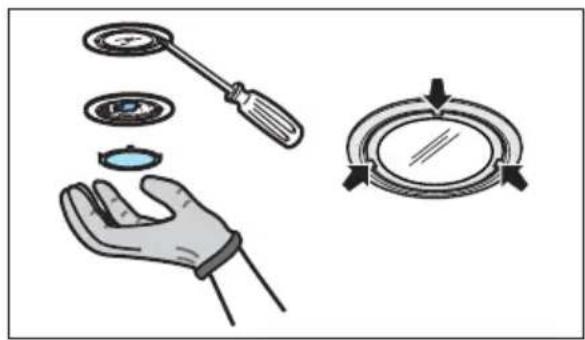

6. LIGHTING
Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down. Replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
1 ON/OFF lights 2 OFF motors 3 Minimum suction power 4 Medium suction power 5 Maximum suction power
SAFETY
Warning! The manufacturer declines all responsibility for malfunctions, damage, or fire resulting from use of the appliance contrary to the instructions given in this manual. The extractor hood is intended exclusively for domestic use.
Warning: do not connect the appliance to the electrical power supply until installation is fully complete. Before carrying out any cleaning or maintenance operation, disconnect the hood from the power supply by removing the plug or switching off the main switch. When carrying out installation or maintenance, wear protective gloves. Children or adults who, due to their physical or mental condition, are unable to operate the appliance safely, or who lack the necessary knowledge and experience, must not use the hood unless properly supervised. Do not leave children unattended to ensure they do not play with the appliance. Do not use the hood if the grille is not correctly installed! It is strictly forbidden to use the hood as a support surface unless specifically stated otherwise. Ensure adequate ventilation of the room when using the hood simultaneously with other appliances that use gas or other fuels. The extracted air must not be discharged through a duct used for exhausting fumes from appliances burning gas or other fuels. It is strictly forbidden to cook dishes over an open flame, as the free flame could damage the filters and become a fire hazard; therefore, refrain from doing so in any case. Frying in large quantities of oil must be done under constant supervision, bearing in mind that overheated oil can ignite.
Warning! When used together with other cooking appliances, the exposed parts of the appliance may become very hot. As regards the technical measures and safety conditions for the discharge of fumes, strictly comply with the regulations in force.
local authorities. Perform periodic cleaning of the hood both inside and outside (at least once a month, in compliance with the conditions specifically provided for in the maintenance instructions for this appliance). Failure to follow the instructions for cleaning the hood and replacing the filters may become a fire hazard. Do not use or leave the hood without the lamps correctly installed, due to the possible risk of electric shock. We decline all responsibility for malfunctions, damage, or burning of the appliance resulting from failure to follow the instructions given in this manual.
Warning! The absence of installation of screws and fixing devices in accordance with these instructions may lead to risks of an electrical nature.
2. OPERATION
The hood serves to extract fumes and vapors produced during cooking. The attached instructions indicate which mode can be used for the model: either as an extractor hood with external discharge, or as a recirculating hood with internal air recirculation.
3. INSTALLATION
The mains voltage must correspond to the voltage indicated on the technical data plate located inside the appliance. If the hood is fitted with a plug, connect the hood to a wall socket that is accessible even after installation. If the hood is not fitted with a plug (direct mains connection) or if the wall socket is not accessible after installation, use a double-pole switch that ensures complete disconnection from the mains in case of overvoltage category III, in accordance with installation regulations.
Warning! Before connecting the electrical system of the hood to the mains and checking its correct functioning, make sure that the power cable is correctly installed.
The distance between the lower edge of the hood and the support surface of the pots on the hob must be at least 45 cm for electric hobs, and at least 50 cm for gas or combination hobs. If the installation instructions for the gas hob specify a greater distance, take that into account.
4. MAINTENANCE
Warning! Before performing any cleaning or maintenance operation, disconnect the hood from the electrical supply, either by unplugging it or by switching off the main switch.
The hood must be cleaned frequently both inside and out (at least with the same frequency as the maintenance of the grease filters). For cleaning, use a special cloth moistened with neutral liquid detergent. Do not use products containing abrasive materials. DO NOT USE ALCOHOL!
Warning! Failure to follow the cleaning instructions and filter replacement rules may lead to a fire risk. Therefore, we recommend following these instructions.
The manufacturer declines all responsibility for any damage to the motor or fires resulting from improper maintenance or failure to follow the above warnings.

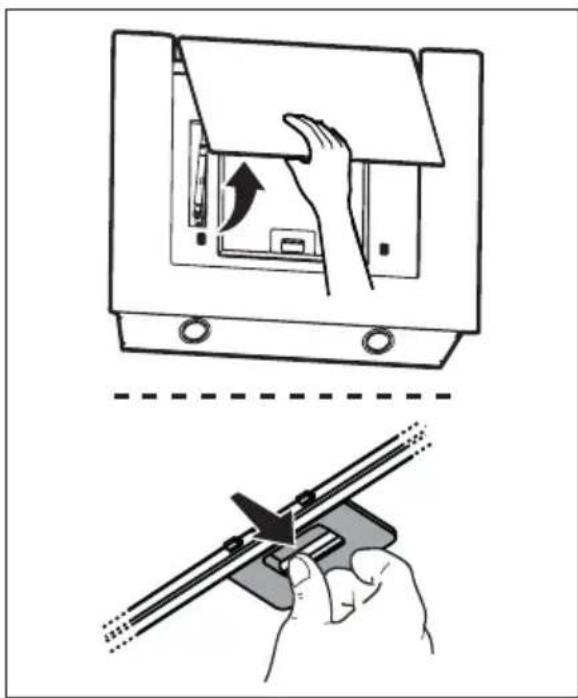

4.1 Grease filter - The grease filter must be cleaned frequently with non-aggressive detergents, either by hand or in a dishwasher at low temperature and with an economical cycle. Washing in a dishwasher may cause some discoloration of the grease filter, but its filtering characteristics remain completely unchanged.

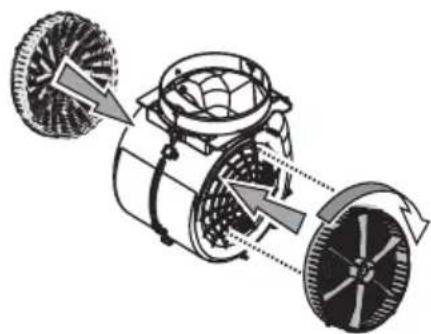

4.2 Charcoal filter - The charcoal filter becomes saturated after a period of use, more or less long, depending on the type of cooking and the frequency of grease filter cleaning. In any case, replace the cartridge at least every 4 months. The charcoal filter cannot be washed or regenerated.
5. CONTROL PANEL
The hood is equipped with a control panel for adjusting the speed of the extraction fan and for switching on the light to illuminate the cooking surface. Use the intensive speed mode of the hood in case of particularly high concentrations of cooking vapors. We recommend turning on the hood 5 minutes before starting the cooking process and leaving it on for about 15 minutes after the process is finished.
6. LIGHTING
Disconnect the appliance from the electrical supply.
Attention! Before touching the lamps, make sure they have cooled down.
Use only the specified 12V-20W max G4 lamps for this purpose, and do not touch them with your hands.
1 On/Off switch for lighting 2 Switch for motors 3 Minimum extraction capacity 4 Medium extraction capacity 5 Maximum extraction capacity
TO ACHIEVE OPTIMAL PERFORMANCE
www.aeg.com/productregistration
Use original spare parts, materials, and accessories for the appliance:
www.aeg.com/shop
ENVIRONMENTAL PROTECTION
www.aeg.com/productregistration
Designed, tested, and manufactured in accordance with:
- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
- Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301. EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.
Advice for correct use to reduce environmental impact:
Turn on the hood at minimum speed before starting to cook and leave it running for a few minutes after finishing cooking. Increase the speed in case of large amounts of smoke and steam, and use the boost function in extreme cases. To maintain high efficiency in odor extraction, replace the charcoal filter(s) when necessary. To maintain high efficiency of the grease filter, clean the grease filter(s) when necessary. Use the maximum diameter of the ducting system as indicated in the instructions to optimize efficiency and minimize noise.
CUSTOMER SERVICE AND AFTER-SALES SERVICE
Replacement parts are recommended to be used only by the manufacturer.
When contacting the service center, you must have the following information.
It can be found on the nameplate with technical data. Model, serial number, serial number.
Attention! Important technical safety information.
General information and recommendations
Information about environmental protection.
Data may be changed without prior notice.
1. TECHNICAL AND SAFETY INFORMATION
Carefully read the instructions in this manual. The manufacturer assumes no responsibility for damage, injury, or fire that may occur when using the device improperly, contrary to the instructions in this manual. The device is intended exclusively for household use.
Warning! Do not connect to the electrical network until the installation is completely finished. Before performing any cleaning or maintenance operation, disconnect the plug from the electrical network, removing the plug or turning off the main switch.
The device is intended for use by children or persons with limited physical, sensory, or mental capabilities or lack of experience and knowledge, unless they are supervised or instructed in the use of the device by a person responsible for their safety. Do not allow children to approach the device without supervision.
Do not use the device if the grid is not properly installed. The device must not be used on a support surface, only in the cases where this is stated. When using the device together with other appliances on gas or other fuels, the room must have sufficient ventilation. The air that is exhausted must be directed into the ventilation duct, if the device is used for exhausting fumes from gas or other fuel appliances. It is strictly forbidden to use the device under a fire. Using an open flame is dangerous for the device and may cause a fire, so it is necessary to avoid its use in any case.
The device must be checked regularly to avoid the risk of fire.
Warning! The accessible parts may become hot when used together with other appliances.
Regarding the use of technical rules and safety rules for the device, it is necessary to comply with the standards required by local authorities. The device must be
The appliance must be connected to the mains, grounded, and installed in such a way (at least once a year) that all instructions described in its manual can be performed in any situation.
Improper replacement of filters and filter elements may cause a risk of damage.
Do not use or start the appliance without properly installed lamps, due to the possible risk of electric shock.
The manufacturer is not responsible for malfunctions, damage, or injuries caused by the appliance as a result of improper use or failure to follow the instructions in this manual.
Warning! The absence of installed devices and mounting details may lead to a risk of electric shock.
2. USE
The hood serves for ventilation of the room and removal of vapors formed during cooking.
The instructions provided indicate how you can use your hood with the included
carbon filters or hood without
internal recirculation.
3. INSTALLATION
The voltage in the electrical network must correspond to the characteristics indicated on the label located inside the hood. If the plug is included in the kit and is suitable for the socket, connect the hood to a socket that meets current standards and is accessible after installation. If the plug is not included in the kit (intended for direct connection to the electrical network) or the socket is not accessible after installation, install a reliable two-pole switch that ensures complete disconnection from the network under conditions of overvoltage category III, in accordance with installation rules.
Warning! Before reconnecting the hood to the electrical network, check the correctness of the work, and make sure that the network switch is installed correctly.
The distance between the lower part of the hood and the cooking surface must be at least 45 cm for electric hobs and 50 cm for gas and combination hobs.
It is necessary to take into account the distance specified in the instructions for installing the gas hob.
4. MAINTENANCE AND CLEANING
!Warning! Before performing any maintenance or cleaning operations, disconnect the hood from the electrical power supply, either by unplugging it or by switching off the main switch.
The hood must be cleaned both externally and internally (at least every 3 months, or more frequently depending on the filters for grease retention). For cleaning, use a special cloth, preferably dampened with a mild detergent. Do not use abrasive materials. DO NOT USE ALCOHOL!
!Warning! Failure to follow the instructions for cleaning and replacing filters may lead to a risk of fire. Therefore, we recommend adhering to the provided instructions. The manufacturer declines all responsibility for any damage or fires resulting from improper maintenance or failure to follow the above instructions.
4.1 Grease filter
The filter should be cleaned once a month with mild cleaning agents, either by hand or in a dishwasher at low temperatures and with a short cycle. When washing the metal grease filter in a dishwasher, it may lose its shine, but its filtering characteristics will not be altered.

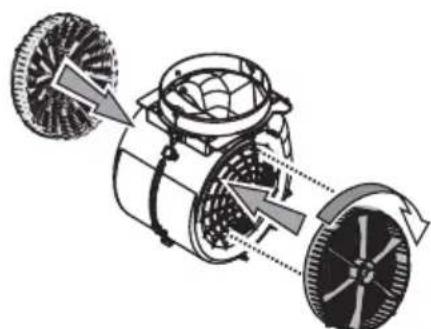

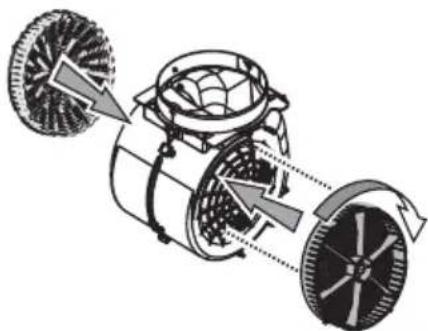

4.2 Charcoal filter, NOT WASHABLE
The charcoal filter should be checked for saturation after a longer period of use, depending on the type of cooking and the frequency of cleaning the grease filter. In any case, it is necessary to replace the cartridge at least every four months. DO NOT WASH OR REUSE.
5. CONTROL ELEMENTS
The hood is equipped with a control panel with suction speed control and light control for illuminating the cooking surface. Use intensive suction when cooking with high concentrations of kitchen vapors. We recommend turning on the hood 5 minutes before starting to cook and leaving it on for 15 minutes after finishing cooking.

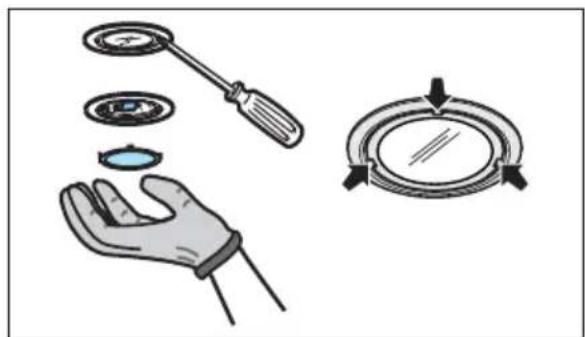

6. LIGHTING DEVICE
Disconnect the device from the electrical power supply.
!Warning! Before touching the lamp, make sure it has cooled down.
Use only halogen lamps of 12V - 20W max G4, do not touch them with your hands.
1 ON/OFF light
2 OFF DBNHyH
3 Minimum wetness level
4 Average wetness level
5 Maximum wetness level
Maximum
IN THE INTEREST OF YOUR SAFETY
www.aeg.com/productregistration
www.aeg.com/productregistration
You can purchase accessories, consumables and original spare parts for your appliance at:
www.aeg.com/shop
ENVIRONMENT PROTECTION
www.aeg.com/productregistration
www.aeg.com/productregistration
DO NOT USE ALCOHOL!
! Caution: Failure to follow the cleaning rules for the appliance and the rules for replacing filters increases the risk of fire. Therefore, it is recommended to follow the suggested instructions.
Register your product for better service: www.aeg.com/productregistration
Buy accessories, consumables and original spare parts for your appliance: www.aeg.com/shop
ENVIRONMENT PROTECTION
Recycle materials with the symbol . Put the packaging in the relevant containers for recycling.
Help protect the environment and human health, as well as to recycle waste from electrical and electronic appliances. Do not dispose of appliances marked with the symbol
with the household waste. Return the product to your local recycling facility or contact your municipal office.
The appliance is designed, tested and manufactured in accordance with:
- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
- Performance characteristics: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
- EMC - Electromagnetic compatibility: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.
Suggestions for correct use to reduce the impact on the environment: Switch on (ON) the extractor at minimum speed when you start cooking and leave it to work for a few minutes after cooking is finished. Increase the speed only in case of a large amount of fumes and steam and use the boost speed only in extreme situations. Replace the filter/ grease filter with an active carbon filter when necessary, to maintain good efficiency of odour reduction. Clean the filter/ grease filter regularly, when necessary, to maintain good efficiency of the grease filter. Use the maximum diameter of the air exhaust system, indicated in this manual, to optimize efficiency and reduce noise.
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When you contact the Service department, you must have the following information at hand. You can find it on the rating plate. Model, PNC (Product Number), Serial Number.
！Warning/Attention - Important safety information. General information and tips for environmental protection.
The manufacturer reserves the right to make changes without prior notice.
1. SAFETY INSTRUCTIONS
Warning! Strictly follow these operating instructions. The company is not responsible for any malfunctions, damage, or injuries to the device resulting from failure to follow the instructions in this manual. The appliances are intended for household use only.
Warning! Do not connect the appliance to the mains if its installation is not completely finished. Before any operation of connection or disconnection, the appliance must be disconnected from the mains, when the appliance is removed or when the main switch of the household is switched off.
For any operation of installation and technical maintenance, use the working instructions.
The appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Never use the appliance if the filter is not correctly installed! The appliance must never be used as a working surface, unless this is specifically indicated.
The room must have good ventilation when the kitchen hood is used simultaneously with other appliances using gas or other fuels. The extracted air must not be discharged through a flue used for exhausting fumes from appliances burning gas or other fuels.
Strictly forbidden is the use of open flames under the hood.
The use of open flames during filtering may cause a fire; therefore, absolutely avoid it. Frying must be done under supervision to avoid ignition of the oil.
Warning! The accessible parts may become significantly hot when used together with gas appliances. Regarding the technical safety measures for the discharge of fumes, strictly follow the
regulations of the competent authorities.
The hood must be cleaned regularly, both inside and outside (at least once a month, always following the instructions for maintenance given in this manual). Failure to follow the cleaning instructions for the hood and the replacement and cleaning of the filters may lead to a fire hazard. Do not use or leave the hood without correctly installed lamps! Danger of electric shock! The company assumes no responsibility for any malfunction, damage, or fire caused to the device as a result of failure to follow these instructions.
Warning! Failure to perform the installation of the screws of the fixing mechanism in accordance with these instructions may lead to risks of electric shock.
2. USE
The hood can be operated in three modes. The instructions include a diagram with instructions for the version suitable for your model, choose between the modes.
Recirculation mode and extraction mode.
3. INSTALLATION
The voltage of the mains must correspond to the voltage indicated on the rating plate of the hood, located on the inside. If the hood is equipped with a plug, connect it to a socket that complies with current standards and place it in an accessible position after installation. If it is not equipped with a plug (direct connection to the mains), or if the plug is not in an accessible position after installation, use a two-pole switch that complies with the standards, ensuring that the mains is completely disconnected in case of overvoltage category III, in accordance with installation regulations.
Warning! Before connecting the hood to the mains and checking that it functions correctly, check that the cable is installed as required.
The minimum distance between the surface on which the cooking vessels are placed and the lower part of the kitchen hood must be not less than 45 cm in the case of electric cookers and not less than 50 cm in the case of gas or combination cookers. If the instructions for the gas cooking appliance specify a greater distance, this must be respected.
4. MAINTENANCE
Warning! Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or switching off the main switch of the dwelling.
The hood must be cleaned frequently (at least as often as the filters are cleaned), both inside and outside. Use a damp cloth and neutral liquid cleaning agents. Avoid products containing abrasive parts. Warning! Never use a steam cleaner!
Warning! Failure to follow the cleaning instructions for the hood and the replacement of the filters may lead to fire risk. Strictly follow the instructions provided!
No responsibility is accepted for any damage to the motor or fire caused by improper maintenance or failure to follow the instructions.
4.1 Grease filter
Clean it monthly with neutral detergents. It can also be washed in a dishwasher at low temperature and with a short washing cycle. When washing the grease filter in a dishwasher, it may become discolored, but this does not affect its filtering capacity.
4.2 Activated carbon filter: The activated carbon filter becomes saturated after approximately 3-6 months of use, depending on the type of cooking and how often you clean the filter. In any case, it is necessary to replace the activated carbon filter every four months or when the filter saturation indicator shows that it is necessary. It cannot be washed or reused.
5. CONTROLS
The extractor hood is equipped with a control panel with the possibility to adjust the speed of the extractor and to switch on the lighting of the hob. If a lot of steam is produced during cooking, use the maximum operating mode. It is recommended to switch on the extractor 5 minutes before starting to cook and to leave it running for about 15 minutes after switching off.
6. LIGHTING
Disconnect the appliance from the mains.
Warning! Before touching the bulb, make sure it has cooled down.
Use only halogen lamps 12V, max 20W-G4, being careful not to touch them with your fingers.
1 ON/OFF of the lights 2 Switch off (OFF) of the motor 3 Suction power minimum 4 Suction power medium 5 Suction power maximum
Thank you for purchasing an AEG appliance. This modern, innovative technology product will provide you with excellent performance and functionality. We have designed it with high quality materials to serve you for many years. Please read the instructions carefully before using the appliance.
Visit our website to see the latest models:
For customer service, spare parts, or to register your appliance:
www.aeg.com
For the best service and to register your product, visit:
www.aeg.com/productregistration
To buy accessories, consumables and original spare parts for your appliance:
www.aeg.com/shop
DO NOT OPERATE THE APPLIANCE WITHOUT PROPER MAINTENANCE
We recommend that you have the appliance serviced regularly. For servicing, contact the service center.
To avoid the risk of electric shock and fire, do not allow the appliance to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Do not use the appliance if it is damaged. Do not use the appliance with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use the appliance if it has been dropped, damaged, or left outdoors.
- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
- Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. For the appliance to operate efficiently, it must be installed correctly and used in accordance with the instructions. The appliance should be used only for the purpose for which it was designed, and any other use may be considered hazardous.
If the appliance is not working properly, contact the service center. If the appliance is not working properly, contact the service center. For any repairs, use only the maximum diameter of the ducting as specified in the instructions.
SERVICE
Follow the manufacturer's instructions.
Contact the service center for any repairs. The repair should be carried out by a qualified technician. The appliance should be disconnected from the power supply before any repair work.
WARNING: Do not use the appliance without proper maintenance.
The appliance is intended for household use.
The appliance is intended for indoor use.
Do not use the appliance without supervision.
The safety instructions and warnings in this manual must be followed to prevent injury and damage. The manufacturer is not liable for damage caused by improper use.
Caution! When connecting the appliance to the power supply, ensure that the voltage matches the rating plate. Do not use the appliance if the power cord or plug is damaged.
Always disconnect the appliance from the power supply before cleaning and maintenance. Do not allow children or persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, to use the appliance unless they are supervised or instructed. Keep children under supervision to ensure they do not play with the appliance. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
When using the appliance with an extension cord or another multi-socket outlet, ensure that the total power consumption does not exceed the rated capacity of the extension cord or the multi-socket outlet. The extension cord or multi-socket outlet must be suitable for the appliance's power rating.
The instructions for use in this manual are based on standard conditions. If the appliance is used in a way that deviates from these conditions, the performance may be affected, and the manufacturer is not liable for any resulting damage.
The appliance may become hot during use. Keep it away from flammable materials.
Caution! When using the appliance with other devices, the accessible parts may become hot.
Technical data and safety instructions for technical use
Please observe the specified maintenance intervals.
The appliance must be cleaned regularly both inside and out (according to the instructions in this manual). Failure to clean the appliance and its filters may lead to malfunctions.
Do not immerse the appliance in water or any other liquid, and do not rinse it under running water.
When using the appliance, follow the instructions in this manual to prevent injury and damage. The manufacturer is not liable for damage caused by improper use.
Caution! Do not place the appliance near heat sources or open flames, as this may cause electric shock or fire.
2. INSTALLATION
The hood must be installed at the distance specified in the instructions. The distance between the lower part of the hood and the cooking surface must be at least the distance indicated in the instructions.
The hood's exhaust pipe must be connected to a ventilation duct or directly to the outside.
3. OPERATION
Before connecting the hood to the mains, check that the technical characteristics correspond to the values indicated on the data plate. If the hood is equipped with a power cord, it must be connected to a socket with an earth connection. If the hood is not equipped with a power cord (direct connection), or if the socket is not suitable, contact a qualified technician for proper installation and connection.
Warning! Before connecting the hood to the mains, ensure that the power cord is not damaged.
The hood must be installed at a distance of at least 45 cm from the cooking surface for electric hobs, and at least 50 cm for gas or mixed hobs. If the installation instructions specify a greater distance, follow that.
4. MAINTENANCE
Warning! Before cleaning or performing maintenance, disconnect the hood from the mains by unplugging it or switching off the main switch. Clean the hood regularly, both inside and outside (at least once a month). Do not use abrasive sponges or harsh cleaners. Do not use steam cleaners. Do not use flammable substances.
Warning! Failure to follow the cleaning and maintenance instructions may result in a fire hazard. Follow the instructions provided.
The manufacturer declines all responsibility for any damage caused by improper use or failure to follow the instructions.
4.1 Cleaning the metal grease filter
The metal grease filter must be cleaned regularly, at least once a month, using a mild detergent or in a dishwasher at low temperature. The filter may become discolored after washing in a dishwasher, but this does not affect its performance.
4.2 Replacing the charcoal filter (if installed) The charcoal filter must be replaced when it is saturated, approximately every 3-4 months, or more frequently if the hood is used intensively. The charcoal filter cannot be washed or regenerated.
5. CONTROL ELEMENTS
We have tested the device and confirmed that it operates correctly. The concentration of the substance is within acceptable limits, and the recommended parameters have been followed. We have not allowed the substance to come into contact with food, and we have not allowed it to be used for 15 minutes after cleaning.
6. INSTALLATION INSTRUCTIONS
Connect the appliance to the electrical supply
Warning! Before installing, disconnect the power supply. Only use 12V-20V max. halogen lamps. Do not touch the lamps with bare hands.
1 Remove the protective cover 2 Remove the motor cover 3 Minimum water level 4 Optimum water level 5 Maximum water level
FOR BEST RESULTS
Thank you for choosing this AEG product. We have designed it to provide you with excellent performance and innovative technology. Please read the instructions carefully before using the appliance. We hope you enjoy using it.
Visit our website to:
Get useful tips, brochures, troubleshooting guides, and service information: www.aeg.com
Register your product for better service: www.aeg.com/productregistration
Buy accessories, consumables, and original spare parts for your appliance: www.aeg.com/shop
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol. Place the packaging in the appropriate containers to recycle it.
Help protect the environment and human health by recycling waste electrical and electronic appliances. Do not dispose of appliances marked with the symbol with household waste. Return the product to your local recycling facility or contact your municipal office.
The appliance is designed, tested, and manufactured according to:
- Standards: EN/IEC (ckp) 60335-1; EN/IEC (ckp) 60335-2-31, EN/IEC (ckp) 62233.
- Performance: EN/IEC (ckp) 61591; ISO (ckp) 5167-1; ISO (ckp) 5167-3; ISO (ckp) 5168; EN/IEC (ckp) 60704-1; EN/IEC (ckp) 60704-2-13; ISO (ckp) 3741; EN (ckp) 50564; IEC (ckp) 62301.
- EMC (ckp): EN (ckp) 55014-1; CISPR (ckp) 14-1; EN (ckp) 55014-2; CISPR (ckp) 14-2; EN/IEC (ckp) 61000-3-2; EN/IEC (ckp) 61000-3-3.
Proper use to minimize the impact on the environment: Turn off the extractor at minimum speed of the exhaust and leave it running for a few minutes after cooking. Set the speed only in case of large amounts of fumes and use the intensive speed in rare situations. Replace the active carbon filter when necessary to maintain the efficiency of odor reduction. Clean the grease filter when necessary to maintain its efficiency. Use the maximum diameter of the exhaust system indicated in this manual to optimize efficiency and minimize noise.
CARE AND SERVICE FOR USERS
We recommend using original spare parts.
When contacting the Service, make sure you have the following data available.
The information can be found on the rating plate. Model, product number, serial number.
Warning / Attention - Safety information.
General information and advice.
Information about the environment.
Possibility of changing the setting.
1. IMPORTANT SAFETY INSTRUCTIONS
Attention! Follow strictly the instructions given in this manual. The manufacturer is not liable for any problems, damage, or fire caused by the appliance as a result of failure to follow the instructions included in this manual. The extractor is intended exclusively for domestic use.
Warning! Do not connect the appliance to the electrical power supply until the installation is completely finished. Before any cleaning or maintenance operation, disconnect the extractor from the electrical mains by pulling the plug or by switching off the household circuit breaker.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Never use the extractor hood without the correctly mounted filter!
The extractor hood must never be used as a support surface unless explicitly stated. The room must be sufficiently ventilated when the extractor hood is used in conjunction with appliances that burn gas or other fuels.
The extracted air must not be discharged into an active flue used for exhausting fumes from appliances burning gas or other fuels. Grilling over an open flame is only permitted with the extractor hood. The use of open flames is harmful to the filters and may cause a risk of fire or burns. This must be avoided in all circumstances. Any frying must be done carefully to ensure that the oil does not overheat and catch fire.
Warning! Accessible parts may become hot when used with cooking appliances.
Regarding the technical safety measures for the discharge of air, it is important to pay attention
to follow the regulations given by the competent authorities. The extractor hood must be cleaned regularly both internally and externally (at least once a month, and in any case it must be serviced in accordance with the maintenance instructions in this manual). Failure to follow the instructions regarding the hood and the filter system may lead to a risk of fire. Do not use or leave the extractor hood without the correctly mounted filters. There is a risk of electric shock. We decline all liability for malfunctions, damage or fires caused by the appliance as a result of failure to follow the instructions included in this manual.
Warning! Failure to mount the screws or the fixing device in accordance with these instructions may result in electrical hazards.
2. USE
The extractor hood is used for extracting vapors and odors from cooking. The installation instructions show which version can be used for the model you have: the version with external discharge of the extracted air or the version with recirculation filter.
3. INSTALLATION
Main switch Before connecting the appliance to the power supply, check the rating plate for the voltage. If the appliance is connected to the power supply, disconnect it from the socket in accordance with the installation instructions and the safety instructions. If it is connected to the power supply (direct connection to the electrical supply) or if the connection is not made to a permanent place, and in accordance with the installation instructions, use a bipolar switch in accordance with the standards that require complete disconnection from the electrical supply under conditions related to overvoltage category III, in accordance with the installation instructions.
Warning! Before reconnecting the appliance to the electrical supply and checking its functionality, always check that the power cable is correctly installed.
The minimum distance between the hob and the cooker hood must be at least 45 cm for electric cookers and 50 cm for gas or combined cookers. If the installation instructions for the gas hob specify a greater distance, you must comply with that.
4. MAINTENANCE
Warning! Before
Before any cleaning or maintenance operation, disconnect the appliance from the electrical supply by pulling the power plug or by switching off the household circuit breaker.
The appliance must be cleaned regularly (at least with the same frequency with which the grease filters are cleaned) both internally and externally. For cleaning, use a soft cloth with mild neutral detergents. Do not use products containing abrasives. DO NOT USE
ALCOHOL! Warning! If the instructions for cleaning the appliance and replacing the filters are not followed, there is a risk of fire. It is recommended to follow the provided instructions.
The manufacturer is not responsible for any damage or fire caused by improper maintenance or failure to follow the instructions.
4.1 GREASE FILTER
The metal grease filter must be cleaned once a month with non-aggressive detergents, either by hand or in a dishwasher at low temperatures or in a short cycle. When washing in a dishwasher, the metal grease filter may lose its shiny appearance, but its filtering characteristics will not change.
www.aeg.com/productregistration
Buy original accessories, consumables and spare parts for your appliance:
www.aeg.com/shop
ENVIRONMENTAL CONCERNS
Repairs should only be carried out by a qualified person in accordance with the relevant regulations.
Help protect the environment and human health as well as repair the appliance.
Materials from electronic and electrical devices. Do not dispose of devices marked with this symbol together with household waste. Return the product to your local collection point for recycling or contact your municipal waste disposal facility.
The appliance has been designed, tested and manufactured in accordance with:
- Safety standards: EN / IEC 60335-1; EN / IEC 60335-2-31, EN / IEC 62233.
- Performance standards: EN / IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN / IEC 60704-1; EN / IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN / IEC 61000-3-2; EN / IEC 61000-3-3.
Tips for correct use to reduce environmental impact:
Run the extractor at minimum speed when cooking and keep it running for a few minutes after cooking is finished. Increase the speed only in case of large amounts of smoke and steam and use the boost speed (if available) only in extreme situations.
Replace the filter(s) only when necessary to maintain efficient removal of unpleasant odors. Clean the filter(s) for grease removal when necessary to maintain good performance of the same filter. Use the maximum diameter of the ducting system specified in this manual to optimize performance and reduce noise.
CARE AND MAINTENANCE
We recommend that you use original spare parts.
When contacting service, please check that you have the following information. Information can be found on the rating plate with technical characteristics. Model, product number (PNC), serial number.
Warnings/instructions - safety instructions.
Read the information on the website.
HOpmaunje O 3aHTTN JINBOTHe CpeDInHe.
NoJnoXhe cy npomeHama 6e3 npetXoIHe HajaBe.
1. Safety Instructions
Warning! Strictly follow the instructions contained in this manual. We disclaim any responsibility for possible injuries, damage, or fire caused by the appliance if the instructions in this manual are not followed. This appliance is designed exclusively for household use.
Warning! Do not connect the appliance to the electrical mains until you have completely finished with the installation. Before any maintenance or cleaning procedure, disconnect the appliance from the electrical mains to avoid injury or to avoid damaging the appliance.
Children or persons with reduced mental, physical, or sensory capabilities, and those who lack experience or sufficient knowledge, must not use this appliance unless they are under the supervision of persons responsible for their safety or have been instructed by those persons on how to use this appliance. It is mandatory to supervise children to ensure they do not play with the appliance. Never use the appliance without properly installing the filter! The appliance must never be used as a surface for placing or resting objects unless explicitly stated. The space where the appliance is to be installed must have good ventilation when the appliance is used together with other appliances that use gas or other fuels. The exhaust air must not be vented into flues used for exhaust fumes from appliances that use gas or other types of fuel. Strictly forbid cooking food over the open flame under the appliance. The use of uncontrolled flames is harmful and can lead to fire, so it should be avoided in any case. During cooking, control that the food is not overcooked.
Warning! Parts that are accessible can become hot when used together with cooking appliances.
Regarding technical safety measures that must be taken and that relate to the evacuation of fumes, strictly follow the regulations of local
authorities. The appliance must be cleaned frequently, both inside and outside (at least once a month), follow the instructions for maintenance given in this manual. Failure to follow the rules for cleaning the appliance and therefore not cleaning the filters increases the risk of fire. Do not use or leave the appliance without properly installed lamps because there is a risk of electric shock. We disclaim any responsibility for possible injuries, damage, or fire caused by the appliance if the instructions in this manual are not followed.
Warning! If you do not install these grilles and fasteners in accordance with these instructions, it can lead to electrical danger.
2. OPERATION
The appliance is intended for suction of cooking vapors, for domestic use. In the instructions, it is specified, in which version you can use your model -
Plug the appliance into a wall socket with a protective earth contact or into a wall socket with an internal fuse.
noBirp
3. INSTALLATION
Before use, check that the appliance is on the label with the characteristics and that it is in the interior of the aspirator. If there is a point of the aspirator with a chimney that is in accordance with the regulations in force and that is placed in the appropriate place, then after installation.
If the aspirator is without a chimney, (direct connection to the network) and the chimney is not provided and is in the appropriate place, then after installation, install a double-pole switch that ensures complete disconnection from the network in the conditions of category II overvoltage, in accordance with the installation rules.
! Warning! Before you connect the aspirator to the electrical network again, check the correct operation, make sure that the network cable is mounted correctly.
The minimum distance between the surface that serves for placing the pots on the device for cooking must not be less than 45 cm when it is about electric cookers and 50 cm when it is about cookers on gas or mixed. If the instructions for installing the device for cooking on gas indicate a greater distance, you must follow those instructions.
4. MAINTENANCE
! Warning! Before any operation of cleaning or maintenance, disconnect the aspirator from the power supply in a way that you disconnect the plug from the socket or disconnect the main switch or the switch. The aspirator should be cleaned often (at least as often as you clean the filter for absorbing grease), either from the inside or from the outside. For cleaning, use a soft cloth and neutral detergents. Avoid the use of products that need. DO NOT USE ALCOHOL!
! Warning! Non-compliance with the rules about cleaning the device and the rules about replacing the filter increases the risk of fire. Therefore, we advise you to follow the given instructions. We disclaim any responsibility for eventual damages caused to the motor, fire that is a consequence of incorrect maintenance or non-compliance with the given warnings.
www.aeg.com/productregistration
www.aeg.com/shop
1
J 1
a 1
A
EN/IEC 62233, EN/IEC 60335-2-31, EN/IEC 60335-1:
EN/IEC 60704-1, ISO 5168, ISO 5167-3, ISO 5167-1, EN/IEC 61591:
EN 55014-1, IEC 62301, EN 50564, ISO 3741, EN/IEC 60704-2-13
EN/IEC 61000-3-3, EN/IEC 61000-3-2, CISPR 14-2, EN 55014-2, CISPR 14-1
i 1
c loaII
a
: sylglll lglal g jsi y si aolly Juiyliie
PNC 1
aodally aiaia aiaai / ay jia ciolo
Lolaljale Llo gao
a. a. c. l.o.g.
C E
- FOR PERFECT RESULTS
- VISIT OUR WEBSITE TO
- ENVIRONMENT CONCERNS
- CUSTOMER CARE AND SERVICE
- SAFETY INSTRUCTIONS
- USE
- INSTALLATION
- MAINTENANCE
- CONTROLS
- LIGHTING
- SAFETY
- OPERATION
- CONTROL PANEL
- TO ACHIEVE OPTIMAL PERFORMANCE
- ENVIRONMENTAL PROTECTION
- CUSTOMER SERVICE AND AFTER-SALES SERVICE
- TECHNICAL AND SAFETY INFORMATION
- MAINTENANCE AND CLEANING
- GREASE FILTER
- CHARCOAL FILTER, NOT WASHABLE
- CONTROL ELEMENTS
- LIGHTING DEVICE
- IN THE INTEREST OF YOUR SAFETY
- ENVIRONMENT PROTECTION
- DO NOT OPERATE THE APPLIANCE WITHOUT PROPER MAINTENANCE
- SERVICE
- CLEANING THE METAL GREASE FILTER
- INSTALLATION INSTRUCTIONS
- FOR BEST RESULTS
- ENVIRONMENTAL CONCERNS
- CARE AND SERVICE FOR USERS
- IMPORTANT SAFETY INSTRUCTIONS
- WARNING! BEFORE
- CARE AND MAINTENANCE
Brand : AEG
Model : AWS8440AW
Category : Refrigerator
