USER MANUAL K5657 Calypso

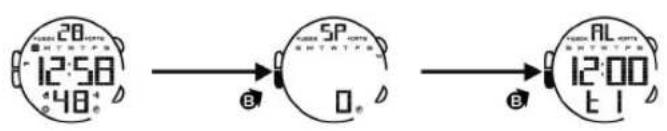

3. HOW TO DISPLAY CALENDAR

eannnnnne

NORMAL TIME CHRONOGRAPH ALARM

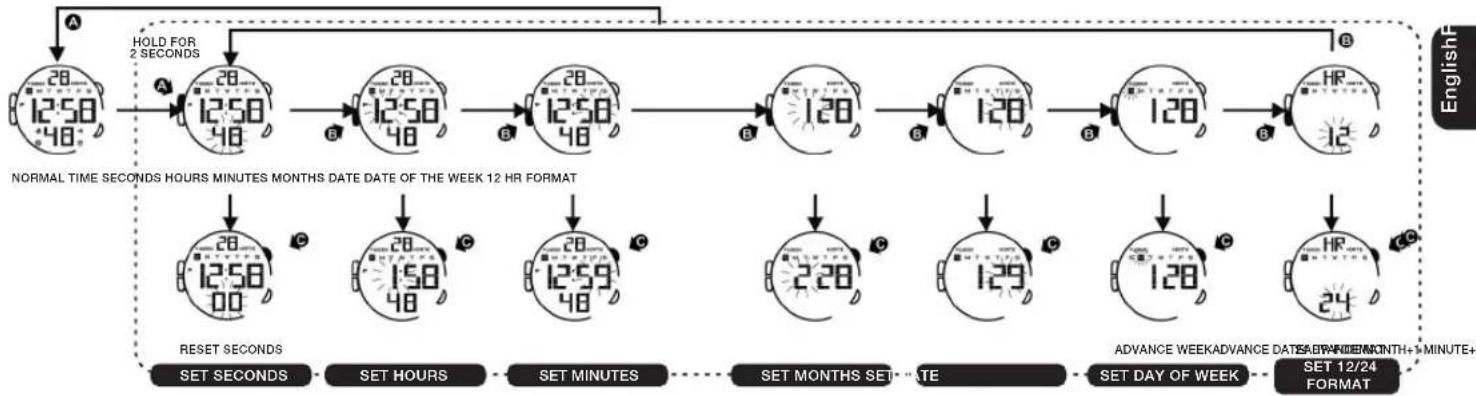

4. HOW TO SET NORMAL TIME

eannnnnne

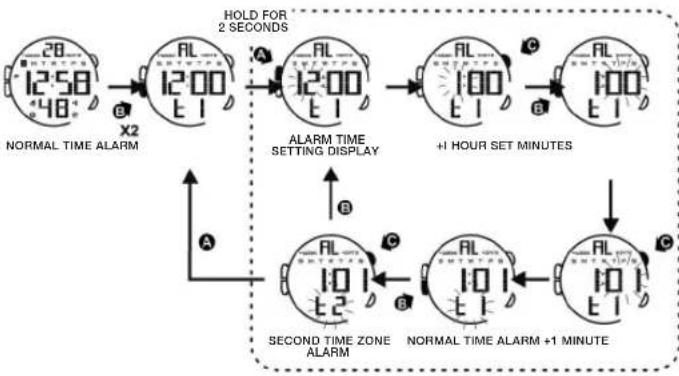

5. HOW TO SET ALARM TIME

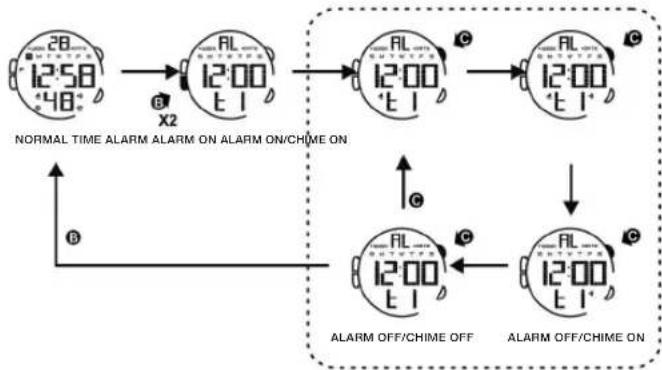

6. HOW TO USE ALARM AND CHIME DISPLAY

eannnnnne

22

23

Ennne

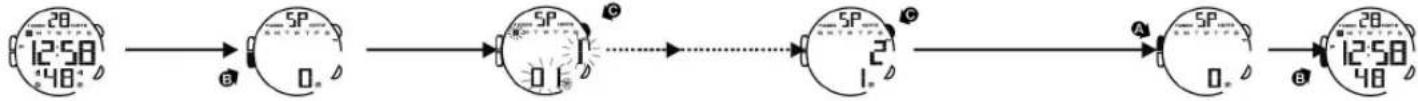

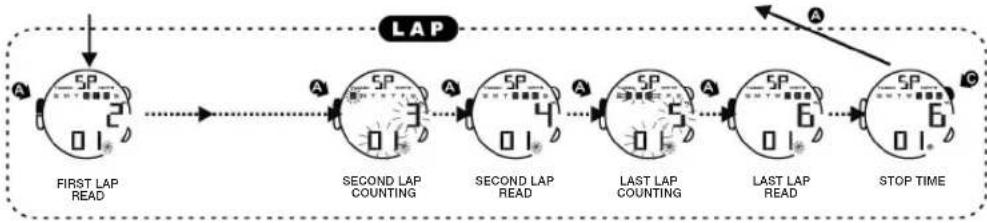

7. HOW TO USE THE CHRONOGRAPH

eannnnnne

eannnnnne

BEFORE 30 MINUTES

1/10 SECONDS

30 MINUTES

SECONDS

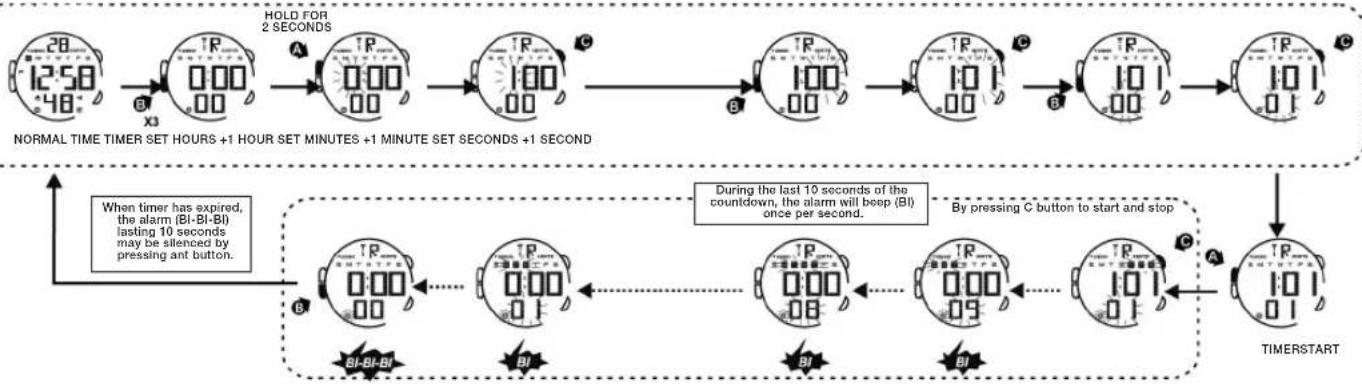

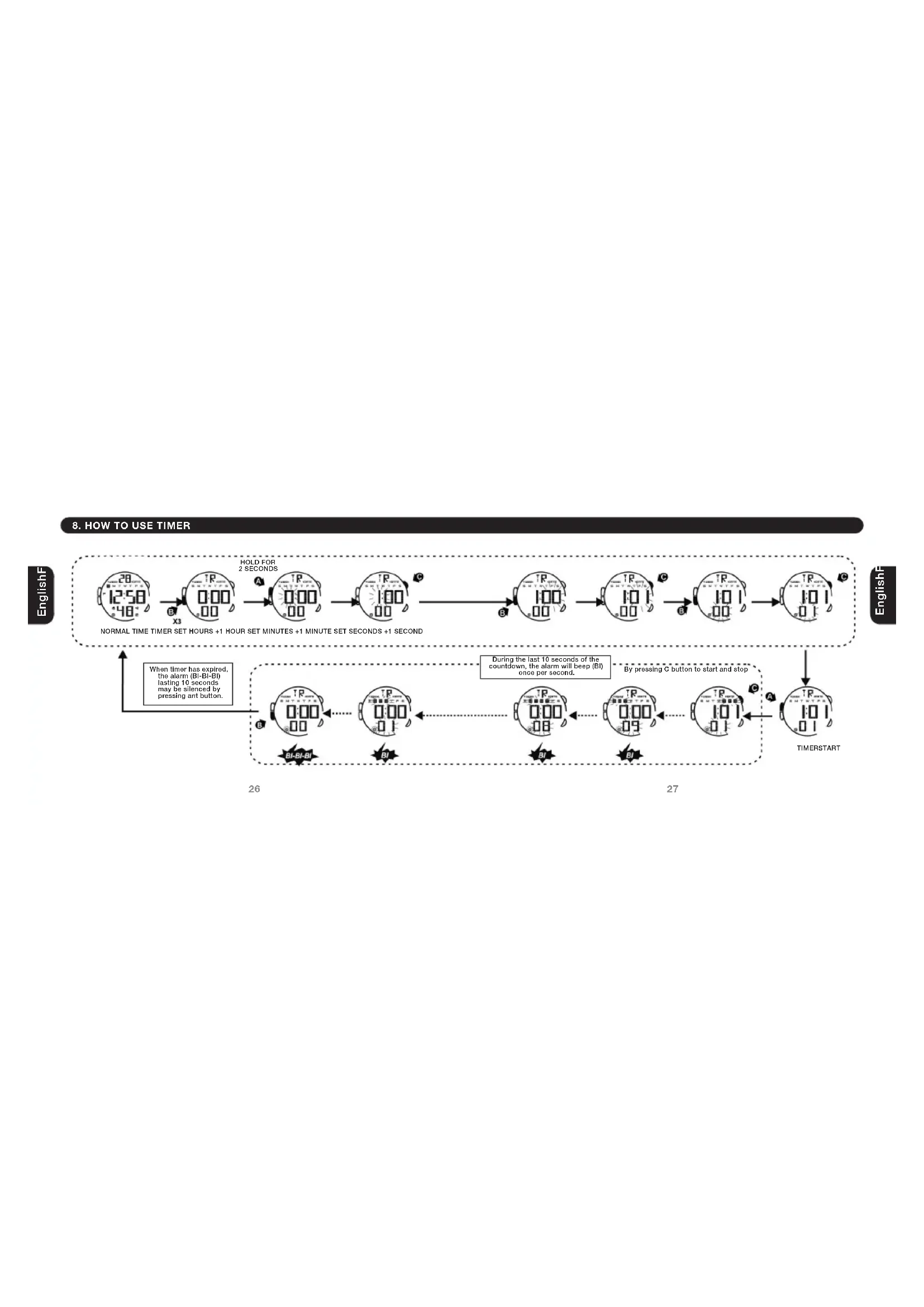

8. HOW TO USE TIMER

eannnnnne

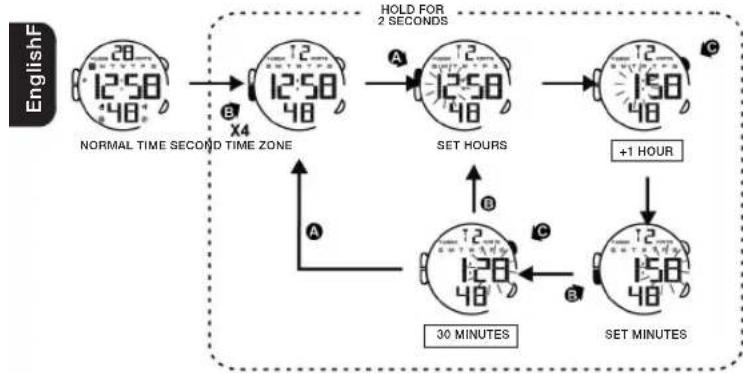

9. HOW TO SET SECOND TIME ZONE

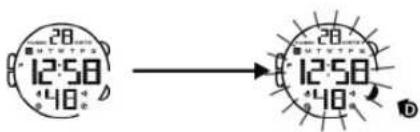

10. HOW TO USE EL LIGHT

28

NOTE:

1) The backlight of the watch employs an electro-luminescent (EL) light, watch tends to lose illuminating power after very long use.
2) The illumination provided by backlight may be hard to see when viewed under direct sunlight.

29

11. CARE OF YOUR WATCH

1) This watch contains precise electronic components. Never attempt to open the case or remove the back cover.
2) Do not operate push buttons below the surface of the water when swimming or diving.
3) Should water or condensation appear in the watch, immediately have the watch checked. Water can corrode electronic parts inside the case.
4) Avoid severing impact: The watch is designed to with stand impact under normal use. It is inadvisable to subject it to severe impact of rough usage or drops onto hard surfaces.
5) Avoid exposing the watch to temperature extremes.
6) Clean the watch with a soft cloth and clean water only. Avoid using chemicals, especially soap.
7) Keep your watch away from the conditions of strong electric field and static electricity.

12. FEATURES AND SPECIFICATIONS

1) Standard display mode: Hour, minutes, seconds, month, day of week.

2) Function:

• Month, date AM/PM and Electro-Luminiscent light.
• Alarm function with buzzer signal output.
• Chronograph function with lap operation.
• Hourly chime.
  12/24 hour format switch option.
• Timer.
  Second time zone.

3) Accuracy at normal temperature (25^) : ± 30 seconds a month.
4) Normal operating temperature range: 10^ - 40^

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may

therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

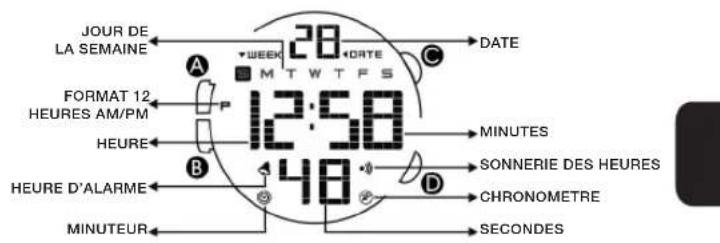

1. AFFICHAGE NORMALE ET BOUTON D'UTILISATION

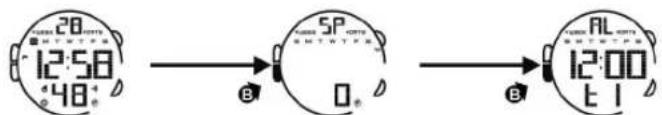

2.COMMENT CHANGER LE MODE D'AFFICHAGE

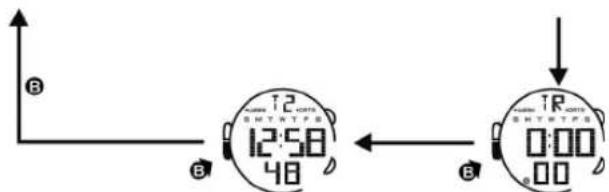

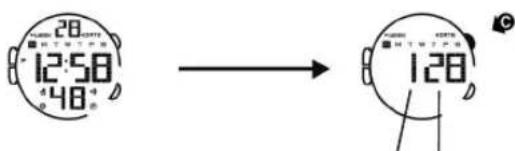

3. COMMENT AFFICHER LE MOIS, LA DATE

HEURE NORMALE CHRONOMETRE ALARME

DEUXIEME ZONE D'HEURE MINUTEUR

34

HEURE NORMALE MOIS DATE

35

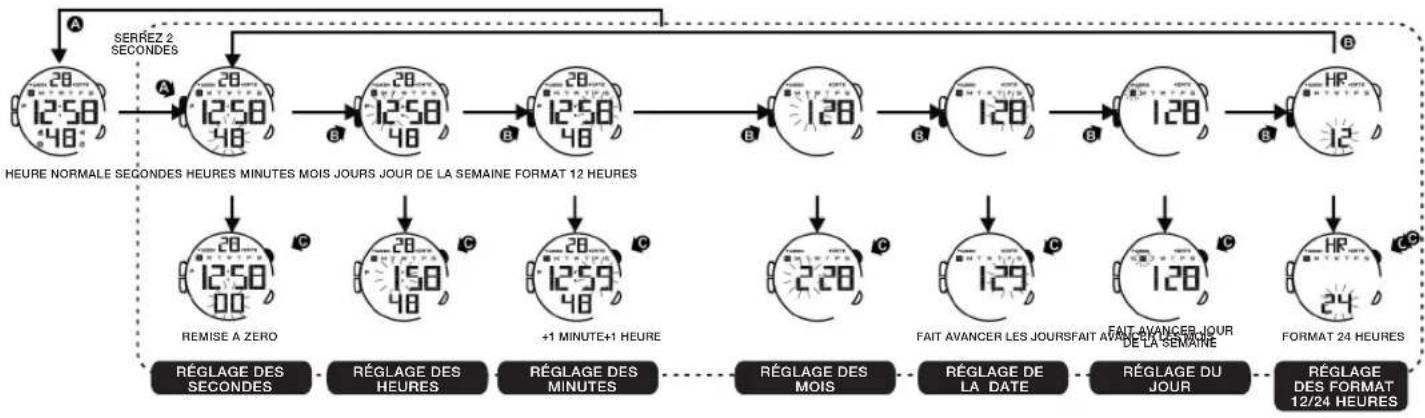

4.COMMENT RÉGLER L'HEURE NORMALE

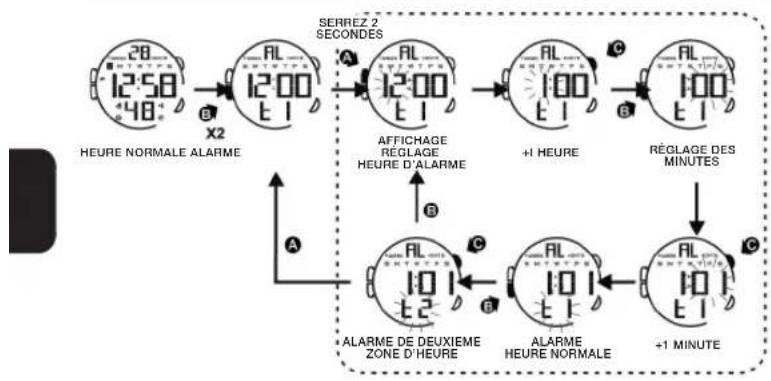

5. COMMENT REGLER L'ALARME

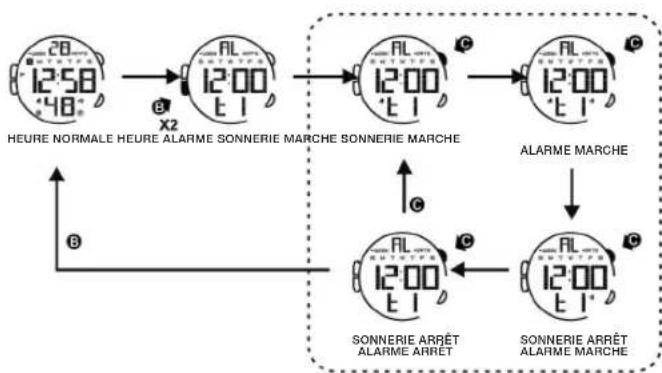

6. COMMENT UTILISER L'AFFICHAGE ALARME ET CARILLON

38

39

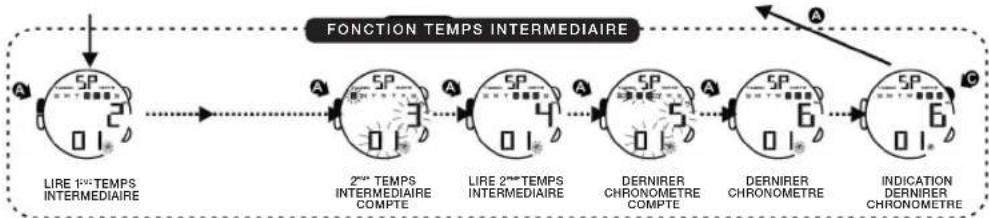

7.COMMENT UTILISER LE CHRONOMETRE

HEURE NORMALE CHRONOMÉTURE DEMARRAGE EN RONCTION ARRÉT REMISE À ZERO HEURE NORMALE

AVANT 30 MINUTES A
1/10 SECONDES

30 MINUTES
MINOTES

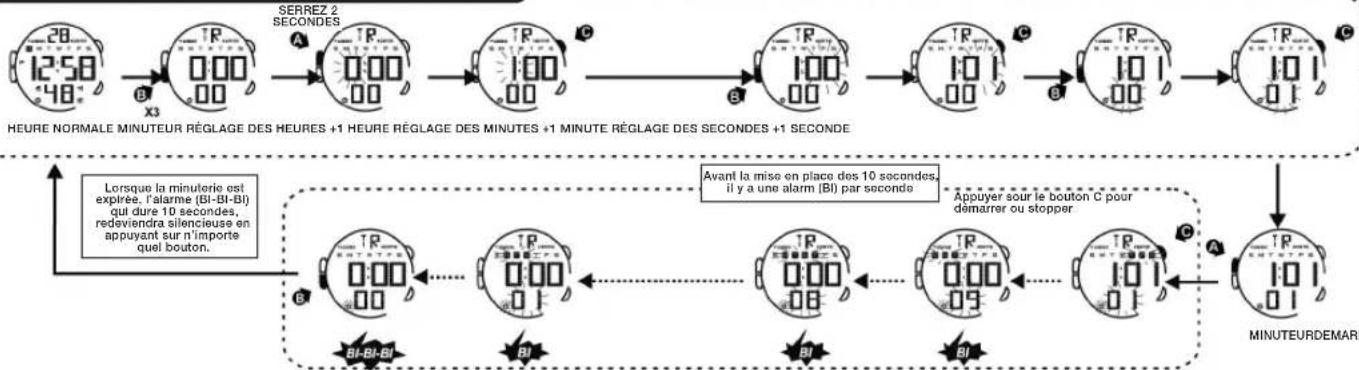

8. POUR UTILISER LE MINUTEUR DU COMPTE A REBOURS

POUR REGLER LE MINUTEUR DE COMPTE A REBOURS

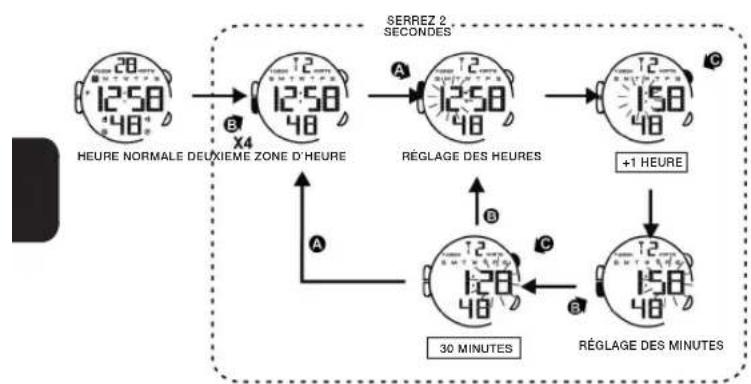

9.COMMENT REGLER L'HEURE D'UNE DEUXIEME ZONE

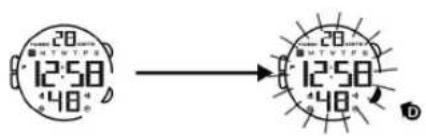

10. COMMENT ALLUMER LA LUMIÈRE ÉLECTRO-LUMINISCENTE

44

NOTE:
