K5738 Digital - Watch Calypso - Free user manual and instructions

Product Type	Digital Watch
Brand	Calypso
Model	K5738 Digital
Dimensions	Approximately 40 mm diameter, 10 mm thickness
Weight	Approximately 50 g
Power Supply	1 CR2032 or equivalent button cell battery
Display	Digital screen with EL backlight
Main Functions	Time, date, stopwatch, alarm, calendar
Time Mode	12/24h format, hours, minutes, seconds, day, month, date
Stopwatch	Precision 1/100 s, capacity 23h59min59s, intermediate time
Alarm	Daily, duration 60 seconds, repeats every 5 minutes
Backlight	EL, activation by button C, duration 3 seconds
Calendar	Display year, month, date (in setting mode)
Case Material	Resin / plastic
Water Resistance	Splash resistant, do not immerse
Maintenance and Cleaning	Clean with a soft cloth and clean water, avoid chemicals
Recommendations	Avoid strong shocks, extreme temperatures, strong electric fields
Safety	Do not open the case, do not press buttons underwater
Repairability	Spare parts not available, contact after-sales service

Frequently Asked Questions - K5738 Digital Calypso

How to set the time on my Calypso K5738 Digital watch?

In time setting mode, the seconds blink. Press D to reset seconds to zero. Press A to change selection (minutes, hours, date, month, day of week). Use D to increase the value, hold to accelerate. Press B to return to setting mode.

How to use the stopwatch?

In stopwatch mode, press D to start the timer. Press D again to stop it. Press A to reset. For a split time, press A while the stopwatch is running; the counter continues internally.

How to set the alarm?

In alarm mode, the hour blinks. Press D to increase the hour (hold to accelerate). Press A to switch to minutes. Use D to set minutes. Press B to return to setting mode.

How to activate the backlight?

From any mode, press button C to turn on the EL backlight for 3 seconds.

How to stop the alarm when it rings?

When the alarm rings, press D to stop it temporarily; it will ring again in 5 minutes. Press A to stop it permanently until the next day.

What to do if condensation appears inside the watch?

If water or condensation appears inside the watch, have it checked immediately. Water can corrode electronic parts. Avoid pressing buttons in water or while swimming.

How to clean my watch?

Clean the watch with a soft cloth and clean water only. Avoid using chemicals, especially soap.

Can I swim with my Calypso K5738 watch?

No, this watch is not designed for swimming or diving. Do not press buttons underwater and avoid immersion.

How to change the battery?

The battery must be changed by a professional. Do not attempt to open the case yourself. Contact an authorized service center.

What to do in case of malfunction?

If the watch does not function correctly, first check the battery. If the problem persists, contact Calypso after-sales service. Avoid strong shocks and extreme temperatures.

USER MANUAL K5738 Digital Calypso

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

IKMS063T (R)

DIGITAL

■ MANUAL DE INSTRUCCIONES 4
■ INSTRUCTION MANUAL 14
■ MANUEL D'INSTRUCTION 24
■ BETRIEBSANLEITUNG 34
■ MANUALE DI FUNZIONAMENTO 44
■ MANUALDEINSTRUÇÕES54

"A" "B" "C" M 12:30 04 D"

4

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

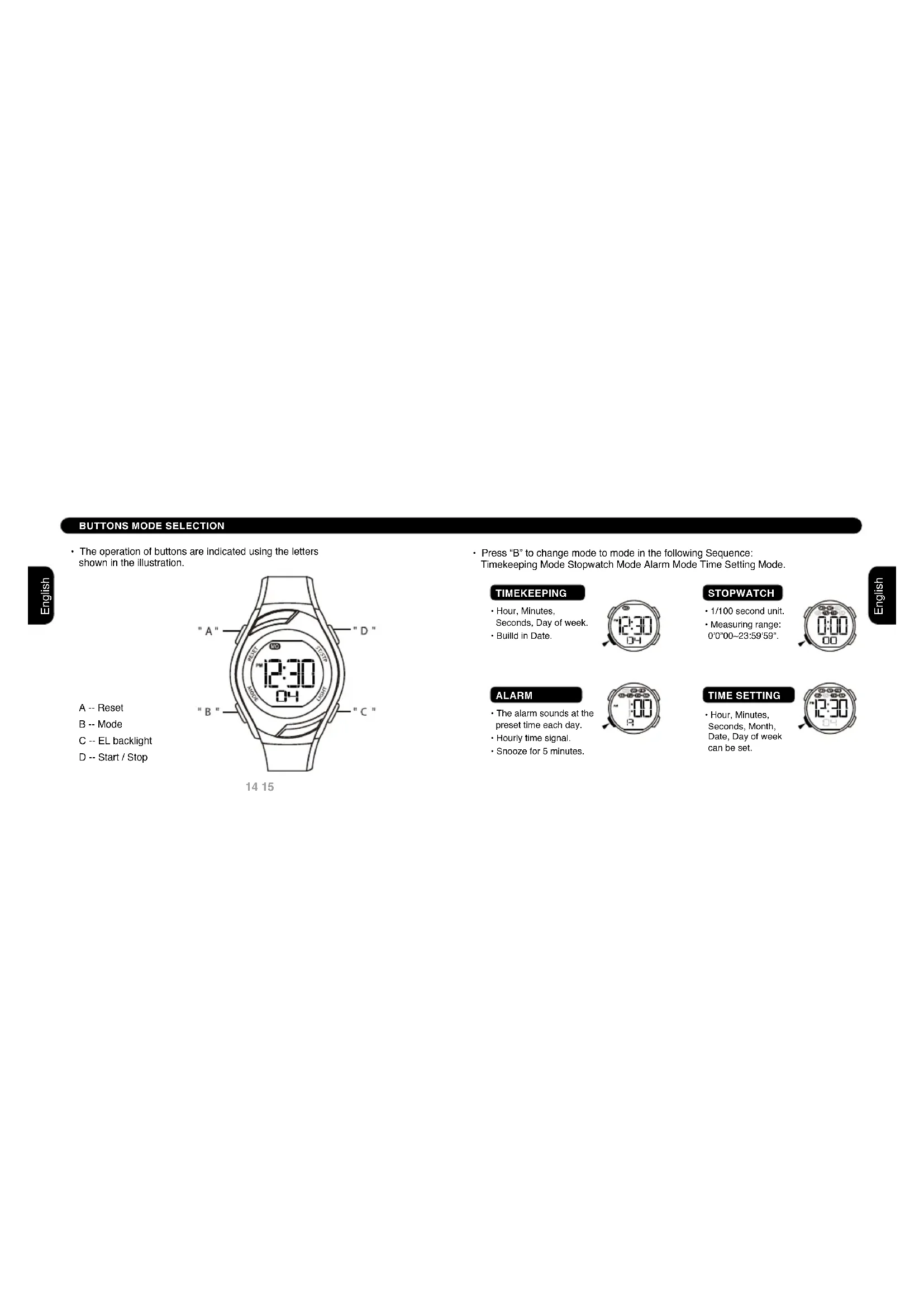

BUTTONS MODE SELECTION

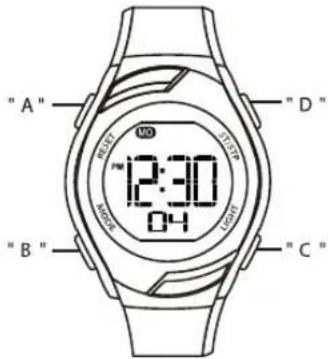

- The operation of buttons are indicated using the letters shown in the illustration.

A -- Reset

B -- Mode

C -- EL backlight

D -- Start / Stop

"A" NO TM 12:30 04 "D" "B" "C"

14 15

- Press "B" to change mode to mode in the following Sequence: Timekeeping Mode Stopwatch Mode Alarm Mode Time Setting Mode.

TIMEKEEPING

• Hour, Minutes, Seconds, Day of week.
- Build in Date.

STOPWATCH

• 1/100 second unit.
  • Measuring range: 0'0"00\~23:59'59".

ALARM

• The alarm sounds at the
preset time each day.
• Hourly time signal.
- Snooze for 5 minutes.

TIME SETTING

• Hour, Minutes,
Seconds, Month, Date, Day of week can be set.

DISPLAY TIMEKEEPING

• The screen shown in below:

DAY OF WEEK MO WE FR SU TU TH SA PM AM 08:08 D 8:13 MINUTES HOUR SECONDS

BACKLIGHT

- The backlight that uses an EL (electroluminescent) cause the display to glow for easy reading in the dark.

Use EL Backlight

- In any mode, press "C" to illuminate the display about 3 seconds.

Display The Date

- In the timekeeping mode, press and hold "D" to display the date.

On/Off The Alarm

1. In the timekeeping mode, press and hold "A" display the alarm time.
2. Press "D" at the same time to on/off the alarm.

On/Off The Chime

1. In the timekeeping mode, press and hold "A" display the alarm time;
2. Press "B" at the same time to on/off the chime.

ALARMSTOPWATCH

A Lap Time Split Time

1. In the stopwatch mode, press "D" to start the stopwatch.
2. To stop the stopwatch by pressing "D" again.
3. Press "A" to reset the stopwatch.

1. In the stopwatch mode, press "D" to start the stopwatch.
2. Press "A" to display the split time, stopwatch timing continues internally.
3. Press "A" to clear the split time and to continue time measurement.
4. Repeat step 2 and 3, you can measure the multi split time.
5. Press "D" to stop the stopwatch.

Alarm Time Setting

1. In the alarm mode, the hour to flash
2. Press "D" to increase the hour, press and hold to increase at high speed.
3. Press "A" to select the minutes.
4. Press "D" to increase the minutes, press and hold to increase at high speed.
5. Press "B" to return the timekeeping mode, after you set.

Snooze

• The alarm sounds at preset time each day for about 60 seconds.
• Press "D" to break it, the alarm continue after 5 minutes.
• Press "A" to stop it.

TIME SETTING

1. In the time setting mode, the seconds to flash.
2. Press "D" to reset the seconds.
3. Press "A" change to the next selection.
4. Press "D" to increase the number, press and hold to increase at high speed.

1. Repeat step 3 and 4, the selection in the following sequence: Seconds Minutes Hour Date Month Day of week
2. Press "B" to return the timekeeping mode, after you set. • 12 / 24H formats can be selected, when hour setting.

CARE OF YOUR WATCH

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.
7. Keep your watch away from the conditions of strong electric field and estatic electricity.

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your watch making products at any of our retail outlets or any other authorized collection's selective collection, processing, rating and recycling of these products helps to safeguarding the environment and protecting our health.
