USER MANUAL 10029742 Klarstein

Diagram of a device rear panel with labeled ports and numbered components

Technical diagram of a device with numbered components and caution label

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 13

Declaration of Conformity 13

Safety Instructions 14

Product Description 16

Operation 18

Hints for the Best Result 20

Troubleshooting 20

Note for Storage 21

Hints on Disposal 22

TECHNICAL DATA

Item number 10029742
Power supply 220-240 V ~ 50 Hz
Power consumption 120 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Do not expose this device to rain.
• Do not playe objects on the unit filled with liquids, such as vases.
• Use recommended accessories only.
• Do not repair this device yourself. Refer repairs to qualified service personnel.
• Do not drop any metal objects into this unit.
• Do not place heavy objects on top of this unit.
• Make sure that the power supply voltage corresponds to the specifications on this unit.
• Plug the power cord into the outlet securely.
• Do not pull the cable, do not bend it and do not place heavy objects on it.
• Do not handle the plug with wet hands.
• Grasp the plug when pulling out of the electrical outlet.
• Do not use a damaged power plug or a damaged electrical outlet.
• Install this unit so that the power cord can be unplugged immediately when a problem occurs.
• Set the appliance on a dry, flat, waterproof and heat-resistant surface.
• The socket must be readily accessible to disconnect the unit quickly in an emergency from the electrical circuit.
• Do not install or position this unit in a bookcase, built-in wardrobe or any other confined space. Ensure good ventilation of the unit.
• Do not place near to an amplifier or other equipment that may be hot. The heat can damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, excessive moisture and excessive vibration.
  • Repairs to the appliance should only be carried out by an authorized service center.
• A remodeling or modification of the affected product safety. Risk of injury!
• Open the product never arbitrarily and perform repairs never yourself!
• Incorrect reassembly may result in malfunction or total failure.
• Open in no case the unit. We assume no liability for consequential damages. The warranty expires at foreign interference with the device.

Small objects / Packaging Parts

Store small objects (eg screws and other mounting hardware, memory cards) and packaging parts out of the reach of children. Do not let you play with the film. Risk of suffocation!

Transport

Please keep the original packaging. To an adequate protection during transport of the device, pack the unit in its original packaging.

Cleaning

Do not use volatile liquids, such as insecticide spray. Dont clean the surface with strong pressure otherwise it could get damaged. Rubber or plastic should not be in contact with the device over a longer period. Clean the appliance and the floor using a soft cloth and warm water, if necessary, a soap solution. Never submerge the base in water or any other liquid.

Intended Use

This device is used for vacuum sealing food or other items. It is exclusively meant for this purpose and must only be used for this purpose. It may only be used in the manner as described in this manual. This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.

PRODUCT DESCRIPTION

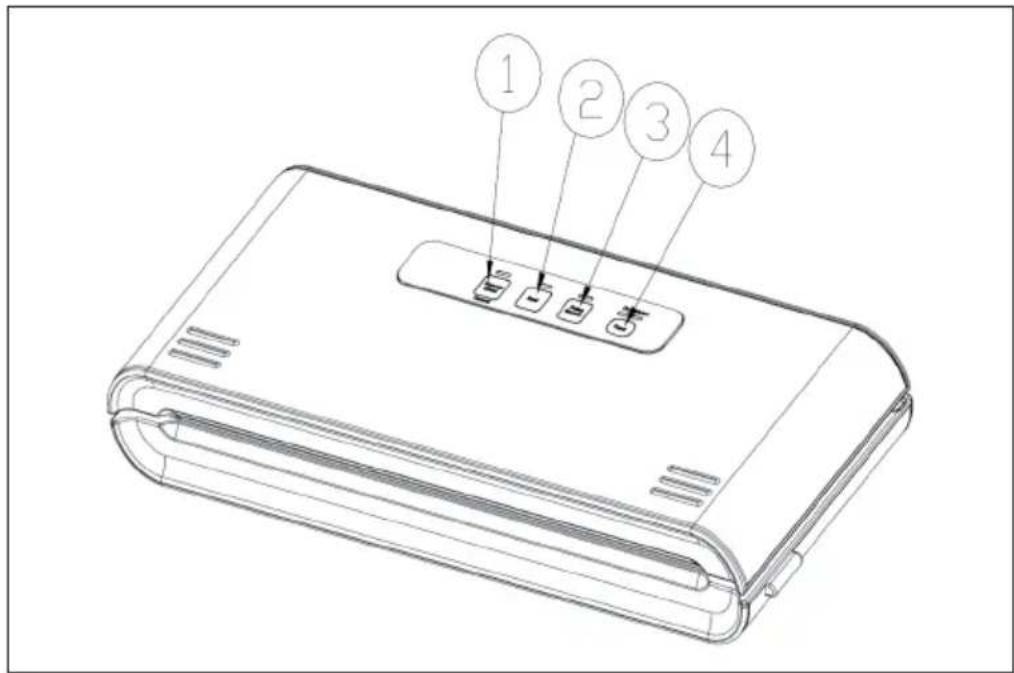

Control Panel

Technical diagram of a device with numbered components labeled 1 to 4

1	Auto	In standby mode: Press for automatic vacuum and sealing routineWhen device is working, press to cancel.
2	Seal	Press to seal without prior vacuuming.When VACUUM&SEAL routine is currently running, press here to cancel vacuuming, and start sealing immediately,
3	Vacuum Device	Device vacuums as long as this button is pressed.
4	Seal Time	Press to choose sealing time according to food sort (options: dry/moist; default: dry)..

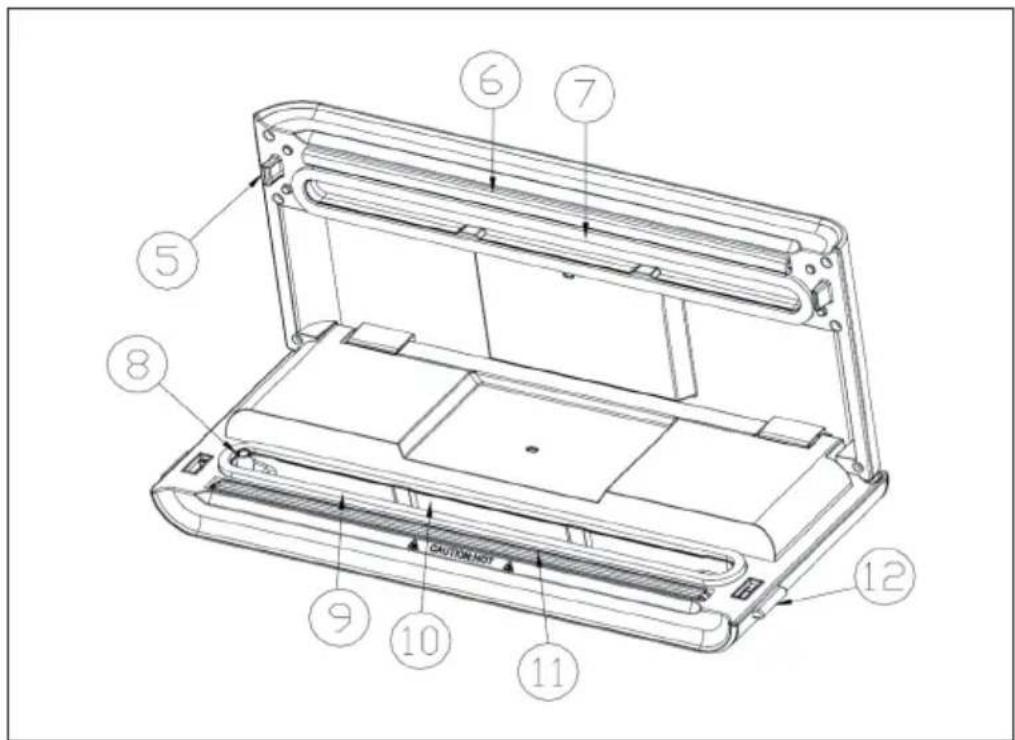

Overview

Technical diagram of a device with numbered components and caution label

5 Hook Locks the cover to the base.
6 Sealing strip Place the bag over this strip for sealing.
7 Upper gasket		Clean and dry regularly. Replace it when distorted or broken.
8 Air intake
9 Lower gasket
10 Vacuum chamber		Position the open end of the bag inside the chamber; draws air out of bag and catches liquid overflow from the bag
11 Sealing element		Teflon-coated heating element which is hot and seals the bag
12 Release buttons		Press both sides to open the cover and release the vacuum pressure inside the machine.

EN

OPERATION

Making a bag out of a bag roll (variable in size)

	Connect the device to a household AC outlet and cut commercial vacuum bag roll to pieces in the desired size. Open the lid and place one end of your future bag onto the sealing element without sliding it into the vacuum chamber.
	Close the lid (clicks distinctly when snapping in place).
	Press Seal to start sealing.
	Press the release buttons on both sides to oben the cover and take the bag out.Caution:The device heats up when in use. Let it cool down with its cover opened for about 1 minute after each sealing procedure. Allow the device to cool down completely before storing it. Do not wind the AC cord around it.

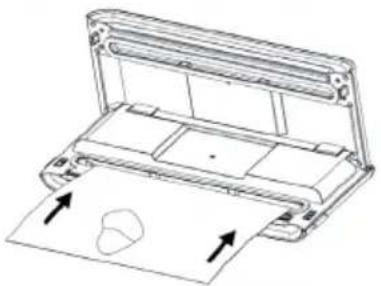

Vacuum packaging with a bag

	Put any fitting items into the bag.Make sure the open end of the bag is straightened, with no dust, crumbs, wrinkles, moist, grease or any damage to it.
	Close the lid (clicks distinctly when snapping in place).Check the LED status of the FOOD button and the VACUUM TIME button to confirm sealing time depending on the moisture status of packed items (moist or dry) and desired vacuum pressure (normal/gentle) according to the type of food;
	Then press VACUUM. The unit vacuums and seals the bag automatically.
	Press the release buttons on both sides to oben the cover and take the bag out.Caution:The device heats up when in use. Let it cool down with its cover opened for about 1 minute after each sealing procedure. Allow the device to cool down completely before storing it. Do not wind the AC cord around it.

HINTS FOR THE BEST RESULT

• Fill the bag only to an extent that leaves it possible to place the bag opening in the vacuum chamber without wrinkles or ripples.
• Make sure the bag is dry. If the bag or its content are moist or wet, this will affect the vacuum performance negatively.
• Straighten the bag to remove as much air as possible from it - this will significantly speed up the process.
• Do not vacuum package objects with sharp edges like fish bones or shells as these might tear the bag
• Make sure there is no crack or deformation, or small particles resting on the foam gaskets around the vacuum chamber. If so, please take it out and wash and dry it thoroughly, or replace with a new one.
• During bag vacuum packaging process, small amounts of liquids, crumbs or food particles can be inadvertently pull into the vacuum chamber, clogging the pump and damaging your appliance. To avoid this, freeze moist and juicy foods first before sealing bags or place a folded paper towel near the inside top of the bag. For powdery or fine-grained foods, avoid overfilling bags. You may also place a coffee filter inside before vacuum packaging.
• Pre-freeze fruits and blanch vegetables before vacuum packaging for best results.
• The supplied bags are generally washable and reusable. Exceptions: Do not re-use bags you used for raw mear, fish, greasy food before. Also, do not re-use bags after using them in a microwave or for cooking.

TROUBLESHOOTING

Nothing happens when I try to vacuum package	Please check the AC outlet, fuses and the power cord for damages.Make sure the bag is placed into the vacuum chamber correctly and does not block the air intake.
Air is not completely / not sufficiently removed from the bag	Make sure the bag opening is completely placed into the vacuum chamber, is clean and has no wrinkles to it. Also, make sure the bag is completely intact.
The machine does not turn to seal after vacuuming	Please check the sealing element. It must be free of ay kind of contamination and sit in its correct positionMake sure the bag is clean, free of wrinkles and contamination.Fresh fruit (fruit, vegetables, cereals, grain, mushrooms, etc.) emmit gases and ferment. All those are not suitable for vacuum packaging.
The bag is melting	Let it cool down with its cover opened for about 1 minute after each sealing procedure. Allow the device to cool down completely before storing it. Do not wind the AC cord around it.If a bag melts, clean the sealing element (disconnect from AC outlet and let cool down before!) and cut the damaged piece from the bag.

NOTE FOR STORAGE

To protect the seals:

When storing the appliance after use, leave the lid open. Do not store the unit with the lid closed! Otherwise, the seals may deform and affect the operation of the unit.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
