Product type	Indoor luminaire
Brand	Lucide
Model	Xera 232530130
Dimensions (approx.)	Diameter 30 cm, Height 15 cm
Weight (approx.)	0.6 kg
Power supply	Mains 220-240V ~ 50/60Hz
Electrical class	Class I (with grounding)
Protection rating	IP20 (indoor, dry)
Bulb type	E27 (max. 40W to be confirmed on the product)
Number of bulbs	1
Main functions	Ambient lighting, suspended installation
Material	Metal, glass
Color	Not specified (see product sheet)
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use abrasive products.
Safety	Cut off power before installation. Observe safety distances. Do not use outdoors or in damp environments (IP20).
Spare parts and repairability	Replaceable protective glass. For any repairs, contact a qualified electrician or the manufacturer.
Warranty	2 years against material and workmanship defects (except glass: 14 days).

Frequently Asked Questions - Xera 232530130 Lucide

How to install the Xera 232530130 luminaire?

Cut off the power supply at the circuit breaker. Follow the wiring diagram: the phase (L) to the brown wire, the neutral (N) to the blue, and the earth (green/yellow) to the corresponding terminal (class I). Observe the minimum distances from flammable materials (indicated on the product).

What type of bulb to use?

Use an E27 base bulb, respecting the maximum wattage indicated on the product (usually 40W to 60W). Do not exceed this wattage to avoid any risk of overheating.

Is this luminaire dimmable?

The instructions do not specify compatibility with a dimmer. Check the symbol on the product or consult the manufacturer. In general, standard luminaires are not dimmable unless otherwise indicated.

Can I use this luminaire in a bathroom?

No, this luminaire has an IP20 protection rating, which means it is only intended for use in dry indoor areas. It is not suitable for wet rooms like the bathroom (unless the IP rating allows it, which is not the case).

How to clean the luminaire?

Unplug the power. Clean with a soft, dry cloth. Do not use chemicals, water, or abrasive cloths that could damage the surface.

What to do if the protective glass breaks?

Immediately replace the glass with an original part. Contact the manufacturer or an authorized retailer. The warranty covers the glass only for 14 days after purchase.

Is the luminaire guaranteed?

Yes, Lucide offers a 2-year warranty from the date of purchase against material and workmanship defects, subject to installation and use in accordance with the instructions.

Can I use this luminaire outdoors?

No, this model is intended only for indoor use (IP20). Exposure to moisture or weather can cause irreversible damage and is dangerous.

What to do if the power cable is damaged?

The cable must be replaced only by the manufacturer, its after-sales service, or a qualified electrician to avoid any risk. Do not use the device with a damaged cable.

How to recycle this luminaire at end of life?

Do not dispose of the device with household waste. Take it to a municipal collection point for electrical and electronic equipment (in accordance with the WEEE directive).

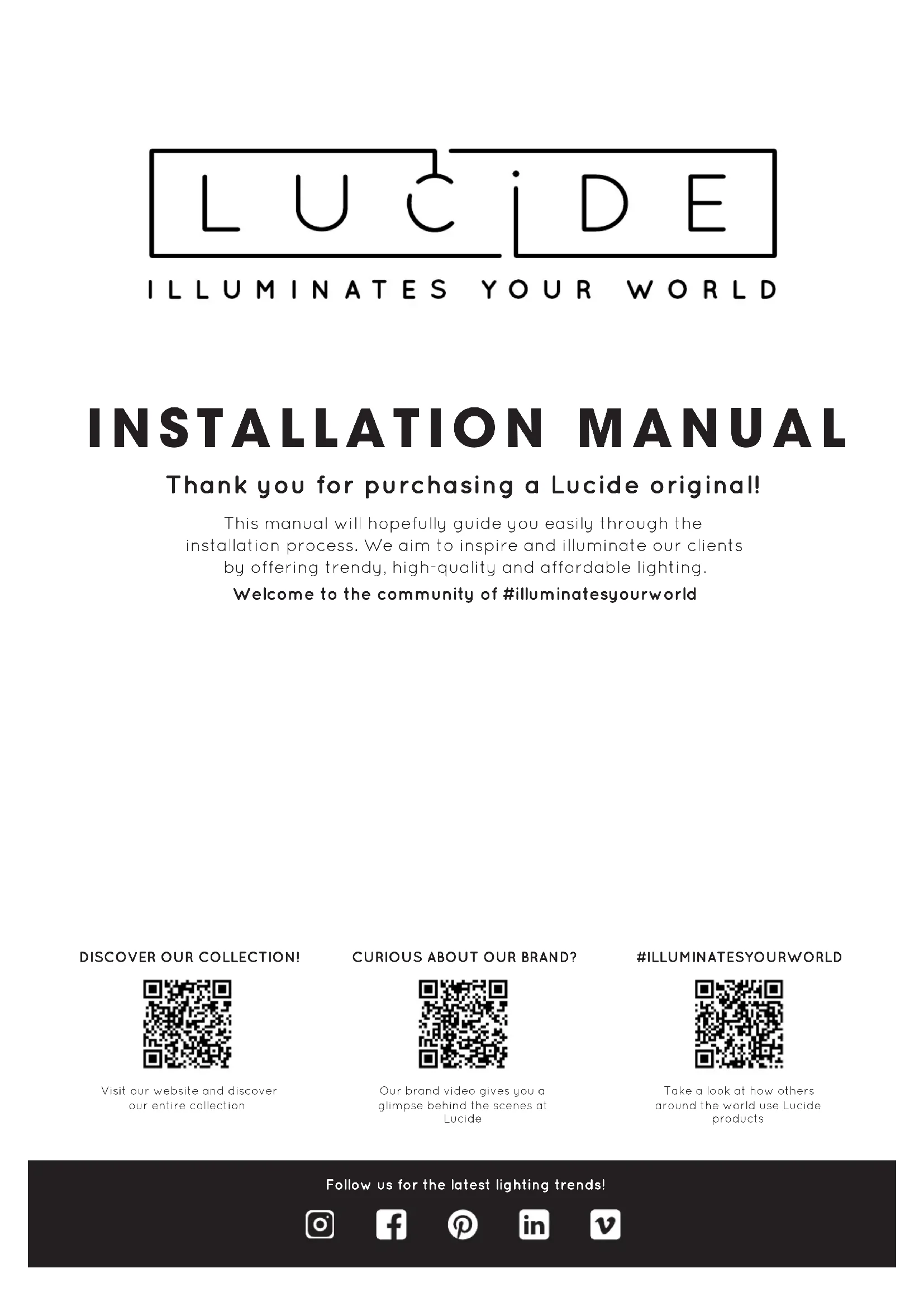

USER MANUAL Xera 232530130 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 23253/01/30

EAN code: 5411212233660

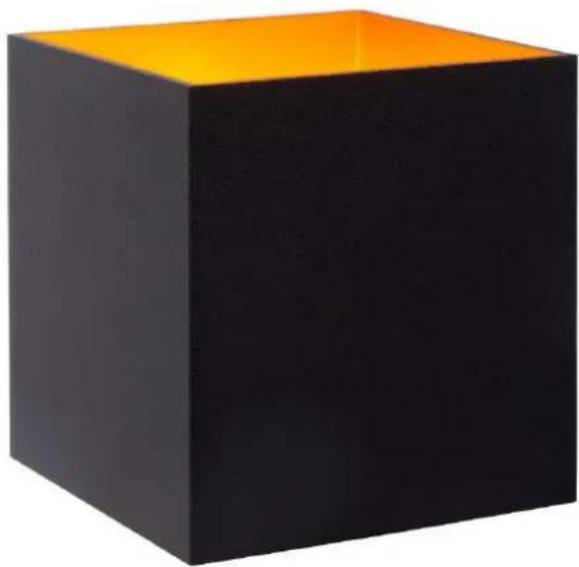

XERA

RECOMMENDED LUCIDE LIGHT SOURCE

49095/03/31

Dimmable: Yes

Included: No

General

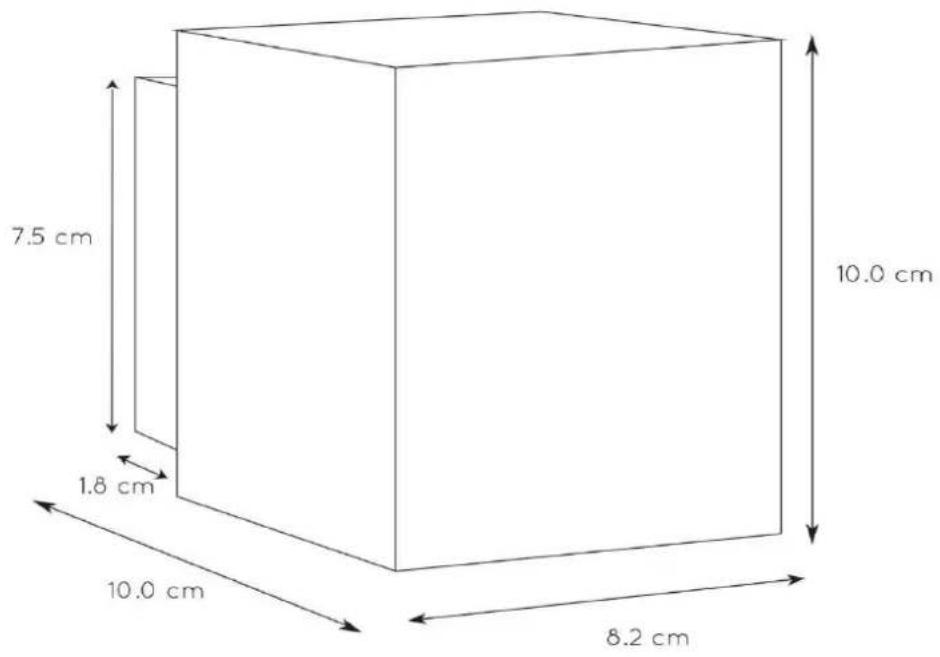

Dimensions LxW xH: 8.2cm x 10cm x 10cm

Main material: Aluminum

Color: Black

Style: Modern

Shape: Square

Weight: 0.30kg

Warranty: 2 Years

Specifications

Dimmable: Yes

Light direction: Uplight & Downlight

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: No Cable On Product

Sensor: Without Sensor

Control: Light Switch Control

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 1

Number of light sources: 1

Lamp socket: G9

Wattage: 1 × 42W

Power requirements: 220 - 240V 50Hz

XERA

Item number: 23253/01/30

EAN code: 5411212233660

LUCIDE

XERA

Item number: 23253/01/30

EAN code: 5411212233660

Veiligheidsinstructures

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
