Tireno 11833/01/45 - Lighting Lucide - Free user manual and instructions

Product Type	Ceiling/Wall Light
Brand	Lucide
Model	Tireno 11833/01/45
Color	Black with green
Material	Metal
Height	370 mm
Length	200 mm
Width	165 mm
Power Requirements	220-240 V ~ 50 Hz
Bulb Type	E27 (max 60W)
Number of Bulbs	1
IP Rating	IP44
Dimmable	No
Included Bulb	No
Installation Type	Ceiling or wall mounted
Usage	Indoor (damp locations)
Maintenance	Wipe with dry cloth; do not use abrasive cleaners
Safety	Ensure correct voltage; disconnect before maintenance
Spare Parts	Bulbs and replacement parts available from manufacturer
Repairability	Standard; consult a qualified electrician for repairs

Frequently Asked Questions - Tireno 11833/01/45 Lucide

What type of bulb does the Lucide Tireno 11833/01/45 use?

It uses one E27 bulb with a maximum wattage of 60W.

Is this light fixture dimmable?

No, the Lucide Tireno 11833/01/45 is not dimmable.

What is the IP rating of this light?

The IP rating is IP44, meaning it is protected against splashing water, suitable for bathrooms or covered outdoor areas.

Can I install this light outdoors?

Yes, thanks to its IP44 rating, it can be used in covered outdoor areas, but not exposed to rain directly.

What are the dimensions of the Lucide Tireno 11833/01/45?

The dimensions are Height: 370 mm, Length: 200 mm, Width: 165 mm.

Is the bulb included with the fixture?

No, the bulb is not included. You need to purchase an E27 bulb separately.

How do I clean and maintain this light fixture?

Clean with a dry cloth. Do not use abrasive cleaners or water directly on the electrical parts.

What voltage does this light require?

It operates on 220-240 V ~ 50 Hz.

Can I install this light on a wall?

Yes, the Lucide Tireno 11833/01/45 can be mounted on either a ceiling or a wall.

What material is the fixture made of?

The main material is metal, finished in black with green accents.

USER MANUAL Tireno 11833/01/45 Lucide

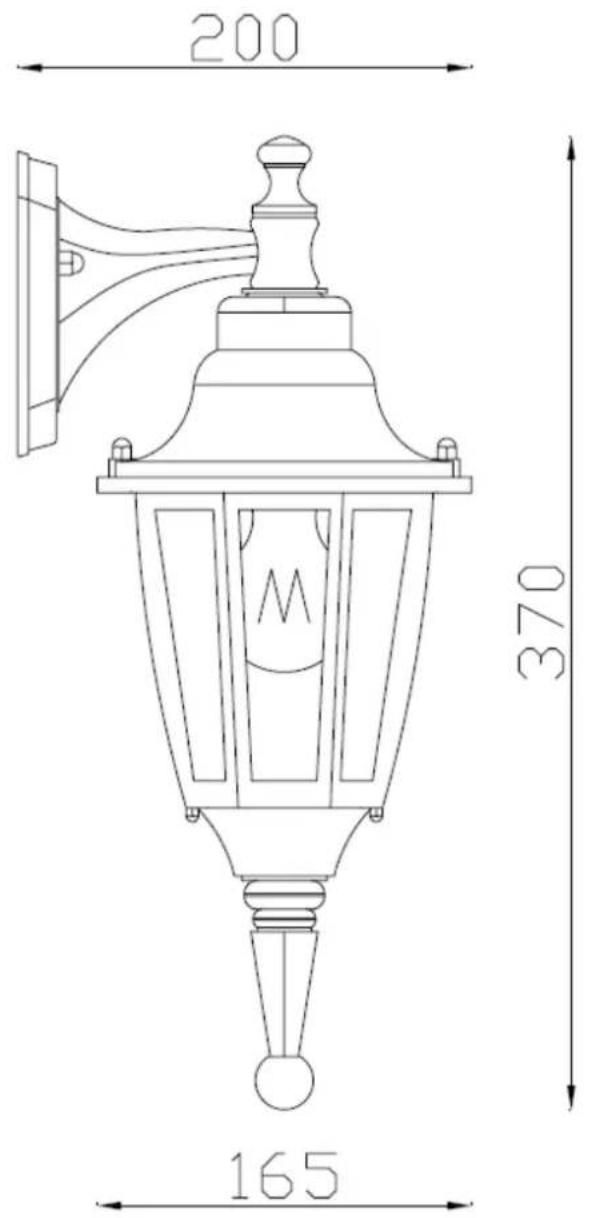

Line drawing of the item (with outline dimensions)

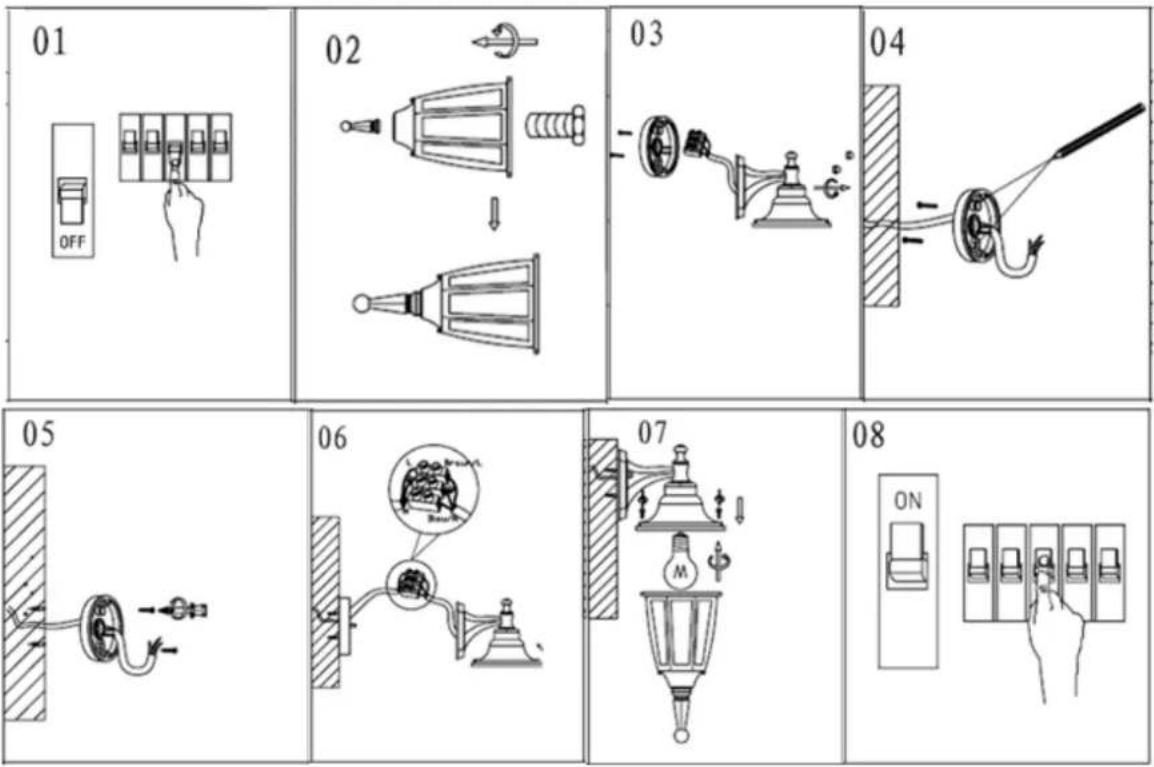

Installation drawing (the same as it in its instruction manual)

Technical details

materials used:		metal
color:		Black with green
dimmable and how is the fixture dimmable:
size:	Height:	370mm
	Length:	200mm
	Width:	165mm
	Net Weight:
power requirements:		220-240V~50Hz
bulb type and maximum Wattage:		E27 Max.60W
number of bulbs:		1×E27
IP degree:		IP44

EES label (only one in English, vertical)

Lucide NV
