USER MANUAL Sigma 23156/30/43 Lucide

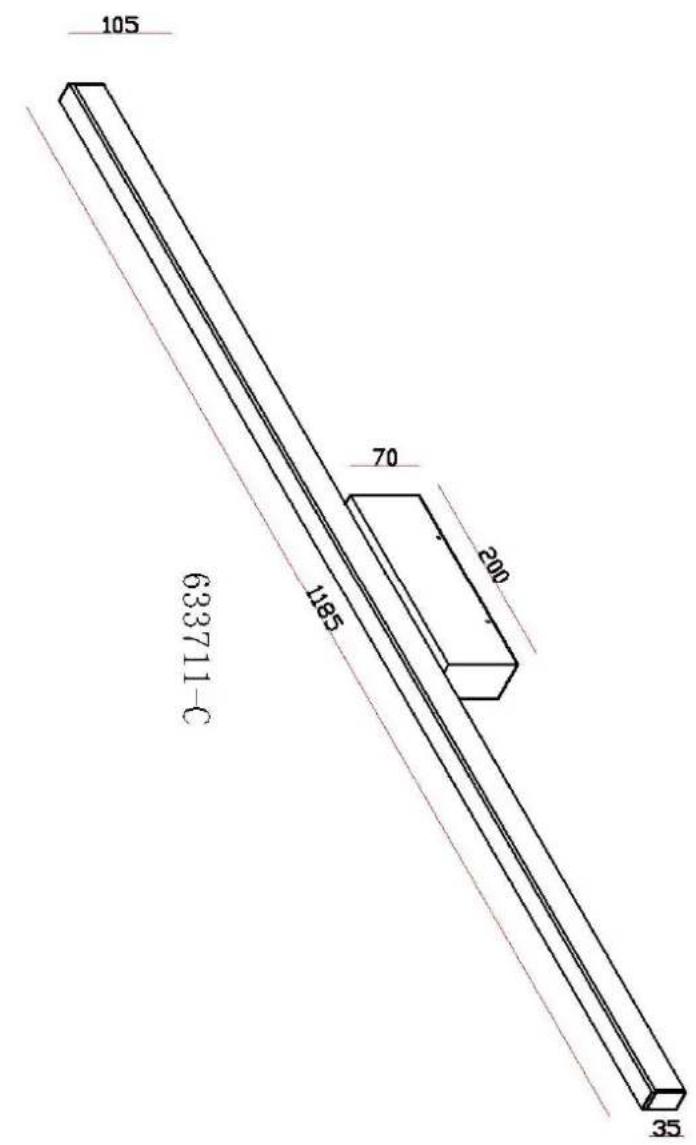

Line drawing of the item (with outline dimensions)

Lucide Sigma 23156/30/43 - 1

text_image 105 70 200 633711-C 1185 35

Item number:

23156/30/43

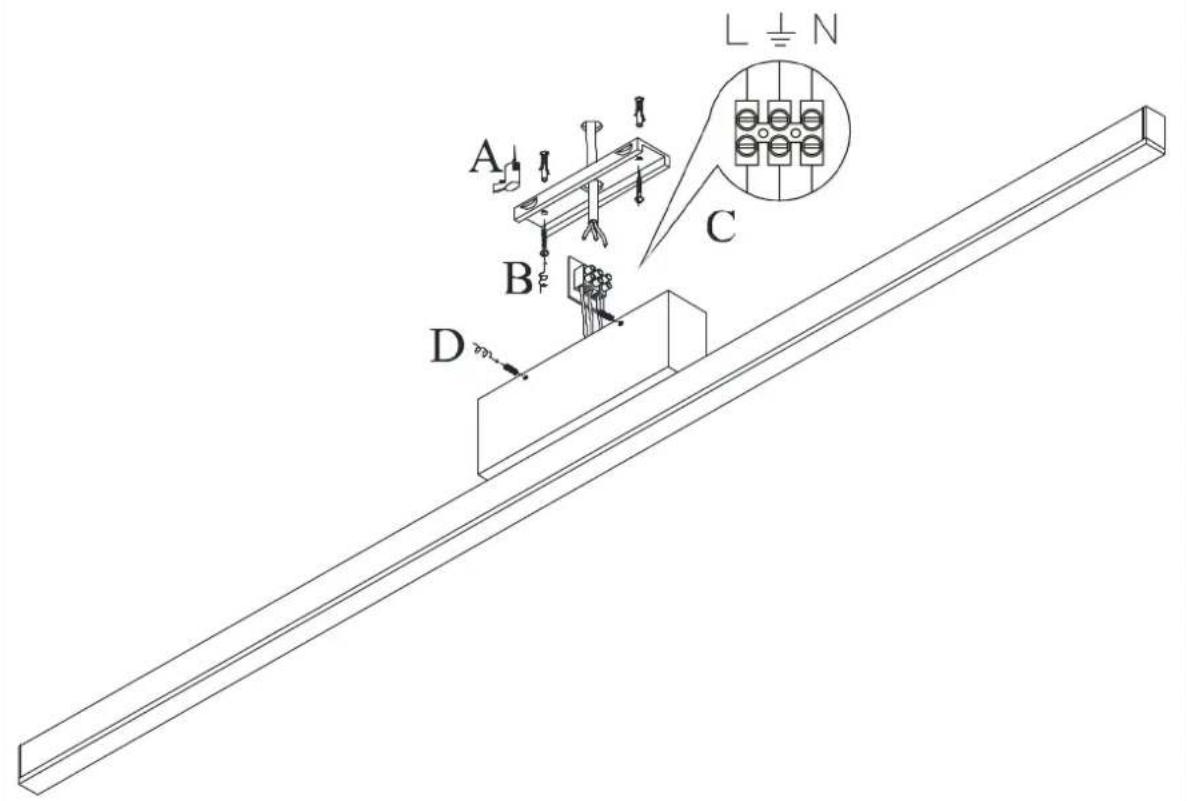

Installation drawing (the same as it in its instruction manual)

Lucide Sigma 23156/30/43 - 2

text_image A B C D L ⊥ N

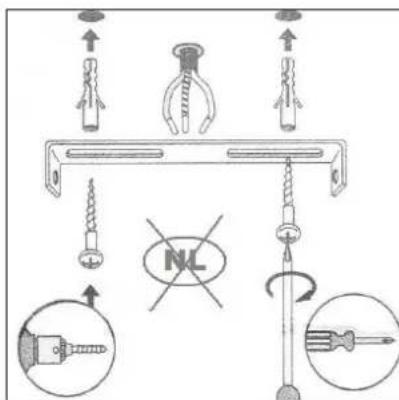

Lucide Sigma 23156/30/43 - 3

text_image Diagram illustrating screwdriver installation with labeled components and safety symbols

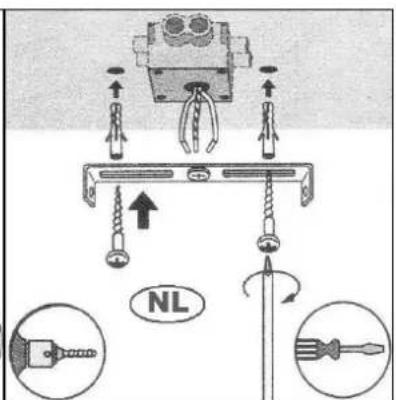

Lucide Sigma 23156/30/43 - 4

text_image Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including 'NL' and tool icons.

Technical details

materials used: aluminum
color:Mattcoffee
dimmable and how is the fixture dimmable:Yes, traic dimmable
size: Height: 105mmLength: 1185mmWidth: 200mmNet Weight: 0.72
power requirements:230-240V
bulb type and maximum Wattage:SamsungLED 30W
number of bulbs:1
IP degree: IP20

EES label (only one in English, vertical)
Lucide Sigma 23156/30/43 - 5

text_image LUCIDE 23156/30/43 This luminaire contains built-in LED lamps. A++ A+ A LE C D E The lamps cannot be changed in the luminaire 874/2012
