Notice Lucide Sigma 23155/30/31 - page 1
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Ceiling light
Brand Lucide
Model Sigma 23155/30/31
Material Metal and glass
Color Black, white, or chrome (depending on variant)
Dimensions Diameter: 30 cm, Height: 15 cm (approx.)
Weight 1.2 kg (approx.)
Power Source 230V mains voltage
Bulb Type E27 screw base (max 60W)
Bulb Included No
Dimmable Yes, with compatible dimmer and dimmable bulb
IP Rating IP20 (indoor use only)
Installation Ceiling mounted, hardwired
Energy Class A++ (if LED bulb used)
Lifespan Up to 15 years (LED bulb dependent)
Cleaning Wipe with dry cloth, avoid abrasive cleaners
Safety CE certified, double insulated
Spare Parts Glass shade and bulb holder available
Repairability Modular design, easy bulb replacement
Warranty 2 years

Frequently Asked Questions - Sigma 23155/30/31 Lucide

How to install the Sigma ceiling light?
Turn off power at the fuse box. Connect the wires (brown to live, blue to neutral, yellow/green to earth). Attach bracket to ceiling, then mount the light. Insert bulb (max 60W E27). Restore power.
What bulb type does Sigma 23155 use?
It uses an E27 screw base bulb, max 60W. LED bulbs recommended for energy savings.
Can I use a dimmable bulb?
Yes, the fixture supports dimming when used with a compatible dimmer switch and a dimmable LED bulb.
Is the Sigma light suitable for bathrooms?
No, it has an IP20 rating, meaning it is only for dry indoor areas like living rooms or bedrooms.
How do I clean the fixture?
Wipe with a dry, soft cloth. Do not use abrasive cleaners or water directly on the electrical parts.
What if the glass shade breaks?
Contact Lucide or an authorized dealer for a replacement glass shade.
Does the Sigma light include a bulb?
No, the bulb is not included. You need to purchase an E27 bulb separately.
What is the weight of the fixture?
Approximately 1.2 kg. Ensure ceiling fixings can support this weight.
Is professional installation required?
If you are not experienced with electrical work, hire a qualified electrician to ensure safety.
How long is the warranty?
Lucide offers a 2-year warranty against manufacturing defects.

User questions about Sigma 23155/30/31 Lucide

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Lighting in PDF format for free! Find your manual Sigma 23155/30/31 - Lucide and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Sigma 23155/30/31 by Lucide.

USER MANUAL Sigma 23155/30/31 Lucide

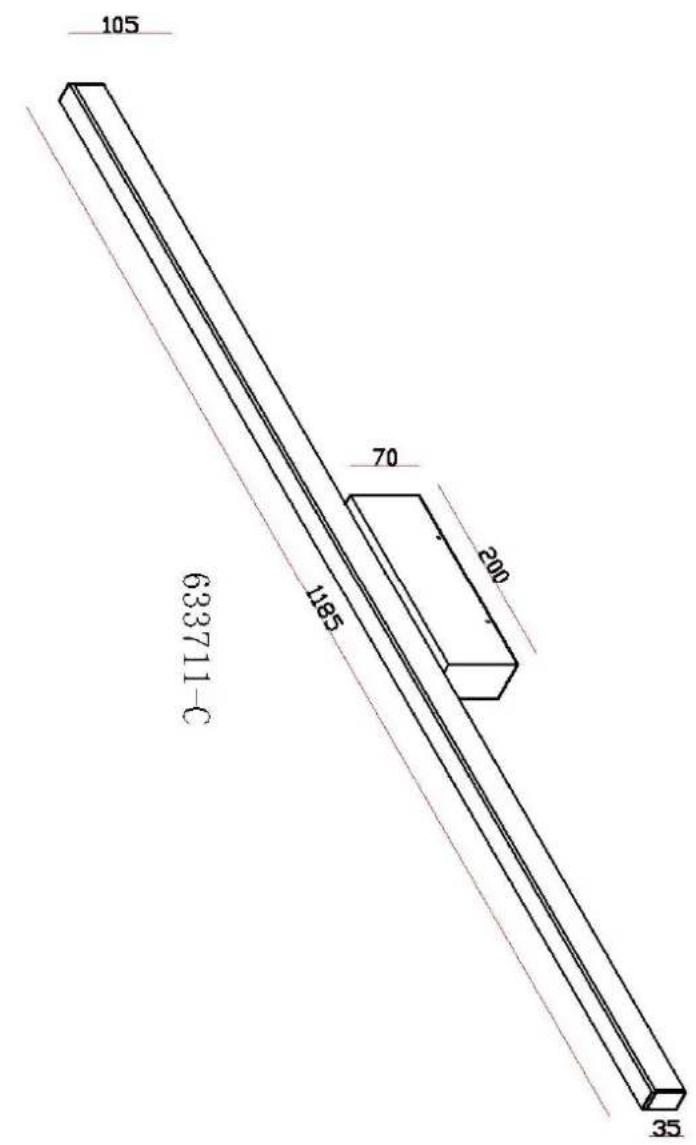

Line drawing of the item (with outline dimensions)

Lucide Sigma 23155/30/31 - 1

text_image 105 70 200 633711-C 1185 35

Item number:

23155/30/31

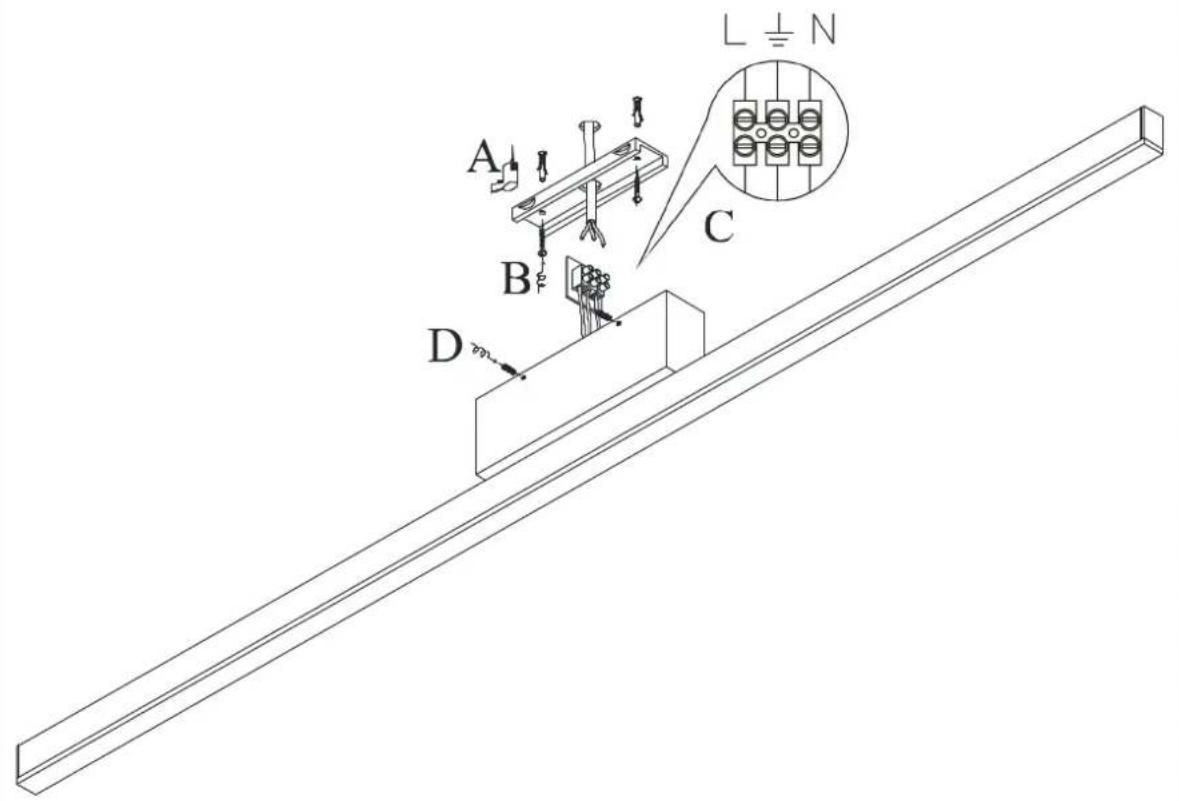

Installation drawing (the same as it in its instruction manual)

Lucide Sigma 23155/30/31 - 2

text_image A B C D L ⊥ N

Lucide Sigma 23155/30/31 - 3

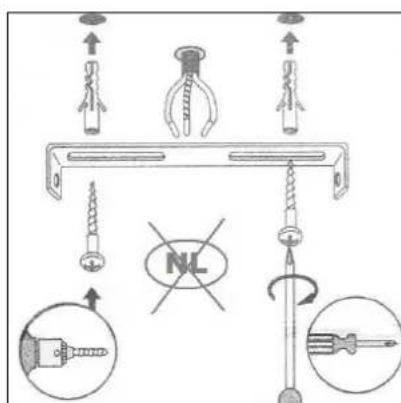

text_image Diagram illustrating screwdriver installation and mounting mechanism with labeled components and safety symbols

Lucide Sigma 23155/30/31 - 4

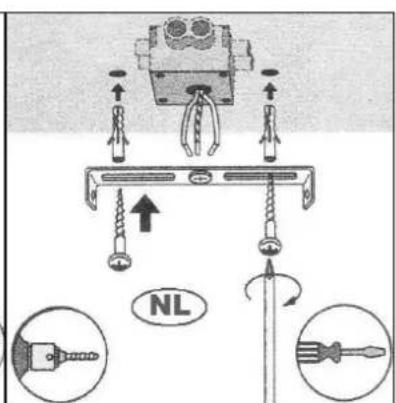

text_image Diagram illustrating a mechanical assembly with labeled parts including a screwdriver, nut, and needle, plus directional arrows and a magnified inset showing the component.

Technical details

materials used: aluminum
color:Matt white
dimmable and how is the fixture dimmable:Yes, traic dimmable
size: Height: 105mmLength: 1185mmWidth: 200mmNet Weight: 0.72
power requirements:230-240V
bulb type and maximum Wattage:Samsung LED 30W
number of bulbs:1
IP degree: IP20

EES label (only one in English, vertical)
Lucide Sigma 23155/30/31 - 5

text_image LUCIDE 23155/30/31 This luminaire contains built-in LED lamps. A++ A+ A LE C D E The lamps cannot be changed in the luminaire 874/2012
