SBSLAB123 - Vacuum pump STEINBERG - Free user manual and instructions

Product type	Vacuum pump
Brand	Steinberg
Model	SBSLAB123
Rated voltage	230 V
Frequency	50 Hz
Rated power	20 W
Flow rate	10 l/min
Ultimate vacuum	0.075 MPa
Dimensions (L x D x H)	293 x 150 x 175 mm
Weight	1.58 kg
Main functions	Vacuum filtration, vacuum distillation, solid phase extraction, gas compression and conversion
Operating environment	Indoor
Maximum altitude	2000 m
Operating temperature	+5 °C to +40 °C
Max relative humidity	80 %
Safety	Do not unplug while powered; avoid contact with liquids; do not use on an uneven surface
Maintenance and cleaning	Unplug before cleaning; clean with a dry cloth
Repairability	Contact a certified professional
Included accessories	Vacuum tube, power cable

Frequently Asked Questions - SBSLAB123 STEINBERG

How to use the Steinberg SBSLAB123 vacuum pump?

Plug in the power cord, turn on the power switch. The pump starts. Use the adjustment knob (model SBS-LAB-100) or the switch (model SBS-LAB-123) to control the flow rate.

What safety precautions should be followed?

Never plug or unplug the power cord with wet hands. Do not unplug the device while powered. Do not use on an unstable or vibrating surface. Keep a safety distance of 10 cm around the device.

How to clean and maintain the pump?

Always unplug the device before cleaning. Use a soft, dry cloth. Do not use chemical or abrasive products. Make sure the ventilation grilles are unobstructed.

What to do if the pump does not start?

Check that the power cord is properly plugged in and the switch is on. Make sure the mains voltage is 230 V. If the problem persists, contact a certified professional.

What is the maximum achievable vacuum level?

The ultimate vacuum is 0.075 MPa (about 75% of perfect vacuum).

Can I use this pump with a rotary evaporator?

Yes, this pump is designed for use with a rotary evaporator for gas compression and conversion.

What is the noise level of the pump?

The noise level is not specified, but the pump is designed for quiet operation suitable for laboratories.

What is the product warranty?

The standard warranty is generally 2 years. Please check the conditions with your dealer or refer to the included manual.

How to store the pump after use?

Unplug the device and clean it. Store it in a dry, dust-free place. Avoid extreme temperatures.

Are accessories included?

Yes, the delivery includes the vacuum pump, a vacuum tube, and a power cable.

USER MANUAL SBSLAB123 STEINBERG

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

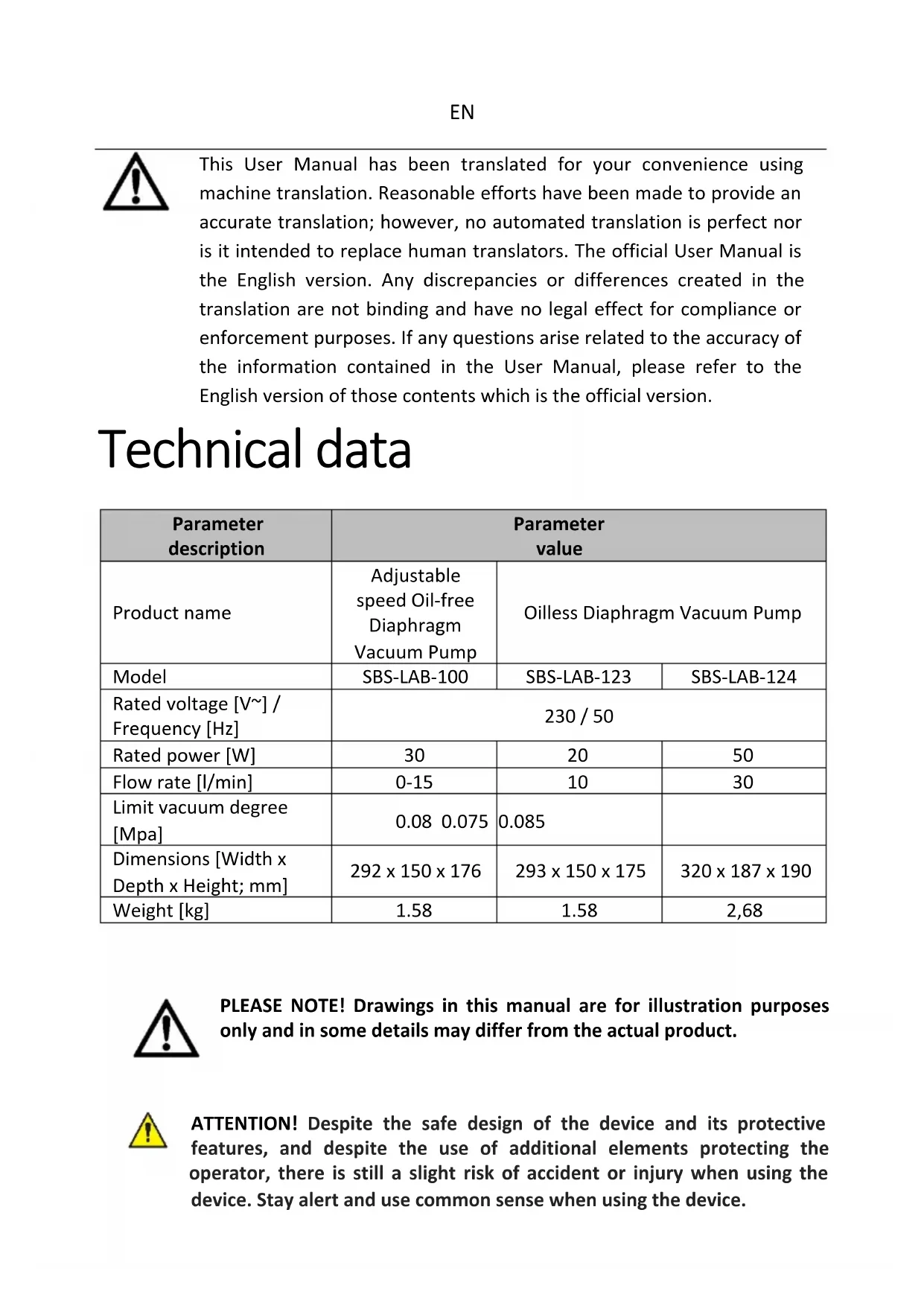

Technical data

Parameter description	Parameter value
Product name	Adjustable speed Oil-free Diaphragm Vacuum Pump	Oilless Diaphragm Vacuum Pump
Model	SBS-LAB-100	SBS-LAB-123	SBS-LAB-124
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	30	20	50
Flow rate [l/min]	0-15	10	30
Limit vacuum degree [Mpa]	0.08 0.075	0.085
Dimensions [Width x Depth x Height; mm]	292 x 150 x 176	293 x 150 x 175	320 x 187 x 190
Weight [kg]	1.58	1.58	2,68

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

1. Brief Introduction

The vacuum pump adopts international advanced design concept and manufacturing technology.

Smooth and beautiful shape, compact and firm structure, high versatility, simple operability, etc.

Point, a rare instrument for scientific research experiments. This vacuum pump is mainly used for:

Vacuum filtration, solvent filtration, vacuum distillation, vacuum drying solid phase extraction, used for compression and conversion gas.

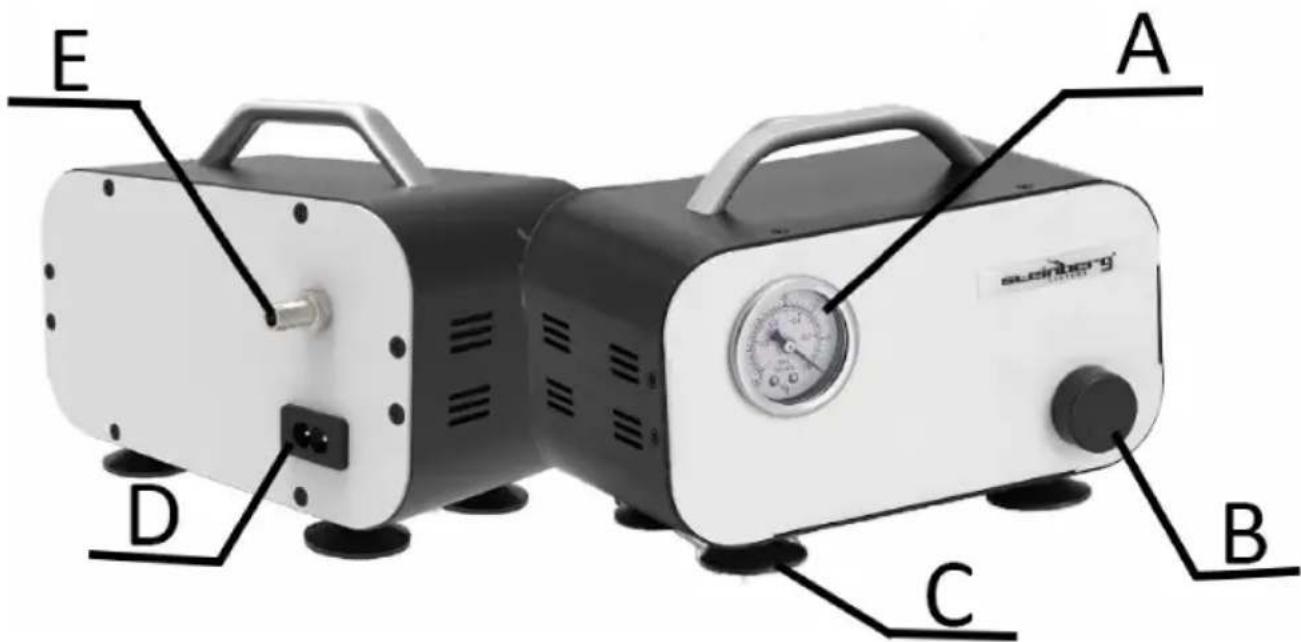

SBS-LAB-100

A. Vacuum gauge

C. Powerful sucker

E. Air vent

B. Speed control knob and switch

D. Power outlet

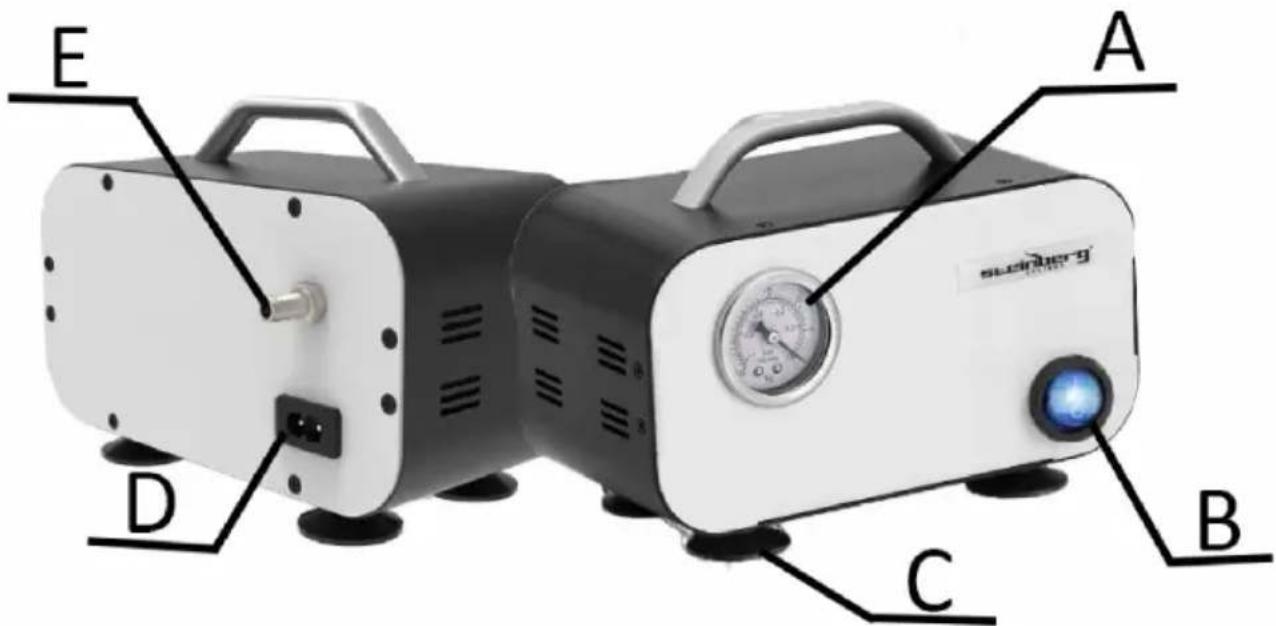

SBS-LAB-123 / SBS-LAB-124

A. Vacuum gauge

C. Powerful sucker

E. Air vent

B. Switch

D. Power outlet

2. Operation Guide

Application

It is mainly used for vacuum filtration, solvent filtration, vacuum distillation, vacuum drying solid phase extraction, and can also be used with a rotary evaporator to compress and convert gases

Applied Area

It is widely used as an experimental tool in institutions of higher learning, environmental protection, sanitation, epidemic prevention, the chemical industry, tap water facilities, and medical treatment.

Using Steps

SBS-LAB-100	SBS-LAB-123 / SBS-LAB-124
> Plug in> Turn the knob clockwise to turn on the switch> Rotate the knob to adjust the pumping rate	Plug in the plug and turn on the power switch

Instrument Use Environment

• Indoor use
  • Altitude: ≤ 2000m
• The working temperature range of the instrument is +5°C \~+40°C
• The applicable temperature range of the instrument is ≤ 80%
  • There is no vibration and airflow that affect performance around
• There is no conductive dust, explosive gas or corrosive gas in the surrounding air
• Keep a safety distance of 10cm before and after the instrument is working

Safety Precautions

• It is strictly forbidden to unplug and plug the power connector and toggle the power button when the hands are wet with liquid!
• It is strictly forbidden to unplug the power plug when the instrument is live!
• It is strictly forbidden to maintain and clean the instrument when it is powered on!
• It is strictly forbidden to install the instrument on an uneven, swaying and vibrating work surface!

Delivery package

• Vacuum pomp
• Vacuum tube
• Power cord

A. Вакуумметър

С. Мощен смукач

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
