www.boretti.com4 Introduction Congratulations! You are the official owner of a Boretti wine cabinet. In the years to come you will discover that the use of a Boretti wine cabinet gives a new dimension to cooling. We advise you to read this manual carefully before taking the cabinet in use to get to know all the ins and outs of this beautiful appliance. Please inform us if you have any questions. You are welcome to visit our Experience Center anytime, we are happy to inspire and help with yourquestions. We wish you a lot of cooling pleasure! Enjoy the aperitivo’s and dinners like never before! Boretti Product Registration To register ownership, please ensure you complete the online registration formwww.boretti.com. ENBoretti Wine Cabinets / User guide - Installation advice5 Table of Content

1. Important safety issues

• To prevent damage to the door and door gasket, make sure the door isfully opened before pulling out any shelves.

• Do not move the wine cabinet when it is loaded with wine, you might distort the appliance.

• If the power supply cord becomes damaged it should only be replaced by the manufacturer or qualifed person.

• Never allow children to operate on playing with the appliance.

• Never clean appliance parts with flammable fluids.

• Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. This can create afire hazard or explosion.

• Always remember to unplug the appliance before cleaning. When disconnecting from the electricity supply, pull the plug, not the power cord.

• Do not use anything electrical inside the wine cabinet.

• All repairs must be carried out by a qualifed service engineer. Inadequate repairs may result in a major source of danger for the user and invalidate any warranty.

• Never store anything dangerous inside the appliance, such as combustibles, explosives, strong acid or alkali etc.

• Always keep any ventilation openings clear of obstruction. Should they become blocked, clear them straight away.

• Make sure that the plug is in an accessible place when installation iscomplete.

• Only use this appliance for domestic purposes in accordance with these instructions.

• The wine cabinet is suitable for storing wine (or other bottled beverages). It is not suitable for storing fresh or frozen foods.

• If the refrigerant of these appliances are R600a, Flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused. Warning Do not allow the refrigerant circuit to become damaged while using or installing the appliance. Should it become damaged, do not use the appliance until you are instructed to do so by a service engineer. Refrigerant can ignite or cause damage to the eye when leaking. ENBoretti Wine Cabinets / User guide - Installation advice7 Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product. CE declaration of confirmity Hereby, Boretti B.V. declares that this appliance has been manufactured to the standards of the CE guidelines and directives applicable for CE conformity. Warranty Your new wine cabinet is covered by warranty. Registration can be completed online by visiting www.boretti.com. Spare parts are only available from Boretti Service department and spare part authorized resellers. ENBoretti Wine Cabinets / User guide - Installation advice8 Technical fiche This appliance conforms to all current and applicable energy regulations. To view the Technical Fiche that supports the energy labelling data, please visit the product page on our website www.boretti.com. Or scan the QR-code to contact the EPREL database. MLWC60AN MLWC60ZW MLWC88AN MLWC88ZW ENBoretti Wine Cabinets / User guide - Installation advice9

Before connecting the wine cabinet to the power source, let it stand upright for at least 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. Clean the interior surface with lukewarm water using a soft cloth. Read the instructions supplied with the appliance – failure to install or use of the appliance in accordance with the instructions may invalidate any warranty. Boretti does not accept any liability for damage caused through improper use, or incorrect installation. Do not install this appliance if it has been damaged during transportation. This includes the plug and supply cord. Please keep these instructions in a safe place for future reference.

2.2 Installation of the wine cabinet

1. This appliance is designed to be for in column (fully recessed).

2. This appliance uses flammable refrigerant. Never damage the cooling

pipework during transportation and installation.

3. Place your wine cooler on a cabinet shelf that is strong enough to

support it when it is fully loaded.

4. Avoid locating the unit in moist areas.

5. Put the plug of the wine cabinet into an appropriate socket. Should

the plug require changing, get help from a qualifed service technician.

6. Ensure the product is correctly ventilated (See section 1.5).

7. Plug the wine cabinet into an exclusive, properly installed-grounded wall

outlet. Do not under any circumstances cut or remove the third (ground) pin from the plug. Any questions concerning power and/or grounding should be directed toward a certified electrician or Customer Service Boretti. ENBoretti Wine Cabinets / User guide - Installation advice10

2.3 How to change the door opening MLWC60 / MLWC88

This appliance has reversible doors but is delivered with left opening door. please follow the instructions below for changing the door to the right opening. 1.Top hinge 2.Door light switch 3.Location-plate 4. Bottom hinge

• Place the cabinet on a soft surface and put the front on a mat height around 200mm to support the cabinet. This is used to prevent damaging the door, because the door is bigger than the cabinet.

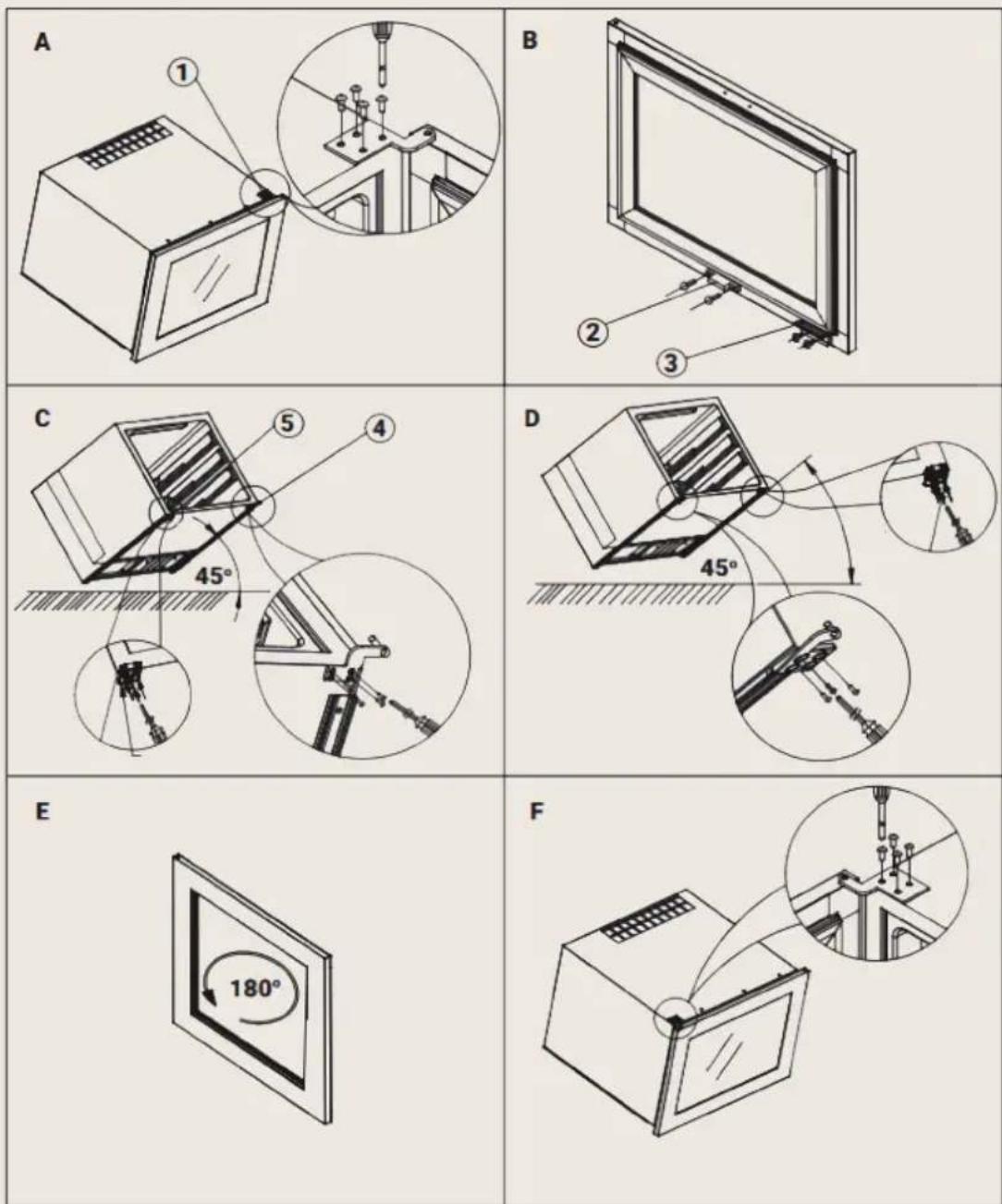

• (Fig.A); Open the door in a 90° angle. Remove 4 screws and top hinge (1) at the right top of the cabinet. Remove the door from the cabinet and put the door in place where it can’t be damaged

• (Fig.B); Remove the door light switch (2) with 2 screws from the bottom of the door. Then reinstall the door light switch (2) with 2 screws in the opposite direction; top central of the door.

• (Fig.B); Remove the location-plate (3) with screws from the right bottom of the door. Then reinstall the location-plate with screw to the diagonal direction (left top of the door)

• (Fig.C, D); Incline the wine cooler with 45 degrees. Remove the screws and the bottom hinge (4) in the right bottom of the cabinet. Remove the screws and supporter (5) at the left bottom of the cabinet. Then install the supporter (4) to the right bottom of the cabinet.

• (Fig.D) Install bottom hinge (4) to the bottom left of the door.

• (Fig.E) Rotate the door at 180°.

• (Fig.F);Install the top hinge (1) with screws to the left top of cabinet, align the door with cabinet ENBoretti Wine Cabinets / User guide - Installation advice11 ENBoretti Wine Cabinets / User guide - Installation advice12

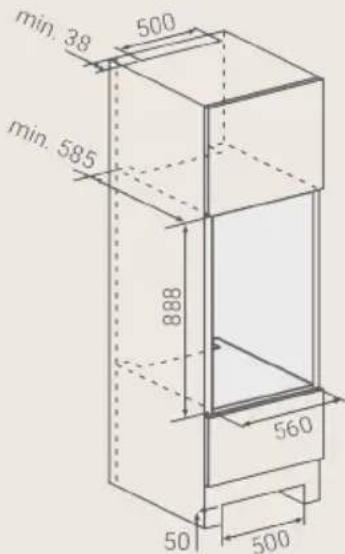

2.4 Built-in dimensions

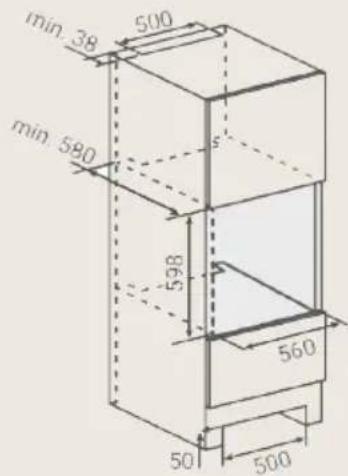

Place you wine cabinet on a cabinet shelf that is strong enough to support it when it is fully loaded. The kitchen unit must be aligned horizontally and vertically. Make sure that the cabinet is correctly ventilated according ventilation slots below.

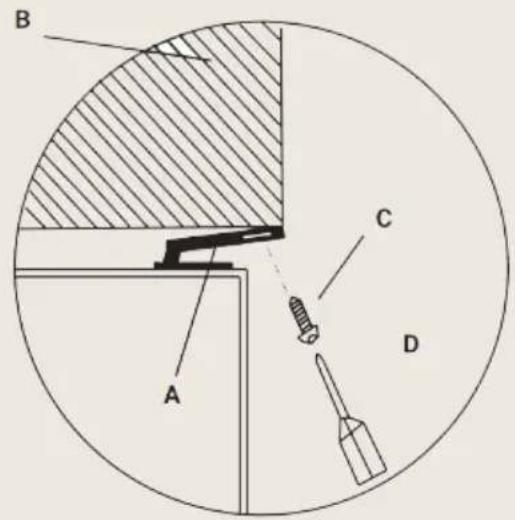

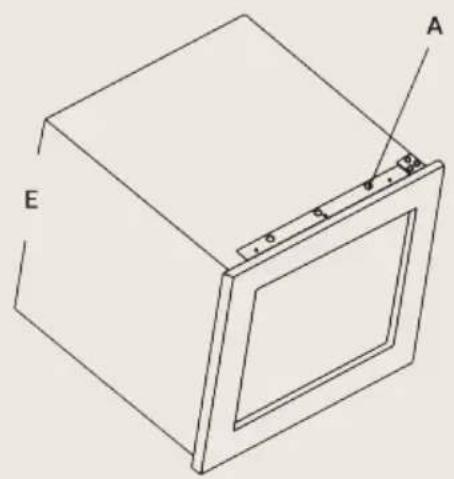

After the wine cooler is placed into kitchen cabinet, adjust the top bracket (A) close to the front of the kitchen cabinet (B). Fix the 3x screws through the top bracket (A) into kitchen cabinet (B). A. Top Bracket B. Kitchen Cabinet C. Screws D. Screwdriver E. Wine cooler

2.6 Fixing the bottom bracket

Fix the 3x screws through the bottom bracket (D) into kitchen cabinet (B). A. Wine cooler B. Kitchen Cabinet C. Screws D. Bottom bracket ENBoretti Wine Cabinets / User guide - Installation advice14

2.7 Permitted room temperature

The permitted room temperature depends on the appliance’s climate class. Theclimate class can be found on the rating plate on the side of the cabinet. Climate Class Permitted room temperature SN 10°C – 32°C N 16°C – 32°C ST 16°C – 38°C T 16°C – 43°C SN-ST 10°C – 38°C SN-T 10°C – 43°C The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5°C. ENBoretti Wine Cabinets / User guide - Installation advice15

3.1 Touch control keys and symbols

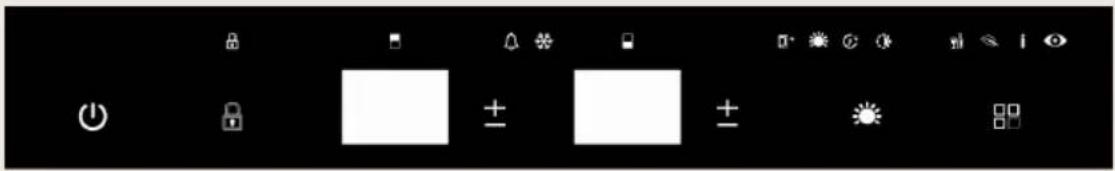

To switch the wine cabinet on/off. Press and hold this button for approximately 1 second to turn the wine cabinet on. Press and hold thisbutton for approximately 3 seconds to turn the wine cabinet off. To turn the lock function on/off. Press and hold this button for approximately 3 seconds to activate/deactivate. When activated thesymbol will illuminate. +/- Press this button to raise the temperature in 1°C increments. Once the temperature reaches the highest temperature value for the upper zone or lower zone, it will revert back to its lowest temperature value. Upper zone = 5 -10°C Lower zone = 10 -18°C Once the required temperature is selected, the LED display will temporarily flash for 5 seconds, then reverts back to the normal display, and the temperature is now set. Note: Press and hold +/- for 3 seconds, to change the display from °C to °F. This button is used to toggle between the different light functions. When selected, the relevant symbol will illuminate: The internal light will switch on when the door is opened, and off when the door is closed. The internal light is continuously on. However after 3 minutes the light will dim. The internal light will remain on for 10 minutes once the door is closed and then turn off. This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until flashes. Then use the +/- keys to adjust the brightness of the internal light. ENBoretti Wine Cabinets / User guide - Installation advice16 This Button is used to toggle between the different operational functions. When selected the relevant symbol will illuminate: Standard Mode – Select this function to operate the wine cabinet in standard mode. ECO Mode – An energy saving mode where both the inner light and control panel lights are off. The LED display is also switched off, until you change the temperature using the +/- and +/- keys, this will be displayed for5 seconds and then switch off again. The compressor isalso delayed 5minutes in order to save energy. Intelligent mode – In Intelligence mode, the wine cabinet will adjust the fan speed according to the ambient temperature. This will reduce noise levels and save money. DEMO Mode – When Demo mode is selected, the compressor and PTC heater will be disabled, and the fan input voltage reduces to 9V. The HI/ LO temperature alarm is also disabled during DEMO mode. The cooling symbol will illuminate to show when the wine cabinet is currently cooling. The alarm symbol will illuminate to show the alarm is on. This will activate when either the door has been left open for a long period oftime, or the temperature has fluctuated too high or low (HI or LO willalso show in display to confirm this). ENBoretti Wine Cabinets / User guide - Installation advice17

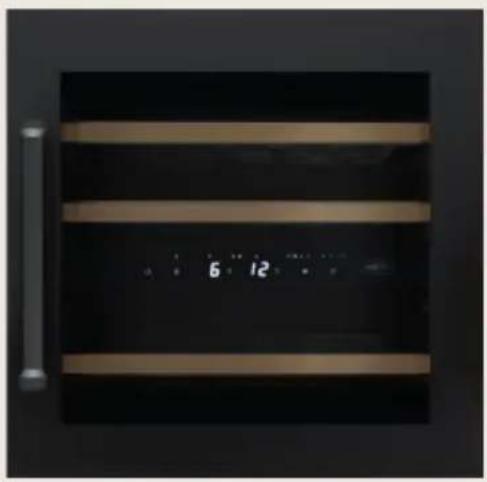

3.2 Bottle stacking MLWC60

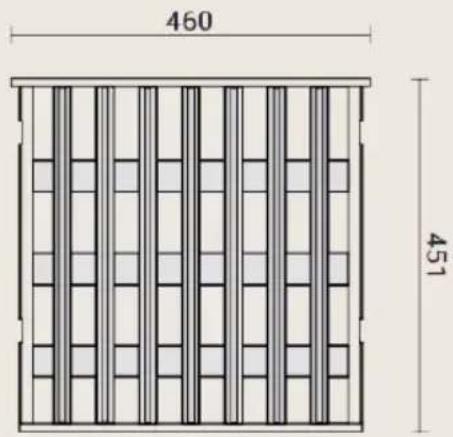

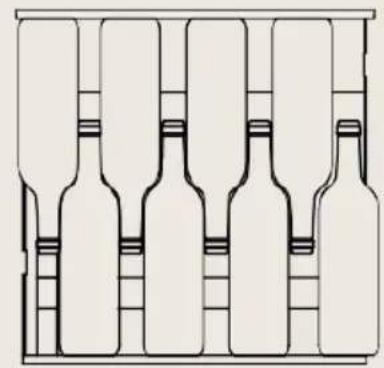

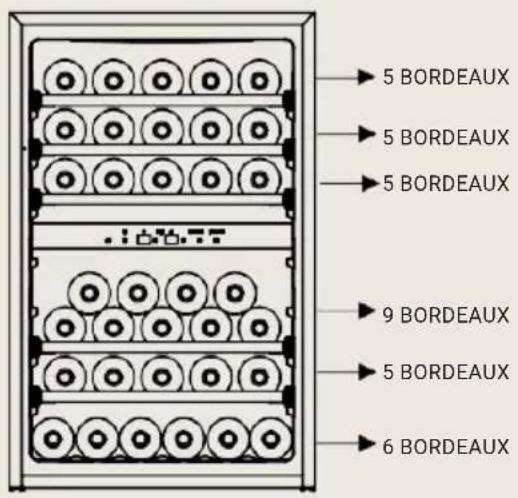

The maximum storage capacity for Bordeaux style of bottles (0,75L) is 41 bottles. It is possible to store Champaign / Magnum size bottles. To make this possible, the upper rack in the lowest zone needs to be removed. Please see

section 2.4 how storage racks can be removed.

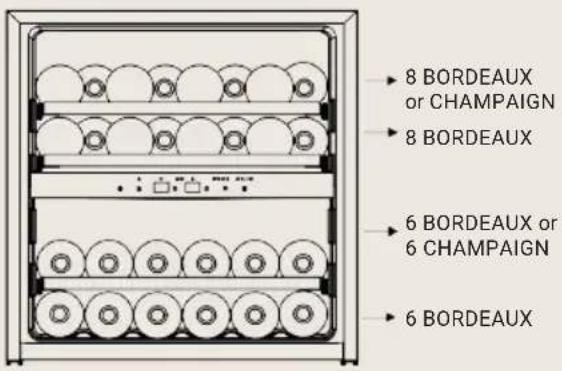

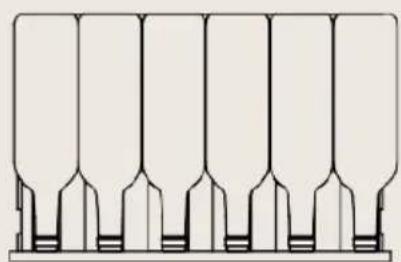

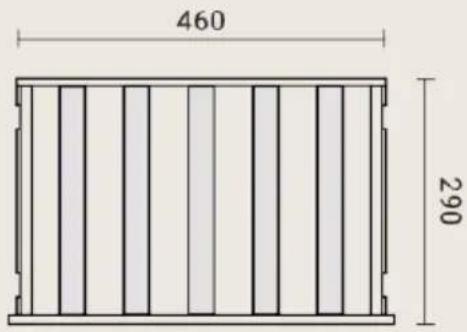

Note: If you wish to store other type of bottles, the maximum storage capacity will be less than as shown above. 6 BORDEAUX 8 BORDEAUX orCHAMPAIGN 8 BORDEAUX 16 BORDEAUX 8 BORDEAUX 11 BORDEAUX 6 BORDEAUX 6 BORDEAUX or 6CHAMPAIGN Upper zone Lower zone ENBoretti Wine Cabinets / User guide - Installation advice18

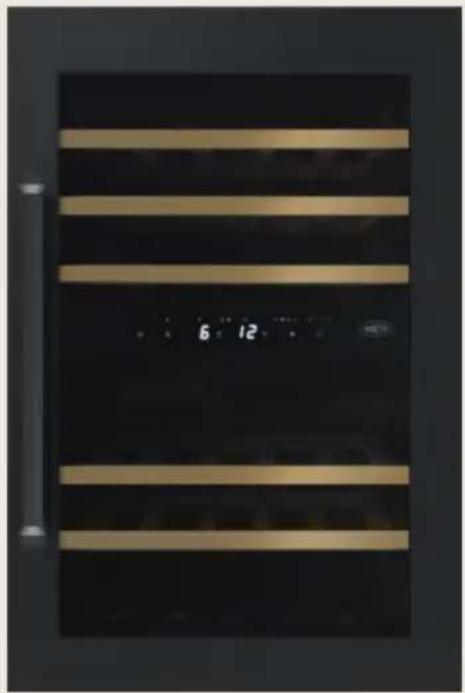

3.3 Bottle stacking MLWC88

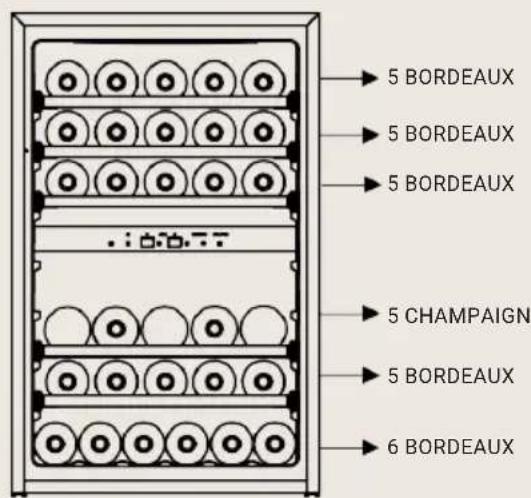

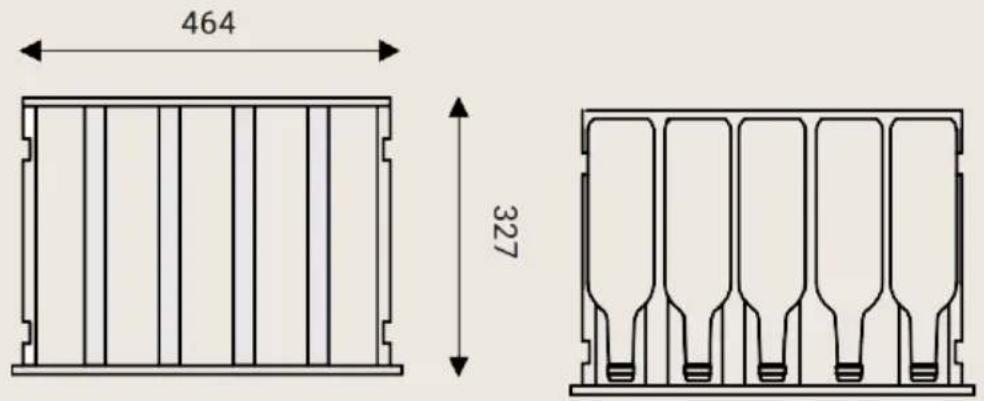

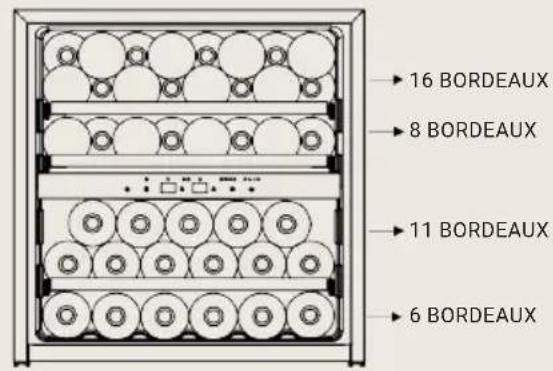

The maximum storage capacity for Bordeaux style of bottles (0,75L) is 41 bottles. It is possible to store Champaign bottles on the upper shelf of the lower zone. Note: If you wish to store other type of bottles, the maximum storage capacity will be less than as shown above. 5 BORDEAUX 5 BORDEAUX 5 BORDEAUX 5 BORDEAUX 5 BORDEAUX 5 BORDEAUX 9 BORDEAUX 5 CHAMPAIGN 5 BORDEAUX 5 BORDEAUX 6 BORDEAUX 6 BORDEAUX Lower + Upper zone ENBoretti Wine Cabinets / User guide - Installation advice19

3.4 Using and removing the shelves

To prevent damaging the door gasket, make sure to have the door opened fully when pulling shelves out of the rail compartment. The shelves are attached to telescopic rail system for easy stacking or pulling out bottles. Glass shelves are available if you wish to store cans or smaller bottles in your wine cabinet. These can be purchased directly from www.boretti.com Removing the shelf

1. Fully extend the shelf you wish to remove.

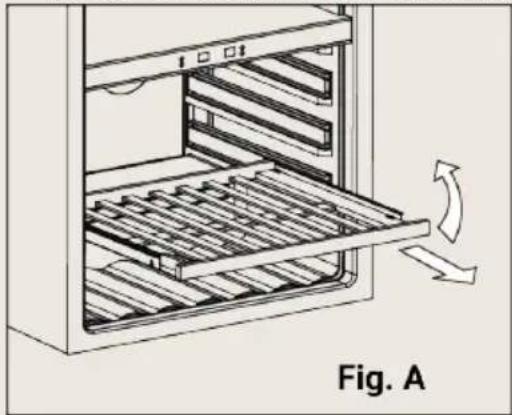

2. Lift the front of the shelf up to remove from the front clips. As fig. A.

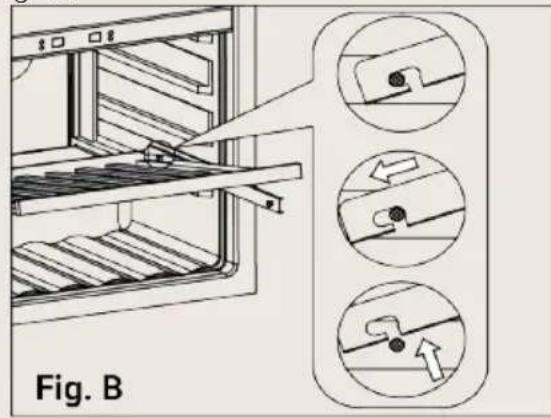

3. Holding onto the shelf runner, push the shelf in and then pull up at the back

to release from the rear clips. As Fig. B.

3.5 Ideal storage climate for wines

There are four points that ensures a perfect climate to preserve wines in an optimal condition. Constant Temperature Boretti wine cabinets maintain precise temperatures between 5 °C to 18 °C. Minimising the temperature variance is most important when it comes to long term storage to ensure wine matures correctly. The ideal long term storage temperature for wine is between +10 °C and +12°C. It is critical that the temperature is kept as constant as possible because this is the only way that a wine’s natural harmony will be preserved. The lower zone can be used to store wine for longer terms. The upper zone has a temperature range from 5°C till 10°C and is ideal to keep wines on serving temperatures. ENBoretti Wine Cabinets / User guide - Installation advice20

• Full-bodied Chardonnay (12°C)

• Light-to-medium bodied reds:

• Grand Cru Bordeaux (18°C) Vibration Free To prevent wine from being disturbed all compressors are mounted on isolation blocks designed to absorb any vibration. UV Protection All Boretti glass door wine cabinet are tinted and double glazed to prevent harmful ultraviolet rays causing discoloration to labels and unwanted reactions to your wine. Perfect Air Quality The MLWC82 wine cabinet has an charcoal filter to assist in maintaining perfect air quality which is vital for preserving and maturing wine. ENBoretti Wine Cabinets / User guide - Installation advice21

4.1 Cleaning your wine cabinet

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.

• Wash the inside surfaces with a warm water and natural mild soap solution.

• Wash the shelves with a mild detergent solution.

• Wring excess water out of the sponge or cloth when cleaning area of the controls. Do not clean electrical parts, like the fans.

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimise the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Short Holidays: Leave the wine cabinet operating during holidays of less than three weeks. Long Holidays: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly (blocking it open if necessary).

4.4 Moving your wine cooler

• Securely tape down all loose items (shelves) inside your appliance.

• Turn the adjustable leg up to the base to avoid damage.

• Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of appliance with a blanket, or similar item.

4.5 Defrosting/Condensation

Your wine cabinet is designed with an “Auto-cycle” defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The defrosted water is channeled into a drain pan which is located at the back of the cabinet next to the compressor from where it evaporates. ENBoretti Wine Cabinets / User guide - Installation advice22

You can solve many common wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling Boretti Service department.

PROBLEM POSSIBLE CAUSE

Wine cooler does not operate.

• The appliance is turned off.

• The circuit breaker tripped or a blown fuse. Wine cooler is not cold enough.

• Check the temperature control setting.

• External environment may require a higher setting.

• The door is opened too often.

• The door is not closed completely.

• The door gasket does not seal properly. Turns on and off frequently.

• The room temperature is hotter than normal.

• A large amount of contents has been added to the Wine cooler.

• The door is opened too often.

• The door is not closed completely.

• The temperature control is not set correctly.

• The door gasket does not seal properly. The light does not work.

• The circuit breaker tripped or a blown fuse.

• The bulb has burned out.

• The light button is “OFF”. Vibrations. * Check to assure that the Wine cooler is level. The Wine cooler seems tomake too much noise.

• The rattling noise may come from the flow of the refrigerant, which is normal.

• As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler.

• Contraction and expansion of the inside walls may cause popping and crackling noises.

• The Wine cooler is not level. The door will not close properly.

• The Wine cooler is not level.

• The door was reversed and not properly installed.

• The gasket is dirty.

• The shelves are out of position. If the above table has not solved the problem please contact Boretti Service Center by phone on or by email service@boretti.com. The product model name is displayed on the side of your Wine Cabinet. ENBoretti Wine Cabinets / User guide - Installation advice23 Humidity system The wine cabinet is equipped with a system for maintaining the correct level ofhumidity. If humidity is too low, insert the small plastic reservoir on to the top shelf. Fill this reservoir 3/4 full with water. Check the water level occasionally and refill as necessary.

Code Representation Solution

Upper compartment sensor open circuit Contact the Boretti Service Department.

Upper compartment sensor short circuit Contact the Boretti Service Department.

Lower compartment sensor open circuit Contact the Boretti Service Department.

www.boretti.comMANUEL MANUEL MLWC60AN/MLWC88ANMLWC60AN/MLWC88AN MLWC60ZW/MLWC88ZW MLWC60ZW/MLWC88ZW

PROBLÈME CAUSE POSSIBLE
