| Product type | Air quality sensor |
| Brand | IKEA |
| Model | VINDSTYRKA |
| Reference | 705.788.75 |
| Type | E2112 |
| Power supply | 5.0 V DC, 1.0 A, 0.5 W via USB-C |
| Maximum USB cable length | 3.0 m |
| Particle detection range | 0 – 1000 μg/m³ (PM2.5) |
| Sensors | PM2.5, temperature, relative humidity, TVOC |
| Radio range | 10 m in open field |
| Operating frequency | 2400 – 2483.5 MHz |
| Output power | 8 dBm |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 0 to 95% RH |
| Use | Indoor only |
| Connectivity | Wireless, pairing with STARKVIND air purifier and DIRIGERA hub |
| Display | Screen with icons: air quality, PM2.5, temperature, humidity, TVOC, connection |
| Settings | Brightness (3 levels), temperature unit (°C/°F) |
| Reset | Press pairing button 4 times |
| Maintenance | Wipe with a soft cloth and mild detergent; do not use abrasive products |
| Safety | Do not expose to moisture or heat; do not open; unplug before cleaning |
| Compliance | FCC Part 15, ISED Canada RSS license-exempt |
Frequently Asked Questions - VINDSTYRKA 705.788.75 IKEA
User questions about VINDSTYRKA 705.788.75 IKEA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air purifier in PDF format for free! Find your manual VINDSTYRKA 705.788.75 - IKEA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VINDSTYRKA 705.788.75 by IKEA.
USER MANUAL VINDSTYRKA 705.788.75 IKEA
Design and Quality
IKEA of Sweden
1x
Works with IKEA Home smart
DIRIGERAVINDSTYRKA
English 10
Français 26
Espanol 42
10Eng

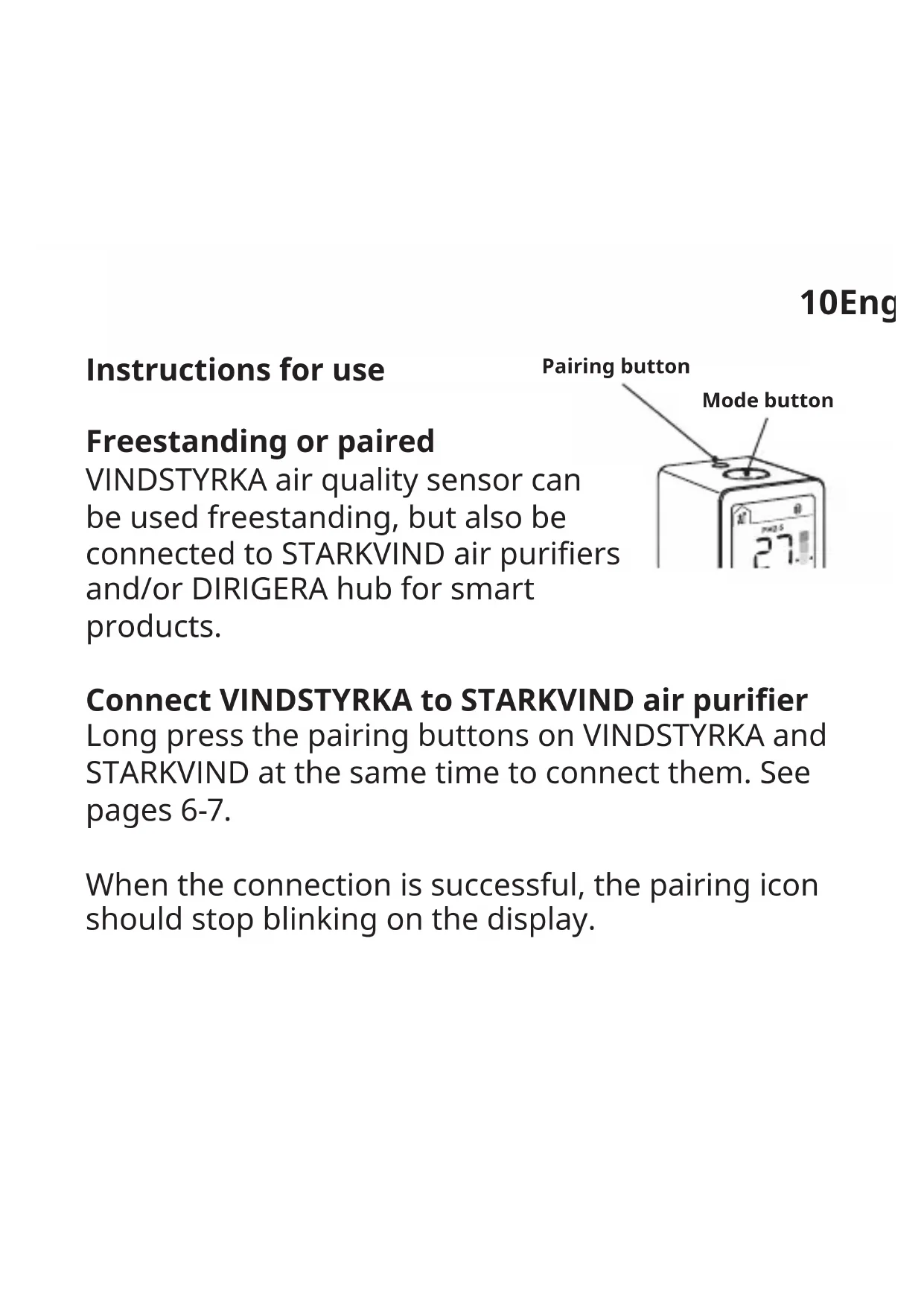

Instructions for use
Freestanding or paired
VINDSTYRKA air quality sensor can be used freestanding, but also be connected to STARKVIND air purifiers and/or DIRIGERA hub for smart products.

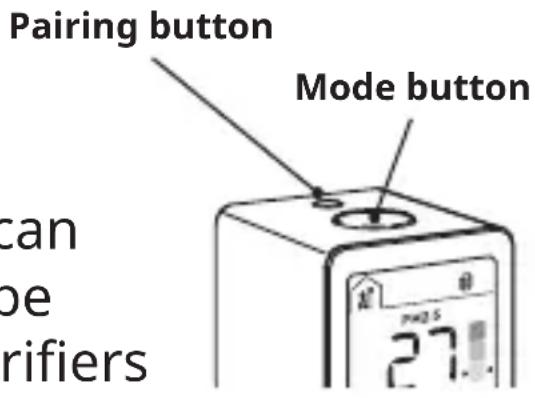

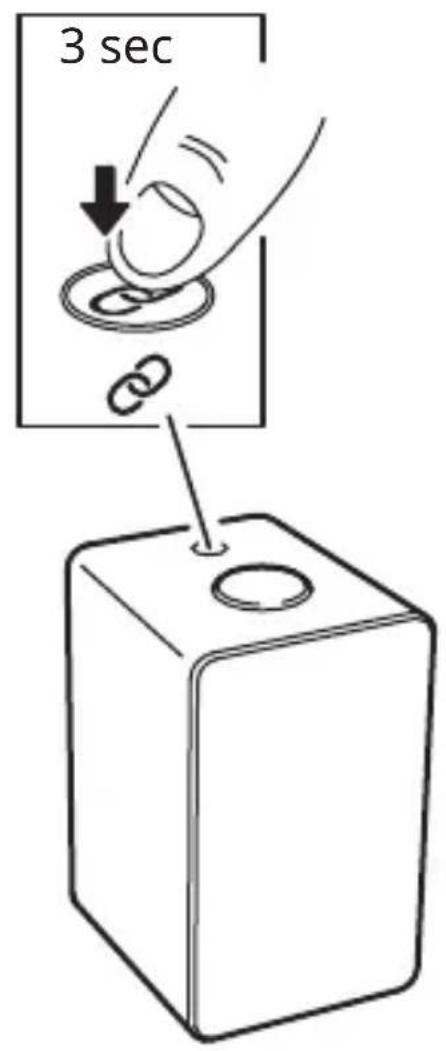

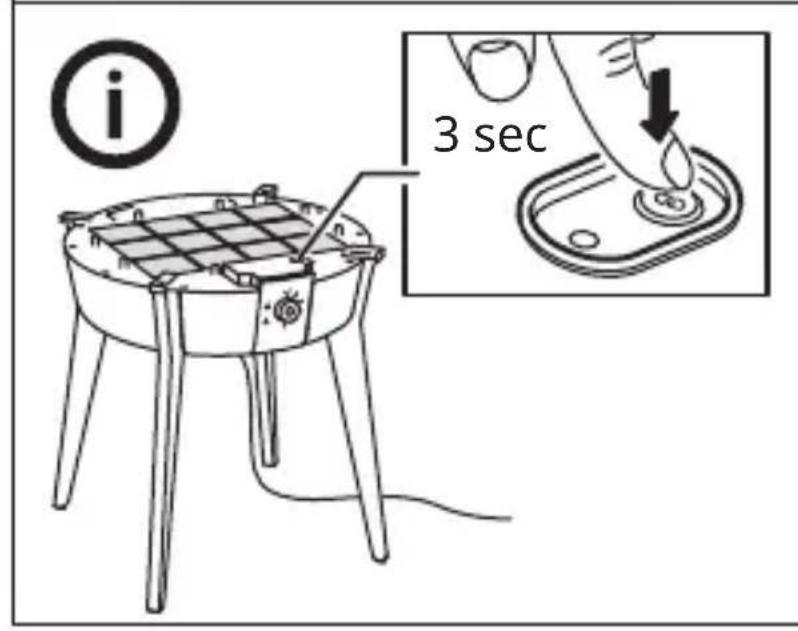

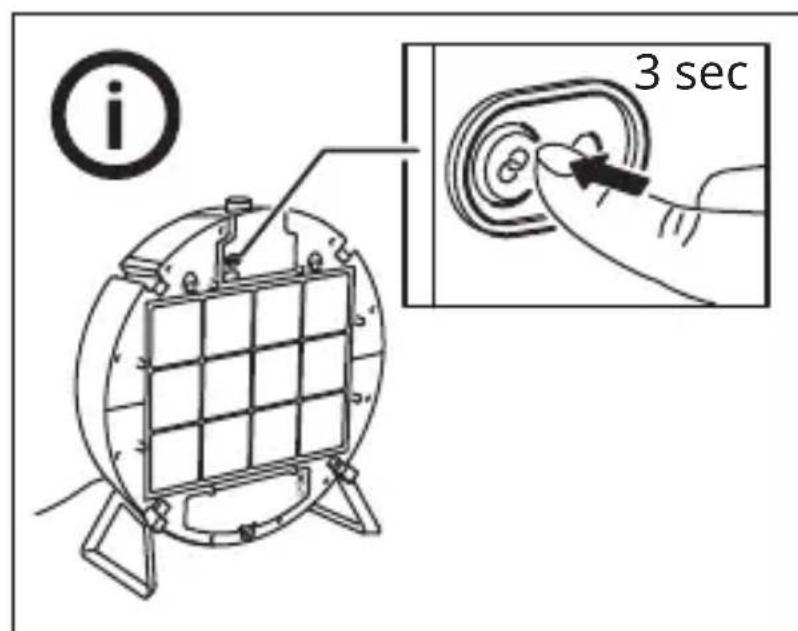

Connect VINDSTYRKA to STARKVIND air purifier Long press the pairing buttons on VINDSTYRKA and STARKVIND at the same time to connect them. See pages 6-7.
When the connection is successful, the pairing icon should stop blinking on the display.

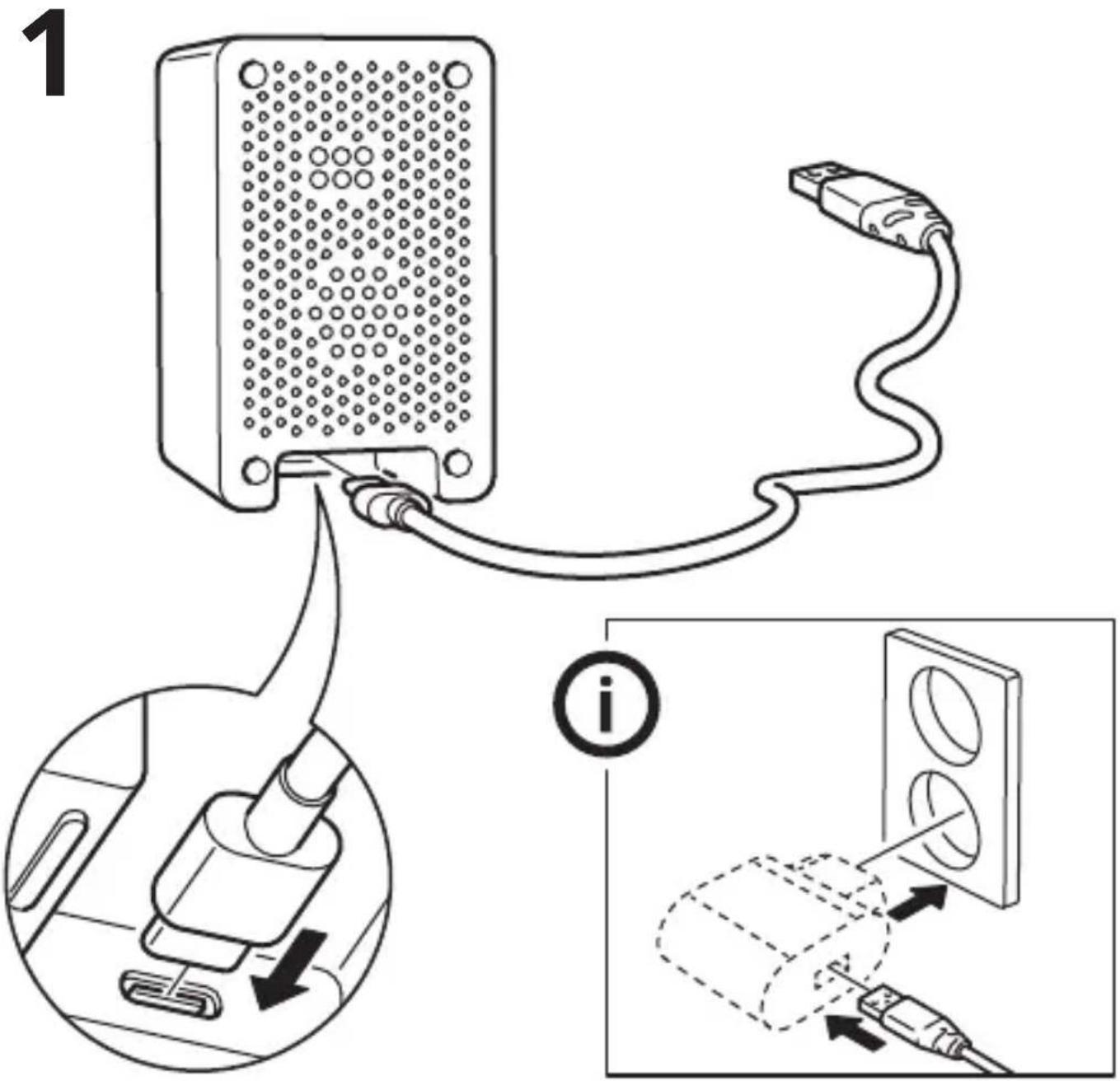

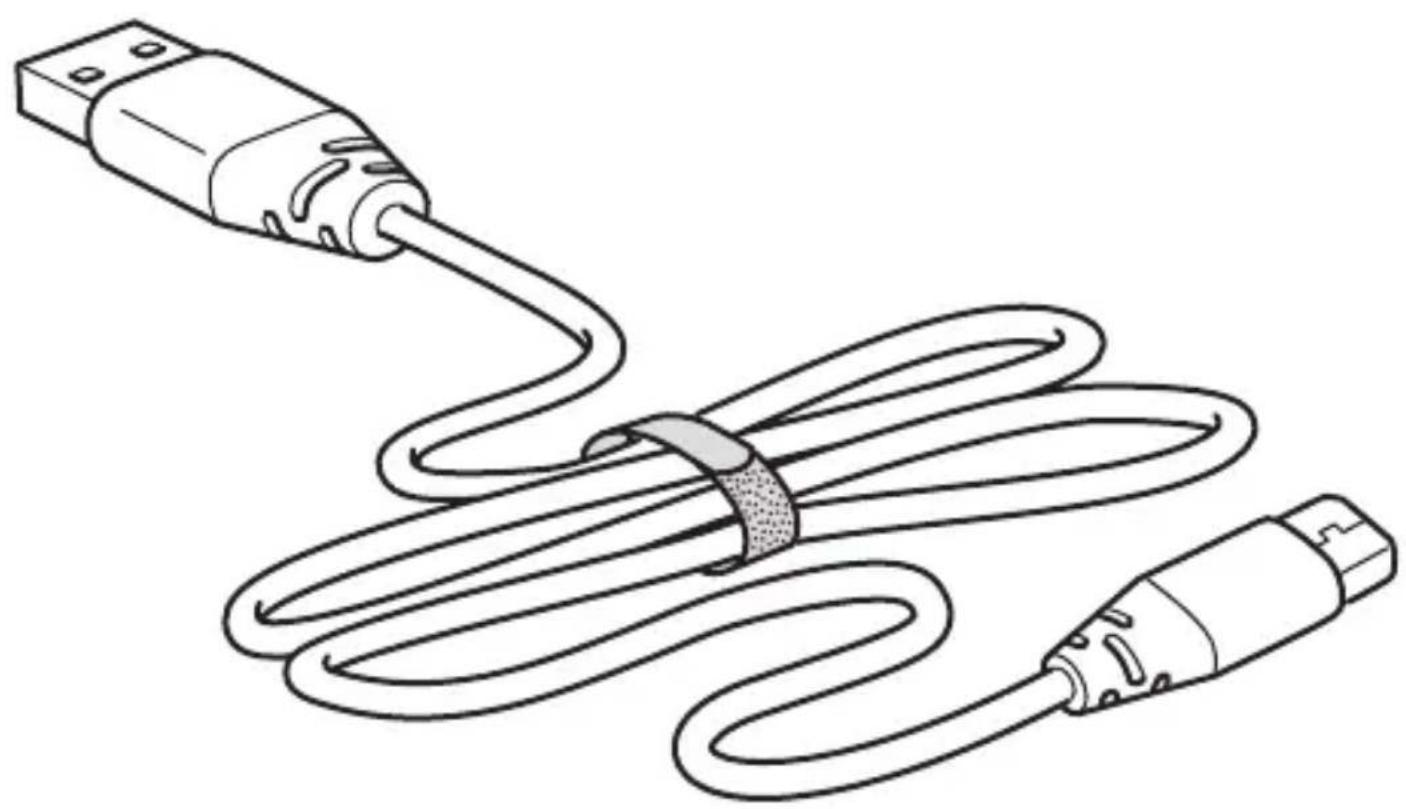

Recommended power supply:
5.0 VDC, 1.0 A (Not included)
Connect VINDSTYRKA to DIRIGERA hub
Connecting VINDSTYRKA to DIRIGERA hub, if you'll be able to see the room's air quality in the IKEA Home smart app.
If you have an iOS device:
Go to the App Store and download the IKEA Home smart app. The app will show you how to connect VINDSTYRKA to DIRIGERA hub.
If you have an Android device:
Go to Google Play and download the IKEA Home smart app. The app will show you how to connect VINDSTYRKA to DIRIGERA hub.
Pairing:Connecting VINDSTYRKA air quality sensor to DIRIGERA hub and STARKVIND air purifier.
- When the pairing mode is activated, the pairing icon on the display should blink until VINDSTYRKA is connected to the air purifier or the hub.
- When VINDSTYRKA is connected to 1 air purifier, the following icon should be active on the display.
- When VINDSTYRKA is connected to more than 1 air purifier, the following icon should be active on the display.
- When VINDSTYRKA is connected to DIRIGERA hub, only the pairing icon should be visible on the screen.
Display on VINDSTYRKA
Shows connected air purifiers.
Displays level of PM2.5 particles.
PM2.5 are small inhalable particles, particles with a max. size of 2.5 micrometres.
Green: 0-35 g/m³, Yellow: 35-120 g/m³, Red: >120 g/m³.
Room temperature
Room relative humidity
Temperature and humidity can affect the indoor comfort and wellbeing.
Indicates increasing, stable or
decreasing level of TVOC.
TVOC stands for "Total Volatile Organic Compounds" (VOC).
Settings mode
A long press on the mode button will enter the Settings mode.
Brightness
A flashing symbol means that it is possible to adjust the brightness level.
Press the mode button to select between level 1, 2, and 3.
A long press on the mode button confirms
the setting and takes you to the settings for temperature.
Auto off: After 1 minute, the display brightness will return to its default setting (level 2).
Temperature unit
A flashing symbol means that it is possible to adjust the temperature.
Press the mode button to switch between Celsius and Fahrenheit.
A long press on the mode button confirms the setting and takes you back to the Settings mode.
Important!
- The product is only intended for household use under normal operating conditions.

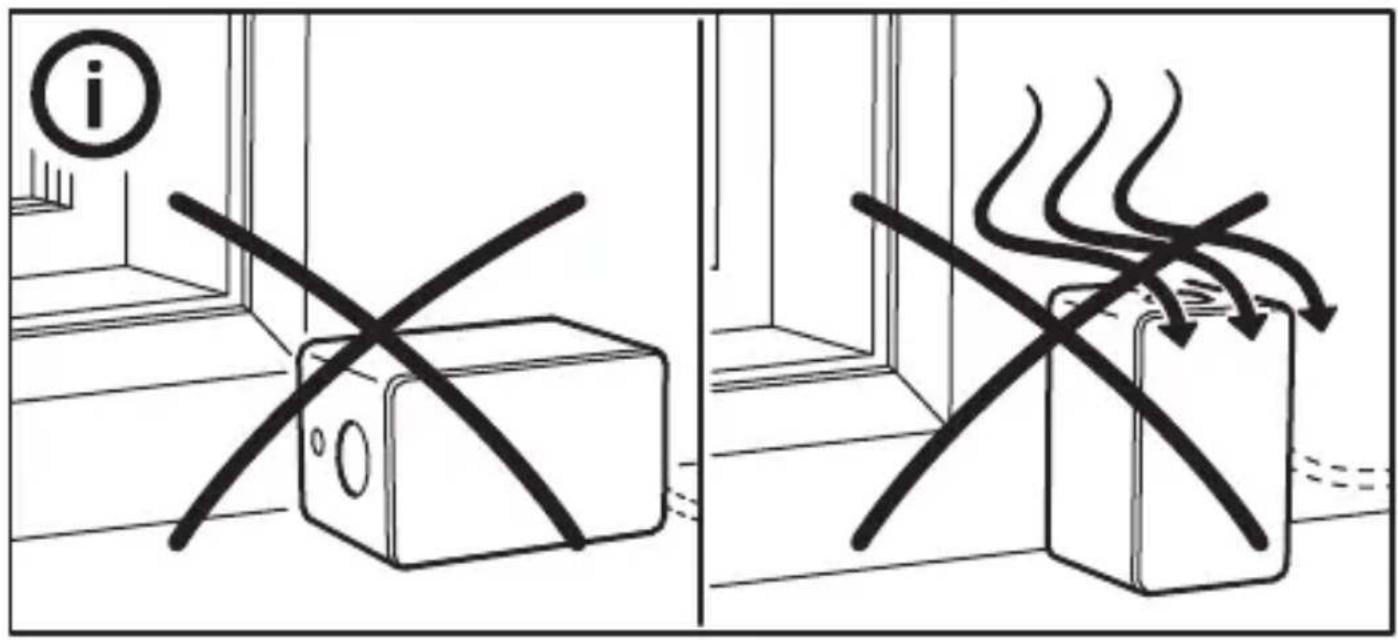

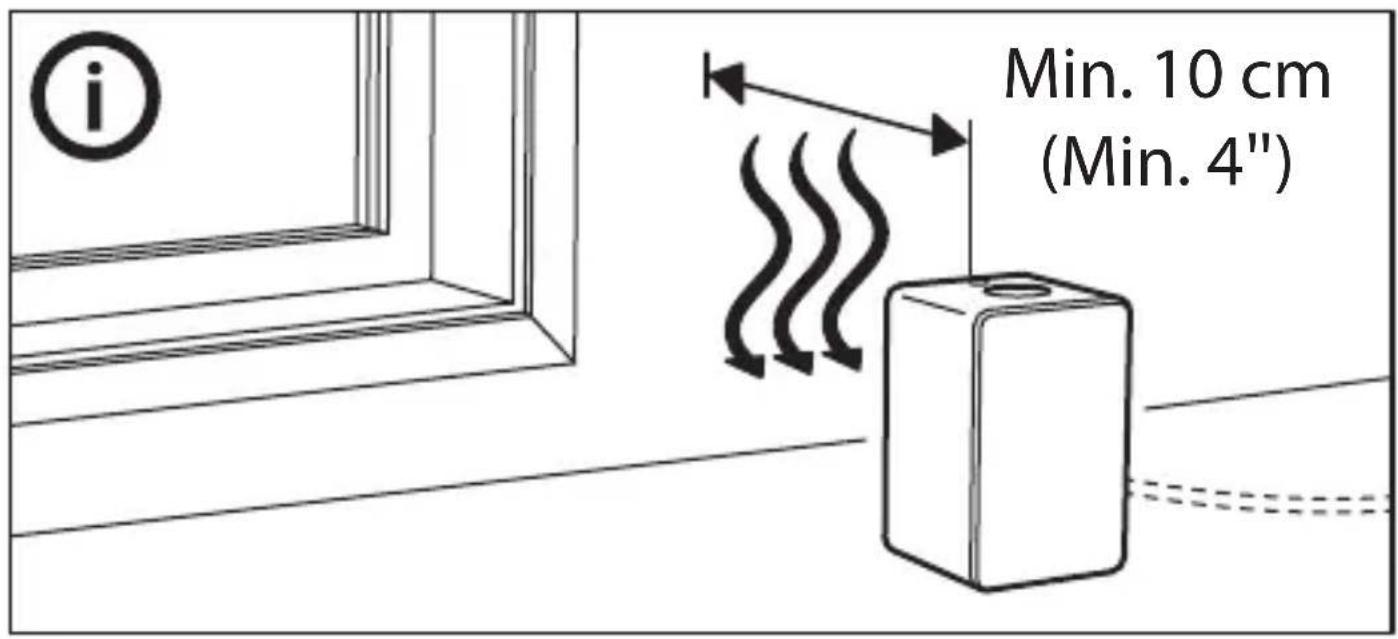

- Do not block the air intakes and outlet in the rear.
- Do not leave the product in direct sunlight or near any heat source, as it may overheat.
- The wall socket must be located near the equipment and must be easily accessible.
- Do not subject the product to wet, moist or excessively dusty environments since this can cause damage to the unit.
- Children should be supervised to ensure they do not play with the product.
- The product does not measure carbon monoxide (CO) or radon (Rn). It cannot be used as a safety
device upon accidents involving combustion processes and hazardous chemicals.
- Be sure to not exceed the maximum USB cable length recommended for the device.
- Never use a damage or faulty USB cable, since this can damage or harm the power adapter or your product.
- Unplug the product from the power source before cleaning and when it is not in use.
Save these instructions for future use.
Factory reset
Quick-press the pairing button 4 times to perform a factory reset.
Care instructions
Wipe with a soft cloth moistened with a little mild detergent.
Use another soft, dry cloth to wipe dry.
Note!
Never use abrasive cleaners or chemical solvents as this can damage the product.
Product servicing
Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
Technical data
Model: VINDSTYRKA air quality sensor
Type: E2112
Input: 5.0 VDC, 1.0 A, 0.5 W, USB-C
Particle detection range: 0 1000~ g / m^3
Radio range: 10m in open air
Operating frequency: 2400~2483.5 MHz
Output power: 8 dBm
Operation temperature: 0^ C to 40^ C
Operating humidity: 0 to 95% RH
Max USB cable length: 3.0 m/9'8''
Indoor use only
Manufacturer: IKEA of Sweden AB
Adress: Box 702, SE-343 81 Ålmhult, SWEDEN
This device complies with Part 15 of the FCC Rules. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause undesired operation of the device.
WARNING:
Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning thequipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
-
Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
License rights and limitations
NO RIGHTS OR LICENSES, EXPRESS NO RIGHTS OR LICENSES, EXPRESS OR IMPLIED, ARE GRANTED TO USE THIRD-PARTY DEVICES IN COMBINATION WITH THESE PRODUCTS IN A WIRELESS MESH NETWORK, OR TO USE THIRD-PARTY SERVICES TO ACCESS, MONITOR OR CONTROL THESE PRODUCTS IN A WIRELESS MESH NETWORK VIA THE INTERNET OR ANOTHER EXTERNAL WIDE AREA NETWORK.
For use pursuant to U.S. Patent Nos.:
US 6,914,893
US 7,697,492
US 8,964,708
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
