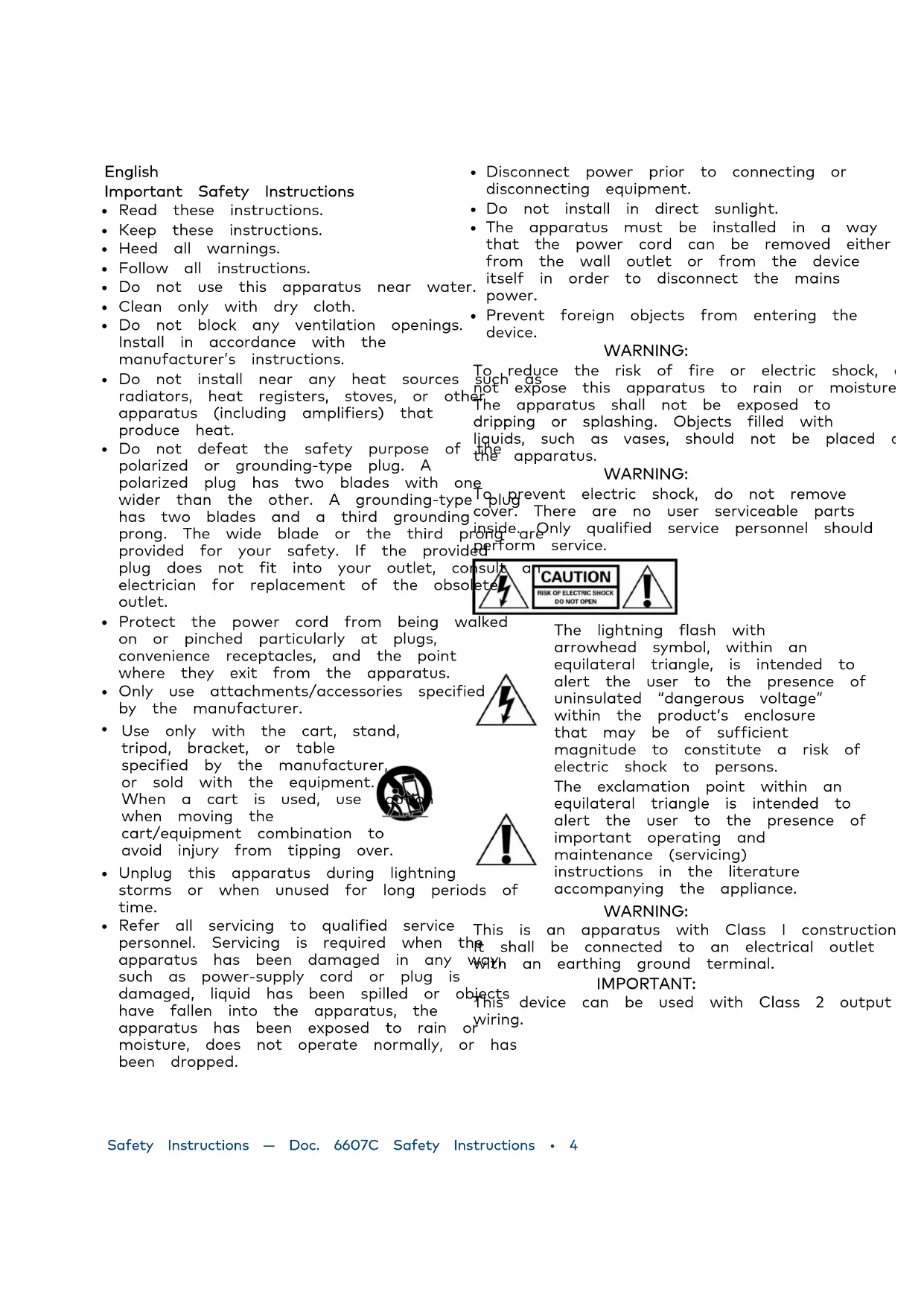

Important Safety Instructions

• Read these instructions.

• Keep these instructions.

Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources, radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third plug is provided for your safety. If the provided plug does not fit into your outlet, contact an electrician for replacement of the observed outlet.

• Protect the power cord from being v on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment. When a cart is used, use it when moving the cart/equipment combination to avoid injury from tipping over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

Refer all servicing to qualified service This is personnel. Servicing is required when the shall apparatus has been damaged in any with an such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the This dev apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Disconnect power prior to connecting or disconnecting equipment.
• Do not install in direct sunlight.
• The apparatus must be installed in a way that the power cord can be removed either from the wall outlet or from the device itself in order to disconnect the mains power.
• Prevent foreign objects from entering the device.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing. Objects filled with liquids, such as vases, should not be placed on the apparatus.

WARNING:

To prevent electric shock, do not remove cover. There are no user serviceable parts inside. Only qualified service personnel should perform service.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

an apparatus with Class I construction be connected to an electrical outlet earthing ground terminal.

IMPORTANT:

This device can be used with Class 2 outputs
