USER MANUAL MW 6015 CB BOMANN

• Do not remove any installed parts from inside the oven or anything from the inside of the door!

• The foils on the inside of the door must not be removed!

• The mica sheet (10) is also part of the appliance and must not be removed. It protects the electronic component located behind it from dirt. UWAGA:

THIS APPLIANCE IS EQUIPPED WITH A

REMOVAL OF THE ENCLOSURE WITH PRODUCT

THIS APPLIANCE IS EQUIPPED WITH A

REMOVAL OF THE ENCLOSURE WITH PRODUCT

THIS APPLIANCE IS EQUIPPED WITH A

REMOVAL OF THE ENCLOSURE WITH PRODUCT

THIS APPLIANCE IS EQUIPPED WITH A

REMOVAL OF THE ENCLOSURE WITH PRODUCT

THIS APPLIANCE IS EQUIPPED WITH A

REMOVAL OF THE ENCLOSURE WITH PRODUCT

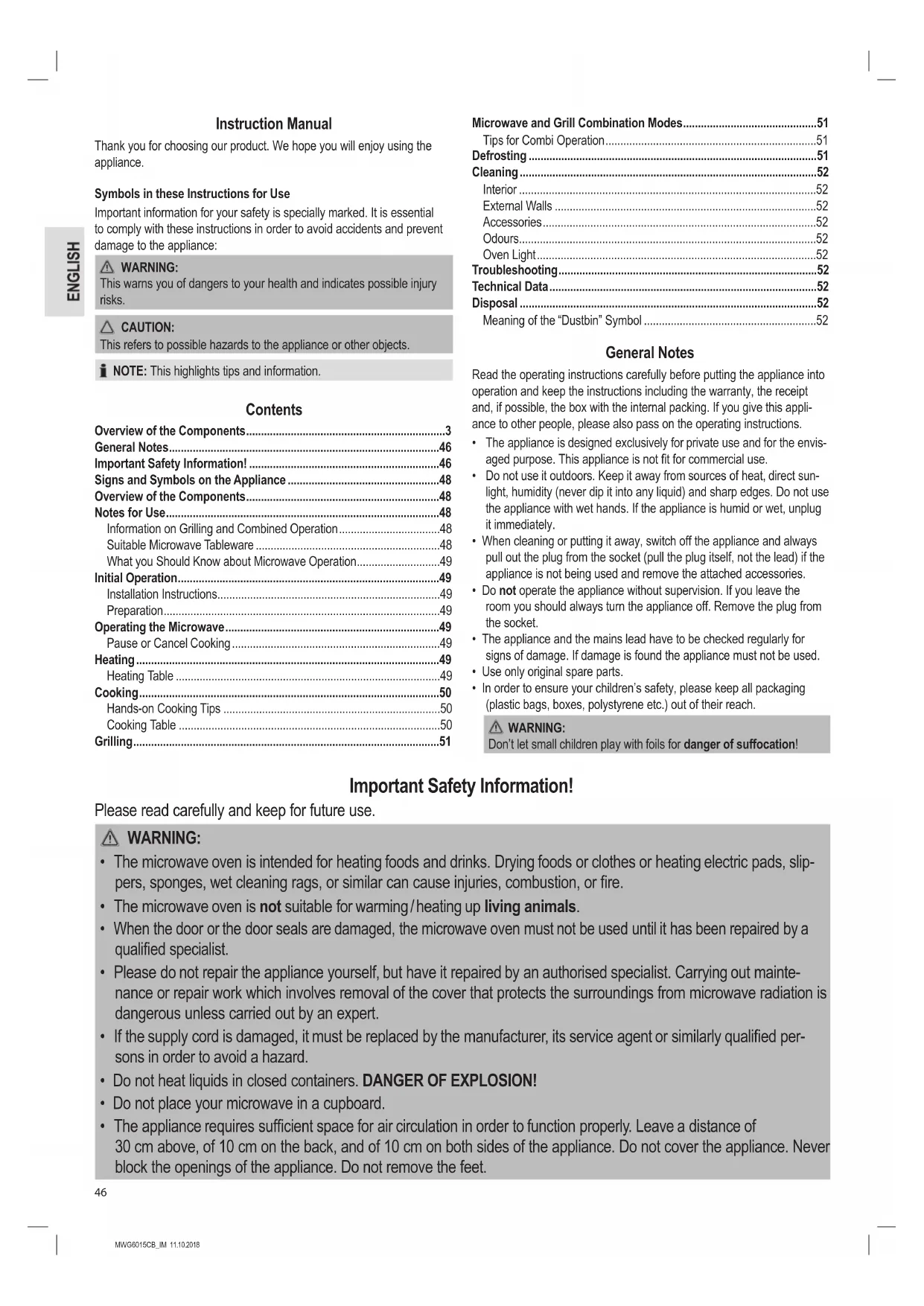

Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

• The appliance is designed exclusively for private use and for the envis- aged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sun- light, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.

• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Don’t let small children play with foils for danger of suffocation! Important Safety Information! Please read carefully and keep for future use.

• The microwave oven is intended for heating foods and drinks. Drying foods or clothes or heating electric pads, slip- pers, sponges, wet cleaning rags, or similar can cause injuries, combustion, or re.

• The microwave oven is not suitable for warming / heating up living animals.

• When the door or the door seals are damaged, the microwave oven must not be used until it has been repaired by a qualied specialist.

• Please do not repair the appliance yourself, but have it repaired by an authorised specialist. Carrying out mainte- nance or repair work which involves removal of the cover that protects the surroundings from microwave radiation is dangerous unless carried out by an expert.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied per- sons in order to avoid a hazard.

• Do not heat liquids in closed containers. DANGER OF EXPLOSION!

• Do not place your microwave in a cupboard.

• The appliance requires sufcient space for air circulation in order to function properly. Leave a distance of 30 cm above, of 10 cm on the back, and of 10 cm on both sides of the appliance. Do not cover the appliance. Never block the openings of the appliance. Do not remove the feet.47

• Place the appliance with the back facing a wall.

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating ele- ments. Children less than 8 years of age shall be kept away unless they are continuously supervised.

• Only suitable tableware should be used such as: glass, porcelain, ceramics, heat-resistant plastic or special micro- wave tableware.

• Metallic containers are not permitted for heating food and beverages in the microwave oven. Observe the notes in the chapter “Suitable Microwave Tableware”.

• If food is being heated or cooked in combustible materials, such as plastic or paper containers, the microwave oven should be checked frequently due to the risk of re.

• If smoke is produced, turn the appliance off and remove the plug. Keep the door closed in order to suffocate any ames.

• The contents of babies’ bottles and jars of baby food must be stirred or shaken and the temperature checked before use. There is a danger of burns.

• Use oven cloths or kitchen gloves when removing the containers. DANGER OF BURNS!

• Food with a shell or skin, such as eggs, sausages, sealed jars etc. must not be heated up in the microwave as they may explode even when heating by the microwaves is nished.

WARNING: Delay in boiling!

During boiling, particularly during the reheating of liquids (water), it may happen that the boiling temperature has been reached but the typical bubbles have not yet started to rise. The liquid does not boil evenly. When the vessel is removed this so-called delay in boiling may result in the sudden formation of bubbles when the vessel is knocked, causing the water to boil over. There is a serious danger of burns! In order to achieve even boiling, please place a glass rod or similar item, but nothing metallic, in the vessel.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Any dirt on the door frame / door seal and neighbouring parts must be carefully cleaned with a damp cloth.

• Clean the microwave oven regularly and remove any food residues from the interior.

• If the appliance is not clean the surface may be damaged, affecting its serviceable life and possibly resulting in haz- ardous situations.

• Do not use any aggressive abrasive cleaners or sharp metal scrapers to clean the glass door. You could scratch the surface. This can destroy the glass.

• Steam cleaner is not to be used.

• Also follow the instructions which are given in the “Cleaning” chapter.

• Do not operate the appliance with an external timer or separate remote control system.

• This appliance is used - for heating up and cooking solid or liquid foods - for browning and grilling solid foods. It is intended for the use in households and for similar applications, such as: - in staff kitchens of stores, ofces, and other industrial areas; - by guests in hotels, motels, and other housing facilities; - in agricultural estates; - in bed and breakfasts.48

MWG6015CB_IM 11.10.2018

Signs and Symbols on the Appliance There is a warning symbol attached to the top surface of the microwave oven:

WARNING: Hot surface!

Risk of burning! The temperature of accessible surfaces can get very hot during and after operation. Also note the information signs on the microwave: WARNING

THIS APPLIANCE IS EQUIPPED WITH A

REMOVAL OF THE ENCLOSURE WITH PRODUCT

• As heat radiation is used during grilling and combined operation, please use only heat-resistant tableware. Plastic containers are not suitable.

• When food is only being grilled, metal or aluminium tableware may also be used -but not during combined or microwave operation.

• Do not place anything on top of the housing as this becomes hot. Always leave the ventilation slits uncovered.

• Please use the grilling grid to move the food to be cooked nearer to the heating element. Suitable Microwave Tableware

• The ideal material for use in a microwave is transparent and allows the microwave radiation to heat the food evenly.

• Round / oval dishes and plates are more suitable than rectangular ones as the food in the corners may overcook. CAUTION: Risk of explosion by sealed tableware.

• Open closed containers before cooking or heating.

• Pierce protective plastic foil several times using a fork. CAUTION: Sparking and re hazard!

• Microwaves cannot penetrate metal. Accordingly, no metal containers or plates may be used in microwave operation.

• Do not use any paper dishes made of recycled material as these may contain small amounts of metal, which may result in sparks or res. The list below is intended to help you select suitable microwave table- ware: Material Suitable for Microwave Grill Combination * Heat-resistant glass vessel yes yes yes Non-heat-resistant glass vessel no no no Heat-resistant ceramic vessel / plate yes yes yes Plastic vessels suitable for microwave use yes no no Kitchen roll yes no no Metal or aluminium ovenware no yes no Grilling grid no yes no Aluminium foil and foil containers no yes no *) Combination of microwave with grill49

MWG6015CB_IM 11.10.2018

What you Should Know about Microwave Operation

• Your appliance works with microwave radiation, which heats up water particles in food in a very short time. There is no heat radiation and therefore hardly any browning.

• Only food should be heated up with this appliance.

• The appliance is not suitable for baking in oating fat.

• Only 1 - 2 portions should be heated up at the same time. Otherwise the microwave will become less efcient.

• Microwaves provide their full energy levels immediately. Pre-heating is therefore not necessary.

• Never operate the microwave function when the oven is empty.

• The microwave oven does not replace your traditional cooker. It is used mainly for: - defrosting deep-frozen food - rapid warming / heating of food or drinks - cooking meals. Initial Operation Installation Instructions

• Install the appliance with the back of the appliance facing the wall.

• Maintain the following safety clearances: - 10 cm to the back - 10 cm to both sides - 30 cm to the top of the microwave.

• In order to avoid interference with the operation of other appliances, do not place your appliance near other electronic appliances. Preparation

1. Press the door opener to open the door of the microwave. The door

2. Remove any accessories from the cooking chamber and unpack.

3. If not yet done: Place the drive shaft on the center of the bottom inside

4. Install the guide ring in the center.

5. Position the glass rotating plate in such a way that its lower recesses

lock onto the center of the drive shaft.

6. Make sure the mains voltage to be used corresponds to the voltage of

the appliance. Check the rating label for specications.

7. Insert the mains plug into a properly installed power socket.

• Do not remove any installed parts from inside the oven or from inside the door!

• The mica sheet (10) is also part of the appliance and must not be removed. It protects the electronic component located behind it from dirt. NOTE: If there are manufacturing or oil remains on the enclosure or heating element, smoke or odor might occur during the beginning operation. This is normal and will cease after repeated use. We strongly recommend proceeding as follows:

• Turn on the grill mode and let the appliance operate several times without food to be cooked.

• Ensure sufcient ventilation. Operating the Microwave

1. Place the food to be heated in a suitable piece of tableware.

2. Open the door and place the vessel in the middle of the glass plate.

Then close the door. (For safety reasons the oven only operates when the door is tightly closed.)

3. Adjust the microwave power as required:

Labelling Description Power Microwave in % * Field of Application

Keeping warm 18 Melting cheese etc.

M.L Defrosting 36 Defrosting frozen food M Medium 58 Continued cooking M.H Medium high 81 Cooking e.g. meat H High 100 Rapid heating

4. Use the timer to set the desired cooking time between 1 minute and

30 minutes. The cooking time depends on the quantity and constit- uency of the contents of the oven. With a little practice you will soon learn to estimate the cooking time. NOTE:

• Preparation of food in a microwave oven is very much faster than in a conventional cooker. Set the cooking time to a low level if you are not sure and continue cooking again if necessary.

• Once the cooking time is set the oven switches itself on. The light inside the oven goes on.

• Please note: A cover should be placed over the food when operating the microwave.

5. When the time has nished the oven switches off automatically.

A sound is heard. The food should then be removed. Pause or Cancel Cooking

• If you wish to interrupt the cooking operation, just open the door with the door opener.

• To continue cooking, close the door.

• To abort the process completely, set the timer to position “0”. Heating Warming and heating are special characteristics of microwaves. Refriger- ated liquids and foods can be easily warmed up to room or eating temper- ature without having to use a lot of pots. The heating times in the following table are for reference only, as the time depends very much on the original temperature and the texture of the food. It is therefore recommended to check once in a while whether the food is hot enough. Heating Table Edibles / food Quantity Switch position Time approx. Min. Cover Liquids 1 cup 150 g H 0,5 - 1 no 0,5 ℓ 500 g H 3,5 - 5 no 0,75 ℓ 750 g H 5 - 7 no Tip: Put a glass stick into the container to avoid superheating; stir well before drinking. Plated meals Cutlet + potatoes and vegetables 450 g H 2,5 - 3,5 yes Goulash with noodles 450 g H 2 - 2,5 yes Meat + lump + sauce 450 g H 2,5 - 3,5 yes Tip: Slightly moisten before cooking; stir occasionally.50

MWG6015CB_IM 11.10.2018

Edibles / food Quantity Switch position Time approx. Min. Cover Meat Cutlet, breaded 200 g H 1 - 2 no Meatballs, 4 pieces 500 g H 3 - 4 no Joint 250 g H 2 - 3 no Tip: Coat with oil for the breading or crust not to soften. Poultry ½ chicken 450 g H 3,5 - 5 no Chicken fricassee 400 g H 3 - 4,5 yes Tip: Coat with oil; stir occasionally. Side dish Noodles, rice, 1 serving 2 servings 150 g H 1 - 2 yes 300 g H 2,5 - 3,5 yes Potatoes 500 g H 3 - 4 yes Tip: Slightly moisten prior to cooking. Soups / sauce Broth, 1 plate 250 g H 1 - 1,5 yes Soup with solids 250 g H 1,5 - 2 yes Sauce 250 g H 1 - 2 yes Infant food Milk 100 ml M 0,5 - 1 no Mash 200 g M 1 - 1,5 no Tip: Thoroughly shake or stir. Check temperature! Cooking Hands-on Cooking Tips Follow the guidelines given in the cooking table and recipe. Monitor the cooking process if you do not yet have as much experience. You may open the door of the appliance at any time. The appliance will turn off automatically. It will only continue operation when the door is closed. Refrigerated food needs a longer cooking time than that with room tem- perature. The chunkier the food, the longer the cooking time. Meat cut in bigger pieces, for example, requires longer cooking than meat of the same quan- tity cut into strips. It is recommended cooking larger amounts of food at maximum power and having it simmer at medium power for a more evenly cooking. Lower foodstuffs cook faster than higher ones; therefore distribute the food as low as possible. Place thinner parts such as chicken legs or sh lets in the center or leave them overlapping. Smaller amounts cook faster than bigger ones. The following rule of thumb applies: Double amount = almost double time Half amount = half time If you cannot nd the exact cooking time for a dish, you may apply the following rule: Per 100 g approx. 1 minute cooking All foods that you cover on a common stove should be covered in the microwave as well. A cover will prevent the food from running dry. An upside-down plate, greaseproof paper or microwave cooking foil are all suitable as covers. Cook food that should be getting a crust without cover. Cooking Table Edibles / food Quantity Switch position Time approx. Min. Cover Vegetables Eggplant 500 g M.H 7 - 10 yes Cauliower 500 g M.H 13 - 15 yes Broccoli 500 g M.H 6 - 9 yes Chicory 500 g M.H 6 - 7 yes Peas 500 g M.H 6 - 7 yes Fennel 500 g M.H 8 - 11 yes Green beans 300 g M.H 13 - 15 yes Potatoes 500 g M.H 9 - 12 yes Stem turnip 500 g M.H 8 - 10 yes Leek 500 g M.H 7 - 9 yes Corn on the cob 250 g M.H 7 - 9 yes Carrot 500 g M.H 8 - 10 yes Pepper 500 g M.H 6 - 9 yes Brussels sprouts 300 g M.H 7 - 10 yes Asparagus 300 g M.H 6 - 9 yes Tomatoes 500 g M.H 6 - 7 yes Zucchini 500 g M.H 9 - 10 yes Tip: Cut vegetables into small pieces and cook with 2 - 3 spoons of liquid; stir occasionally. Simmer 3 - 5 minutes; add seasoning just before eating. Fruits Stewed apple or pear 500 g M.H 5 - 8 yes Stewed rhubarb 250 g M.H 4 - 6 no Roast apple, 4 pieces 500 g M.H 7 - 9 yes Tip: Add 125 ml of water; lemon juice will prevent the fruits from discoloring; simmer 3 - 5 minutes. Meat *) Meat with sauce 400 g M.H 10 - 12 yes Goulash, veal strips 500 g M.H 10 - 15 yes Beef roulades 250 g M.H 7 - 8 yes Tip: Stir occasionally; rest for 3 - 5 minutes. Poultry *) Chicken fricassee 250 g M.H 6 - 7 yes Chicken soup 200 g M.H 5 - 6 yes Tip: Stir occasionally; rest 3 - 5 minutes. Fish Fish let 300 g M.H 7 - 8 yes 400 g M.H 8 - 9 yes Tip: Turn over after half the time has elapsed; simmer 3 - 5 minutes.51

• ) Ready-made food Grilling Place the grill rack onto the supplied glass plate. Use suitable heat-resist- ant tableware or directly put the food onto the grill. It is not necessary to preheat the grill rack since the grill generates radiant heat immediately. Proceed as follows for roasting and scalloping:

1. Set the function switch to position “G”.

2. Use the timer to set the desired roasting time between 1 minute and

30 minutes. NOTE: We recommend turning the food (e.g. meat, sausage) after approx. half of the cooking time has elapsed. The fan continues running when the cooking process is paused. Edibles / food Quantity Time approx. min. Cover Scalloping toast with cheese 2 - 3 slices 8 no Scalloping soups, e.g. onion soup 2 - 3 cups 10 - 15 no Microwave and Grill Combination Modes During those modes the microwave and grill work alternately within a set time.

2. Use the timer to set the desired cooking time between 1 minute and

30 minutes. Tips for Combi Operation When cooking food with the combined setting of microwave-grill, you should adhere to the following: The cooking time for big and thick food items, such as roast pork, is re- spectively longer than for small, lower food. Nevertheless, when roasting, the opposite rule applies. The closer the food is to the grill, the faster it will become brown. I.e., when preparing big joints during combi opera- tion, the roasting time is possibly shorter than for smaller joints. Defrosting NOTE:

• Microwave power when defrosting is 36 % (252 W).

• Since the microwaves always penetrate the food from the outside in, larger pieces may not be fully defrosted in their centre. The outer layers may already have started to cook.

• Turn foodstuff such as meat, sausages or bread once after approx. half of the defrost time has elapsed.

• Factor in a compensation time after the defrost program. This is a standing period during which a temperature compensation takes place through conduction of heat from the outside (defrosted) to the inside (frozen). You can leave the food in the switched off appliance or outside the appliance during the compensation time. The compen- sation time should be at least as many minutes as the defrost time in the microwave. It depends on the condition of the food.

• If the weight of the food is less than 200 g, do not place it in the mid- dle but at the edge of the glass plate.

• You can shorten the compensation times by e.g. separating small pieces of meat or crumbling the remaining frozen chunks of mince after the defrosting time. For sliced bread or sausage, separate the slices during the compensation time.

• Allow fruit to defrost in a bowl with a lid. After around half the defrost time, gently stir the fruit once.

• Cakes or tarts with chocolate icing should not be defrosted in the microwave. To use the defrost program, proceed as follows:

1. Determine the weight of the food.

2. Remove the food from its packaging. If it cannot be removed from the

packaging, defrost for 30 seconds on maximum microwave power (Switch position “H”).

3. Place the food to be defrosted onto the plate (fruit into a bowl). Also

place meat onto a upturned saucer so that the meat juices can drain. This saucer should never be used for other foods or come into contact with them.

5. Use the timer to set the desired cooking time between 1 minute and

Turn the microwave off and remove the mains plug. CAUTION:

• Do not use any wire brush or other abrasive objects.

• Do not use any acidic or abrasive detergents.

• Do not use a metal scraper to clean the viewing window. The surface could be scratched and the glass could possibly break. Interior

• Keep the interior of the oven clean. Splashes and overowing liquids on the walls of the oven can be removed with a damp cloth. If the oven is very dirty a mild detergent can also be used.

• Wipe off the viewing window on the inside and outside with a damp cloth and remove splashes and stains from overowing liquids regu- larly. External Walls

• The external walls of the microwave should only be cleaned with a damp cloth. Please ensure that no water enters the openings in the housing and therefore inside the appliance.

• Open the microwave door before cleaning the control panel in order to avoid accidentally switching on the appliance. Accessories

• Clean the glass plate in warm soapy water or in the dishwasher. Dry it before reinstalling it in the microwave.

• Regularly clean the guide ring and the inside of the bottom. You may remove the guide ring and manually clean it. Use a mild detergent or glass cleaner. Dry thoroughly. Make sure to position the ring properly afterwards.

• Clean the grill after each use with a dishwashing detergent or place it in a dishwasher for cleaning. Odours In order to remove any unpleasant odours that may emanate from the mi- crowave, place a dish lled with water and lemon juice that is suitable for microwave use in the oven and heat it for approximately 5 minutes. Then wipe out the oven with a soft cloth. Oven Light If you need to replace the lighting in the oven, please contact a specialist workshop near you. Troubleshooting Malfunctions are often just caused due to minor problems. Before contacting our customer service, please check the table below: Problem Possible cause Notes / solution Radio or TV reception is interrupted during mi- crowave operation. The electromagnetic elds of this appliance might interfere with the pictures and sound of special frequencies. This is normal and not a malfunction. Position the appliances further away from each other. The microwave does not start. The door is not properly closed. Check if there are objects or food remains jammed in the door. Defect wall socket. Try another wall socket. Check the main fuse in your household. The turn-table causes a scratching or abradant noise. There are dirt or foreign objects in the area of the turntable shaft. Remove possible objects and food remains as described under “Cleaning”. The operation is terminated without any obvious reason. The appliance is defect. Please contact our customer service. Technical Data Model:....................................................................................MWG 6015 CB Power supply:.......................................................................... 230 V~, 50 Hz Power consumption: Microwave: ....................................................................................1150 W Grill:................................................................................................. 800 W Rated microwave power output: .......................................700 W / 2450 MHz Cavity volume:......................................................................approx. 20 litres Protection class: ........................................................................................... Net weight: ............................................................................ approx. 11.4 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all relevant current CE guide- lines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environ- ment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority.53
