USER MANUAL GP3000i Generac

SAVE THIS MANUAL FOR FUTURE REFERENCE

(000209b) WARNING Loss of life. This product is not intended to be used in a critical life support application. Failure to adhere to this warning could result in death or serious injury. Register your Generac product at:

Section 1 Introduction and Safety 1

• Introduction p. 1
• Safety Rules p. 1
• Safety Symbols and Meanings p. 1
• Exhaust and Location Hazards p. 2
• Electrical Hazards p. 3
• Fire Hazards p. 3
• Standards Index p. 3

Section 2 General Information and

Operation and Use Questions .........9 Before Starting Engine ....................9 Prepare Generator for Use ..............9 Grounding the Generator When In Use

Section 4 Maintenance and

• Troubleshooting p. 12
• Maintenance p. 12
• Maintenance Schedule p. 12
• Preventive Maintenance p. 12
• Engine Maintenance p. 12
• Storage p. 15
• Troubleshooting (000393) WARNING Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your equipment in a well-ventilated area and wear gloves or wash your hands frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov.Owner’s Manual for Portable Generator 1 p. 16

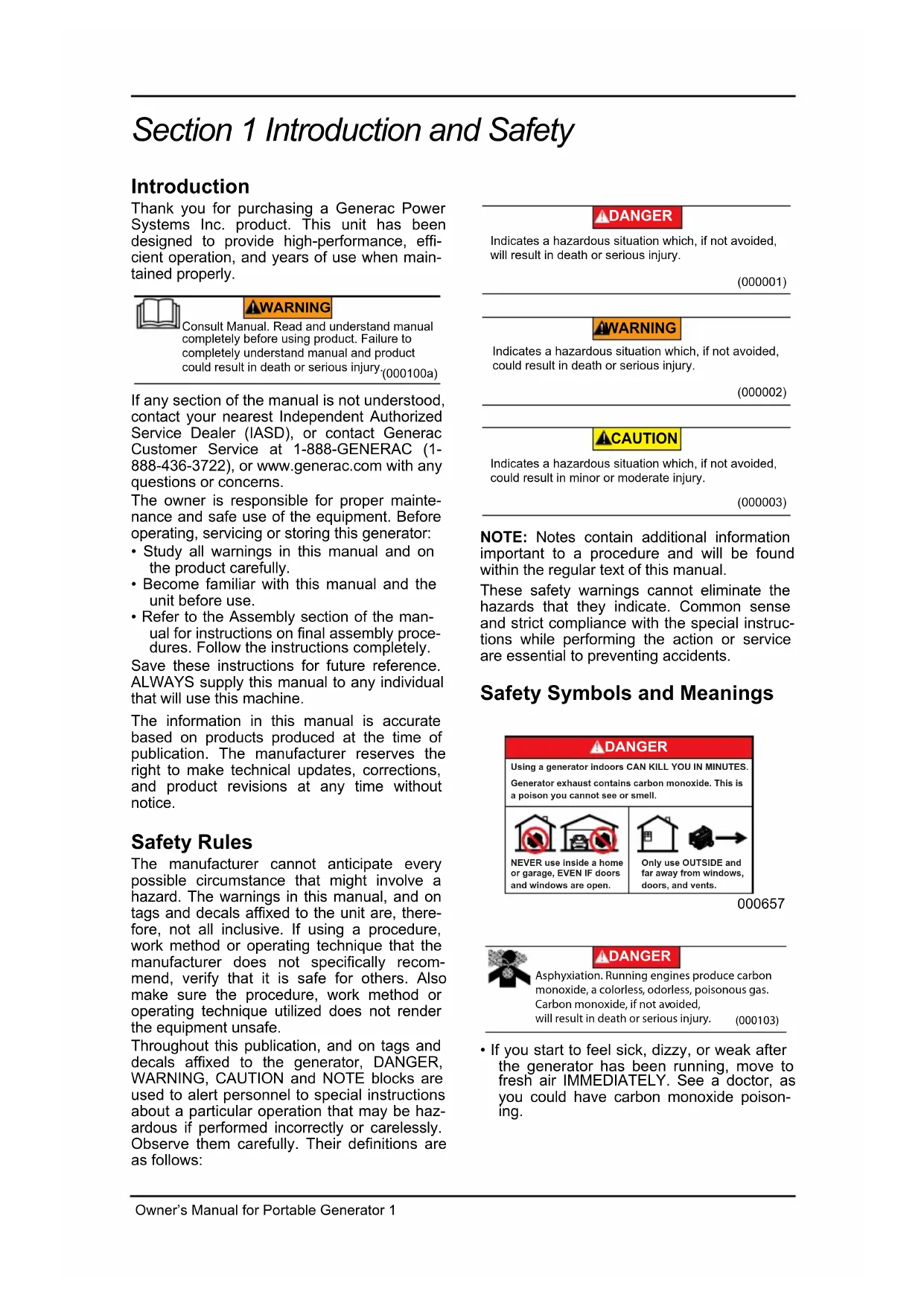

Section 1 Introduction and Safety

Introduction Thank you for purchasing a Generac Power Systems Inc. product. This unit has been designed to provide high-performance, effi- cient operation, and years of use when main- tained properly. If any section of the manual is not understood, contact your nearest Independent Authorized Service Dealer (IASD), or contact Generac Customer Service at 1-888-GENERAC (1- 888-436-3722), or www.generac.com with any questions or concerns. The owner is responsible for proper mainte- nance and safe use of the equipment. Before operating, servicing or storing this generator:

• Study all warnings in this manual and on the product carefully.

• Become familiar with this manual and the unit before use.

• Refer to the Assembly section of the man- ual for instructions on final assembly proce- dures. Follow the instructions completely. Save these instructions for future reference. ALWAYS supply this manual to any individual that will use this machine. The information in this manual is accurate based on products produced at the time of publication. The manufacturer reserves the right to make technical updates, corrections, and product revisions at any time without notice. Safety Rules The manufacturer cannot anticipate every possible circumstance that might involve a hazard. The warnings in this manual, and on tags and decals affixed to the unit are, there- fore, not all inclusive. If using a procedure, work method or operating technique that the manufacturer does not specifically recom- mend, verify that it is safe for others. Also make sure the procedure, work method or operating technique utilized does not render the equipment unsafe. Throughout this publication, and on tags and decals affixed to the generator, DANGER, WARNING, CAUTION and NOTE blocks are used to alert personnel to special instructions about a particular operation that may be haz- ardous if performed incorrectly or carelessly. Observe them carefully. Their definitions are as follows: NOTE: Notes contain additional information important to a procedure and will be found within the regular text of this manual. These safety warnings cannot eliminate the hazards that they indicate. Common sense and strict compliance with the special instruc- tions while performing the action or service are essential to preventing accidents. Safety Symbols and Meanings

• If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poison- ing. (000100a) WARNING Consult Manual. Read and understand manualcompletely before using product. Failure to completely understand manual and productcould result in death or serious injury. (000001) DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. (000002) WARNING Indicates a hazardous situation which, if not avoided,could result in death or serious injury. (000003) CAUTION Indicates a hazardous situation which, if not avoided,could result in minor or moderate injury. DANGERUsing a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.NEVER use inside a home or garage, EVEN IF doors and windows are open.Only use OUTSIDE and far away from windows, doors, and vents.

• For safety reasons, it is recommended that the maintenance of this equipment be per- formed by an IASD. Inspect the generator regularly, and contact the nearest IASD for parts needing repair or replacement. Exhaust and Location Hazards

• If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poison- ing.

• Point muffler exhaust away from people and occupied buildings.

• Do not use near open windows, doors, or openings in walls with engine exhaust directed away from occupied buildings and if possible downwind. (000179b) DANGER Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000104)DANGERElectrocution. Water contact with a power source, if not avoided, will result in death or serious injury. (000116)DANGERElectrocution. Turn utility and emergencypower supplies to OFF before connecting power source and load lines. Failure to do so will result in death or serious injury. (000146) WARNING Equipment and property damage. Do not alter construction of, installation, or block ventilation for generator. Failure to do so could result in unsafe operation or damage to the generator. (000178a) Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer’s instructions. Failure to do so could result in death or serious injury. WARNING (000250) WARNING Equipment and property damage. Do not operate unit on uneven surfaces, or areas of excessive moisture, dirt, dust or corrosive vapors. Doing so could result in death, serious injury, property and equipment damage. (000111)WARNINGMoving Parts. Keep clothing, hair, and appendagesaway from moving parts. Failure to do so could result in death or serious injury. (000108) WARNING Hot Surfaces. When operting machine, do not touch hot surfaces. Keep machine away from combustables during use. Hot surfaces could result in severe burns or fire. (000142a) Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage. WARNING WARNING Risk of injury. Do not operate or service this machine if not fully alert. Fatigue can impair the ability to service this equipment and could result in death or serious injury. (000215) WARNING Injury and equipment damage. Do not use generator as a step. Doing so could result in falling, damaged parts, unsafe equipment operation, and could result in death or serious injury. (000216) CAUTION (000291) Equipment damage. Do not attempt to start or operate a unit in need of repair or scheduled maintenance. Doing so could result in serious injury, death, or equipment failure or damage. WARNING (000103) DANGER Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. (000179b) DANGER Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000146) WARNING Equipment and property damage. Do not alter construction of, installation, or block ventilation for generator. Failure to do so could result in unsafe operation or damage to the generator. (000178a) Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer’s instructions. Failure to do so could result in death or serious injury. WARNINGOwner’s Manual for Portable Generator 3 Electrical Hazards

• The National Electric Code (NEC) requires the frame and external electrically conduc- tive parts of the generator be properly con- nected to an approved earth ground. Local electrical codes may also require proper grounding of the generator. Consult with a local electrician for grounding requirements in the area.

• Use a ground fault circuit interrupter in any damp or highly conductive area (such as metal decking or steel work).

• Once generator has been started outside, connect electrical loads to extension cord(s) inside. Fire Hazards

• Wipe up any fuel or oil spills immediately. Verify that no combustible materials are left on or near the generator. Keep the area surrounding the generator clean and free from debris and keep a clearance of five (5) feet on all sides to allow for proper ventila- tion of the generator.

• Do not operate the generator if connected electrical devices overheat, if electrical out- put is lost, if engine or generator sparks or if flames or smoke are observed while unit is running.

• Keep a fire extinguisher near the generator at all times.

• Keep a minimum clearance of five feet all around generator. Standards Index

TION AND SAFETY CODE available from www.nfpa.org

3. International Building Code available from

nance of Farm Standby Electric Power available from www.asabe.org, American Society of Agricultural & Biological Engi- neers 2950 Niles Road, St. Joseph, MI

generators for installation and use, in accordance with the Rules of the Cana- dian Electrical Code

7. ANSI/PGMA G300 Safety and Perfor-

mance of Portable Generators. Portable Generator Manufacturer’s Association, www.pgmaonline.com This list is not all inclusive. Check with the Authority Having Jurisdiction (AHJ) for any local codes or standards which may be appli- cable to your jurisdiction. (000144)DANGERElectrocution. Contact with bare wires, terminals, and connections while generator is running will result in death or serious injury. (000104)DANGERElectrocution. Water contact with a power source, if not avoided, will result in death or serious injury. (000145) DANGER Electrocution. In the event of electrical accident, immediately shut power OFF. Use non-conductive implements to free victim from live conductor. Apply first aid and get medical help. Failure to do so will result in death or serious injury. (000105) DANGER Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (000166b) DANGER Explosion and Fire. Do not overfill fuel tank. Fill to 1/2 inch from top of tank to allow for fuel expansion. Overfilling may cause fuel to spill onto engine causing fire or explosion, which will result in death or serious injury. (000142a) Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage. WARNING WARNING Fire risk. Fuel and vapors are extremely flammable. Do not operate indoors. Doing so could result in death, serious injury, or property or equipment damage. (000281) WARNING Explosion and fire risk. Do not smoke near unit. Keep fire and spark away. Failure to do so could result in death, serious injury, or property or equipment damage. (000282) WARNING Explosion and Fire. Do not smoke while refueling unit. Failure to do so could result in death, serious injury, or property or equipment damage. (000284a)4 Owner’s Manual for Portable Generator

Section 2 General Information and Setup

8Owner’s Manual for Portable Generator 5 Know Your Generator Replacement owner’s manuals are available at www.generac.com. Emissions The United States Environmental Protection Agency (US EPA) (and California Air Resources Board (CARB), for engines/equip- ment certified to California standards) requires that this engine/equipment complies with exhaust and evaporative emissions stan- dards. Locate the emissions compliance decal on the engine to determine applicable stan- dards. For emissions warranty information, please reference the included emissions war- ranty. It is important to follow the maintenance specifications in the manual to ensure that the engine complies with the applicable emissions standards for the duration of the product’s life. (000100a) WARNING Consult Manual. Read and understand manualcompletely before using product. Failure to completely understand manual and productcould result in death or serious injury. TABLE 2. Product Specifications Generator Specifications GP3000i Rated Power 2300 WStarting Power 3000 WRated AC Voltage 120VRated AC Load at 120V 19.1 Amps**Rated Frequency 60 HzDimensions L x W x H (in/mm) 22.25 x 13.35 x 18.4 (565 x 339 x 467)Weight (dry) 59.5 lb. (27 kg)** Operating Temperature Range: -13 deg. C (8 deg. F) to 40 Deg. C (104 Deg. F). When operatedabove 25 deg. C (77 deg. F) there may be a decrease in power.** Maximum wattage and current are subject to, and limited by, such factors as fuel Btu content, ambient temperature, altitude, engine condition, etc.. Maximum power decreases about 3.5% for each 1,000 feet above sea level; and will also decrease about 1% for each 6° C (10° F) above 16° C (60° F) ambient temperature. Engine Specifications GP3000i Engine Type Single Cylinder, 4-strokeDisplacement 149 ccSpark Plug Part Number 0K95530157Spark Plug Type E6TC / E6RTC or equivalentSpark Plug Gap (in/mm) 0.024-0.028 (0.6-0.7)Fuel Capacity / Type 4.3 L (1.14 U.S. gallons) / UnleadedOil Type See Add Engine Oil Oil Capacity 0.6 L (0.6 qt.)Run Time at 50% Load 4.5 Hours* Go to www.generac.com or contact an IASD for replacement parts.6 Owner’s Manual for Portable Generator Connection Plugs 120 VAC, Duplex Receptacle The 120 Volt outlet is overload protected by the 20 Amp push button circuit protector. See Figure 2-3. Figure 2-3. 120 VAC, Duplex Receptacle 120 VAC, 30 Amp Receptacle Use a NEMA L5-30R plug with this receptacle. Connect a suitable 3-wire cord set to the plug and to desired load. The cord set should be rated for 125 Volts AC at 30 Amps (or greater). See Figure 2-4. Use this receptacle to operate 120 Volt AC, 60Hz, single phase loads requiring up to 3000 watts, 25 Amps starting power and 2300 watts of continuous power at 19.1 Amps. The outlet is protected by a 20 Amp push-to-reset circuit breaker. Figure 2-4. 120 VAC, 30 Amp Receptacle

Off/Run/Choke Switch This controls the ON/OFF functions, choke and fuel valve operation. See Figure 2-5.

• The OFF position (1) stops the engine and shuts off fuel flow.

• The RUN position (2) is for normal opera- tion and to gradually reduce the use of the choke.

• The CHOKE position (3) switches the fuel valve on to start the engine. NOTE: The CHOKE is not required to start a warm engine. Figure 2-5. Switch (example) USB Outlets The 5 VDC, 1/2.1 Amp USB outlet allows charging of compatible electronic devices. Economy Switch The economy switch has 2 modes of opera- tion:

• On: The quietest mode and best when run- ning appliances or equipment that are resistive loads (non-motor starting), (exam- ple: TV, video game, light, radio).

• Off: Best when running a both inductive (motor-starting) and resistive (non-motor starting) loads, especially when these loads are turning on and off (example: RV, air conditioner, hairdryer). Generator Status Lights See Figure 2-6.

• Overload LED (red): Indicates system overload (2). During motor starting it is nor- mal for the overload LED to illuminate for a few seconds. If LED stays illuminated and the ready LED turns off, the engine will con- tinue to run without output power. Remove all applied loads and determine if attached devices exceed recommended output power. Check for faulty or shorted connec- tions. To restore electrical output, turn dial OFF to reset. Start engine. If condition was corrected, the orange LED will not illumi- nate and electrical output will be restored. Loads can be applied once the green LED illuminates. If the orange LED returns, con- tact an IASD.

• Low Oil Level LED (yellow): Illuminates when oil level is below safe operating level. Engine shuts down (1).

• Power LED (green): Indicates output from generator (3) (unless there is a low oil or overload condition).

005482Owner’s Manual for Portable Generator 7Figure 2-6. Status Indicators Circuit Protectors The AC receptacles are protected by an AC circuit protector. If the generator is overloaded or an external short circuit occurs, the circuit protector will trip. If this occurs, disconnect all electrical loads to determine the cause of the problem before using the generator again. Reduce the load if the circuit protector is tripped. NOTE: Continuous tripping of the circuit pro- tector may cause damage to generator or equipment. Push the button of the protector to reset the circuit protector. Remove Contents from Carton

1. Open carton completely by cutting each

corner from top to bottom.

2. Remove and verify carton contents prior to

assembly. Carton contents should contain the following: TABLE 3. Accessories

3. Call Generac Customer Service at 1-888-

GENERAC (1-888-436-3722) with the unit model and serial number for any missing carton contents.

4. Record model, serial number, and date of

purchase on front cover of this manual. Add Engine Oil NOTE: The generator is shipped without oil in the engine. Add oil slowly and verify oil level often during filling process to ensure overfilling does not occur.

1. Place generator on a level surface.

2. Clean area around oil fill and oil drain plug.

3. Remove oil fill cap and wipe dipstick clean.

See Figure 2-7. Figure 2-7. Remove Dipstick

4. Insert funnel into oil fill opening. Add rec-

ommended engine oil as necessary. Cli- mate determines proper engine oil viscosity. See chart to select correct vis- cosity. NOTE: Use petroleum based oil (supplied) for engine break-in before using synthetic oil.

5. To check oil level, remove funnel and

insert dipstick into oil filler neck. See Fig- ure 2-8. Figure 2-8. Safe Operating RangeItem Qty.Main Unit 1Owner’s Manual 1Engine Oil 1Oil Funnel 1Tool Kit 1Service Warranty 1Emissions Warranty 1 OVERLOAD OUT

(000135)CAUTIONEngine damage. Verify proper type and quantity of engine oil prior to starting engine. Failure to do so could result in engine damage. SAE 3010W-30Synthetic 5W-30

0054848 Owner’s Manual for Portable Generator

6. Remove dipstick and verify oil level is

within safe operating range. NOTE: Verify oil level often during filling pro- cess to ensure overfilling does not occur.

7. Install oil fill cap/dipstick and hand-tighten.

Fuel Fuel requirements are as follows:

• Clean, fresh, unleaded gasoline.

• Minimum rating of 87 octane/87 AKI (91 RON).

• Up to 10% ethanol (gasohol) is acceptable.

• DO NOT use a gas oil mix.

• DO NOT modify engine to run on alternate fuels. Stabilize fuel prior to storage.

1. Verify unit is OFF and cooled entirely prior

2. Place unit on level ground in a well venti-

3. Clean area around fuel cap.

4. Turn cap slowly to remove.

5. Slowly add recommended fuel. Do not

NOTE: Allow spilled fuel to evaporate before starting unit. IMPORTANT NOTE: It is important to pre- vent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol- blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. See the Storage section. Never use engine or carburetor cleaner products in the fuel tank as permanent damage may occur. (000105) DANGER Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (000166b) DANGER Explosion and Fire. Do not overfill fuel tank. Fill to 1/2 inch from top of tank to allow for fuel expansion. Overfilling may cause fuel to spill onto engine causing fire or explosion, which will result in death or serious injury. (000362)Explosion and Fire. Verify fuel cap vent is set to ON for operation, and OFF for transportation and storage. Failure to do so could result in poor unit performance, death, or serious injury. WARNINGOwner’s Manual for Portable Generator 9

Operation and Use Questions Call Generac Customer Service at 1-888- GENERAC (1-888-436-3722) with questions or concerns about equipment operation and maintenance. Before Starting Engine

1. Verify engine oil level is correct.

2. Verify fuel level is correct.

3. Verify unit is secure on level ground, with

proper clearance and is in a well ventilated area. Prepare Generator for Use Grounding the Generator When In Use The generator is equipped with an equipment ground connecting the generator frame and the ground terminals on the AC output recep- tacles (see NEC 250.34 (A). This allows the generator to be used as a portable without grounding the frame of the generator as spec- ified in NEC 250.34. See Figure 3-1.

• Neutral Floating Figure 3-1.Grounding the Generator The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection will not function if the receptacle ground pin is not functional. Know Generator Limits Overloading a generator can result in damage to the generator and connected electrical devices. Observe the following to prevent overload:

• Add up the total wattage of all electrical devices to be connected at one time. This total should NOT be greater than the gener- ator's wattage capacity.

• The rated wattage of lights can be taken from light bulbs. The rated wattage of tools, appliances, and motors can be found on a data label or decal affixed to the device.

• If the appliance, tool, or motor does not give wattage, multiply volts times ampere rating to determine watts (volts x amps = watts).

• Some electric motors, such as induction types, require about three times more watts of power for starting than for running. This surge of power lasts only a few seconds when starting such motors. Make sure to allow for high starting wattage when select- ing electrical devices to connect to the gen- erator:

1. Figure the watts needed to start the largest

2. Add to that figure the running watts of all

other connected loads. Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury.(000103) DANGER (000179b)DANGER Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. WARNING(000118a)Risk of fire. Do not use generator without spark arrestor installed. Failure to do so could result in death or serious injury. (000178a) Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer’s instructions. Failure to do so could result in death or serious injury. WARNING (000110) WARNING Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury. (000108) WARNING Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000136) CAUTION Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. 00548510 Owner’s Manual for Portable Generator Wattage Reference Guide is provided to assist in determining how many items the generator can operate at one time. NOTE: All figures are approximate. See data label on appliance for wattage requirements. Wattage Reference Guide Transporting/Tipping of the Unit Do not store or transport the unit at an angle greater than 15 degrees. Starting Pull Start Engines

2. Switch Economy switch to OFF.

3. Firmly grasp recoil handle and pull slowly

until increased resistance is felt. Pull rap- idly up and away. Figure 3-2.Off/Run/Choke PositionsDevice Running Watts*Air Conditioner (12,000 Btu) 1700*Air Conditioner (24,000 Btu) 3800*Air Conditioner (40,000 Btu) 6000Battery Charger (20 Amp) 500Belt Sander (3") 1000Chain Saw 1200Circular Saw (6-1/2") 800 to 1000*Clothes Dryer (Electric) 5750*Clothes Dryer (Gas) 700*Clothes Washer 1150Coffee Maker 1750*Compressor (1 HP) 2000*Compressor (3/4 HP) 1800*Compressor (1/2 HP) 1400Curling Iron 700*Dehumidifier 650Disc Sander (9") 1200Edge Trimmer 500Electric Blanket 400Electric Nail Gun 1200Electric Range (per element) 1500Electric Skillet 1250*Freezer 700*Furnace Fan (3/5 HP) 875*Garage Door Opener 500 to 750Hair Dryer 1200Hand Drill 250 to 1100Hedge Trimmer 450Impact Wrench 500Iron 1200*Jet Pump 800Lawn Mower 1200Light Bulb 100Microwave Oven 700 to 1000*Milk Cooler 1100Oil Burner on Furnace 300Oil Fired Space Heater (140,000 Btu)

Oil Fired Space Heater (85,000 Btu) 225Oil Fired Space Heater (30,000 Btu) 150*Paint Sprayer, Airless (1/3 HP) 600Paint Sprayer, Airless (hand-held) 150Radio 50 to 200*Refrigerator 700Slow Cooker 200*Submersible Pump (1-1/2 HP) 2800*Submersible Pump (1 HP) 2000*Submersible Pump (1/2 HP) 1500*Sump Pump 800 to 1050*Table Saw (10") 1750 to 2000Television 200 to 500Toaster 1000 to 1650Weed Trimmer 500* Allow 3 times the listed watts for starting these devices. (000183) WARNING Recoil Hazard. Recoil could retract unexpectedly.Kickback could result in death or serious injury. (000136) CAUTION Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. OFF

Off/Run/Choke dial to RUN (2). Choke operation is reduced as Off/Run/Choke dial is rotated towards RUN. NOTE: If engine fires, but does not continue to run, rotate the Off/Run/Choke dial to OFF and repeat starting instructions. IMPORTANT NOTE: Do not overload gener- ator or individual panel receptacles. See Figure 3-3. If an overload occurs, the over- load LED (A) will illuminate and AC output ceases. To correct, see Generator Status Lights. Read Know Generator Limits care- fully.

Figure 3-3.Shutdown Fault Generator Shut Down

1. Shut off all loads and unplug electrical

loads from generator panel receptacles.

2. Let engine run at no-load for several min-

utes to stabilize internal temperatures of engine and generator.

from OFF to RUN. This will open the fuel valve and permit starting.

2. Firmly grasp recoil handle and pull slowly

until increased resistance is felt. Pull rap- idly up and away. Low Oil Level Shutdown System The engine is equipped with a low oil level sensor that shuts down the engine automati- cally when the oil level drops below a speci- fied level to prevent engine damage. See Figure 3-3 (B). The engine will not run until the oil has been filled to the proper level. If the engine shuts down and there is sufficient fuel, check engine oil level. Parallel Operation See the Parallel Kit Operator’s Manual or con- tact an IASD. NOTE: All connections to the parallel kit should be made while both inverters are turned off and all loads disconnected.

1. Make sure the Engine Economy Switch is

in the same position on both generators.

2. Make appropriate parallel connections to

the outlets on each Generac inverter as outlined in the owner’s manual supplied with the kit. NOTE: Do not disconnect any parallel kit con- nections once the units are running.

3. Start both units per starting instructions.

Once the green output indicator illumi- nates, devices can be connected and turned on using the parallel kit outlet.

4. Follow Generator Shut Down instructions.

(000136)CAUTIONEquipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. (000136)CAUTIONEquipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage.12 Owner’s Manual for Portable Generator

Section 4 Maintenance and Troubleshooting

Maintenance Regular maintenance will improve perfor- mance and extend engine/equipment life. Generac Power Systems, Inc. recommends that all maintenance work be performed by an Independent Authorized Service Dealer (IASD). Regular maintenance, replacement, or repair of the emissions control devices and systems may be performed by any repair shop or person of the owner’s choosing. To obtain emissions control warranty service free of charge, the work must be performed by an IASD. See the emissions warranty. NOTE: Call 1-888-GENERAC (1-888-436- 3722) with questions about component replacement. Maintenance Schedule Follow maintenance schedule intervals, whichever occurs first according to use. NOTE: Adverse conditions will require more frequent service. NOTE: All required service and adjustments should be each season as detailed in the fol- lowing chart. Preventive Maintenance Dirt or debris can cause improper operation and equipment damage. Clean generator daily or before each use. Keep area around and behind muffler free from combustible debris. Inspect all cooling air openings on generator.

• Use a damp cloth to wipe exterior surfaces clean.

• Use a soft bristle brush to loosen caked on dirt, oil, etc.

• Use a vacuum to pick up loose dirt and debris.

• Low pressure air (not to exceed 25 psi) may be used to blow away dirt. Inspect cooling air slots and openings on generator. These openings must be kept clean and unobstructed. NOTE: DO NOT use a garden hose to clean generator. Water can enter engine fuel system and cause problems. If water enters generator through cooling air slots, some water will be retained in voids and crevices of rotor and sta- tor winding insulation. Water and dirt buildup on generator internal windings will decrease insulation resistance of windings. Engine Maintenance Engine Oil Recommendations To maintain the product warranty, the engine oil should be serviced in accordance with the recommendations of this manual. For your convenience, maintenance kits designed and intended for use on this product are available from the manufacturer that include engine oil, oil filter, air filter, spark plug(s), a shop towel and funnel. These kits can be obtained from an Independent Authorized Service Dealer (IASD). At Each UseCheck engine oil levelEvery 100 Hours or Every 6 MonthsClean/Replace Air Filter**Change oil ǂMuffler ScreenClean/Replace Spark ArrestorEvery 300 Hours or Every Season*Replace Spark PlugClean Spark ArrestorReplace Fuel Filter +Valve Clearance AdjustmentCheck/Replace Crankcase Breather HoseCheck Fittings/Fasteners +ǂ Change oil after first month or 20 hours of operation.+ To be performed by IASD.* Change oil every month when operating under heavy load or in high temperatures.** Clean more often under dirty or dusty oper-ating conditions. Replace air filter parts if they cannot be adequately cleaned.*** Check valve clearance and adjust if neces-sary after first 50 hours of operation and every 300 hours thereafter. (000142a)Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage. WARNING (000141) WARNING Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury.Owner’s Manual for Portable Generator 13

Inspect Engine Oil Level Inspect engine oil level prior to each use, or every 8 hours of operation.

1. Place generator on a level surface.

2. Clean area around oil fill, and oil drain

3. Remove oil fill cap and wipe dipstick clean.

See Figure 4-1. Figure 4-1. Engine Oil Fill

4. To check oil level, insert dipstick into oil

filler neck without screwing it in. See Fig- ure 4-2. Figure 4-2. Safe Operating Range

5. Remove dipstick and verify oil level is

within safe operating range.

6. Add recommended engine oil as neces-

sary. NOTE: Verify oil level often during filling pro- cess to ensure overfilling does not occur.

7. Replace oil fill cap and hand-tighten.

NOTE: Some units have more than one oil fill location. It is only necessary to use one oil fill point. Change Engine Oil When using generator under extreme, dirty, dusty conditions, or in extremely hot weather, change oil more frequently. NOTE: Don’t pollute. Conserve resources. Return used oil to collection centers. Change oil while engine is still warm from run- ning, as follows:

1. Place generator on a level surface.

2. Disconnect the spark plug wire from the

spark plug and place the wire where it cannot contact spark plug.

3. Clean area around oil fill and oil drain plug.

4. Remove oil fill cap and wipe dipstick clean.

5. Tip unit and drain oil completely into a suit-

6. Once oil is sufficiently drained from unit, tip

unit back to a level position.

7. Insert funnel into oil fill opening. See Fig-

ure 4-3. Add recommended engine oil as necessary. Figure 4-3. Oil Fill Opening With Funnel

8. To check oil level, remove funnel and

insert dipstick into oil filler neck without screwing it in. See Figure 4-2.

9. Remove dipstick and verify oil level is

within safe operating range. NOTE: Verify oil level often during filling pro- cess to ensure overfilling does not occur.

10. Replace oil fill cap and hand-tighten.

11. Wipe up any spilled oil.

12. Properly dispose of oil in accordance with

all applicable regulations. SAE 3010W-30Synthetic 5W-30000399 (000139) WARNING Risk of burns. Allow engine to cool before draining oil or coolant. Failure to do so could result in death or serious injury.

(000141) WARNING Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury. 00240414 Owner’s Manual for Portable Generator Air Filter Engine will not run properly and may be dam- aged if run with a dirty air filter. Service air fil- ter more frequently in dirty or dusty conditions. To service air filter:

1. Unscrew bolt (A) and remove air filter

cover. See Figure 4-4.

2. Wash filter (B) in soapy water. Squeeze

dry in clean cloth (DO NOT TWIST).

3. Clean air filter cover before installation.

4. Replace side cover and screws.

2. Clean area around spark plug.

3. Remove and inspect spark plug.

4. Inspect electrode gap with wire feeler

gauge and reset spark plug gap to 0.6 - 0.7mm (0.024 - 0.028 in). See Figure 4-5. Figure 4-5. Spark Plug NOTE: Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use ONLY recommended replacement plug. See Product Specifications.

5. Install spark plug finger tight, and tighten

an additional 3/8 to 1/2 turn using spark plug wrench. Inspect Muffler and Spark Arrestor NOTE: It is a violation of California Public Resource Code, Section 4442, to use or oper- ate the engine on any forest-covered, brush- covered, or grass-covered land unless the exhaust system is equipped with a spark arrestor, as defined in Section 4442, main- tained in effective working order. Other states or federal jurisdictions may have similar laws. Contact original equipment manufacturer, retailer, or dealer to obtain a spark arrestor designed for exhaust system installed on this engine. NOTE: Use ONLY original equipment replace- ment parts. Inspect muffler for cracks, corrosion, or other damage. Remove spark arrestor, if equipped, inspect for damage or carbon blockage. Replace parts as required. Inspect Spark Arrestor Screen Clean Spark Arrestor Screen The engine exhaust muffler has a spark arres- tor screen. Inspect and clean the screen every 50 hours of operation or every season, which- ever comes first. To service spark arrestor:

2. Slide spark arrestor screens out from the

rated or otherwise damaged. Do NOT use a defective screen. If screen is not dam- aged, clean with a commercial solvent.

4. Replace the screens, and retainer, and

(000108) WARNING Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. 005487Owner’s Manual for Portable Generator 15 Valve Clearance Important: Please contact an Independent Authorized Service Dealer for service assis- tance. Proper valve clearance is essential for prolonging the life of the engine. Check valve clearance after the first fifty-hours of operation. Adjust as necessary.

• Intake — 0.10 ± 0.02mm (cold), (0.004" ± 0.001" inches)

• Exhaust — 0.10 ± 0.02mm (cold) (0.004" ± 0.001" inches) Storage General It is recommended to start and run the genera- tor for 30 minutes, every 30 days. If this is not possible, refer to the following list to prepare unit for storage.

• DO NOT place a storage cover on a hot generator. Allow unit to cool to room tem- perature before storage.

• DO NOT store fuel from one season to another unless properly treated.

• Replace fuel container if rust is present. Rust in fuel will cause fuel system prob- lems.

• Cover unit with a suitable protective, mois- ture resistant cover.

• Store unit in a clean, dry area.

• Always store generator and fuel away from heat and ignition sources. Prepare Fuel System/Engine for Storage Fuel stored over 30 days can go bad and damage fuel system components. Keep fuel fresh, use fuel stabilizer. If fuel stabilizer is added to fuel system, pre- pare and run engine for long term storage. Run engine for 10-15 minutes to circulate sta- bilizer throughout fuel system. Adequately prepared fuel can be stored up to 24 months. NOTE: If fuel has not been treated with fuel stabilizer, it must be drained into an approved container. Run engine until it stops from lack of fuel. Use of fuel stabilizer in fuel storage container is recommended to keep fuel fresh.

1. Change engine oil.

2. Remove spark plug.

3. Pour tablespoon (5-10cc) of clean engine

oil or spray a suitable fogging agent into cylinder.

4. Pull starter recoil several times to distrib-

ute oil in cylinder.

5. Install spark plug.

6. Pull recoil slowly until resistance is felt.

This will close valves so moisture cannot enter engine cylinder. Gently release recoil. Change Oil Change engine oil before storage. See, Change Engine Oil. (000143) DANGER Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Store fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (000109) WARNING Risk of Fire. Verify machine has properly cooled before installing cover and storing machine. Hot surfaces could result in fire. (000181) WARNING Vision Loss. Eye protection is required to avoid spray from spark plug hole when cranking engine.Failure to do so could result in vision loss.16 Owner’s Manual for Portable Generator Troubleshooting

PROBLEM CAUSE CORRECTION

Engine won't start. 1. Dial turned off.

4. Plugged fuel filter.

5. Defective or stuck Dial assem-

6. Incorrect engine oil level.

7. Defective ignition coil.

10. Throttle plate closed.

4. Replace fuel and fuel filter.

6. Check/fill engine oil.

10. Open throttle plate (push

toward back of unit). Engine starts, then shuts down.

2. Incorrect engine oil level.

3. Contaminated fuel.

4. Defective low oil level switch.

2. Check engine oil level.

Engine will not start; or starts and runs rough.*

1. Choke is stuck or left on.

2. Dirty or clogged air filter.

3. Defective or dirty spark plug.

4. Dirty fuel filter.

6. Unit not warmed up.

7. Spark arrestor clogged.

4. Replace fuel and fuel filter.

5. Clean carburetor.

6. Gradually adjust Dial and

reduce choke until engine runs smoothly in RUN position.

7. Clean spark arrestor.

No AC output. 1. Generator is overloaded.

2. Inverter module is overheated.

3. Short circuit in electrical

4. Defective inverter assembly.

1. Disconnect all loads. Shut

down generator to reset mod- ule. Reduce loads, restart generator.

2. Verify service door is ON. Let

cool 15 minutes by running engine without AC output. Press and hold Reset button on control panel, restart gener- ator.

3. Verify condition of extension

cords and items being pow- ered. Press and hold Reset button on control panel.

Fuel leaks from drain hoses.

1. Carburetor drain in bowl is not

1. Turn valve clockwise to close.

• Engine speed increases and decreases — This is normal as generator starts up and loads vary.Part No. 10000016686 Rev. B 12/13/2017 ©2017 Generac Power Systems, Inc. All rights reserved Specifications are subject to change without notice. No reproduction allowed in any form without prior written consent from Generac Power Systems, Inc. Generac Power Systems, Inc. S45 W29290 Hwy. 59 Waukesha, WI 53189 1-888-GENERAC (1-888-436-3722) www.generac.comGenerador portátil GP3000i Manual del usuario

7. ANSI/PGMA G300 - Safety and Perfor-
