USER MANUAL 5211 MILWAUKEE

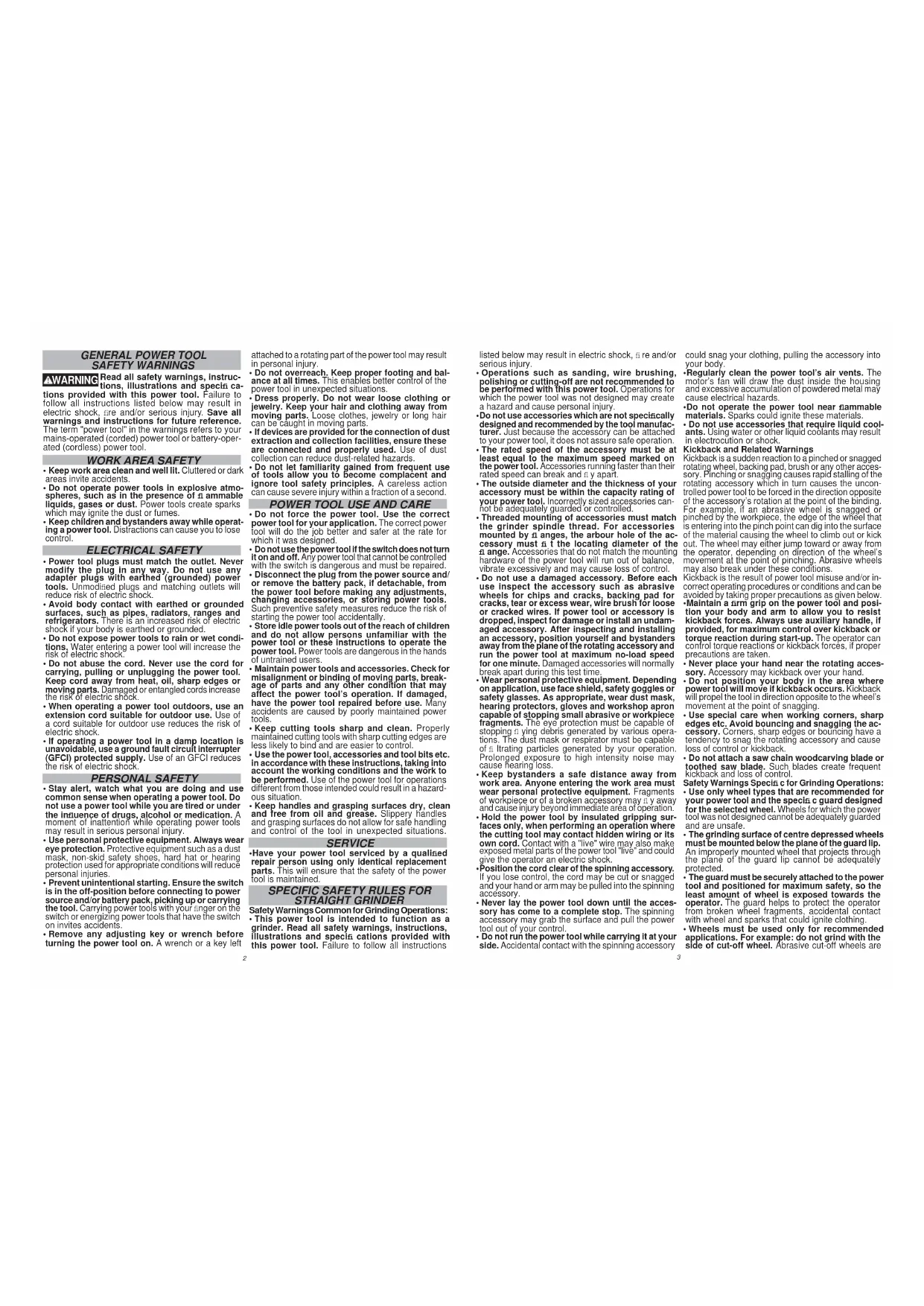

SAFETY WARNINGS WARNING Read all safety warnings, instruc- tions, illustrations and specifi ca- tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-oper- ated (cordless) power tool.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operat- ing a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and bal- ance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, break- age of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazard- ous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. SERVICE

• Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES FOR

STRAIGHT GRINDER Safety Warnings Common for Grinding Operations:

• This power tool is intended to function as a grinder. Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.

• Operations such as sanding, wire brushing, polishing or cutting-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

• Do not use accessories which are not specifi cally designed and recommended by the tool manufac- turer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

• The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fl y apart.

• The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories can- not be adequately guarded or controlled.

• Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by fl anges, the arbour hole of the ac- cessory must fi t the locating diameter of the fl ange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

• Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undam- aged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

• Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping fl ying debris generated by various opera- tions. The dust mask or respirator must be capable of fi ltrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

• Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fl y away and cause injury beyond immediate area of operation.

• Hold the power tool by insulated gripping sur- faces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire may also make exposed metal parts of the power tool "live" and could give the operator an electric shock.

• Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

• Never lay the power tool down until the acces- sory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

• Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

• Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

• Do not operate the power tool near fl ammable materials. Sparks could ignite these materials.

• Do not use accessories that require liquid cool- ants. Using water or other liquid coolants may result in electrocution or shock. Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other acces- sory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncon- trolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or in- correct operating procedures or conditions and can be avoided by taking proper precautions as given below.

• Maintain a fi rm grip on the power tool and posi- tion your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

• Never place your hand near the rotating acces- sory. Accessory may kickback over your hand.

• Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging.

• Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the ac- cessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

• Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. Safety Warnings Specifi c for Grinding Operations:

• Use only wheel types that are recommended for your power tool and the specifi c guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

• The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

• The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.

• Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are4

EXTENSION CORDS Grounded tools require a three wire extension cord. Double insulated tools can use either a two or three wire extension cord. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. Refer to the table shown to determine the required minimum wire size. The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a 14 gauge cord can carry a higher current than a 16 gauge cord. When using more than one extension cord to make up the total length, be sure each cord contains at least the minimum wire size required. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum wire size. Guidelines for Using Extension Cords

• If you are using an extension cord outdoors, be sure it is marked with the suffi x “W-A” (“W” in Canada) to indicate that it is acceptable for outdoor use.

• Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualifi ed person before using it.

• Protect your extension cords from sharp objects, excessive heat and damp or wet areas. Recommended Minimum Wire Gauge For Extension Cords* Nameplate Amps Extension Cord Length 25' 50' 75' 100' 150'

• Based on limiting the line voltage drop to fi ve volts at 150% of the rated amperes. GROUNDING WARNING Improperly connecting the ground- ing wire can result in the risk of electric shock. Check with a qualifi ed electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug pro- vided with the tool. Never remove the grounding prong from the plug. Do not use the tool if the cord or plug is damaged. If damaged, have it repaired by a MILWAUKEE service facility before use. If the plug will not fi t the outlet, have a proper outlet installed by a qualifi ed electrician. Grounded Tools (Three-Prong Plugs) Tools marked “Grounding Required” have a three wire cord and three prong grounding plug. The plug must be connected to a properly grounded outlet (See Figure A). If the tool should electrically mal- function or break down, grounding provides a low resistance path to carry electricity away from the user, reducing the risk of electric shock. The grounding prong in the plug is connected through the green wire inside the cord to the grounding system in the tool. The green wire in the cord must be the only wire connected to the tool's grounding system and must never be attached to an electrically “live” terminal. Your tool must be plugged into an appro- Fig. A priate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in Figure A. Double Insulated Tools (Two-Prong Plugs) Tools marked “Double Insulated” do not require grounding. They have a special double insulation system which satisfies OSHA requirements and complies with the applicable standards Fig. BFig. C of Underwriters Laboratories, Inc., the Canadian Standard Association and the National Electrical Code. Double Insulated tools may be used in either of the 120 volt outlets shown in Figures B and C. intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

• Always use undamaged wheel fl anges that are of correct size and shape for your selected wheel. Proper wheel fl anges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel fl anges.

• Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst. Additional Safety Warnings

• Maintain labels and nameplates. These carry im- portant information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles. SPECIFICATIONS Cat. No. ...........................................................5211 Volts .......................................................120 AC/DC Double Insulated Rated RPM ....................................................16000 Arbor Size Diameter, Threads .....................3/8"-24 Wheel Size Thickness, Diameter ................. 1/2"x3" Cat. No. ...........................................................5223 Volts .......................................................120 AC/DC Double Insulated Rated RPM ......................................................8500 Arbor Size Diameter, Threads ..................... 5/8"-11 Wheel Size Thickness, Diameter .................... 1"x5" Cat. No. ...........................................................5243 Volts .......................................................120 AC/DC Grounding Required Rated RPM ......................................................7000 Arbor Size Diameter, Threads ..................... 5/8"-11 Wheel Size Thickness, Diameter .................... 1"x6" SYMBOLOGY Double Insulated Volts Alternating Current/Direct Current Amps Rated Revolutions per Minute (RPM)

UL Listing Mark for Canada and U.S. Approval Mark for Mexico ASSEMBLY WARNING To reduce the risk of injury, always unplug tool before changing or removing accessories. Only use accessories specifi cally recommended for this tool. Others may be hazardous. To reduce the risk of injury, the wheel guard must be fl ush with the spindle housing. Installing Guard Assemblies The guards for all tools in this manual are mounted the same way:

1. Unplug tool and lay it on its tool rest.

2. Loosen guard clamping fasteners.

3. Position guard clamp over the spindle housing and

against the housing shoulder. Spindle housing shoulder Spindle Guard clamp

4. Position guard so the operator is always behind

the guard. The open edge of the guard should face the workpiece.

5. Tighten wheel guard clamps.

Grinding Wheel Selection Only use wheels that:

• are the correct size

• are rated at or above the RPM listed on the tool's nameplate

• have blotters that cover the entire fl ange contact area. Grit Selection The lower the grit number, the coarser the wheel. Coarser wheels should be used for rough grinding and fi ner wheels for fi nish grinding (see "Accessories"). Wheel Material Grinding wheels are made from various materials and are meant for different jobs. Be sure you choose the proper wheel for the job you plan to do. MILWAUKEE Straight Grinders use type 1, straight wheels as defi ned by the American National Stan- dards Institute (ANSI). Type 1 straight wheels are made to be used for edge grinding. They are not to be used for side grinding. Care of Grinding Wheels Grinding wheels should be protected from"

• wetness and extreme humidity

• extreme changes in temperature

• dropping and bumping. Grinding wheels should be stored:

• in an organized way so wheels can be removed without disturbing or damaging other wheels

• with their safety information.6

Grinding wheels should NOT be:

• bumped. If any wheel is dropped, rolled, bumped, subjected to extreme changes in temperature, or has come into contact with solvents or wetness, discard wheel immediately. WARNING To reduce the risk of injury and damage to the tool, use ONLY ac- cessories rated at or above the RPM listed on the tool's nameplate. To Test the Wheel: NOTE: Wheel must be dry to do this test.

1. Suspend the wheel by its

arbor hole on a small pin or a fi nger.

2. Tap the side of the wheel

with the back of a screw- driver (or any similar, solid, non-metallic object).

3. Rotate wheel 90° and re-

peat the test in three more places. If the wheel rings, it is in good condition. If it does not ring, it is bad and should be discarded. Installing Grinding Wheels and Accessories (Cat. No. 5211 only) Inner fl ange Faceplate Grinding wheel Outer fl ange Spindle nut

1. Unplug tool and lay it on its tool rest.

2. Loosen wing nuts. Move studs aside and swing

3. Hold inner fl ange with 1" wrench provided with

4. Remove the spindle nut with the 9/16" wrench

provided with the tool.

5. Remove outer fl ange and wheel.

6. Examine both fl anges to ensure that they are free

of nicks and are fl at. NOTE: If the fl ange faces are Inner fl ange Outer fl ange nicked, or if the inner surfaces of the fl anges are not fl at, then replace them with identical replacement parts. On Cat. No. 5211, the fl anges should evenly contact the blotter on the wheel.

7. If you are installing a grinding wheel, inspect and

test it for damage (see "To Test the Wheel").

8. Place the accessory on the spindle.

Never force an accessory onto the spindle. A forced fi t may damage the accessory.

9. Replace outer fl ange and spindle nut.

10.Tighten spindle nut. Do not overtighten. 11.Swing the faceplate back into place. Move studs back into slots. Tighten wing nuts. WARNING To reduce the risk of injury, use only identical replacement parts. Installing Grinding Wheels and Accessories (Cat. No. 5223 only) Inner fl ange Rubber washer Grinding wheel Outer fl ange Spindle nut

1. Unplug tool and lay it on its tool rest.

2. Hold inner fl ange with spanner wrench provided

3. Remove the spindle nut with the 1-1/16" wrench

provided with the tool.

4. Remove outer fl ange, rubber washer, and wheel.

5. Examine both fl anges to ensure that they are free

of nicks and are fl at. NOTE: If the fl ange faces are nicked, or if the inner surfaces of the fl anges are not fl at, then replace them with identical replacement parts. On Cat. No. 5223, the fl anges should evenly contact the rubber washers on either side of the wheel.

6. If you are installing a grinding wheel, inspect and

test it for damage (see "To Test the Wheel").

7. Place the accessory on the spindle.

Never force an accessory onto the spindle. A forced fi t may damage the accessory.

Installing Grinding Wheels and Accessories (Cat. No. 5243 only) Inner fl ange Rubber washer Grinding wheel Outer fl ange Spindle nut

1. Unplug tool and lay it on its tool rest.

2. Loosen wing nuts. Move studs aside and swing

3. Hold inner fl ange with spanner wrench provided

4. Remove the spindle nut with the 1-1/16" wrench

provided with the tool.

5. Remove outer fl ange, rubber washer, and wheel.

6. Examine both fl anges to ensure that they are free

of nicks and are fl at. NOTE: If the fl ange faces are nicked, or if the inner surfaces of the fl anges are not fl at, then replace them with identical replacement parts. On Cat. No. 5243, the fl anges should evenly contact the rubber washers on either side of the wheel.

7. If you are installing a grinding wheel, inspect and

test it for damage (see "To Test the Wheel").

8. Place the accessory on the spindle.

Never force an accessory onto the spindle. A forced fi t may damage the accessory.

9. Replace rubber washer, outer fl ange, and spindle

nut. 10.Tighten spindle nut. Do not overtighten. 11.Swing the faceplate back into place. Move studs back into slots. Tighten wing nuts. OPERATION WARNING To reduce the risk of injury, always unplug tool before attaching or removing accessories or making adjustments. Use only specifi cally recommended accessories. Others may be hazardous. To reduce the risk of injury, wear safety goggles or glasses with side shields. Starting and Stopping the Tool

1. To start the tool, pull the trigger.

2. To stop the tool, release the trigger.

Using the Trigger Lock Mechanism The lock button holds the trigger in the 'ON' position for continuous use.

1. To lock the trigger, hold the lock button in while

pulling the trigger. Then, release the trigger.

2. To unlock the trigger, pull the trigger and release.

The lock button will pop out. Grinding

1. Use a clamp, vise or other practical means to hold

your work, freeing both hands to control the tool.

2. Hold handle and spindle housing fi rmly.

4. Allow tool to reach full speed.

Always test new wheels for cracks or damage. To test new wheels, point the grinder away from you and shield bystanders from the tool, and then run the motor at full speed for one minute while allowing the wheel to spin.

5. Gently apply grinder to the workpiece.

MAINTENANCE WARNING To reduce the risk of injury, always unplug the tool before performing any maintenance. Never disassemble the tool. Contact a MILWAUKEE service facility for ALL repairs. Maintaining Tools Keep your tool in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condi- tion that may affect the tool operation. Return the tool to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool to a MILWAUKEE service facility for inspection. WARNING To reduce the risk of personal in- jury, electric shock and damage, never immerse your tool in liquid or allow a liquid to fl ow inside it. Cleaning Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean- ing agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter- gents containing ammonia. Never use fl ammable or combustible solvents around tools. Repairs For repairs, return the tool to the nearest service center. ACCESSORIES WARNING Use only recommended accesso- ries. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: metproductsupport@milwaukeetool.com Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notifi cations regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA Every MILWAUKEE power tool* (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workman- ship for a period of fi ve (5) years** after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover washers.*This warranty does not cover Air Nailers & Staplers; Airless Paint Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Hoist – Electric, Lever & Hand Chain; M12™ Heated Gear; Reconditioned Product; and Test & Measure-ment Products. There are separate and distinct warranties available for these products.**The warranty period for Job Site Radios, M12™ Power Port, M18™ Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for the Cables for the Drain Snake is two (2) years from the date of purchase. The warranty period for the LED in the LED Work Light and the LED Upgrade Bulb for the Work Light is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Bulb fails, the part will be replaced free of charge.8

Warranty Registration is not necessary to obtain the applicable war- ranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON- TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CON- SEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX- CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WAR- RANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR- RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. This warranty applies to product sold in the U.S.A. and Canada only. Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website www.milwaukeetool.com or call

1.800.SAWDUST (1.800.729.3878) to locate your nearest service

facility for warranty and non-warranty service on a Milwaukee electric power tool. LIMITED WARRANTY - MEXICO,

CENTRAL AMERICA & CARIBBEAN

TECHTRONIC INDUSTRIES' warranty is for 5 year since the original purchase date. This warranty card covers any defect in material and workmanship on this Power Tool. To make this warranty valid, present this warranty card, sealed/ stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of purchase to the ASC. Call toll-free 1 800 832 1949 to fi nd the nearest ASC, for service, parts, accessories or components. Procedure to make this warranty valid Take the product to the ASC, along with the warranty card sealed/ stamped by the distributor or store where you purchased the product, and there any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process. Exceptions This warranty is not valid in the following situations: a) When the product is used in a different manners from the end-user guide or instruction manual. b) When the conditions of use are not normal. c) When the product was modifi ed or repaired by people not authorized by TECHTRONIC INDUSTRIES. Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks. SERVICE AND ATTENTION CENTER: Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales Miguel Hidalgo, Distrito Federal, Mexico Ph. 52 55 4160-3547 IMPORTED AND COMMERCIALIZED BY: TECHTRONIC INDUSTRIES MEXICO, .S.A. DE C.V. Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales Miguel Hidalgo, Distrito Federal, Mexico Model: Date of Purchase: Distributor or Store Stamp: RÈGLES DE SÉCURITÉ GÉNÉRALES

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca
