Product type	Built-in gas hob
Brand	Hotpoint
Model	TQG 641 HA(DS)
Category	II2E+3+
Gas supply	Butane (G30), Propane (G31), Natural gas (G20, G25)
Electrical supply	220-240 V ~ 50/60 Hz, 0.6 W
Number of burners	3 (Rapid, Semi-rapid, Auxiliary)
Total gas power	7.30 kW
Rapid burner (R)	3.00 kW (diameter 100 mm)
Semi-rapid burner (S)	1.65 kW (diameter 75 mm)
Auxiliary burner (A)	1.00 kW (diameter 55 mm)
Ignition	Built into knobs (electric ignition)
Safety device	Thermocouple (gas cut-off in case of extinction)
Gas connection	1/2 gas male cylindrical
Nominal gas pressure	Butane/Propane: 28-30 mbar; Natural gas: 20 mbar
Cleaning	Soft cloth, non-abrasive detergent; do not use steam cleaner
Surface material	Stainless steel and enamel
Installation	Built-in, requires ventilation (see manual)
Country of compliance	France, Belgium (local standards)
Supplied accessories	Seal gasket, additional injectors, fixing brackets

Frequently Asked Questions - TQG 641 HA(DS) HOTPOINT

How to light a burner?

Press the corresponding knob fully and turn it counterclockwise to the maximum position. Keep pressing for 2-3 seconds if the safety device is present. Ignition is built-in.

What to do if the flame goes out accidentally?

Turn the knob to the off position and wait at least 1 minute before trying to relight. If the problem persists, check that the burner ports are not blocked.

How to adapt the hob to natural gas?

The burner injectors must be changed. Remove the grates, unscrew the injectors with a 7 mm wrench, and replace them with those suitable for the new gas. Refer to the table of burner and injector characteristics in the manual.

What types of pans to use?

Use flat-bottomed containers with lids. The diameter must match the burner: Rapid (24-26 cm), Semi-rapid (16-20 cm), Auxiliary (10-14 cm). Ensure the flame does not exceed the bottom.

How to clean the burners?

Wash the grids, caps and burners by hand with warm water and a non-abrasive detergent. Take care not to block the holes. Rinse and dry before reassembling. Never use a steam cleaner.

Can I use an external timer or remote control?

No, this appliance cannot be operated by means of an external timer or separate remote control system.

What is the minimum distance from a hood?

The hood should be installed at least 650 mm from the hob. Tall units adjacent to the hood should be at least 420 mm from the worktop.

How to install the hob?

Installation must be carried out by a professional. The cut-out of the furniture must respect the given dimensions. Use all the supplied fixing brackets. If the hob is not above an oven, install a wooden insulation panel at least 20 mm from the lower edge.

What to do in case of gas smell?

Do not operate electrical switches. Ventilate the room by opening windows. Turn off the appliance and cut off the gas supply if possible. Contact an approved technician.

How to maintain the gas taps?

If a tap becomes stiff or difficult to turn, have it replaced by a technician approved by the manufacturer. Do not attempt to repair it yourself.

USER MANUAL TQG 641 HA(DS) HOTPOINT

Operating Instructions HOB

Contents

Operating Instructions:1

Warnings,2

Assistance,5

Description of the appliance,6

Installation, 14

Start-up and use,18

Precautions and tips,18

Maintenance and care, 19

Troubleshooting, 19

Ukrainian

Operating Instructions

COOKING SURFACE

Contents

Instructions for use

Safety precautions

Description

Operation

Installation

Disposal

Safety precautions and warnings

Maintenance and care

Troubleshooting

IT

Avvertenze

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

Never use steam cleaners or pressure cleaners on the appliance.

Remove any liquid from the lid before opening it. Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

The appliance is not intended to be operated by means of an external timer or separate remote control system.

CAUTION: the use of inappropriate hob guards can cause accidents.

CAUTION: In case of hotplate glass breakage:

• shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply
• do not touch the appliance surface.

Warnings

• type of trouble
• appliance model (Mod.)
• serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

FR

Assistance

Provide them with:

Description of the appliance

Overall view

1. Support Grid for COOKWARE
2. GAS BURNERS
3. Control Knobs for GAS BURNERS
4. Ignition for GAS BURNERS
5. SAFETY DEVICES
6. GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with. Control Knobs for GAS BURNERS adjust the size of the flame.
7. GAS BURNER IGNITION enables a specific burner to be lit automatically.
8. SAFETY DEVICE stops the gas flow if the flame is accidentally extinguished.

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

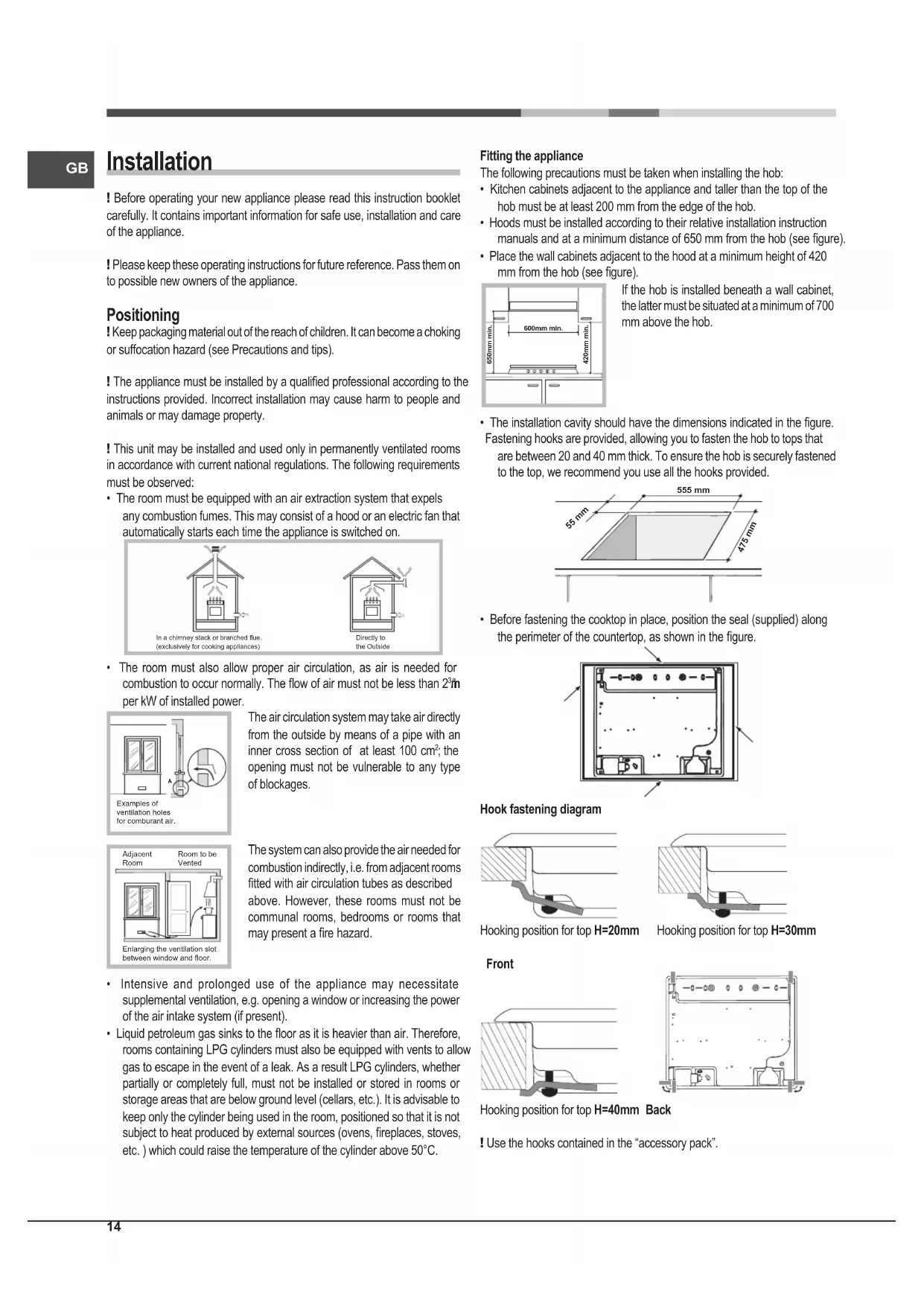

Positioning

Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips). The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property. This unit may be installed and used only in permanently ventilated rooms in accordance with current national regulations. The following requirements must be observed: - The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on.

• The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2 m3 per kW of installed power.

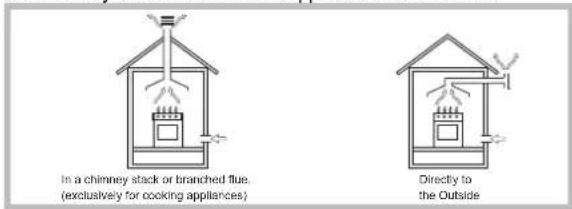

The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm2; the opening must not be vulnerable to any type of blockages.

The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard.

• Intensive and prolonged use of the appliance may necessitate supplemental ventilation, e.g. opening a window or increasing the power of the air intake system (if present).
• Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc.) which could raise the temperature of the cylinder above 50°C.

Fitting the appliance

The following precautions must be taken when installing the hob:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 200 mm from the edge of the hob.
• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob (see figure).
• Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure).

If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob.

• The installation cavity should have the dimensions indicated in the figure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

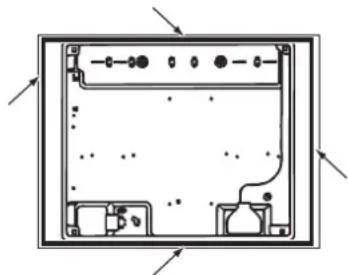

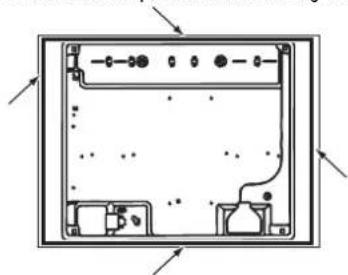

• Before fastening the cooktop in place, position the seal (supplied) along the perimeter of the countertop, as shown in the figure.

Hook fastening diagram

Hooking position for top H=20mm

Hooking position for top H=30mm

Front

Hooking position for top H=40mm Back

! Use the hooks contained in the "accessory pack".

• Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

! The hob can only be installed above built-in ovens with a cooling ventilation system.

Electrical connection

Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains.

The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C.

! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

• the appliance is earthed and the plug is compliant with the law.
• the socket can withstand the maximum power of the appliance, which is indicated on the data plate.
• the voltage is in the range between the values indicated on the data plate.
• the socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

Gas connection

The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph "Adapting to different types of gas."

When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 ("Burner and nozzle specifications"). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance.

There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

Checking the tightness of the connection

! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default type (indicated on the rating plate at the base of the hob or on the packaging), the burner nozzles should be replaced as follows:

1. Remove the hob grids and slide the burners off their seats.
2. Unscrew the nozzles using a 7 mm socket spanner, and replace them with nozzles for the new type of gas (see table 1 "Burner and nozzle characteristics").
3. Reassemble the parts following the above procedure in the reverse order.
4. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres.

Adjusting the burners' primary air

Does not require adjusting.

• Setting the burners to minimum
• Turn the tap to the low flame position;
• Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady.
• Having adjusted the flame to the required low setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.

1. Some appliances have a safety device (thermocouple) fitted. If the device fails to work when the burners are set to the low flame setting, increase this low flame setting using the adjusting screw.

1. Once the adjustment has been made, replace the seals on the by-passes using sealing wax or a similar substance. If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible. ! Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres. ! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

DATA PLATE
Electrical connections	see data plate
CE	This appliance conforms to the following European Economic Community directives: - 2006/95/EC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. - 2009/142/EC dated 30/11/06 (Gas) and subsequent amendments - 2012/19/EU and subsequent amendments.
ECODESIGN	EU Regulation no. 66/2014 implementing Directive 2009/125/EC. standard EN 30-2-1

Burner and nozzle specifications

Table 1					Liquid Gas			Natural Gas
Burner	Diameter (mm)	Thermal Power kW (p.c.s.*) Nomin. Reduc.		By-pass 1/100 (mm)	Nozzle 1/100 (mm)	Flow* g/h		Nozzle 1/100 (mm)	Flow* l/h
						***	**
Fast (R)	100	3.00	0.70	39	86	218	214	116(Y)	286
Semi Fast (S)	75	1.65	0.40	28	64	120	118	96(Z)	157
Auxiliary (A)	55	1.00	0.40	28	50	73	71	79(6)	95
Supply pressures	Nominal (mbar)					28-30	37	20
	Minimum (mbar)					20	25	17
	Maximum (mbar)					35	45	25

• At 15°C and 1013.25 mbar - dry gas Propane P.C.S. = 50.37 MJ/Kg * Butane P.C.S. = 49.47 MJ/Kg Natural P.C.S. = 37.78 MJ/m³

TQG 641/HA (DS)

TQG 641/HA (CF)

Start-up and use

The position of the corresponding gas burner is shown on every knob.

Gas burners

Each burner can be adjusted to one of the following settings using the corresponding control knob:

• Off

Maximum

Minimum

To light one of the burners, hold a lit match or lighter near the burner and, at the same time, press down and turn the corresponding knob anti-clockwise to the maximum setting.

Since the burner is fitted with a safety device, the knob should be pressed for approximately 2-3 seconds to allow the automatic device keeping the flame alight to heat up.

Models are equipped with an ignition button incorporated into the control knob. If this is the case, the ignitor is present, but not the button. To light a burner, simply press the corresponding knob all the way in and then turn it in the counter-clockwise direction to the "High" setting, keeping it pressed in until the burner lights.

! If a flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the "●" position).

Practical advice on using the burners

To ensure the burners operate efficiently:

• Use appropriate cookware for each burner (see table) so that the flames do not extend beyond the bottom of the cookware. Always use cookware with a flat base and a cover.
• When the contents of the pan reach boiling point, turn the knob to minimum.

Burner	Ø Cookware Diameter (cm)
Rapid (R)	24 - 26
Semi Rapid (S)	16 - 20
Auxiliary (A)	10 - 14

To identify the type of burner, refer to the designs in the section entitled, "Burner and Nozzle Specifications".

• For maximum stability, always make sure that the pan supports are correctly fitted and that each pan is placed centrally over the burner.
• Pan handles should be positioned in line with one of the support bars on the pan support grid.
• Pan handle should be positioned so as not to protrude beyond the front edge of the hob.

greatest stability.

The more variable aspect in terms of pan stability can often be the pan itself, (or the positioning of that pan during use). Well balanced pans, with flat bases that are placed centrally over the burner, with the pan handles aligned with one of the support fingers obviously offer the

Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• This is a class 3 built-in appliance.
• Gas appliances require regular air exchange to maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph on "Positioning" the appliance.
• These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.
• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g., for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect, and unreasonable use of the appliance.
• Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
• The openings used for ventilation and dispersion of heat must never be covered. Always make sure the knobs are in the "●" position when the appliance is not in use.
• When unplugging the appliance, always pull the plug from the mains socket, do not pull on the cable.
• Never carry out any cleaning or maintenance work without having detached the plug from the mains.
• In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).
• The appliance should not be operated by people (including children) with reduced physical, sensory, or mental capacities, by inexperienced individuals, or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
• Do not let children play with the appliance.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation that, when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Cook your food in closed pots or pans with well-fitting lids and use as little water as possible. Cooking with the lid off will greatly increase energy consumption.
• Use purely flat pots and pans.
• If you are cooking something that takes a long time, it's worth using a pressure cooker, which is twice as fast and saves a third of the energy.

Maintenance and care

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the hob surface

• All the enamelled and glass parts should be cleaned with warm water and neutral solution.
• Stainless steel surfaces may be stained by calcareous water or aggressive detergents if left in contact for too long. Any food spills (water, sauce, coffee, etc.) should be wiped away before they dry.
• Clean with warm water and neutral detergent, and then dry with a soft cloth or chamois. Remove baked-on dirt with specific cleaners for stainless steel surfaces.
• Clean stainless steel only with soft cloth or sponge.
• Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.
• Do not use steam cleaning appliances.
• Do not use flammable products.
• Do not leave acid or alkaline substances, such as vinegar, mustard, salt, sugar or lemon juice on the hob.

Cleaning the hob parts

• Clean the enamelled and glass parts only with a soft cloth or sponge.
• Grids, burner caps, and burners can be removed for cleaning.
• Clean them by hand with warm water and a non-abrasive detergent, removing any food residues and checking that none of the burner openings are clogged. Rinse and dry.
• Refit burners and burner caps correctly in their respective housings.
• When replacing the grids, make sure that the panstand area is aligned with the burner.
• Models equipped with electrical ignition plugs and safety devices require thorough cleaning of the plug end to ensure correct operation. Check these items frequently, and if necessary, clean them with a damp cloth. Any baked-on food should be removed with a toothpick or needle.

! To avoid damaging the electric ignition device, do not use it when the burners are not in their housing.

Gas tap maintenance

Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced.

! This procedure must be performed by a qualified technician authorized by the manufacturer.

Troubleshooting

It may happen that the appliance does not function properly or at all. Before calling the service center for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

The burner does not light or the flame is not even around the burner.

Check whether:

• The gas holes on the burner are clogged.
• All the movable parts that make up the burner are mounted correctly.
• There are draughts near the appliance.

The flame dies in models with a safety device.

Check to make sure that:

• You pressed the knob all the way in.
• You keep the knob pressed in long enough to activate the safety device.
• The gas holes are not blocked in the area corresponding to the safety device.

The burner does not remain lit when set to minimum.

Check to make sure that:

The gas holes are not blocked. - There are no draughts near the appliance. The minimum setting has been adjusted properly.

The cookware is unstable.

Check to make sure that:

• The bottom of the cookware is perfectly flat. The cookware is positioned correctly at the centre of the burner. The pan support grids have been positioned correctly.

Please consult the manual for information regarding hob installation

Avoid accidentally knocking the hob with pans, racks or other kitchen utensils.

Do not use pans or oven trays spanning two or more burners.

Do not leave empty steak grills over the lit burner for longer than 5 minutes

FR

Installation

Please follow the safety regulations when installing the hob:

Kitchen cabinets must be installed at a height of at least 200 mm from the hob surface. The hood must be installed according to its instructions and at a distance of at least 650 mm from the hob (see figure). - The placement of the hob parts relative to the hood must be at a height of at least 420 mm from the surface (see figure).

The hob is installed on the countertop, so the distance between the countertop and the hob must be at least 700 mm.

After installation, the hob must correspond to the dimensions indicated on the label.

The brackets provided in the kit allow you to fix the hob to the countertop, which must have a thickness of 20 to 40 mm. To ensure proper fixation of the hob to the countertop, we recommend using all the brackets.

Before fixing, it is necessary to place the sealing gasket (from the kit) around the perimeter of the surface, as shown in the figure.

Diagram of bracket fixation

Bracket placement Bracket placement 20mm 30mm

Front side

The appliance is designed for installation in a wall with a thickness of 40 mm.

Use the mounting kit supplied with the appliance.

If the built-in oven is installed under a hob, then to maintain the temperature it is necessary to install a wooden panel. It must be placed at a distance of at least 20 mm from the lower part.

Ventilation

To ensure sufficient ventilation, it is necessary to remove the panel. It is important to install the oven in such a way that the opening is made of wood, or on an absolutely flat surface with dimensions of at least 45 x 560 mm (see figure).

The surface can be installed under built-in ovens equipped with forced ventilation.

Electrical connection

The appliance must be connected to the mains using a cable with a plug for operation with a frequency as indicated on the rating plate (located on the lower part of the appliance). The grounding wire in the cable has green and yellow color. If the oven is installed together with a built-in hob, their electrical connections must be installed separately, both for electrical safety and for easier removal of the oven.

Intended use

Position the control knob according to the symbol indicated on each knob.

Gas knobs

The control knob can be set to one of the following positions using the corresponding control knob:

Off

Maximum

Minimum

To turn on the burner, bring the ignition source to the burner or use the ignition button, press the handle and turn it counterclockwise to the maximum position.

On models with an ignition device, you should press the handle and hold it for about 2-3 seconds until the burner flame ignites.

To turn on the burner, press the corresponding handle and turn it counterclockwise to the maximum position. Then, hold the handle pressed until the flame ignites.

If the flame goes out accidentally, turn off the burner and wait at least 1 minute before trying to ignite it again.

To turn off the burner, turn the handle clockwise to the stop (in the position

Practical advice on using the hob

For efficient operation of the burners:

Use the appropriate cookware for each burner (see table), so that the flame does not extend beyond the bottom of the cookware. Always use cookware with a flat bottom and a lid. Make sure the burner is correctly positioned on its support.

Конфоркa	Ø Дiamетр посуду (см)
Швидka (R)	24 - 26
Наимовидka (S)	16 - 20
Домоміжна (A)	10 - 14

To determine the type of burner, see the diagrams in the section "Burner characteristics and drawings".

To ensure maximum stability of the cookware under impact, make sure it is correctly positioned on the center of the burner. - Check that the cookware is placed on one of the support points of the burner. - Turn the cookware so that it does not protrude beyond the front edge of the hob.

The factor affecting the stability of the cookware on the hob is the pan itself (or its deformation due to use). Obviously, maximum stability is guaranteed by well-maintained cookware with a flat bottom.

Position the center of the burner; the handles should be directed according to the arrows on the control panel.

Safety regulations and advice

This appliance was designed and manufactured in accordance with international safety standards. For your safety, you must carefully read the following warnings.

General safety requirements

• This device belongs to class 3.
• Disposable batteries should be replaced regularly to ensure effective operation. When installing batteries, follow the instructions in the "INSTALLATION" section for batteries. These instructions apply only to the batteries whose symbols are indicated in Table 3 with the serial number. The device is intended for household use only and is not intended for use in industrial or commercial enterprises. It is not allowed to install the device outside the premises, even under a canopy. The device must be unplugged before cleaning and maintenance. Do not touch the device with wet or damp hands or feet.
• The device must be used only with fully charged batteries, prepared according to the instructions provided in this manual. Any use of the device (e.g., for heating rooms) that is improper and unsafe is the responsibility of the user, who bears no liability for any damage caused by improper and incorrect use of the device.
• The device must be used only with fully charged batteries, prepared according to the instructions in this manual.
• The openings used for ventilation and heat dissipation must never be blocked. Make sure that the device is in the off position when it is not in use.
• When unplugging the device, pull the plug out of the socket, but do not pull on the cable. Never perform cleaning or maintenance while the device is still plugged into the socket.
• In case of malfunction, do not attempt to repair the device yourself under any circumstances. Repair by unqualified personnel may result in injury or more serious malfunction. Contact the service center (manufacturer's service). Do not cover the device with a cloth (if applicable) when using gas or electric stoves. The device is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device. Do not allow the device to be used without supervision. Ensure that the device is connected to a power supply with a grounding system or an additional residual current device.

Disposal

• When disposing of packaging materials: follow local regulations regarding their reuse. The European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) requires that old electrical appliances be disposed of separately from ordinary household waste. Old appliances must be collected separately for optimal recycling and recovery of materials, reducing the impact on human health and the environment. The symbol of the crossed-out "wheelie bin"

on the device reminds you of your obligation to dispose of it separately. Consumers should contact their local authorities or retailer for information on the correct disposal of their old appliance.

Protection and environmental responsibility

• Cooking in closed pots, such as frying pans with lids, is better. Use less energy. Cooking without lids significantly increases energy consumption. Use pots and frying pans with flat, even bottoms.
• If you are cooking a dish that requires a lot of attention, it is worth using a frying pan that distributes heat evenly and saves a third of energy.

Maintenance and care

Disconnecting the appliance

Disconnect the plug from the power supply before cleaning or maintenance.

Cleaning the cooking surface

All enamelled and stainless steel parts should be washed with warm water and neutral detergent. On stainless steel surfaces, stains may appear from water with high calcium content or aggressive detergents during prolonged contact. Any splashes of food (water, sauce, coffee, etc.) should be wiped off before they dry. - Clean the hob with a neutral detergent and a soft cloth or sponge. Wipe off dirt, burnt-on food, and splashes with cleaning agents for stainless steel surfaces. - Stainless steel parts should be washed only with a soft cloth or sponge. Do not use abrasive or sharp objects, cleaners for the base of the hob, or metal scouring pads. Do not use cleaning devices with sharp edges. Do not use acidic or aggressive detergents. Do not leave acidic substances on the cooking surface, such as vinegar, mustard, salt, yogurt, or lemon juice.

Cleaning the glass ceramic hob

• Enamelled and stainless steel parts should be washed only with a soft cloth or sponge. - To clean the burner caps and burner heads, they can be removed. Wash them in warm water with a mild detergent, then rinse and dry thoroughly. Make sure the burner openings are not blocked. Dry them completely.
• Install the burner heads and caps correctly in place. When installing the burner head, make sure it is positioned correctly on the burner base. If the burner head is not installed correctly, the appliance may not work properly. Regularly check these parts and, if necessary, clean them with a soft cloth. The burner caps should be wiped with a toothbrush or a cloth.

To avoid the risk of electric shock, do not use the appliance if the burner head is not installed in its place.

Maintenance of the gas tap

Over time, the tap may become stiff or difficult to turn. If this happens, the tap must be lubricated.

UA

This procedure must be carried out by a qualified technician recommended by the manufacturer.

Minor malfunctions

The appliance may operate, but not reliably or safely. Before contacting a service center for help, check everything you can. First, make sure there are no leaks and check the electrical connections, and in particular, the gas supply hose.

The burner does not light or there is no flame.

Check:

• That you have not forgotten the gas supply valves on the appliance.
• That all winter parts of the connector are correctly installed.
• That there is no draft near the appliance.

The flame in the burners with safety devices.

Recommended actions:

- Press and hold the control knob. Keep it pressed for at least 5 seconds to activate the safety device. - The gas valves are not blocked in the area of the safety device.

The burner does not light when the minimum is set.

Recommended actions:

The gas valves are not blocked. - There is no draft near the appliance. The minimum setting has been adjusted reliably.

The appliance is not working.
