USER MANUAL TO 46083 KALORIK

3. Cancel button with LED

6. Bagel button with LED

7. Defrost button with LED

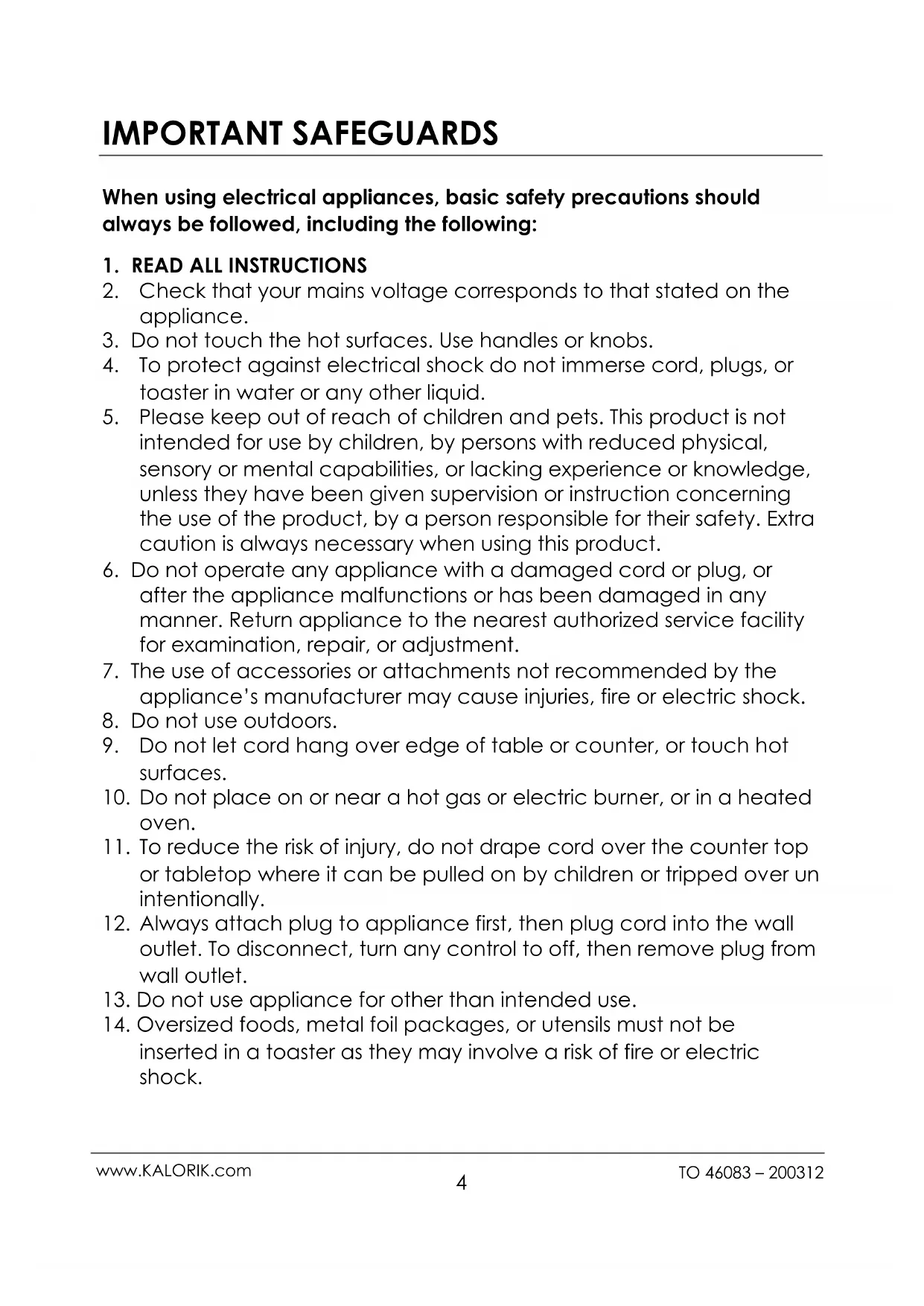

www.KALORIK.com TO 46083 – 200312 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS

2. Check that your mains voltage corresponds to that stated on the

4. To protect against electrical shock do not immerse cord, plugs, or

toaster in water or any other liquid.

5. Please keep out of reach of children and pets. This product is not

intended for use by children, by persons with reduced physical, sensory or mental capabilities, or lacking experience or knowledge, unless they have been given supervision or instruction concerning the use of the product, by a person responsible for their safety. Extra caution is always necessary when using this product.

6. Do not operate any appliance with a damaged cord or plug, or

after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

7. The use of accessories or attachments not recommended by the

appliance’s manufacturer may cause injuries, fire or electric shock.

8. Do not use outdoors.

10. Do not place on or near a hot gas or electric burner, or in a heated

11. To reduce the risk of injury, do not drape cord over the counter top

or tabletop where it can be pulled on by children or tripped over un intentionally.

12. Always attach plug to appliance first, then plug cord into the wall

outlet. To disconnect, turn any control to off, then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. Oversized foods, metal foil packages, or utensils must not be

inserted in a toaster as they may involve a risk of fire or electric shock.5

15. Do not use food that may drip when toasted or warmed since this is

16. Do not steam clean the appliance.

17. Do not use oven or grill spray for cleaning.

18. A fire may occur if toasters are covered or touching flammable

material, including curtains, draperies, walls, and the like, when in operation.

19. Do not attempt to dislodge food when toaster is plugged in.

20. IMPORTANT: If the bread carriage handle gets blocked during use

(e.g. because the bread slices are too thick) and the bread starts burning, unplug the appliance immediately and let it cool down before emptying and cleaning it. Should the problem persist, contact a qualified electrician.

21. Do not use the appliance for defrosting food other than bread and

only insert unbuttered slices of bread of which the thickness does not risk preventing the bread from coming up. Be extremely strict about this as toasters are the cause of many fires when these elementary safety precautions are not observed.

22. The appliance shall not be operated using a separate timer or

separate remote device.

SAVE THESE INSTRUCTIONS

This appliance is equipped with a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into the polarized outlet only one way. If the plug does not properly fit into the outlet at first, reverse it. If it still does not fit, contact a competent qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use.6

• The electrical rating of the extension cord should be at least that of the appliance. If the electrical rating of the extension cord is too low, it could overheat and burn.

• The resulting extended cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over. PARTS DESCRIPTION See page 2-3.

BEFORE THE FIRST USE

In order to eliminate any manufacturing residues, operate the toaster a couple of times without bread with the browning control selector on a medium browning level. Some smoke might escape, which is perfectly normal. This burns off any dust and prevents unpleasant smells. OPERATING INSTRUCTIONS

• Before using your appliance for the first time, check if it is clean (see “maintenance and cleaning”) as it comes into direct contact with bread. Check if any object has fallen into the slots.

• Unwind the power cable to the required length and plug it in.

• Place the bread slices in the slots (for the French bread, cut a loaf shorter than the slots, then cut it in two pieces along its length.). Your appliance is provided to receive French bread, but also pieces of toast or other bread slices if their thickness and their length are shorter than the slots. The maximum thickness allowed for bread is 30 mm / 1 ¼”.

• Use the browning control knob to set the required toasting level between 1 and 6. For a medium, golden brown select level 3.

• Press the push-down lever down until it engages, the grid inside the slots will tighten around the bread in order to keep it away from the heating wires. (If the handle comes up immediately, check if the appliance is plugged in, as the bread carriage cannot be locked if the toaster is not plugged in.)7

• Note: the bread carriage handle will not stay down if the appliance is not plugged in!

• The LED on the cancel button will light up, which means that the heating process has begun.

• During operation, if you think that the bread is toasted enough or you may wish to stop the heating process, simply press the Cancel button. Never lift the push-down lever to cancel toasting.

• Toasting ends when the food inside the toaster raises up. The LED cancel button light will go out. BAGEL FUNCTION

• Place a half bagel in each toasting slot with the cut sides facing the center.

• Set the toasting level to desired setting and press the lever down.

• Select the Bagel button and the Bagel LED indicator light will light up.

• Once toasting is complete, the bagel will automatically rise. DEFROST FUNCTION The defrost button allows you to toast bread that has been frozen beforehand. It offers a longer heating time.

• Select the normal degree of toasting.

• Insert the frozen bread into the slot.

• Press the push-down lever until it engages, the LED Cancel light will illuminate.

• Select the Defrost button and the LED on the Defrost will light up.

• Once toasting is complete, the bread will rise. Always unplug the appliance after use and let it cool down before handling or storing it. Excess lengths of power cord can be stored under the base. When you store your appliance, wind the cord around the hooks.8

CLEANING AND MAINTENANCE

• Before attempting any cleaning operation, make sure the toaster is unplugged from the supply socket and fully cooled down.

• To remove bread crumbs, slide the crumb tray situated on the bottom of the appliance, out from the back for removal.

• Caution! It is very important to empty the crumb tray regularly. Crumbs that have accumulated in the toaster might burn and the appliance may catch fire.

• To clean the exterior surface/housing, simply wipe over with a soft damp cloth. Do not use abrasive cleaners or material (scouring pads) as they may damage the finish of your appliance.

• THE TOASTER SHALL NEVER BE IMMERSED IN WATER, USED NEAR

WATER OR PLACED IN DISHWASHER

• All other maintenance and repair should be performed by a qualified technician.9

www.KALORIK.com TO 46083 – 200312 WARRANTY We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com This KALORIK product is warranted in the U.S.A. and Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik’s option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product. This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user’s manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user. ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD. Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If10

www.KALORIK.com TO 46083 – 200312 servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location. If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center). When sending the product, please include a letter explaining the nature of the claimed defect. If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change. If you would like to write, please send your letter to: KALORIK Customer Service Department Team International Group of America Inc. 16175 NW 49

Avenue Miami Gardens, FL 33014 USA Or call: Toll Free: +1 888-521-TEAM / +1 888-KALORIK Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.11

• Insert the frozen bread into the slot.

For questions please contact: KALORIK Customer Service Department Team International Group of America Inc. 16175 NW 49

Avenue Miami Gardens, FL 33014 USA Toll Free: +1 888-521-TEAM / +1 888-KALORIK www.KALORIK.com Models: TO 46083 User manual content and recipes courtesy of Team International Group – Do not reproduce without consent of the authors - All rights reserved.
