USER MANUAL TKG TO 1003 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/32

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax +32 2 359 95 50 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

7. Rack for bun warming

8. Knob of rack for bun warming

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

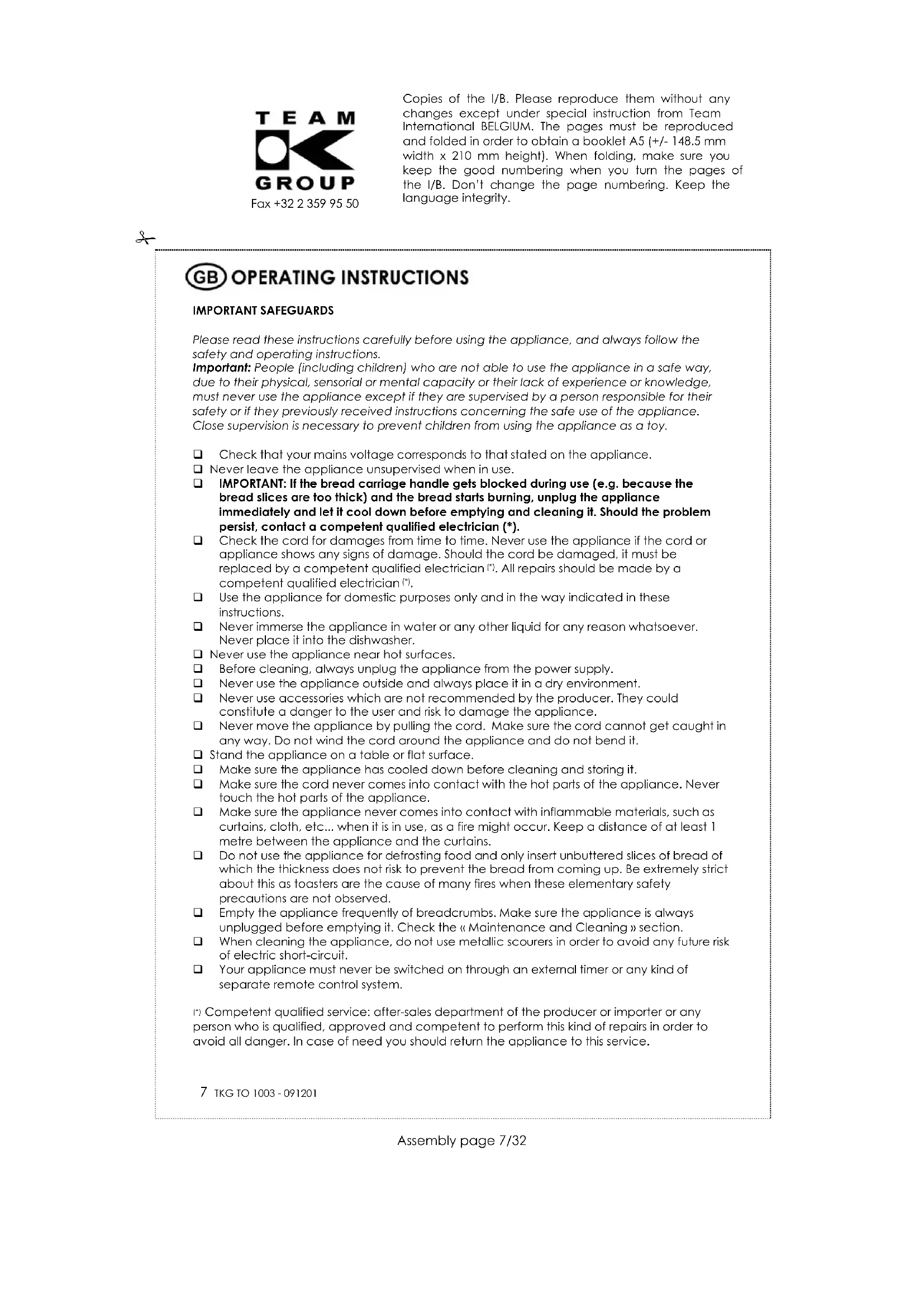

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. IMPORTANT: If the bread carriage handle gets blocked during use (e.g. because the bread slices are too thick) and the bread starts burning, unplug the appliance immediately and let it cool down before emptying and cleaning it. Should the problem persist, contact a competent qualified electrician (*). Check the cord for damages from time to time. Never use the appliance if the cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician

. All repairs should be made by a competent qualified electrician

Use the appliance for domestic purposes only and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning, always unplug the appliance from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a table or flat surface. Make sure the appliance has cooled down before cleaning and storing it. Make sure the cord never comes into contact with the hot parts of the appliance. Never touch the hot parts of the appliance. Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur. Keep a distance of at least 1 metre between the appliance and the curtains. Do not use the appliance for defrosting food and only insert unbuttered slices of bread of which the thickness does not risk to prevent the bread from coming up. Be extremely strict about this as toasters are the cause of many fires when these elementary safety precautions are not observed. Empty the appliance frequently of breadcrumbs. Make sure the appliance is always unplugged before emptying it. Check the « Maintenance and Cleaning » section. When cleaning the appliance, do not use metallic scourers in order to avoid any future risk of electric short-circuit. Your appliance must never be switched on through an external timer or any kind of separate remote control system.

Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax +32 2 359 95 50 CAUTION: the bread carriage handle will not stay down if the appliance is not plugged in! BEFORE USING THE TOASTER FOR THE FIRST TIME In order to eliminate any manufacturing residues, operate the toaster a couple of times without bread with the browning control selector on a medium power level. Some smoke might escape. OPERATION Before using your appliance for the first time, check if it is clean (see “Maintenance and cleaning”) as it comes into direct contact with bread. Check if any object has fallen into the slot. Connect the appliance only to a mains earthed wall socket. Place the bread slices in the slot (for French bread, cut a loaf shorter than the slot, then cut it in two pieces along its length). Your appliance is provided to receive French bread, but also pieces of toast or other bread slices if their thickness and their length are shorter than the one of the slot. Press down the bread carriage handle until it stops (in the same time, the grid inside the slot will tighten around the bread in order to keep it away from the heating wires). Then release the pressure and the handle will stay in the lower position, which means that the heating process has begun. If the handle comes up immediately, check if the appliance is plugged in as it blocks only when the unit is plugged in. You can adjust the browning intensity to obtain a more or less toasted bread by positioning the browning control selector to one of the degrees marked from 1 to 7. Therefore you only have to turn clockwise to increase the intensity, and anticlockwise to decrease it. The higher the number is, the more toasted the bread will be. During the functioning, if you think that the bread is toasted enough or for another reason, you can break the heating process simply by pressing the cancel button (STOP). The reheat button ( ) allows you to reheat already toasted bread or to toast bread which is not toasted enough during a short time without modifying the browning degree. The defrost button ( ) allows you to toast bread that has been frozen beforehand. Always unplug the appliance after use and let it cool down before handling or storing it. A cord winder is foreseen on the bottom of the appliance: hooks. When you store your appliance, wind the cord around the hooks.

RACK FOR BUN WARMING

Your appliance is provided with a rack for bun warming. To install the rack turn the knob of the rack for bun warming 90° anticlockwise. Then put the rack on the slots of the toaster. To store the rack, proceed inversely.

MAINTENANCE AND CLEANING

Before attempting any cleaning operation, make sure the toaster is unplugged from the supply socket and fully cooled down. To remove bread crumbs, slide the crumb tray situated on the side of the appliance. Caution! It is very important to empty the crumb tray regularly. Crumbs that have accumulated in the toaster might burn and the appliance might catch fire. Never use sharp objects to clean. Doing so could damage the appliance. To clean the exterior surfaces, simply wipe over with a soft damp cloth. ON NO ACCOUNT MUST THE TOASTER BE IMMERSED IN WATER OR ANY OTHER LIQUID. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax +32 2 359 95 50 All other maintenance and repair should be performed by a qualified technician. No guarantee claims will be accepted if the appliance has been opened or damaged previously.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

comun acord intre vanzator si consumator. In cazul in care vanzatorul dupa toate eforturile si Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Pentru lista actualizata de Service-uri autorizate va rugam sunati la tel:+40 (21) 319 83 26 sau verificati pe site la adresa: www.team-int.ro Team International Romania Srl; Str. Industriilor 56A, sector 3, Bucuresti CUI 16991287; R.C. J40/19685/29.11.2004 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
