How To Use GPS GB Using GPS functions

 2009 Sony Corporation

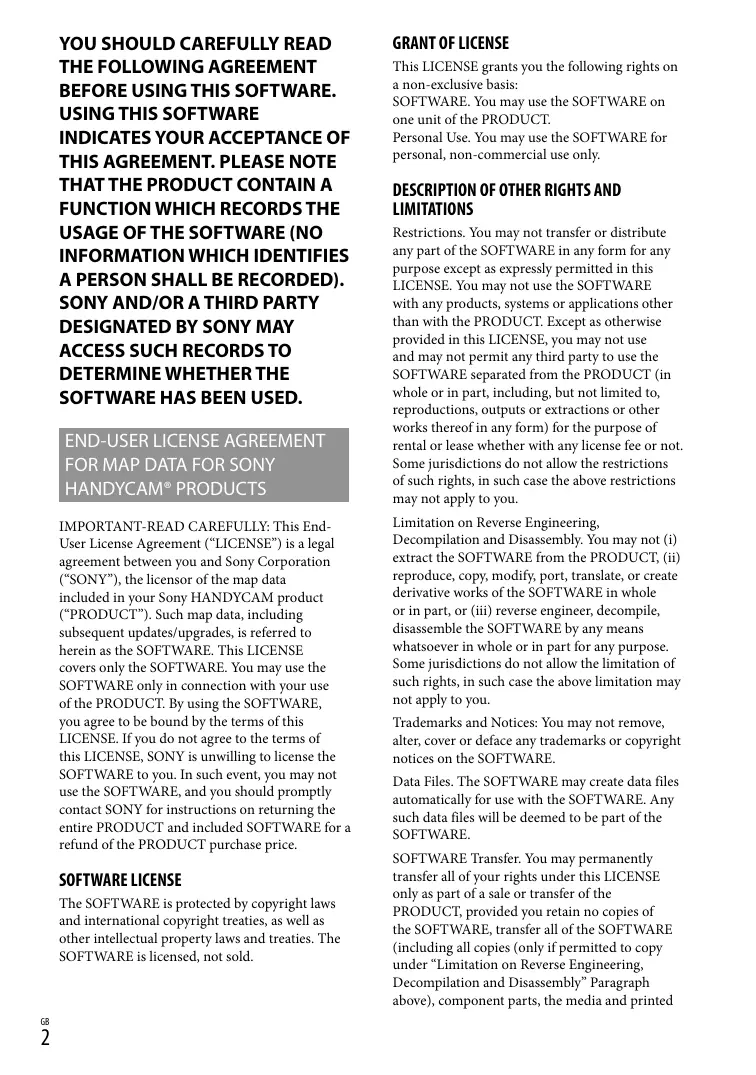

ES YOU SHOULD CAREFULLY READ THE FOLLOWING AGREEMENT BEFORE USING THIS SOFTWARE.

USING THIS SOFTWARE INDICATES YOUR ACCEPTANCE OF THIS AGREEMENT. PLEASE NOTE THAT THE PRODUCT CONTAIN A FUNCTION WHICH RECORDS THE USAGE OF THE SOFTWARE (NO INFORMATION WHICH IDENTIFIES A PERSON SHALL BE RECORDED). SONY AND/OR A THIRD PARTY DESIGNATED BY SONY MAY ACCESS SUCH RECORDS TO DETERMINE WHETHER THE SOFTWARE HAS BEEN USED. END-USER LICENSE AGREEMENT FOR MAP DATA FOR SONY HANDYCAM® PRODUCTS IMPORTANT-READ CAREFULLY: This EndUser License Agreement (“LICENSE”) is a legal agreement between you and Sony Corporation (“SONY”), the licensor of the map data included in your Sony HANDYCAM product (“PRODUCT”). Such map data, including subsequent updates/upgrades, is referred to herein as the SOFTWARE. This LICENSE covers only the SOFTWARE. You may use the SOFTWARE only in connection with your use of the PRODUCT. By using the SOFTWARE, you agree to be bound by the terms of this LICENSE. If you do not agree to the terms of this LICENSE, SONY is unwilling to license the SOFTWARE to you. In such event, you may not use the SOFTWARE, and you should promptly contact SONY for instructions on returning the entire PRODUCT and included SOFTWARE for a refund of the PRODUCT purchase price.

SOFTWARE LICENSE The SOFTWARE is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties. The

SOFTWARE is licensed, not sold.

GB GRANT OF LICENSE This LICENSE grants you the following rights on a non-exclusive basis:

SOFTWARE. You may use the SOFTWARE on one unit of the PRODUCT. Personal Use. You may use the SOFTWARE for personal, non-commercial use only.

DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS Restrictions. You may not transfer or distribute any part of the SOFTWARE in any form for any purpose except as expressly permitted in this

LICENSE. You may not use the SOFTWARE with any products, systems or applications other than with the PRODUCT. Except as otherwise provided in this LICENSE, you may not use and may not permit any third party to use the SOFTWARE separated from the PRODUCT (in whole or in part, including, but not limited to, reproductions, outputs or extractions or other works thereof in any form) for the purpose of rental or lease whether with any license fee or not. Some jurisdictions do not allow the restrictions of such rights, in such case the above restrictions may not apply to you. Limitation on Reverse Engineering, Decompilation and Disassembly. You may not (i) extract the SOFTWARE from the PRODUCT, (ii) reproduce, copy, modify, port, translate, or create derivative works of the SOFTWARE in whole or in part, or (iii) reverse engineer, decompile, disassemble the SOFTWARE by any means whatsoever in whole or in part for any purpose. Some jurisdictions do not allow the limitation of such rights, in such case the above limitation may not apply to you. Trademarks and Notices: You may not remove, alter, cover or deface any trademarks or copyright notices on the SOFTWARE. Data Files. The SOFTWARE may create data files automatically for use with the SOFTWARE. Any such data files will be deemed to be part of the SOFTWARE. SOFTWARE Transfer. You may permanently transfer all of your rights under this LICENSE only as part of a sale or transfer of the PRODUCT, provided you retain no copies of the SOFTWARE, transfer all of the SOFTWARE (including all copies (only if permitted to copy under “Limitation on Reverse Engineering, Decompilation and Disassembly” Paragraph above), component parts, the media and printed

materials, all versions and any upgrades of the SOFTWARE and this LICENSE), and the recipient agrees to the terms and conditions of this LICENSE.

Termination. Without prejudice to any other rights, SONY may terminate this LICENSE if you fail to comply with the terms and conditions of this LICENSE. In such event, you must stop using the SOFTWARE and all of its component parts. The provisions of this LICENSE “COPYRIGHT,” “HIGH RISK ACTIVITIES,” “EXCLUSION OF WARRANTY ON SOFTWARE,” “LIMITATION OF LIABILITY,” “PROHIBITION ON EXPORT,” “SEVERABILITY,” and “GOVERNING LAW AND JURISDICTION” Sections, “Confidentiality” Paragraph of this Section and this Paragraph shall survive any expiration or termination of this LICENSE. Confidentiality. You agree to keep information contained in the SOFTWARE which is not publicly known confidential to yourself, and not to disclose such information to others without SONY’s prior written approval.

COPYRIGHT All title and copyright in and to the SOFTWARE

(including but not limited to any map data, images, photographs, animation, video, audio, music, text and “applets”, incorporated into the SOFTWARE), and any copies of the SOFTWARE, are owned by SONY, licensors and suppliers to SONY and their respective affiliates (such licensors and suppliers to SONY, together with their respective affiliates, are hereinafter collectively referred to as “SONY’s Licensors”). All rights not specifically granted under this LICENSE are reserved by SONY or SONY’s Licensors.

HIGH RISK ACTIVITIES The SOFTWARE is not fault-tolerant and is not designed, manufactured or intended for use in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines, or weapons systems, in which the failure of the SOFTWARE could lead to death, personal injury, or severe physical or environmental damage (“High Risk Activities”).

SONY, its affiliates, their respective suppliers and SONY’s Licensors specifically disclaim any express or implied warranty of fitness for High Risk Activities.

EXCLUSION OF WARRANTY ON SOFTWARE You expressly acknowledge and agree that use of the SOFTWARE is at your sole risk. The

SOFTWARE is provided “AS IS” and without warranty of any kind and SONY, its affiliates, its and their respective suppliers and SONY’s Licensors (in this section, SONY, its affiliates, their respective suppliers and SONY’s Licensors shall be collectively referred to as “SONY”) EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES AND CONDITIONS OF QUALITY, NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SONY DOES NOT WARRANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL MEET YOUR REQUIREMENTS, OR THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR FREE. SONY DOES NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING THE USE, INABILITY TO USE OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, OR OTHERWISE. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES, IN SUCH CASE THE ABOVE EXCLUSIONS MAY NOT APPLY TO YOU.

GB You expressly understand that the data in the SOFTWARE may contain inaccurate or incomplete information due to the passage of time, changing circumstances, sources used and the nature of collecting comprehensive geographic data, any of which may lead to incorrect results.

LIMITATION OF LIABILITY IN THIS SECTION SONY, ITS AFFILIATES,

ITS AND THEIR RESPECTIVE SUPPLIERS AND SONY’S LICENSORS SHALL BE COLLECTIVELY REFERRED TO AS “SONY” TO THE MAXIMUM EXTENT PERMITTED UNDER APPLICABLE LAW. SONY SHALL NOT BE LIABLE FOR ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF CLAIM, DEMAND OR ACTION, ALLEGING ANY LOSS OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THE SOFTWARE; NOR FOR ANY LOSS OF PROFIT, REVENUE,

CONTRACTS OR SAVINGS, NOR ANY OTHER GB DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE SOFTWARE, ANY DEFECT IN THE SOFTWARE, OR THE BREACH OF THE TERMS AND CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF SONY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES EXCEPT IN THE EVENT OF SONY’S GROSS NEGLIGENCE OR WILLFUL MISCONDUCT, OF DEATH OR PERSONAL INJURY, AND OF DAMAGES DUE TO THE DEFECTIVE NATURE OF THE PRODUCT.

IN ANY CASE, SAVE FOR THE FOREGOING EXCEPTIONS, SONY'S ENTIRE LIABILITY UNDER ANY PROVISION OF THIS LICENSE SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID ALLOCATABLE TO THE SOFTWARE. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

PROHIBITION ON EXPORT YOU ACKNOWLEDGE THAT THE USE OF THE SOFTWARE IN SOME COUNTRIES,

REGIONS, AREAS OR FACILITIES, OR THE EXPORT OF THE PRODUCTS FROM THE COUNTRY WHERE SUCH PRODUCTS ARE DESIGNED TO BE SOLD, MAY BE RESTRICTED OR PROHIBITED. YOU AGREE TO USE THE SOFTWARE OR EXPORT THE PRODUCTS IN ACCORDANCE WITH THE APPLICABLE LAWS, ORDINANCES, RULES AND REGULATIONS OF RELEVANT COUNTRIES, REGIONS, AREAS AND FACILITIES.

ENTIRE AGREEMENT These terms and conditions constitute the entire agreement between SONY and you pertaining to the subject matter hereof, and supersedes in their entirety any and all previously existing written or oral agreements between us with respect to such subject matter.

GOVERNMENT END USERS If the SOFTWARE is being acquired by or on behalf of the United States government or any other entity seeking or applying rights similar to those customarily claimed by the United States government, such SOFTWARE is a “commercial item” as that term is defined at 48 C.F.R. (“FAR”)

2.101, is licensed in accordance with this LICENSE, and such SOFTWARE delivered or otherwise furnished shall be provided with the following “Notice of Use” and shall be treated in accordance with such notice: NOTICE OF USE CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: SONY CORPORATION CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: 1-7-1 Konan, Minato-ku, Tokyo, Japan These SOWFTWARE are commercial items as defined in FAR 2.101 and are subject to END-USER LICENSE AGREEMENT FOR MAP DATA FOR SONY HANDYCAM® PRODUCTS under which this SOFTWARE was provided.

If any part of this LICENSE is held invalid or unenforceable, the other parts will remain valid.

If the Contracting Officer, federal government agency, or any federal official refuses to use the legend provided herein, the Contracting Officer, federal government agency, or any federal official must notify SONY prior to seeking additional or alternative rights in the Software.

GOVERNING LAW AND JURISDICTION Copyright and trademark information

SEVERABILITY GB JURY WITH RESPECT TO ANY MATTERS ARISING UNDER TO RELATING TO THIS LICENSE. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF THE RIGHT OF TRIAL BY JURY, IN SUCH CASE THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

This LICENSE shall be governed by the laws of Japan without giving effect to its conflict of laws provisions or the United Nations

Convention for Contracts for the International Sale of Goods, which is expressly excluded. Any dispute arising out of this LICENSE shall be subject to the exclusive venue of the Tokyo District Court, and the parties hereby consent to the venue and jurisdiction of such court. THE PARTIES HEREBY WAIVE TRIAL BY

©2009 ZENRIN CO., LTD. ©Her Majesty the Queen in Right of Canada; ©Queen’s Printer for Ontario; ©Canada Post Corporation; GeoBase®; ©Department of Natural Resources Canada; ©United States Postal Service ®2007; USPS®; ZIP+4®

This section describes how to use the GPS functions equipped with your camcorder and also provides some important notes on using. Read the following instructions and also refer to the supplied “Operating Guide” before using your camcorder.

The GPS (Global Positioning System) is a system that calculates geographical location from highly accurate US space satellites. This system allows you to pinpoint your exact location on the earth.

GPS functions you can use

Map Index You can find a movie or photo on a map by its recording location.

YOUR LOCATION You can display the current location on a map.

AUTO CLOCK ADJ / AUTO AREA ADJ Your camcorder adjusts the clock and the time difference on each area automatically.

GB How to use the GPS function

Set the GPS switch to ON ( appears on the LCD screen). Your camcorder starts trying to triangulate. When your camcorder triangulates successfully, it will record the location information at the time movies and photos were recorded. You can identify the GPS switch by the “Operating Guide” supplied.  Notes The indicator changes according to the strength of GPS signal reception.

GB Triangulating status

GPS reception status

The GPS switch is set to OFF, or the GPS receiver is not functioning normally.

Your camcorder cannot find a GPS signal, therefore, it cannot triangulate. Use your camcorder in an open area.

Your camcorder is confirming the GPS signal, and will be able to acquire location information soon. Wait until your camcorder completes the triangulation.

Your camcorder is receiving a GPS signal, and can acquire location information.

Your camcorder is receiving a strong GPS signal, and can acquire location information.

The GPS switch is set to ON in the default setting. Movies and photos recorded during triangulation by

GPS will be recorded with location information. If you do not want to record location information, set the GPS switch to OFF. It may take from several seconds to several minutes to acquire the location information when you use the GPS for the first time or use it again after long intervals. Even if the camcorder is turned off, the GPS function is working as long as the GPS switch is set to ON. Make sure that the GPS switch is set to OFF during take off and landing of an airplane. You may not be able to acquire location information depending on the strength of GPS reception. The 3 dots in the lower right of show GPS signal stability. When fewer than 3 dots are displayed, the GPS signal is not stable enough to triangulate in the current environment. To successfully triangulate, move to an open area first, and turn the GPS switch to OFF and ON again, or turn the power of your camcorder off and on. Your camcorder quits trying to triangulate after a few minutes of unsuccessful attempts. If your camcorder continues to display (triangulation process not started) even after moved to an open area, turn the GPS switch to OFF and ON again, or turn the power of your camcorder off and on.

Where movies and photos were recorded is marked on a map. You can select a movie or photo by recording location. Select the recording media which contains the movie or photo you want to play back before starting this operation. 

 Touch the image marker where you recorded the movies and photos to be played back.

You can use the Map Index only with movies and photos having location information that was recorded with the GPS switch set to ON.

You cannot use the Map Index with photos recorded on “Memory Stick PRO Duo” media.

The VISUAL INDEX screen appears.

The image marker turns red. The movies or photos recorded at that location are displayed on the left of the screen.

Returns to the VISUAL INDEX screen

 Touch the desired movie or photo.

You can change the scale using the zoom lever (W: larger, T: smaller).

The point you touch on the map scrolls to the center automatically. If you hold a certain point, the map keeps scrolling. will appear at the upper right corner of the thumbnail of the movie or photo without location information.

Playback starts from the selected scene.

Make sure that you set the GPS switch to ON prior to recording, to be able to create movies and photos that you can search for on the Map Index.  The map always displays the north at the top. 

When you record several movies and photos at the same location, the movie or photo recorded most recently will be displayed on the LCD screen.

Tips You can also display the Map Index by touching (MENU)   [VIEW IMAGES] (under [PLAYBACK] category)  [ MAP]. You can also search for the thumbnail of the movie or photo you want to play by touching / in step 3. The recording location of the movie or photo will be displayed at the center of the map.

The map always displays the north at the top.

YOUR LOCATION You can display the current location on a map. Set the GPS switch to ON so that your camcorder can acquire the current location information.

( YOUR LOCATION) on the recording screen.

The current location is displayed and marked at the center of the LCD screen. If you touch a certain point on the screen, the map shows the area with that point at the center.

Touch (your location) at the bottom left of the LCD screen to move the current location back to the center.

AUTO CLOCK ADJ/AUTO AREA ADJ Your camcorder can maintain accurate time and compensate for time difference automatically, by acquiring time and location information from GPS.

(MENU)   [CLOCK/ LANG] (under [GENERAL SET] category)  [AUTO CLOCK ADJ]/[AUTO AREA ADJ].

 Touch a desired setting 

You must set the date and time on your camcorder before using your camcorder.  There may be discrepancies of a few seconds even if [AUTO CLOCK ADJ] is activated. 

To close the map screen

You can change the scale using the zoom lever (W: larger, T: smaller). Your camcorder acquires the current location information every 10 seconds. The displays of the center marker, etc., appear differently according to the status of the current inquiry. When your camcorder cannot acquire the current location information, the center marker turns gray and the map shows the last location acquired. If you hold a certain point, the map keeps scrolling. You can also display the current location by touching (MENU)   [ YOUR LOCATION] (under [OTHERS] category).

The clock is adjusted automatically by

[AUTO CLOCK ADJ] when you turn off your camcorder if the camcorder is receiving a GPS signal while it is being used. The clock is not adjusted until the camcorder is turned off. Also, the clock is not adjusted unless the camcorder is receiving a GPS signal, even if the GPS switch is set to ON. The [AUTO AREA ADJ] function automatically compensates for a time difference when it detects a time differences with the current area. The clock may not be adjusted to the correct time automatically, depending on the country/ region selected for your camcorder. In this case, set [AUTO CLOCK ADJ] and [AUTO AREA ADJ] to [OFF].

The camcorder is not receiving a GPS signal.

Your camcorder may not be able to receive radio signals from GPS satellites because of obstructions. Bring your camcorder to an open area, and set the GPS switch to ON again.

The current location on the map of the camcorder is different from the actual current location.

The margin of error of the radio signal from

GPS satellites is large. The margin of error can be as wide as several-hundred meters at the maximum.

COORDINATES During playback, your camcorder can display the coordinates information recorded on movies and photos.

(MENU)   [PLAYBACK SET] (under [PLAYBACK] category)  [DATA CODE]  [COORDINATES]   .

GB About GPS The GPS system consists of 24 or more GPS satellites. A GPS receiver receives radio signals from the satellites, and calculates the current location of the receiver based on the orbital information (almanac data) and travel time of the signals, etc.

Determining a location is called “triangulating.” A GPS receiver can determine the location’s latitude and longitude by receiving signals from 3 or more satellites.  As the positions of GPS satellites vary constantly, it may take longer to determine the location or the receiver may not be able to determine the location at all, depending on the location and time you use the camcorder.  “GPS” is a system for determining geographic location by triangulating radio signals from GPS satellites. Avoid using the camcorder in places where radio signals are blocked or reflected, such as a shadowy place surrounded by buildings or trees, etc. Use the camcorder in open sky environments.  You may not be able to record location information at locations or in situations where radio signals from the GPS satellites do not reach the camcorder as follows.  In tunnels, indoors or under the shade of buildings.  Between tall buildings or at narrow streets surrounded by buildings.  In underground locations, locations surrounded by dense trees, under an elevated bridge, or in locations where magnetic fields are generated, such as near high voltage cables.  Near devices that generate radio signals of the same frequency band as the camcorder: near 1.5 GHz band mobile telephones, etc.

On triangulating errors

If you move to another location right after setting the GPS switch to ON, it may take a longer time for the camcorder to start trianguating, compared to when you stay in the same place.

Error caused by the position of GPS satellites The camcorder automatically triangulates your current location when the camcorder receives

radio signals from 3 or more GPS satellites. The triangulating error allowed by the GPS satellites is about 30 m (98 feet). Depending on the environment of the location, the triangulating error can be greater. In this case, your actual location may not match the location on the map based on the GPS information. Meanwhile, the GPS satellites are controlled by the Unites

States Department of Defense, and the degree of accuracy may be changed intentionally. Error during the triangulating process The camcorder acquires location information every 10 seconds during triangulating. There is a slight time difference between when the location information is acquired and when the location information is recorded on an image, therefore, the actual recording location may not match exactly the location on the map based on the GPS information.

On the restriction of use of GPS on an airplane

During take off and landing of an airplane, set the GPS switch to OFF and turn off the camcorder, as you will be instructed to do by the on-board announcement. In other cases, use

GPS in accordance with the regulations of the place or situation.

The camcorder contains map data for the following countries/regions.

Europe, Japan, North America, Oceania, etc. Built-in map is powered by companies as follows; Map of Japan by Zenrin Co., Ltd., other areas by NAVTEQ. The map data included is as of the date of production of this manual. GPS maps will appear in 2-dimensional graphics except for certain landmarks in Japan, which will appear in 3D. The map always displays the north at the top. You cannot change the language on the map. You cannot update the map data. The scale of the map is 25 m to 6,000 km (or 100 feet to 6,000 miles).

On the geographic coordinate system

The “WGS-84” geographic coordinate system is used.

The map data of the camcorder is copyrighted.

Unauthorized copying or other usage of the map data may be contrary to the copyright laws.

The camcorder does not have a navigation function that uses GPS.

Información de derechos de autor (copyright) y marca registrada

©1993-2007 NAVTEQ ©2009 ZENRIN CO., LTD. ©Her Majesty the Queen in Right of Canada; ©Queen’s Printer for Ontario; ©Canada Post Corporation; GeoBase®; ©Department of Natural Resources Canada; ©United States Postal Service ®2007; USPS®; ZIP+4®
