USER MANUAL SAN1 SONY

Compact Component System

Operating Instructions ____ GB

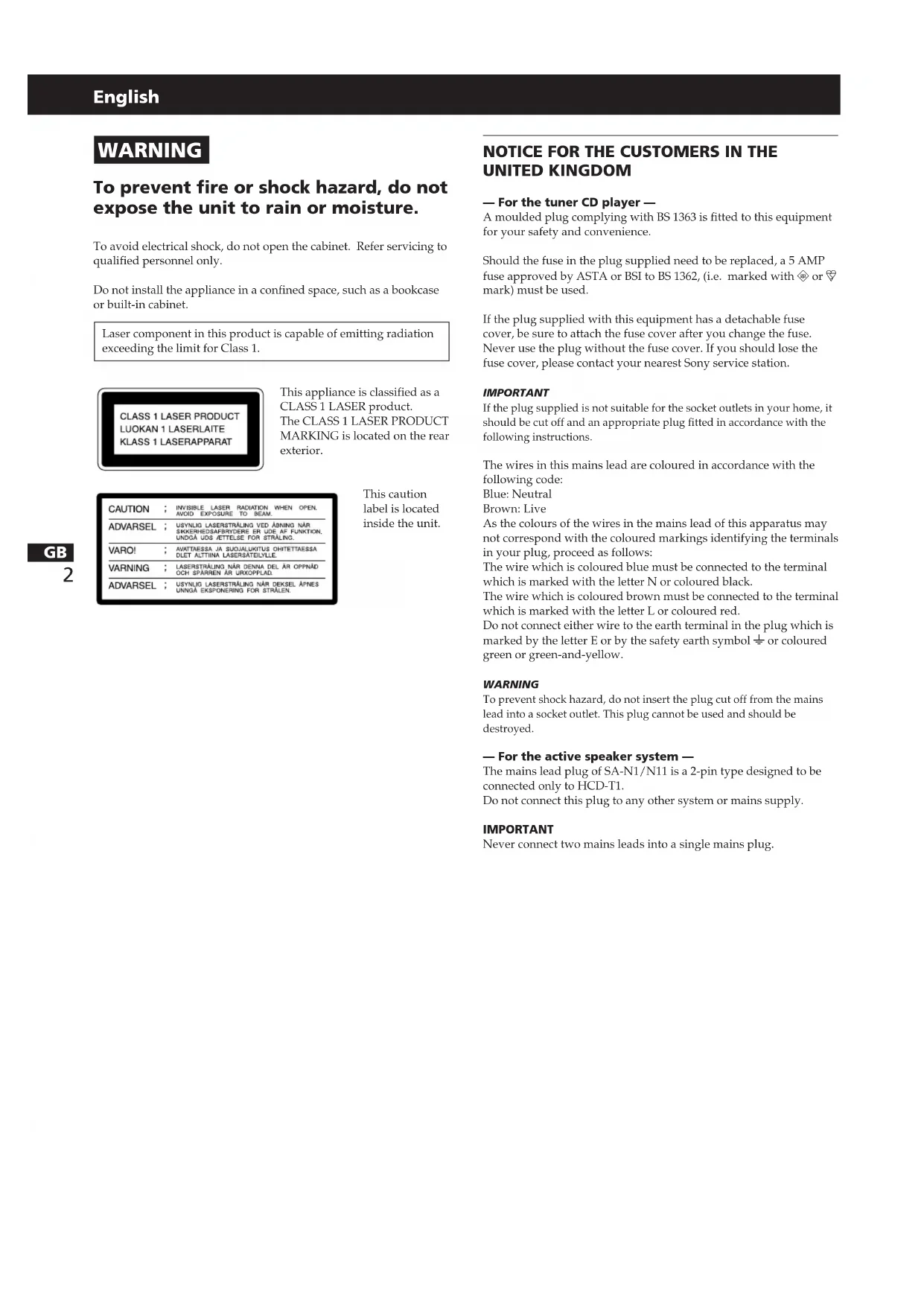

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

CAUTION	; INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.
ADVARSEL	; USYNLIO LASERSTRALING VED ÅBNING NÄR SKKERHEDSAFBRYDERE ER UDE AR FUNKTION. UNDGA UDS JETTELSE FOR STRÅLING.
VARO!	; AVATTAESSA JA SUOJALUKITUS OHITETTAESSA DLET ALTINA LASERSATEILYLE.
VARNING	; LASERSTRALING NÄR DENNA DEL ÄR OPPNÄD OCH SPARREN AR URXOPPLAD.
ADVARSEL	; USYNLIO LASERSTRALING NÄR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN.

This caution label is located inside the unit.

NOTICE FOR THE CUSTOMERS IN THE UNITED KINGDOM

— For the tuner CD player —

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI to BS 1362, (i.e. marked with Ⓦ or ⏰ mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

IMPORTANT

If the plug supplied is not suitable for the socket outlets in your home, it should be cut off and an appropriate plug fitted in accordance with the following instructions.

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Do not connect either wire to the earth terminal in the plug which is marked by the letter E or by the safety earth symbol 12 or coloured green or green-and-yellow.

WARNING

To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket outlet. This plug cannot be used and should be destroyed.

— For the active speaker system —

The mains lead plug of SA-N1/N11 is a 2-pin type designed to be connected only to HCD-T1.

Do not connect this plug to any other system or mains supply.

IMPORTANT

Never connect two mains leads into a single mains plug.

Welcome!

Thank you for purchasing the Sony Compact Component System. This stereo system is packed with fun features. Here are just a few:

• The CD jacket-size front panel of each component that lets you stack or place the components as you like
• DBFB (Dynamic Bass Feedback) system that boosts low frequency range audio to provide deep, powerful bass through the full range bass reflex speakers
• A preset feature that lets you store and recall up to 20 FM stations, 10 MW stations and 10 LW stations (For German, Italian and gold colour models, you can store and recall up to 20 FM stations and 10 AM stations.)
• A timer that lets you set the CD player, tape player or radio to turn on and off whenever you want
  • A remote that lets you control the music from your seat
• An optical output jack for digital recording

About this manual

This manual explains how to operate :

- Tuner CD player : HCD-T1

- Stereo cassette deck : TC-TX1

- Active speaker system : SA-N1

- Active speaker system : SA-N11

Make sure which components you are using.

Table of Contents

Chapter 1: Setting Up

Connecting the Stereo 4

Inserting the Batteries 6

Setting the Clock 6

Chapter 2: the CD Player

Playing a CD (normal play) 7

Playing Tracks in Random Order (shuffle play) 8

Playing Tracks in the Desired Order (programme play) 8

Playing Tracks Repeatedly (repeat play) 9

Chapter 3: the Radio

Listening to the Radio 10

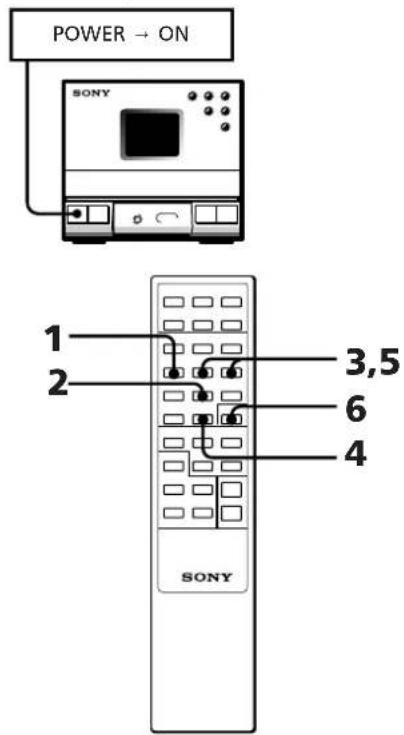

Presetting Radio Stations 11

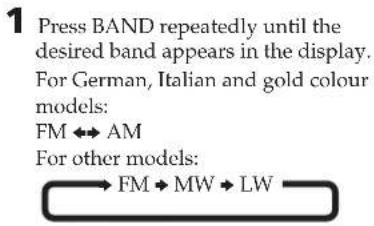

Listening to the Preset Radio Stations 11

Chapter 4: the Tape Player

Playing a Tape 12

Recording a CD Automatically 12

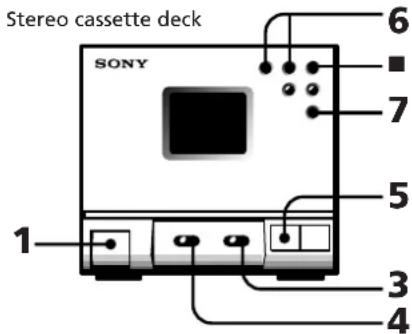

Recording a CD, etc., Manually 13

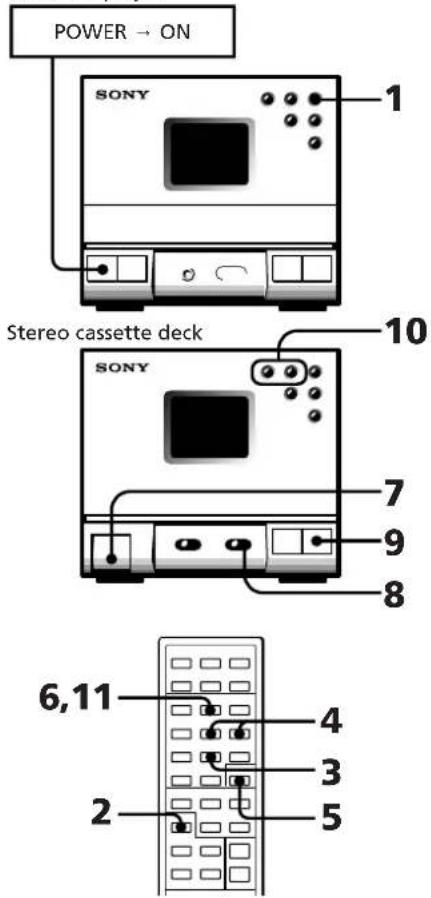

Recording a CD in the Specified Track Order (programme edit) 14

Chapter 5: Sound Adjustment

Adjusting the Balance of the Speakers 15

Reinforcing Bass (DBFB) 15

Listening with the Surround Feature 16

Chapter 6: Additional Features

Falling Asleep to Music 17

Waking Up to Music 17

Timer-Recording Radio Programmes 18

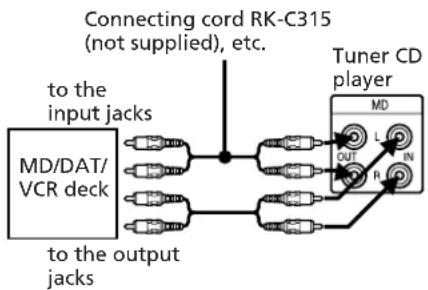

Connecting Optional Equipment 19

For Your Information

Precautions 20

Troubleshooting Guide 20

Maintenance 21

Specifications 21

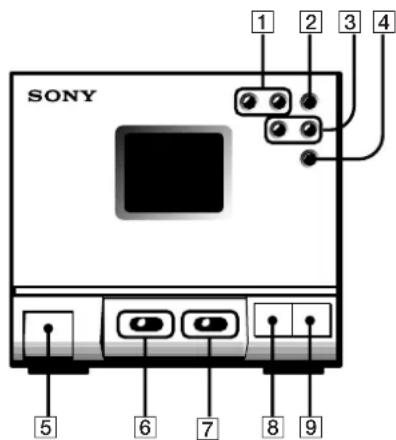

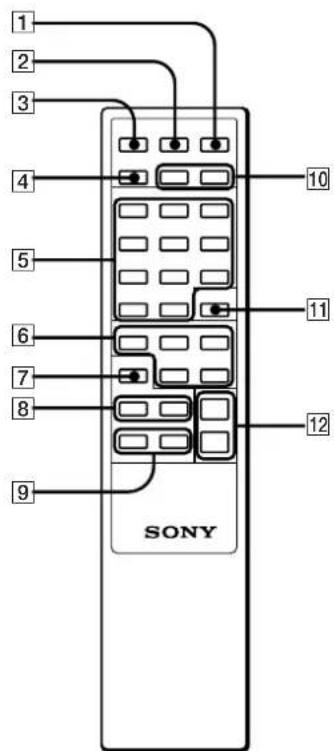

Index to Parts and Controls 22

Index 23

Chapter 1: Setting up

Connecting the Stereo

Inserting the batteries

Setting the Clock

Connecting the Stereo

Use the illustrations below to connect your stereo.

STEP 1 Connecting the Flat Cord

(For only the customers using the TC-TX1 stereo cassette deck)

Connect the tuner CD player and the stereo cassette deck with the flat cord (supplied) pushing in the connector until it clicks.

Diagram of a hand holding a file with a curved tab, showing motion direction (no text or symbols)

To disconnect the flat cord

Pull out the connector of the flat cord while pressing its sides. Do not pull the flat cord itself.

Illustration of hands holding a rectangular object with curved blades, showing directional arrows (no text or symbols)

STEP 2 Connecting the Right Speaker

Connect the right speaker to the tuner CD player with the audio cord (supplied) and the mains lead.

Connecting the audio cord

Connect firmly the white plug to the white (L) jack and the red plug to the red (R) jack.

Connecting the mains lead of the right speaker

Connect the mains lead of the right speaker to AC OUTLET on the rear panel of the tuner CD player.

Notes

The illustrations on page 5 shows the SA-N1 use active speaker system.

The rear view of the SA-N11 differs from the illustration.

STEP 3 Connecting the Left Speaker

Connect the left speaker to the right speaker with the speaker cable (supplied). Be sure to keep the speaker cable away from the aerials.

Grey cord to ⊕(red)

Black-lined cord to ⏻ (black)

FM lead aerial (supplied) Right speaker SA-N1** Tuner CD player AM loop aerial (supplied) Stereo cassette deck STEP 4 STEP 2 STEP 1 STEP 3 Left speaker Mains lead STEP 5 to the wall outlet Flat cord* (supplied)Audio to the speaker cable (supplied) Do this connection last GB 5

* For only the customers using the TC-TX1 stereo cassette deck
**The rear view of the SA-N11 differs from the illustration.

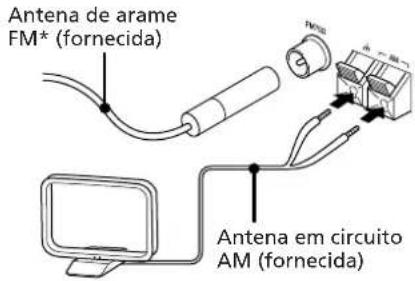

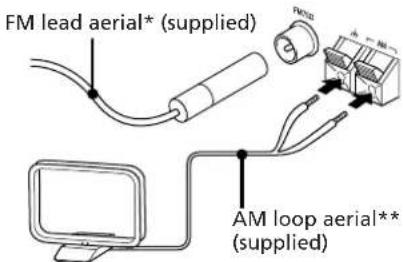

STEP 4 Connecting the Aerials

FM lead aerial* (supplied) AM loop aerial** (supplied)

* Fix it to the place for optimum reception.
** Orient it toward the direction for optimum reception.

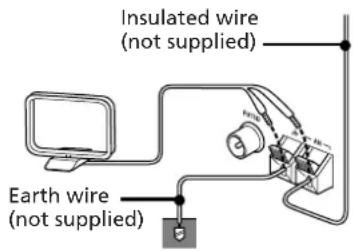

To improve the reception

Connect an external aerial (p.19).

To set up the AM loop aerial

STEP 5 Connecting the Power

Connect the mains lead of the tuner CD player to the wall outlet after you have made all the above connections.

Notes

• You can remove the front net from the speaker.
• The AU BUS (audio bus) connector on the rear panel of the tuner CD player is used to connect the optional Sony MDS-MX1 MiniDisc deck. See the instruction manual for MDS-MX1 in detail.

Inserting the batteries

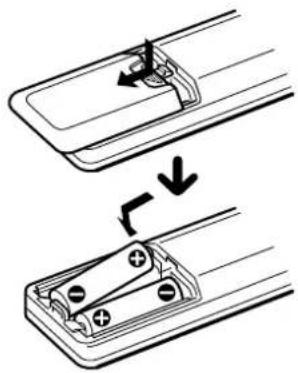

Insert two R6 (size AA) batteries into the supplied remote.

Diagram showing two steps of battery charging mechanism: one with left-hand rule and right-hand rule, the other with right-hand rule and down arrow.

Battery life

You can expect the remote to operate for about six months using Sony SUM-3 (NS) batteries before the batteries run down. When the batteries no longer operate the remote, replace both batteries with new ones.

To avoid battery leakage

If you are not going to use the remote for a long time, remove the batteries to avoid damage caused by corrosion from battery leakage.

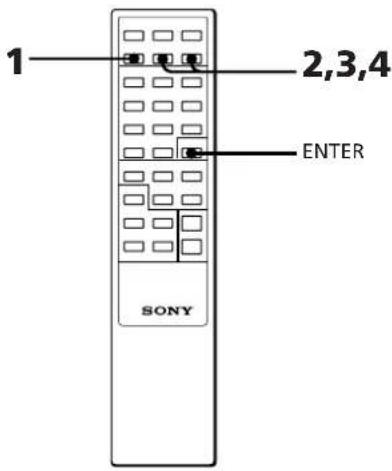

Setting the Clock

You need to set the clock before using the timer function. The clock shows the time in the 24-hour cycle.

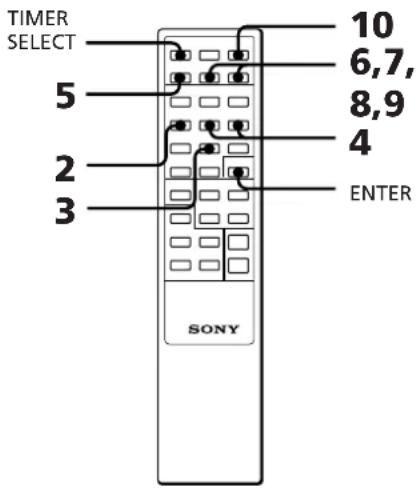

1 2,3,4 ENTER SONY

1 Press TIMER SET.
2 Press TIMER+ or – to display "CLOCK" and press ENTER. The hour indication begins flashing.

3 Set the current hour by pressing TIMER+ or – and press ENTER. The minute indication begins flashing.

4 Set the current minute by pressing TIMER+ or - and press ENTER. The clock starts operating.

To correct the clock setting

Repeat steps 1 to 4.

About the time indication

• The built-in clock shows the time in the display when you press POWER to turn off the power.
• The upper dot of the ":" in the time display flashes for the 0 to 29 seconds of the minute and the lower dot flashes for the 30 to 59 seconds.

Chapter 2: the CD Player

Playing a CD (normal play)

Playing Tracks in Random Order (shuffle play)

Playing Tracks in the Desired Order (programme play)

Playing Tracks Repeatedly (repeat play)

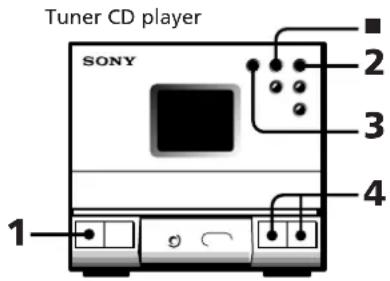

Playing a CD (normal play)

You can play CDs in four modes: normal, shuffle, programme and repeat. The mode determines which tracks (songs) to play, in which order and whether or not they will repeat.

Also, you can play 12 cm and 8 cm CDs. When you play an 8-cm CD, place it without an adaptor on the inner circle of the disc tray.

Before you play the CD, decrease the sound level by pressing VOL-. This will prevent damage to the speakers.

Tuner CD player SONY 1 2 3 4

1 Press POWER.

2 Press ▲ (open/close) and place a CD on the CD tray.

with the label side up

3 Press ▶II (play) (or ▶ on the remote). The disc tray closes and the first track starts playing.

4 Press VOL + or - to adjust the sound level.

To	Press
Stop play	■
Pause	▶II (or ||*)To resume play, press here again.
Remove the CD	▲

* Remote

One Touch Play feature

Press ▶II (or ▶ on the remote) when the power is off or you are listening to another source.

As long as a CD is in the player, you will be able to listen to the CD without pressing any other buttons.

To find the beginning of a track – Automatic Music Sensor (AMS)

You can locate the beginning of a track while the track is playing or while it is in pause mode.

To locate the beginning of the current or preceding track, press ◀◀◀◀◀ (or ◀◀◀ on the remote) until you find the desired track.

To locate the beginning of the succeeding track, press ▶▶▶▶▶ (or ▶▶▶ on the remote) until you find the desired track.

To find a point in a track

You can find a particular point in a track while playing or pausing a CD. Use the buttons on the player to operate this feature. This operation is not possible with the remote.

To Search	Operation
Forward while listening	Hold down ▶▶▶▶I and release it at the desired point.
Backwards while listening	Hold down ◀◀◀◀◀ and release it at the desired point.
Quickly without listening while checking the playing time in the display	Hold down ▶▶▶▶▶ I or ◀◀◀◀◀ during pause and release it at the desired point.

Note

If the CD reaches the end while you are searching quickly without listening, "OVER" appears in the display. Press ◀◀◀◀◀ (◀◀ on the remote) to go back.

To check the total number of tracks and total playing time

Press DISPLAY on the remote while the player is in stop mode. The indications appear for a few seconds.

To check the remaining time

Press DISPLAY on the remote repeatedly while playing a CD.

Each time you press DISPLAY, the display changes as follows.

Current track number and playing time

Current track number and remaining time on the track

Remaining time on the CD

Playing Tracks in Random Order (shuffle play)

You can play all the tracks on the CD in random order. Use the buttons on the remote to do this operation.

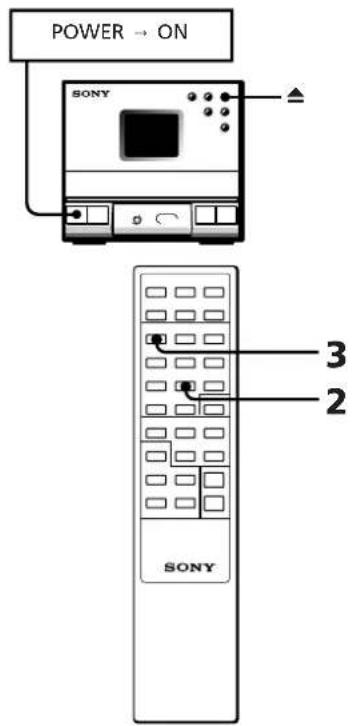

Tuner CD Player

POWER → ON SONY SONY 3 2

1 Press ▲ (open/close) and place a CD on the CD tray.
2 Press TUNING/PLAY MODE repeatedly until "SHUFFLE" appears in the display.
3 Press ▶. “ _1 ” appears and then all the tracks play in random order.

To cancel shuffle play

Press TUNING/PLAY MODE.

"SHUFFLE" disappears, and tracks continue playing in their original order.

If you press TUNING/PLAY MODE during normal play

You can play all the tracks on the CD in random order.

To skip an undesired track

Press ▶▶▶.

You cannot go back to the preceding track by pressing ◀◀◀.

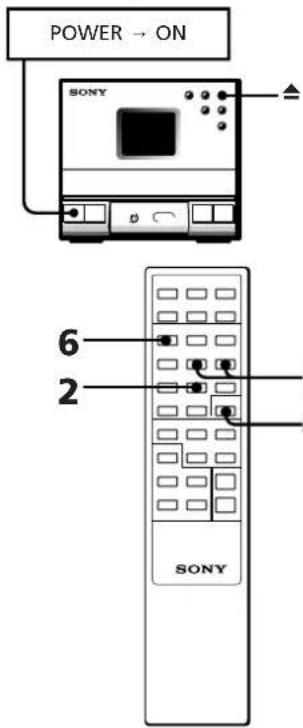

Playing Tracks in the Desired Order (programme play)

You can programme up to 24 tracks to play in any order you choose. You can do this by designating the tracks in the order you want them to play.

Tuner CD Player

POWER → ON SONY 6 2 SONY

1 Press ▲ (open/close) and place a CD on the CD tray.
2 Press TUNING/PLAY MODE repeatedly until "PGM" appears in the display.
3 Press ◀◀ or ▶▶I until the desired track number is displayed. The total playing time including the chosen track flashes in the display. (The programme is not entered at this time.)

4 Press ENTER. The programme number appears for about a second, and the total playing time lights up.
5 Repeat steps 3 and 4 to programme the remaining tracks you want to play in the order you want them to play.

6 Press ▶

All the tracks you chose play in the order you designated.

To cancel the programme play

Press TUNING/PLAY MODE until "PGM" disappears.

To change the programme

To	Operation
Add a track at the end of the programme	During stop, do steps 3 - 5.
Erase the entire programme	During stop, press ■ on the player.

After all the programmed tracks have been played

The programme order remains in the CD player's memory. You can listen to the same programme by just pressing ▶.

Notes

• Once you open the CD tray, the programme is erased.
• If the total programme time has exceeded 100 minutes, the order of the programme is displayed instead of the total playing time.
• If you try to programme more than 24 tracks, "FULL" is displayed.

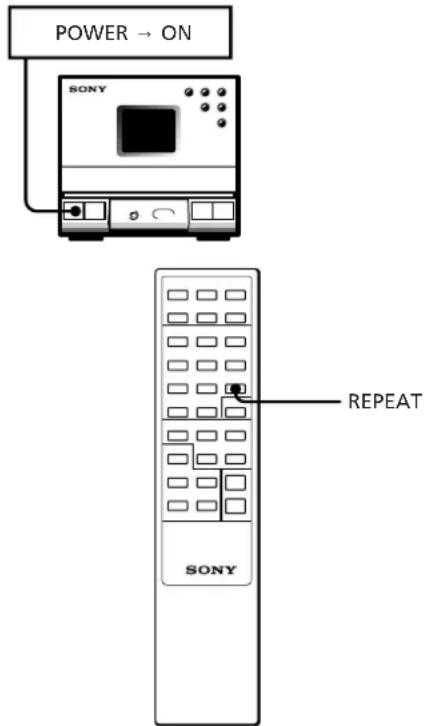

Playing Tracks Repeatedly (repeat play)

You can choose between two different repeat play modes. One repeats all the tracks in the current play mode; the other repeats a single track.

Use the buttons on the remote to do this operation.

Tuner CD Player

POWER → ON SONY REPEAT SONY

Repeating all the tracks (in any play mode)

Press REPEAT.

"REPEAT" appears in the display, and the tracks play repeatedly in the current play mode.

Repeating a single track (in normal play mode only)

While the desired track is being played, press REPEAT repeatedly until “REPEAT 1” appears in the display.

To cancel repeat play

Press REPEAT repeatedly until "REPEAT" or "REPEAT 1" disappears from the display.

Chapter 3:

the Radio

Listening to the Radio

Presetting Radio Stations

Listening to the Preset Radio Stations

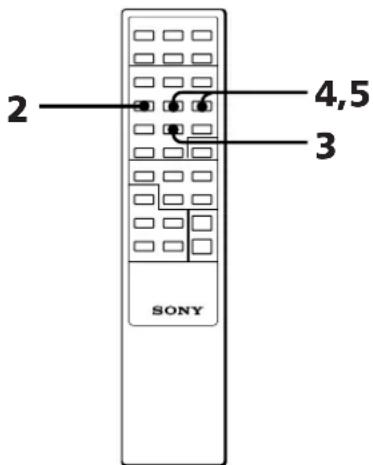

Listening to the Radio

You can have the tuner automatically scan and tune in the stations with clear signals. This feature saves you time in searching for stations with clear signals. However, you will have to manually tune in stations with weak signals that are skipped by automatic tuning.

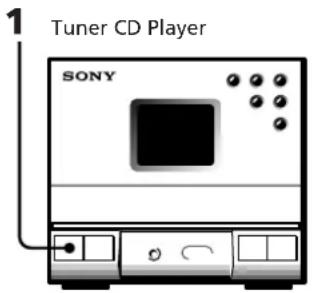

1 Tuner CD Player SONY

2 4,5 3 SONY

1 Press POWER.

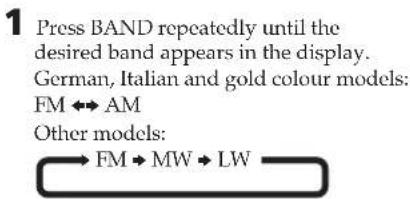

2 Press BAND repeatedly until the band you want appears in the display. As you press BAND, the band changes as follows: German, Italian and gold colour models: FM ↔ AM Other models: → FM → MW → LW
3 Press TUNING/PLAY MODE until "AUTO" appears in the display.
4 Press TUNING +/- to tune in the desired station. To tune in a higher frequency station, press TUNING +, and to tune in a lower frequency station press TUNING -. The tuner starts scanning stations automatically, and stops when it finds a clear station.

"TUNED" appears in the display. "STEREO" also appears if the FM station tuned in is broadcasting in stereo.

5 If you do not want to listen to the station selected, press TUNING +/- again to restart the scan.

When the desired station is not tuned in

Automatic tuning may skip a station with a weak signal. Tune in the station manually.

1 Press TUNING/PLAY MODE repeatedly until "MANUAL" appears in the display.
2 Keep pressing TUNING +/- until the desired station is tuned in.

To improve AM (MW and LW) broadcast reception

Reorient the supplied AM loop aerial for AM (MW and LW).

When an FM programme is not received clearly

Press STEREO/MONO until "MONO" appears in the display. There will be no stereo effect, but the reception will improve. Press STEREO/MONO again to restore the stereo effect.

One Touch Play feature

Press BAND when the power is off or you are listening to another source.

You will be able to listen to the last received station without pressing any other buttons.

Presetting Radio Stations

You can store radio frequencies in the tuner's memory to tune in your favourite stations quickly. You can preset up to 20 FM stations, 10 MW stations and 10 LW stations in any order. For German and Italian models, you can preset up to 20 FM stations and 10 AM stations. Use the buttons on the remote to do this operation.

Tuner CD Player

POWER → ON SONY 1 2 3,5 6 4 SONY

1 Press BAND repeatedly until the desired band appears in the display. German, Italian and gold colour models: FM ↔ AM Other models: → FM → MW → LW

2 Press TUNING/PLAY MODE repeatedly until "MANUAL" or "AUTO" appears in the display.
3 Press TUNING +/- to tune in the station you want to store.
4 Press MEMORY. "MEMORY" and the preset channel number appear in the display.
5 Decide on a preset channel number for the radio station (1 to 20 for FM, 1 to 10 for AM, MW and LW). Press TUNING +/- to display the preset channel number you have decided on.

6 Press ENTER. The station is stored at the preset channel number you have decided on.
7 Repeat steps 3 to 6 for each station you want to store.

To erase a stored station

Store a new station on the preset channel number of the station you want to erase. This will erase the old station and replace it with the new station.

Note

The preset stations will not be erased unless you store a new station to replace the old ones even if you disconnect the power source.

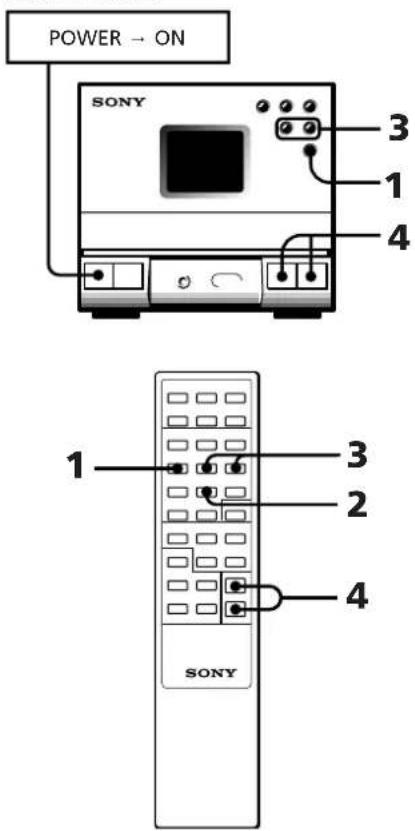

Liteninig to the Preset Radio Stations

Once you have preset the stations, you can quickly tune in your favourite stations.

Tuner CD Player

POWER → ON SONY 1 2 3 4 1 2 3 4 SONY

1 Press BAND repeatedly until the desired band appears in the display. For German, Italian and gold colour models: FM ↔ AM For other models: → FM → MW → LW

2 Press TUNING/PLAY MODE repeatedly until "PRESET" appears in the display.
3 Press TUNING +/- to tune in a preset station. The preset channel number appears, then the station frequency appears and the broadcast can be heard.
4 Press VOL +/- to adjust volume.

To change the frequency display to the preset channel display

During listening to a preset radio station, press DISPLAY on the remote. Each time you press DISPLAY, the frequency or the preset channel number appears in the display.

Chapter 4: the Tape Player

Playing a Tape

Recording a CD Automatically

Recording a CD, etc., Manually

Recording a CD in a Specified Track Order (programme edit)

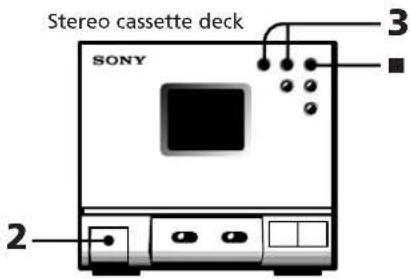

Playing a Tape

You can use TYPE I (normal), TYPE II (CrO2) and TYPE IV (metal) tapes. When you insert a tape, the deck detects the tape type automatically.

Tuner CD player

SONY 1 4

Stereo cassette deck SONY 2 3

1 Press POWER.

2 Press ▲ EJECT to open the tape compartment and insert a recorded tape.

3 Press ▶ to play the front side. To play the reverse side, press ◀.

4 Press VOL +/- to adjust the volume.

To stop play
Press ■.

To	Operation
Pause	Press ▪ on the deck. To resume play, press here again.
Find the beginning of the current or succeeding track	During play, press ◀ or ▶ on the deck.
Fast forward or rewind	During stop, press ◀ or ▶ on the deck.
Play one side of the tape	Slide DIRECTION to ⇌.
Play both sides repeatedly*	Slide DIRECTION to ⇌.

* The deck stops automatically after repeating the sequence five times.

When listening to a tape recorded with the Dolby\* B-type noise reduction system

Slide the DOLBY NR switch to ON.

Dolby noise reduction system reduces tape hiss noise in low-level high-frequency signals.

* Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.

"DOLBY" and double-D symbol □□ are trademarks of Dolby Laboratories Licensing Corporation.

One Touch Play feature

Press ▶ or ◀ when the power is off or you are listening to another source.

As long as a tape is in the deck, you will immediately be able to listen to the tape without pressing any other buttons. If a tape is not in the deck, only the power will be turned on.

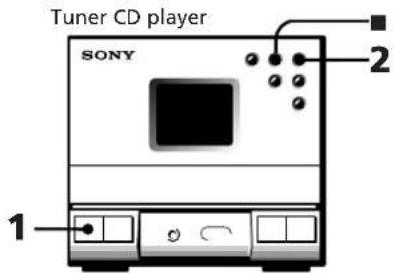

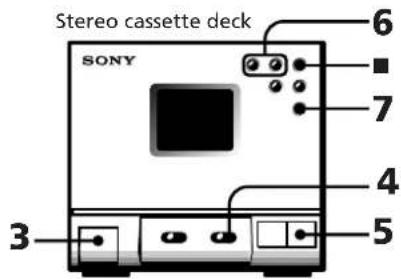

Recording a CD Automatically

You can record a CD on a tape quickly by using the CD SYNC switch. Use the buttons on the CD player and the cassette deck. Before recording, make sure the tabs on the cassette have not been removed.

Tuner CD player SONY 1 2

Stereo cassette deck SONY 6 7 4 3 5

1 Press POWER.

2 Press ▲ and place a CD.

3 Press ▲ EJECT and insert a blank tape.

4 Slide DIRECTION to select dual or single-sided recording.

To record on	Slide DIRECTION to
One side
Both sides*

* Recording always stops at the end of the reverse side. Be sure to start from the front side.

5 Press CD SYNC. The cassette deck stands by for recording, and the CD player stands by for playing.

6 Press ▶ or ◀ to select the tape side to start recording on. To start from the front side, press ▶. To start from the reverse side, press ◀. (Recording will be made only on the reverse side.)

7 Press II. Recording starts. After about 10 seconds, the CD starts playing.

To stop recording

Press ■ on the deck or the CD player.

To activate DOLBY NR

When you want to reduce the hiss noise in low-level high-frequency signals, slide the DOLBY NR switch to ON after step 4.

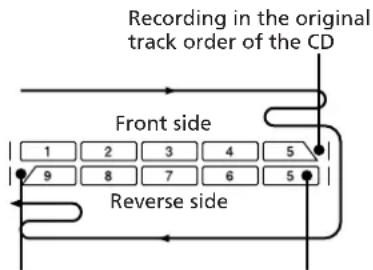

About CD SYNC (synchronized) recording

With this feature, the cassette deck records a CD synchronizing with the length of the tracks on the CD, so you do not have to worry about the tape direction or remaining time while recording. This stereo system uses the Fade Synchronized recording feature. With this feature, the deck slowly fades out a recording so that a track is not abruptly cut off at the end of the tape. If the tape reaches the end of its front side while recording a track, the deck re-records it automatically after rewinding the tape to the beginning of the track. This time, the track is recorded with a fadeout at the end of the tape. (Recording ends at this point if it is a single-sided recording.)

Recording in the original track order of the CD Front side 1 2 3 4 5 9 8 7 6 5 Reverse side

The track at the end of the reverse side is also faded out if it does not fit in the tape length.
Recording starts from the track that was faded out at the end of the front side.

When the track order has been programmed and the total length of the tracks to be recorded is shorter than the length of one side of the tape, the unit automatically operates as follows:

When the CD player is paused, the deck continues recording silence until it reaches the end of the front side; then it reverses the tape and starts recording.

recording. Front side 1 2 3 4 5 9 8 7 6 Reverse side

Once all of the selected tracks have been recorded, the deck records about four seconds of silence and then stops.

Recording a CD, etc., Manually

You can record a CD as you like, for instance, record just the songs you want, or you can record from any point on the tape.

Tuner CD player

POWER → ON SONY

Stereo cassette deck SONY 1 2 3 4 5 6 7

6 2

1 Press ▲ EJECT and insert a blank tape.

2 Press FUNCTION repeatedly until the source you want to record appears in the display.

Source	Indication
CD	CD
Radio	TUNER
MD, etc.	MD

3 Slide DIRECTION to select dual or single-sided recording. To record on one side, set to ⇌. To record on both sides, set to ⇌.

4 When you want to reduce the hiss noise in low-level high-frequency signals, slide DOLBY NR to ON.

5 Press ● REC on the deck. The deck stands by for recording, and the ● REC button lamp and the ▪ button lamp on the deck light up. Either the ▶ or ◀ button lamp lights up, and the other flashes and goes out. If the ▶ or ◀ button lamp does not light up or frash, the corresponding tab on the cassette has been removed. You cannot record on this side.

6 Press ▶ or ◀ to select the tape side you want to start recording on. To start recording on the front side, press ▶. To start recording on the reverse side, press ◀.

7 Press II on the deck. Recording starts. When you set the DIRECTION switch to ↔, recording stops at the end of the reverse side.

8 Start playing the sound source.

To stop recording

Press ■ on the deck.

Note

If you press FUNCTION while recording, the sound source will be switched to another.

Recording a CD in a Specified Track Order (programme edit)

You can adjust the total recording time to the tape length while making a programme.

Tuner CD player

POWER → ON SONY 1 Stereo cassette deck 10 SONY 7 9 8 6,11 4 3 2 5

1 Press ▲ on the CD player and place a CD.
2 Press FUNCTION repeatedly until "CD" appears in the display.
3 Press TUNING/PLAY MODE repeatedly until "PGM" appears in the display.
4 Press ◀◀◀ or ▶▶◀ to choose a track.
5 Press ENTER.

Repeat steps 4 and 5 to programme the remaining tracks you want to record on side A in the order you want them to be recorded.

6 Press II on the remote to pause recording at the end of side A. The total recording time "0.00" is displayed.

Repeat steps 4 and 5 to programme the remaining tracks you want to record on side B in the order you want them to be recorded.

Chapter 4: the Tape Player

7 Press ▲ EJECT on the deck and insert a blank tape.
8 Slide DIRECTION to select dual or single-sided recording.

To record on one side, set to . To record on both sides*, set to . * Recording always stops at the end of the reverse side. Be sure to start from the front side.

9 Press CD SYNC.

The deck stands by for recording, and the CD player stands by for playing.

10 Press ▶ or ◀ to select the tape side you want to start recording on.

To start recording on the front side, press ▶. To start recording on the reverse side, press ◀.

11 Press II to release recording pause. Recording starts. After about 10 seconds, the CD starts playing. When you programme to record on side B, the CD will pause after completing the recording on side A. The deck continues recording silence until it reaches the end of side A, then it reverses the tape and starts recording on side B. Once all of the selected tracks have been recorded, the deck records about 4 seconds of silence and then stops.

To cancel programme edit

Press TUNING/PLAY MODE until "PGM" disappears.

Notes

• If the last portion of the track is recorded on the leader at the end of the tape, recording may not be made completely.
• When programming for side B after pausing at the end of side A, make sure the tracks programmed for side A do not exceed the length of a single side. Otherwise recording cannot be made correctly.

To start recording partway through a tape

Play or record on the tape for more than a few seconds, then press CD SYNC. As soon as you start recording, CD starts playing.

When you press CD SYNC after pressing ▲ EJECT to insert a tape, CD play will start 10 seconds after recording starts. This will happen when recording on any part of the tape because the stereo system is designed to prevent recording on the leader at the beginning of the tape.

Adjusting the Balance of the Speakers

You can adjust the balance of the sound from the speakers to correct the stereo imaging when the speaker position is not symmetrical.

Use the buttons on the remote to do this operation.

Adjusting the Balance of the Speakers

Tuner CD Player

POWER → ON

Reinforcing Bass (DBFB)

DBFB (Dynamic Bass Feedback) feature intensifies low frequency sound for richer bass reproduction.

You can select one of the two levels of DBFB: "DBFB1" or "DBFB2". "DBFB2" is more effective than "DBFB1".

Tuner CD Player

POWER → ON

Reinforcing Bass (DBFB)

Listening with Surround Feature

DBFB

BALANCE L/R

To increase the relative strength of the right speaker, press BALANCE R.

Each time you press BALANCE R, the display changes as follows:

— LEFT b 10 LEFT b 9 LEFT b .....

b 1 LEFT b CENTER b 1 RIGHT b

2 RIGHT b ..... b 10 RIGHT b — RIGHT

To increase the relative strength of the left speaker, press BALANCE L.

Each time you press BALANCE L, the display changes in reverse order to the above.

Press DBFB repeatedly until "DBFB1" or "DBFB2" appears in the display.

Each time you press DBFB, the display changes as follows:

b DBFB1 b DBFB2 b OFF

Note

When you release the DBFB and Surround features, you can enjoy almost the same sound as the source (Source Direct feature).

To listen through the headphones

Connect the headphones to the PHONES jack. No sound will come from the speakers.

Listening with the Surround Feature

With this feature, you can create the atmosphere of a movie theater or concert hall. Select one of the two levels of the Surround feature: "SURR1" and "SURR2". "SURR2" is more effective than "SURR1".

Tuner CD Player

Press SURROUND repeatedly until "SURR1" or "SURR2" appears in the display.

Each time you press SURROUND, the display changes as follows:

Note

When the Surround and DBFB features are set to OFF, you can enjoy almost the same sound as the CD source (Source Direct feature).

Chapter 6:

Additional Features

Falling Asleep to Music

Waking Up to Music

Timer-Recording Radio Programmes

Connecting Optional Equipment

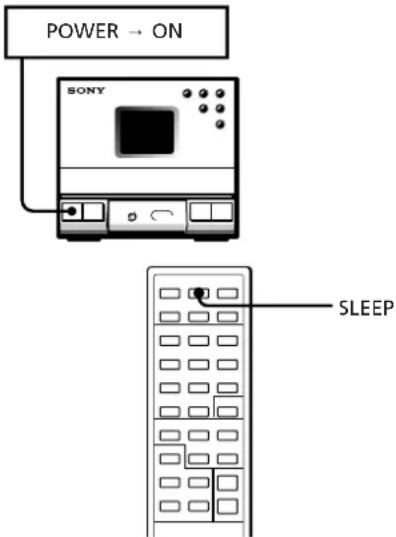

Falling Asleep to Music

You can set the stereo system to turn off automatically so you can go to sleep to music.

Before setting sleep timer, make sure the clock has been set correctly.

Tuner CD Player

POWER → ON SONY SLEEP

1 Play your favourite sound source (a tape, the tuner or CD).
2 Press SLEEP while the source is playing to choose how long you want the music to play.

"SLEEP" and minutes indication appear in the display. Each time you press SLEEP, the indication decreases by 10 minutes from 90 to 10.

The power will turn off after the length of time you chose.

To cancel the sleep timer

Press SLEEP repeatedly until "SLEEP OFF" appears in the display.

To check the remaining time before the sleep timer turns off the system

Press SLEEP once.

The remaining time appears in the display for several seconds.

To change the preset time while the sleep timer is on

Press SLEEP several times until the desired length of time indication appears.

Note

While the sleep timer is activated, the daily and recording timer functions do not work.

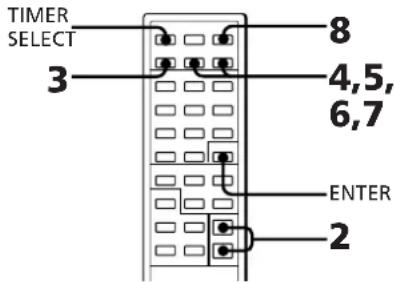

Waking Up to Music

You can wake up to music at the preset time. You only need to set the timer once. Before setting the timer, make sure the clock has been set correctly. The preset timer activates at the same time every day. To wake up to the sound of the radio, be sure to preset the station you want to listen to beforehand. (See "Presetting Radio Stations".)

Tuner CD Player

POWER → ON SONY

TIMER SELECT 3 8 4,5, 6,7 ENTER 2

1 Prepare the sound source.

Source	Preparation
CD	Insert a CD. If you want to play it from a desired track, do the necessary procedures for programmed CD play (p.8).
Radio	Tune in the desired preset station.
Tape	Insert a tape with the side you want to play facing towards you, and press ▶ to start playing from the front side.

2 Press VOL +/- to adjust the volume.
3 Press TIMER SET.
4 Press TIMER +/- to display "DAILY", and press ENTER. The hour indication flashes in the display.

continue to next page →

→continued

5 Set the time you want the music to come on.

Press TIMER +/- to set the hour, and press ENTER.

The minute indication flashes.

Set the minute in the same way and press ENTER.

The hour indication for the turn-off time appears.

6 Set the time you want the music to go off.

Press TIMER +/- to set the hour, and press ENTER.

The minute indication flashes.

Set the minute in the same way and press ENTER.

The source indication flashes.

7 Press TIMER +/- to select the source, and press ENTER.

Source	Indication
CD	CD
Radio	TUNER
Tape	TAPE
MD, etc.	MD

The preset items appear in the display sequentially.

8 Press SYSTEM POWER to turn off the system.

At the preset time, the power will go on and the music will play. At the turn-off time, the power will go off again.

To cancel the timer

Press TIMER SELECT repeatedly until "OFF" appears in the display instead of "DAILY".

To set the timer with the same items

Press TIMER SELECT to display "DAILY", and press SYSTEM POWER to turn off the system.

Once you set the timer, you do not have to set the same items again.

Chapter 6: Additional Features

To check the timer settings

Press TIMER SELECT until "DAILY" disappears and appears in the display again.

The preset items appear sequentially.

To change timer settings

Repeat steps 1 to 8.

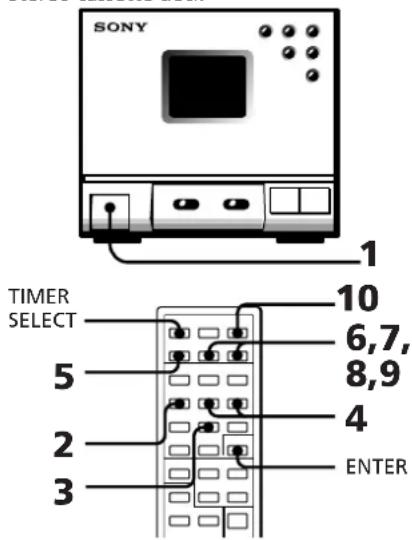

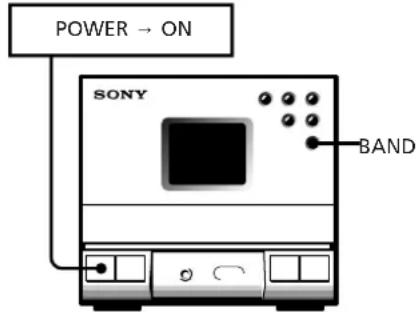

Timer-Recording Radio Programmes

You can set the timer to record the radio. This timer works only once for each setting. Preset the station beforehand. (See "Presetting Radio Stations".)

Make sure the clock is set correctly.

Tuner CD player

POWER → ON SONY BAND

Stereo cassette deck

SONY 1 TIMER SELECT 5 2 3 10 6,7, 8,9 4 ENTER

1 Insert a blank tape with the side you want to record facing towards you, and press ▶ to start recording from the front side.
2 Press BAND repeatedly until the band you want appears in the display.
3 Press TUNING/PLAY MODE until "PRESET" appears in the display.
4 Press TUNING +/- to tune in the preset station.
5 Press TIMER SET.

6 Press TIMER +/- to display "REC", and press ENTER. The hour indication flashes.

7 Set the time you want to start recording. Press TIMER +/- to set the hour, and press ENTER.

The minute indication flashes.

Set the minute in the same way, and press ENTER.

The hour indication for the turn-off time flashes.

8 Set the time you want to stop recording. Press TIMER +/- to set the hour, and press ENTER.

The minute indication flashes.

Set the minute in the same way and press ENTER.

"TO TAPE" or "TO MD" flashes.

9 Press TIMER +/- to select what you want to record on, and press ENTER. To record on a tape, display "TO TAPE".

To record on an MD, etc., display "TO MD".

The preset items appear in the display sequentially.

10 Press SYSTEM POWER to turn off the system.

At the preset time, the power will go on and recording starts. At the turn-off time, the power will go off again.

At the preset time, the sound level is automatically set to the minimum and will be the same level after the turn off time.

To cancel the timer

Press TIMER SELECT repeatedly until "OFF" appears in the display instead of "REC".

To set the timer with the same items

Press TIMER SELECT to display "REC", and press POWER to turn off the system. Once you set the timer, you do not have to set the same items again.

To check the timer settings

Press TIMER SELECT until "REC" disappears and appears in the display again.

The preset items appear sequentially.

To change timer settings

Repeat steps 1 to 10.

Connecting Optional Equipment

Connecting an MD, DAT deck, etc.

To make a digital recording with an MD, DAT deck, etc.

Connect the DIGITAL (OPTICAL) OUTPUT jack on the rear panel of the tuner CD player to a recorder, deck, etc. that has an optical connector.

Digital cable POC-15A (not supplied), etc.

To make an analog recording with an MD, DAT, VCR deck, etc.

Connect the MD IN/OUT jacks (phono jacks) on the rear panel of the stereo to an MD, DAT, VCR deck, etc. with the Sony RK-C315 connecting cord (not supplied).

To hear the VCR sound through the connected speakers, connect the MD IN jacks on the rear panel of the stereo to the output jacks on the VCR. In this case, connect the plugs to jacks of the same colours.

For details, see the instruction manual for each equipment.

To listen to the sound of the connected equipment

Press FUNCTION repeatedly until "MD" appears in the display.

Connecting an External Aerial

To improve the FM reception

Connect an external aerial when the signal reception is too weak with the supplied FM lead aerial.

Connect an external FM aerial to the FM 75 Ω terminal, using a 75-ohm coaxial cable and IEC standard socket connector.

Diagram of an antenna connected to a connector with a fuse, showing internal components (no text or symbols)

IEC standard socket connector (not supplied)

To improve the AM reception

Connect an external aerial if the signal reception is too weak after reorienting the supplied AM loop aerial. Do not disconnect the AM loop aerial.

Connect a 6- to 15-meter insulated wire (not supplied) to the AM terminal and extend the other end horizontally at a higher place. Connect the terminal to the earth.

Important

Earth the external aerial against lightning. To avoid a gas explosion, do not connect the earth wire to a gas pipe.

Insulated wire (not supplied) Earth wire (not supplied)

For Your Information

Precautions

Troubleshooting Guide

Maintenance

Specifications

Index to Parts and Controls

Index

Precautions

If you have any questions or problems concerning your stereo system, please consult your nearest Sony dealer.

On safety

• The unit is not disconnected from the mains as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• Unplug the system from the mains if it is not to be used for an extended period of time. To disconnect the mains lead, pull it out by the plug. Never pull the cord itself.
• Should any solid object or liquid fall into a component, unplug the stereo system and have the component checked by qualified personnel before operating it any further.
• The mains lead must be changed only at the qualified service shop.

On installation

Place the stereo system in a location with adequate ventilation to prevent heat build-up in the stereo system.

On condensation in the CD player component

If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the CD player. Should this occur, the CD player will not operate. Remove the CD and leave the system turned on for about an hour until the moisture evaporates.

To save a tape permanently

To prevent a tape from being accidentally recorded over, break off the cassette tab from side A or B as illustrated. If you later want to reuse the tape for recording, cover the broken tab with adhesive tape.

Side A of side B Tab of side A

When you are using a TYPE II (CrO2) or TYPE IV (METAL) cassette, be careful not to cover the detector slots which allow the tape player to automatically detect the type of tape.

Detector slots

In case colour irregularity is observed on nearby TV screen

With this magnetically shielded type of speaker system, the speakers can be installed near a TV set. However, colour irregularity may still be observed on the TV screen depending on the type of your TV set.

If colour irregularity is observed...

Turn off the TV set once, then turn it on after 15 to 30 minutes.

If colour irregularity is observed again...

Place the speakers farther away from the TV set.

Troubleshooting Guide

If you run into any problem using the stereo, use the following check list after first checking the following two points:

• The mains lead is connected firmly.
- The speakers are connected correctly and firmly.
Should any problem persist after you have made the checks below, consult your nearest Sony dealer.

General

There is no sound.

→ Press POWER to turn on the stereo.
→ Adjust the volume.
→ The headphones are connected. Disconnect them.

The left and right sound are reversed.

→ Check the speaker connection and speaker placement.

There is severe hum or noise.

→ TV or VCR is too close to the stereo system. Move the stereo system away from the TV or VCR.

"0:00" flashes in the display.

→ Mains interruption occurred. Set the clock and timer settings again.

CD Player

The CD tray does not close.

→ The CD is not placed correctly.

The CD will not play.

→ The CD is dirty.
→ The CD is inserted label side down.
→ The player is in pause mode.
→ Moisture condensation has built-up. Leave the system turned on for about an hour until the moisture evaporates.

Play does not start from the first track.

→ The CD player is in programme or shuffle mode. Press TUNING/PLAY MODE repeatedly until the play mode indication disappears.

Cassette deck

The tape does not record.

→ No tape in the tape compartment.
→ The tab has been removed from the cassette.
→ The tape has reeled to the end.

The tape does not record nor does it play back, or there is a decrease in sound level.

→ The heads are dirty. Clean them.
→ Magnetic deposits have built-up on the record/playback head*.

There is excessive wow or flutter, or the sound drops out.

→ The capstans or pinch rollers are contaminated*.

The tape does not erase completely.

→ Magnetic deposits have built-up on the record/playback head*.

Noise increases or the high frequencies are erased.

→ Magnetic deposits have built-up on the record/playback head*.

CD Synchronized recording does not start.

→ When you set the tape direction to ☐, recording does not start if the tab of either side is removed from the cassette.

*See "Maintenance".

Tuner

"TUNED" flashes in the display.

→ Adjust the aerial.

"STEREO" flashes in the display.

→ Adjust the aerial.

Severe hum or noise.

→ Adjust the aerial.
→ The signal strength is too weak. Connect the external aerial.
→ Connect the earth wire.

A stereo FM programme cannot be received in stereo.

→ When "MONO" appears in the display, press STEREO/MONO on the remote so that "MONO" disappears.
→ Adjust the aerial.

Timer

The timer does not function.

→ Set the clock correctly.
→ The mains has been cut off. While the timer functions, press the POWER switch to turn off the system.
→ Make sure "DAILY" or "REC" appears in the display.

Remote

The remote does not function.

→ The batteries have run down. Replace both batteries.
→ There is an obstacle between the remote and the system. Remove the obstacle.

Maintenance

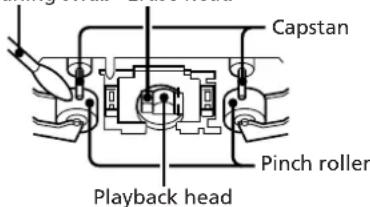

To clean the tape heads and tape path

Contaminated tape heads cause poor recording or sound drop-out in playback. We recommend cleaning after every 10 hours of operation.

Open the tape compartment and wipe the heads, the pinch rollers and the capstans with a cleaning swab slightly moistened with cleaning fluid or alcohol. Wipe the parts shown below:

Cleaning swab Erase head

Capstan Playback head Pinch roller

Insert a tape when the areas cleaned are completely dry.

To demagnetize the tape heads

After 20 to 30 hours of use, enough residual magnetism will have built up on the heads to begin to cause loss of high frequencies and hiss. At this time, demagnetize the heads and all metal parts in the tape path with a commercially available tape head demagnetizer. Refer to the instructions of the demagnetizer.

To clean the cabinet

Use a soft cloth slightly moistened with mild detergent solution.

To clean the CD

When a CD is dirty, clean it with a cleaning cloth. Wipe the CD from the centre out.

Notes on CD

• Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.
• If there is a scratch, dirt or fingerprints on the CD, it may cause a tracking error.

Specifications

Tuner CD player (HCD-T1)

Tuner section

Tuning range
FM: 87.5 - 108 MHz
AM:
For German, Italian and gold
colour models
AM: 531 - 1,602 kHz
For other models
MW: 531 - 1,602 kHz
LW: 153 - 279 kHz

Intermediate frequency

FM: 10.7 MHz

AM: 450 kHz

Aerial terminals

FM: 75 ohm unbalanced

AM: External aerial terminal

Timer Quarts lock system

Timer setting

One-minute step

Sleep timer

10-minute step, max. 90

minutes

CD player section

System Compact disc digital audio system

Laser Semiconductor laser

Wavelength

780 - 790 nm

Frequency response

2 Hz - 20 kHz ±0.5 dB

Signal to noise ratio

More than 90 dB

Harmonic distortion

Less than 0.03%

Preamplifier section

Frequency response

15 Hz - 50 kHz +0 dB

Inputs MD IN:

Stereo phone jack, sensitivity

450 mV, impedance 47 kilohms

continue to next page →

→continued

Outputs DIGITAL OUT (CD OPTICAL OUT) jack: Digital connector, -18 dBm, wavelength 660 nm OUTPUT jack: Stereo phone jack, 1 V, 1 kohm MD OUT jack: Stereo phone jack, 250 mV, 1 kohm PHONES (headphones) jack: Stereo mini jack, accepts headphones of 8 ohms or more.

General

Power requirements 220 – 230 V AC, 50/60 Hz

Power consumption 25 W

Dimensions Approx. 142 x 125 x 252 mm (w/h/d) (5 ^5 /8 x 5 x 10 inches) incl. projecting parts and controls

Mass Approx. 3 kg (6 lb 10 oz)

Supplied accessories AM loop aerial (1) Sony RM-ST1 Remote (1) Sony SUM-3 (NS) batteries (2) FM lead aerial (1) Speaker cable (1) Audio cord (1)

Active speaker system (SA-N1)

Speaker system Full range, bass reflex

Speaker units 10 cm dia., cone type

Rated impedance 4 ohms

Power requirements 220 – 230 V AC, 50/60 Hz

Continuous RMS power output 12 + 12 watts (4 ohms at 1 kHz, 5 % THD) 10 + 10 watts (4 ohms, DIN, 1kHz)

Music power output 19 + 19 watts (4 ohms, at 1 kHz, 10 % THD)

Power consumption 27 W

Dimensions Right: Approx. 125 x 200 x 215 mm (w/h/d) (5 x 7 ^7 /8 x 8 ^1/2 inches) incl. projecting parts and controls Left: Approx. 125 x 200 x 200 mm (w/h/d) (5 x 7 ^7 /8 x 7 ^7 /8 inches) incl. projecting parts and controls

Mass Right: Approx. 2.9 kg (6 lb 7 oz) Left: Approx. 1.7 kg (3 lb 12 oz)

Active speaker system (SA-N11)

Speaker system 2-way bass reflex (magnetically shielded design)

Speaker units 10 cm dia., cone type 2 cm dia., balance drive type

Rated impedance 4 ohms

Power requirements 220 – 230 V AC, 50/60 Hz

Continuous RMS power output 12 + 12 watts (4 ohms at 1 kHz, 5 % THD) 10 + 10 watts (4 ohms, DIN, 1kHz)

Music power output 19 + 19 watts (4 ohms, at 1 kHz, 10 % THD)

Power consumption 25 W

Dimensions Right: Approx. 125 x 205 x 212 mm (w/h/d) (5 x 8 ^1 /8 x 8 ^3 /8 inches) incl. projecting parts and controls Left: Approx. 125 x 205 x 198 mm (w/h/d) (5 x 8 ^1 /8 x 77/8 inches) incl. projecting parts and controls Mass Right: Approx. 3.0 kg (6 lb 10 oz) Left: Approx. 1.8 kg (3 lb 15 oz

Stereo cassette deck (TC-TX1)

Recording system 4-track 2-channel stereo

Frequency response (DOLBY NR OFF) 50 – 15,000 Hz (±3 dB), using Sony TYPE IV cassette 50 – 14,000 Hz (±3 dB), using Sony TYPE II cassette 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassette

Wow and flutter ±0.2 % W.PEAK (DIN)

Dimensions Approx. 142 x 125 x 205 mm (w/h/d) (5 ^5 /8 x 5 x 8 ^1 /8 inches) incl. projecting parts and controls

Mass Approx. 2 kg (4 lb 7 oz)

Supplied accessory Flat cord (1)

Optional accessories

MDS-MX1 MiniDisc deck TC-TX1 Cassette deck

Design and specifications are subject to change without notice.

Index to Parts and Controls

Refer to the pages indicated in parentheses for how to use the controls. Controls with an asterisk have indicators on themselves.

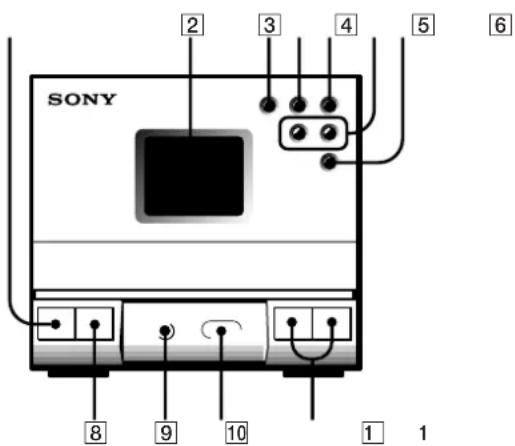

Front Panel

Tuner CD player

SONY 2 3 4 5 6 8 9 10 1 1

1 POWER switch (7) 2 Display window (6, 7, 17) 3 ▶(play / pause) button* (7) 4 ■ (stop) button (7, 13) 5 ▲ (open/close) button (7, 12) 6 ◀◀◀◀ and ▶▶▶▶I (AMS / search)/TUNING + and - buttons (7, 10, 14)

7 BAND button (10, 18) 8 FUNCTION button (13, 19) 9 PHONES jack (15) 10 Remote sensor 11 VOL + and - buttons (7, 11, 12)

Stereo cassette deck

SONY 1 2 3 4 5 6 7 8 9

1 ▶ (front side play)* and ◀ (reverse side play)* buttons (12, 17)

2 ■ (stop) button (12) 3 AMS / ▶▶ (fast rightward) and ◀◀ (fast leftward) buttons (12)

4 II (pause) button (12)
5 ▲ EJECT button (12, 18)
6 DOLBY NR OFF / ON switch (12)
7 DIRECTION ⇌ / ⇌ switch (12)
8 ● REC button* (13)
9 CD SYNC button (12)

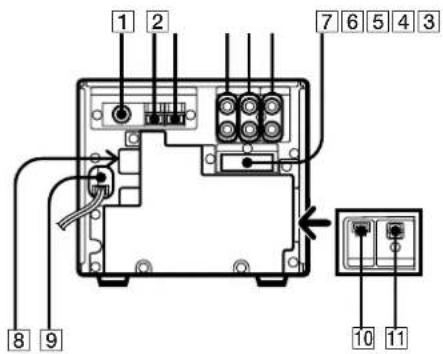

Rear Panel

Tuner CD player

1 2 7 6 5 4 3 8 9 10 11

1 FM 75 Ω COAXIAL connector (5, 19)
2 (earth) terminal (5, 19)
3 AM terminal (5, 19)
4 MD OUT jacks (19)
5 MD IN jacks (19)
6 OUTPUT jacks (4)
7 SYSTEM CONTROL connector (4)
8 AC OUTLET connector (4)
9 Mains lead (5)
10 AU BUS (audio bus) connector (5)
11 DIGITAL OUT (CD OPTICAL OUT) jack (19)

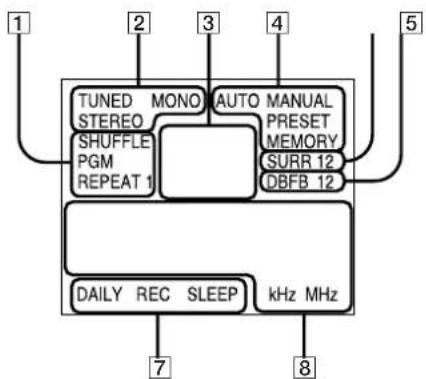

Display Window

1 CD play mode indications (8, 9)
2 Tuner indications (10)
3 Track number/band indication (7, 10)
4 AUTO / MANUAL / PRESET / MEMORY indications (10, 11)
5 SURR (surround) indication (16)
6 DBFB indication (15)
7 DAILY / REC / SLEEP timer indications (17, 18)
8 Time / frequency indication (6, 7, 10)

Remote (RM-ST1)

1 2 3 4 5 6 7 8 9 SONY 10 11 12

1 SYSTEM POWER switch (18)
2 SLEEP button (17)
3 TIMER SELECT button (17, 18)
4 TIMER SET button (17, 18)
5 CD and tuner operating buttons ▶ (play) button (7)
II (pause) button (7)
■ (stop) button (7)
BAND button (10, 18)
TUNING + and - /◀◀ and ▶▶▶ (AMS) buttons (7, 10)
6 STEREO / MONO button (10)
TUNING / PLAY MODE button (8, 10)
REPEAT button (9)
DISPLAY button (7)
MEMORY button (11)
6 Tape operating buttons
◀ (reverse side play) and ▶ (front side play) buttons (12)
■ (stop) button (12)
◀◀ (fast leftward) and ▶▶ (fast rightward) buttons (12)
7 FUNCTION button (13, 19)
8 Sound adjustment buttons DBFB button (15) SURROUND button (16)
9 BALANCE L and R buttons (15)
10 TIMER + and - buttons (6, 17, 18)
11 ENTER button (6, 18)
12 VOL + and - buttons (7, 11)

Index

Aerials 5, 10, 19

AMS 7,12

CD synchro-recording 12

Clock setting 6

Connecting

optional equipment 19 the system 4

DBFB 15

Inserting batteries 6

Playing

a CD (normal play) 7

a tape 12

tracks in random order (shuffle play)

8

track in the desired order

(programme play) 8

tracks repeatedly (repeat play) 9

Radio stations

presetting 11

tuning in 10

Recording

a CD 12, 13, 14

a CD automatically 12

a CD manually 13

a radio programme 13, 18

Recording CDs

specifying track order 14

Sound adjusting 15

Timer

falling asleep to music 17

timer recording 18

waking up to music 17

Tuner 10

AVERTISSEMENT

Diagram of a hand holding a file with a curved arrow indicating compression (no text or symbols present)

Illustration of hands holding a rectangular object with a curved blade, showing directional arrows (no text or symbols)

OPERATION 2

Diagram showing two steps of battery mounting or disassembly, with arrows indicating direction and polarity.

REPEAT SONY

Diagram of an antenna connected to a connector with a fuse, showing internal components (no text or symbols)

Touche ▶ (lecture) (7)

Touche II (pause) (7)

Diagram of a hand holding a curved object with directional arrow (no text or symbols)

Illustration of hands holding a rectangular object with a curved blade, showing directional arrows (no text or symbols)

Diagram showing two steps of battery charging or discharging process, with arrows indicating direction of movement.

Front view of a Sony electronic device with control panel and indicator lights (no visible text or symbols)

TIMER SELECT 5 2 3 10 6,7, 8,9 4 ENTER SONY

Diagram of an antenna connected to a connector with a fuse, showing internal components (no text or symbols)

(4 ohmios, DIN, 1 kHz)

Potencia de sonido

19 + 19 watts

(4 ohmios, a 1 kHz, 10 % THD)

Consumo de energía

27 W

(4 ohmios, DIN, 1 kHz)

Potencia de sonido

19 + 19 watts

(4 ohmios, a 1 kHz, 10 % THD)

Consumo de energía

25 W

Diagram of a hand holding a file with a curved tab, showing motion direction (no text or symbols)

Para desligar o cabo de fita

Illustration of hands holding a rectangular object with a curved blade, showing directional arrows (no text or symbols)

PONTO 4 Ligar as antenas

Antena de arame FM* (fornecida) Antena em circuito AM (fornecida)

* Fix it to the place for optimum reception.

Diagram showing two steps of battery mounting or disassembly, with arrows indicating direction and polarity changes.

Duração das pilhas

Diagram of an antenna connected to a connector with a fuse, showing internal wiring (no text or symbols)

(4 ohms at 1 kHz, 5 % THD)

10 + 10 watts

(4 ohms, DIN, 1 kHz)

(4 ohms, a 1 kHz, 10 % THD)

Consumo de energia 27 W

Dimensões

(4 ohms at 1 kHz, 5 % THD)

10 + 10 watts

(4 ohms, DIN, 1 kHz)

(4 ohms, a 1 kHz, 10 % THD)

Consumo de energía

25 W

Dimensões
