USER MANUAL Cardio Fit B15 TUNTURI

Scan to see YouTube tutorial

D-3

D-4

D-5

Scan to see YouTube tutorial

E

F

Index

Welcome. 12

Safety warnings. 12

Assembly instructions 12

Description illustration A. 12

Description illustration B. 12

Description illustration C. 13

Description illustration D. 13

Additional assembly information 13

Additional environmental information 13

Workouts 13

Exercise Instructions. 13

Heart rate 14

Use 14

Adjusting the support feet. 14

Adjusting the horizontal seat position 14

Adjusting resistance. 14

Replacing the batteries (Fig E-2) 15

Console. 15

Explanation Display functions 15

Explanation of buttons. 15

Extra notes 15

Cleaning and maintenance. 15

Defects and malfunctions. 15

Transport and storage 16

Warranty. 16

Technical data 16

Declaration of the manufacturer 16

Disclaimer 17

Welcome

Welcome to the world of Tunturi!

Thank you for purchasing this piece of Tunturi equipment.

Tunturi offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes and rowers. The Tunturi equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.tunturi.com

Important Safety Instructions

This Owner's Manual is an essential part of your training equipment: reading all instructions in this manual before you start using this appliance. The following precautions must always be followed:

Safety warnings

WARNING

• Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.
• The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.
  Max. usage is limited to 2 hrs a day.
• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.
• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.
• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.
• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.
  Only use the equipment in environments with ambient temperatures between 10^ - 35^ / 59^ - 95^
  Only store the equipment in environments with ambient temperatures between 5^ 45^ / 41^ 113^ .
• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80% .
• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.
• Keep clothing, jewellery and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a Time. The equipment must not be used by persons weighing more than 110 kg (242 lbs).
• Do not open equipment without consulting your dealer.

Assembly instructions

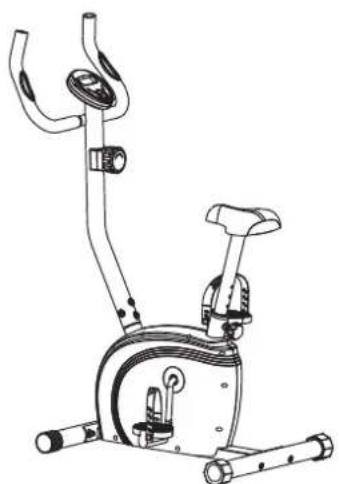

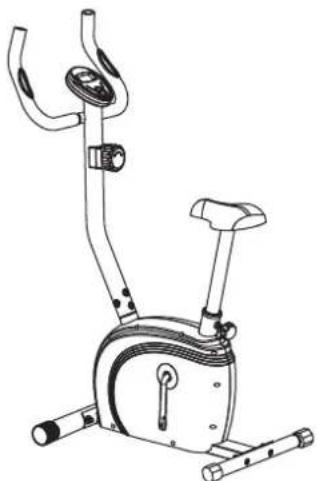

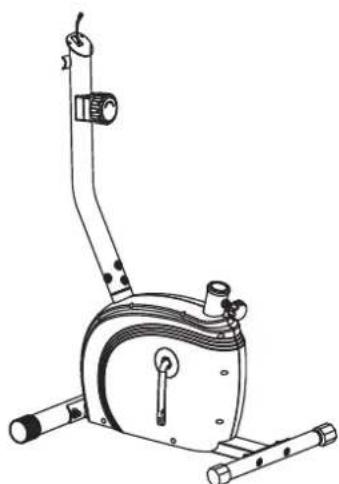

Description illustration A

The illustration shows what the trainer will looks like after the assembly is completed.

You can use this as a reference during your assembly, but do follow the assembly steps always in the correct sequence as showed in the illustrations.

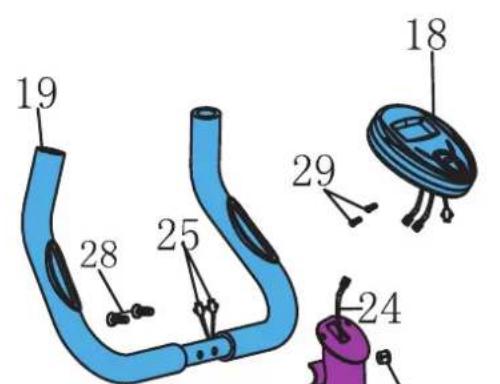

Description illustration B

The illustration shows what components and parts you should find when un-boxing your product.

NOTE

• Small parts can be hidden/ packed in hollow spaces in the Styrofoam product protection
  If a part is missing, contact your dealer.

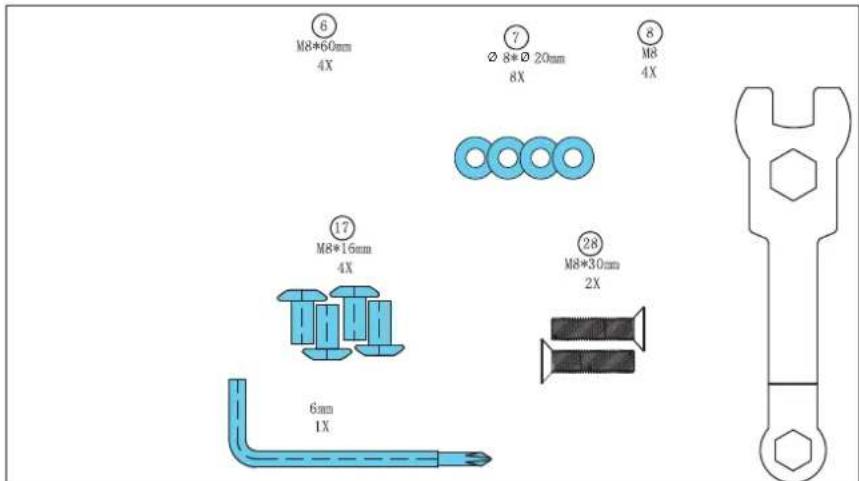

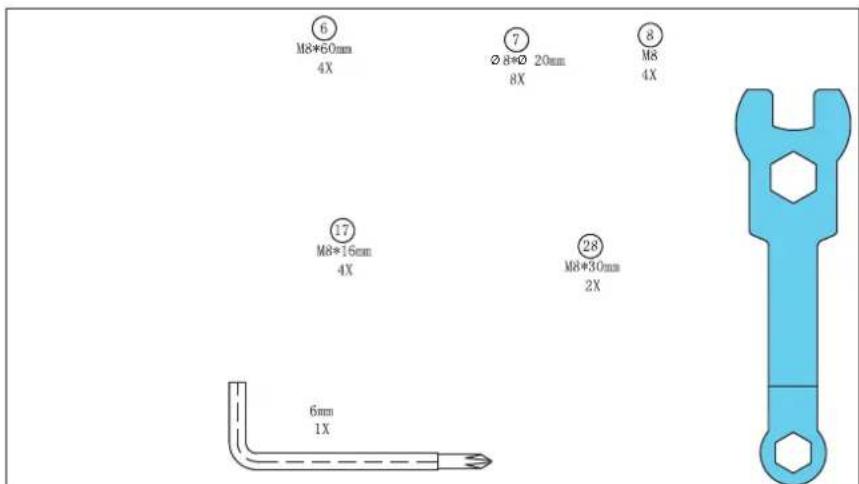

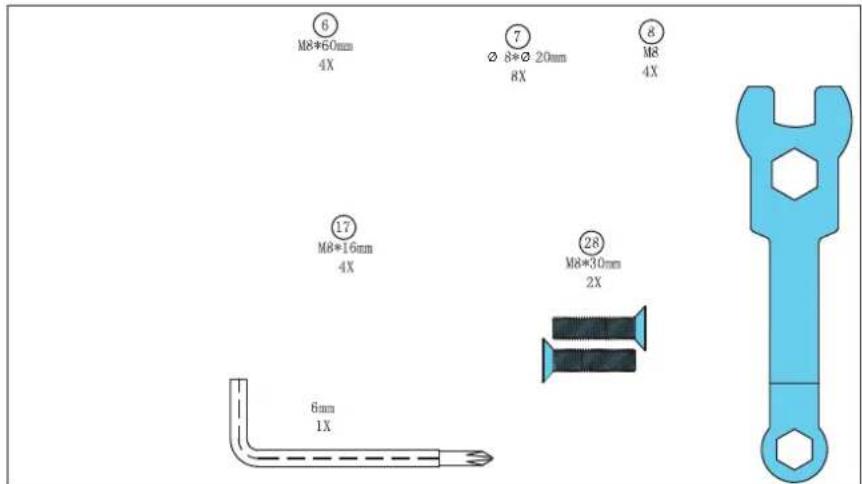

Description illustration C

The illustration shows the hardware kit that comes with your product. The hardware kit contains bolts, washers, screws, nuts etc. and the required tools to properly fit your trainer.

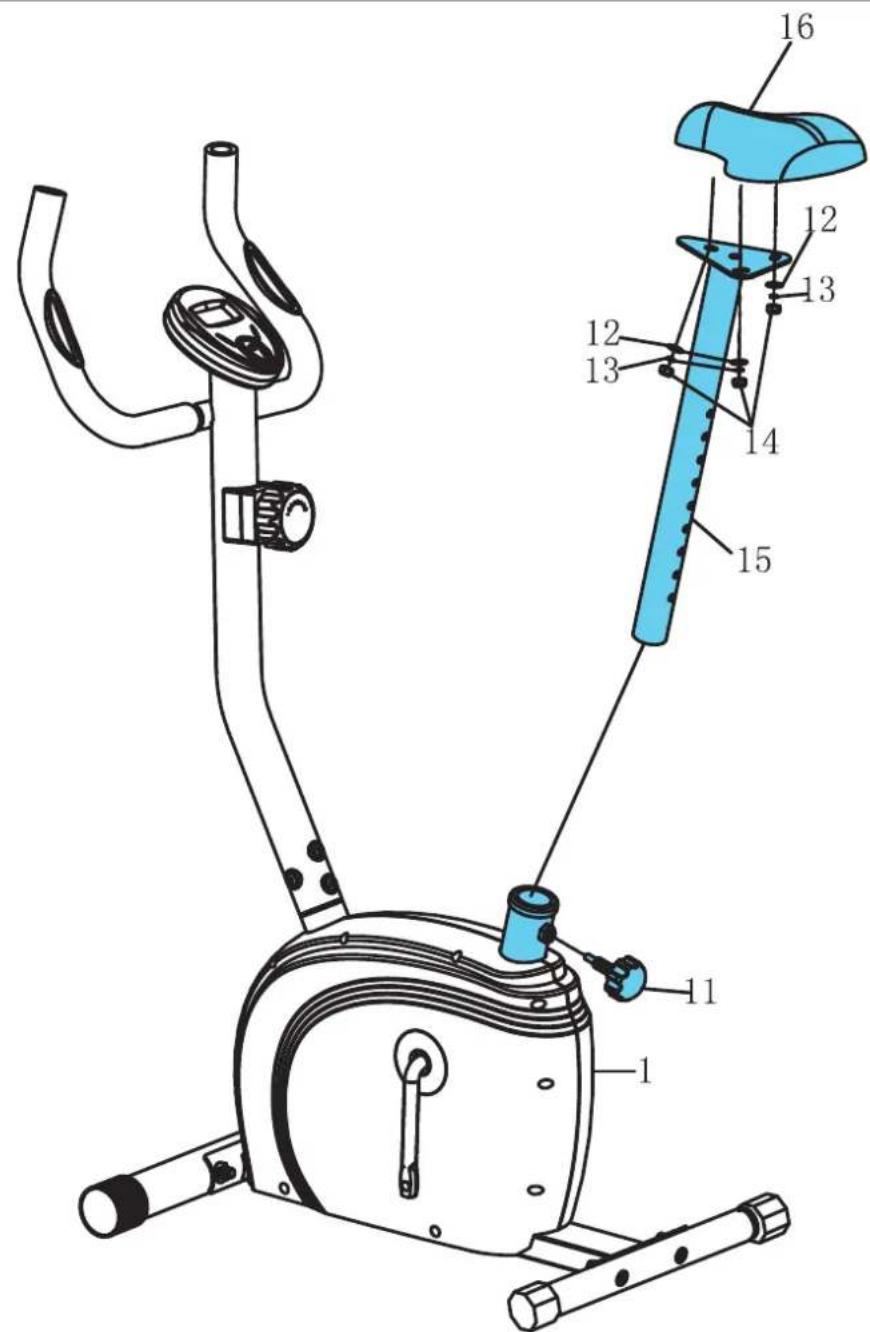

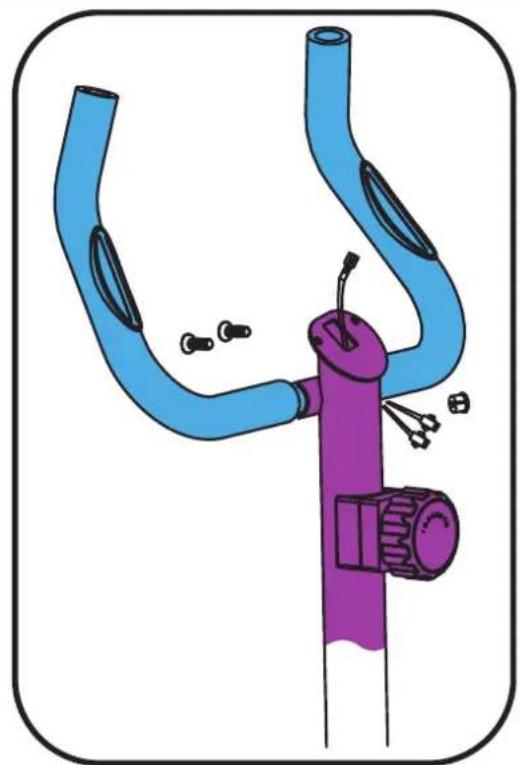

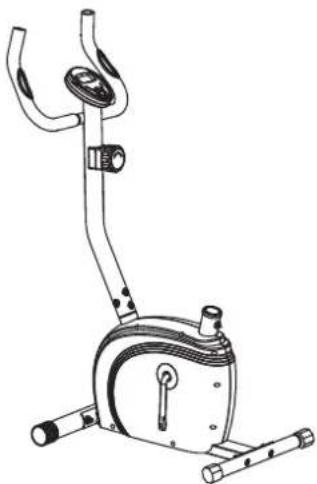

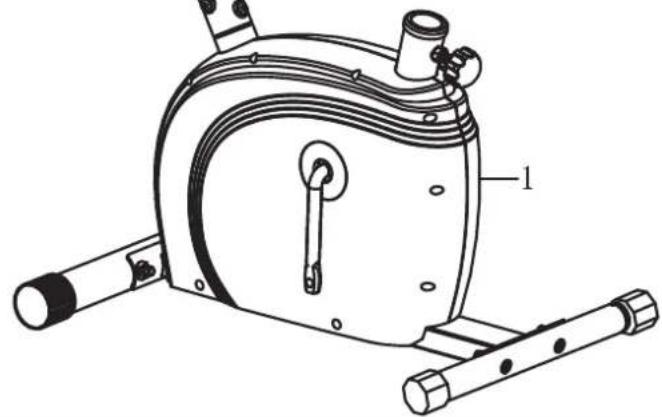

Description illustration D

The illustrations show you in the correct following order how to assembly your trainer best.

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Allow at least 100cm of clearance around the equipment.
  Refer to the illustrations for the correct assembly of the equipment.

Additional assembly information

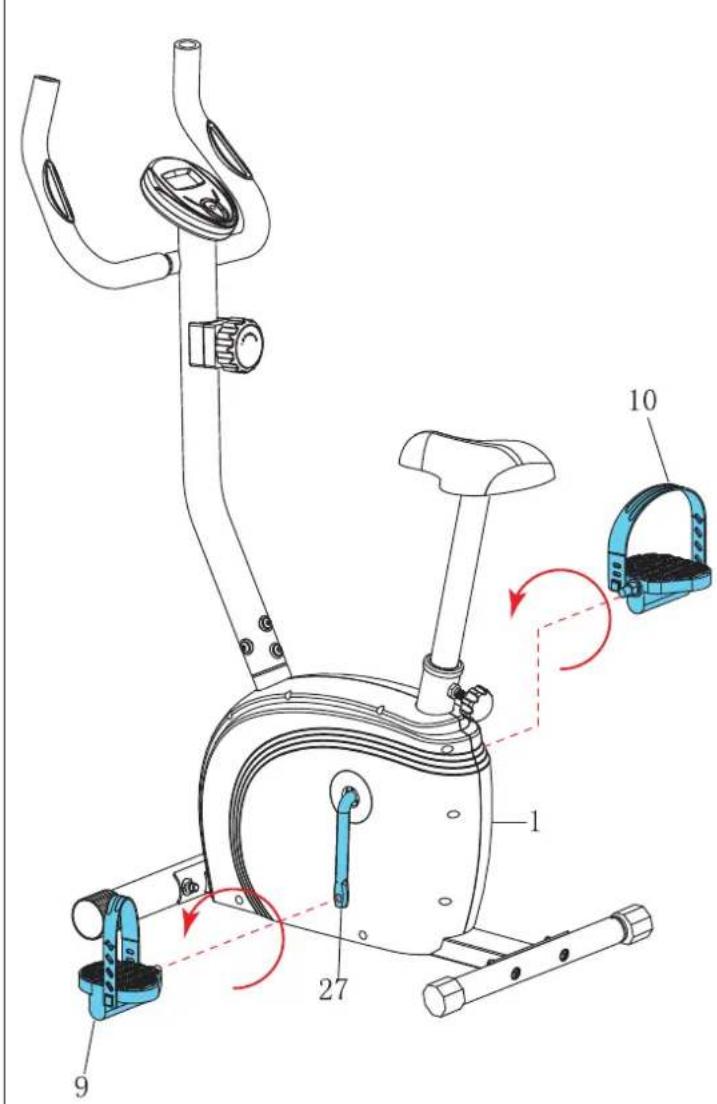

D5 How to fit the pedals correctly.

NOTE

• Right and left side are determined from an exercising positions perspective.

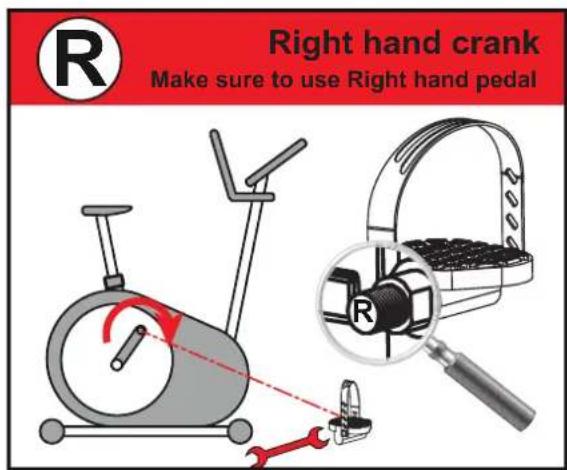

Right hand pedal

Find the "R" or "L" mark on the pedal axle

• Fit the right hand pedal "R" into the right hand crank.
• Firstly turn the pedal axle in clockwise direction by hand.
• Use the wrench to fully tighten the pedal.

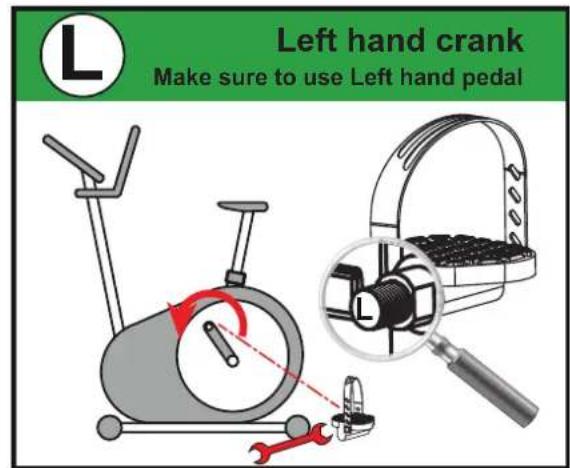

Left hand pedal

• Fit the left hand pedal "L" into the left hand crank.
• Firstly turn the pedal axle in counter-clockwise direction by hand.
• Use the wrench to fully tighten the pedal.

Click to see our supportive YouTube video https://youtu.be/Devel2ZhCAc

NOTE

• Save the tools provided with this product, after you completed the product assembly, for future service purposes.

Additional information to Assembly step D2

How to correctly connect the tension adjusting steel cable on a manual tension adjust system.

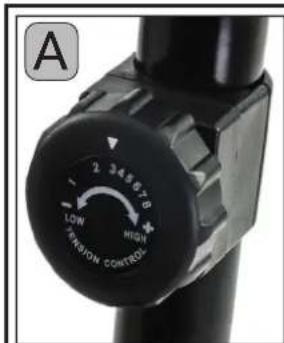

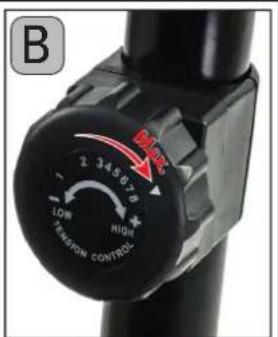

• Set the tension adjustment knob to the highest tension setting level.

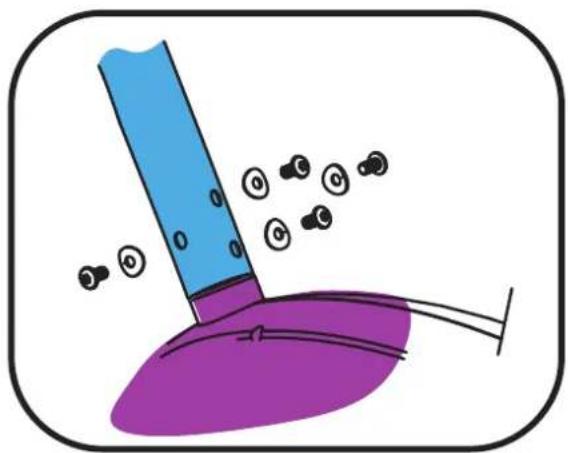

• Remove the bolts and washers from the base frame if these are pre assembled.

• Connect the sensor wire cable (black plastic connectors), taking note of the correct orientation so the locking system will be effective.

• Hook up the steel cable rod end coming from the bottom of the upright tube onto the hook from the steel cable coming from the main frame.

• Pull the outer steel cable from the upright tube cable and fit the brass ending into the bracket on the cable end coming from the main frame.

Click to see our supportive YouTube video https://youtu.be/nn5AnVxmPag

• Place the upright tube over the main frame fixing bracket. (While lowering the upright tube, gently pull the upper part of the cable up, to avoid the cable get caught by the connection).

NOTE

• Avoid the cable connection between these two parts get pinched.
• Save the tools provided with this product, after you completed the product assembly, for future service purposes.

Additional environmental information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a Time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three Times a week, 30 minutes at a Time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a Time, gradually increasing the daily workout Time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain.

As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

WARNING

Always consult a doctor before beginning an exercise program.
- Stop immediately if you feel faint or dizzy.

Exercise Instructions

Using your fitness trainer will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight.

The warming up phase

This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP

The exercise phase

This is the stage where you put the effort in. After regular use, the muscles in your legs will become more flexible. Work to your but it is very important to maintain a steady tempo throughout. The rate of work should be sufficient to raise your heart beat into the target zone shown on the graph below.

This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes

The cool down phase

This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

As you get fitter you may need to train longer and harder. It is advisable to train at least three Times a week, and if possible space your workouts evenly throughout the week.

Muscle toning

To tone muscle while on your fitness trainer you will need to have the resistance set quite high. This will put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve your fitness you need to alter your training program. You should train as normal during the warm up and cool down phases, but towards the end of the exercise phase you should increase resistance making your legs work harder. You will have to reduce your speed to keep your heart rate in the target zone.

Weight loss

The important factor here is the amount of effort you put in. The harder and longer you work the more Calorie you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal.

Heart rate

Pulse rate measurement (hand pulse sensors)

The pulse rate is measured by sensors in the handlebars when the user is touching both sensors at the same time. Accurate pulse measurement requires that the skin is slightly moist and constantly touching the hand pulse sensors. If the skin is too dry or too moist, the pulse rate measurement will become less accurate.

NOTE

• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

• Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Beginner 50-60% of maximum heart rate

Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long Time. Exercise at least three Times a week, 30 minutes at a Time.

Advanced 60-70% of maximum heart rate

Suitable for persons who want to improve and maintain fitness. Exercise at least three Times a week, 30 minutes at a Time.

Expert 70-80% of maximum heart rate

Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Adjusting the support feet

The equipment is equipped with 8 angular end caps. If the equipment feels unstable, wobbly, or not levelled well, these end caps can be used to make the required correction.

• To level the trainer, turn the 8 angular end caps located on the rear stabilizer tube.
  Each aspect sets the machine in a different height level.

QUICK TIP

• It is easier to do this with two persons, so one person can tilt the equipment, while the other makes the needed adjustment.

NOTE

• The machine is the most stable when all support feet are turned fully in. Therefore start to level the machine by turning all support feet fully in, before turning out the required support feet to stable the machine.

Adjusting the horizontal seat position

The horizontal seat position can be adjusted by setting the seat to the required position.

• Loosen the seat adjustment knob.
• Move the seat to the required position.
• Tighten the seat adjustment knob.

Adjusting resistance

To increase or decrease resistance, turn the adjustment knob at front of the rowing frame cover clockwise (+ direction) to increase resistance and Counterclockwise (- direction) to decrease resistance. The scale above the knob (1-8) helps you find and reset a suitable resistance.

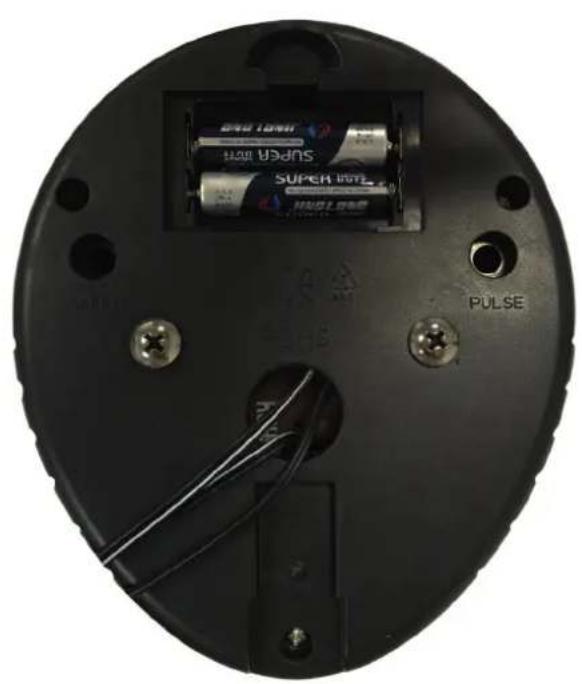

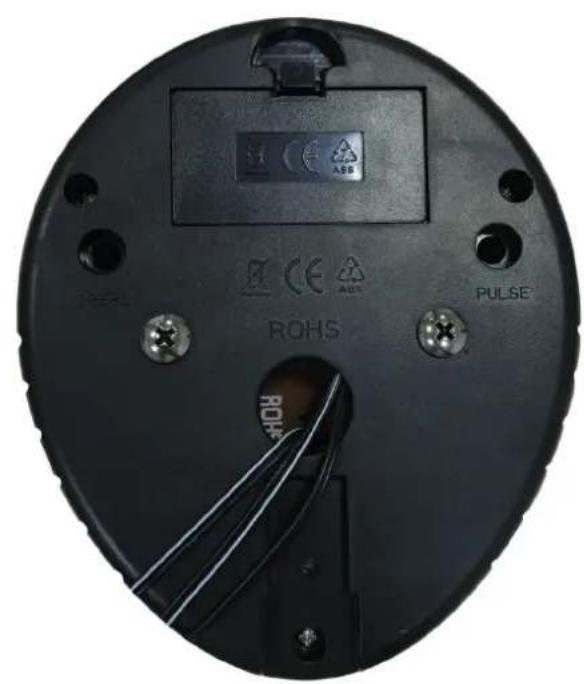

Replacing the batteries (Fig E-2)

The console is equipped with 2 AAA batteries at the rear of the console.

To fit/ Replace the batteries

• Remove the cover. (Located on the back side).
• Remove the old batteries.

Only valid when replacing the batteries for fresh ones.
- Insert the new batteries.

Make sure that batteries match the (+) and (-) polarity markings.

• Mount the cover.

NOTE

• Empty batteries should always be recycled per your Local legal regulations to save the environment.

WARNING

• Do not expose batteries to big temperature changes to prevent the batteries from leaking.
• To prevent your batteries from leaking, take them out if you plan on not using your device for longer periods of time.
• When inserting multiple batteries into a device, always use the same brand, the same type, and the same energy level.

Console

CAUTION

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTES

• The console switches to standby mode when the equipment is not used for 4 minutes.

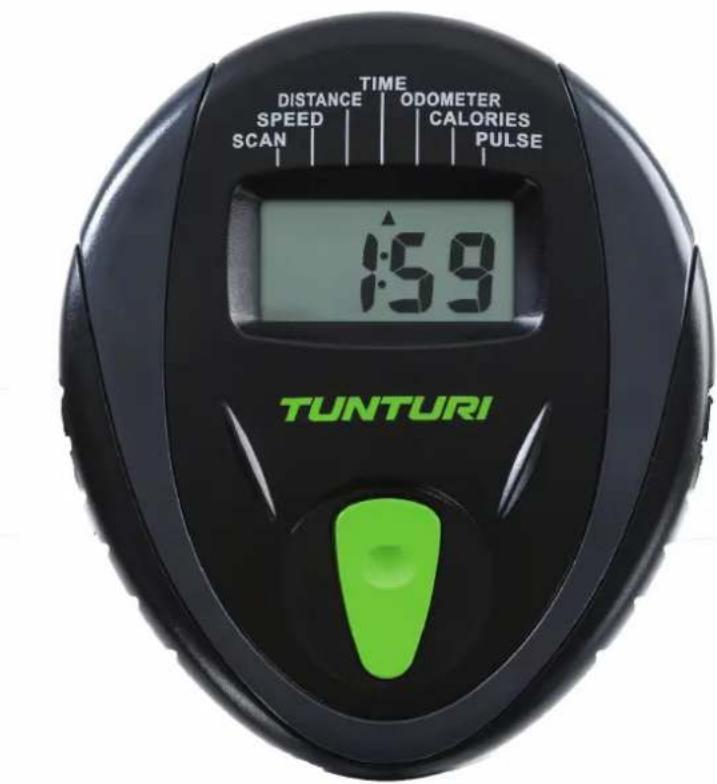

Explanation Display functions

Scan

• Automatically scan functions for : Speed, Distance, Time, Odometer, Calories & Pulse.
  Each display will be hold ± 5 seconds.

Time

• Automatically accumulates workout Time when exercising.

Speed

• Displays current training speed.

Odo

• Automatically accumulates the total distance for all exercise sessions.

Dist

• Distance for the workout.

Pulse

• Display current heart rate if measured.

NODE

• Before measuring your pulse rate, please place your palms of your hands on both of your contact pads and the monitor will show your current heart beat rate in beats per minute(BPM) on the LCD after 6-7 seconds.
• During the process of pulse measurement, because of the contact jamming, the measurement value may be higher than the virtual pulse rate during the first 2~3 seconds, then will return to normal level.
  The measurement value cannot be regarded as the basis of medical treatment.

Cal

• Automatically accumulates Calorie burnt when exercising.

NOTE

• This data is a rough guide for comparison of different exercise sessions which cannot be used in medical treatment

Explanation of buttons

MODE

• Press MODE button to select console functions; Time, Speed, Dist, ODO, Cal. & Pulse
• Push and hold for 4 seconds to reset: Time, Count, Dist & Calorie.

NOTEE

• Total Count can only be reset by a batteries exchange.

Extra notes

• If the display is faint or shows no figures, please replace the batteries.
• The monitor will automatically shut off if there is no signal received after 4 minutes.
• The monitor will be auto-powered on when starting to exercise push button w/signal in.
• The monitor will automatically start calculating when you start to exercise and will stop calculating when you stop exercising for 4 seconds.

Cleaning and maintenance

The equipment does not require special maintenance. The equipment does not require recalibration when it is assembled, used and serviced according to the instructions.

WARNING

• Do not use solvents to clean the equipment.
• Clean the equipment with a soft, absorbent cloth after each use.
  Regularly check that all screws and nuts are tight.
  If necessary, lubricate the joints.

Defects and malfunctions

Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

• If the equipment does not function properly, immediately contact the dealer.

• Provide the model number and the serial number of the equipment to the dealer. State the nature of the problem, conditions of use and purchase date.

Trouble shooting:

• When the display of LCD is dim, it means the batteries need to be changed.
• If there is no signal when you pedal, please check if the cable is well connected.

NOTE

• When stop training for 4 minutes, the main screen will be off.
• If the computer displays abnormally, please re-install the batteries and try again.

Transport and storage

WARNING

• Carry and move the equipment with at least two persons.
• Remain standing in front of the equipment on each side and take a sturdy grip at the handlebars. Tilt the front of the equipment so as to lift the rear of the equipment on the wheels. Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface.
• Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.
• Store the equipment in a dry place with as little temperature variation as possible.

Warranty

Tunturi purchaser's warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV, and is maintained as instructed for that particular equipment. The product-specific approved environment and maintenance instructions are stated in the "user manual" of the product. The "user manual" can be downloaded from our website. http://manuals.tunturi.com

Warranty conditions

The warranty conditions commence from the date of purchase. Warranty conditions may vary per Country, so please consult your local dealer for the warranty conditions.

Warranty coverage

Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment.

Warranty limitations

This warranty covers manufacturing defects in the fitness equipment as originally packed by Tunturi New Fitness BV. The warranty shall apply only under conditions of normal, recommended use of the product as described in the Owner's Manual and providing that Tunturi New Fitness BV's instructions for installation, maintenance and use have been complied with. Neither Tunturi New Fitness BV's nor the Tunturi Distributors'

obligations apply to defects due to reasons beyond their control. The warranty applies only to the original purchaser and is valid only in Countries where Tunturi New Fitness BV has an authorised importer. The warranty does not extend to fitness equipment or components that have been modified without the consent of Tunturi New Fitness BV. Defects resulting from normal wear, misuse, abuse, corrosion, or damage incurred during loading or transportation are not covered.

The warranty does not cover sounds or noises emitted during use where these do not substantially impede the use of the equipment and where they are not caused by a fault in the equipment. The warranty does not cover defects arising from the failure to carry periodic maintenance as outlined within the Owner's Manual for the product. Furthermore, the warranty does not cover defects arising from usage and storage within an unsuitable environment as described within the Owner's Manual which should be indoors, dry, dust and grit free and within a temperature range of +15^ to +35^ . The warranty does not cover maintenance activities, such as cleaning, lubricating, and normal part adjustments, nor installation

procedures that customers can accomplish themselves, such as changing uncomplicated meters, pedals and other similar parts not requiring any dismantling/reassembling of the fitness equipment. Warranty repairs carried out by other than authorised Tunturi representatives are not covered.

Failure to follow the instructions given in the Owner's Manual will invalidate the product's warranty.

Technical data

Parameter Unit of measurement Value
Length cm	inch	85.033.5
Width cm	inch	49.019.3
Height cm	inch	112,044.1
Weight kg	Ibs	18.240.1
Max. user weight kg	Ibs	110240
Battery size 2x AAA
Heartrate measurement available via:	hand-grip contact5.0 Khz5.3~5.4 KhzBluetooth (BLE)ANT+	YesNoNoNoNo

Declaration of the manufacturer

Tunturi New Fitness BV declares that the product is in conformity with the following standards and directives: EN 957 (HC), 2014/30/EU. The product therefore carries the CE label.

04-2020

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2020 Tunturi New Fitness BV

All rights reserved.

• The product and the manual are subject to change.
• Specifications can be changed without further notice.
• Check our website for the latest user manual version.

Deutsch

Tunturi New Fitness BV

Pumperweg 1

1311 XE Almere

The Netherlands

Haftungsausschluss

© 2020 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Pays-Bas

© 2020 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2020 Tunturi New Fitness BV

Tunturi New Fitness BV

Pumperweg 1

1311 XE Almere

Paesi Bassi

© 2020 Tunturi New Fitness BV

Este manuel español es una traducción del texto ingles. No seSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEO

Indices

Bienvenido 42

Tunturi New Fitness BV

Pumperweg 1

1311 XE Almere

The Netherlands

© 2020 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Nederländerna

Friskrivning

© 2020 Tunturi New Fitness BV

Alla rattigheter forbehallna.

Tunturi New Fitness BV

Pumperweg 1

1311 XE Almere

Alankomaat

Vastuuvapauslaseke

© 2020 Tunturi New Fitness BV

/TunturiFitness Tunturi Fitness

Tunturi

Tunturi Service
