USER MANUAL Hand & Stick 8371 Solis

EU 2012/19/EU EU 2012/19/EU.88 GB GB Also make sure that the power cord does not come into con- tact with the rotating dough hooks or the egg whisk resp. the blender shaft.

7. Install the power cord so that nobody can trip over it. Keep

clear of pointed objects.

8. Always fully unwind the power cord before connecting the

power plug to the power socket.

9. Never carry the appliance by the power cord and do not place

anything on the power cord. Never pull on the power cord to disconnect the appliance from the power mains. Only pull on the plug.

10. We recommend that you do not use an extension cable with

this appliance. Do not place the appliance directly underneath a power socket.

11. Keep the appliance away from hot gas, hot ovens and other

heat-emitting appliances or heat sources. Never use the appli- ance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.

12. The blender jug for the blender shaft resp. the bowl for the

handheld mixer must be placed on a soild, even, stable, dry, slip-safe, and moisture resistant surface during use, like e.g. a table or a work surface. The blender jug resp. the bowl can vibrate and shift during use, which is why you should never use the appliance near table edges and firmly keep hold of the blender jug / the bowl.

13. Keep a minimum safety distance of 20 cm between the appli-

ance and walls, curtains or other materials and objects and make sure that the air around the appliance can circulate freely.

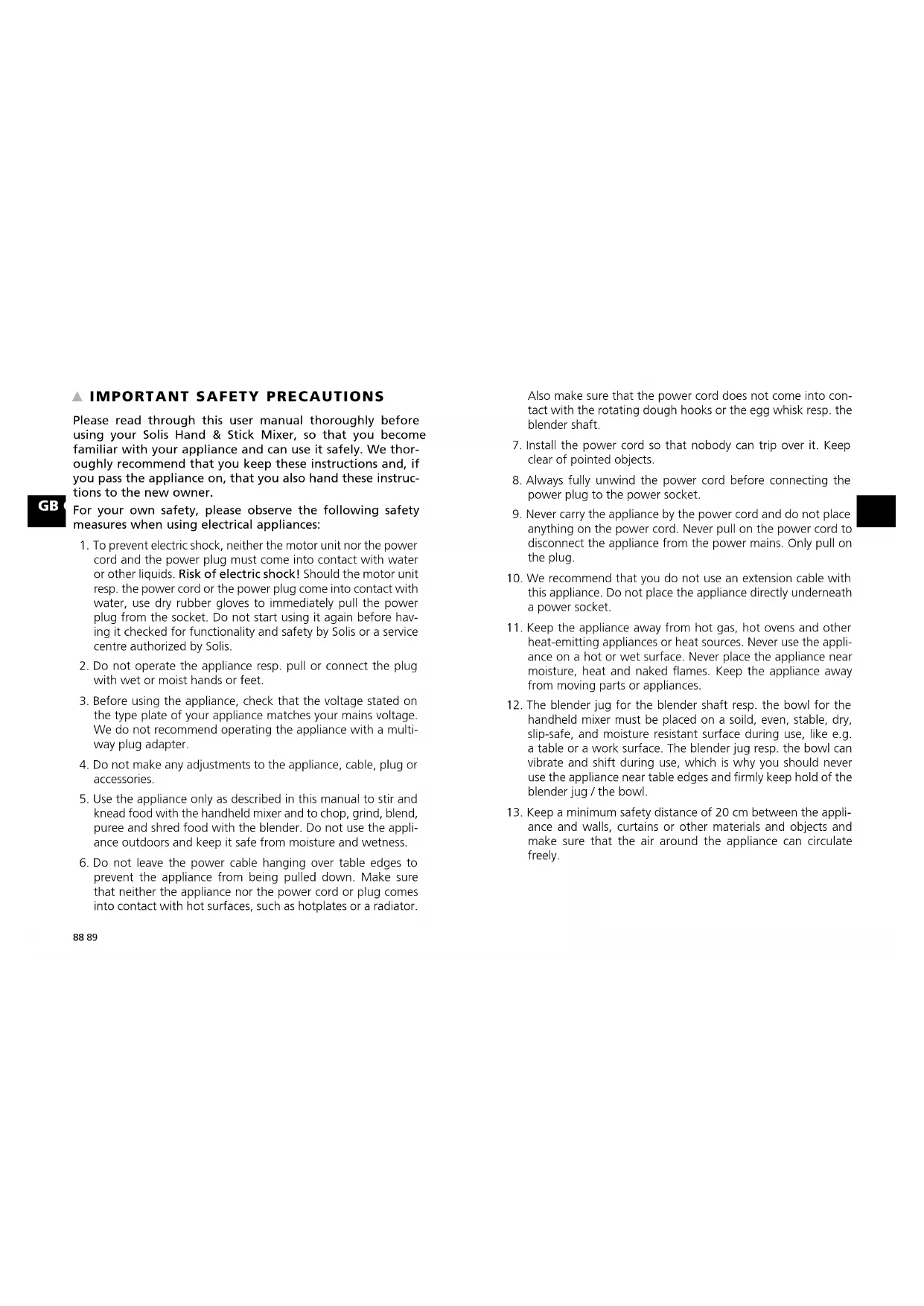

Please read through this user manual thoroughly before using your Solis Hand & Stick Mixer, so that you become familiar with your appliance and can use it safely. We thor- oughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instruc- tions to the new owner. For your own safety, please observe the following safety measures when using electrical appliances:

1. To prevent electric shock, neither the motor unit nor the power

cord and the power plug must come into contact with water or other liquids. Risk of electric shock! Should the motor unit resp. the power cord or the power plug come into contact with water, use dry rubber gloves to immediately pull the power plug from the socket. Do not start using it again before hav- ing it checked for functionality and safety by Solis or a service centre authorized by Solis.

2. Do not operate the appliance resp. pull or connect the plug

with wet or moist hands or feet.

3. Before using the appliance, check that the voltage stated on

the type plate of your appliance matches your mains voltage. We do not recommend operating the appliance with a multi- way plug adapter.

4. Do not make any adjustments to the appliance, cable, plug or

5. Use the appliance only as described in this manual to stir and

knead food with the handheld mixer and to chop, grind, blend, puree and shred food with the blender. Do not use the appli- ance outdoors and keep it safe from moisture and wetness.

6. Do not leave the power cable hanging over table edges to

prevent the appliance from being pulled down. Make sure that neither the appliance nor the power cord or plug comes into contact with hot surfaces, such as hotplates or a radiator. 88 89GB GB

14. Never cover the appliance with cloths or the like while it is in

use. The air inlet and outlet openings must never be obstructed. Do not place anything on the mixer.

15. Never place the appliance in such a way that it might fall into

water or come into contact with water (e.g. in or next to a sink).

16. The appliance is not designed for outdoor use. The appliance

must not come into contact with rain. Do not use in vehicles or on boats.

17. Unplug the appliance when it is not in use or unattended, and

before cleaning. We recommend the use of a residual current device (RCD safety switch) to ensure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30 mA maximum. For professional advice consult an electrician.

18. Only plug the power plug into the power outlet if the appliance

has been fully assembled and the blender with attachment has been attached to the motor unit resp. the stirring attachments have been attached to the mixer. How exactly this is done you can find out on pages 102 and 107 of this manual.

19. Before pulling the power plug of the appliance out of the

power socket, always make sure that the appliance is not in use.

20. Do not make any changes to the appliance, the power cord,

the plug or the accessories.

21. Incorrect use may cause injury!

22. Never reach for an appliance that has fallen into water or

other liquids. Always use dry rubber gloves to pull the plug before taking it out. Do not start using it again before having it checked for functionality and safety by Solis or a service centre authorized by Solis.

23. Place the appliance so that it is never exposed to direct sun-

24. Never insert any objects or tool into appliance openings. The

appliance may become damaged – danger of electric shock!

25. Do not insert any parts of pieces of cutlery like for example

spoons, knives etc. into the rotating dough hooks / egg whisks and do not put these kitchen utensils into the bowl while they are rotating resp. the appliance is switched on and connected to the power.

26. Before attaching or removing parts, always switch the appli-

ance off and pull the plug.

27. Never use the appliance without food resp. let it run idly.

28. Always make sure that the appliance is correctly assembled

before connecting it to a power socket and starting to use it.

29. Do not shake or move the appliance while it is in use. Before

moving the appliance, you should always switch it off and pull the power plug.

30. Only use the appliance as described in this manual. Only use

with the provided accessories or accessories recommended by Solis, incorrect accessories or misuse can lead to damage of the appliance, fire, electric shock or personal damage.

32. The appliance is only suited for household use and not for

33. Remove and discard all packaging materials and potential

stickers or labels (except for the type plate) before using the appliance for the first time.

34. Check your mixer before every use to make sure that the appli-

ance itself, the power cord and the power plug are without damage and no parts have come loose.GB GB

44. Before storing, disassembling or cleaning resp. changing the

attachments / stirring tools, always wait for the motor and the attachment to come to a full stop and pull the power plug from the socket. This also applies when the appliance is not in use.

45. Caution: When cleaning or removing resp. installing parts, the

appliance has to be at a complete standstill and be switched off as well as disconnected from the power. Otherwise, there is the risk of injury.

46. When using the appliance as a blender, you should not let

it run for more than 1 minute without interruptions, when processing heavy and solid mixables, you should not let it run for more than 10 seconds. When using the appliance as a handheld mixer, let it run for a maximum of 5 minutes. If you have used the dough hooks, the appliance has to cool down for 30 minutes at room temperature before you start using it again.

47. If food collects around the tip when using the appliance as

a blender, stop the blender by releasing the ON/OFF button. When motor and shaft have come to a complete standstill, pull the power plug and take the blender out of the blender jug. Use a plastic spatula to remove resp. stir the food around the shaft before proceeding to blend. Never remove the food with your fingers, the blades are very sharp!

48. During use, keep hands, fingers, hair, clothing, jewellery and

kitchen utensils like spatulas away from the mixer and the con- tainer. Handle kitchen tools in the container only if the motor and the attachment / stirring tool have come to a complete standstill. If this advice is not followed, there might be injuries or damages to the blender.

49. Always be very careful when handling the blender shaft – the

blades of the attachments are extremely sharp! You should be especially careful when taking the blender shaft out of the jug or changing the attachment. Always use the key included in the delivery. Wrong or improper handling of the attachments can result in injuries!

power plug are damaged or if the appliance has other faults, has fallen down resp. is damaged in any other way or if parts have come loose. Never attempt repairs yourself but take the appliance to Solis or a service centre authorized by Solis in order to get it inspected, repaired or mechanically and electri- cally maintained, in order to avoid a hazard.

36. People with limited physical, sensorial or mental capabilities as

well as unknowing or inexperienced people must not use the mixer except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Under no cir- cumstances must the appliance be used or cleaned by children. The appliance and its power cord as well as all accessories have to kept away from children and pets.

37. Children must be supervised, so that they do not play with the

38. Always switch the appliance off before pulling the plug, oth-

erwise the appliance might be damaged.

39. Do not place anything on the appliance while it is in use or in

40. Pull the plug after every use. Only then, the appliance is fully

41. The appliance has to be cleaned after every use. Please refer

to the notes given in the section ”Cleaning and maintenance“ on page 112 of this manual.

42. Clean the motor unit only with a dry or slightly wet towel.

Never use aggressive, abrasive or acidic detergents for cleaning.

43. Should you notice a strange smell or sound, switch the appli-

ance off and pull the plug. Do not start using it again before having its functionality and safety checked by Solis or a service centre authorised by Solis.GB GB

50. When using the appliance as a handheld mixer, make sure

that both stirring tools, meaning both dough hooks or both egg whisks, are firmly fixed to the motor unit. Never use the appliance with just one stirring tool or with two different stir- ring tools.

51. Replace stirring tools if they show signs of wear or damage.

52. Always keep in mind that the attachments for the blender shaft

and the stirring tools for the handheld mixer keep rotating for some time after switching off. Always wait for the complete standstill of the attachments resp. stirring tools before pulling the plug and touching the appliance resp. taking it from the bowl.

53. Always make sure that the blender shaft is in the blender

jug resp. the stirring tools are in the bowl before starting the appliance. Never take the blender shaft or the stirring tools out of the container while the appliance is switched on and the attachments / stirring tools are rotating.

54. When processing hot food with the blender shaft resp. pour

hot liquids into the blender jug, the hot food resp. the hot liquid might splash upwards and cause burns / scalds.

55. The blender jug included in the delivery can not be micro-

waved. Never submerge the motor unit in water or other liquids. In general, do not clean any parts of the blender shaft (incl. attachments) in the dishwasher.97 GB GB

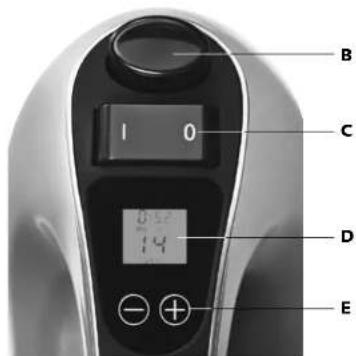

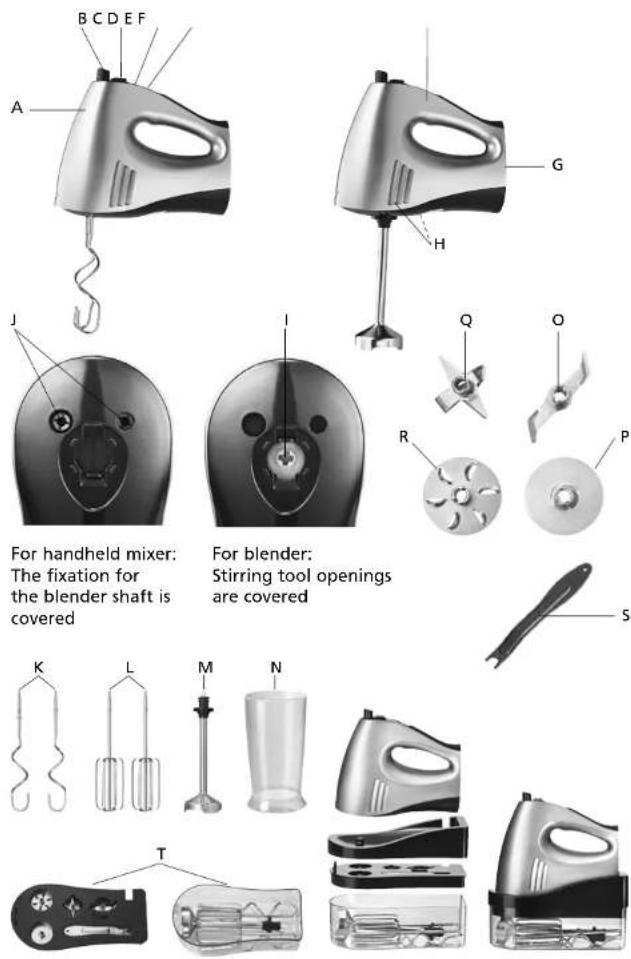

A Motor unit B Release button for egg whisks resp. dough hooks C ON/OFF switch D LCD screen E Speed buttons − and + F Handle G Base plate H Air vent slots (on both sides) I Opening with sliding cover for fixing the blender shaft J Openings for inserting the egg whisks resp. dough hooks (larger opening for dough hooks with ring) K 2 dough hooks, of which one is marked with a ring, one without ring L 2 egg whisks M Blender shaft N Blender jug O Meat- and vegetable blade, specifically for soups with hard-fibre vegetables P Whipping disk Q Multi blade R Beater S Key for removing the attachments T Accessory storage box with storage base for motor unit (3 parts) For handheld mixer: The fixation for the blender shaft is covered For blender: Stirring tool openings are covered

The operation time (in minutes and seconds) as well as the selected speed are dis- played in the illuminated LCD screen.

E SPEED BUTTONS – AND +

You can use the speed buttons to choose between 16 settings. Each press of the button + increases speed by one step, each press of the button – reduces speed by one step. If you press and hold the buttons, the steps are quickly counted up or down.

If you push this button inwards, the attached egg whisks or dough hooks are released.

Functionality when using the appliance as a handheld mixer: When the egg whisks or the dough hooks are inserted into the motor unit, you can switch the appliance on permanently by pressing the ON/OFF button once on the left side (I). If you want to stop mixing / kneading, press the button down on the right side (0). Functionality when using the appliance as a blender: When the blender shaft is inserted into the motor unit, you can only activate appli- ance as long as you press and hold the left side of the ON/OFF button (I). Once you release the ON/OFF button, the blender stops. This is a safety precaution.101100 GB GB Storage box for the attachments and the blender shaft key Storage box for the egg whisks, dough hooks and the blender shaft

When all parts are completely dry, put the mixer back together as described in the sections “Use as a handheld mixer” (see page 102) or “Use as a blender” (see page 107). Note: The blade attachments for the blender are extremely sharp. Avoid any con- tact to your fingers resp. your hand!

Lift the motor unit off the storage base. Lift the storage base off the storage box. The storage layer with the compartments for the attachments and the key is located underneath. If you lift it by its nose, you can find the transparent storage box for the stirring tools (egg whisks and dough hooks), the blender shaft and the power cord underneath.

Before using your mixer for the first time, remove all potential advertisement stickers and labels (apart from the type plate).

Rinse all parts of the mixer apart from the motor unit with warm water and some dishwashing liquid. Make sure not to cut yourself on the sharp blender shaft attachments. For the attachments, best use a dishwashing brush. Dry all parts carefully.

Place the accessories back in the corresponding positions in the different levels and put the three-part storage box back together.

Wipe the motor unit clean with a soft, slightly moist towel. The motor unit must not be held under running water or submerged in water resp. come into contact with another liquid. Storage base for motor unit103102 GB GB Inserting the egg whisks:

1. Push one egg whisk into each opening so that they lock into place. The egg

whisks have no ring markings, the arrangement plays no role for the egg whisks.

2. Make sure that both egg whisks have locked into place.

The egg whisks are suitable for stirring sponge mixture, beating egg whites, whipping cream, junket, mayonnaise, sauces and sweet dishes. Caution: You have to insert either two dough hooks or two egg whisks into the motor unit. Never use the appliance if only one stirring tool has been inserted. Never insert one dough hook and one egg whisk! The appliance might be damaged!

There are two openings for stirring tools in the bottom of the motor unit. The left opening is slightly larger than the right opening. Make sure that the appliance is not connected to the power before attaching the stirring tools. Note: The openings for the stirring tools are only open and accessible if the cover for the fixation of the blender shaft (I) is pushed down and closed. This prevents splashes from getting into the blender shaft fixation while the appliance is used as a handheld mixer. Inserting the dough hooks:

1. Push the dough hook marked with the ring into the larger opening on the left.

2. Push the dough hook without the ring into the smaller opening on the right.

3. Make sure that both dough hooks have locked into place.

Caution: For the handheld mixer to work properly and safely, it is very important that the dough hook with the ring is pushed into the larger opening!

The dough hooks are especially well suited to stirring yeast dough, fine pastry and potato dough for spaetzle and hash browns.105104 GB GB Tip: To prevent vigorous splashes and dusting, e.g. caused by flour, we recom- mend fully submerging the egg whisks resp. dough hooks in the ingredients before switching the mixer on. For the same reason, switch the appliance off before taking the attachments out of the stirred ingredients. Always start in the lowest speed and only increase the speed after the dry ingre- dients have been mixed in. When making heavy dough, we recommend using a higher speed. Removing the dough hooks / egg whisks:

1. Switch the appliance off after mixing or kneading with the ON/OFF switch and

pull the power plug.

2. Push the release button (A) to release the egg whisks resp. the dough hooks.

Caution: Never push the release button (A) while the appliance is in handheld mixer mode!

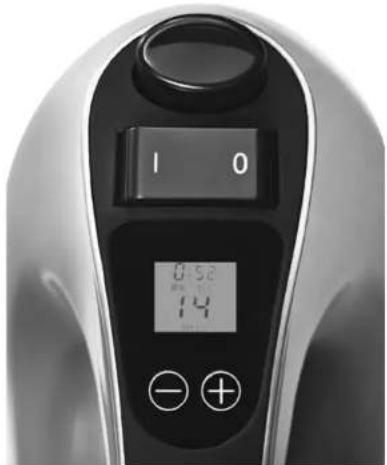

USING THE HANDHELD MIXER

If the stirring tools have been correctly inserted into the motor unit, you can start using the appliance.

1. Put the ingredients into a suitable mixing bowl. Place the mixing bowl on a dry,

even, stable, slip-safe and moisture resistant work surface.

2. Completely unwind the power cord and plug the power plug into a suitable

3. Place the food in the mixing bowl.

4. Dip the stirring tools vertically into the mixing bowl and into the ingredients and

push the ON/OFF switch to the position I. The stirring tools start rotating.

5. The current speed is indicated on the LCD screen. You can increase or decrease

the speed with the + resp. − button. You can choose from 16 speed settings. Each press of the button increases resp. decreases speed by one step. If you keep the button pressed, the steps are quickly counted up or down. The current speed is indicated on the screen. The operation time is counted up in seconds and minutes on the LCD screen. Note: After 9 minutes and 59 seconds, the display automatically switches back to 00 seconds and the appliance switches off automatically.

6. To switch the appliance off, push the ON/OFF button back to position 0.

7. Always wait for the stirring tools to come to a complete standstill before taking

them out of the stirred ingredients.

8. Pull the power plug from the socket.

Caution: Use the mixer for a maximum of 5 minutes without interruption. After 5 minutes, you should let the motor cool down.107106 GB GB

Depending on the area of use, you can choose from 4 different attachments: The multi blade

Grinds, chops, shreds and purees raw and cooked vegeta- bles, fruit, jam, cooked meat. Turns frozen fruit into fruit ice and sorbet and even shreds ice cubes.

Ideal for foods with a heavy consistency. The whisk

Stirs and mixes shakes, drinks, instant soups and sauces, omelette and pancake batter, mayonnaise, creamy soups and icings. Ideal for making food with a creamy and thick consistency. The whipping disk

Whips and beats, e.g. egg whites, cream, pudding, mousse and sponge mixture. Even turns skimmed milk into whipped cream; ideal for making soups and sauces and frothed milk. Meat and vegetable blade

Ideal for shredding and cutting hard-fibre vegetables, e.g. for vegetable soups, as well as small amounts of meat or fish resp. poultry. Speed settings Setting Area of use

For kneading dough or for starting the stirring process 2–3 For mixing dry ingredients or for mixing in ingredients resp. if slow speeds are required

For mixing liquid ingredients or for adding liquids to dry ingredients 5–6 Especially suited to kneading dough 7–8 For alternately adding dry and liquid ingredients 9–10 For stirring baking mixtures resp. if medium speeds are required

For whipping butter and sugar icing etc. 12–13 For whipping fluffy and light consistencies, e.g. sponge mixture

For mashing potatoes

For beating egg whites resp. if high speed is required109108 GB GB

You have already locked the chosen attachment onto the shaft in the foot of the blender shaft.

Now, push the blender shaft into the motor unit. To do that, you have to slide the cover for the blender shaft fixation (I) up to make it accessible. By doing that, you have closed the openings for the stirring tools, prevent- ing splashes from getting into the two openings while the appliance is used as a blender.

Push the blender shaft into the fixation and turn it in a clockwise direction until it locks into place, firmly connecting the shaft and the motor unit.

Make sure that the power plug is not plugged into the socket.

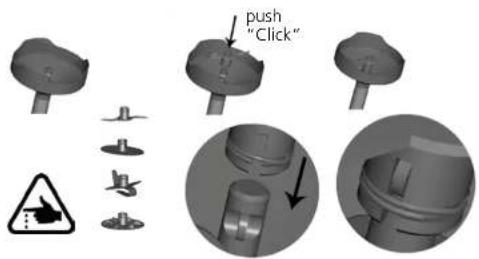

Select the suitable attachment, depending on the required function: Multi blade, whisk, whipping disk or meat and vegetable blade.

Carefully push the attachment onto the drive shaft in the foot of the blender shaft so that the cams on both sides of the shaft slide into the notches on the attachment until you hear a faint “Click”.

Once the attachment has locked into place, it is firmly connected to the shaft and you can start blending. push “Click” Caution: The blades are extremely sharp! If possible, do not touch the blades to avoid cutting yourself! Only touch the blades on the shaft or the flat parts!111110 GB GB

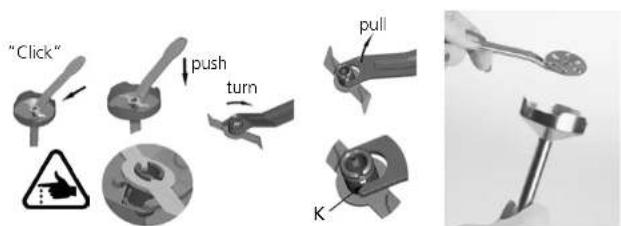

You have to remove the attachment at the end of the mixing process. This is done exclusively with the included key (S) – never attempt to remove the attach- ments by hand, you might be seriously injured!

Make sure that the power plug is not plugged into the power socket.

Hold the handle of the key and push the fork of the key under the attachment and against its shaft. You can hear a faint “Click”.

Lever the blade attachment up with the help of the key – the attachment dis- engages from the foot of the blender shaft. Point the foot of the blender away from you to prevent the attachment from being launched into your direction or even your face.

Carefully hold the attachment in one hand and the key in the other hand. Turn the key to the position “K” and lift the attachment off.

You can place the cleaned attachment and the key in the accessory box.

Be careful when touching the blades with your hand – they are extremely sharp. “Click” push turn pull

Only now plug the power plug of the completely unwound power cord into a suitable power outlet. The LCD screen lights up, indicating that the speed setting is 1 by displaying a 1.

Vertically insert the blender into the blender jug. Only the blender shaft must be placed in the liquid or food you wish to blend, not the motor unit!

Use the + or − button to select a speed between 1 and 16. You can read the current setting from the screen. You can adjust the speed up or down with the + resp. − button, there are 16 speed settings to choose from. Each press of the button will increase resp. reduce the speed by one step. If you press and hold the button, the steps are quickly counted up or down. The current speed is displayed on the screen.

If the correct speed setting is displayed, push the ON/OFF button into the posi- tion I and hold it there. The blender is only switched on while you keep the ON/ OFF button held down. As soon as you let go of it, the blender stops.

Start blending and shredding by making small movements up and down and slightly turning the blender back and forth.

The operation time is counted up on the LCD screen in seconds and minutes.

If you want to change the speed while blending, release the ON/OFF button and reset the speed with the + and − buttons. After that, push the ON/OFF button back to the position I.

If you want to quit blending, let go of the ON/OFF button and wait for the attachment to come to a complete standstill. Only then pull the blender out of the mixture to prevent food splashing out of the blender jug.

Pull the power plug out of the power socket Note: After 9 minutes and 59 seconds, the display switches back to 00 seconds and the appliance switches off automatically. However, you should never use the blender for more than 1 minute; if you wish to chop very hard foods, do not use it for more than 10 seconds.113112 GB GB

Check if the appliance has been disconnected from the power and is clean and dry.

Store your Solis Hand & Stick Mixer in the storage box as shown on page 101. The stirring tools, the blender shaft and the cord can be placed in the transpar- ent lower part, the 4 attachments and the key can be placed in the part in the middle. Place the motor unit on the upper storage base. Place the cord in the transparent storage box and guide it through the channel on the side of the layer with the compartments for the attachments resp. the upper storage box towards the appliance. Like that, the appliance is stored with minimum space requirements and ready for use.

Store the appliance in a dry, dark place; ideally in its original packaging. Do not place anything on the appliance.

Always keep the appliance and the power cord out of the reach of children.

CLEANING AND MAINTENANCE

Clean the motor unit, the stirring tools and the blender shaft as well as the attachments after every use to prevent leftover food from caking on the drive shaft.

Make sure that the power plug is pulled before cleaning and that the attachment has been removed from the blender shaft. Be careful to avoid injuring yourself with the sharp blades.

Wipe the motor unit clean with a slightly moist, soft towel. Remove potential food leftovers on the power cord. Caution: Never hold the motor unit with the power cord and the power plug under running water or submerge it in water resp. clean it with liquids other than water.

Wash the stirring tools as well as the blender shaft and the blender jug in warm water with a mild dishwashing liquid and a soft sponge. Best use a washing-up brush to clean the sharp attachments to avoid injuring yourself with them. Dry all parts carefully. If you have blended very salty food, you should wash the attachments and the blender shaft right after using them, otherwise the salt might affect the blades. Caution: Remember that the blades are very sharp and do not injure yourself!

Tip: The stirring tools (egg whisks and dough hooks) can also be cleaned in the dishwasher.

If you have processed foods that can cause discolouration like e.g. carrots, the plastic parts might be discoloured. Wipe the discoloured areas with cooking oil before cleaning them.

When not using the Solis Hand & Stick Mixer for prolonged periods of time, we recommend greasing the drive shaft in the foot of the blender shaft with a few drops of cooking oil so that it can rotate smoothly. Caution: Do not use any aggressive or scouring detergents or steel sponges to clean the appliance as these might damage the surface.115114 GB GB

EU 2011/65/EU Information for correct disposal of the product in accordance with the Euro- pean Directive EU 2011/65/EU. At the end of its working life this equipment must not be disposed of as an house- hold waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recov- ered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin. Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time. SOLIS HELPLINE This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require. The contact addresses can be found at the end of this manual. Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary. EU 2012/19/EU EU 2012/19/EU.116 NL NL

APPARAATBESCHRIJVING

E SNELHEIDSKNOPPEN − EN +

Solis customer service Please contact us in advance of sending in products for return or repair. We will gladly give you the respective address. Alternatively, you can simply visit www.solis.com.
