Product type	Kitchen hood
Brand	Candy
Model	CFT6102X
Usage	Exclusively domestic
Use version	Extracting (external evacuation) or recirculating (recycling with optional carbon filter)
Evacuation type	Circular upper air outlet (bayonet fastening + screws) and optional rectangular rear outlet (2-screw fastening)
Minimum installation distance	50 cm for electric cooker, 65 cm for gas or mixed cooker
Power supply	Voltage according to rating plate (located inside the hood); connection to wall socket or standard circuit breaker
Lighting	Lamp max 40W, socket E14
Grease filter	Metallic, cleanable once a month by hand or in dishwasher (short cycle, low temperature)
Carbon filter	Optional, to be replaced once a month
Controls	Control panel with suction speed control and lighting control
External maintenance	Damp cloth with neutral liquid detergent; avoid abrasive products and alcohol
Safety	Unplug before cleaning; do not flambé under the hood; sufficient ventilation when used simultaneously with gas appliances
Minimum age of use	8 years (with supervision for children under 8 years)
Compliance standards	Safety: EN/IEC 60335-1, 60335-2-31, 62233; Performance: EN/IEC 61591, etc.; EMC: EN 55014-1, etc.
Recycling	Compliant with WEEE directive 2012/19/EC; do not dispose with household waste
Spare parts and repairability	Filters and lamp replaceable by user; power cable replaceable only by approved service

Frequently Asked Questions - CFT6102X CANDY

What is the minimum distance between the hood and the hob?

The minimum distance between the support of the cooking vessels and the lowest part of the hood is 50 cm for an electric cooker and 65 cm for a gas or mixed cooker. If the cooking device manual specifies a greater distance, that takes precedence.

How to clean the metal grease filter?

The metal grease filter must be cleaned once a month. Use a non-aggressive detergent by hand or place it in the dishwasher on a low temperature short cycle. Note that the dishwasher may discolor the filter without affecting its performance.

Can I use the hood in extracting version without external evacuation?

No, if you cannot exhaust fumes outside, you must use the hood in recirculating version by installing an optional carbon filter. In this case, do not remove the pre-mounted metal walls and make sure the G selector is in position F (filtering).

How to replace the hood's bulb?

Before replacing the bulb, make sure it is cooled down and that the hood is unplugged. Use exclusively a lamp of type max 40W E14.

How often should I replace the carbon filter?

The carbon filter (optional) must be replaced once a month to maintain effective odor reduction.

Can the hood be used by children?

The appliance can be used by children aged at least 8 years under supervision. Cleaning and maintenance must not be performed by children without supervision. Make sure children do not play with the appliance.

Do I need to ventilate the room while using the hood?

Yes, the room must have sufficient ventilation when the hood is used simultaneously with other appliances operating on gas or other fuels.

What to do if the hood does not work?

First check that the hood is properly plugged in and the power supply is active. Make sure the circuit breaker hasn't tripped. If the problem persists, contact the authorized technical assistance service.

Can I install the hood myself?

Installation can be carried out by a competent person following the instructions in the manual. Use the provided fixing screws and respect the minimum distances. However, for electrical connection, if a socket is not accessible, call a qualified electrician.

Where to find spare parts for the Candy CFT6102X hood?

Grease and carbon filters as well as bulbs are consumables available at specialized retailers or online. For the power cable, contact Candy authorized after-sales service.

USER MANUAL CFT6102X CANDY

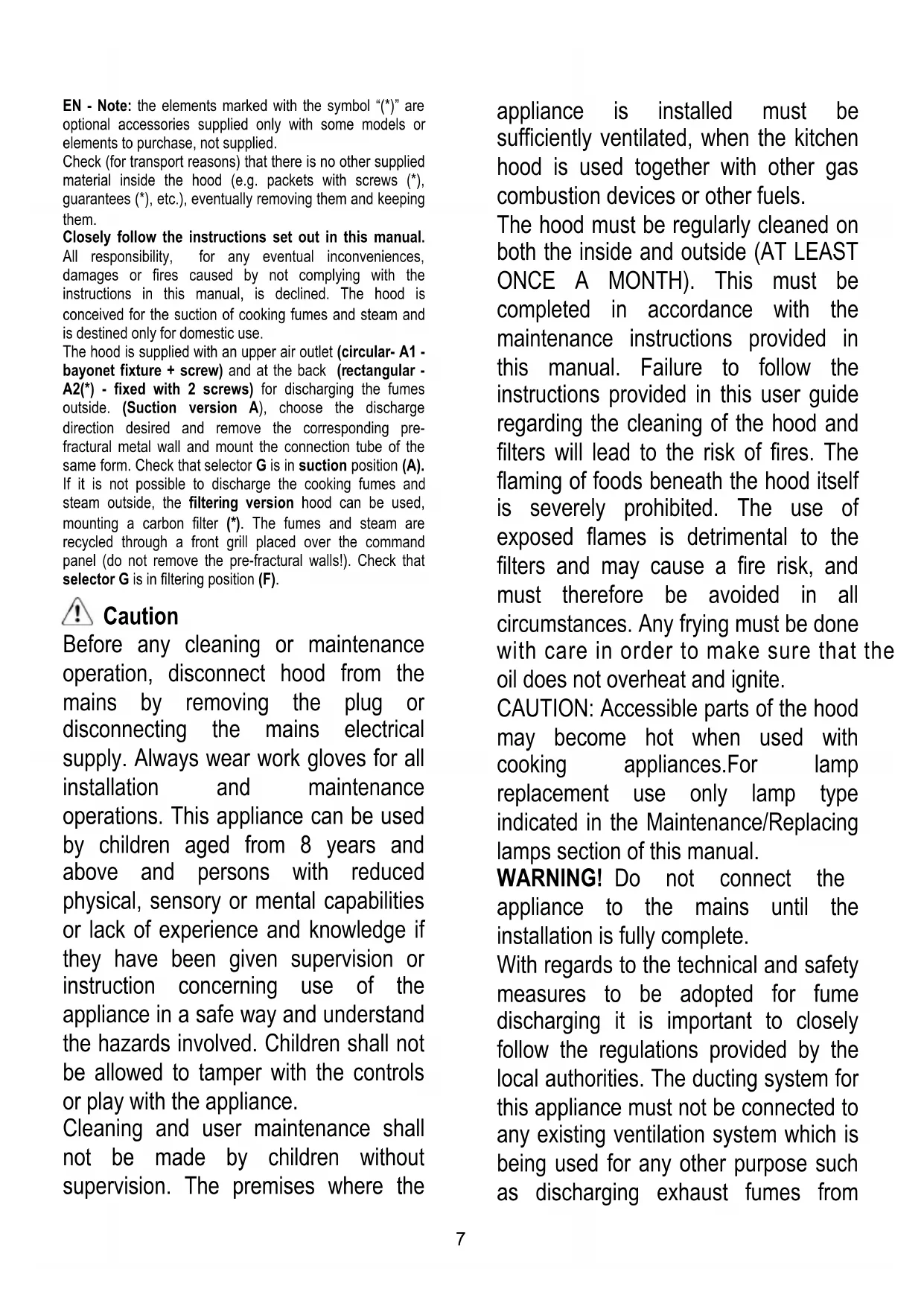

EN - Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

The hood is supplied with an upper air outlet (circular-A1-bayonet fixture + screw) and at the back (rectangular-A2(*) - fixed with 2 screws) for discharging the fumes outside. (Suction version A), choose the discharge direction desired and remove the corresponding pre-fractural metal wall and mount the connection tube of the same form. Check that selector G is in suction position (A). If it is not possible to discharge the cooking fumes and steam outside, the filtering version hood can be used, mounting a carbon filter (*). The fumes and steam are recycled through a front grill placed over the command panel (do not remove the pre-fractural walls!). Check that selector G is in filtering position (F).

Caution

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances. For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from

appliances burning gas or other fuels. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. Never use the hood without effectively mounted grids. The hood must NEVER be used as a support surface unless specifically indicated. Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide. In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

The template (*) can be used for installation.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! Power cable replacement must be undertaken by the authorised service assistance centre or similar qualified person.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Maintenance

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT

USE ALCOHOL!

Grease filter - Carbon filter (*): it is/they are mounted on the back of the grill and must be changed once a month.

If the metal fats filter is envisaged in the model in your possession, this must be cleaned once a month with non-aggressive detergent manually or in a dishwasher at low temperature and short cycle.

The metal anti-fats filter might discolour by washing in a dishwasher but its filtering characteristics do not change at all.

Changing bulbs (Attention! Make sure that the bulbs are cool before touching them): use only 40W E14 max bulbs.

- Waste Electrical and Electronic Equipment (WEEE).

Use the correct length for the screws which are identified in the Installation Guide.
