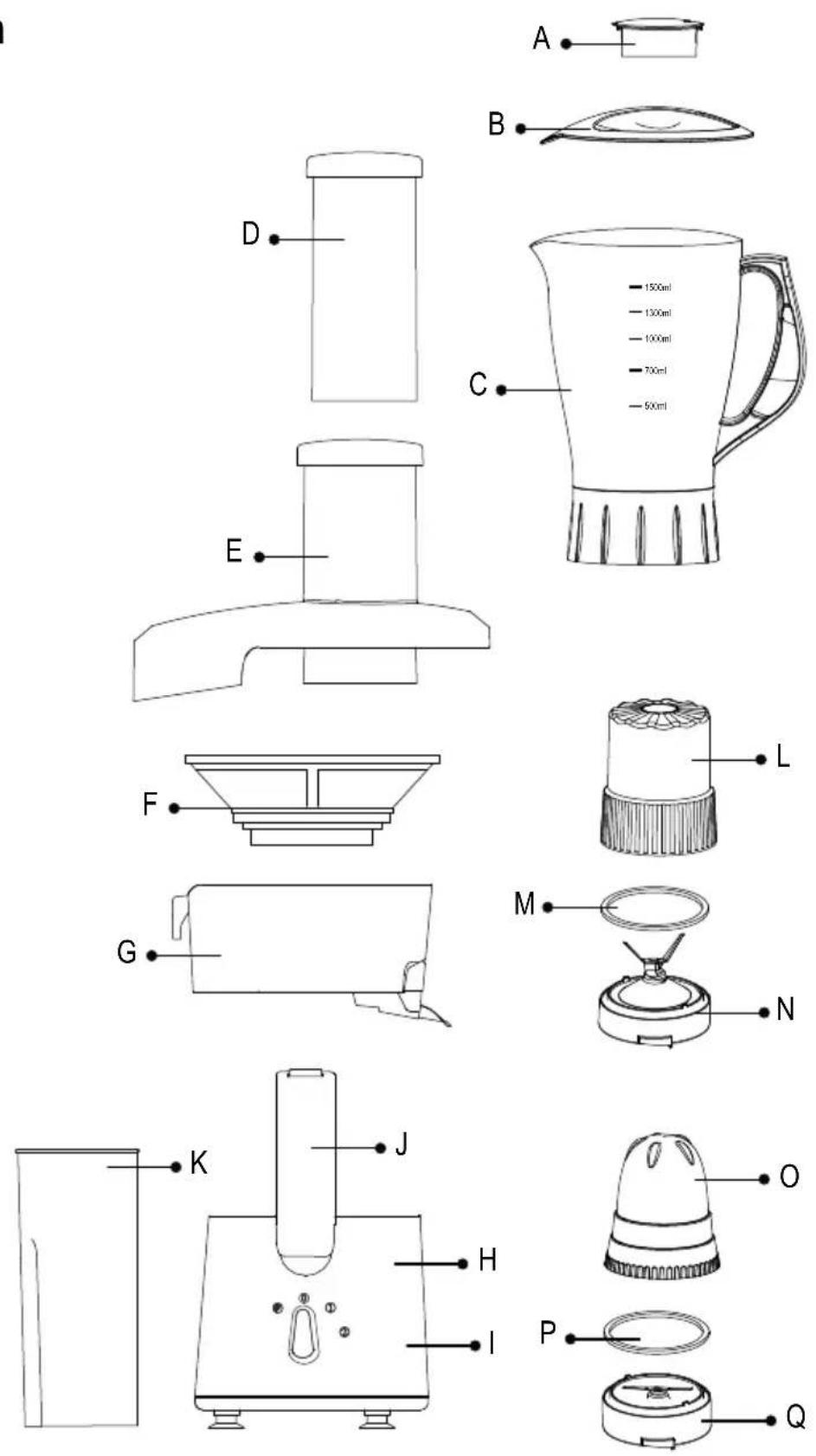

Parts Identification

A. Filler Cap
B. Lid
C. Blender Jug
D. Pusher
E. Juicer Lid
F. Rotary Sieve
G. Juice Collector
H. Motor Base
I. Control Knob
J. Clamp
K. Pulp Collector
L. Mincer Jug
M. Mincer Seal
N. Mincer Blade
O. Grinder Jug
P. Grinder Seal
Q. Grinder Blade

ENGLISH

Intended use

Your Black & Decker juicer has been designed for juicing fruits and vegetables. The blender has been designed for blending, mixing and crushing of solid and liquid food and beverage ingredients. This product is intended for indoor household use only.

Read this entire manual carefully before using the appliance.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.

Using your appliance

• Always take care when using the appliance.
- Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.
- Do not place the appliance on or near heat sources or in a heated oven.
- Do not use the appliance outdoors.
• Always protect the motor unit from water or excessive humidity.

• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use, before fitting or removing parts and before cleaning.
• Never let the appliance operate unattended.
• Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.
• Only unlock the clamp after you have switched the appliance off and any moving parts have stopped.
• Do not touch the small cutting blades in the base of the rotary sieve.
• Do not touch the cutting blades.
• Keep any loose clothing or long hair away from the feeding tube and any moving parts.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Do not immerse the appliance, cord set or plug in liquids.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

ENGLISH

After use

• Remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Do not use the appliance if the rotary sieve is damaged.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.
• Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety

Before use, check that the mains voltage corresponds to the voltage on the rating plate.

This appliance is double insulated in accordance with EN 60335-2-14; therefore no earth wire is required.

• To avoid the risk of electric shock, do not immerse the cord, plug or motor unit in water or other liquid.
- Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.

Mains plug replacement

If a new mains plug needs to be fitted:

• Safely dispose of the old plug
- Connect the brown lead to the live terminal of the new plug
- Connect the blue lead to the neutral terminal
- If the product is class I (earthed), connect the green/yellow lead to the earth terminal

Warning! If your product is class II double insulated (only 2 wires in the cord set), no connection is to be made to the earth terminal

• Follow the fitting instructions supplied with good quality plugs
• Any replacement fuse must be of the same rating as the original fuse supplied with the product

Labels on appliance

The following warning symbols are found on the appliance:

Warning! Allow moving parts to come to a stop before approaching.

Assembling the juicer

• Wash all detachable parts (see chapter 'Maintenance and cleaning').
• Place the juice collector (G) on to the motor base (H).
• Put the rotary sieve (F) in the juice collector (G).

- Make sure the rotary sieve (F) is fitted securely onto the driving shaft ('click').

• Always check the rotary sieve (F) before use. If you detect any cracks or damage, do not use the appliance and contact the nearest service centre or take the appliance to your dealer.

- Place the juicer lid (E) onto the juice collector (G).

- Lock the clamp (J) onto the juicer lid (E) to lock it into place ('click') and slide the pusher (D) into the feeding tube by aligning the groove in the pusher with the small protrusion on the inside of the feeding tube. Never insert your fingers or an object into the feeding tube.

- Place the pulp collector (K) in to position at the side of the juicer.

- Place a jug under the spout.

Assembling the Blender

• Wash all detachable parts (see chapter 'Maintenance and cleaning').
• Fit the blender jug (C), to the motor base (H) and secure by turning it anti-clockwise.

Note: Ensure that the blender is switched off before removing it from the stand.

Assembling the grinder

- Wash all detachable parts (see chapter 'Maintenance and cleaning').

• Fit the grinder seal (P) into the groove around the edge of the grinder blade (Q).
• Secure the blade (Q) into the grinder jug (O) by pushing it into the jug and turning it clockwise.
• Fit the grinder jug (O) to the motor base (H) and secure it by turning it anti-clockwise.

Assembling the mincer

• Wash all detachable parts (see chapter 'Maintenance and cleaning').
• Fit the mincer seal (M) into the groove around the edge of the mincer blade (N).
• Secure the blade (N) into the mincer jug (L) by pushing it into the jug and turning it clockwise.
• Fit the mincer jug (L) to the motor base (H) and secure it by turning it anti-clockwise.

Use

The following settings are available:-

$$ P = \text { Pulse Operation } $$

$$ O = \text { Power Off } $$

$$ 1 = \text { Low Speed } $$

$$ 2 = \text { High Speed } $$

The appliance should be disconnected from the mains supply before removing the jug.

Using the juicer

• Place the appliance on a flat, stable surface and connect it to the electrical supply.
• Select the required speed (P, 1 or 2) using the CONTROL KNOB (I).
• Remove the pusher & add the ingredients, using the pusher to guide the ingredients onto the blades.

While you are preparing juice, you can empty the pulp container by switching the appliance off and carefully removing the pulp container.

ENGLISH

Note: Reassemble the empty pulp container before you continue juicing.

- When juicing is completed, return the control to the O (off) position.

The appliance should be disconnected from the mains supply before removing the jug.

The Juicer should not be run for longer than 1 Minute. After each 1 Minute use, the Juicer should be allowed to cool for at least 1 minute. After 3 consecutive cycles the juicer must be allowed to cool for 15 minutes before further use.

Note: For harder fruits and vegetables like pineapple, carrots, beetroot etc, use speed I and for softer ones like apples, cucumbers, celery stalks, tomatoes, melons and grapes use speed II.

Using the blender, chopper or grinder

• Place the appliance on a flat, stable surface.
• Put the ingredients into the required jug (C, L or O).
• If using the blender push the lid (B) and filler cap (A) onto the jug (C). The filler cap is secured by turning it clockwise.
• If using the grinder or mincer seal the jug by fitting the required blade (N or Q) and secure by turning clockwise.
• Place the jug (C, L or O). onto the motor base (H).
• Secure the jug (C, L or O). by turning it anti clockwise.
• Connect it to the electrical supply and select the required speed using the rotary switch.

Reccomendations when blending

Ingredients Max Run Time Speed Max Quantity (Seconds) (ml)
Liquids 30 sec 2 1200ml
Semi Liquids 60 sec 1 1500ml

* Semi Liquids assumes maximum of 500 grams of fruits, vegetables or ice in 2.5x2.5 cm cubes along with 1000 ml of water or any other liquid of similar consistency.

Note: The blender should not be run for longer than 1 minute. After a continuous run of 1 minute, the blender should be allowed to cool down for at least 2 minutes before further use.

Reccomendations when grinding

Ingredients Max Run Time Speed Max Quantity (Seconds) (g)
Dry Pepper/ Coffee beans	20 sec 2 50g
Dry Pulses 30	sec 1 40g
Dry Herbs 20	sec 1 40g

Note: The dry grinder should not be continuously run for longer than 50 seconds.

Note: 50g is the maximum suggested quantity for this grinder mill. (Our 70g testing in performance test is deemed abusive usage)

Warning: The grinder should NOT be used for wet grinding of hard food materials like soaked pulses, beans, grains etc. This will lead to damage of blades and reduction of motor life span.

Reccomendations when mincing

Ingredients Max Run Time Speed Max Quantity (Seconds) (g)
Meat * 20 sec	1 100g
Cheese ** 10	sec 2 70g

*Boneless meat in 3x3cm cubes

**Thawed hard cheeses like parmesan

Note: The mincer chopper should not be continuously run for longer than 50 seconds.

Note: 100g is the maximum suggested quantity for this mincer mill.

Useful advice

• Wash the fruit carefully before stoning.
• Use fresh fruit and vegetables, as they contain more juice. Pineapples, celery stalks, apples, cucumbers, carrots, spinach, melons, tomatoes, oranges and grapes are particularly suitable for processing in the juice extractor.
• You do not need to remove the peels or skins. You only need to peel fruit with thick skin: citrus fruit, pineapple (remove the centre stalk).

• Fruits that contain starch, such as bananas, papayas, avocados, figs, strawberries and mangoes are not suitable for processing in the juice extractor. Use a food processor, blender or stick blender to process these fruits.

• The juicer is not suitable for processing very hard and/or fibrous/starchy fruits or vegetables such as sugar cane.

• Choose fresh, ripe fruit and vegetables, they will yield more juice.
• Drink the juice immediately after you have extracted it. If it is exposed to air for some time, the juice will lose its taste and nutritional value.
  • To extract the maximum amount of juice, always press the pusher down slowly.

Note: Do not exceed the maximum capacity of 1.5 litres.

- When blending is complete return the control knob to the off (0) position.

Once the blade has come to a complete stop, lift the jug (C) from the motor base (H).

- Remove the lid (B) and pour the ingredients into a suitable container.

Note: Ingredients can be added by inserting them through the hole left when the filler cap (A) is removed.

Warning! Never operate the Blender without the lid (B) fitted.

Warning! Do not use any of the accessories with out the required seal

Maintenance & cleaning

- Switch the appliance off, remove the plug from the wall socket and wait until the rotary sieve has stopped rotating before cleaning, changing accessories or approaching parts that move during use.

ENGLISH

• The appliance is easier to clean if you do so immediately after use.
• Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.
• All detachable parts are dishwasher-safe.
• Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.
• Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap.

• Remove the dirty parts from the motor unit. Disassemble the appliance in the following order:

• Remove the pulp container,

• Remove the pusher,
• Open the clamp & remove the lid,
• Remove the juice collector together with the rotary sieve.
• Clean the motor base with a damp cloth.
• Never immerse the motor unit in water nor rinse it under the tap.

Technical data

JBGM600

Voltage 220 – 240 Volts

Supply 50 Hz

Power consumption 500 W

Weight 3.4 Kg

Protecting the environment

arate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

- Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

- You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Warranty

Black & Decker is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

The warranty is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;

The product has been subjected to misuse or neglect;

The product has sustained damage through foreign objects, substances or accidents;

Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual.

Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Names & Addresses for Black & Decker Service Concessionaries
