BW16D1HU PRO - Blu-ray player ASUS - Free user manual and instructions

Product Type	External Blu-ray Player
Brand	ASUS
Model	BW-16D1H-U PRO
Category	External Optical Drive
Dimensions (approx.)	214 x 160 x 51 mm
Weight (approx.)	1.2 kg
Power Supply	External AC adapter + USB cable
Interface	USB (Type-A and Type-C depending on cable)
Supported Disc Type	Blu-ray, DVD, CD
Blu-ray Read Speed	Up to 16x
Blu-ray Write Speed	Up to 16x
DVD Read Speed	Up to 12x
DVD Write Speed	Up to 8x
CD Read Speed	Up to 48x
CD Write Speed	Up to 48x
Installation Method	USB cable + AC adapter; Y-cable; USB Type-C
Stand Included	Yes (on some models)
Eject Button	Yes (Windows only)
Maintenance and Cleaning	Clean with a soft cloth; avoid volatile solvents
Laser Safety	Class 1 Laser Product
Operating Temperature	0 to 40 °C
Spare Parts and Repairability	Do not disassemble; contact dealer if problem
General Information	Compliant with ISED and EU standards; recycling via channels

Frequently Asked Questions - BW16D1HU PRO ASUS

How to install the ASUS BW16D1HU PRO drive?

Use the provided USB cable and AC adapter. Plug in the AC adapter, then connect the USB cable to the computer. Switch the power switch to ON and press the eject button to open the tray. Refer to the manual for model-specific variations.

What types of discs can I use with this drive?

This drive supports Blu-ray, DVD and CD, including recordable and rewritable media (BD-R, BD-RE, DVD±R, DVD±RW, CD-R, CD-RW).

Why doesn't my computer detect the drive?

Check that the AC adapter is plugged in and the switch is ON. Ensure the USB cable is properly connected. If using a USB hub, connect directly to the computer port. On Windows, the drive appears in Device Manager.

What if the tray does not open?

Make sure the device is powered on (switch ON). On Windows, press the eject button. If that doesn't work, restart the computer or use an unfolded paperclip to manually open the tray via the emergency eject hole.

Can I use this drive with a Mac?

Yes, the drive is compatible with macOS. However, the eject button is intended for Windows. On Mac, use the system eject function or drag the disc icon to the Trash.

How to clean the drive?

Use a clean, dry cloth to wipe the exterior. Do not spray volatile solvents. For lens cleaning, use a special cleaning disc. Avoid introducing liquids into the device.

What is the maximum read speed for Blu-ray?

The maximum read speed for Blu-ray is 16x. For DVD, up to 12x, and for CD, up to 48x.

Is this drive compatible with 3D Blu-ray?

Yes, it supports 3D Blu-ray, provided you have a 3D-compatible display and playback software.

Can I use a USB Type-C cable to connect the drive?

The BW16D1HU PRO model uses an AC adapter and a USB Type-A cable. However, other ASUS models may use a USB Type-C cable. Refer to the manual for the appropriate cable for your model.

What if the inserted disc is not recognized?

Check that the disc is not damaged or dirty. Try another disc. Ensure the drive is properly powered. Update the firmware via the ASUS website. If the problem persists, contact ASUS support.

USER MANUAL BW16D1HU PRO ASUS

Quick Installation Guide

English	Español	Қазақша	Português	Tiếng Việt
繁體中文	Eesti	한국어	Română	Українська
简体中文	Suomi	Lietuvių	Русский	הַרָׁרִים
български	Français	Latviešu	Slovenčina	عربي
Čeština	Magyar	Bahasa Malayu	Slovenščina	فارسی
Dansk	Bahasa Indonesia	Nederlands	Svenska
Deutsch	Italiano	Norsk	ไทย
Еллэнviká	日本語	Polski	Türkçe(Kurulum Kilavuzu)

Model / нормативная модель : SDRW-08D2S-U / SDRW-08D2S-U LITE / SDRW-08U5S-U / SDRW-08U7M-U / SDRW-08U8M-U / SDRW-08U9M-U / SBC-06D2X-U / SBW-06D2X-U / SBW-06D5H-U / BW-16D1H-U / BW-16D1H-U PRO / BW-16D1X-U

Contents

English 5

繁體中文 6

简体中文 ……6

日本語 7

한국어 7

Français 8

Deutsch 8

Italiano 9

Русский 9

Български....10

Čeština 10

Dansk 11

Nederlands 11

Eesti 12

Suomi 12

Ελληνικά 13

Magyar 13

Bahasa Indonesia 14

Қазақша 14

Latviešu 15

Lietuvių 15

Norsk 16

Polski 16

Português....17

Română 17

Slovenčina....18

Slovenščina....18

Español 19

Svenska 19

Türkçe 20

Українська....20

Bahasa Malayu....21

ไทย 21

Tiếng Việt 22

הַרְׁבָה 22

عربي 23

فارسی 23

Notices 24

Installing the external Optical Drive

The installation and bundled cables of your optical drive may differ between models, please refer to the following installation methods and select the one that most suits your model.

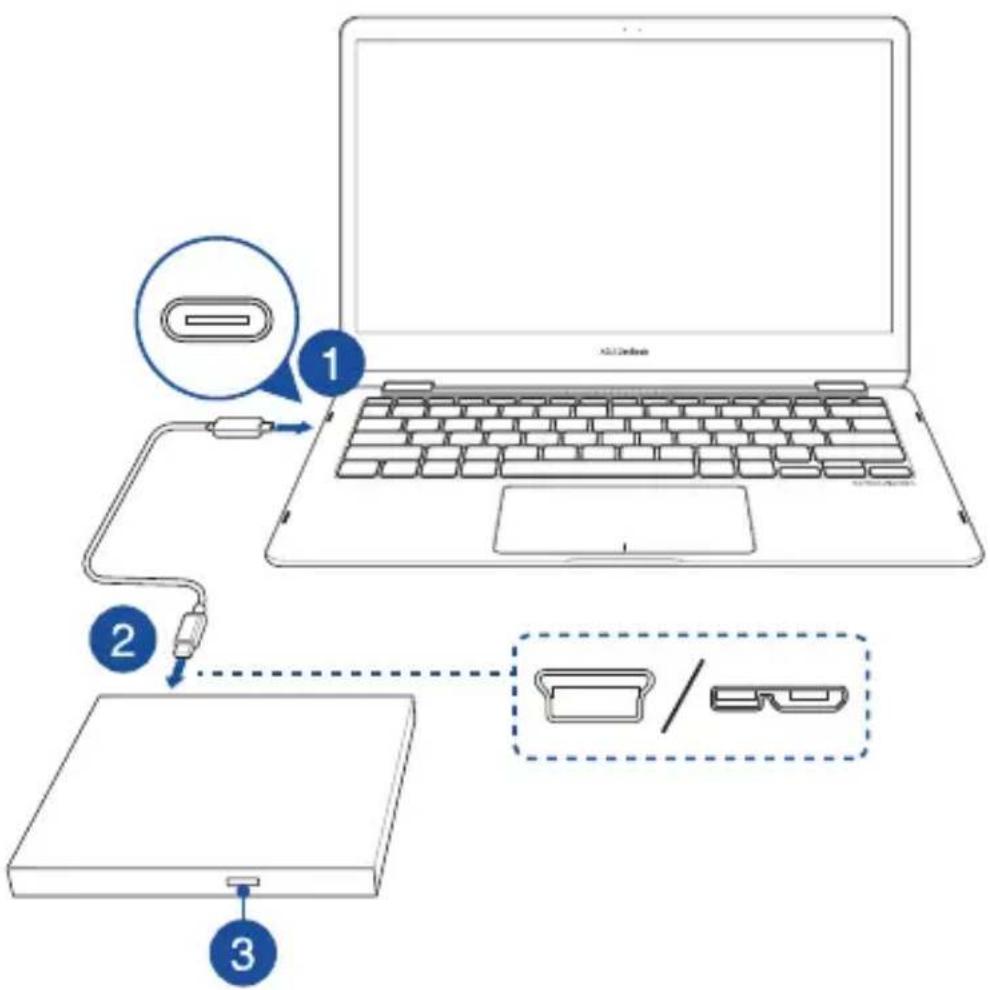

Using the bundled USB Type-C® cable

Models: SDRW-08U8M-U / SDRW-08U9M-U / SBW-06D5H-U

1. Connect the USB Type-C® connector on the bundled cable to a USB Type-C® port on your computer.
2. Connect the bundled cable to your optical drive.

NOTE: This connector and port may vary between models.

1. (For Windows only) Press the Eject button to open the optical drive tray.

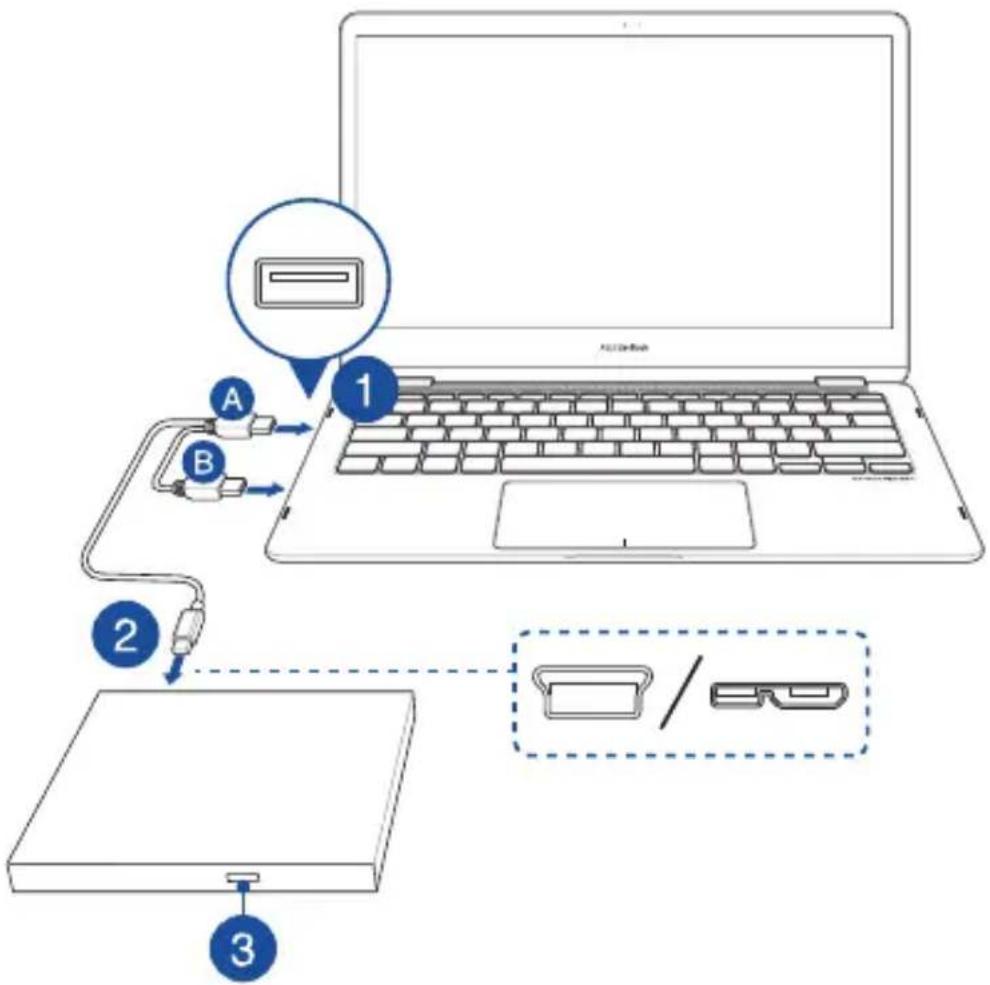

Using the bundled Y-Cable

Models: SDRW-08D2S-U / SDRW-08D2S-U LITE / SDRW-08D6S-U / SDRW-08U5S-U / SDRW-08U7M-U / SDRW-08U9M-U / SBC-06D2X-U / SBW-06D2X-U / SBW-06D5H-U / SDR-08B1-U

1. Connect the USB connector on the Y-cable to a USB port on your computer.

(optional) Connect the USB connector to another USB port for additional power if your computer's USB port does not provide enough power through the USB connector resulting in the optical drive not functioning properly.

NOTE:

• USB connector is only used for additional power, and cannot be used for data transfer
• If you are using a Blu-ray optical disc drive, please ensure to connect both USB connectors (and Eto USB ports on your computer.
• You may need to use a USB extension cable (purchased separately) to connect the additional USB connector if you do not have enough free USB ports on one side of the computer.

1. Connect the Y-cable to your optical drive.

NOTE: This connector and port may vary between models.

1. (For Windows only) Press the Eject button to open the optical drive tray.

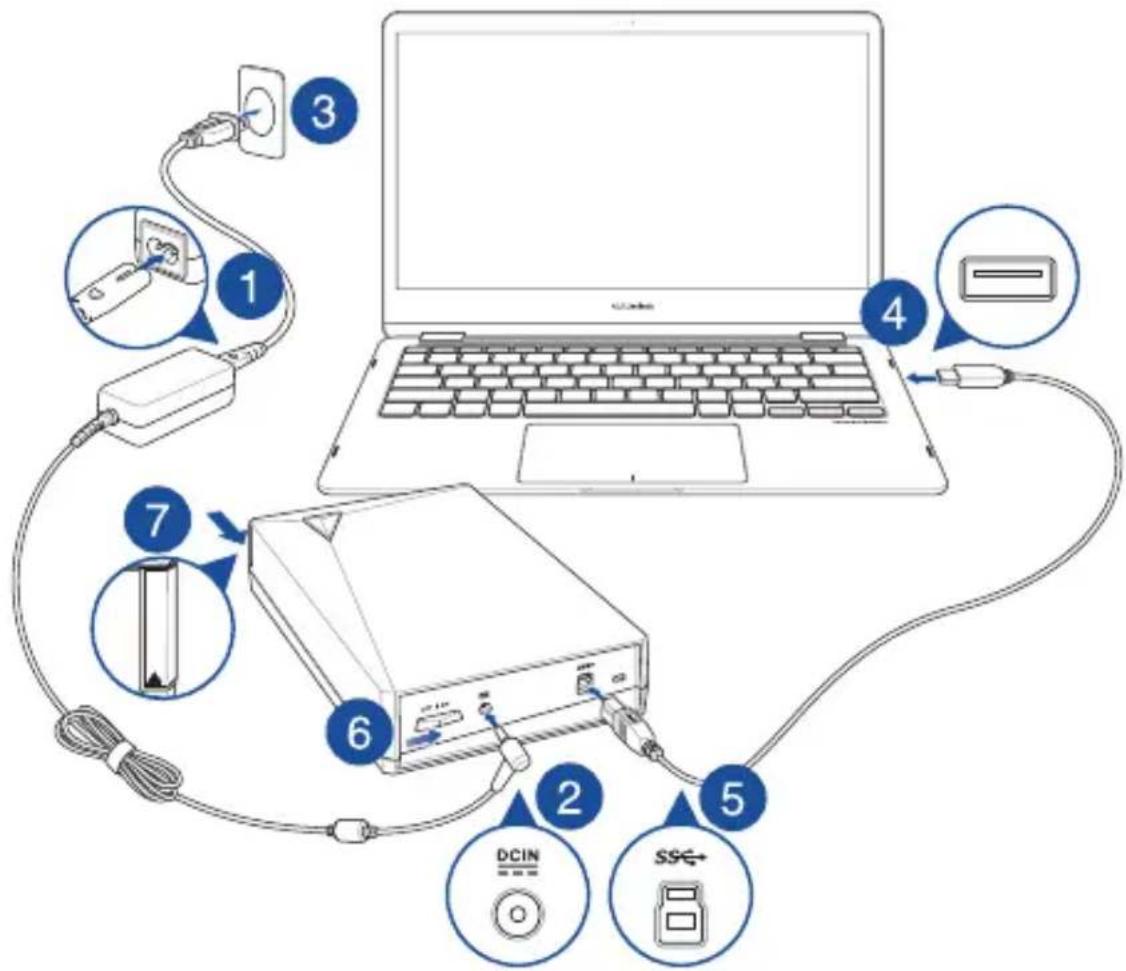

Using the bundled USB cable and power adapter

Models: BW-16D1H-U/BW-16D1H-U PRO/BW-16D1X-U

To connect the USB cable and power adapter please refer to the illustration below. After the cables and power have been connected, push the power switch to the ON position 6 to power on your optical drive and press the Eject button (for Windows only) to open the optical drive tray.

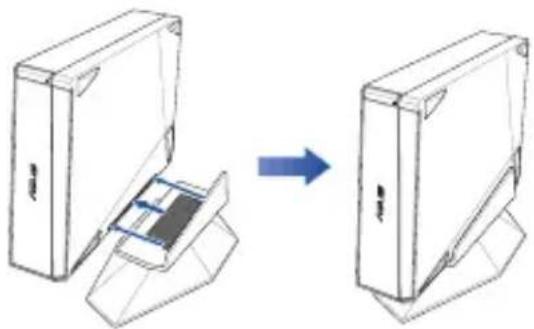

Setting up the optical drive stand (on selected models)

Models: BW-16D1H-U / BW-16D1H-U PRO

Models: SBC-06D2X-U / SBW-06D2X-U

Diagram showing a device being processed from a left-side box to a right-side box, with no visible text or symbols.

Diagram showing a device being processed from an open panel to a closed panel, with no text or symbols present.

Support

For more information on your external optical drive, please refer to https://www.asus.com/support.

安裝外接式光碟機

.https://www.asus.com/support

• Do not place damaged discs inside the device. A damaged disc may break while in use and damage the device.
  • Use of any controls, adjustments, or procedures other than those specified in this manual may result to hazardous radiation exposure.
• Do not attempt to disassemble the drive.
  • Do not move the device from a cold to a warm or hot environment. Drastic change in temperature is harmful to the device.
• Before moving or uninstalling the drive, remove any disc in it.
• Prevent liquids or any metal from getting into the device, If this situation occurs, contact your retailer for help.
• Do not use any evaporating solvents to clean the device. If you accidentally sprayed any solvent on the device, use a clean cloth to wipe it. You may also use a neutral cleaner to dilute the solvent to easily wipe it from the device.
• Do not turn off the computer while the device is in reading or writing mode.
• Do not place discs into the device immediately if they came from a cold environment, especially during cold seasons. Wait until the discs have reached room temperature.
• Use this product in environments with ambient temperatures between 0^ (32°F) and 40^ (104°F).

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

CONSUMER LASER PRODUCT

EN 50689:2021

Australia Statement Notice

From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit http://support.asus.com. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at http://support.asus.com.

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

EU REACH and Article 33

This product complies with the EU RoHS Directive. For more details, see http://csr.asus.com/english/article.aspx?id=35

India RoHS

This product complies with the "India E-Waste (Management) Rules, 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Product Name產品名稱	Model Name型號	Input rating輸入規格
External Slim Optical Drive外接式薄型光碟機	SDR-08B1-U A, SDRW-08D2S-U, SDRW-08U5S-U, SDRW-08U7M-U, SDRW-08U8M-U, SDRW-08U9M-U, SBC-06D2X-U, SBW-06D2X-U	5V, 2.0A
External Slim Blu-ray Drive華碩外接式薄型藍光燒錄機	SBW-06D5H-U 5V, 2.0A
External H/H Optical Drive外接式半高型光碟機	BW-16D1H-U, BW-16D1X-U 12V, 3.0A

China RoHS EFUP Labelling - 10 Years

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-003(B)/NMB-003(B)

France sorting and recycling information

FR

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

EAC Certification Logo

FCC COMPLIANCE INFORMATION

Per FCC Part 2 Section 2.1077

Responsible Party : Asus Computer International

Address : 48720 Kato Rd, Fremont, CA 94538

Phone/Fax No : [phone]/[phone]

hereby declares that the product

Product Name Model Name Input rating
External Slim Optical Drive	SDRW-08D2S-U, SDRW-08U5S-U, SDRW-08U7M-U, SDRW-08U8M-U, SDRW-08U9M-U, SBC-06D2X-U, SBW-06D2X-U	5V, 2.0A
External Slim Blu-ray Drive SBW-06D5H-U 5V, 2.0A
External H/H Optical Drive BW-16D1H-U, BW-16D1X-U 12V, 3.0A

compliance statement:

These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) These devices may not cause harmful interference, and (2) these devices must accept any interference received, including interference that may cause undesired operation.

Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.

Simplified UKCA Declaration of Conformity

ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related UKCA Directives. Full text of UKCA declaration of conformity is available at: www.asus.com/support

Simplified EU Declaration of Conformity

English ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related Directives. Full text of EU declaration of conformity is available at: www.asus.com/support

Address, City 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112

Authorized Representative in Europe ASUS COMPUTER GmbH

City Address Harkortstrasse 21-23, 40880 Ratingen

Country Germany

Authorized Representative in United Kingdom ASUSTEK (UK) LIMITED

City Address 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL,

England

Country United Kingdom

For a superior burning experience
