USER MANUAL Stylus Mini Digital S OLYMPUS

DIGITAL CAMERA Shoot and Play!

For customers in North and South America For customers in Europe Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

• xD-Picture Card™ is a trademark.

• All other company and product names are registered trademarks and/or trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

• Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life.

• This manual explains shooting and playback basics. For details on functions, read the advanced manual. Keep this manual in a safe place for future reference.

• We recommend that you take test shots to get accustomed to your camera before taking important photographs.

• The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product. For customers in USA Declaration of Conformity Model Number : Stylus Verve S/µ-mini DIGITAL S Trade Name : OLYMPUS Responsible Party : Address : Two Corporate Center Drive, P.O. Box 9058, Melville, NY 11747-9058 U.S.A. Telephone Number : 1-631-844-5000 Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. d4247_basic_e_00_bookfile_7.book Page 2 Thursday, January 27, 2005 12:24 PM3

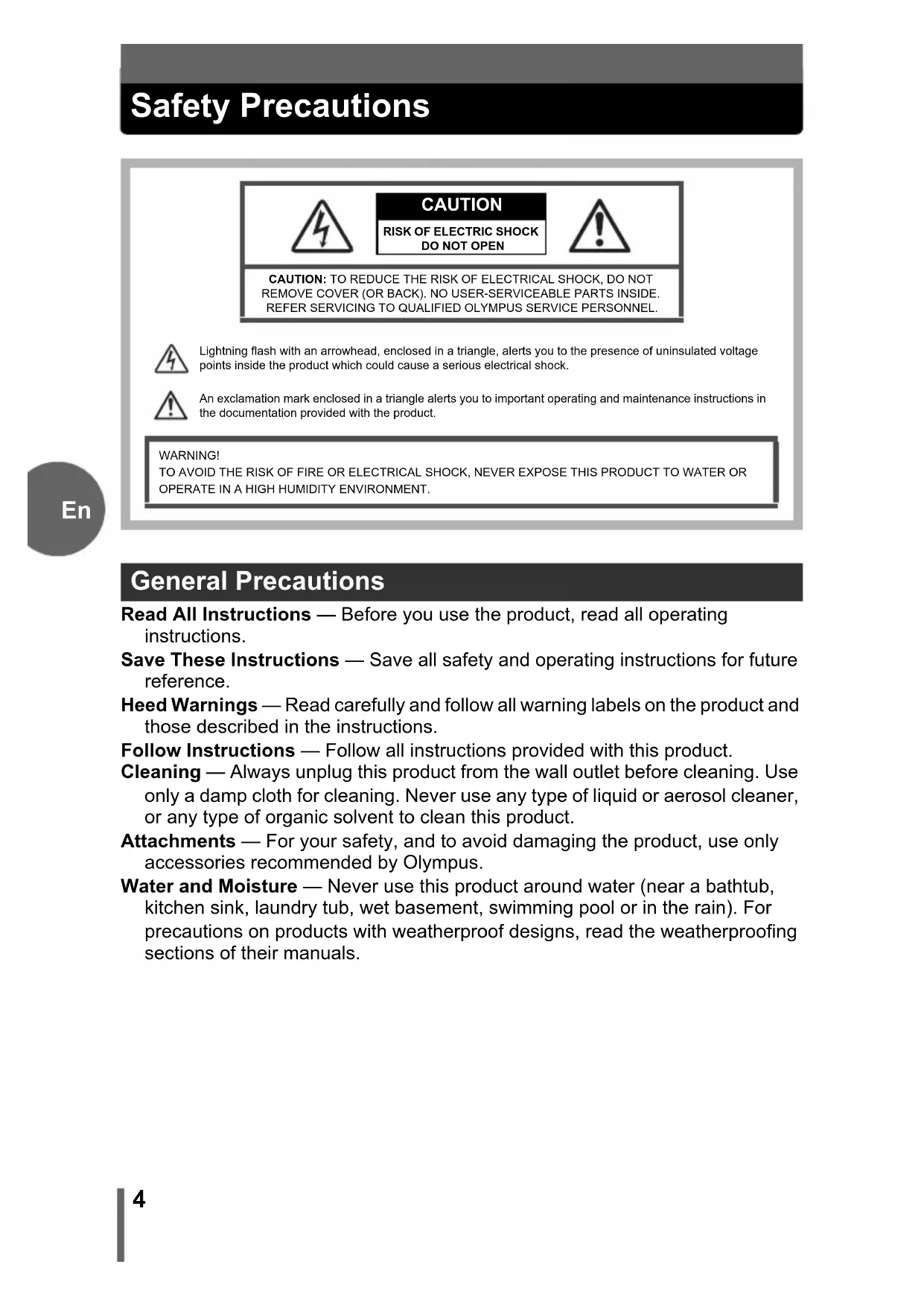

Safety Precautions Read All Instructions — Before you use the product, read all operating instructions. Save These Instructions — Save all safety and operating instructions for future reference. Heed Warnings — Read carefully and follow all warning labels on the product and those described in the instructions. Follow Instructions — Follow all instructions provided with this product. Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product. Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus. Water and Moisture — Never use this product around water (near a bathtub, kitchen sink, laundry tub, wet basement, swimming pool or in the rain). For precautions on products with weatherproof designs, read the weatherproofing sections of their manuals. General Precautions CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL. Lightning flash with an arrowhead, enclosed in a triangle, alerts you to the presence of uninsulated voltage points inside the product which could cause a serious electrical shock.An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.WARNING!TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN d4247_basic_e_00_bookfile_7.book Page 4 Thursday, January 27, 2005 12:24 PMSafety Precautions

Location — To avoid damage to the product and prevent personal injury, never place this product on an unstable stand, tripod, bracket, table or cart. Mount only on a stable tripod, stand, or bracket. Follow the instructions that describe how to safely mount the product, and use only the mounting devices recommended by the manufacturer. Power Sources — Connect this product only to the power source described on the product label. If you are not sure about the type of power supply in your home, consult your local power company. Refer to your operating instructions for information on using the product with a battery. Grounding, Polarization — If this product can be used with a specified AC adapter, the adapter may be equipped with a polarized alternating current line plug (a plug with one blade wider than the other). This safety feature allows the plug to fit into the power outlet only one way. If you cannot insert the plug into the wall outlet, pull it out, reverse it, and then reinsert it. If the plug still fails to fit, contact an electrician and have the receptacle replaced. Protecting the Power Cord — The power supply cord should be placed so it will not be walked on. Never put a heavy object on the power cord or wrap the cord around the leg of a table or chair. Keep the area around the power cord connection points, at the power outlet, and at the product connection, free of all AC adapter or accessory power cords. Lightning — If a lightning storm occurs while using a specified AC adapter, remove it from the wall outlet immediately. To avoid damage from unexpected power surges, always unplug the AC adapter from the power outlet and disconnect it from the camera when the camera is not in use. Overloading — Never overload wall outlets, extension cords, power strips, or other power connection points with too many plugs. Foreign Objects, Liquid Spillage — To avoid personal injury caused by fire or electrical shock from contact with internal high voltage points, never insert a metal object into the product. Avoid using the product where there is a danger of spillage. Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers. Servicing — Refer all servicing to qualified personnel. Attempting to remove the covers or disassemble the product, could expose you to dangerous high voltage points. d4247_basic_e_00_bookfile_7.book Page 5 Thursday, January 27, 2005 12:24 PMSafety Precautions

Damage Requiring Service — If you notice any of the conditions described below while using a specified AC adapter, unplug it from the wall outlet and refer servicing to qualified service personnel: a) Liquid has been spilled onto the product or some other object has fallen into the product. b) The product has been exposed to water. c) The product does not operate normally despite following operating instructions. Adjust only the controls described in the operating instructions as improper adjustment of other controls could damage the product and require extensive repair work by a qualified technician. d) The product has been dropped or damaged in any way. e) The product exhibits a distinct change in performance. Replacement Parts — When replacement parts are required, make sure that the service center uses only parts with the same characteristics as the originals, as recommended by the manufacturer. Unauthorized substitution of parts could result in fire, electrical shock, or create other hazards. Safety Check — Upon completion of servicing or repairs, ask the service technician to perform safety checks to determine that the product is in good working order. WARNING ( Do not use the camera near flammable or explosive gases.

• To avoid causing a fire or explosion, never use the camera near flammable or explosive gases. ( Do not use the flash on people (infants, small children, etc.) at close range.

• Use caution when taking flash pictures at close range. When you fire the flash, you must be at least 1 m (3 ft.) away from the faces of your subjects, especially when taking pictures of infants and small children. Firing the flash too close to the subject’s eyes could cause a momentary loss of vision. DANGERIf the product is used without observing the information given under this symbol, serious injury or death may result.WARNINGIf the product is used without observing the information given under this symbol, injury or death may result.CAUTIONIf the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or the loss of valuable data may result. Handling the Camera d4247_basic_e_00_bookfile_7.book Page 6 Thursday, January 27, 2005 12:24 PMSafety Precautions

( Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.

• Accidentally swallowing the battery, cards or other small parts.

• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera. ( Do not look at the sun or strong lights through the camera.

• To avoid damaging your eyes, never aim the camera directly into the sun, or any other extremely bright light source. ( Do not touch charging batteries (included in some areas) or the battery charger until charging is finished and the batteries have cooled.

• The batteries and battery charger become hot while charging. A specified AC adapter also becomes hot during long use. At these times, they may cause minor burns. ( Do not use or store the camera in dusty or humid places.

• Using or storing the camera in dusty or humid places may result in a fire or electric shock. ( Do not cover the flash with a hand while firing.

• Do not cover the flash with a hand while firing or touch it after it has just been fired. It may be hot and cause minor burns. Avoid using the flash for extended periods. ( Do not take apart or modify the camera.

• Never attempt to disassemble the camera. The internal circuits contain high voltage points which could cause serious burns or electrical shock. ( Do not let water or foreign objects inside the camera.

• If the camera is accidentally dropped in water, or if liquid is spilled into the camera, stop using it, allow it to dry, and then remove the batteries. Contact the nearest authorized Olympus service center. CAUTION ( Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

• If you notice any unusual odors, noise, or smoke around the camera during operation, switch it off immediately – and disconnect a specified AC adapter (if attached). Allow the camera to sit idle for a few minutes to cool. Take the camera outdoors, away from flammable objects, and carefully remove the batteries. Never remove the batteries with bare hands, which may cause a fire or burn your hands. Contact the nearest Olympus service center immediately. d4247_basic_e_00_bookfile_7.book Page 7 Thursday, January 27, 2005 12:24 PMSafety Precautions

( Do not use the camera with wet hands.

• To avoid dangerous electrical shock, never hold or operate the camera with wet hands. ( Do not leave the camera in places where it may be subject to extremely high temperatures.

• Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger or AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire. ( Handle the camera with care to avoid getting a low-temperature burn.

• When the camera contains metal parts, overheating can result in a low- temperature burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

• In places subject to extremely cold temperatures, the temperature of the camera’s body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures. ( Be careful with the strap.

• Be careful with the strap when you carry the camera. It could easily catch on stray objects – and cause serious damage. ( Use only the AC adapter specified by Olympus.

• Never use any AC adapter except one specified by Olympus. Using a different AC adapter may damage the camera or power source, or result in accidents or fire. Ensure the adapter used is designed for your region or country. For more information, contact the nearest Olympus service center or the store of purchase. Olympus makes no representations or warranties regarding any damages caused by AC adapters not recommended by Olympus. ( Do not damage the power-supply cord.

• Never pull or modify the power-supply cord of the AC adapter or accessories. Make sure only the plug is securely held during insertion and removal from the outlet. Stop using the camera immediately, and contact the nearest Olympus service center or the store of purchase if:

• The power-supply cord becomes hot, or it gives off smoke or unusual odors.

• The power-supply cord is cut or damaged, or the plug has a faulty contact. d4247_basic_e_00_bookfile_7.book Page 8 Thursday, January 27, 2005 12:24 PMSafety Precautions

• This camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified charger. Do not use any other chargers.

• Never heat or incinerate batteries.

• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.

• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, by soldering, etc.

• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately. WARNING

• Keep batteries dry at all times. Never allow them to come into contact with fresh or salt water.

• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for this product.

• Insert the battery carefully as described in the operating instructions. Never load the battery with its +/- terminals reversed. Never force the battery into the battery compartment.

• If the rechargeable battery has not been recharged within the specified time, stop charging it and do not use it.

• Do not use a battery if it is cracked or broken.

• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera and consult your dealer or an authorized Olympus service center. Continued use may result in fire or electric shock.

• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.

• Never attempt to modify the battery compartment on the camera, never insert anything (other than the recommended battery) into the battery compartment.

• Never subject batteries to strong shocks or continuous vibration. Battery handling precautions Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns. d4247_basic_e_00_bookfile_7.book Page 9 Thursday, January 27, 2005 12:24 PMSafety Precautions

• Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.

• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.

• Always unload the battery from the camera before storing the camera for a long period. d4247_basic_e_00_bookfile_7.book Page 10 Thursday, January 27, 2005 12:24 PM11

Weatherproof feature This camera is weatherproof, but it cannot be used underwater. Olympus will not assume any responsibility for malfunction of the camera caused by water getting inside as a result of misuse by the user. The camera is weatherproof and is not damaged by water spray from any direction. Observe the following precautions when using the camera. Water may get inside the camera if the battery compartment/ connector cover is not firmly closed. If the camera gets splashed, wipe the water off as soon as possible with a dry cloth. The rechargeable battery and other camera accessories are not weatherproof. Do not wash the camera with water. Do not drop the camera into water. Do not take pictures underwater. Battery compartment/ connector cover Firmly close the battery compartment/ connector cover. d4247_basic_e_00_bookfile_7.book Page 11 Thursday, January 27, 2005 12:24 PM12

If you find any contents missing or damaged, please contact your retailer. Contents vary depending on the area where you purchased this camera. Digital Camera Strap Card LI-30B Lithium Ion Battery LI-30C Lithium Ion Battery Charger USB Cable AV Cable OLYMPUS Master CD-ROM Basic Manual (this manual) Advanced Manual (CD-ROM) Warranty Card Registration card d4247_basic_e_00_bookfile_7.book Page 12 Thursday, January 27, 2005 12:24 PMUNPACKING THE BOX CONTENTS

Attach the strap as shown. Note Be careful with the strap when you carry the camera, as it can easily catch on stray objects, causing injury or damage. Do not swing the camera around by the strap or pull the strap with excessive force as this may cause the strap to break. Attach the strap correctly as shown above so that the camera does not fall off. If the strap is attached incorrectly and the camera falls off, Olympus is not responsible for any damages. Attaching the strap Pull the strap tight so that it does not come loose. d4247_basic_e_00_bookfile_7.book Page 13 Thursday, January 27, 2005 12:24 PM14

The battery is not fully charged at the time of purchase. Charge the battery fully with the LI-30C charger before use. Note There are two types of the LI-30C battery charger, one is “AC cable type” and the other is “plug-in type.” Depending on the region where you purchased the camera, the included battery charger type differs. We explain here how to use the AC cable type battery charger as an example. If you received the plug-in type battery charger, plug it directly into an AC outlet.

Connect the AC cable.

Insert the battery in the battery charger. TIPS The LI-30B battery takes approximately 110 minutes to charge. AC wall outlet

Lithium ion battery(LI-30B) When charging begins, the indicator lights red. When the battery is fully charged, the indicator turns green. Charging indicator d4247_basic_e_00_bookfile_7.book Page 14 Thursday, January 27, 2005 12:24 PMCHARGING THE BATTERY

Note This camera uses an Olympus LI-30B lithium ion battery. No other type of battery can be used. Use only the specified charger. Battery life varies depending on shooting conditions, etc. The charger can be used within the range of AC100V to AC240V (50/60Hz). When using the charger abroad, you may need a plug adapter to convert the plug to the shape of the AC wall outlet. For details, ask at your local electrical shop or travel agent. Do not use voltage converters sold in stores traveling overseas as this could damage your charger. d4247_basic_e_00_bookfile_7.book Page 15 Thursday, January 27, 2005 12:24 PM16

Make sure the camera is off.

Open the battery compartment/connector cover.

Insert the battery. Lens barrier closed Monitor off Lamp offBattery compartment/connector cover Press and hold the button A. While pressing, push the battery compartment/connector cover in the direction of the arrow, to open the cover.

To remove the battery Slide the lock knob as shown. The battery pops up allowing you to grasp it.Battery The battery is locked into place when inserted correctly.Battery lock knobBattery lock knob d4247_basic_e_00_bookfile_7.book Page 16 Thursday, January 27, 2005 12:24 PMINSERTING THE BATTERY AND CARD

Open the card cover.

Insert the card. Note Inserting the card the wrong way or at an angle could damage the contact area or cause the card to jam. The card may not record properly if it is not inserted all the way in. Releasing your finger quickly after pushing the card all the way in may cause it to eject forcefully out of the slot. Use your fingertips to pull the card cover towards you.Card cover Make sure that the card is oriented correctly and insert until it clicks while keeping it straight.Grasp and remove.To remove the cardPush the card all the way in and release slowly. Card d4247_basic_e_00_bookfile_7.book Page 17 Thursday, January 27, 2005 12:24 PMINSERTING THE BATTERY AND CARD

Close the card cover.

Close the battery compartment/connector cover. Note If the card cover is open, the battery compartment/connector cover cannot be closed. d4247_basic_e_00_bookfile_7.book Page 18 Thursday, January 27, 2005 12:24 PMINSERTING THE BATTERY AND CARD

Note The amount of power consumed by the camera varies considerably depending on shooting conditions, etc. Power is consumed continuously during the conditions described below. This discourages the power from lasting longer. When the monitor is in playback mode for an extended period of time. Repeated zoom adjustments. Repeated auto focus by depressing the shutter button halfway. When connected to a computer or printer. If you use an exhausted battery, the camera may turn off without displaying the battery level warning. This camera uses an xD-Picture Card (16 – 512MB). Note This camera may not recognize a non-OLYMPUS card or a card that was formatted on another device (such as a computer, etc.). Before use, be sure to format the card on this camera. Do not press on the card with hard or pointed items such as ballpoint pens. Never open the battery compartment/connector cover, or remove the card or the battery while the camera is turned on. Doing so could destroy the data stored on the card. Once destroyed, data cannot be restored. Do not place a sticker or label on the card as this could prevent the card from being ejected. The battery The card Index area You can use this space to write the contents of the card. Contacts The part where the data transferred from the camera enters the card. d4247_basic_e_00_bookfile_7.book Page 19 Thursday, January 27, 2005 12:24 PM20

Set the mode dial to K and press the POWER switch. Note To save battery power, the camera automatically enters the sleep mode and stops operating after about 3 minutes of non-operation. The camera activates again as soon as you operate the shutter button or zoom button. 15 minutes after the camera enters sleep mode, the camera retracts the lens and turns off automatically. Turn the camera on to use.Mode dialPOWER switchBattery check indicatorShooting mode The lens extends and the monitor turns on.

d4247_basic_e_00_bookfile_7.book Page 20 Thursday, January 27, 2005 12:24 PMTURNING THE CAMERA ON

Setting the date and time The first time you use the camera, [Y/M/D] is displayed prompting you to enter the date and time. See “Setting the date and time” in

Chapter 7 of the Advanced Manual. The

camera operates without making this setting. Language for on-screen display The language for on-screen display varies depending on the area where you purchased this camera. The instructions given in this manual and the Advanced Manual apply to the camera screens in English. To change the language, refer to the “Selecting a language” in Chapter 7 of the Advanced Manual. The battery check indicator changes according to how much power is remaining. Turning on the camera for the first time

Y/M/DENGLISHFRANCAISPORTUGUESESPAÑOLSELECT GO

Battery power Lit (green) (Disappears after a while.) Ready to shoot. No power is left. Charge the battery. Blinking (red) The battery needs charging soon.

[BATTERY EMPTY] is displayed. d4247_basic_e_00_bookfile_7.book Page 21 Thursday, January 27, 2005 12:24 PM22

Compose your picture.

Focus on your subject.

AF target mark Using the monitor, place the AF target mark on your subject.Shutter button Lamp

# markGreen lamp The green lamp lights when the focus and exposure are locked (Focus lock). The # mark lights when the flash is about to fire. Press the shutter button halfway and hold. d4247_basic_e_00_bookfile_7.book Page 22 Thursday, January 27, 2005 12:24 PMTAKING A PICTURE

Take the picture. Note Press the shutter button gently. If it is pressed hard, the camera may move and pictures may come out blurred. Never open the battery compartment/connector cover, remove the battery or disconnect the AC adapter while the lamp on the camera is blinking red. Doing so could destroy stored pictures and prevent storage of pictures you have just taken. Recorded pictures are saved on the card regardless of whether the camera is turned off or the battery is replaced or removed. When taking pictures against strong backlight, the area of the picture in shadow may appear colored. Every time you press the shutter button, the memory gauge lights indicating that the picture you have just taken is being recorded onto the card. The memory gauge changes according to how many pictures the camera is processing. This indicator is not displayed while recording movies. The lamp on the camera blinks red while the picture is recorded onto the card.

Memory gauge Press the shutter button completely. Memory gauge a b c d Before taking any pictures (Off) Maximum reached (All lit) Wait until the indicator turns off again before taking more pictures. After taking one picture (Lit) After taking several pictures (Lit) Shoot Shoot Shoot Wait d4247_basic_e_00_bookfile_7.book Page 23 Thursday, January 27, 2005 12:24 PM24

Use the arrow pad to display the picture you want.

You can display the last picture you took while staying in any shooting mode. Press the QUICK VIEW button again or press the shutter button lightly when you are ready to take another picture. QUICK VIEW button

Next picturePrevious picture10 pictures back10 pictures forward d4247_basic_e_00_bookfile_7.book Page 24 Thursday, January 27, 2005 12:24 PMEn

Press the POWER switch. POWER switch The monitor turns off. The lens retracts. Now that you have mastered basic camera operation, check out the Advanced Manual for more camera applications. …And for extra enjoyment, install OLYMPUS Master image editing software on the supplied CD-ROM. d4247_basic_e_00_bookfile_7.book Page 25 Thursday, January 27, 2005 12:24 PMEn

Enjoy the camera more Things you can do with this camera Using the card... Pictures taken with this camera are stored on a xD-Picture Card. By storing the relevant print reservation data with the images on the card, you can print pictures at a photo shop or on a PictBridge-compatible printer. Using a printer... With a PictBridge-compatible printer, you can print pictures directly from your camera. Using the mode dial... Use the mode dial to select a shooting or playback mode. Using the arrow pad and

button... The arrow pad and e button are for selecting and setting menu options as well as viewing pictures frame by frame. Using the direct buttons... f lets you select the optimum settings for the shooting conditions. Direct buttons also let you perform functions such as setting the flash mode, taking close-up pictures, or using the self-timer, making camera operation easy. d4247_basic_e_00_bookfile_7.book Page 26 Thursday, January 27, 2005 12:24 PMEn

Enjoy the camera more Installing OLYMPUS Master Software The supplied CD-ROM contains OLYMPUS Master software for installing and managing image files. Install it on your computer to enjoy the pictures you have taken. For details, refer to the online help after installing the OLYMPUS Master software. Download images from the camera or other media View images and movies You can enjoy slideshows and play back sound. Manage images You can organize your images using the calendar display. Search the image you want by date or keyword. Make panoramic images You can make panoramic images using pictures taken in panorama mode. Print images You can print images and make indexes, calendars and postcards. Edit images You can rotate images, trim them and change the size. After installing the OLYMPUS Master software, we recommend that you fill out the user registration for your camera. By making your registration, you will receive information on software and firmware updates from Olympus. User Registration d4247_basic_e_00_bookfile_7.book Page 27 Thursday, January 27, 2005 12:24 PM28

Specifications Camera Product type : Digital camera (for shooting and displaying) Recording system Still picture : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF)) Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge Sound with still pictures : Wave format Movie : QuickTime Motion JPEG support Memory : xD-Picture Card (16 – 512 MB) No. of storable pictures (when a 16 MB card is used) : Still picture (without sound) Record mode Image size Card capacity in number of pictures SHQ 2560 × 1920 4 frames HQ 13 frames SQ1 2048 × 1536 20 frames SQ2 1600 × 1200 24 frames 1280 × 960 38 frames 1024 × 768 58 frames 640 × 480 90 frames Movie (with sound) Record mode Image size Remaining recording time

160 × 120 (15 frames/sec.) 1 min. 45 sec. No. of storable pictures when a new battery is used (fully charged) : Approx. 130 frames (based on CIPA battery life measurement standards) No. of effective pixels : 5,000,000 pixels Image pickup device : 1/2.5" CCD (primary color filter), 5,400,000 pixels (gross) Lens : Olympus lens 5.8 mm to 11.6 mm, f3.5 to f4.9, (equivalent to 35 mm to 70 mm lens on a 35 mm camera) Photometric system : Digital ESP metering, spot metering system Shutter speed : 1/2 to 1/1000 sec. (max. 4 sec. in Night scene mode) Shooting range : 0.5 m (1.6 ft.) to ) (normal)

0.2 m (0.7 ft.) to ) (macro mode)

0.08 m (3.2") to 0.5 m (1.6 ft.) (T only) (super macro mode)

Monitor : 1.8" TFT color LCD display, 134,000 pixels d4247_basic_e_00_bookfile_7.book Page 28 Thursday, January 27, 2005 12:24 PMSpecifications

Flash charging time : Approx. 5 seconds (fully charged new battery is used, and the charging time is measured in the normal temperature after a full flashing.) Outer connector : Multi-connector Automatic calendar system : 2000 up to 2099 Weatherproof Type : Equivalent to IEC Standard publication 529 IPX4 (under OLYMPUS test conditions) Meaning : Camera is not damaged by water spray from any direction. Operating environment Temperature : 0°C to 40°C (32°F to 104°F) (operation) -20°C to 60°C (-4°F to 140°F) (storage) Humidity : 30% to 90% (operation)/10% to 90% (storage) Power supply : Only an Olympus LI-30B lithium ion battery AC adapter specified by Olympus (optional) Dimensions : 95 mm (W) × 55.5 mm (H) × 27.5 mm (D) (3.8" × 2.2" × 1.2") (excluding protrusions) Weight : 115 g (0.3 lb.) (without battery and card) xD-Picture Card Memory type : NAND flash EEP-ROM Operating environment Temperature : 0°C to 55°C (32°F to 131°F) (operation) -20°C to 65°C (-4°F to 149°F) (storage) Humidity : 95% or lower Power : 3V (3.3V) Dimensions : 20 × 25 × 1.7 mm (0.8" × 1.0" × 0.1") LI-30B Lithium ion Battery Type : Lithium ion rechargeable battery Standard voltage : DC 3.6V Standard capacity : 645 mAh Battery life : Approx. 300 full recharges (varies on usage) Recommended temperature : 10°C to 40°C/32°F to 104°F (charging) -10°C to 60°C/14°F to 140°F (operation) -20°C to 35°C/32°F to 86°F (storage) Dimensions : 34 × 27 × 8.5 mm (1.3" × 1.1" × 0.4") Weight : Approx. 16 g/1.2 oz. d4247_basic_e_00_bookfile_7.book Page 29 Thursday, January 27, 2005 12:24 PMSpecifications

LI-30C Battery Charger Power requirements : AC 100 to 240V (50 to 60 Hz) Output : DC 4.2V 550 mA Charging time : Approx. 110 minutes Equipment mobility : Movable (plug-in type only) Recommended temperature : 10°C to 40°C/50°F to 104°F (operation) -25°C to 65°C/-4°F to 140°F (storage) Dimensions : 74 × 52 × 30 mm (1.8" × 1.5" × 3.4") Weight : Approx. 55 g/1.9 oz. (plug-in type) Approx. 50 g/1.8 oz. (AC cable type, without AC cable.) Design and specifications subject to change without notice. d4247_basic_e_00_bookfile_7.book Page 30 Thursday, January 27, 2005 12:24 PMEn
