d4330_e_basic_01_cover_oima_7.fm Page 1 Monday, July 3, 2006 10:33 AM2

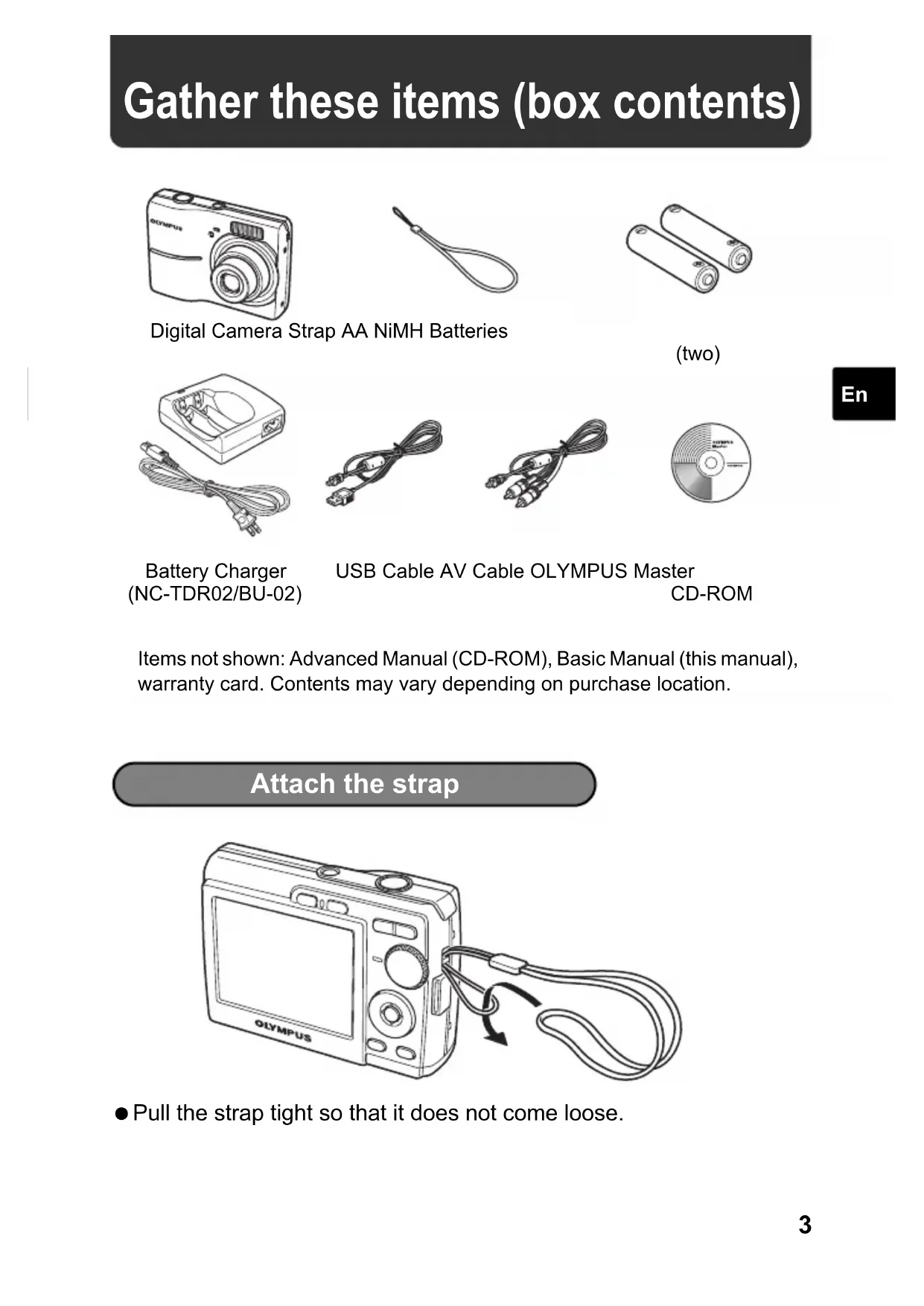

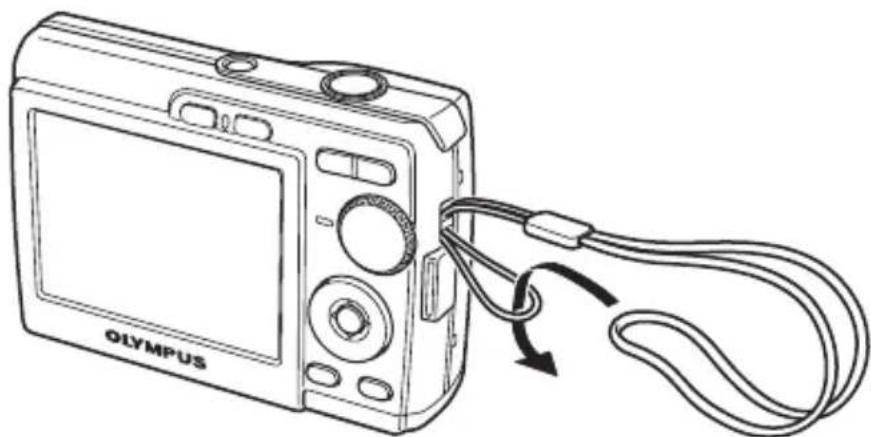

Gather these items (box contents) Pull the strap tight so that it does not come loose. Digital Camera Strap AA NiMH Batteries (two)Battery Charger (NC-TDR02/BU-02)USB Cable AV Cable OLYMPUS Master CD-ROMItems not shown: Advanced Manual (CD-ROM), Basic Manual (this manual), warranty card. Contents may vary depending on purchase location. Attach the strap d4330_e_oima_basic_00_bookfile.book Page 3 Tuesday, July 4, 2006 11:18 AM4

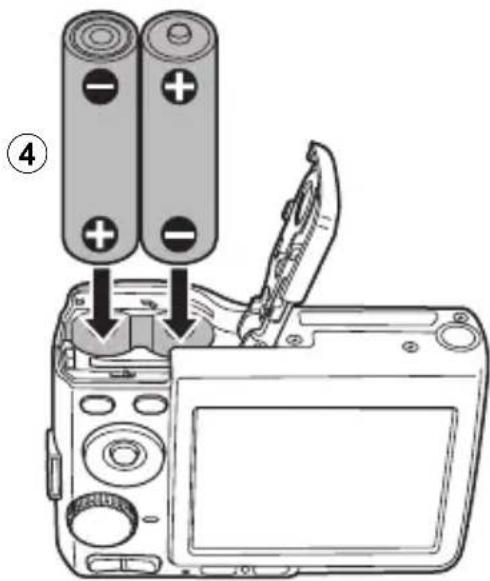

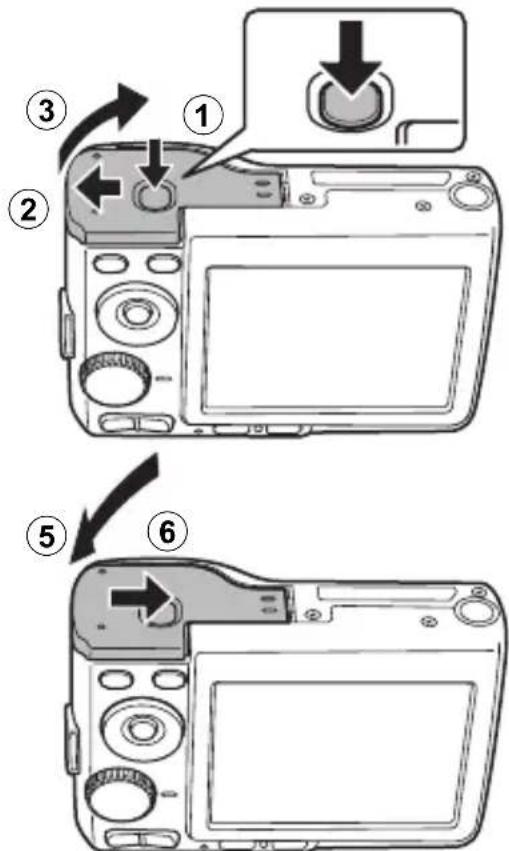

Prepare the batteries a. Charge the batteries. Batteries come partially charged. The plug of the battery charger differs depending on the region where you purchased the camera. The above procedure uses the AC cable type battery charger as an example. If you received the plug-in type battery charger, plug it directly into an AC wall outlet. b. Insert the batteries in the camera. For details on inserting an optional xD-Picture Card (hereinafter called the card), please refer to the Advanced Manual. Red light on: ChargingLight off: Charging complete(Charging time: Approx. 230 minutes)AC Wall OutletAC CableBattery Charger

Charging IndicatorAA NiMH batteries

d4330_e_oima_basic_00_bookfile.book Page 4 Tuesday, July 4, 2006 11:18 AM5

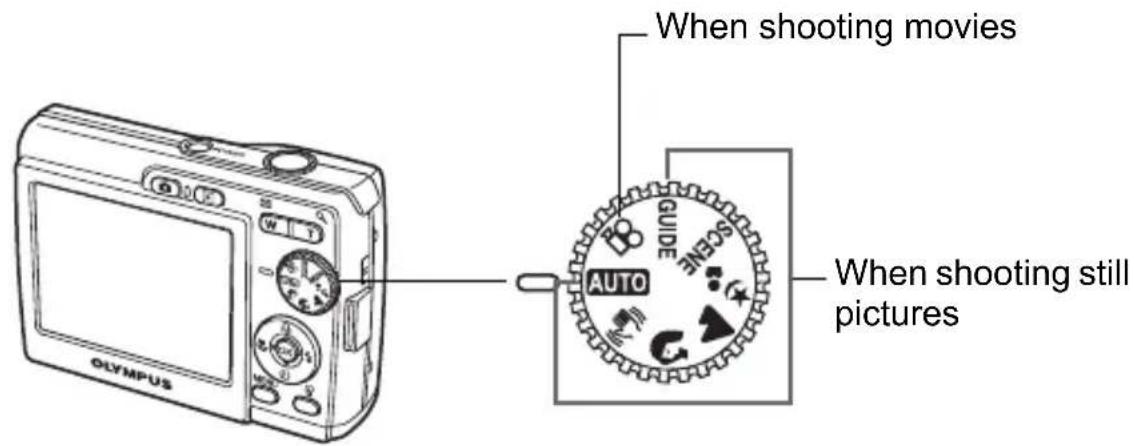

Turn the camera on This explains how to turn on the camera in shooting mode. a. Set the mode dial to h. Still picture shooting modes b. Press the o button. To turn off the camera, press the o button once again. h For normal shooting. h This function reduces the blur incurred by a moving subject or camera movement when taking pictures.B Suitable for taking pictures of people.E Suitable for taking pictures of a landscape.M Suitable for taking pictures of people at night. f Select from 10 scene modes according to the shooting conditions. R Use the shooting guide displayed on the screen to shoot pictures according to the situation.When shooting moviesWhen shooting still pictureso button MENU TIME TIME DMY

This screen is displayed if the date and time are not set. d4330_e_oima_basic_00_bookfile.book Page 5 Tuesday, July 4, 2006 11:18 AM6

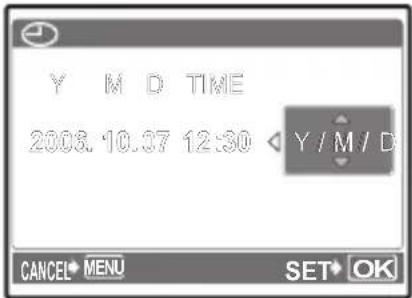

Set the date and time a. Press the O< and NY buttons to select [Y].

• The first two digits of the year are fixed. b. Press the Y# button. c. Press the O< and NY buttons to select [M]. About the date and time setting screen MENU TIME TIME DMY

Y-M-D Cancels the setting Hour Date formats (Y-M-D, M-D-Y, D-M-Y) Minute O< button NY button MENU

d4330_e_oima_basic_00_bookfile.book Page 6 Tuesday, July 4, 2006 11:18 AM7

i. Press the O< and NY

buttons to select [Y/M/D]. j. After all settings have been set, press Q.

• The time is displayed in the 24-hour format.

• For a more accurate setting, press Q when the time signal hits 00 seconds. MENU

d4330_e_oima_basic_00_bookfile.book Page 7 Tuesday, July 4, 2006 11:18 AM8

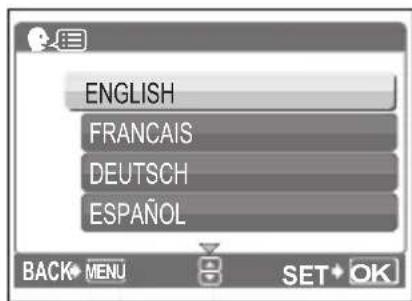

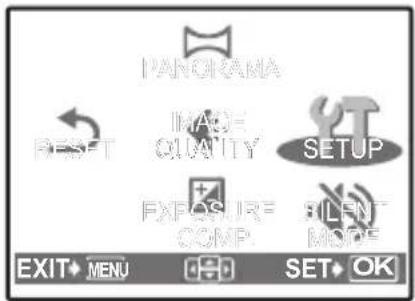

Set the language a. Press the m button to display the top menu. b. Press the Y# button to select [SETUP], and press Q. c. Press the O< and NY buttons to select [W], and press Q. d. Press the O< and NY buttons to select a language, and press Q.

• The selected language is set.

• You can add other languages to your camera with the provided OLYMPUS Master software. Please refer to the Advanced Manual. m button

MENU SET BACK d4330_e_oima_basic_00_bookfile.book Page 8 Tuesday, July 4, 2006 11:18 AM9

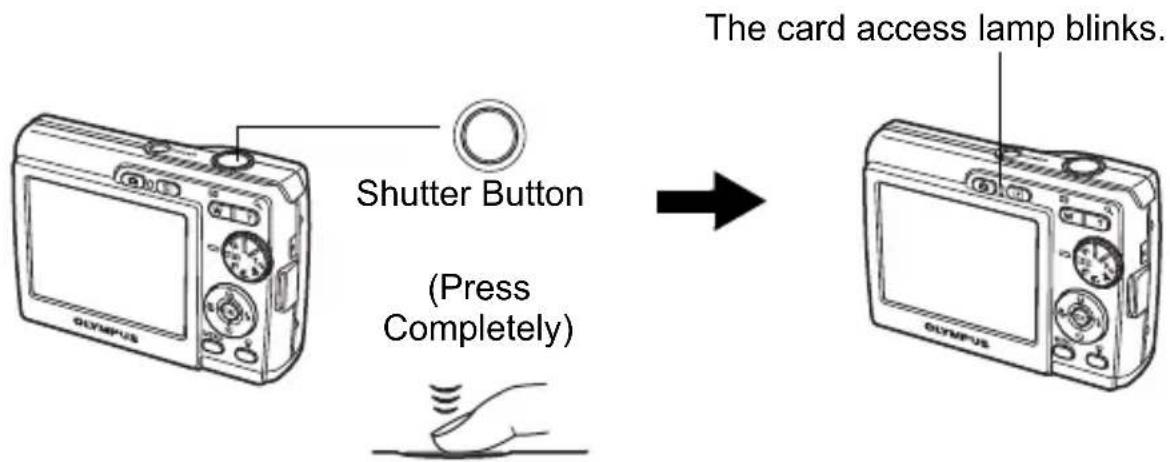

Shutter Button (Press Halfway)

The green lamp indicates the focus and exposure are locked. Place this mark over your subject. The number of pictures that can be taken is displayed. (Press Completely) Shutter Button The card access lamp blinks. d4330_e_oima_basic_00_bookfile.book Page 9 Tuesday, July 4, 2006 11:18 AM10

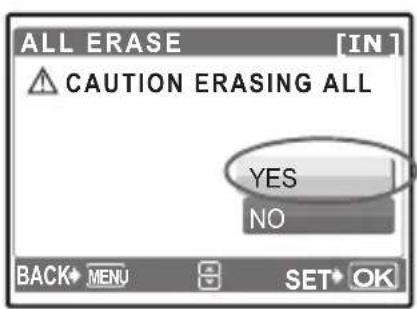

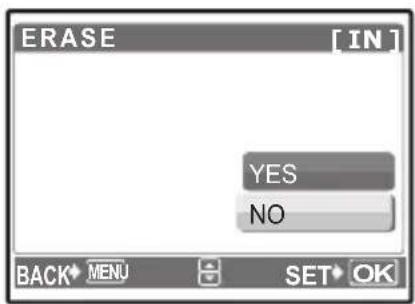

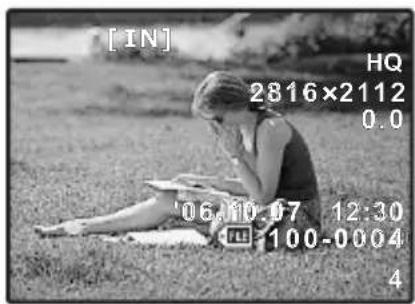

Arrow pad Displays the next image Displays the previous image q button Erase pictures S button

SET BACK ERASE d4330_e_oima_basic_00_bookfile.book Page 10 Tuesday, July 4, 2006 11:18 AM11

Basic operation While in shoting mode, use these buttons for quick access to some of the more commonly used features. 1 K button (Shooting) Selects the shooting mode. 2 q button (Playback) Selects the playback mode. 3 m button Displays the top menu. 4 S button (Erase) Selects the picture you want to erase in playback mode. 5 Arrow pad (ONXY) Selects scenes, playback pictures and menu items. 6 X& button (Macro Mode) Enables macro or super macro mode for taking close-up pictures. 7 O< button (Print) Prints out the picture displayed in playback mode. 8 Y# button (Flash Mode) Selects from 4 flash modes - AUTO, ! (Red-eye reduction), # (Fill-in flash), or $ (Flash off). 9 Q button (OK) Confirms settings. 0 NY button (Self-timer) Sets the self-timer to take the shot approximately 12 seconds after the shutter button is pressed. Shooting Mode Buttons

d4330_e_oima_basic_00_bookfile.book Page 11 Tuesday, July 4, 2006 11:18 AM12

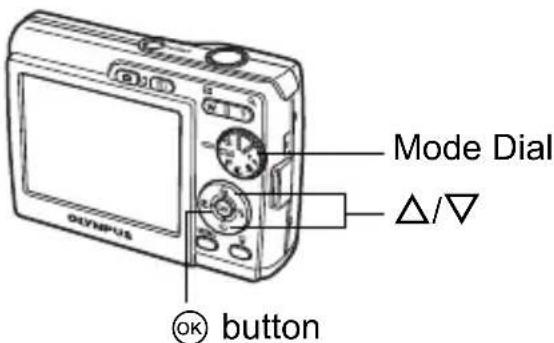

This function allows you to switch the f (scene mode) according to the subject. 1 Set the mode dial to f. 2 Press O/N to select the scene modes and press Q. Shooting Scene Modes & This mode lets you take pictures as close as 10 cm (3.9 in.) to your subject. (at the widest angle) % Use this mode to take pictures as close as 5 cm (2.0 in.) to your subject. In % mode, the position of the zoom lens is fixed. 1 Press the X& button repeatedly to select [&] or [%] and press Q.

1 Press the Y# button repeatedly to select the flash mode and press Q. 2 Press the shutter button halfway. When the flash is set to fire, the # mark lights. 3 Press the shutter button completely to take the picture. 1 Press the NY button to select [Y] and press Q. 2 Press the shutter button fully to take the picture. The self-timer lamp lights for approximately 10 seconds after the shutter button is pressed, then starts blinking. After blinking for approximately 2 seconds, the picture is taken. To save the battery power, the camera automatically enters sleep mode and stops operating if not used for approximately 3 minutes. Operate the shutter button or zoom button to reactivate the camera. If the camera is not operated for approximately 15 minutes after the camera enters sleep mode, it automatically retracts lens and turns off. To resume operation, turn on the power again. Icon Flash Mode Description indicationAuto flash The flash fires automatically in low light or backlight conditions. Red-eye reduction flashThe red-eye reduction flash mode significantly reduces this phenomenon by emitting pre-flashes before firing the regular flash. Fill-in flash The flash fires regardless of the available light. $ Flash off The flash does not fire even in low light conditions. Flash Modes Self-Timer Self-timer Lamp Power Save Feature d4330_e_oima_basic_00_bookfile.book Page 13 Tuesday, July 4, 2006 11:18 AM14

Menus and settings 1 Press the m button to display the top menu on the monitor. 2 Use the arrow pad (O/N/X/Y) to select menu items. IMAGE QUALITYSets image quality and resolution.PANORAMACreats a panoramic picture.RESETResets to the factory default settings.EXPOSURE COMP.Sets the picture brightness.SILENT MODEMutes the operation sounds, warning sounds, shutter sound, etc. during shooting and playback.SETUP Sets the date and time, language and other settings. 1 Press the m button to display the top menu in the playback mode. 2 Select [ERASE]>[ALL ERASE], and press Q. 3 Select [YES], and press Q. All the pictures are erased. Top Menu m button

d4330_e_oima_basic_00_bookfile.book Page 14 Tuesday, July 4, 2006 11:18 AM15

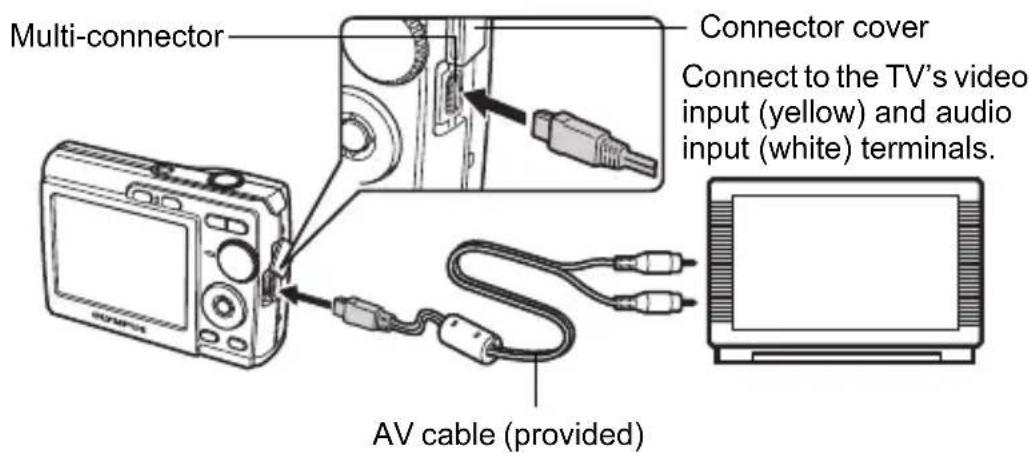

Connecting the camera Use the AV cable provided with the camera to playback recorded images on your TV. Both still pictures and movies can be played back. 1 Make sure that the TV and camera are turned off. Connect the multi- connector on the camera to the video input terminal on the TV using the AV cable. 2 Turn the TV on and set it to the video input mode. For details of switching to video input, refer to your TV’s instruction manual. 3 Turn the camera on and press the q button to select the playback mode. The last picture taken is displayed on the TV. Use the arrow pad (O/N/X/Y) to select the picture you want to display. Playback on a TV Connect to the TV’s video input (yellow) and audio input (white) terminals.AV cable (provided)Multi-connectorConnector cover d4330_e_oima_basic_00_bookfile.book Page 15 Tuesday, July 4, 2006 11:18 AM16

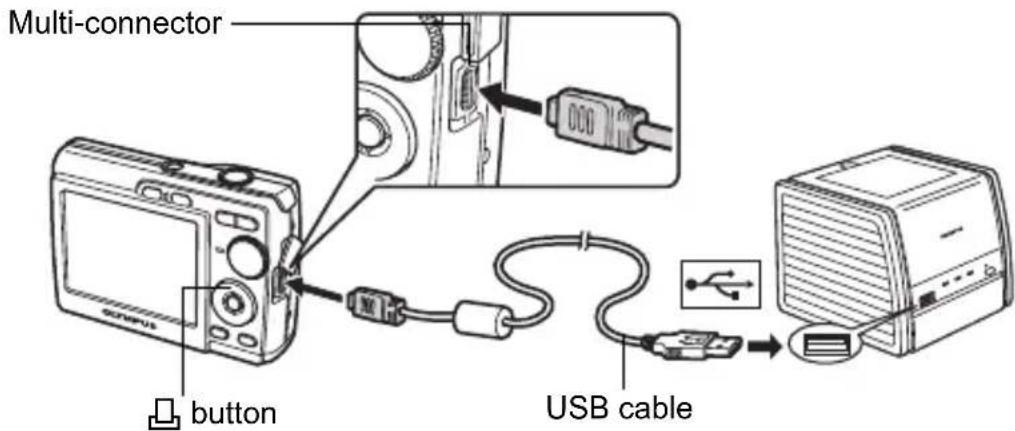

Using the provided USB cable, you may connect your camera directly to a PictBridge compatible printer such as the Olympus P-11 to make prints. You can print a picture with simple operations. 1 In playback mode, display the picture you want to print out on the monitor. 2 Connect one end of the provided USB cable into the camera’s multi- connector and the other end into the printer’s USB connector. 3 Press the < button. Printing starts. When you are finished, disconnect the USB cable from the camera with the picture selection screen displayed. Direct Printing (PictBridge) Multi-connectorUSB cable< button

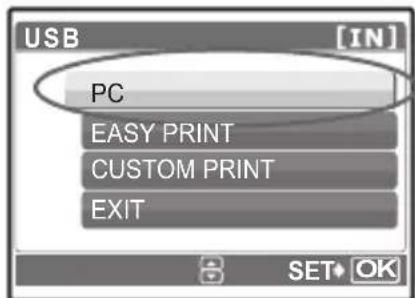

PC / CUSTOM PRINTEASY PRINT START

d4330_e_oima_basic_00_bookfile.book Page 16 Tuesday, July 4, 2006 11:18 AM17

Transfer images a. Install the software 1 Insert the OLYMPUS Master CD-ROM. 2 Windows: Click the “OLYMPUS Master” button.Macintosh: Double-click the “Installer” icon. 3 Simply follow the on-screen instructions. b. Connect the camera to the computer 1 Connect the camera and computer using the USB cable (provided). The monitor will turn on automatically. 2 Select [PC] on the monitor, and press Q. Your PC will now recognize your camera as a removable storage drive.USB cable

EXIT SET d4330_e_oima_basic_00_bookfile.book Page 17 Tuesday, July 4, 2006 11:18 AM18

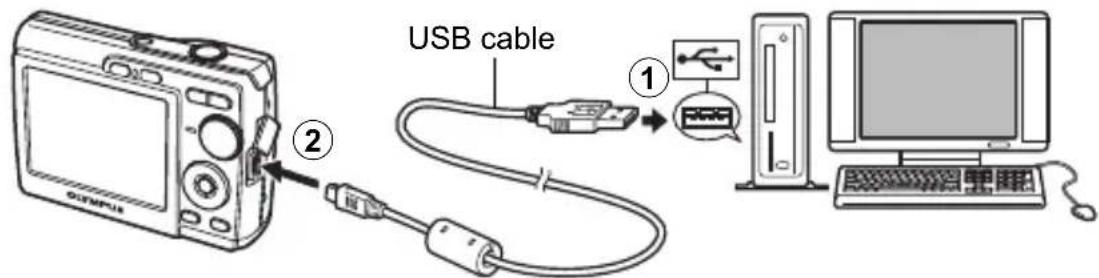

c. Transfer images to the computer 1 With the camera now connected, open OLYMPUS Master. The [Transfer Images] window is displayed. 2 Select the images you want to transfer, and click the [Transfer Images] button. If the [Transfer Images] window is not displayed automatically: [Transfer Images] window[Transfer Images] button b. Click the “From Camera” icon. a. Click the “Transfer Images” icon on the OLYMPUS Master main menu. Tips

• For more detailed information regarding camera setup and usage, please refer to the camera’s “Advanced Manual” provided on CD-ROM.

• For more details on using the OLYMPUS Master software, please refer to the (electronic) reference manual located in the OLYMPUS Master folder on your hard drive. For additional assistance, refer to the “Help” file in the OLYMPUS Master software. d4330_e_oima_basic_00_bookfile.book Page 18 Tuesday, July 4, 2006 11:18 AM19

OLYMPUS Master software OLYMPUS Master Software: Use this software to download pictures from the camera, view, organize, retouch, e-mail and print your digital pictures and movies and more! This CD also contains the complete software reference manual in Adobe Acrobat (PDF) format. (System Requirements For the latest support information, visit the Olympus website (http://www.olympus.com/) (Upgrade (OLYMPUS Master Plus) In addition to the functions in OLYMPUS Master, the OLYMPUS Master Plus features movie editing, album printing, contact sheet printing, HTML album, free stitch panorama, CD/DVD writing functions, and a lot more, allowing you to greatly expand your digital photograph capabilities. You can upgrade your software to OLYMPUS Master Plus via the Internet. You need to have OLYMPUS Master installed in a computer with an Internet connection. OS Windows 98SE/Me/2000 Professional/XP or Mac OS X (10.2 or later) CPU Pentium III 500 MHz/Power PC G3, or faster RAM 128 MB or more (256 MB or more recommended) Hard Disk 300 MB or more free space Connection USB port Monitor 1024 × 768 pixels resolution or more with minimum 65,536 colors (Windows), 32,000 colors (Macintosh) Register your camera when you install OLYMPUS Master to activate your warranty, receive notifications of software and camera firmware updates, and more. User Registration d4330_e_oima_basic_00_bookfile.book Page 19 Tuesday, July 4, 2006 11:18 AM20

Specifications (Camera Product type : Digital camera (for shooting and displaying) Recording system Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF)) Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge Movie : QuickTime Motion JPEG Memory : Internal memory xD-Picture Card (16 MB – 1 GB) Number of effective pixels : 6,000,000 pixels Image pickup device : 1/2.5" CCD (primary color filter), 6,100,000 pixels (gross) Lens : Olympus lens 6.3 to 18.9 mm, f3.1 to 5.9 (equivalent to 38 to 114 mm on a 35 mm camera) Photometric system : Digital ESP metering Shutter speed : 4 to 1/2000 sec. Shooting range : 0.1 m (0.3 ft.) to ) (W), 0.6 m (2.0 ft.) to ) (T) (normal/macro mode)

0.05 m (2.0 in.) to ) (super macro mode)

Monitor : 2.5" TFT color LCD display, 110,000 pixels Outer connector : USB connector, A/V OUT jack (multi-connector) Automatic calendar system : 2000 up to 2099 Operating environment Temperature : 0°C to 40°C (32°F to 104°F) (operation)/ -20°C to 60°C (-4°F to 140°F) (storage) Humidity : 30% to 90% (operation)/10% to 90% (storage) Power supply : AA NiMH batteries/Alkaline batteries/ Oxyride batteries (two) Dimensions : 88 mm (W) × 60.5 mm (H) × 27.5 mm (D) (3.5 × 2.4 × 1.1 in.) (excluding protrusions) Weight : 120 g (4.2 oz) without batteries and card d4330_e_oima_basic_00_bookfile.book Page 20 Tuesday, July 4, 2006 11:18 AM21

(Battery charger (NC-TDR02) Power requirements : AC 100 to 240 V (50 to 60 Hz), 8 VA (100 V) to 11 VA (240 V) Output : DC 1.2 V, 550 mA × 2 Charging time : Approx. 230 min. (when charging HR-3UTG (typ. 2000mAh, min. 1900mAh)) Operating environment Temperature : 0°C to 40°C (32°F to 104°F) (operation)/ -20°C to 60°C (-4°F to 140°F) (storage) Dimensions : 65 × 70 × 23.3 mm (2.6 × 2.8 × 0.9 in.) Weight : Approx. 60 g (2.1 oz) Equipment mobility : Movable (plug-in type only) (Battery charger (BU-02) Power requirements : AC 100 to 240 V (50 to 60 Hz), 7 VA (100 V) to 11 VA (240 V) Output DC 1.2 V, 550 mA × 2 Charging time : Approx. 230 min. (when charging HR-3UTG (typ. 2000mAh, min. 1900mAh)) Operating environment Temperature : 0°C to 40°C (32°F to 104°F) (operation) Dimensions : 70.5 × 74.5 × 27.5 mm (2.8 × 2.9 × 1.1 in.) Weight : Approx. 76 g (2.7 oz) (not including batteries, power cable) Design and specifications subject to change without notice. d4330_e_oima_basic_00_bookfile.book Page 21 Tuesday, July 4, 2006 11:18 AM22

Safety Precautions Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference. Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product. Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus. Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections. Location — To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket. Power Source — Connect this product only to the power source described on the product label. Foreign Objects — To avoid personal injury, never insert a metal object into the product. Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers. CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.DANGERIf the product is used without observing the information given under this symbol, serious injury or death may result.WARNINGSIf the product is used without observing the information given under this symbol, injury or death may result.CAUTIONIf the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result. WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN General Precautions d4330_e_oima_basic_00_bookfile.book Page 22 Tuesday, July 4, 2006 11:18 AM23

WARNING ( Do not use the camera near flammable or explosive gases. ( Do not use the flash on people (infants, small children, etc.) at close range.

• You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject’s eyes could cause a momentary loss of vision.

• Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.

• Accidentally swallowing the battery, cards or other small parts.

• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera. ( Do not look at the sun or strong lights with the camera. ( Do not use or store the camera in dusty or humid places. ( Do not cover the flash with a hand while firing. CAUTION ( Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

• Never remove the batteries with bare hands, which may cause a fire or burn your hands. ( Never hold or operate the camera with wet hands. ( Do not leave the camera in places where it may be subject to extremely high temperatures.

• Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger if it is covered (such as a blanket). This could cause overheating, resulting in fire. ( Handle the camera with care to avoid getting a low-temperature burn.

• When the camera contains metal parts, overheating can result in a low- temperature burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

• In places subject to extremely cold temperatures, the temperature of the camera’s body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures. ( Be careful with the strap.

• Be careful with the strap when you carry the camera. It could easily catch on stray objects - and cause serious damage. Handling the Camera d4330_e_oima_basic_00_bookfile.book Page 23 Tuesday, July 4, 2006 11:18 AM24

• Use only the Olympus brand NiMH batteries and fitting charger.

• Never heat or incinerate batteries.

• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.

• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, by soldering, etc.

• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately. WARNING

• Keep batteries dry at all times.

• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.

• Never mix batteries (old and new batteries, charged and uncharged batteries, batteries of different manufacture or capacity, etc.).

• Do not charge alkaline or lithium batteries if they are not rechargeable.

• Insert the battery carefully as described in the operating instructions.

• Do not use batteries if their body is not covered by the insulating sheet or if the sheet is torn, as this may cause fluid leaks, fire, or injury. Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns. Battery Handling Precautions d4330_e_oima_basic_00_bookfile.book Page 24 Tuesday, July 4, 2006 11:18 AM25

• Do not remove batteries immediately after using the camera. Batteries may become hot during prolonged use.

• Always unload the battery from the camera before storing the camera for a long period.

• If NiMH batteries are not charged within the specified time, stop charging them and do not use them.

• Do not use a battery if it is cracked or broken.

• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.

• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.

• Never subject batteries to strong shocks or continuous vibration.

• The following AA batteries cannot be used. Batteries whose bodies are only partially or not at all covered by an insulating sheet. Batteries whose terminals are flat and not completely covered by an insulating sheet. (Such batteries cannot be used even if the - terminals are partially covered.) Batteries whose - terminals are raised, but not covered by an insulating sheet. d4330_e_oima_basic_00_bookfile.book Page 25 Tuesday, July 4, 2006 11:18 AM26

For customers in North and South America Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

• xD-Picture Card™ is a trademark.

• All other company and product names are registered trademarks and/or trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). For customers in USA Declaration of ConformityModel Number : FE-180/X-745Trade Name : OLYMPUSResponsible Party :Address : 3500 Corporate Parkway, P.O. Box 610, Center Valley,PA 18034-0610, U.S.A.Telephone Number : 484-896-5000Tested To Comply With FCC StandardsFOR HOME OR OFFICE USE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference.(2)This device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. d4330_e_oima_basic_00_bookfile.book Page 26 Tuesday, July 4, 2006 11:18 AM27
