USER MANUAL 1093306 Rug Doctor

portable spot cleaner

USER MANUAL

Model Number: 93300 series

Hot cleaner

Motorized brush for use on:

STAIrs AUTO UPHOLSTERY SPOTS / STAINS

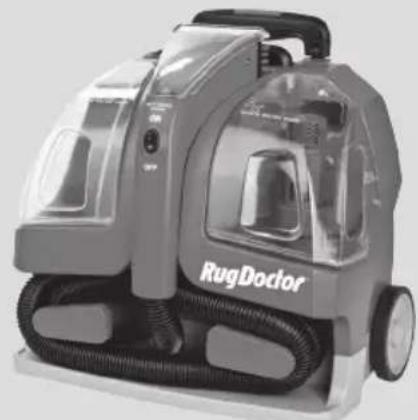

RugDoctor®

Founded by a professional carpet cleaner in 1972, the first machines were designed and built for professional use. A brand was born and soon after, Rug Doctor launched the first rental program that made professional-grade carpet cleaning machines available to the public. More than 40 years later, Rug Doctor has grown to become a household name and continues as the leader in carpet care rental systems with powerful machines and innovative products.

3 Safety Instructions
4 Quick Start
5 Parts, Components
6 How To Clean / Features
8 Troubleshooting & Replacement Parts
9 Warranty Information

Rug Doctor, Inc. 4701 Old Shepard Place

Plano, Texas 75093

consumer/[e-mail]

www.rugdoctor.com

IMPORTANT SAFETY INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY OR PROPERTY DAMAGE:

Please read all instructions before using. When using an electrical appliance, basic precautions should always be followed, including the following:

SAVE THESE INSTRUCTIONS

To avoid scalding or burns, use caution when handling hot tap water to fill tanks. Do not boil or microwave water to be used in machine.

Do not leave appliance unattended when plugged in or while it is on. Unplug from outlet when not in use and before servicing.

To reduce the risk of fire and electric shock due to internal component damage, use only Rug Doctor cleaning products intended for use with this appliance. See the Cleaning Product section of this manual.

Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close attention and adult supervision is necessary when used near children. Do not allow children to place their body parts in or near openings and moving parts.

Use only as described in this manual. Use only manufacturer's recommended products.

Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, stop using and return it to a service center.

Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Do not handle plug or appliance with wet hands.

Do not put any object into openings. Do not use if any opening is blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

Turn off all controls before unplugging.

Product contains chemicals known to the State of California to cause cancer and birth defects.

Use extra care when cleaning on stairs.

Do not use to pick up flammable or combustible liquids or materials such as gasoline, certain paints or use in areas where they may be present.

Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

Do not place in or pick up caustic or toxic materials (Such as, bleach, ammonia, toilet bowl cleaner and drain cleaners) with machine.

Connect to a properly grounded outlet only. See "Grounding Instructions."

Use only on surfaces moistened by cleaning process or small spills. Do not place or submerge machine in standing water or try to clear flooded areas.

Do not clean over floor electrical outlets.

The use of an extension cord is not recommended. Failure to follow the foregoing instructions may expose the user to the possibility of electric shock, personal injury and/or death.

When clean water tank runs out stop using and follow instructions to refill.

Do not operate without tanks or in any manner inconsistent with above warnings or the operating instructions set fourth in this manual.

WARNING

Improper connection of equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance—If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120-volt circuit and has a grounded plug that looks like the plug illustrated in Figure A. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter should be used with this appliance.

Grounding Instructions

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce

the risk of

electric shock.

This appliance is equipped with a cord having an equipment grounding conductor and

grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

QUICK START

1. Remove the CLEAN WATER TANK by lifting it straight up. Fill with hot tap water to the "Clean Water" fill line. Add RUG DOCTOR PORTABLE MACHINE & UPHOLSTERY CLEANER formula to the "SOAP" fill line.
2. Replace the CLEAN WATER TANK. Make sure it fits securely back into place.
3. Unwrap the POWER CORD and plug in to an outlet. Turn on the unit by pressing the SWITCH to the "ON" position.
4. Lift the MOTORIZED BRUSH from the unit and unwrap the flex hose completely.
5. Place the MOTORIZED BRUSH in front of the area you want to deep clean. Turn on the MOTORIZED BRUSH by pressing the SWITCH to the "ON" position. Squeeze the SOAP TRIGGER SWITCH to begin spraying cleaning solution.
6. While pressing down into the carpet, pull the brush backward over the stain or spot you want to deep clean. For set-in or deep down stains, make multiple passes.

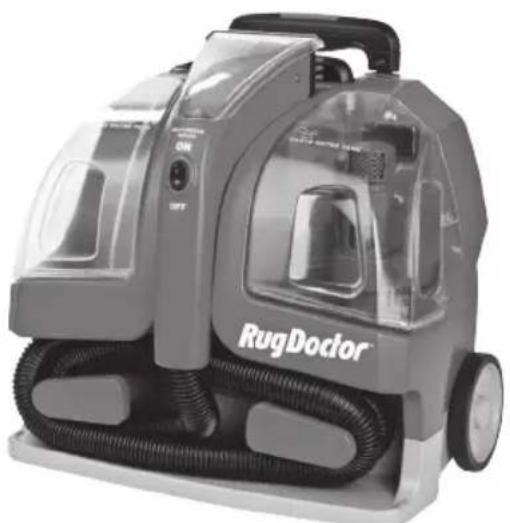

CLEANING TIPS

1. Pick-up and discard any solid debris in the area before using your RUG DOCTOR PORTABLE SPOT CLEANER.
2. Always test color fastness before using on carpets and upholstery: A.Wet an inconspicuous area with a small amount of cleaner B.After 1-2 minutes, blot with a paper towel and check for color transfer
3. When cleaning, hold the brush upright, make sure the suction nozzle is in contact with the surface you are cleaning. You will be able to see the water, soap and stain being suctioned into the nozzle. If you don't see it, tilt the nozzle forward and pass over the area you wish to clean.
4. When using RUG DOCTOR PORTABLE SPOT CLEANER on stairs, keep the machine on the step or two below where you are cleaning for easy maneuverability. Use the convenient carrying handle to move from step to step.

RUG DOCTOR PORTABLE MACHINE & UPHOLSTERY CLEANER is designed to be used with the RUG DOCTOR PORTABLE SPOT CLEANER. Use trusted RUG DOCTOR cleaning solutions whenever you use your RUG DOCTOR PORTABLE SPOT CLEANER. Using Non-RUG DOCTOR cleaning solutions may harm the machine and will void the warranty.

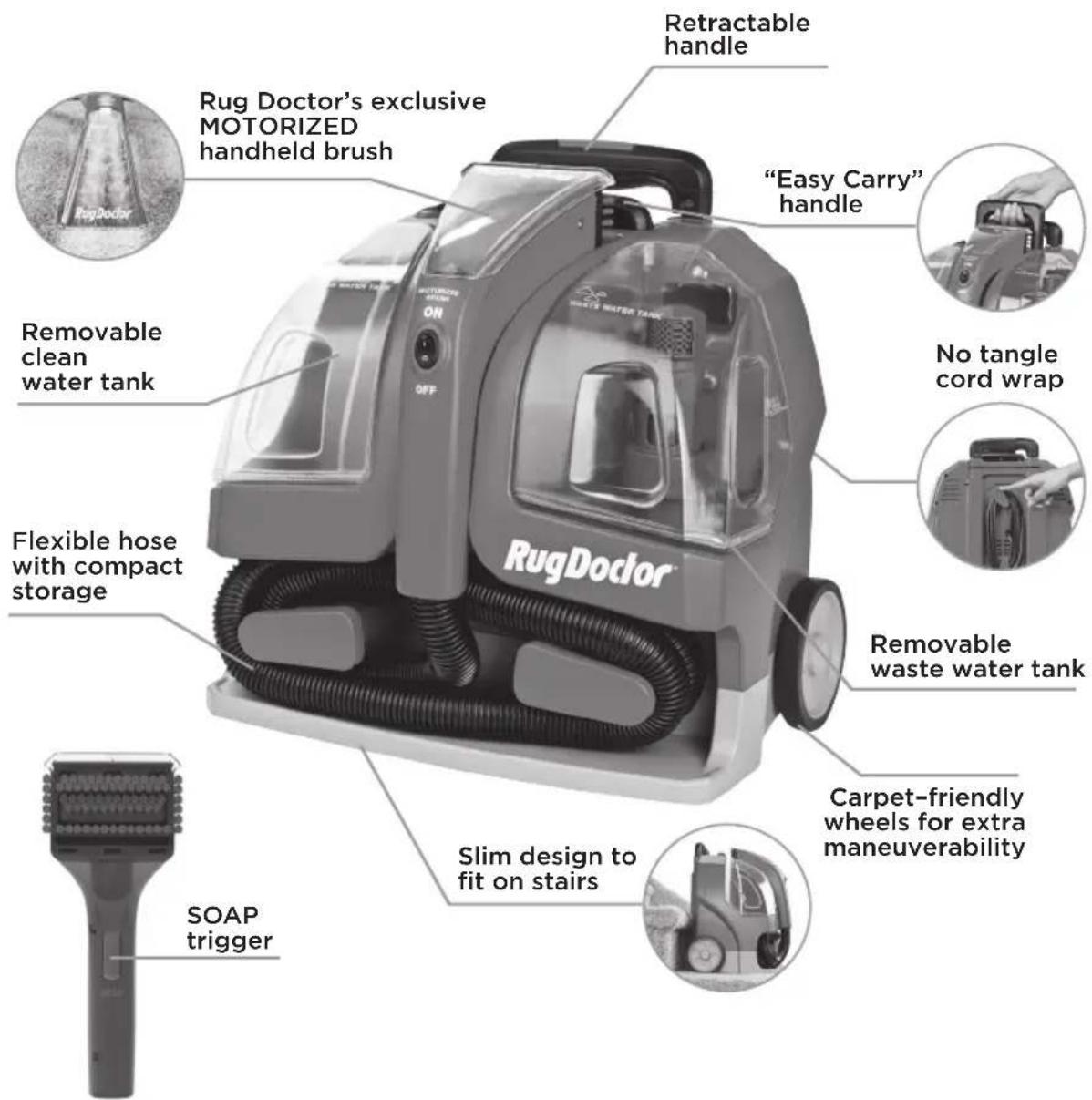

PRODUCT PARTS, COMPONENTS

CLEANING SOLUTION

RUG DOCTOR PORTABLE MACHINE & UPHOLSTERY CLEANER is formulated for the RUG DOCTOR PORTABLE SPOT CLEANER. Deep clean spots and stains all over your home; carpets, stairs, upholstery, autos and more! Keep RUG DOCTOR PORTABLE MACHINE & UPHOLSTERY CLEANER always at the ready.

SETTING UP/ GET READY TO CLEAN

Your RUG DOCTOR PORTABLE SPOT CLEANER is ready to start cleaning right out of the box. No assembly required! Follow these simple instructions to start cleaning.

1. Fill the CLEAN WATER TANK:
   a. Simply lift the CLEAN WATER TANK straight up from the unit.
   b. Unscrew the cap and pull the tube from the tank.
   c. Add hot tap water, filling to the "Clean Water" line marked on the tank. DO NOT BOIL OR MICROWAVE WATER.
   d. Pour RUG DOCTOR PORTABLE MACHINE & UPHOLSTERY CLEANER solution into the tank, filling to the "Soap" line marked on the tank.
   e. Insert the tube into the tank, replace the outer cap and tighten.
   f. Replace the tank by setting it straight down into the unit, pressing down firmly until it feels secure.
2. Lift the MOTORIZED BRUSH from the unit and completely unwrap the flex hose from around the hose wraps.
3. Rotate the cord wrap hooks on the back of the unit to release the power cord, unwrap completely. Plug into a grounded outlet.

DO NOT USE BOILED OR MICROWAVED WATER IN TANK. Doing so could result in scalding or burns. Not recommended for use on wool, jute, sisal carpets and rugs. Doing so could damage material and void warranty on machine. Do not walk on wet carpet.

HOW TO CLEAN / FEATURES

You're now ready to deep clean spots and stains on carpet, upholstery and hard to clean places such as stairs and automobiles. Your RUG DOCTOR PORTABLE SPOT CLEANER has innovative features; A powerful MOTORIZED BRUSH to clean deep down and WHEELS AND A RETRACTABLE HANDLE to make getting to the stain easier than ever before.

MOTORIZED BRUSH

1. With the unit powered on, position the MOTORIZED BRUSH in front of the stain or area you want to deep clean.
2. Turn ON the MOTORIZED BRUSH by pressing power switch to the "ON" position.
3. Squeeze and hold the SOAP trigger to begin cleaning.
4. Slowly move the tool over the stain, releasing the SOAP trigger when complete.
5. Excess water can be removed by making additional passes with the tool without squeezing the SOAP trigger. This may permit faster drying.
6. Leave machine on for 15 seconds after cleaning to allow all of the dirty solution to be collected into the WASTE WATER TANK.

WHEELS & RETRACTABLE HANDLE

1. To lift the RETRACTABLE HANDLE press down on the HANDLE RELEASE button while lifting the handle upward.
2. Tip the unit back and pull to maneuver easily around your home.
3. To retract the handle, press down on the HANDLE RELEASE button pushing the handle downward until completely recessed into the unit.

HOW TO CLEAN / FEATURES (CONT)

EMPTYING THE WASTE WATER TANK

1. Empty the WASTE WATER TANK when the dirty water reaches the "Full Line"
2. Remove the WASTE WATER TANK from the unit by pulling the tank forward and lifting it straight up.
3. Over a sink or tub, turn the tank on its side (being careful to position the tank inlet upward) and unscrew the WIDE OPENING LID. Remove the WIDE OPENING LID and float column from inside the tank and set aside.
4. Empty the dirty water into the sink or tub and rinse the inside of the tank.
5. Replace the float column and the WIDE OPENING LID, firmly tighten the cap.
6. Place the tank by setting it straight down into the unit, pressing down firmly until it feels secure.

REFILL THE CLEAN WATER/SOLUTION TANK

1. Simply lift the CLEAN WATER TANK straight up from the unit.
2. Unscrew the cap and pull the tube from the tank.
3. Add hot tap water, filling to the "Clean" line marked on the tank. DO NOT BOIL OR MICROWAVE WATER.
4. Pour RUG DOCTOR PORTABLE MACHINE & UPHOLSTERY CLEANER cleaning solution into the tank, filling to the "Soap" line marked on the tank.
5. Insert the tube into the tank, replace the cap and tighten.
6. Replace the tank by setting it straight down into the unit, pressing down firmly until it feels secure.

CLEANING UP & STORAGE AFTER USE

After you've used your RUG DOCTOR PORTABLE SPOT CLEANER follow these easy steps for quick clean-up and storage of your unit.

1. Unplug the power cord from the outlet and wrap it around the rotating cord hooks.
2. Wrap the flex hose around the hose wraps and replace the MOTORIZED BRUSH on the unit.
3. Empty the CLEAN WATER TANK (if necessary), rinse and replace on the unit
4. Empty the WASTE WATER TANK then rinse, clean and dry before placing back on the unit. The WIDE OPENING LID tank opening is designed to fit your hand inside to thoroughly clean, rinse and dry, for a fresh clean tank.
5. Store the handle in the recessed position for compact storage.
6. Keep in a protected, dry area at room temperature.

IMPORTANT: DO NOT EXPOSE THE UNIT TO TEMPERATURES BELOW 40 °F AND ABOVE 110° F.

TROUBLE SHOOTING

Problem Possible Reason How to Fix
No Power Power cord not plugged inPower button not pressed	Plug power cord into wall outletPress unit power button on
No / Low Spray Not pressing	spray triggerClean Water / solution tank is empty or lowClean Water tank is not seated or installed correctlySpray is clogged	Press spray triggerFill Clean Water tank with water and solutionsLift Up Clean Water tank, secure outer cap and repositionClean the spray spout
No / Low Suction Waste Water / collection tank Is fullWaste Water / collection tank is not seated / installed correctlyFilter screen inside Waste Water / collection tank clogged	Empty Waste Water / collection tankLift Up Waste Water / collection tank and place back into positionClean off debris on filter screen inside Waste Water / collection tank
Motorized Brush Doesn't Oscillate	Brush switch not flipped Turn MOTORIZED BRUSH button to the on position. Ensure that you have vacuumed over the area first so debris or hair does not get caught or tangled in the brush

REPLACEMENT PARTS

Accessories and replacement parts are available for your RUG DOCTOR PORTABLE SPOT CLEANER by calling "Rug Doctor Customer Service 1-800-RUGDOCT (1-800-784-3628) or visiting www.rugdoctor.com.

Replacement Parts Image Part #
Clean Water Tank (with Tube & Cap) 93075
Waste Water Tank (with Float Column & Wide Opening Lid)
Retractable Handle Replacement

WARRANTY INFORMATION

Two (2) Year Limited Consumer Warranty

Rug Doctor gives the original purchaser, who retains proof of purchase, from Rug Doctor or an authorized Rug Doctor dealer, this limited warranty ("warranty") for your Portable Spot Cleaner cleaning machine acquired for normal household use (commercial or rental use is excluded). You are responsible to notify Rug Doctor within thirty (30) days of original purchase if any parts or components are missing on your Portable Spot Cleaner machine.

What Does This Warranty Cover / How Long Does The Warranty Last

Rug Doctor will, for the original purchaser, repair or replace including labor, any part that is defective in material or workmanship within two (2) years of purchase. This warranty applies to machines used for normal household purposes only.

What The Warranty DOES NOT Cover

The following exclusions apply to machine and part(s) failures due to: 1) normal wear and tear; 2) machine alterations and 3) abuse or misuse of the machine, including use not in accordance with this "Instruction Guide." This warranty does not provide for a refund of the purchase price. For best operating efficiency and cleaning, use of Rug Doctor products is recommended. Use of the machine for rental voids the warranty and is not permitted under Federal Law (see "UNAUTHORIZED USE" statement below). Commercial use is excluded under this warranty except as set forth in the "ONE YEAR LIMITED COMMERCIAL WARRANTY" below. RUG DOCTOR IS NOT LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OF ANY NATURE INVOLVING THE PURCHASE/USE OF YOUR CARPET CLEANING MACHINE. IN NO EVENT SHALL RUG DOCTOR'S LIABILITY EXCEED THE PURCHASE PRICE OF THE MACHINE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS IS RUG DOCTOR'S EXCLUSIVE WARRANTY FOR THIS PRODUCT. ALL OTHER WARRANTYES, WHETHER ORAL OR WRITTEN ARE EXPRESSLY DISCLAIMED. THE IMPLIED WARRANTYES OF A MERCHANTS' ABILITIES AND FITNESS FOR A PARTICULAR PURPOSE, WHICH MAY ARISE BY OPERATION OF LAW, ARE LIMITED TO 2 YEARS FROM THE DATE OF PURCHASE UNLESS APPLICABLE STATE LAW PROVIDES OTHERWISE.

Expenses

If a machine is returned to a warranty center for repair within thirty (30) days of original purchase, Rug Doctor will pay the freight charges both to a warranty center and back to you. Thereafter, you may be directed to take the machine to a local repair center or required to ship the machine to a Rug Doctor warranty center should additional repairs be required during the warranty period. You will be responsible to pay any freight charges for shipment to the warranty center for repairs occurring after the initial thirty (30) days. Rug Doctor will pay the freight charges back to you.

How State Laws Apply

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

How Do I Get Service Under This Warranty?

TO OBTAIN WARRANTY ASSISTANCE, please call 1-800 RUG DOCTOR (1-800-784-3628) (8 am to 5 pm Mon - Fri CST) or e-mail consumer. [e-mail]. Rug Doctor will need the following information in order to assist you: your name, address and telephone number, product model and serial number, proof of purchase showing date and place of purchase. Please explain the nature of the problem. Rug Doctor will review all the facts involved and advise you as to recommended procedure. We recommend you keep the original carton and packing materials.

Rug Doctor, Inc.

4701 Old Shepard Place

Plano, Texas 75093

E-mail: consumer. [e-mail]

Web Site: www.rugdoctor.com

Unauthorized Use

Use of this carpet cleaning machine with Rug Doctor trademarks for rental purposes is UNAUTHORIZED and is in violation of U.S.C. Section 1114(I) and 15 U.S.C. Section 1125(a).

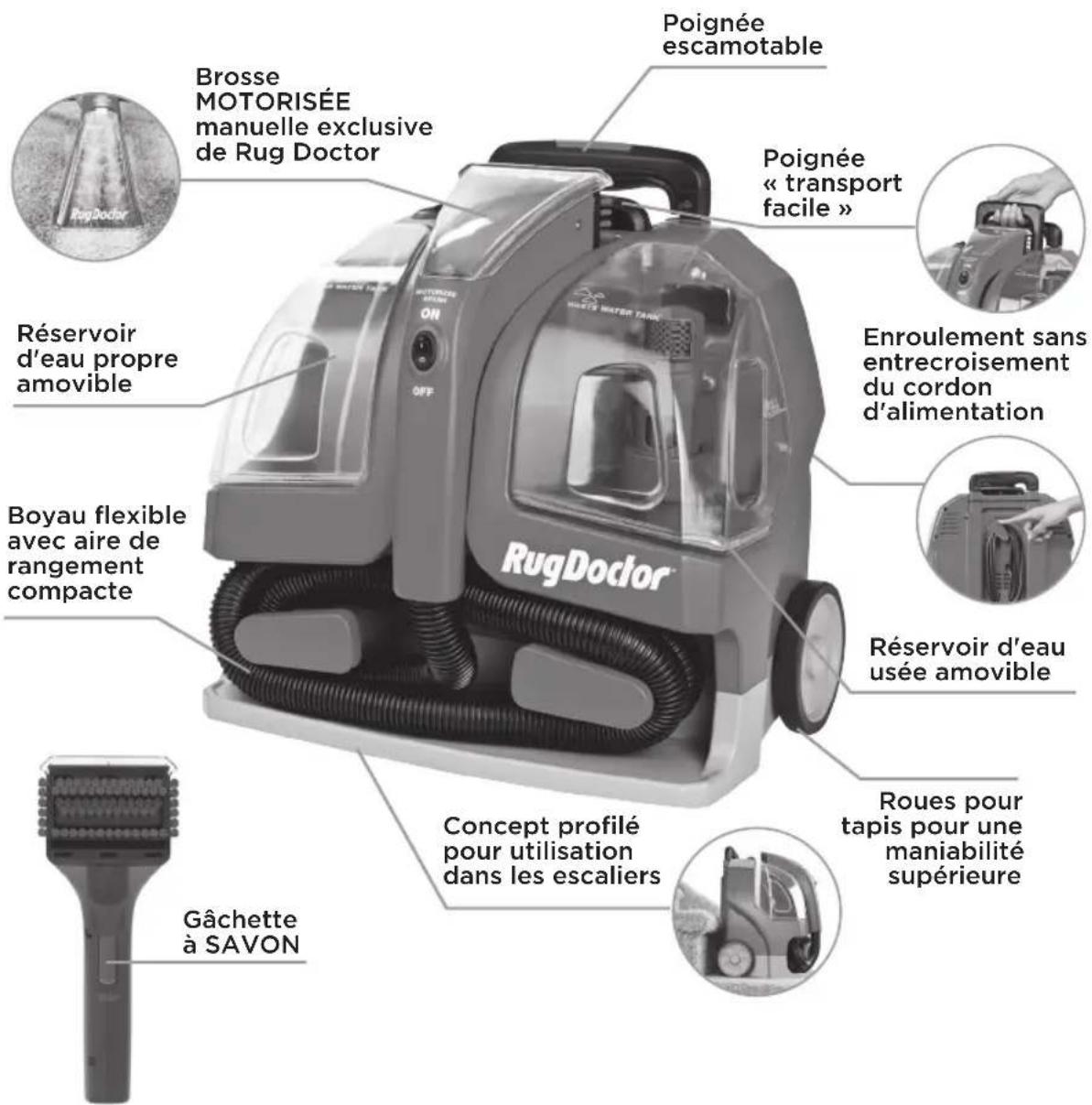

PIÉCES, COMPOSANTS DU PRODUIT

SOLUTION DE NETTOYAGE

Courriel: consumer, [e-mail]

Site Web: www.rugdoctor.com
