TA 667 - Toaster WHITE AND BROWN - Free user manual and instructions

Product type	2-slice wide-slot toaster
Brand	White And Brown
Model	TA 667
Power supply	230 V ~ 50 Hz (standard estimate)
Power	900 W (estimate)
Dimensions (W x D x H)	27 x 17 x 20 cm (estimate)
Weight	1.5 kg (estimate)
Capacity	2 slices of bread
Main functions	Toasting, defrosting, reheating, emergency stop (cancel button), croissant warmer
Adjustable thermostat	Yes, 6 positions (estimate)
Indicator lights	Defrosting, reheating
Automatic ejection	Yes, at end of cycle
Crumb tray	Yes, removable
Removable croissant warmer	Yes, with dust cover
Power cord	Standard length, non-retractable
Housing material	Plastic and metal (estimate)
Maintenance	Clean with a soft, damp cloth, empty the crumb tray regularly
Safety	Automatic shut-off, do not immerse, do not use without tray, burnt bread monitoring
Warranty	2 years (standard estimate)
Manual available in	French (free PDF)

Frequently Asked Questions - TA 667 WHITE AND BROWN

How to use the defrost function?

Place the bread into the slots, lower the lever, then press the defrost button (5). The indicator light turns on. To stop, press the button again.

Can I use the croissant warmer at the same time as toasting bread?

No, to avoid any risk of fire, never toast bread in the slots while using the croissant warmer.

How to clean the crumb tray?

Unplug the appliance, wait for it to cool completely, then remove the tray, empty it and clean it with a damp cloth. Replace it before any use.

What should I do if a slice of bread gets stuck in the toaster?

Unplug the appliance immediately. Wait for it to cool, then carefully remove the bread with a non-metallic object. Never use a knife or sharp object.

How to adjust the toasting level?

Turn the thermostat (8) to the desired position before or during toasting. The higher the number, the more toasted the bread will be.

Can I toast pastries directly in the slots?

No, use the croissant warmer (9) to reheat croissants, pain au chocolat, etc. Lower the lever of the croissant warmer, place the pastries on the slots and proceed as for toasting.

The appliance is overheating, what should I do?

Unplug it immediately and contact an authorized repair service. Never attempt to repair it yourself, as this would void the warranty.

How to use the reheat function?

Proceed as for toasting, then press the reheat button (6). The indicator light turns on. To stop, press again. The thermostat is disabled during this function.

Can I use the toaster outdoors?

No, the appliance is designed for indoor household use in a dry place. Do not expose it to moisture or water.

How to maintain the housing?

Clean it with a soft, damp cloth, then dry thoroughly. Never use abrasive products or scrapers to avoid damaging the coating.

USER MANUAL TA 667 WHITE AND BROWN

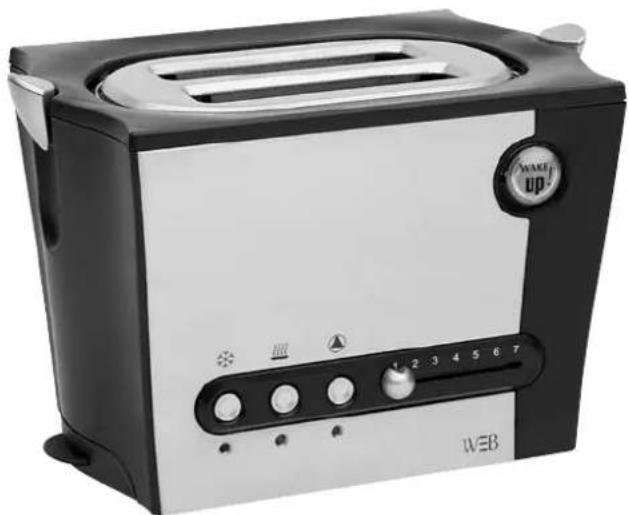

Grille-tous-pains Large capacity toaster

TA 667 - WAKE UP!

TA 667

MODE D'EMPLOI USER MANUAL

FRANÇAIS

Congratulations for having chosen this WHITE & BROWN product,

and thank you for trusting us. For your comfort and safety, your appliance has been checked

at every step of manufacturing and has successfully gone through all our tests of quality.

WHITE & BROWN creates original products to please you, as far as design and easiness to use are

concerned in order to give you complete satisfaction.

CAUTION

PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS APPLIANCE.

• Make sure the voltage rating on the type plate corresponds to your main voltage. Any error in connecting the appliance invalidates the guarantee.
• Never leave the appliance unsupervised when in use.
• Keep out of reach of children.
• Only use this appliance for domestic purposes and in the way indicated in these instructions. Never use for any other purposes.
• Never immerse the product in water or any other liquid for any reasons. Respect the instructions for cleaning.
• Do not use the appliance outside and always place it in a dry environment.
• Do not use if you have wet hands.
• Keep the appliance far from hot or electric sources.
• Never pull the cord to unplug or move the appliance.
• Unplug the appliance before cleaning or changing any parts of the appliance or when it's not in use.
  Always switch off the appliance before unplugging it.
• Do introduce neither sharp metallic objects nor fingers nor cloth inside the appliance.
• From time to time, check the cord. Never use the cord, the plug or the appliance itself when they show any sign of damage. Make sure the cord never comes into contact with the hot parts of the appliance. Do not wind the cord around the appliance and do not bend it.
• The cord length of this product has been selected to reduce the possibility of tangling in or tripping over a longer cord. If more cord length is needed, an extension cord may be used. Ensure not to let it drape over the working area or dangle where someone could accidentally pull or trip over it.
• If the cord or the plug is getting more and more hot, contact a qualified electrician.
• Never repair the appliance yourself. All interventions made by a non-qualified person can be dangerous; in this case guarantee conditions would cancel. As all electrical products, a competent electrician must repair it.

Special recommendations:

• Do not insert metal foil nor any object into the toaster.
• Do not toast runny-filled foods (like apple turnover).
• The inside part of the toaster can get high temperatures, do not touch hot surfaces as well as the crumb tray before the complete cooling.
• Pay attention bread may burn during browning. A close supervision is needed when the toaster is in use.
• Clean regularly the crumb tray to avoid crumbs from burning. Never use the appliance without the crumb tray in its correct position.
• Unplug the appliance to extract pieces of bread trapped inside the toaster.

THE MANUFACTURER WILL NOT ASSUME ANY RESPONSIBILITY IN CASE OF NON ADHERENCE TO THESE INSTRUCTIONS.

SAVE THIS USER MANUAL CAREFULLY.

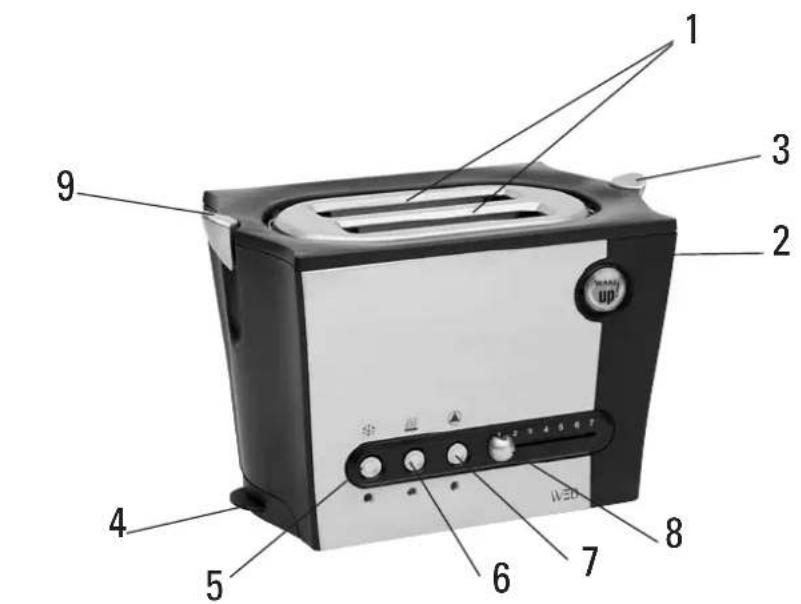

DESCRIPTION OF THE APPLIANCE

1-Slices.
2-Body.
3- Toasting lever.
4-Crumb tray.
5-Defrost key.
6-Reheat key.
7-Cancelkey.
8-Thermostat.
9-Bun warmer lever.
10 - Anti dust removable lid.

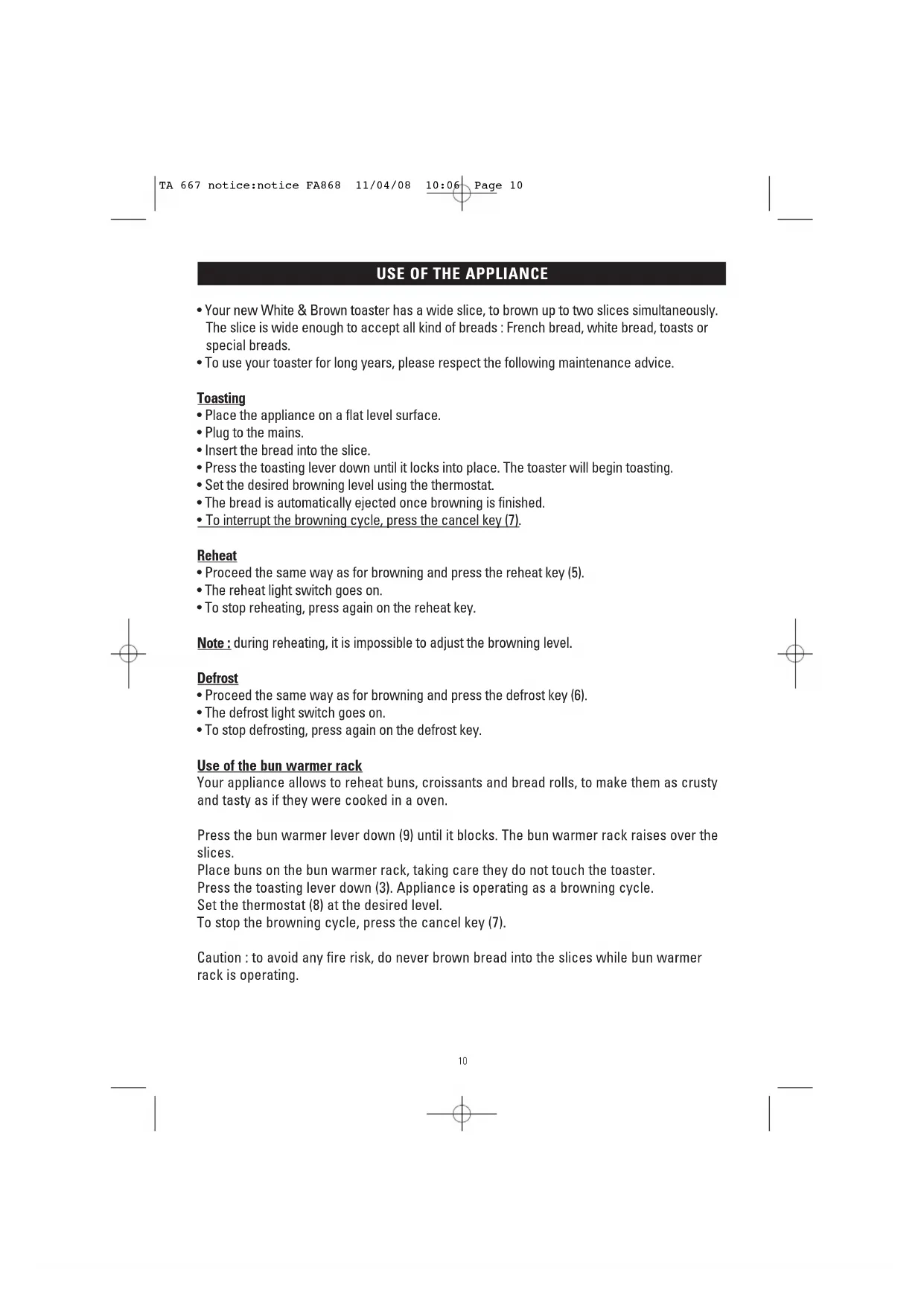

USE OF THE APPLIANCE

• Your new White & Brown toaster has a wide slice, to brown up to two slices simultaneously. The slice is wide enough to accept all kind of breads: French bread, white bread, toasts or special breads.
  To use your toaster for long years, please respect the following maintenance advice.

Toasting

• Place the appliance on a flat level surface.
• Plug to the mains.
• Insert the bread into the slice.
• Press the toasting lever down until it locks into place. The toaster will begin toasting.
• Set the desired browning level using the thermostat.
• The bread is automatically ejected once browning is finished.
• To interrupt the browning cycle, press the cancel key (7).

Reheat

• Proceed the same way as for browning and press the reheat key (5).
• The reheat light switch goes on.
• To stop reheating, press again on the reheat key.

Note: during reheating, it is impossible to adjust the browning level.

Defrost

• Proceed the same way as for browning and press the defrost key (6).
• The defrost light switch goes on.
• To stop defrosting, press again on the defrost key.

Use of the bun warmer rack

Your appliance allows to reheat buns, croissants and bread rolls, to make them as crusty and tasty as if they were cooked in a oven.

Press the bun warmer lever down (9) until it blocks. The bun warmer rack raises over the slices.

Place buns on the bun warmer rack, taking care they do not touch the toaster.

Press the toasting lever down (3). Appliance is operating as a browning cycle.

Set the thermostat (8) at the desired level.

To stop the browning cycle, press the cancel key (7).

Caution : to avoid any fire risk, do never brown bread into the slices while bun warmer rack is operating.

CLEANING AND MAINTENANCE

• Switch off the appliance, unplug and wait for complete cooling.
• Wipe the body of the toaster with a damp cloth. Dry thoroughly. Do not use abrasive cleansers.
• Pull out and empty the crumb trays regularly.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods of disposal.

The materials are recyclable as mentioned in its marking. By recycling or others forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.
