CLEANING THE DUST SENSOR

• ·····································································

• ··························································································

• ································································

• ·················································································

• ···············································································

• ·················································································

This product is suitable for 120 V only. French

• ·········································································································

• ········································································································

Advanced Odor Control (AOC

Please read and follow all safety rules and instructions in this manual before operating. The product warranty is printed on the back of this guide, so please keep it in a safe place for future use. This product is manufactured for use only in USA/CA.

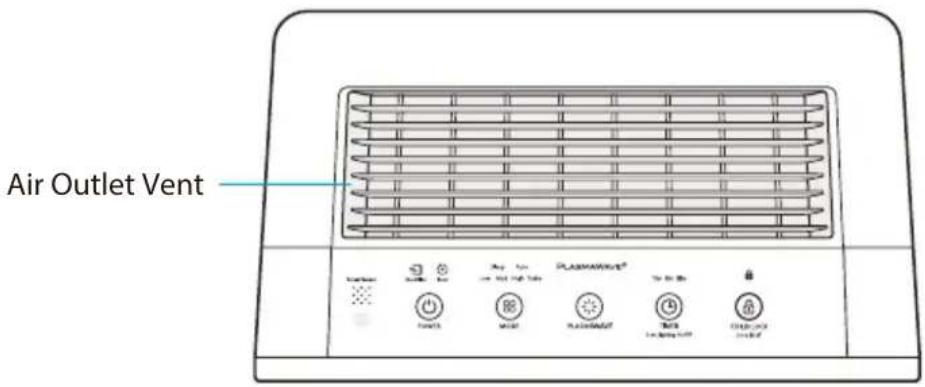

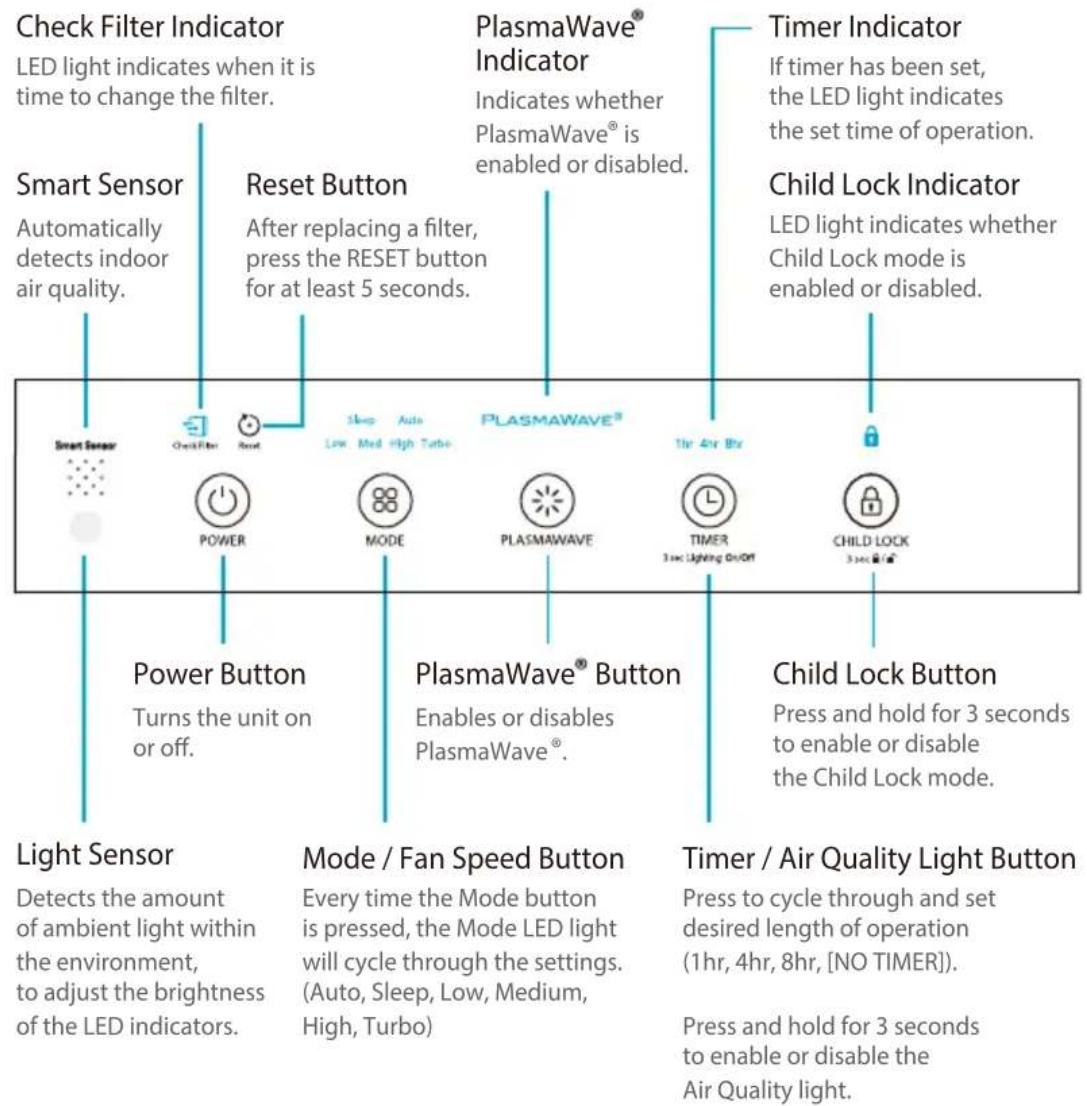

HR9004 English HR900 CONTROLS Air Outlet Vent Light Sensor Detects the amount of ambient light within the environment, to adjust the brightness of the LED indicators. Mode / Fan Speed Button Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo) Child Lock Button Press and hold for 3 seconds to enable or disable the Child Lock mode. Timer Indicator If timer has been set, the LED light indicates the set time of operation. Timer / Air Quality Light Button Press to cycle through and set desired length of operation (1hr, 4hr, 8hr, [NO TIMER]). Press and hold for 3 seconds to enable or disable the Air Quality light. Smart Sensor Automatically detects indoor air quality. Reset Button After replacing a lter, press the RESET button for at least 5 seconds. Power Button Turns the unit on or o. Child Lock Indicator LED light indicates whether Child Lock mode is enabled or disabled. Check Filter Indicator LED light indicates when it is time to change the lter. PlasmaWave Indicator Indicates whether PlasmaWave

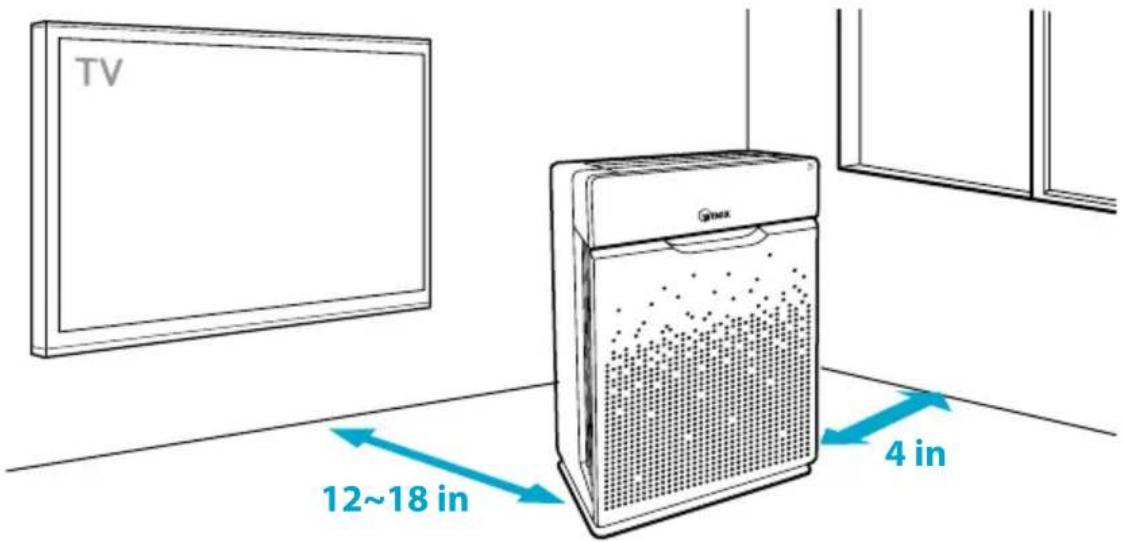

Allow 12 ~ 18 in. of space between TVs, radios, and other electronic products electromagnetic interference from certain electronics may cause product malfunction. Place indoors away from direct sun light direct exposure may cause product malfunction or failure. Only place on hard, flat surfaces flimsy or slanted surfaces may result in abnormal noise and vibrations. 12~18 in 4 in WARNING Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit. Do not use around mist or fumes from industrial oil or around large quantities of metallic dustDo not place around heating elementsDo not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.)Do not place in an area with excessive amounts of noxious gasesDo not place near any flammable materials (aerosols, fuel, gases etc.)Do not have unit facing into wind or draftDo not place below any electrical outletDo not place in excessively humid areas where unit may become wet

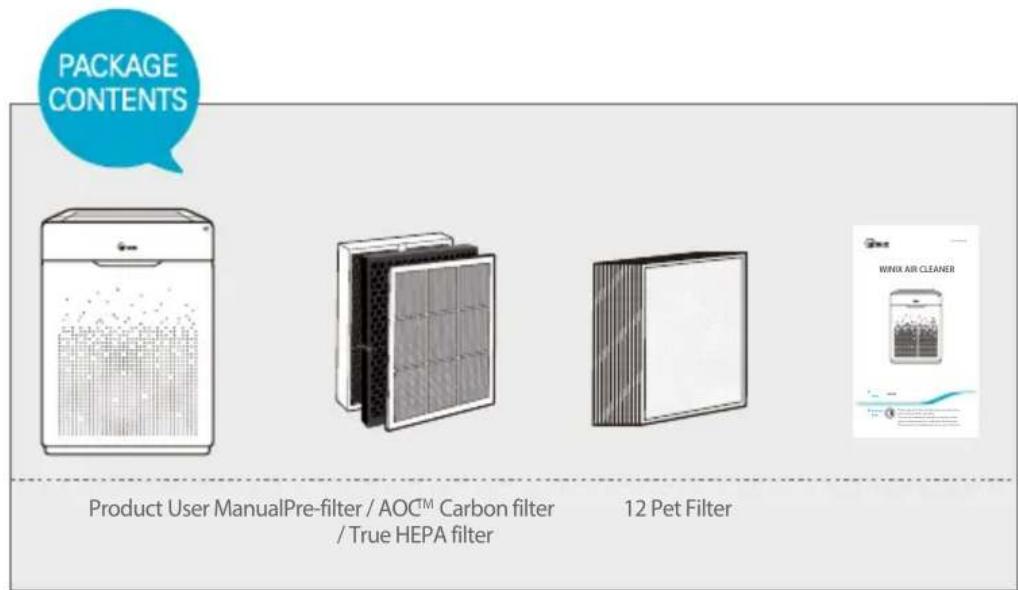

This unit is not intended to be used to preserve documents or in art conservation.6 English HR900 This product comes with all of the required filters. The protective plastic wrap must be removed from the filters before use.

Operating the unit without removing the plastic wrap may result in product failure.

Unplug and make sure the unit is turned off before installing filters.

The unit will automatically power off when front panel is opened.

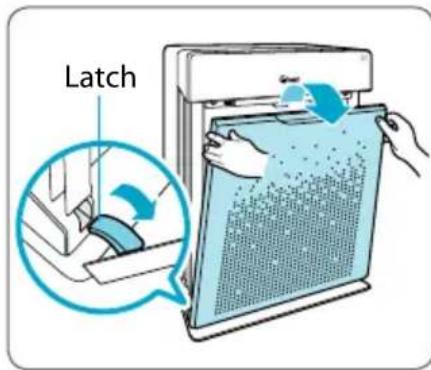

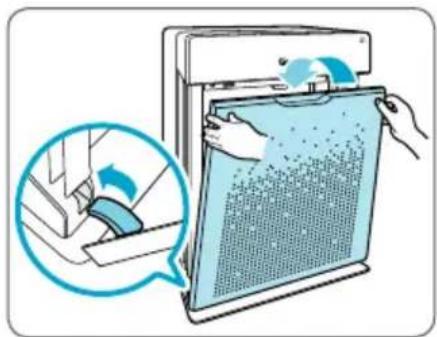

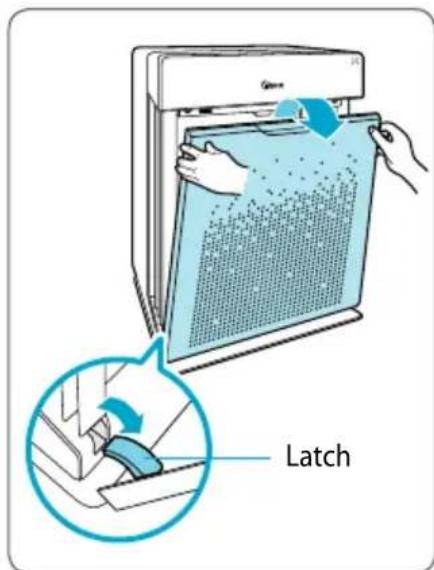

Remove the front panel by grasping its upper edge and gently pulling towards yourself.

To remove the front panel, the latch at the lower edge of the panel must be released from its position. Latch

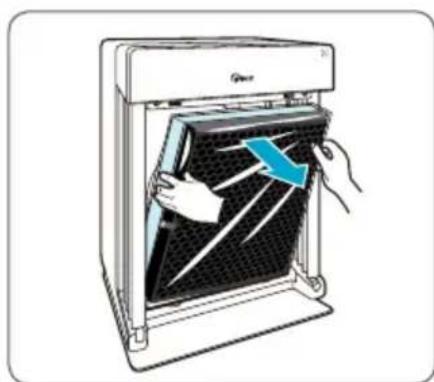

Remove the filters from the unit, they are protected inside a plastic wrap.

Remove filters from protective plastic wrap.

Operating the unit without removing filters from plastic may cause abnormal noise, deformation, or fire as a result of overheating. NOTE

Refer to pages 13 - 16 for detailed information on filter care and how to replace them.

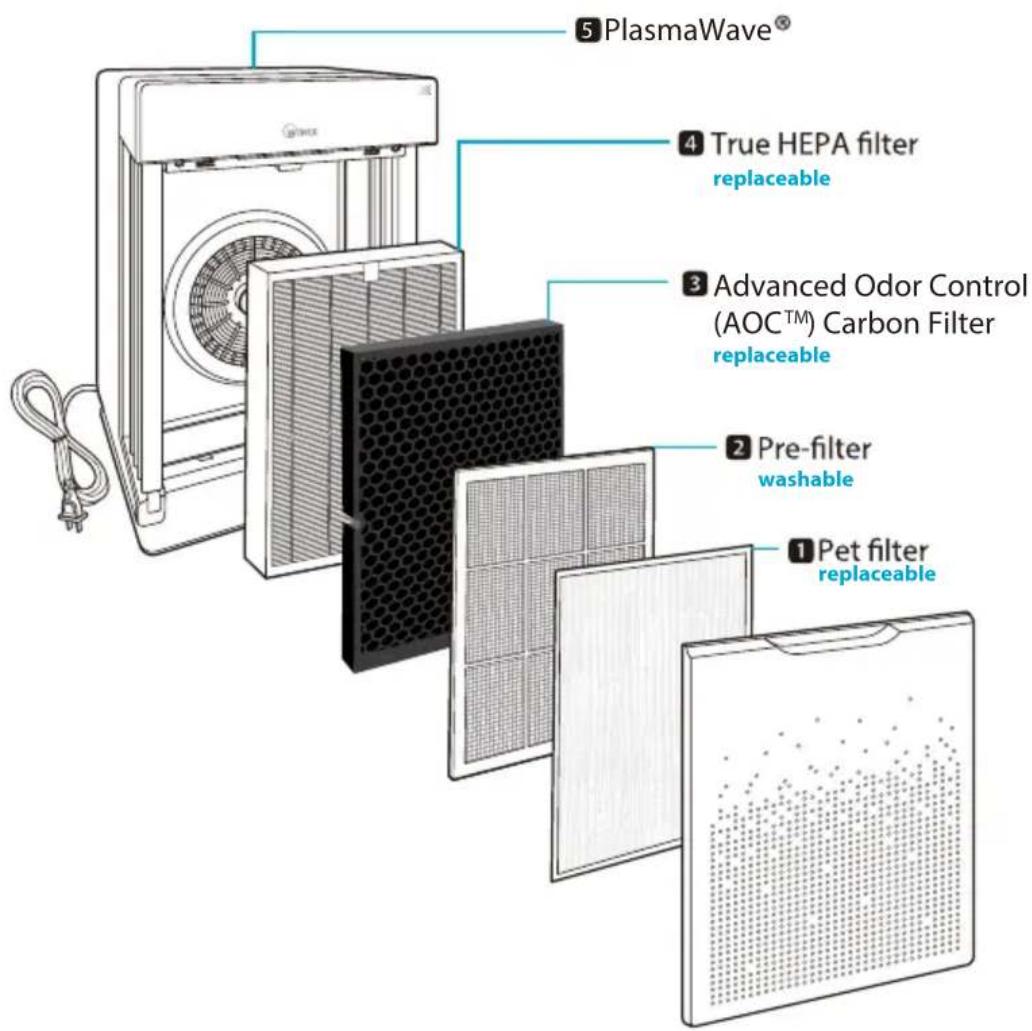

Install the filters until they fit securely in place. Filters must be installed in this order: True HEPA filter (rear) AOC

To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place. Pre-filter AOC

Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.

When to service and replace filters : Filter Indicator Light When to service When to replace 2 Pre-filter none Clean once every 14days Permanent 3 AOC™ Carbon Filter Clean once every 3 months Lasts up to 12months 4 True HEPA filter Can NOT be WASHED

Intervals between filter replacement may vary depending on environment.

For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of other filters.

This unit is compatible with filter FILTERItem: 1712-0093-00

This unit is compatible with filter

Before operating this equipment, carefully read and follow these safety cautions and instructions to avoid damage and ensure safe use. Ensure filters are inserted before running unit running unit without filters can shorten the units life and cause electric shock or injury. Be sure foreign objects are NOT inserted into the vents on the unit objects can include pins, rods, and coins. Do not touch any part of the interior of the unit with wet hands the high voltage may cause electric shock. Ensure unit intake and outlet vents do not become blocked blockage may lead to increased internal temperatures causing product failure and deformation. Do not use the unit as a step stool or place heavy objects on it personal injury may occur or product failure and deformation. WARNING Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit. Do not pull on the power cord when unplugging the unitDo not tie or knot power cord when unit is in operationIf the unit becomes submerged in water, unplug it and contact customer serviceDo not unplug or move the unit while in operationDo not plug additional appliances into the same outlet or power supplyDo not touch the plug with wet handsUnplug unit when not in operation for extended periods of timeCord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it9 English HR900 INITIAL OPERATION

Insert the unit plug into an electrical outlet.

The Control Panel lights will turn on and off.

During the first 4 minutes of power up, the Air Quality light will flash as the Smart Sensors measure the air quality in the environment, after which normal operation will begin.

By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave

When in Auto Mode the fan speed will be automatically adjusted according to the environments air quality.

In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.

When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave

, it is normal and does not signify product failure. To disable PlasmaWave

, see page 11.10 English HR900

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

Enables Auto operation based on the unit's air quality Smart Sensors. Press the Mode button to select Auto mode.

The mode LED light will indicate when ‘Auto’ mode has been selected, and operation will begin.

Each time the Mode button is pressed, the modes will be cycled. (Auto, Sleep, Low, Medium, High, Turbo). NOTE

When in Auto Mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases the fan speed will automatically be increased.

When the unit is first started, Auto Mode is enabled and set to Low fan speed.

The mode LED light will indicate when ‘Sleep’ mode has been selected, and operation in that mode will begin. NOTE

When Sleep mode is selected, the fan speed is automatically set to Low. Fan speed can be changed by pressing the Fan Speed (Mode) Button.

When Sleep Mode is enabled, the Air Quality light is disabled.11 English HR900

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

3. Manual Mode (setting fan speed)

Users can opt to manually set the fan speed to Low, Medium, High, or Turbo. Press the Mode button to select the desired fan speed.

The mode LED light will indicate the selected fan speed, and operation will begin. NOTE

When Manual Mode is in use, Auto and Sleep modes are automatically disabled.

The timer can be set for when you want the unit to run for a specified period of time. Select the desired period by pressing the Timer button.

The Timer LED light will indicate the selected length of operation.

Every time the Timer button is pressed the Timer LED light will cycle through the settings. (1hr, 4hr, 8hr, [NO TIMER]).

is enabled whenever the unit is powered on. Press the Plasmawave® button when the power is on to enable or disable this feature.12 English HR900

This feature prevents children from tampering with the control panel. Press and hold the Child Lock button for 3seconds to enable or disable the feature.

When the Child Lock indicator is lit, the feature is enabled.

When Child Lock is enabled, the control panel is locked and the settings cannot be changed.

To disable, press and hold the Child Lock button again for 3seconds. 3 seconds

7. Air Quality LED Light

The Air Quality LED light may be turned on or off. To turn the Air Quality LED light on or off, press and hold the Timer button for 3seconds.

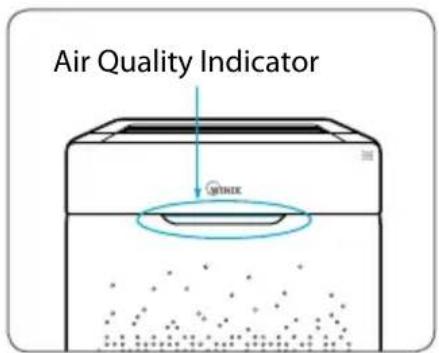

When on, the LED light will indicate the current indoor air quality according to three levels BLUE (good), AMBER (fair), RED (poor) 3 seconds Air Quality Indicator

When Auto Mode is enabled the Air Quality LED light may or may not be on, depending on the amount of ambient light in the room.

When Sleep Mode is activated, the Air Quality Indicator light is turned off.13 English HR900 FILTER CARE

When the Check Filter indicator LED is on, it is time to replace both the True HEPA and AOC™ Carbon Filters. Filter Indicator light When to service When to replace 2 Pre-filter none Clean once every 14days Permanent 3 AOC™ Carbon filter Clean once every 3 months Lasts up to 12months 4 True HEPA filter Can NOT be WASHED

Intervals between filter replacement may vary depending on environment.

For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of other filters.

1. Installing the Pet Filter

Latch Filter Replacement Period Filter TypeReplacement PeriodQuantityPet-filter1 Month12 Per PackThe Replacement Period may be different depending on the surrounding environmentCustomer Service and Purchase Inquiry www.winixamerica.com | info@winixinc.com For optimal performance, only genuine Winix filters should be used with your Winix Air Purifier

1. Remove the front panel by grasping

the upper edges and gently pulling the front panel toward yourself. The latch at the lower edge of the panel must be released from its position

the pre-filter to remove it.

3. Remove the liner around the outside

of the pet filter to reveal the adhesive tape.

4. Attach the Pet-filter to the front of the

Pre-filter. Press the adhesive tape around the edge of the pre-filter to adhear it to the pre-filter.

5. Insert the Pre-filter

Insert the bottom tabs into the slots on both sides of the lower part of the unit. Rotate the top of the filter upward and snap the upper tabs into the slots securing the pre-filter in place.

6. Replace the front panel by first

inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed. Tabs14 English HR900 FILTER CARE

Ensure the unit is turned off and unplugged before removing filters.

The unit will automatically power off when front panel is opened.

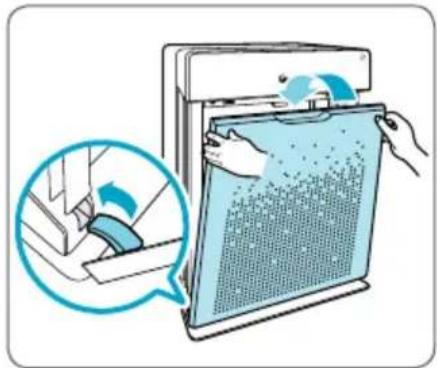

Remove the front panel by grasping its upper edge and gently pulling towards yourself.

To remove the front panel, the latch at the lower edge of the panel must be released from its position. Latch

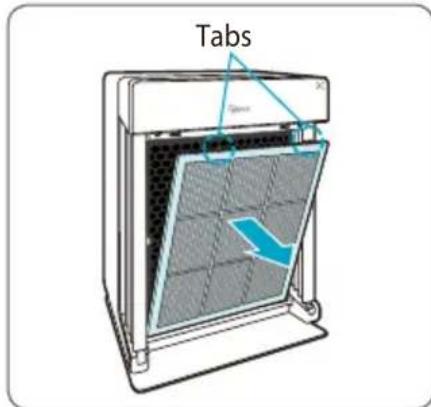

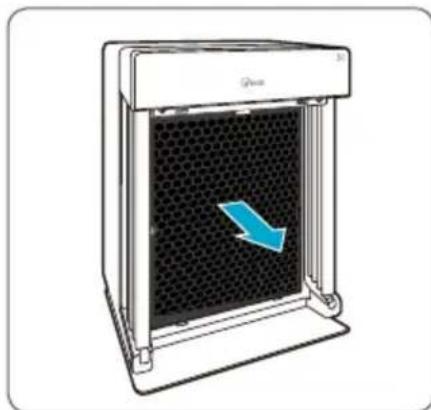

Then remove the True HEPA filter by pulling on the tag at the top of the filter. NOTICE

For optimal performance, only genuine Winix filters should be used with this unit.15 English HR900 FILTER CARE

3. Filter Assembly and Replacement

Filters should be re-installed in the reverse order of their removal.

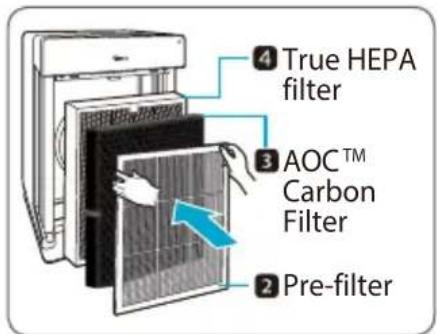

Insert the replacement filters 4 True HEPA filter (rear) 3 AOC™ Carbon filter (middle)

Remove the protective plastic wrap from new filters. Operating the unit without removing the protective plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating. AOC

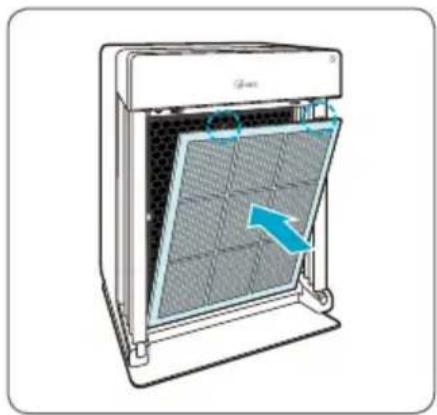

Insert the 2 Pre-filter (front).

To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.

Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.

After replacing the filters, power on the unit. Once the unit running, press and hold the RESET button for 5seconds.16 English HR900 FILTER CARE

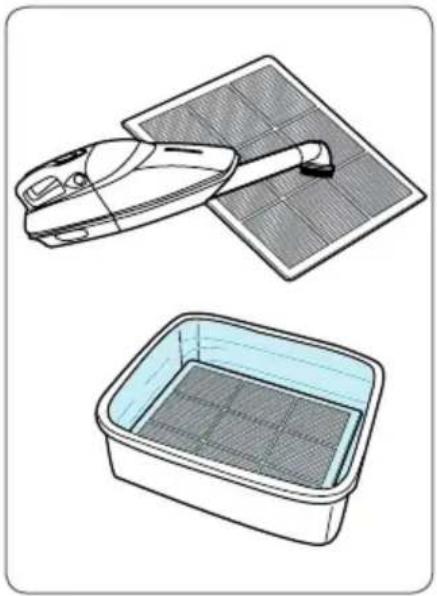

4. Cleaning the Pre-filter

Intervals between filter cleanings may vary depending on the air quality. Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is excessively dirty, wash with room temperature water.

Use only water, do not use volatile substances such as alcohol or acetone. NOTICE

Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.

The Pre-filter is reusable after cleaning, ensuring it has completely dried.

Do not use hot water over 104°F or volatile fluids such as paint thinner.

After washing the pre-filter, allow it to dry completely in a wellventilated area. Otherwise, it may develop a bad odor.

If the pre-filter becomes damaged or in any way needs replacement: Please contact Winix (877)-699-4649

ww.winixamerica.com17 English HR900

CLEANING THE DUST SENSOR

Cleaning the Dust Sensor For optimal performance of the Dust Sensor, which detects airborne dust and ultrafine particles, clean it every two months. Clean it more frequently when the unit is running in a place with high dust levels.

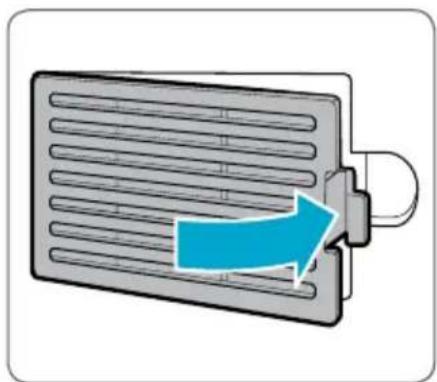

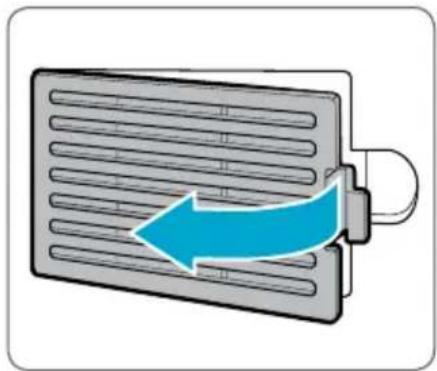

Open the Dust Sensor cover.

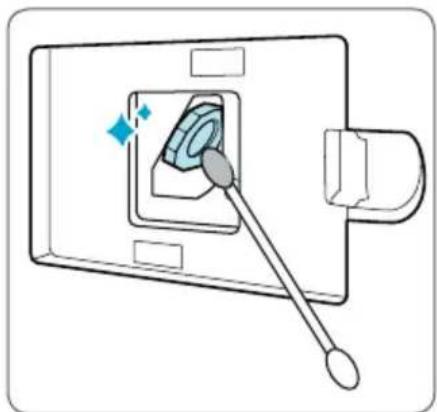

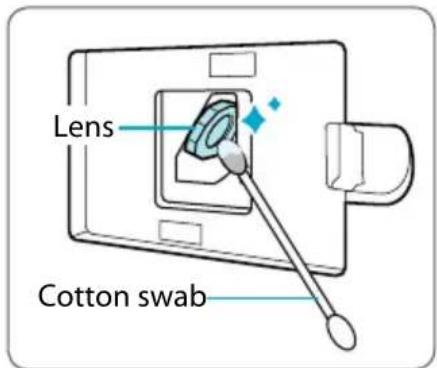

Use a damp cotton swab to wipe the lens and intake area of the Dust Sensor.

To clean the sensor area, use only water. Do not use volatile substances such as alcohol or acetone. Lens Cotton swab

Wipe away any remaining moisture with a dry cotton swab.

Close the Dust Sensor cover.

The Dust Sensor cover may be cleaned using a vacuum cleaner.18 English HR900 CLEANING CARE Cleaning the exterior and interior Cleaning the exterior Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth.

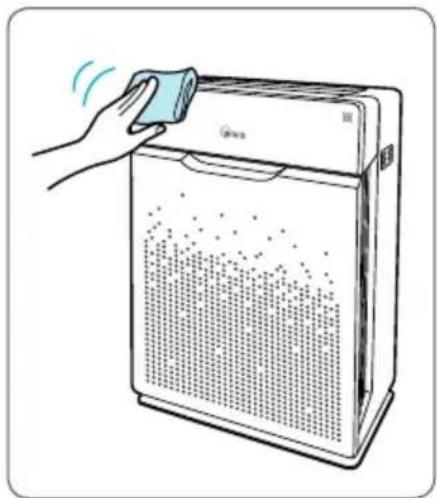

For optimal performance, clean the front panel 1-2times a month. Cleaning the interior Open the front panel and clean the interior with a vacuum cleaner.

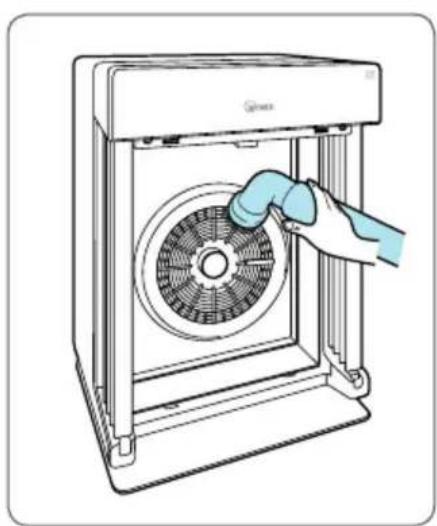

For optimal performance, clean the interior 1-2times a month. NOTICE

When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled off

Never disassemble, repair or modify this unit yourself

Do not allow children to clean or maintain the unit

Before cleaning or maintaining, ensure unit is off and unplugged19 English HR900

FREQUENTLY ASKED QUESTIONS

Problem Check / Actions to take It does not turn on at all.

Is there a power outage?

Check to see if other lights and electrical equipment are working and try again. It doesn’t work in Auto mode.

Has Auto mode been selected?

Press the Mode button until Auto mode is selected.

Is the sensor blocked or clogged?

Clear the sensor using a vacuum cleaner. View page 17. It vibrates and makes a lot of noise.

Is it running on a slanted surface?

Move the unit to a hard, flat area of the floor.20 English HR900

FREQUENTLY ASKED QUESTIONS

Problem Check / Actions to take The power plug and outlet feel hot.

Is the plug securely plugged in?

Make sure the plug is properly plugged into the outlet. There is a strange smell.

Is it being used in a place with a lot of smoke, dust, or odors?

Clean the air intakes on the front sides of the unit and clean the pre-filter.

Contact customer service to confirm the exact cause.

Replace the AOC™ Carbon Filter and True HEPA filter. The product is not purifying the air enough.

The exterior, design, and product specifications may be changed to improve product performance without prior notice.

Warning : Change or modifications to this unit not expressly approved by the party responsible

for compliance could void the user's authority to operate the equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, and may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the following two conditions:

This device may not cause interference and

This device must accept any interference, including interference that may cause undesired operation of the device.22 English HR900 SAFETY INSTRUCTIONS Thank you for purchasing a Winix air purifier. This product is for household use only.

WARNING : Follow the instructions in this

manual to reduce the risk of electric shock, short circuit, and/or fire.

Do not repair or modify the unit unless specifically recommended in this manual. All other repairs should be completed by a qualified technician. The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet. Do not alter the plug in any way. If the does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet. Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose. Use AC 120V only. Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord. Periodically remove dust from the power plug. This will reduce the risk of shock due to humidity build up. If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician. Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord. Remove the power plug from the outlet when not in use. Do not handle the power plug with wet hands. Do not operate the unit when using indoor smoke-generating insecticides. Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit. Do not use the unit where it is humid or where the unit may become wet, such as the bathroom. Do not insert fingers or foreign objects into air intake or outlet. Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items. Unit will not remove carbon monoxide emitted from heating appliances or other sources.

Do not block the intake or outlet vents. Do not use near hot objects, such as a stove. Do not use where the unit may come into contact with steam. Do not use the unit on its side. Keep away from products that generate oily residue, such as a deep fryer. Do not use detergent to clean the unit. Do not operate without a filter. Do not wash and reuse the True HEPA Filter or the AOC™ Carbon Filter. Hold the handle on the back of the unit to transport. Do not hold by the front panel. WARNING This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.23 English HR900 PRODUCT WARRANTY The terms of the warranty are as follows.

This product is manufactured under stringent quality control and inspections.

Warranty void if product failure is a result of negligence or misuse by the consumer, shipping and service fees may be incurred even during the warranty period.

The warranty must be presented upon bringing the product for service.

Store the warranty in a safe place, as it cannot be reissued.

This warranty is valid only in the USA and Canada. Product Name Air Purifier Model Name HR900 Purchase DateWarranty period Two (2) years Place of purchasePlace of purchase Tel.CustomerAddress Name Tel.

• ································································

• ······························································································

• ·········································································

• ·········································································

• ········································································

• ··········································································

• ················································································

• ········································

• ···································

• ··············································································

• ···················································

• ···································································································

• ···········································································

• ····················································································

• ······································································

• ··············································································

• ···········································································································

• ········································································································

Please read and follow all safety rules and instructions in this manual before operating. The product warranty is printed on the back of this guide, so please keep it in a safe place for future use. This product is manufactured for use only in USA/CA.

• ··························································

• ·································································································

• ·······································································

• ····································································

• ····································································

• ····················································································

• ··································································

• ··································

• ······························································

• ·······························································

• ·····································································

• ···········································································

• ·································································

• ·································································

• ·········································································

• ··········································································································

• ········································································································

Please read and follow all safety rules and instructions in this manual before operating. The product warranty is printed on the back of this guide, so please keep it in a safe place for future use. This product is manufactured for use only in USA/CA.

Dedicated Call Center : (877) 699-4649
