USER MANUAL CMS4 CLARION

• For USA and Canada only www.clarion.com Dear Customer: Congratulations on your purchase of a Clarion mobile electronic product. We are confident that you’ll enjoy your Clarion experience. There are many benefits to registering your Clarion product. We invite you to visit our website at www.clarion.com to register your Clarion product. We have made product registration simple with our easy to use website. The registration form is short and easy to complete. Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. Contents 1. FEATURES p. 3

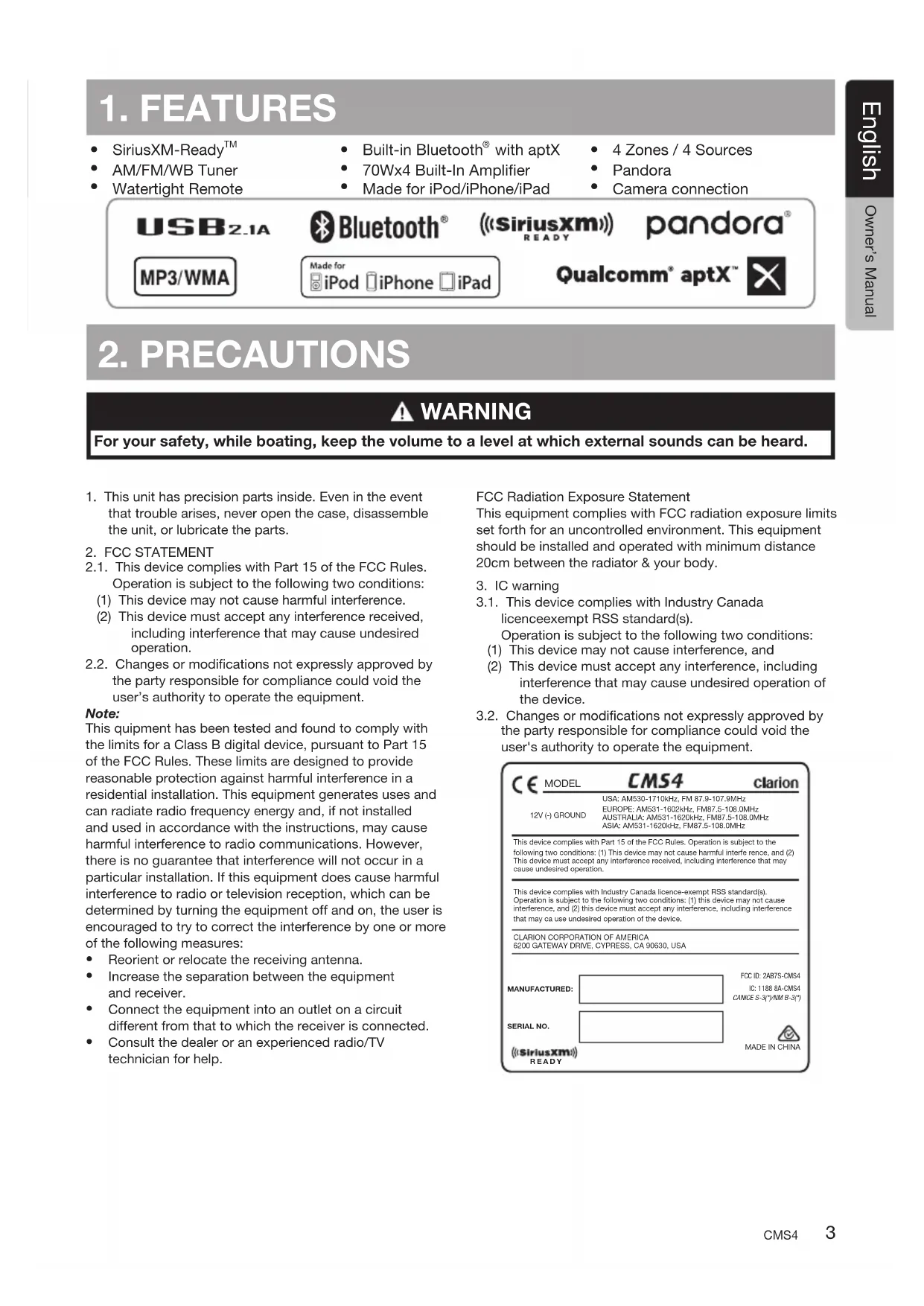

• 2. PRECAUTIONS p. 3

Made for iPod/iPhone/iPad

WARNING For your safety, while boating, keep the volume to a level at which external sounds can be heard. 1. This unit has precision parts inside. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the parts.2. FCC STATEMENT2.1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.2.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Note:This quipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.3. IC warning3.1. This device complies with Industry Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.3.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.USA: AM530-1710kHz, FM 87.9-107.9MHzEUROPE: AM531-1602kHz, FM87.5-108.0MHzAUSTRALIA: AM531-1620kHz, FM87.5-108.0MHzASIA: AM531-1620kHz, FM87.5-108.0MHz12V (-) GROUNDMODELThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfe rence, and (2) This device must accept any interference received, including interference that may cause undesired operation.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may ca use undesired operation of the device.CLARION CORPORATION OF AMERICA 6200 GATEWAY DRIVE, CYPRESS, CA 90630, USAMADE IN CHINAREADYFCC ID: 2AB7S-CMS4IC: 1188 8A-CMS4CANICE S-3(*)/NM B-3(*)MANUFACTURED:SERIAL NO.English Owner’s Manual

"Made for iPod" and "Made for iPhone" and "Made for iPad" means that an electronic accessory has been designed to connect specifically to iPod, iPhone, iPad or respectively and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone or iPad may affect wireless performance. iPod and iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.

The Bluetooth word mark and Logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Clarion Corporation of America is under license. Other trademarks and trade names are those of their respective owners.

Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc. All rights reserved.

Pandora, the Pandora logo and other Pandora marks are trademarks or registered trademarks of Pandora Media Inc., or its subsidiaries worldwide.

Qualcomm aptX is a product of Qualcomm Technologies International, Ltd. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.

3. CAUTIONS ON HANDLING

Exposure to extreme heat and direct sunlight may hinder the performance of your Clarion product. In the event this happens, allow the unit to cool down before use.Owner’s Manual English

CMS4 Choosing Your Source Unit Configuration

Standard Mode Standard mode is ideal for basic installations that utilize a single audio source with speakers configuration. Utilizing this configuration you can have Front and Rear speakers with the ability to control fade, a secondary set of speakers unaffected by fading and a fixed connection at full output.

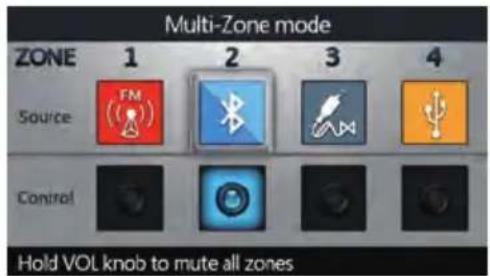

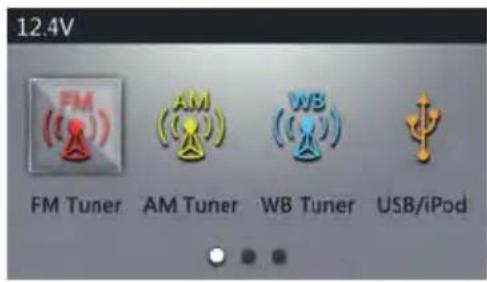

Multi-Zone Mode Multi-Zone mode is ideal for installations that require multiple sources to play simultaneously from different speakers. Using this configuration you can control up to 4 independent zones with 4 sources such as FM, BT, USB, SiriusXM. All 4 zones are variable with independent volumes, EQ, gain and other configurable zone settings. Note: When using Multi-Zone with multi-source, radio band sources are limited to a single band (FM/AM/ WB) across all zones utilizing radio. Example: If Zone 1 and Zone 2 are set to AM and Zone 3 is set to FM, both Zone 1 and Zone 2 will now become FM and vice versa. Name of Buttons and Their Functions Note: Be sure to read this chapter while referring to the front diagram in chapter “

CAUTION Lower the volume level before powering the source unit off. The source unit stores the last volume setting. WARNING

SUBMERGING THE UNIT IN WATER WILL

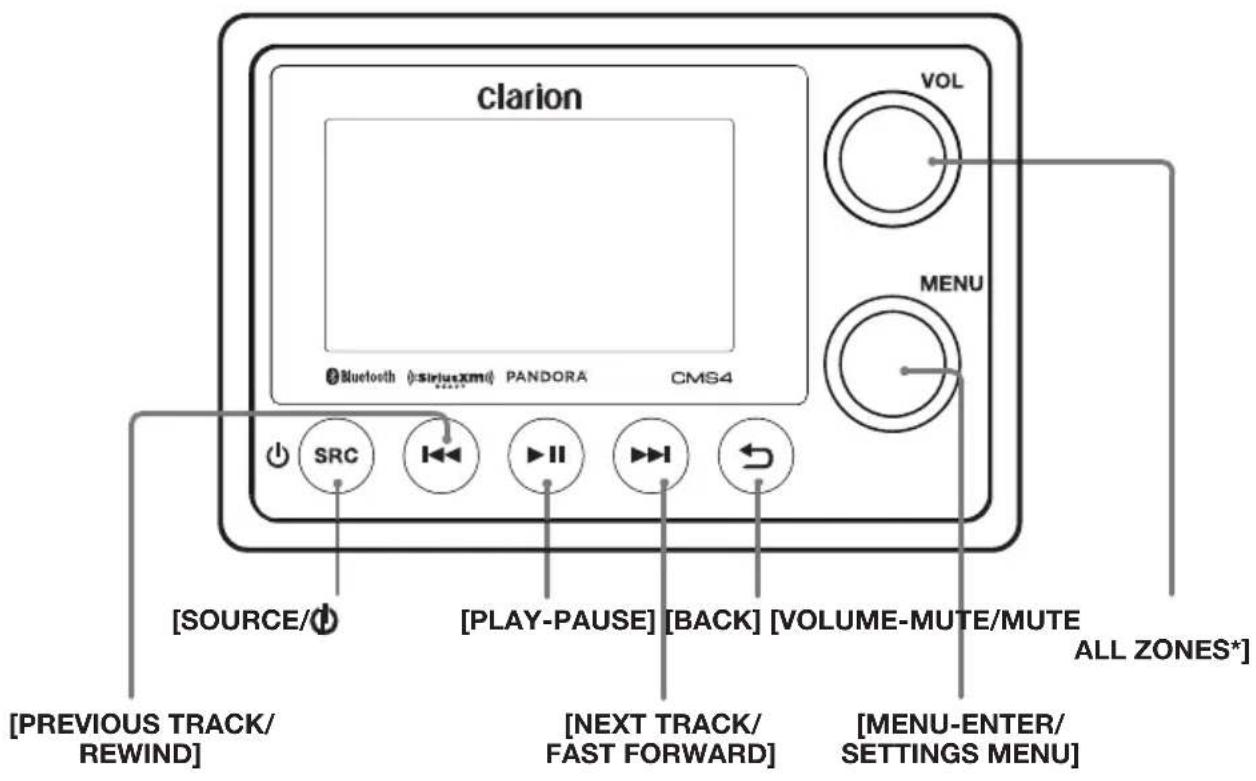

CAUSE DAMAGE OR UNIT MALFUNCTION! [ / SRC] Button

Press the [ / SRC] button to turn the power on and press and hold it (2 sec.) to bring up the Power off / Display off selection. Select Power Off to completely power down the CMS4 unit. Select Display Off to keep the CMS4 operating with the display backlight off.

Press and release the [ / SRC ] button to switch between available sources: FM, AM, Weather Band, USB/iPod, Aux, Bluetooth, Pandora, SiriusXM and Camera. Note: If the above equipment is not connected, the corresponding mode may not function. When using CMS4 in Mult-Zone mode, only zones currently in control will have their sources changed.

/ ] Buttons Pressing these buttons will perform the following operations based on their current mode:

SiriusXM – Skip Forward/Skip Backwards, Fast Forward/Rewind 5/10/30 seconds (Press and hold)

USB/iPod – Next Track/Previous Track, Fast Forward/Rewind (Press and hold)

Bluetooth – Next Track/Previous Track, Fast Forward/Rewind (Press and hold)

Pandora – Skip Track, Thumbs Up/Thumbs Down (Press and hold)

Preset Scan – Selects current preset station and cancels preset scan operation [ VOL ] Knob

Rotate the [ VOL ] knob clock-wise to increase the volume.

Rotate the [ VOL ] knob counter-clock-wise to decrease the volume.

Standard mode – Press the [ VOL ] knob to mute the audio. Press again to restore audio.

Multi-zone mode – Press the [ VOL ] knob to mute all zones currently being controlled. Press and hold to mute all zones, regardless if being controlled. Press again to restore audio.English Owner’s Manual

Volume Screen – When in Standard mode and while the volume level is still shown, rotate the [MENU] knob clock-wise or counter clock-wise to adjust front/rear audio fading. When in Multi- zone mode and while the volume levels are still shown, rotate the [MENU] knob to select individual zone audio controls.

MENU Screen – Rotate clock-wise to select menu item below current selection. Rotate counter clock-wise to select menu item above current selection. Press the [MENU] knob to select current menu item.

AM/FM/Weather Band – Rotate clock-wise/ counter clock-wise to manually seek stations Up/Down. Press to access content menu.

SiriusXM – Rotate clock-wise to select Next channel. Rotate counter clock-wise to select previous channel.

SiriusXM Replay – Press the button and select Jump to Live to exit SiriusXM Replay mode

Home Screen – When in the Standard mode home screen, rotate the [MENU] knob to highlight available sources. Press the [MENU] knob to select the source. When in the Multi- zone mode home screen, rotate the [MENU] knob to highlight the Source and Control boxes. Press the [MENU] knob to execute the function. When selecting a source, press and hold the [MENU] knob to automatically set all zones to that source. Note: In any source, Press the [MENU] knob to access current source settings. Press and hold the [MENU] knob to access CMS4 device settings.

] Back Button Pressing this button will perform the following operations based on the current screen:

Playback Screen – Launch source selection mode

Press this button to Play / Pause current track.

Preset Scan – Selects current preset station and cancels preset scan operation Name of Buttons and Their FunctionsOwner’s Manual English

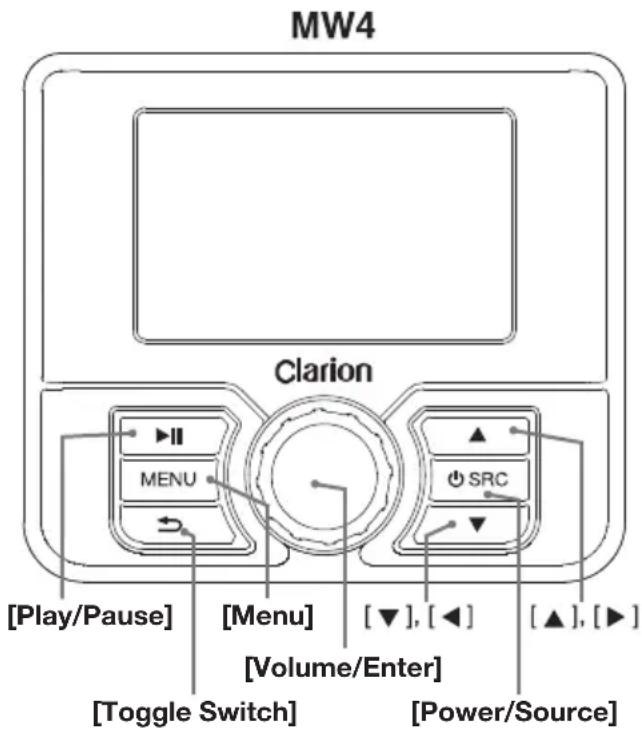

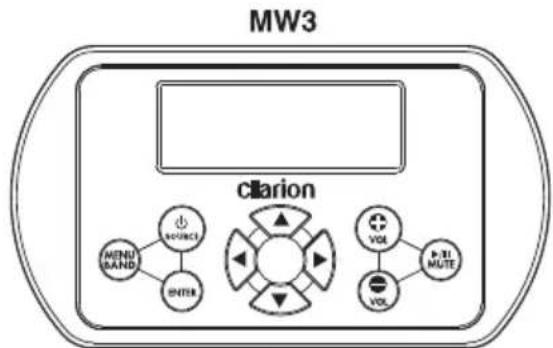

CMS4 Optional Wired Remote Control Unit Operations The following operations are enabled by remote control with the separately sold Wired Remote Control Unit MW1 and MW3 (as below) or MW4. Note: If the remote control is connected with this unit while the power is on, please restart this unit again to confirm the normal display. Note: MW3 button functions are identical to MW1. CAUTION Lower the volume level before powering the source unit off. The source unit stores the last volume setting. WARNING EXPOSING THE UNIT TO WATER WITH THE

FRONT PANEL OPEN WILL CAUSE DAMAGE

OR UNIT MALFUNCTION!

Press the [ /SOURCE] button to turn the power on and press and hold it (2 sec.) to turn the power off.

Each time the [ /SOURCE] button is pressed, the mode switches. Note: If the above equipment is not connected, corresponding mode cannot be selected. [ENTER] Button

USB mode – Confirm (in Menu mode)

Bluetooth – Confirm (in Menu mode)

iPod/iPhone mode – Confirm (in Menu mode)

SiriusXM mode – Confirm ch (in Search mode)

Press the [ ] button to increase the volume.

Press the [ ] button to decrease the volume. Note: When using Multi-Zone mode and ALL ZONES remote control is enabled in settings, each zone or ALL zones can be controlled from a wired remote by pressing the

buttons after pressing volume

USB mode – Previous/Next track & Fast Forward/Reverse (Press and hold)

Bluetooth – Previous/Next track & Fast Forward/ Reverse (Press and hold)

iPod/iPhone mode – Previous/Next track & Fast Forward/Reverse (Press and hold)

SiriusXM Replay mode – Press and Release the Left or Right Arrow to skip back or forward one song/track. Press and Hold will Fast Forward/Fast Rewind through the Replay buffered content.

Preset Scan – Selects current preset station and cancels preset scan operation.

Multi-Zone Control – Selects which zone to control after pressing the

iPod/iPhone mode – Select (in Menu mode)

Press this button to access menu items for necessary functions in every mode.

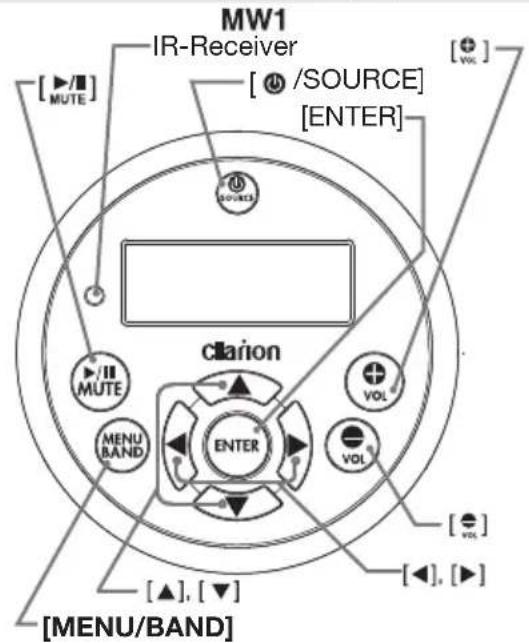

In different modes, the menu items are different. IR-Receiver

Press the [ /SOURCE] button to turn the power on and press and hold it (2 sec.) to turn the power off.

Each time the [ /SOURCE] button is pressed, the mode switches. Note: If the above equipment is not connected, corresponding mode cannot be selected.

Press the [ ] button to increase the volume.

Press the [ ] button to decrease the volume.

USB mode – Confirm (in Menu mode)

iPod/iPhone mode – Confirm (in Menu mode)

SiriusXM mode – Confirm ch (in Search mode) Note: When using Multi-Zone mode and ALL ZONES remote control is enabled in settings, each zone or ALL zones can be controlled from a wired remote by pressing the

buttons after increasing or decreasing the volume. [ ] / [ ] Buttons Note: To toggle between and [ ] / [ ] and [ ] / [ ] arrow selection, press the [ ] button and check the on screen icon.

USB mode – Previous/Next track & Fast Forward / Reverse (Press and hold)

Bluetooth – Previous/Next track & Fast Forward/Reverse (Press and hold)

iPod/iPhone mode – Previous/Next track & Fast Forward/Reverse (Press and hold)

SiriusXM Replay mode – Press and Release the Left or Right Arrow to skip back or forward one song/track. Press and Hold will Fast Forward/Fast Rewind through the Replay buffered content.

Preset Scan – Selects current preset station and cancels preset scan operation

Multi-Zone Control – Selects which zone to control after increasing or decreasing the volume.

] / [ ] Buttons Note: To toggle between and [ ] / [ ] and [ ] / [ ] arrow selection, press the [ ] button and check the on screen icon.

USB mode – Select (in Folder search mode)

Bluetooth – Select (in Folder search mode)

iPod/iPhone mode – Select (in Menu mode)

Press this button to access menu items for necessary functions in every mode.

In different modes, the menu items are different. Please see the operation introduction of every mode for more details.

iPod/iPhone mode – Play/Pause

SiriusXM mode – Play/Pause, Enter Replay Mode Optional Wired Remote Control Unit Operations [Play/Pause] [Toggle Switch] [Menu] [Volume/Enter] [Power/Source]Owner’s Manual English

Basic Operation Note: Be sure to read this chapter referring to the chapter “4. CONTROLS” CAUTION When the unit is turned on, starting and stopping the engine with its volume raised to the maximum level it may cause hearing damage. Be careful about adjusting the volume.

Turning on and off the power Note:

Start the engine before using this unit.

Be careful about using this unit for a long time without running the engine. If you drain the vessel battery too far, you may not be able to start the engine and this can reduce the service life of the battery.1. Start the engine. Engine ON position2. If the CMS4 does not automatically turn on, Press the [ /SRC] button to turn the power on. Press and hold it (2 sec.) to bring up the Power Off/Display Off selection. Select Power Off to completely power down the CMS4 unit. Select Display Off to keep the CMS4 operating with the display backlight off.

Selecting a mode 1. Press the [ / SRC ] button to change to the next available source. * If a Bluetooth device is not connected to the CMS4, it is not displayed.

Adjusting the volume 1. Rotate [ VOL ] knob clock-wise to increase the volume.2. Rotate [ VOL ] knob counter clock-wise to decrease the volume. CAUTION While boating, please be aware of the volume levels in residential, family areas and local volume level ordinances.

Mute Press the [ VOL ] button to turn the Mute On and Off.

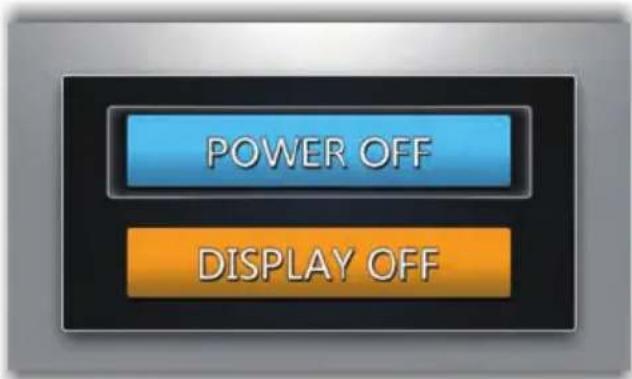

Power Off / Display Off This feature will allow the user to Power Off the unit or to turn the Display OFF in the event the display is too bright for current lighting conditions.

Power Off – Select to turn off the unit

Display Off – Select to turn off the backlight of the display, but the button and knob illumination will remain until a button or knob action occurs.English Owner’s Manual

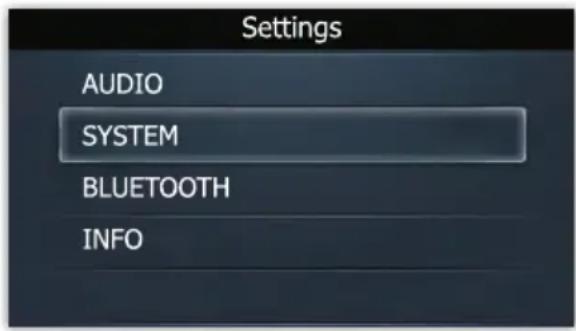

CMS4 Settings You can customize the various settings of this unit from the Settings screen.When in Standard mode, press the [ ] button to access the Home screen, rotate the [MENU] knob to select the Settings option, then press the [MENU] knob to access into the Settings Mode. You can rotate the [MENU] knob to select the options, then press the [MENU] knob to confirm.Note: Press and hold the [MENU] knob to quickly access the Settings menu. This is the only way to access the Settings menu when using the Multi-Zone mode.

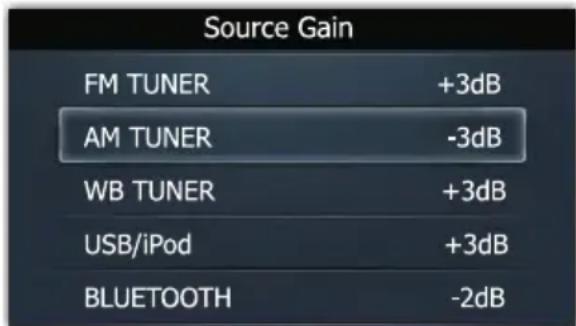

Audio Settings Press and hold the [MENU] knob to enter Settings menu. Rotate the [MENU] knob to select items to be adjusted:

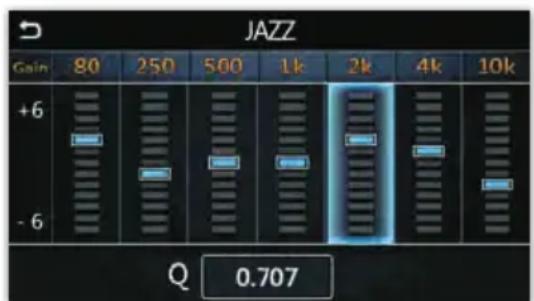

Preset EQ 1. Rotate the [MENU] knob to change the EQ: FLAT -> JAZZ -> POP -> CLASSIC -> ROCK -> NEWS -> URBAN -> RAVE -> MOVIE -> TECHNO -> USER2. When USER EQ is selected, press the [MENU] knob to cycle through each of the 7 EQ bands and rotate the [MENU] knob to adjust each band.

Balance Rotate the [MENU] knob to adjust the Balance between the right and left speakers from R12 (full right) to L12 (full left).

Fader (Standard Mode Only) Rotate the [MENU] knob to adjust the Fader between the front and rear speakers from R12 (full rear) to F12 (full front).

Crossover 1. Press the [MENU] knob to turn On or Off the Crossover function.2. Press the [MENU] knob to access the Front HPF menu, and rotate the [MENU] knob to select the below items to adjust: SLOPE – Press the [MENU] knob to change the value: 12dB / 24dB FREQUENCY – Press the [MENU] knob to change the value: 60Hz/80Hz/120Hz/ALL LEVEL – Press the [MENU] knob to highlight and rotate it to adjust the level between 0 ~ 20.

Loudness Press the [MENU] knob to set Loudness to ON or OFF.

System Settings Press and hold the [MENU] knob to enter Settings menu. Rotate the [MENU] knob to select items to be adjusted:

Theme This option allows the user to select theme for the LCD display. Auto is the default setting and is triggered through the dimmer wire on the CMS4 black box unit. Press the [ MENU ] knob to toggle between Day, Night or Auto.

Dimmer Press the [ MENU ] knob to adjust the LCD display backlight level between High or Low.Owner’s Manual English

Dimmer Settings These settings allow you to control the screen and button brightness based for DAY and NIGHT mode settings. Configure – Choose between DAY and NIGHT mode configuration Screen (HIGH) – This is the brightness level of the screen when dimmer is set to HIGH mode. Buttons (HIGH) – This is the brightness level of the buttons when the dimmer is set to HIGH mode. Screen (LOW) – This is the brightness level of the screen when dimmer is set to LOW mode. Buttons (LOW) – This is the brightness level of the buttons when the dimmer is set to LOW mode.

Screen Saver Press the [MENU] knob to toggle the screen saver mode: Clock/Slide Show/Off. Screen saver will be enabled after [30/60/90/120] seconds of no device operation

LED Color This unit is equipped with user configurable color LED. Once in the LED COLOR menu, rotate the [MENU] knob to select the LED Color. Press the [MENU] knob to complete the LED COLOR selection.

Beep Press the [MENU] knob to select between ON and OFF.

Time Press the [MENU] knob to enter clock setting mode. Use the [MENU] knob to set the clock, then press the [ ] button to confirm.

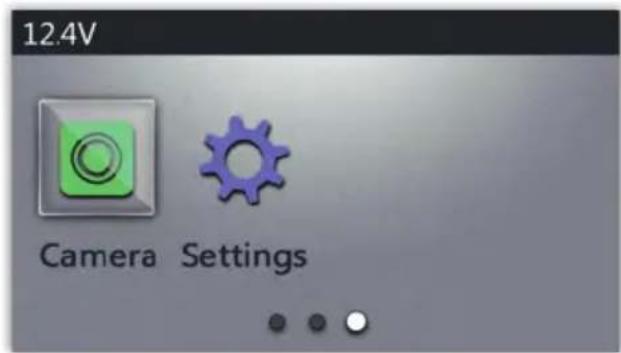

Camera Audio Press the [MENU] knob to enter Camera Audio menu, rotate the [MENU] knob to select: YES – The Aux audio is played while the Camera image is shown the display controller's screen. This will cause the Aux source to become unavailable as an audio playback source. NO – The auxiliary audio input is not utilized while displaying the camera image on the display controller's screen.

Tuner Region Press the [MENU] knob to enter the Tuner Region menu, rotate the [MENU] knob to select the region: "EUROPE", "NORTH AMERICA", "ASIA" or “AUSTRALIA"

Remote Mode ALL ZONES – Selecting ALL ZONES will give wired remotes the ability to control the volume of all zones on the system. INDVDL ZONE – Selecting INDVDL ZONE will limit a wired remote to only controlling the zone that it is physically connected to.

Factory Reset Select between SiriusXM or System restore then press the [MENU] knob to execute. SettingsEnglish Owner’s Manual

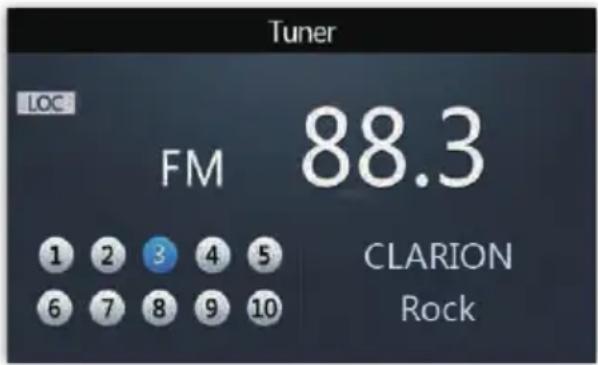

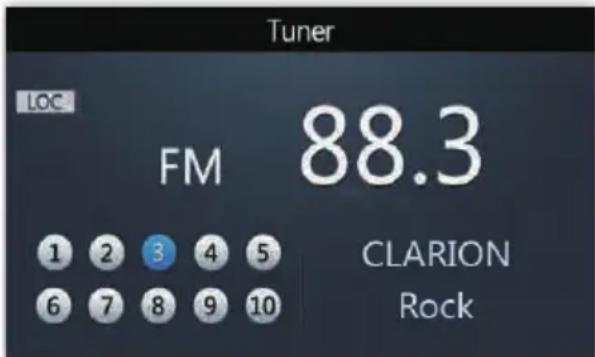

World Tuner This unit is initially set to USA frequency intervals of 10 kHz for AM and 200 kHz for FM. When using it outside the USA, the frequency reception range can be switched to the intervals below.U.S.A standardEurope standard Aisa standardAustralia standard Frequency spacing10kHz 9kHz 9kHz 9kHzFrequency range530-1710 kHz 531-1602 kHz 531-1620 kHz 531-1620 kHz

Auto Seek Press the [ / ] buttons to automatically search for the next radio station.

Manual Seek Rotate the [MENU] knob to manually change intervals step by step.

Presets Rotate the [MENU] knob to select which preset station to listen to, then press [MENU] knob to confirm.

Save As Preset Use the [MENU] knob to select the preset position to save the current frequency.

Auto Store Only stations with sufficient signal strength will be detected and stored as a preset. Press the [MENU] knob to automatically select ten strong stations and store them into ten presets. The new stations replace presets.

Preset Scan Selecting preset scan will begin playing your first saved preset for 10 seconds before switching to your next preset. This will continue until all presets have been played unless a station is selected. Please see Name of Buttons and Their Functions section for further information.

Local On/Off To receive more radio stations or only stations with strong signal, you can adjust the tuner sensitivity.Press the [MENU] knob to turn On or Off the Local Seek Mode.ON – Only stations with a strong signal can be played back.OFF – Stations with strong and weak signals can be played back.

RDS On/Off Press the [MENU] knob to turn On or Off the RDS Mode.

CMS4 SiriusXM Satellite Radio Operations Only SiriusXM brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com

Displaying the Radio ID Before you listen to satellite radio, you must subscribe to the service using the SiriusXM Radio ID number.1. Press the [ / SRC ] button to enter SiriusXM mode.2. Press the [ ] or [ ] buttons select channel “0”. The unit displays the Radio ID.Note:1. The Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner.2. Please note that the SiriusXM Radio ID does not include the letters I, O, S or F.3. In the USA, to activate the SiriusXM Connect Vehicle Tuner go online to www.siriusxm.com/activatenow or call 1-866-635-2349.4. In Canada, to activate the SiriusXM Connect Vehicle Tuner go online to www.siriusxm.ca/ activatexm or call 1-877-438-9677.

Channel Tune 1. Press the [ ] button or rotate the [MENU] knob clockwise to advance to the next channel.2. Press the [ ] button or rotate the [MENU] knob counter-clockwise to to go to the previous channel.

function The Replay feature allows you to pause, rewind, and replay live SiriusXM Satellite Radio.1. While listening to a SiriusXM channel, press the ] button to enter Replay mode. The display will show “PAUSE” when entering this mode.2. Press the [ ] button to resume playback of the stored audio from the point at which it was paused. During playback, the SiriusXM Tuner will continue to store the channel audio until you exit the Replay mode. During REPLAY playback

Fast rewind: Press and hold [ ].

Fast forward: Press and hold [ ].

Playing current segment over 3s, press the ] button to return to the current segment location; if play time is within 3s, press the ] button to jump to the last segment.

To advance to the beginning of the next segment: press the [ ] button.3. Press the [MENU] knob to access SiriusXM Settings.4. Rotate the [MENU] knob to select “JUMP TO LIVE” to exit Replay mode.Note:

If you continue to press the [ ] button until the end,the Replay mode is canceled, and the unit will change to live SiriusXM radio mode.

If you change channels or change mode or Power Off -> On while in Replay mode, the unit will exit Replay mode to live Satellite mode and clear the Replay memory.

SiriusXM Settings Press the [MENU] knob under SiriusXM mode to access SiriusXM settings, rotate the [MENU] knob to select below functions:

Preset 1. Press the [MENU] knob to access the SiriusXM Preset list.2. Rotate the [MENU] knob to select the desired Preset you wish to access.3. Press the [MENU] knob to confirm you want to tune to that channel.

Save As Preset 1. Press the [MENU] knob to access the SiriusXM Save As Preset list.2. Rotate the [MENU] knob to select the desired Preset number you want to store the preset in.3. Press the [MENU] knob to store the current channel into preset.

Channel Browse Text information, such as the channel name, artist name, song title and content is available with each SiriusXM channel. The unit can display this text information as explained below:1. Press the [MENU] knob to activate the Channel Browse mode.2. Press the [ ] or [ ] button to view: Channel -> Artist -> Song -> InfoEnglish Owner’s Manual

Category This function is useful when searching for a desired channel in the current category or when browsing for a new category.1. Press the [MENU] knob to access the SiriusXM Category browser mode.2. Press the [MENU] knob to select radio category.3. When the desired channel is selected, press the [MENU] knob to continue receiving that channel.Note: If the current station does not have an associated category, it can be found in “all Channels”.

Direct Tuning 1. Press the [MENU] knob to access the SiriusXM Direct Tuning mode.2. Press the [MENU] knob to change the digit location or rotate the [MENU] knob to change the number.3. Press the [MENU] knob to confirm channel number selection.

Parental Controls Parental Control allows you to prevent unauthorized access to selected channels. When enabled, the Parental Control feature requires you to enter a passcode to unlock any locked channels.1. Press the [MENU] knob to access the SiriusXM Parental Controls mode.2. Press the [MENU] knob to turn On or Off the Parental Controls.3. Rotate the [MENU] knob to enter a passcode The default passcode is “1111”.

Lock/Unlock Channels 1. Press the [MENU] knob to access the SiriusXM Parental Controls mode.2. Rotate the [MENU] knob to select “LOCK CHANNELS”, press the [MENU] knob to access the enter code prompt.3. Rotate the [MENU] knob to enter the passcode and to access the Lock channel mode .4. Rotate the [MENU] knob to select Lock/ Unlock channel, then press the [MENU] knob to confirm.

SiriusXM Factory Reset 1. Press and hold the [MENU] knob to enter Settings menu.2. Rotate the [MENU] knob to select “SYSTEM”, press the [MENU] knob to access.3. Rotate the [MENU] knob to select “FACTORY RESET”, press the [MENU] knob to access.4. Rotate the [MENU] knob to select “SiriusXM”, press the [MENU] knob to confirm.Note: When restoring SiriusXM to factory defaults, the following settings will be reset or affected:

Last channel tuned is reset.

Presets will be restored to factory default settings.

Parental Control feature will be disabled.

Mature Channel Tuning will be accessible. Parental control passcode will be restored to the factory default setting.

CMS4 USB Mode Operation

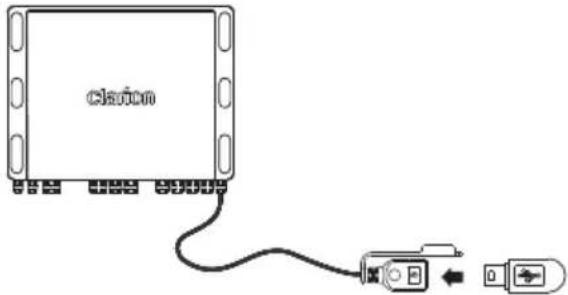

Connect 1. Insert a USB drive into the USB pigtail.2. To remove the USB device, you should first select another source or turn off the power, in order to avoid damaging the USB device. Then remove the USB device.

] button to go to the next track. Press the [ ] button to go to previous track.2. Press and hold the [ ] button to fast forward through the track. Press and hold the [ ] button to rewind through the track.

Play / Pause Press the [ ] button to pause the track is currently playing.Press the [ ] button to resume playing the track that has been paused.

USB Settings Press the [ MENU ] knob to access the USB settings menu. Rotate the [MENU] knob to select the following functions:

Browse Use the [MENU] knob to browse folders or files to play back. Press the [ ] button to navigate back through the menu.Note: Pressing the [ / ] buttons will allow you to quickly skip through pages of folders when browsing.

Repeat This function allows you to Repeat All track (Default), Repeat the currently playing track,or to Repeat the tracks in the current folder.Press the [MENU] knob to select Repeat options: “ALL” or “TRACK” or “FOLDER”.

Shuffle This function allows you to play tracks in a random order.Press the [MENU] knob to turn On or Off the shuffle function.Note: Enabling shuffle mode will change Repeat to the default mode of ALL tracks.English Owner’s Manual

CMS4 iPod/iPhone/iPad Mode Operation

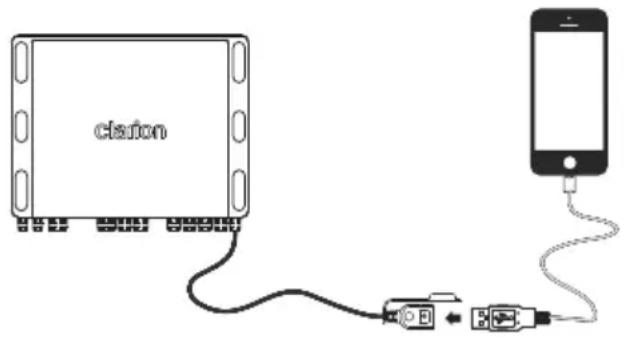

Connect Connect an iPod/iPhone/iPad to the USB pigtail using a USB cable. When connecting a device, the unit will read the files automatically. The track information displays on the screen once playback starts.

Compatible Apple Devices You can connect the following devices:

Minimum iOS 8.0 or higher

] button to advance to the next track. Press the [ ] button to go to previous track.2. Press and hold the [ ] button to fast forward through the track. Press and hold the [ ] button to rewind through the track.

Play / Pause Press the [ ] button to pause the track that is currently playing.Press the [ ] button to resume playing the track that has been paused.

iPod Settings Press the [MENU] knob to access the iPod settings menu, rotate the [MENU] knob to select the following functions:

AUDIOBOOKS PODCASTS3. Use the [MENU] knob to navigate the menus and select options.4. Press the [ ] button to navigate back through the menu.Note: Pressing the / ] buttons will allow you to quickly skip through pages of folders when browsing.

Repeat This function allows you to Repeat All tracks, Repeat the currently playing track, or to turn the Repeat feature OFF.Press the [MENU] knob to select Repeat options: “OFF” or “ONE” or “ALL”.

Shuffle This function allows you to play tracks in a random order.Press the [ MENU ] knob to turn On or Off the shuffle function.Note: Press the

button to exit .Owner’s Manual English

Pairing a Bluetooth Device 1. From your Bluetooth enabled device, turn Bluetooth ON and search for Bluetooth devices.2. When a list of available Bluetooth devices appear, select "CMS4”.3. "Connected OK” will appear on the CMS4 display.4. You can now start streaming audio from your Bluetooth enabled device.Note: If the mobile phone doesn't support the SSP (Simple Secure Pairing) Profile, please enter the pass code of “0000”

What is audio streaming? Audio streaming is a technique for transferring audio data such that it can be processed as a steady and continuous stream. Users can stream music from their external audio player to their audio system wirelessly and listen to the tracks through the vehicle's speakers. CAUTION Please avoid operating your connected mobile phone while audio streaming as this may cause noise or choppiness during playback. Audio streaming may or may not resume after telephone interrupt as this is dependent on the mobile phone.

Play / Pause Press the [ ] button to pause the track currently playing.Press the [ ] button to resume playing the track that has been paused.

] button to go to the next song. Press the [ ] button to go to previous track.2. Press and hold the [ ] button to fast forward through the track. Press and hold the [ ] button to rewind through the track.

Bluetooth Settings Press the [MENU] knob to access the Bluetooth settings menu, rotate the [MENU] knob to select the following functions:

Browse 1. Press the [MENU] knob to access the BT Audio Browse mode.2. Rotate the [MENU] knob to make folder or song selections. Press the [MENU] knob to enter the folder list.3. Rotate the [MENU] knob to select the desired song and press the [MENU] knob to start playing.Note: Pressing the / ] buttons will allow you to quickly skip through pages of folders when browsing.

Repeat This function allows you to Repeat All tracks, Repeat the currently playing track, or to turn the Repeat feature OFF.Press the [MENU] knob to select the Repeat options: “OFF” or “ONE” or “ALL”.

Shuffle This function allows you to play tracks in a random order.Press the [MENU] knob to turn On or Off the shuffle function.Note:

Not all Bluetooth enabled devices will support the fast forward and rewind function.

Playing order will depend on BT Audio player. When the

button is pressed, some Bluetooth devices will restart the current track depending on how long the track has been playing. During music streaming playback, “BT Audio” will be shown on the display. When BT Audio device is disconnected, “BT Disconnect” will be shown on the display. Some Bluetooth audio players may not have play/pause synchronized with this unit. Please make sure both device and main unit are in the same play/pause status in BT Audio mode.English Owner’s Manual

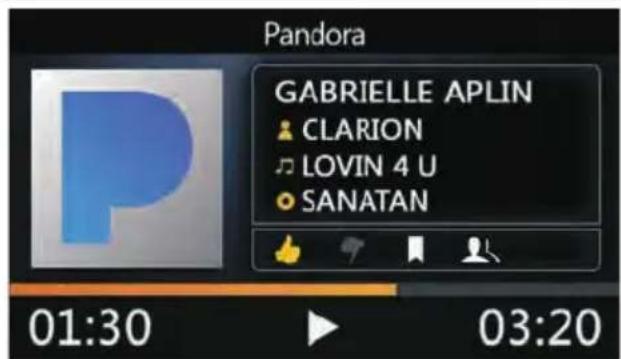

CMS4 Pandora Operation You can stream Pandora internet radio by connecting an iOS (via USB or Bluetooth) or Android (Bluetooth only) device that has the Pandora mobile application already installed. To start streaming, connect the devices with Pandora already launched.Press the [ / SRC] button to select the Pandora source.

Thumbs Up/Thumbs Down

1. Press and hold the [

] button for thumbs up. Giving a track the thumbs up will tell Pandora to play more tracks like that one.2. Press and hold the [ ] button for thumbs down. Giving a track the thumbs down will skip to the next track, and Pandora will remember not to play that track on the station again.Note:

You can personalize your stations by “thumbs up” or “ thumbs down”.

If you give a track the thumbs down after the skip limit has been exceeded, your feedback will be saved but the current track will continue to play.

Pressing and holding

on a track that already has a thumbs up will remove the thumbs up marking.

Skip Press the [ ] button for the next tracks in station.Note: Pandora limits the number of skips allowed on their service. If you attempt to skip tracks beyond the limit, “SKIP LIMIT” is displayed.

Pandora Settings Press the [MENU] knob to access the Pandora setting menu, rotate the [MENU] knob to select the following functions:

Stations 1. Press the [MENU] knob to access the Stations setting mode.2. Rotate the [MENU] knob to select the Stations options.3. Press the [MENU] knob to confirm the selection.

Bookmark 1. Press the [MENU] knob to access the Bookmark setting mode.2. Rotate the [MENU] knob to select the Track or Artist.3. Press the [MENU] knob to start the bookmark.

Stations Manage 1. Press the [MENU] knob to access the Stations Manage Settings menu.2. Rotate the [MENU] knob to select the Stations Manage Settings options. Create From Artist: Allows you to create a station from the artist that you are currently listening to. Create From Track: Works similarly by creating a station from the current track being played. Create From Genre: This will give you music genres to select from to create your station. Delete: Will delete the now playing station.3. Press the [MENU] knob to confirm.Note: If the name of the station you wish to create form a track title or an artist name is the same as the station name currently playing, “NOW PLAY” appears on the display and the station will not be createdOwner’s Manual English

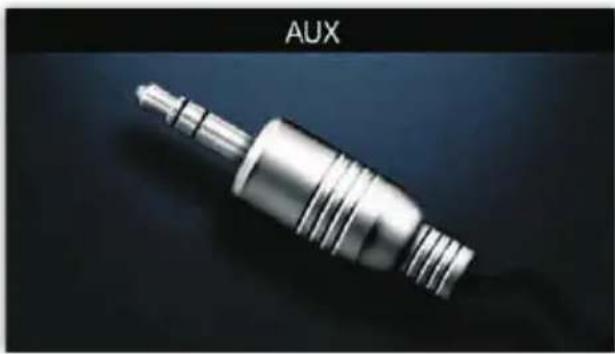

CMS4 AUX Operation The AUX RCA input is provided to allow audio playback from external devices. Press the [ /SRC] button and select “AUX”. Camera Operation The CMS4 features an optional Camera input function allowing the user to see the camera input through the CMS4 display as well as hear camera audio. Press the [ ] button and select “Camera” to switch to the camera input display. The Camera view can also be triggered by applying a +12V connection to the Camera Trigger wire of the CMS4. See wiring details for further information. Note: To configure the camera audio settings, please see the Camera Audio section in Settings

GENERAL Problem Cause Measure The unit will not power

The vehicle's accessory switch is not on If the power supply is properly connected to the vehicle's accessory terminal, switch the ignition key to “ACC” No sound Volume is set too low Increase the volume to audible level Wiring is not properly connected Correct wiring connections The remote is not responding The built-in internal processor is not operating properly Hold the Power / SRC button and select Power Off. Press the Power / SRC button to power back on and check if the remote is functioning properly. Auto seek function can not find any stations The antenna cable is not connected Insert the antenna cable securely The signals are too weak Select a station manually USB Problem Cause Measure USB device cannot

inserted. The USB device has been inserted with wrong direction. Reversing the connection direction of the USB device, try it again. The USB connector is broken. Replace with a new USB device. USB device is not recognized. The USB device is damaged. Disconnect the USB device and reconnect. If the device is still not recognized, try replacing with a different USB device. Connectors are loose. No sound heard with the display “No File” shown. No MP3/WMA file is stored in the USB device. Store these files properly in the USB device. Sound skips or is noisy. MP3/WMA files are not encoded properly. Use MP3/WMA files encoded properly. Bluetooth Problem Cause Measure Cannot pair the Bluetooth enabled device with the audio system. The device does not support the profiles required for the system. Use another device to connect. The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how

enable the function. The audio quality is poor after connection with a Bluetooth- enabled device. The Bluetooth reception is poor. Move the device closer to the audio system or remove any obstacle between the device and the system.Owner’s Manual English

SiriusXM Advisory Messages Message Description Check Tuner The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged. Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio. Check Antenna The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged. Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner. Inspect the antenna cable for damage and kinks. Replace the antenna if the cable is damaged. SiriusXM products are available at your local car audio retailer or online at www.shop.siriusxm.com. No Signal The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal. Verify that your vehicle is outdoors with a clear view of the sky. Verify that the SiriusXM magnetic mount antenna is mounted on a metal surface on the outside the vehicle. Move the SiriusXM antenna away from any obstructions. Inspect the antenna cable for damage and kinks. Consult the SiriusXM Connect Vehicle tuner installation manual for more information on antenna installation. Replace the antenna if the cable is damaged. SiriusXM products are available at your local car audio retailer or online at www.shop. siriusxm.com. Channel Not Subscribed The channel that you have requested is not included in your SiriusXM subscription package or the channel that you were listening to is no longer included in your SiriusXM subscription package. Visit www.siriusxm.com or call 866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel. Channel Not Available The channel that you have requested is not a valid SiriusXM channel or the channel that you were listening to is no longer available. You may also see this message briefly when first connecting a new SiriusXM Connect Vehicle tuner. Visit www.siriusxm.com for more information about the SiriusXM channel lineup. Channel Locked The channel that you have requested is Locked by the radio Parental Control feature. See the section on Parental Control, page 14 for more information on the Parental Control feature and how to access locked channels. Subscription Updated An update to your SiriusXM subscription has been received by the SiriusXM tuner. Press any button to continue. Visit www.siriusxm.com or call 866-635- 2349 if you have questions about your subscription.English Owner’s Manual

≤ 1% THD+N) Signal to Noise Ratio: 72dB (reference: LPF 1W into 4 Ω)Owner’s Manual English

1. This set is exclusively for use in vessels with a negative

ground 12 V power supply.

2. Read these instructions carefully.

3. Be sure to disconnect the battery “ ” terminal

before starting. This is to prevent short circuits during installation. (Figure 1) Battery Figure 1

2. INSTALLATION CAUTIONS

1. In order to avoid any interference, do not install the tuner module or control unit in the proximity of the

2. The use of unauthorized parts can cause permanent damage to the unit.

3. Always check your wire connections to ensure proper installation before turning on the unit.

4. Consult with your nearest dealer for proper installation or if common parts need to be used. Seek

assistance if modifications or drilling holes to your vessel is needed.

5. Do not install the unit where it will be subjected to excessive moisture, dust, dirt, foreign particles or

vibration. Areas of high temperature from the engine, direct sunlight, heater or hot air should also be avoided.

6. Do not install the unit in a location where it will interfere with the vessel operation, or it will injure the

passengers if there is a sudden or emergency stop.

3. OPTIONAL MARINE WIRED REMOTE INSTALLATION

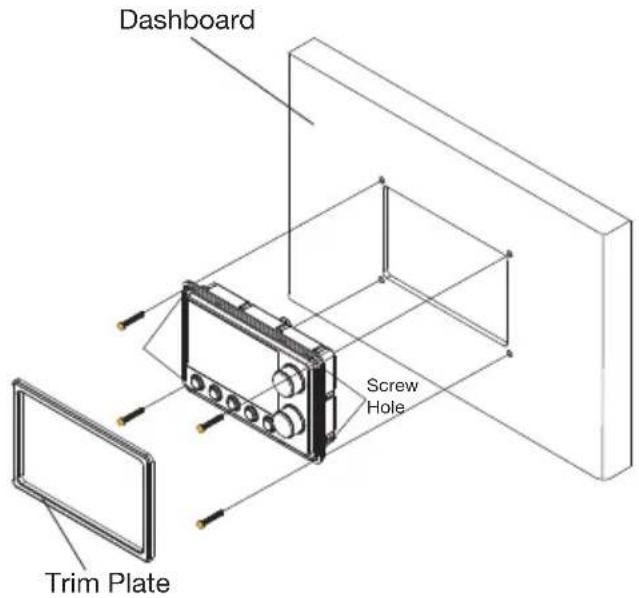

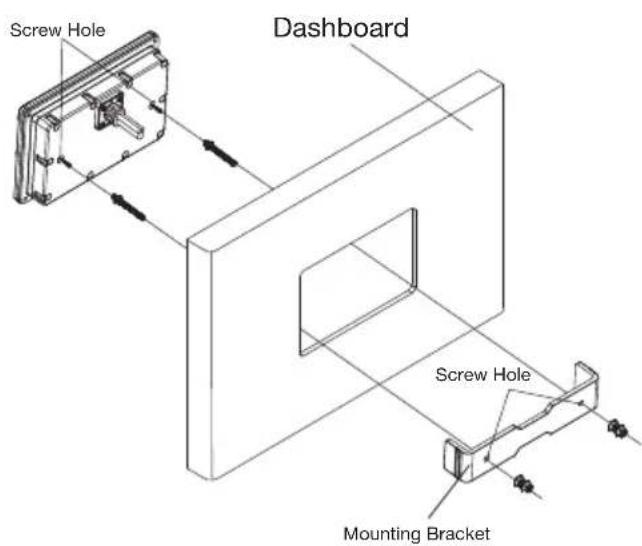

The control unit should be mounted to a dry, clean and flat surface. Ensure the rear gasket is fully sealed to the mounting surface without distorting the unit. Method 1 Method 2 Dashboard Dashboard Trim Plate Mounting BracketScrew HoleScrew HoleScrew HoleEnglish Owner’s Manual

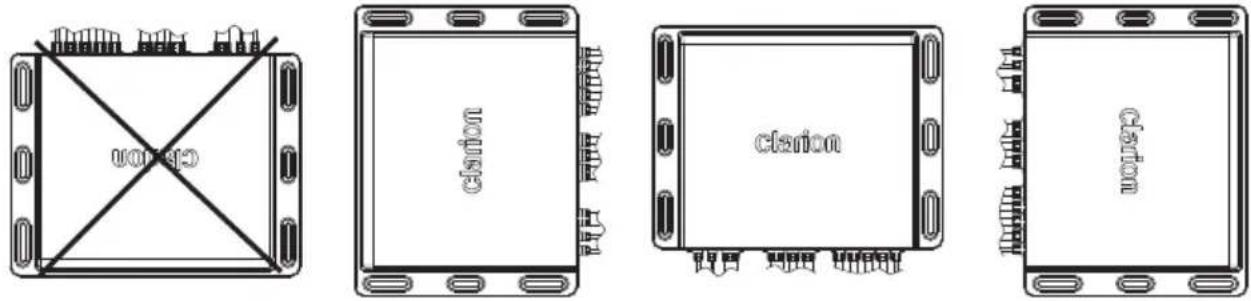

1. Select an area with sufficient ventilation for the mounting of the black box in order to prevent the module

from overheating. You may mount the black box in a horizontal or vertical position. If the black box is mounted in a vertical position, do not mount the module with the harness exit points directly facing up to prevent water collecting in these areas.

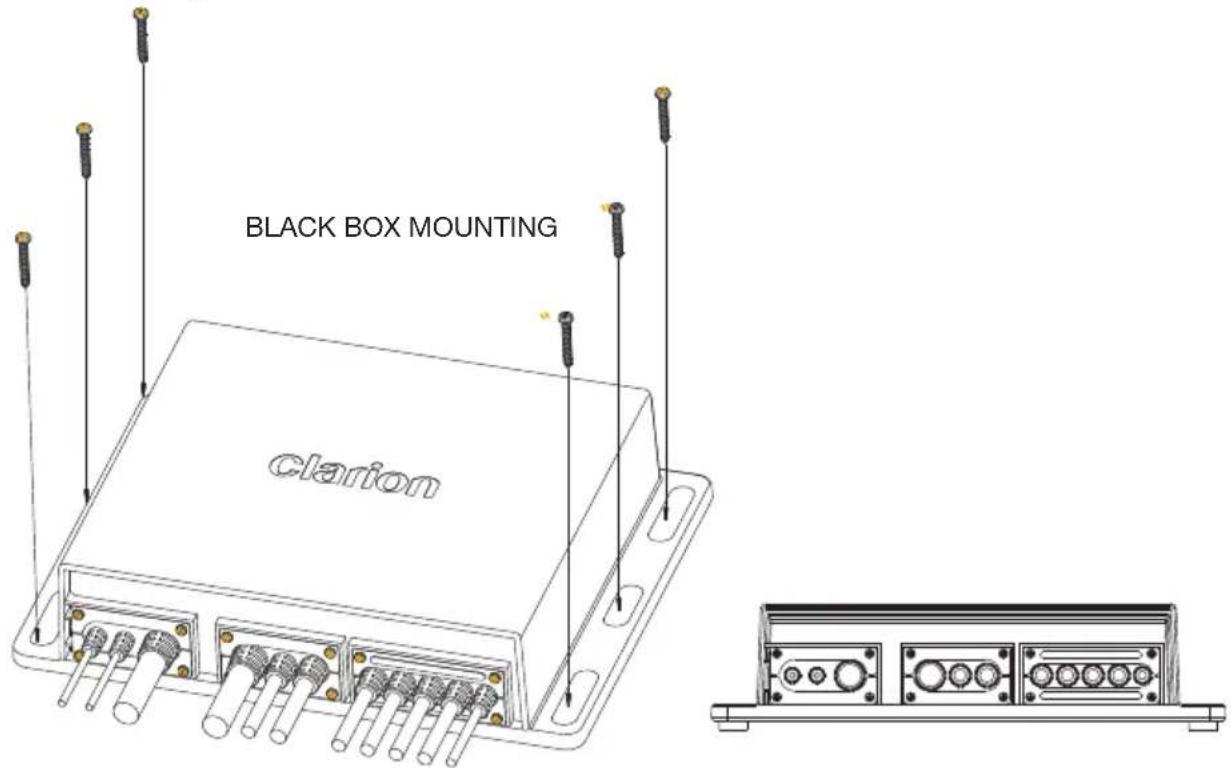

2. Please refer to the diagram below for the mounting screw hole positions. Always use the shortest length

3. During installation, use the 6 rubber mounting stoppers (included in the package) for the bottom of the

module. This provides clearance from surface moisture and provides sufficient ventilation for the heat sink.

4. Extension wires/cables may be needed to route the harness and cable throughout the vessel.

Note: Retain some slack in the harness/ cables to prevent damage to the wires. It is recommended relieve stress in all cables and harnesses.

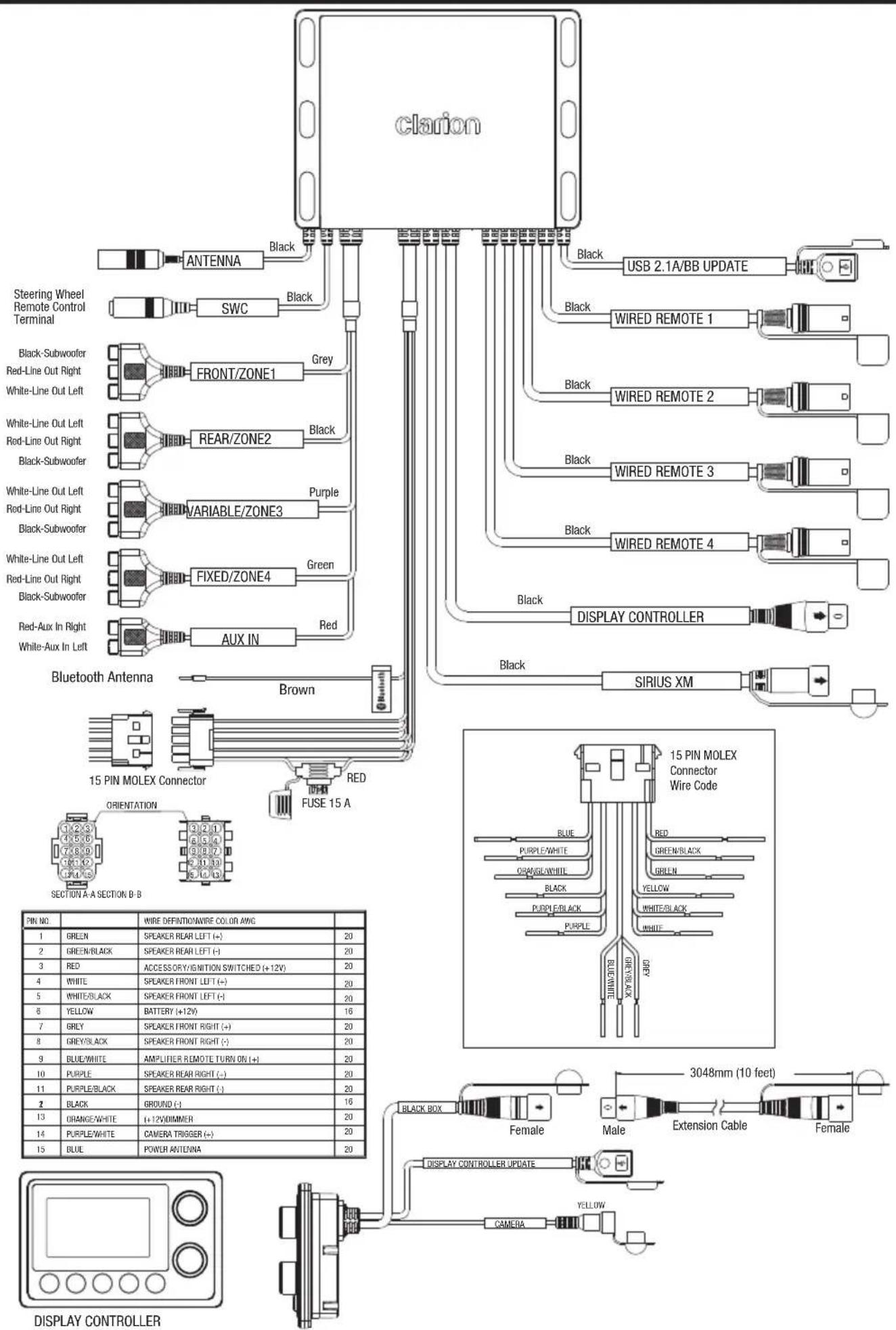

5. Always read through the wiring diagram in this manual first, and follow all the wiring diagrams carefully.

The connections should be secured and insulated with crimp connectors or electrical tape to ensure proper connections.

6. Once the wiring connections are completed, connect the negative terminal on the battery, turn the

vessel accessory ON and power on the unit to check if it is operating correctly. If abnormalities occur, disconnect the battery negative terminal, recheck all wiring and try again. Please refer to the troubleshooting section for assistance. BLACK BOX MOUNTINGOwner’s Manual English

DOMMAGES OU UNE PANNE! Bouton [ / SRC]

Mode USB – Lecture/Pause

Mode iPod/iPhone – Lecture/Pause

Mode Pandora – Lecture/Pause

Mode Audio BT – Lecture/Pause Bouton[ / SOURCE]

Mode USB – Lecture/Pause

Mode Audio BT – Lecture/Pause

Mode iPod/iPhone – Lecture/Pause

Mode Pandora – Lecture/Pause

seleccione Power off. Pulse
