ThankyouforpurchasingthisPIONEER product

Toensureproperuse,pleasereadthroughthis manualbeforeusingthisproduct.Itisespeciallyimportantthatyoureadandobserve WARNINGsandCAUTIONsinthismanual. Pleasekeepthemanualinasafeandaccessible placeforfuturereference.

ThisdevicecomplieswithPart15oftheFCC Rules. Operationissubjecttothefollowing twoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation.

InformationtoUser

Alterationnormodificationscarriedoutwithout appropriateauthorizationmayinvalidatethe user'srighttooperatethequipment.

Note

Thisequipmenthasbeentestedandfoundto complywiththelimitsforaClassBdigitaldevice, pursuantToPart15oftheFCCRules.Theselimits aredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidential installation. Thisequipmentgenerates, uses and can radiateradiofrequencyenergyand, ifnot installed and used inaccordancewiththeinstructions, maycauseharmfulinterferencetoradio communications.However,thereisnoguarantee that interferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmful interferencetoradioorteleventionreception, whichcanbedeterminedbyturningthequipmentoffandon,theuserisencouragedotryto

correcttheinterferencebyoneormoreofthefollowingmeasures:

-Reorientorrelocateetherereceivingantenna.
-Increasetheseparationbetweentheequipment andreceiver.
-Connectthequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected.
-Consultthedealeroranexperiencedradio/TV technicianforhelp.

After-saleservicefor Pioneerproducts

Pleasecontactthedealerordistributorfrom whereyoupurchasedthisunitforafter-sales service(includingwarrantyconditions)orany otherinformation.Incasethenecessaryinformationisnotavailable,pleasecontactthe companieslistedbelow: Pleasedonotshipourunittothecompanies attheaddresseslistedbelowforrepairwithout advancecontact.

USA&CANADA

PioneerElectronics(USA)Inc.
CUSTOMERSUPPORTDIVISION
P.O.Box1760
LongBeach,CA90801-1760
800-421-1404

ForwarrantyinformationpleaseseetheLimitedWarrantysheetincludedwiththisunit.

Ifyouexperienceproblems

Shouldthisproductfailtooperateproperly, pleasecontactyourdealerornearestauthorizedPioneerServiceStation.

Beforeyoustart

Visitourwebsite

http://www.pioneerelectronics.com

inCanada

http://www.pioneerelectronics.ca

• Learnaboutproductupdates(suchasfirmwareupdates)foryourproduct.
• Registryourproducttoreceive notices about product updatesandtosafeguard purchasedetailsinourfilesintheevent of lossortheft.
• Accessowner'smanuals, spare parts information, service information, and much more.

TheSafetyofYourEarsisin YourHands

Getthemostoutofyourequipmentbyplaying itatasafelevel—alevelthatletsthesound comethroughclearlywithoutannoyingblaringordistortionand,mostimportantly,withoutaffectingyoursensitivehearing.Sound canbedeceiving.Overtime,yourhearing "comfortlevel"adaptstohighervolumesof sound,sowhatsounds"normal"canactually beloudandharmfultoyourhearing.Guard againstthisbysettingyourequipmentata safelevelBEFOREyourhearingadapts.

ESTABLISHASAFELEVEL:

• Setyourvolumecontrollateralowsetting.
  Slowly increasethesoundt until you can hearit comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there.

BESURETOOBSERVETHEFOLLOWING GUIDELINES:

• Donotturnupthevolumesohighthatyou can'thearwhat'saroundyou.
  Usecautionortemporarilydiscontinueuse inpotentiallyhazardoussituations.

• Donotuseheadphoneswhileoperatinga motorizedvehicle;theuseofheadphones maycreateatrafchazardandisillegal in manyareas.

Beforeconnecting/ installingtheamplifier

WARNING

Theuseofaspecialredbatteryandground wireRD-223,availableseparately,isrecommended.Connectthebatterywiredirectlyto thecarbatterypositiveterminal ④ andthe groundwiretothecarbody.
- This unit is for vehicles with a 12V battery and negative grounding. Before installing in recreational vehicles, trucks or buses, check the battery voltage.
- Wheninstallingthisunit, makes sure to connect the groundwire first. Ensure that the groundwire is properly connected to metal part of the car's body. The groundwire of the one of this unit must be connected to the car separately with different screws. If there are different screw holes in the groundwire sensor falls out, it could result in fire, generation of smoke or malfunction.
Alwaysuseafuseoftheratingprescribed. Theuseofanimproperfusecouldresultin overheatingandsmoke,damagetotheproductandjury,includingburns.
- Check the connection of the powersupply and speakers if the use of these separately sold batterywire or the amplifier fuses. Determine and resolve the cause, then replace the fuse with an identical equivalent.
Alwaysinstalltheamplifieronaflatsurface. Donotinstalltheamplifieronasurfacethat isnotflatoronasurfacewithaprotrusion. Doingsocouldresultinmalfunction.

Beforeyoustart

• Wheninstallingtheamplifier, donotallow partssuchasextrascrewstogetcaughtbetweenthemplifierandtheautomobile. Doingsocouldcausemalfunction.
• Donotallowthisunittocomeintocontact withliquids. Electricalshockcouldresult. Also,damagetothisunit,smoke,andoverheatingcouldresultfromcontactwithliquids. Thesurfacesoftheamplifierandanyattached speakersmayalsoheatupandcauseminor burns.
• Intheeventofanyabnormality, the power supplytotheamplifieriscutofftoprevent equipmentmalfunction. Ifthisoccurs, switch thesystempoweroffandcheckthepower supplyandspeakerconnections. Ifyouareunabledeterminetherecause, pleasecontact yourdealer.
• Always disconnect then negative terminal of the battery before handto avoid the risk of electricshockorshort circuit during installation.
• Donotattempttodisassembleormodifythis unit.Doingsomayresultinfire,electric shockorothermalfunction.

CAUTION

• Alwayskeep the volume down to 100 ml.
• Avoids the use of a sharp instrument such as a knife or a sharp wire.
• Always keep the volume in the range of 100 ml.
• Extendeduseofthecarstereowhiletheengineisatrestoridlingmayexhaustthebattery.
  This product is evaluated in moderate and tropical climate condition under the Audio, Video and similare electronic apparatus-Safety requirements, IEC60065.
  Theographicalsymbol placedonthe productmeansdirectcurrent.

Abouttheprotectionfunction

Thisproducthasprotectionfunction.Whenthis productdetectssomethingabnormal,thefollowingfunctionswilloperatetoprotecttheproduct andspeakeroutput.

Thepowerindicatorwillturnoffandthemplifierwillshutdowninthesituationsoutlinedbelow.

—Ifthespeakeroutputterminalandspeaker wireareshort-circuited.
—IfaDCvoltageisappliedtothespeaker outputterminal.

Theamplifierwillreducethepoweroutputif thetemperatureinsidetheamplifiergets high.Ifthetemperaturegetstoohigh,the powerindicatorwillturnoff,andthemplifier willshutdown.

Important(Serialnumber)

Theserialnumberislocatedonthebottomof thisunit.Foryourownsecurityandconvenience, besuretorecordthisnumberontheenclosed warrantycard.

Note

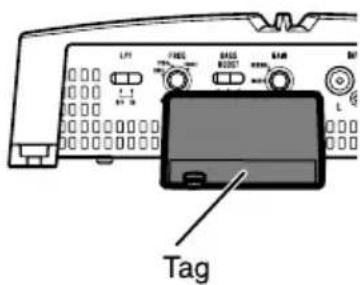

Beforeinstallingthisunitinyourvehicle,referto theillustrationbelowandremovethetag(GM-A5702only).

Donotusethepartsyouhavenooved(screws etc.)wheninstallingtheunitinyourvehicle.

Settingtheunit

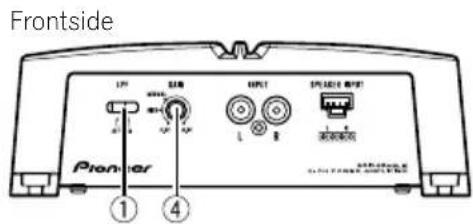

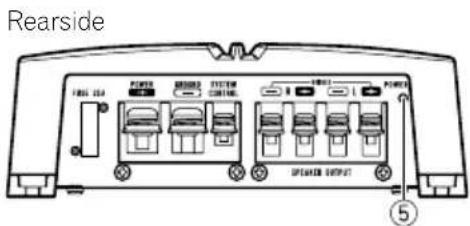

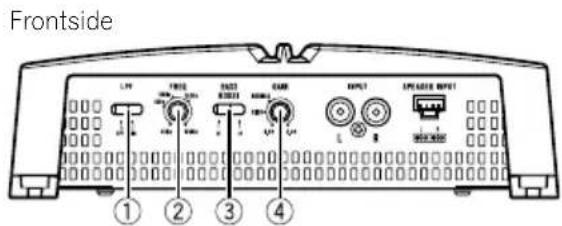

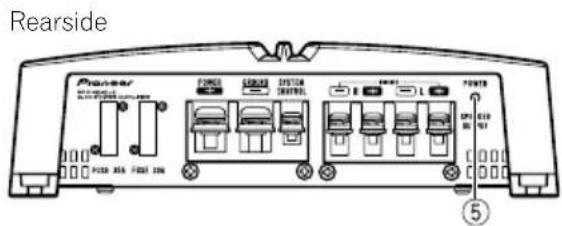

What'swhat

GM-A5702

GM-A3702

Toadjusttheswitch,useaflatheadscrewdri- verifneeded.

①LPF(low-passfilter)switch

Switchthesettingsbasedontheconnected speaker.

• Whenthe Subwoofer is connected: SelectON. This eliminates high range frequency and outputs low range frequency.
• Whenthefullrangespeakerisconnected: SelectOFF.OFFoutputstheentirefrequencyrange.

② FREQ(cutofffrequency)control

Cutofffrequencyselectablefrom40Hzto 500HziftheLPFselectswitchissettoON.

③ BASSBOOST(bassboostlevelcontrol) switch

You can select tabassboostlevel from 0dB, 6dB and 12dB.

④ GAIN(gain)control

Iftheoutputremainslow,evenwhenthecar stereovolumeisturnedup,turnthecontrolstoalowerlevel. Ifdistortionoccurs when thecarstereovolumeisturnedup, turnthesecontrolstoahigherlevel.

• ForusewithanRCAequippedcarstereo (standardoutputof500mV),settothe NORMALposition.ForcewithanRCA equippedPioneercarstereo,with maximumoutputof4Vormore,adjustlevel to matchthatofthecarstereooutput.
• ForusewithanRCAequippedcarstereo withoutputof4V,settotheHIGHposition.
• Ifyouheartoomuchnoisewhenusing thespeakerinputterminals,turnthe gaincontroltoligherlevel.

⑤Powerindicator

Thepowerindicatorlightsuptoindicate powerON.

Settingtheunit

Settinggainproperly

• Protectivefunctionincludedtoprevent malfunctionoftheunitand/orspeakers duetoexcessiveoutput,improperuseor improperconnection.
• When outputting high volumesoundetc., this function cutsofttheoutputforafew secondsasanormalfunction, but output is restored when the volume of the head unitisturned down.
• Acutinsoundoutputmayindicateimpro-persettingofthegaincontrol.Toensure continuousoundoutputwiththehead unitatahighvolume,setamplifiergain controtoalevelappropriateforthepreout maximumoutputleveloftheheadunit,so that volumecanremainunchangedandto controlexcessoutput.
• Despitecorrectvolumeandgainsettings, theunitsoundstillcutsoutperiodically. In suchcases, please contact the nearest authorized Pioneer Service Station.

Gaincontrolofthisunit

AboveillustrationsshowsNORMALgainsetting.

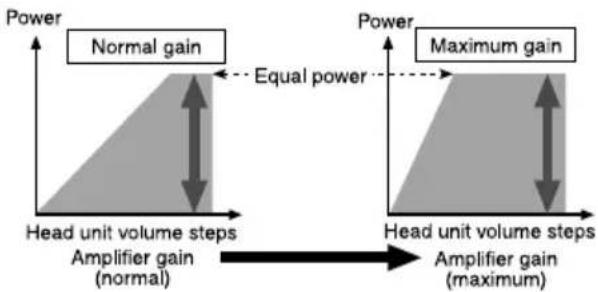

Relationshipbetweenamplifiergain andheadunitoutputpower

If amplifiergainisraisedimproperly,thiswill simply increasedistortion,withlittleincrease inpower.

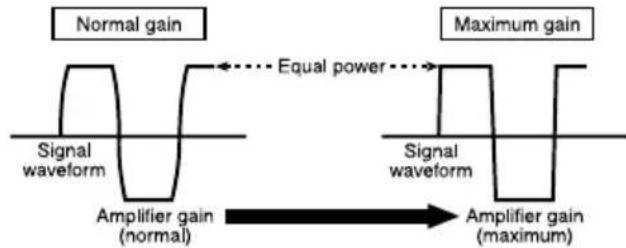

Signalwaveformwhenoutputting at highvolumeusingamplifiergain control

Ifthesignalwaveformisdistorteduetohigh output,eveniftheamplifiergainisraised,the outputpowerwillchangeonlyslightly.

Connectingtheunits

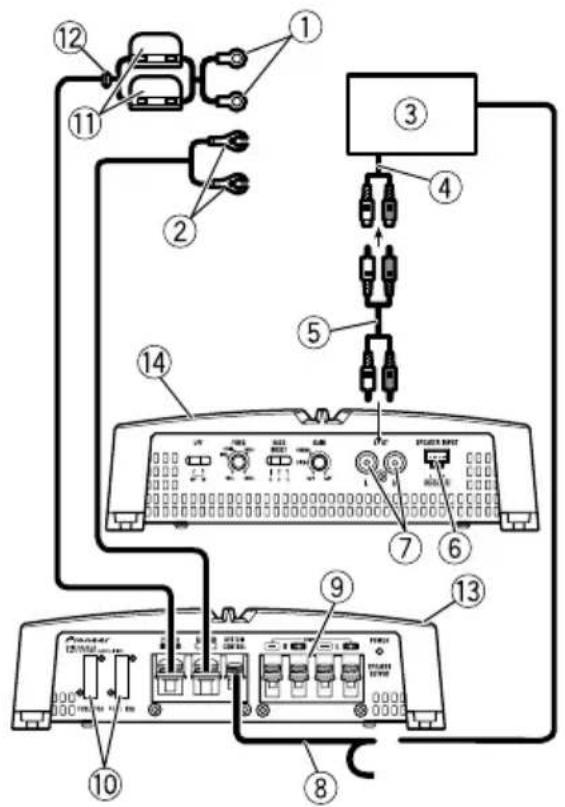

Connectiondiagram

①Specialredbatterywire
RD-223(soldseparately)
Aftercompletingallotheramplifierconnections,finallyconnectthebatterywireterminal oftheamplifiertothepositive batteryterminal.
②Groundwire(Black)
RD-223(soldseparately)
Connecttometalbodyorchassis.
③ CarstereowithRCAoutputjacks(soldseparately)
(4)Externaloutput
⑤ConnectingwirewithRCApinplugs(soldseparately)
⑥Speakerinputterminal(useaconnectorincluded)
Pleaseseethefollowingsectionforspeaker connectioninstructions.RefertoConnections whenusingthespeakerinputwire.
⑦RCAinputjack
⑧Systemremotecontrolwire(soldseparately)

Connectmaleterminalofthiswiretothesystemremotecontrolterminalofthecarstereo. Thefemaleterminalcanbeconnectedtothe auto-antennarelaycontrolterminal.Ifthecar stereolacksystemremotecontrolterminal, connectthemaleterminaltothepowerterminaliaivatheignitionswitch.

⑨ Speakeroutputterminals Pleaseseethefollowingsectionforspeaker connectioninstructions.RefertoConnecting thespeakers.
⑩Fuse30A×2(GM-A5702)/25A×1(GM-A3702)
1Fuse(30A)×2
⑫Grommet
③ Rearside
14Frontside

Connectingtheunits

Beforeconnectingthe amplifier

WARNING

• Securethewiringwithcableclampsoradhesivetape. Toprotectthewiring,wrapsections incontactwithmetalpartsinadhesivetape.
• Nevercuttheinsulationofthepowersupply tofeedpowertootherequipment.Current capacityoftthewireislimited.

CAUTION

• Nevershortenanywires, the protection circuit may malfunction.
• Neverwirethespeakernegativecabledirectly toground.
• Neverbandtogethermultiplespeaker'snegativecables.
• Ifthesystemremotecontrolwireoftheamplifierisconnectedtothepowerterminalviathe ignitionswitch(12VDC),theamplifierwillremainonwiththeignitionwhethertecar stereoisonoroff,whichmayexhaustbattery iftheengineisatrestoridling.
  Installandroutetheseparatelysoldbattery wireasfaraspossiblefromthespeakerwires. Installandroutetheseparatelysoldbattery wire,groundwire,speakerwiresandthemplifiersfarawayaspossiblefromtheantenna,antennacableandtuner.

Aboutbridgedmode

Diagram A - Proper
4ΩBridgedMode

Diagram B - Improper
2Ω Bridged Mode

• Donotinstallorusethisamplifierbywiring speakersratedat4Ω(orlower)inparallelto achievea2Ω(orlower)bridgedmode(DiagramB).
  Amplifierdamage,smoke,andoverheating couldresultfromimproperbridging.The amplifiersurfacecouldalsobecomehottothe touchandminorburnscouldresult. Toproprielyinstalloruseabridgedmodeand achievea4Ωload, wiretwo8Ωspeakersin parallelwithLeft ① andRight (DiagramA) oruseasingle4Ωspeaker. Inaddition,refertothespeakerinstruction manualforinformationonthecorrectconnectionprocedure.
• Forany further enquiries,contact your local authorized Pioneer dealer or customer service.

Aboutsuitable specificationofspeaker

Ensurespeakersconformtothefollowing standards,otherwisethereisariskoffire, smokeordamage.Speakerimpedanceis2Ω to 8Ω for stereo connection, or 4Ω to 8Ω for monauralandotherbridgeconnection.

Connectingtheunits

Subwoofer

SpeakerchannelPower
Two-channeloutput	Nominalinput: Min.150W(GM-A5702) Min.60W(GM-A3702)
One-channeloutput	Nominalinput: Min.480W(GM-A5702) Min.190W(GM-A3702)

Otherthansubwoofer

SpeakerchannelPower
Two-channeloutput	MAXinput: Min.300W(GM-A5702) Min.170W(GM-A3702)
One-channeloutput	MAXinput: Min.1000W(GM-A5702) Min.500W(GM-A3702)

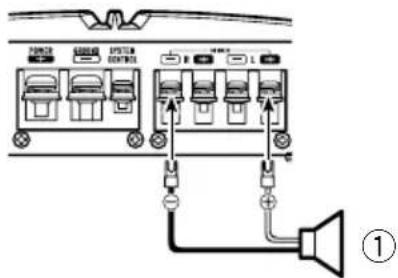

One-channeloutput

①Speaker(Mono)

Connectingthespeakers

Thespeakeroutputmodecanbetwo-channel (stereo)orone-channel(mono).Connectthe speakerleadstosuitthemodeaccordingo thefiguresshownbelow.

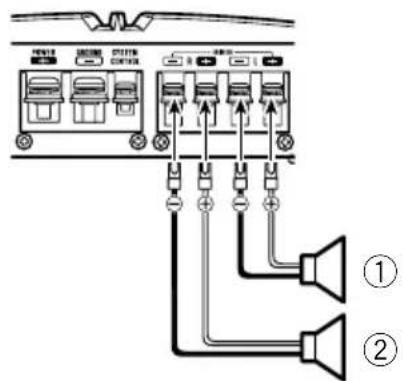

Two-channeloutput(Stereo)

①Speaker(Left)
②Speaker(Right)

Connectingtheunits

Connectionswhenusing thespeakerinputwire

Connect the car stereospeaker output wires to the amplifier using the supplied speaker input wire.

• DonotconnectboththeRCAinputandthespeakerinputatthesametime.

①CarStereo
②Speakeroutput
③White/black:Left
White:Left
⑤Gray/black:Right
⑥Gray:Right
⑦Speakerinputconnector

Tospeakerinputterminalofthisunit.

Note

Ifspeakerinputwiresfromheadunitareconnectedtothisamplifier, the amplifierwillautomaticallyturnonwhentheheadunitisturnedon. Whentheheadunitisturnedoff, the amplifier turnsoffautomatically.Thisfunctionmaynot workwithsomeheadunits.Insuchcases, make surethattheLeftchannelisconnectedcorrectly. If the function still doesnotwork, please use a systemremotecntrlwire(soldseparately). If multiple amplifiersaretobecomnectedtogether synchronously, connecttheheadunitandall amplifiersviathesystemremotecntrlwire.

Connectingthepowerterminal

Theusefaspecialredbatteryandground wireRD-223(soldseparately)isrecommended.Connectthebatterywiredirectlyto thecarbatterypositiveterminal ④ andthe groundwiretothecarbody.

WARNING

If the battery wire is not securely fixed to the terminal using the terminals screws, there is a risk of overheating, malfunction and injury, including minor burns.

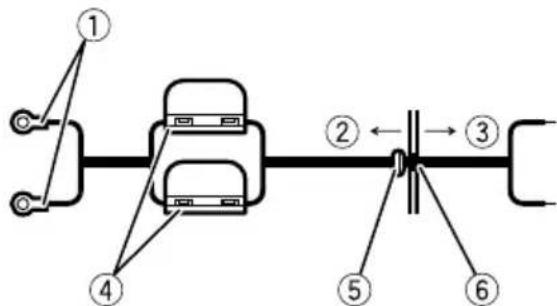

1Routebatterywirefromenginecompartmenttothevehicleinterior.

• Whendrillingacablepass-holeintothevehiclebodyandroutingabatterywirethoroughit,takecarenttoshort-circuitthe wiredamagingitbythecutedgesorburrs ofthehole.

Aftercompletingallotheramplifierconnections,finallyconnectthebatterywireterminal oftheamplifiertothepositive batteryterminal.

①Positive terminal
②Enginecompartment
③Vehicleinterior
④Fuse(30A)×2
⑤InserttheO-ringrubbergrommetintothe vehiclebody.
⑥Drilla14mm(1/2in.)holeintothevehicle body.

Connectingtheunits

2Twistthebatterywire,groundwire andsystemremotecntrlwire.

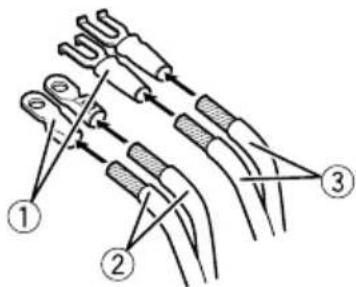

3Attachlugstowireends.

Usepliers,etc.,tocrimplugstowires.

①Lug(soldseparately)
②Batterywire
③Groundwire

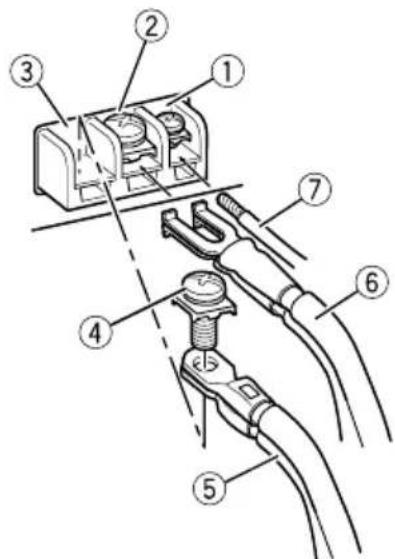

4Connectthewirestotheterminal. Fixthewiressecurelywiththeterminal screws.

①Systemremotetocontrolterminal
②Groundterminal
③Powerterminal
④Terminalscrews
⑤Batterywire

⑥Groundwire

⑦Systemremotecontrolwire

Connectingthespeaker outputterminals

1Usewirecuttersorautilityknifeto stripteendofthespeakerwirestoexposeabout10mm(3/8in.)ofwire and thentwistthewire.

2Attachlugstowireends.

Usepliers,etc.,tocrimplugstowires.

①Lug(soldseparately)
②Speakerwire

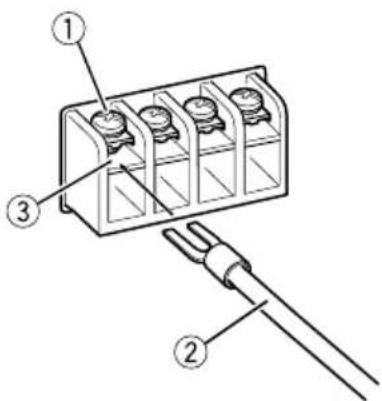

3Connectthespeakerwiresthespeakeroutputterminals.

Fixthespeakerwiressecurelywiththeterminalscrews.

ConnectingtheunitsInstallation

①Terminalscrews
②Speakerwires
③Speakeroutputterminals

Beforeinstallingtheamplifier

WARNING

Toensureproperinstallation,usethesupplied partsinthemannerspecified.Ifanyparts otherthanthesesuppliedareused,theymay damageinternalpartsoftheamplifier,orbecome loosecausingtheamplifiertoshut down.
- Donotinstallin:

—Placeswhereitcouldinjurethedriveror passengersifthevehiclestopssuddenly.
Placeswhereitmayinterferewiththedriver,suchasonthefloorinfrontofthedriver'sseat.

Installtappingscrewsinsuchawaythatthe screwtipdoesnn'touchanywire.Thisisimportanttopreventwiresfrombeingcutbyvibrationofthecar,whichcanresultinfire.
- Makesurethatwiresdonotgetcaughtinthe slidingmechanismoftheseseatsortouchthe legsofapersoninthevehicleassshort-circuit mayresult.
- Whendrillingtoinstalltheamplifier,always confirmnopartsarebehindthepaneland protectallcablesandimportantequipment (e.g.fuel/brakelines,wiring)fromdamage.

CAUTION

Toensureproperheatdissipationoftheamplifier,ensurethefollowingduringinstallation:Allowadequatespaceabovetheamplifier forproperventilation. Donotcovertheamplifierwithafloormat orcarpet.
Protectionfunctionmayactivatetoprotectthe amplifieragainstoverheatingduetoinstantioninlocationswheresufficentheatcannot bedissipated,continuoususeunderhigh-volumeconditions,etc.Insuchcases,theamplifierreducessthepoweroutputshuts downuntilithascooledtoacertaindesignatedtemperature.
- Placeallcablesawayfromhotplaces,such asneartheheateroutlet.

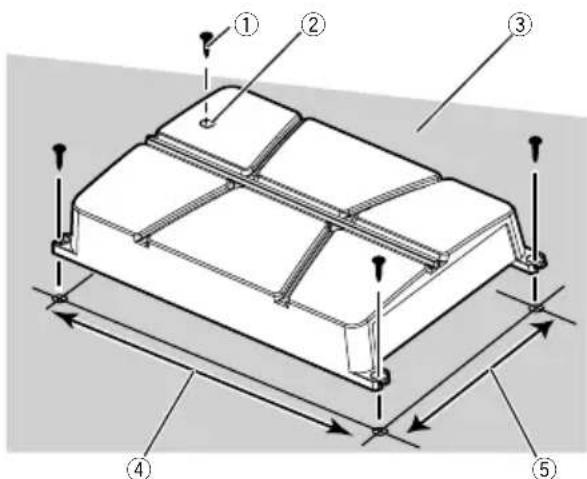

Installation

Theoptimalinstallationlocationdiffersdependingonthecarmodel.Securethempliferatasufficientlyrigidlocation.
- Check all connections and systems before final installation.
Afterinstallingtheamplifier, confirmthat the spare tire, jackandtoolscanbeeasilyremoved.

Exampleofinstallationon thefloormatorchassis

1Placethemamplifierinthedesiredinstallationlocation.

Insertthesuppliedtappingscrews(4mm× 18mm(1/8in.×3/4in.))intothescrewholes andpushonthescrewswithascrewdriverso theymakeanimprintwheretheinstallation holesaretobelocated.

2Drill2.5mm(1/8in.)diameterholesat theirimprintseitheronthecarpetordirectly onthechassis.

3Installtheamplifierwiththeuseof suppliedtappingscrews(4mm×18mm (1/8in.×3/4in.)).

①Tapping screws(4mm×18mm(1/8in.×3/4in.))
②Drilla2.5mm(1/8in.) diameterhole.
③Floormatorchassis
④Hole-to-holedistance:343mm(13-1/2in.) (GM-A5702)/233mm(9-1/8in.) (GM-A3702)
⑤Hole-to-holedistance:195mm(7-5/8 (GM-A5702)/160mm(6-1/4in.) (GM-A3702)

Additionalinformation

Specifications

GM-A5702

Powersource.14.4VDC(10.8Vto15.1V allowable)

Groundingsystem.Negativetype

Currentconsumption.36A(atcontinuouspower, 4Ω)

Averagecurrentconsumption 9.5 A (4 Ω for two channels) 15.5A(4Ωforonechannel)

Fuse. 30A×2
Dimensions(W×H×D)...356mm×60mm× 215mm (14in.x2-3/8in.x8-1/2in.)

Weight. 2.2kg(4.9lbs) (Leadsforwiringnotincluded)

Maximumpoweroutput.....300Wx2(4Ω)/500Wx2 (2Ω)/1000WTOTAL (BRIDGE)

Continuouspoweroutput...150W×2(at14.4V,4Ω, 20Hz to 20kHz, ≤1.0%THD +N)

480W×1(at14.4V,4Ω BRIDGE1kHz,≤1.0%THD +N) 240W×2(at14.4V,2Ω, 1kHz,≤1.0%THD+N)

Load impedance 4Ω (2Ω to 8Ω allowable) Frequencyresponse.10Hzto70kHz(+0dB, -3dB)

Signal-to-noiseratio.96dB(IHF-Anetwork)

Distortion. 0.05% (10W,1kHz)

Lowpassfilter: Cutofffrequency.40Hzto500Hz Cutoffslope-12dB/oc

Bassboost: Frequency. .50Hz Level. 0dB/6dB/12dB

Gaincontrol: RCA. .0.3Vto6.5V Speaker. 3.0Vto26V

Maxuminputlevel/impedance: RCA. 6.5V/22kΩ Speaker. 26V/16kΩ

CEA2006Specifications

Poweroutput.150WRMSx2Channels (at14.4V,4Ωand≤1% THD+N)

S/N ratio. 75dBA(reference:1Winto 4Ω)

GM-A3702

Powersource.14.4VDC(10.8Vto15.1V allowable)

Groundingsystem.. Negativetype

Currentconsumption.14.5A(atcontinuouspower, 4Ω)

Averagecurrentconsumption 4A(4Ωfor two channels) 6.5A(4Ωforonechannel)

Fuse. 25A×1

Dimensions(W×H×D)...246mm×60mm× 180mm (9-5/8in.×2-3/7-1/8in.)

Weight. 1.4kg(3.1Ibs) (Leadsforwiringnotincluded)

Maximumpoweroutput.....170Wx2(4Ω)/250Wx2 (2Ω)/500WTOTAL (BRIDGE)

Continuouspoweroutput...60W×2(at14.4V,4Ω, 20Hzto20kHz,≤1.0%THD +N) 190W×1(at14.4V,4Ω BRIDGE1kHz,≤1.0%THD +N) 95W×2(at14.4V,2Ω, 1kHz,≤1.0%THD+N)

Load impedance 4Ω (2Ω to 8Ω allowable)

Frequencyresponse.10Hzto70Hz(+0dB, -3dB)

Signal-to-noiseratio.95dB(IHF-Anetwork)

Distortion.0.05%10W,1kHz

Lowpassfilter: Cutofffrequency.80Hz Cutoffslope-12dB/oc

Gaincontrol:
RCA. 0.3Vto6.5V
Speaker. 3.0Vto26V

Additionalinformation

Maximuminputlevel/impedance:

RCA. 6.5V/22kΩ

Speaker. 26V/16kΩ

CEA2006Specifications

Poweroutput.60WRMSx2Channels(at

14.4V,4Ωand≤1%THD

+N)

S/Nratio. 78dBARefence:1Winto

4Ω)

Notes

• Specificationsandthedesignaresubjectto modificationswithoutnotice.
  Theaveragecurrentconsumptionisnearly themaximumcurrentconsumptionbythis unitwhenanaudiosignalinput.Usethis valuewhenworkingouttotalcurrentconsumptionbymultiplepoweramplifiers.

Avantdecommencer

http://www.pioneerelectronics.ca
