USER MANUAL SBV10WRA ALPINE

Pre-loaded 10" Subwoofer System

Installation Manual

Model:4-Door Wrangler Unlimited

Year: 2007-2018 JKU

Line drawing of a classic off-road vehicle (no text or symbols)

* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is not guaranteed if the manufacturer has made production changes to the listed vehicles above.

Mandatory

Disconnect the battery before beginning the installation.

Failure to do so can lead to electric shock, injury or damage to equipment.

Introduction

Congratulations on purchasing the SBV-10-WRA. This installation manual is designed to take you through the step-by-step installation of the SBV-10-WRA into a 2007 - 2018 Jeep Wrangler Unlimited. Please familiarize yourself with the owners manual and if you still have additional questions please call 1-800-TECH-101.

Note

● Design and specifications are subject to change without notice for improvement.

To Ensure Safe Use, Always Follow These Precautions

● The installation of this product requires specialized skills and experience. We recommend that you have the product installed by an Alpine authorized dealer.
- Before you use this product, be sure to carefully read this installation manual and the separate user's manual so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as a result of failure to follow the instructions in the manuals.
- This manual includes a number of symbols that are intended to help you use the product safely, to prevent harm to you and others, and to protect against damage to property. These symbols and their meanings are listed below. Make sure you fully understand these symbols before you begin reading the main text.

Explanations of Injury and Damage That May Result from Incorrect Use

Warning	Ignoring the content marked by this indication and using the product incorrectly may lead to death or serious injury.
Caution	Ignoring the content marked by this indication and using the product incorrectly may lead to injury or property damage.

Types of Precautions

Forbidden	Indicates actions that are forbidden (must not be performed)
Forbidden	Indicates that disassembly is forbidden.
Mandatory	Indicates actions that are mandatory (must be performed)
	Marks content that should receive your full attention.

Warning

Do not disassemble or modify the product. Doing so could lead to an accident, fire, or electric shock.

Forbidden

Store screws and other small objects where small children cannot reach them. If one of these small objects is swallowed, consult with a doctor immediately.

When replacing fuses, be sure to use fuses with the specified current rating. Failing to do so could lead to an accident or fire.

Forbidden

Mandatory

Only connect the product to a 12 VDC negative ground car. Failing to do so could lead to an accident or fire.

Mandatory

Before you begin wiring, remove the ground wire from the negative terminal of the battery. Failing to do so could lead to electric shock or injury.

Do not cut the insulation on a cord and take power from another device. Doing so could lead to fire or electric shock.

Forbidden

Do not install the product in a location where it will obstruct the driver's forward view; interfere with the operation of the steering wheel, gearshift, or the like; or pose a threat to passengers. Doing so could lead to an accident or injury.

Forbidden

	Jeep
UNLIMITED	● 2/6

When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank, electrical wiring, and the like. This kind of damage could lead to an accident or fire.

When installing and grounding the product, do not use any of the bolts or nuts of the steering wheel, brakes, fuel tank, or the like. Doing so could make the brakes stop working or lead to fire.

Forbidden

Do not install the product near the passenger-side airbag. Doing so could interfere with the operation of the airbag and lead to an accident or injury.

Forbidden

Bundle cords so that they don't interfere with driving. Wrapping cords around the steering wheel, gearshift, brake pedal, or the like, could lead to an accident or damage equipment.

Caution

Connect the product properly according to the instructions. Failing to do so could lead to fire or an accident.

Forbidden

Do not sandwich cords between the seat railing or allow them to touch protrusions. Resulting breaks or shorts could lead to electric shock or fire.

Do not block vents or heat sinks. Doing so could lead to fire or damage equipment.

Use the accessories according to the instructions, and attach them securely. Failing to do so could lead to an accident or damage equipment.

Forbidden

Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust. Doing so could lead to fire or damage equipment.

Forbidden

The installation and wiring of this product requires specialized skills and experience. Have the product installed by an Alpine authorized dealer.

Tools Required

Ratchet	Extension
Torx Bits	18mm Socket

Accessory List

Speaker Connector Subwoofer Enclosure		Manual

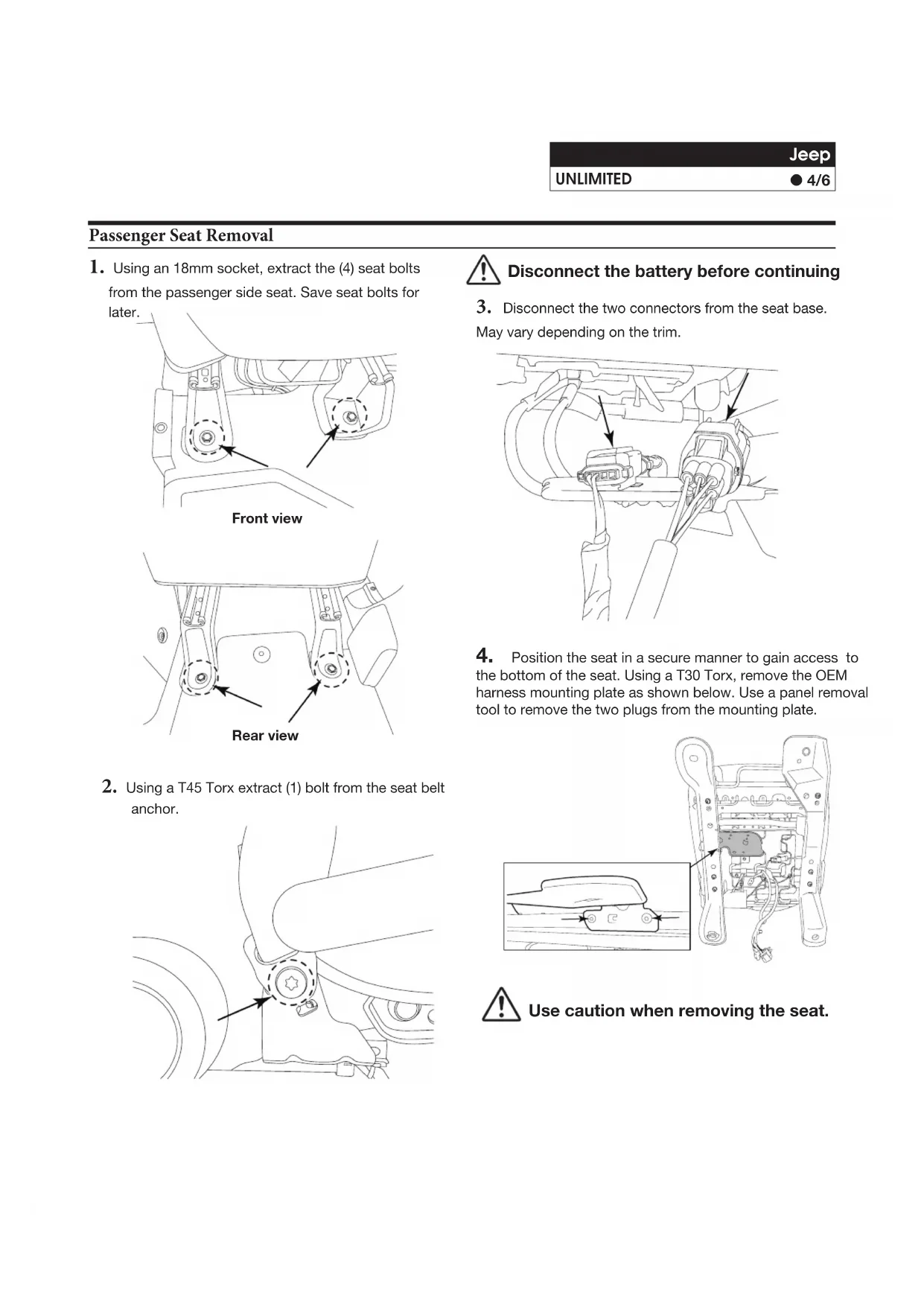

Passenger Seat Removal

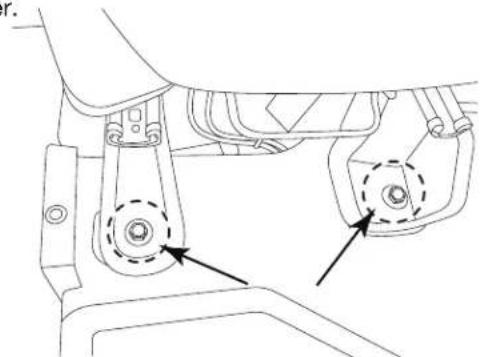

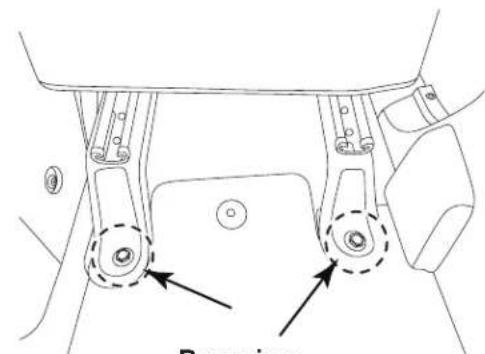

1. Using an 18mm socket, extract the (4) seat bolts from the passenger side seat. Save seat bolts for later.

Technical line drawing of a mechanical assembly with two components and alignment arrows (no text or symbols)

Front view

Back view

Rear view

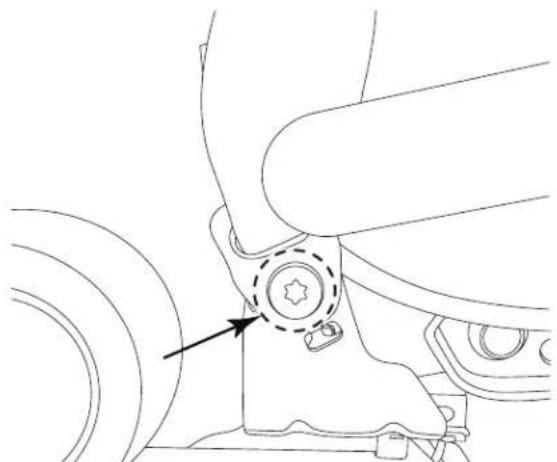

1. Using a T45 Torx extract (1) bolt from the seat belt anchor.

Technical line drawing of a mechanical component with a star-shaped bolt and arrow indicating a specific part (no text or symbols present)

! Disconnect the battery before continuing

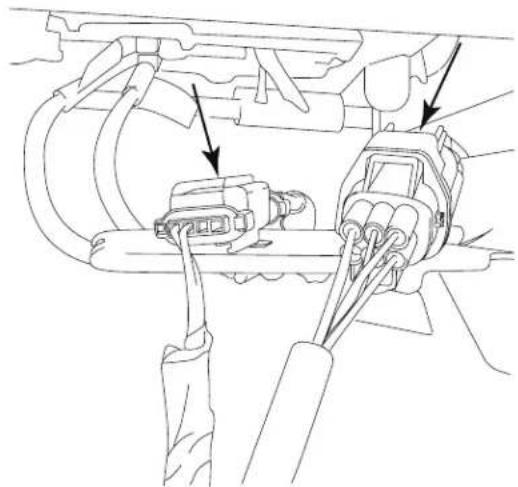

1. Disconnect the two connectors from the seat base. May vary depending on the trim.

Technical line drawing of a mechanical assembly with two connectors and a central connector (no text or symbols)

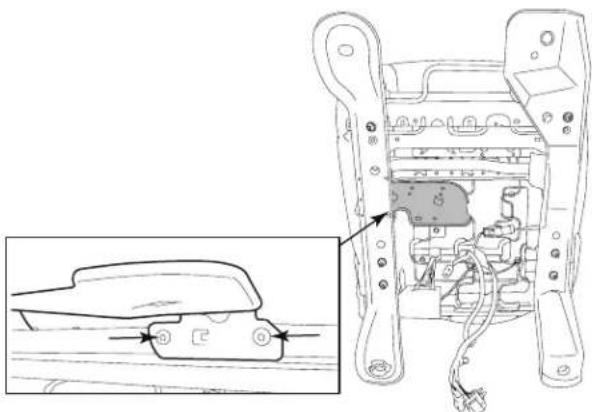

1. Position the seat in a secure manner to gain access to the bottom of the seat. Using a T30 Torx, remove the OEM harness mounting plate as shown below. Use a panel removal tool to remove the two plugs from the mounting plate.

Technical line drawing of a mechanical device with internal components and a close-up inset showing a component detail (no text or symbols)

Use caution when removing the seat.

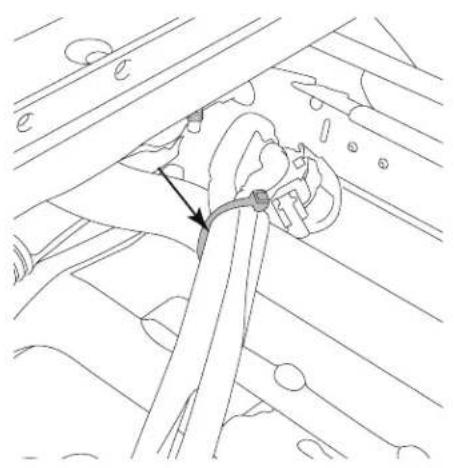

1. Secure the connector plugs to the left side of the seat as shown below.

Technical line drawing of a mechanical assembly with no visible text or symbols

Enclosure Installation

1. Place subwoofer enclosure on the seat floor and connect the speaker connector to the enclosure.

From Enclosure

Technical line drawing of a dual-port electrical connector (no text or symbols)

Connect speaker
connector to an
amplifier (not included)

Observe speaker polarity when connecting to the speaker connector.

Ensure wires are not pinched or interfere with any safety equipment.

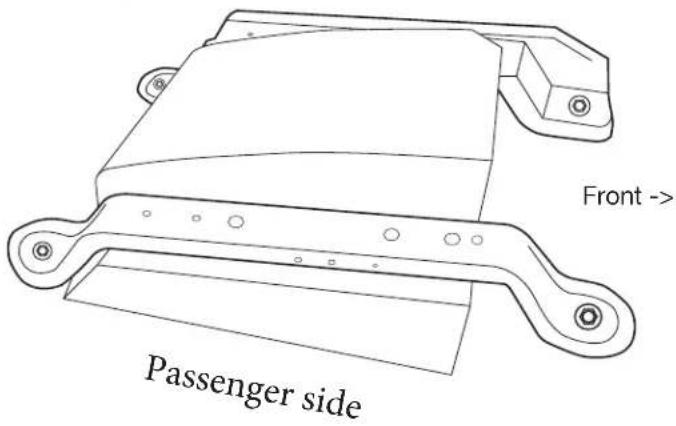

1. Carefully position the passenger seat over the enclosure while carefully aligning the enclosure in between the seats brackets. Observe the direction of the enclosure. Secure using the 18mm seat bolts (4) as shown below.

Tighten the seat bolts to 55 ft lbs

Front -> Passenger side

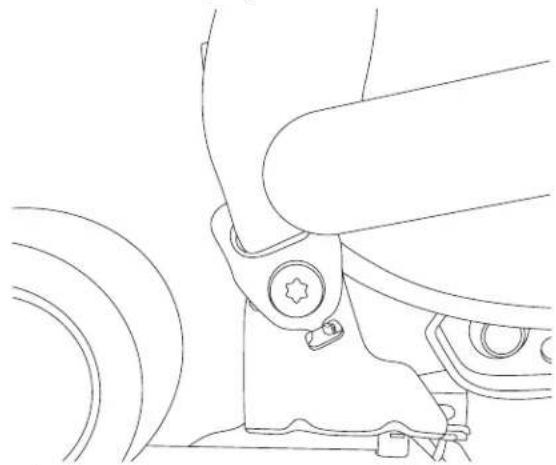

1. Re-attach the seat belt anchor using the T45 Torx bolt. Reconnect the two plugs under the seat.

Line drawing of a mechanical component with no visible text or symbols

Tighten the seatbelt bolts to 30 ft lbs

1. Reconnect the battery terminals.

Specifications

Subwoofer	10" High Performance Transducer
Impedance	2ohm
Power Handling	300W RMS
Frequency Response	35 - 200Hz (-6dB)
Water Resistance	IP66 Rating
Connector/Cables	2-pin / 12ga.
Size	16-1/4" (L) x 15-3/4" (W) x 8-3/8" (H)
	41.2cm (L) x 40.0 cm (W) x 21.2 cm(H)
Weight	18lbs. (8.2 kg.)

Important Information

Your listening satisfaction is important to us. In order to maximize and maintain peak speaker performance the following guidelines are being provided. Please read this notice carefully before operating the speakers.

1. Do not over-drive the amplifier. Over-driving the amplifier will result in distortion or clipping and can damage any speaker.
2. Make sure gain controls are properly set (Follow instructions in amplifier owner's manual).
3. Make sure that the speaker is properly rated for the amplifier.
4. Make sure that volume, bass, treble, equalization or crossover settings do not cause the amplifier to over-drive.

Failure to follow these guidelines may result in burned or damaged speaker voice coils which will void your warranty.

If further assistance is necessary, please contact your Alpine authorized dealer.

LIMITED WARRANTY

ALPINE ELECTRONICS OF AMERICA, INC. ("Alpine"), is dedicated to quality craftsmanship and is pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.

●PRODUCTS COVERED:

This Warranty covers Car Audio Products and Related Accessories ("the product"). Products purchased in the Canada are covered only in the Canada. Products purchased in the U.S.A. are covered only in the U.S.A.

●LENGTH OF WARRANTY:

This Warranty is in effect for three years from the date of the first consumer purchase.

●WHO IS COVERED:

This Warranty only covers the original purchaser of the product, who must reside in the United States, Puerto Rico or Canada.

●WHAT IS COVERED:

This Warranty covers defects in materials or workmanship (parts and labor) in the product.

●WHAT IS NOT COVERED:

This Warranty does not cover the following:

① Damage occurring during shipment of the product to Alpine for repair (claims must be presented to the carrier).
② Damage caused by accident or abuse, including burned voice coils caused by over-driving the speaker (amplifier level is turned up and driven into distortion or clipping). Speaker mechanical failure (e.g. punctures, tears or rips). Cracked or damaged LCD panels. Dropped or damaged hard drives.
③ Damage caused by negligence, misuse, improper operation or failure to follow instructions contained in the Owner's manual.
④ Damage caused by act of God, including without limitation, earthquake, fire, flood, storms or other acts of nature. Any cost or expense related to the removal or reinstallation of the product.
⑤ Service performed by an unauthorized person, company or association.
⑥ Any product which has the serial number defaced, altered or removed.
⑦ Any product which has been adjusted, altered or modified without Alpine's consent.
⑧ Any product not distributed by Alpine within the United States, Puerto Rico or Canada.
⑨ Any product not purchased from an Authorized Alpine Dealer.

●HOW TO OBTAIN WARRANTY SERVICE:

① You are responsible for delivery of the product to an Authorized Alpine Service Center or Alpine for repair and for payment of any initial shipping charges. Alpine will, at its option, repair or replace the product with a new or reconditioned product without charge. If the repairs are covered by the warranty, and if the product was shipped to an Authorized Alpine Service Center or Alpine, Alpine will pay the return shipping charges.
② You should provide a detailed description of the problem(s) for which service is required.
③ You must supply proof of your purchase of the product.

④ You must package the product securely to avoid damage during shipment. To prevent lost packages it is recommended to use a carrier that provides a tracking service.

●HOW WE LIMIT IMPLIED WARRANTIES: ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON IS AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT.

●HOW WE EXCLUDE CERTAIN DAMAGES: ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. THE TERM "INCIDENTAL DAMAGES" REFERS TO EXPENSES OF TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE ORIGINAL PURCHASER'S TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHERS COSTS RELATING TO THE CARE AND CUSTODY OF THE PRODUCT. THE TERM "CONSEQUENTIAL DAMAGES" REFERS TO THE COST OF REPAIRING OR REPLACING OTHER PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT WORK PROPERLY. THE REMEDIES PROVIDED UNDER THIS WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS.

●HOW STATE/PROVINCIAL LAW RELATES TO THE WARRANTY:

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province. In addition, some states/provinces do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, limitations as to these matters contained herein may not apply to you.

●IN CANADA ONLY:

This Warranty is not valid unless your Alpine car audio product has been installed in your vehicle by an Authorized Installation Center, and this warranty stamped upon installation by the installation center.

●HOW TO CONTACT CUSTOMER SERVICE:

Should the product require service, please call the following number for your nearest Authorized Alpine Service Center.

CUSTOMER SERVICE 1-800-421-2284, ext. 860307 TECH SUPPORT 1-800-TECH-101 (1-800-832-4101)

Or visit our website at; http://www.alpine-usa.com

ALPINE ELECTRONICS OF AMERICA, INC., 19145 Gramercy Place, Torrance, California 90501, U.S.A. Do not send products to this address.

Call the toll free telephone number or visit the website to locate a service center.
