Product Type	19-inch rackable chassis for media converters
Brand	TP-Link
Model	TL-MC1400
Category	Network converter (chassis)
Number of slots	14
Height	2U (86 mm)
Dimensions (W x D x H)	482 x 358 x 86 mm
Weight	8 kg
Main power supply	AC/DC, input 100-240V~ 50/60Hz 3A max, output 9.5V DC 9.5A
Redundant power supply	Optional, hot-swappable
Converter insertion/removal	Hot-swap
Cooling	Integrated fans in power supplies, rear panel
Electrical isolation	Per slot
Protections	Against overvoltage and overcurrent
Operating temperature	0°C to 40°C
Storage temperature	-40°C to 70°C
Operating humidity	10% to 90% non-condensing
Storage humidity	5% to 90% non-condensing
Compatibility	TP-Link MC series media converters (V2 and later)
Usage	Network rack, minimum depth 400 mm
Maintenance	Regularly dust the exterior with a dry cloth. Do not use liquids.
Spare parts / Repairability	Hot-swappable power supplies; individual converters replaceable without tools

Frequently Asked Questions - TLMC1400 TP-LINK

What is the TP-Link TL-MC1400?

The TL-MC1400 is a 19-inch rackable chassis (2U) designed to accommodate up to 14 TP-Link media converters. It centralizes and powers these modules in a network rack, simplifying cabling and saving space.

How many media converters can I install in the TL-MC1400?

The chassis offers 14 slots for media converters. Each slot has individual electrical isolation and supports hot insertion.

What is the power supply of the TL-MC1400?

The main power supply is an AC/DC unit with input 100-240V~ 50/60 Hz (3A max) and output 9.5V DC 9.5A. A second redundant power supply (optional) can be added for increased availability.

What are the dimensions and weight of the chassis?

The TL-MC1400 measures 482 x 358 x 86 mm (W x D x H) and weighs 8 kg. It occupies 2U in a standard 19-inch rack.

Which media converters are compatible?

The TL-MC1400 is compatible with TP-Link media converters of the MC series in version V2 and later, for example the MC200CM. Older modules (V1) are not supported.

Can I add a redundant power supply?

Yes, an optional redundant power supply can be installed. It is hot-swappable, allowing replacement without service interruption.

Are the converters hot-swappable?

Yes, the TL-MC1400 supports hot insertion and removal of media converters. You can add or remove a module without powering off the chassis.

What is the operating temperature range?

The chassis operates between 0°C and 40°C with relative humidity of 10% to 90% non-condensing. In storage, it withstands -40°C to 70°C.

Is the TL-MC1400 shipped with media converters?

No, the chassis is sold without converters. It is an empty case with power supply; MC modules must be purchased separately.

How to maintain the TL-MC1400?

For maintenance, use a dry cloth to dust the exterior. Avoid liquids. The power supplies and converters are hot-swappable, facilitating maintenance.

USER MANUAL TLMC1400 TP-LINK

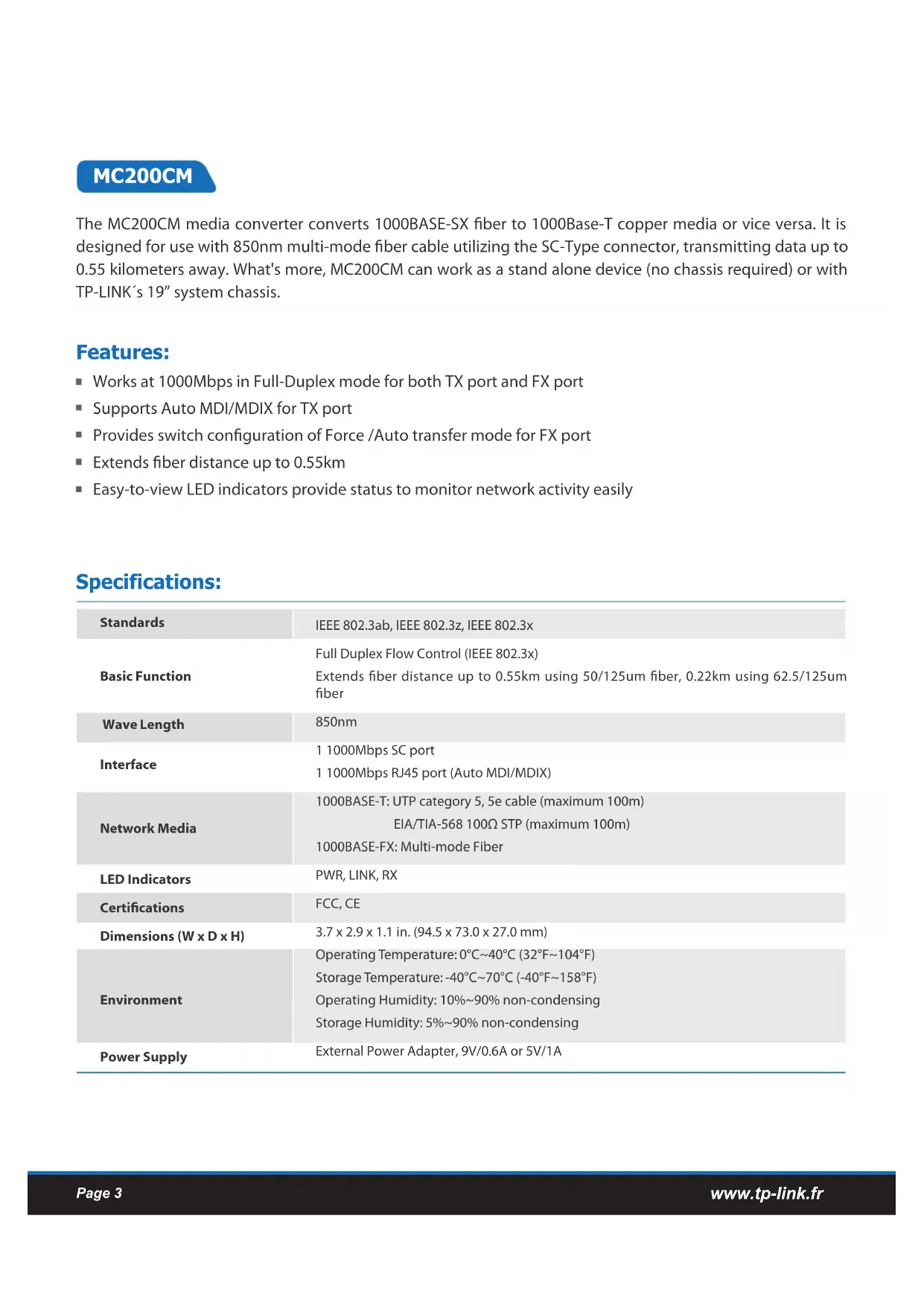

The MC200CM media converter converts 1000BASE-SX fiber to 1000Base-T copper media or vice versa. It is designed for use with 850nm multi-mode fiber cable utilizing the SC-Type connector, transmitting data up to 0.55 kilometers away. What's more, MC200CM can work as a stand alone device (no chassis required) or with TP-LINK's 19'' system chassis.

Features:

Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
Supports Auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 0.55 km
Easy-to-view LED indicators provide status to monitor network activity easily

Specifications:

Standards	IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function	Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 0.55km using 50/125um fiber, 0.22km using 62.5/125um fiber
Wave Length	850nm
Interface	1 1000Mbps SC port 1 1000Mbps RJ45 port (Auto MDI/MDIX)
Network Media	1000BASE-T: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-FX: Multi-mode Fiber
LED Indicators	PWR, LINK, RX
Certifications	FCC, CE
Dimensions (W x D x H)	3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Power Supply	External Power Adapter, 9V/0.6A or 5V/1A

MC210CS

The MC210CS media converter converts 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. It is designed for use with 1310nm single-mode fiber cable utilizing the SC-Type connector, transmitting data up to 15 kilometers. What's more, MC210CS can work as a stand alone device (no chassis required) or with TP-LINK's 19" system chassis.

Features:

Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
Supports Auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 15 km
Easy-to-view LED indicators provide status to monitor network activity easily

Specifications:

Standards	IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function	Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 15km
Wave Length	1310nm
Interface	1 1000Mbps SC port 1 1000Mbps RJ45 port (Auto MDI/MDIX)
Network Media	1000BASE-T: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-FX: Multi-mode Fiber
LED Indicators	PWR, LINK, RX
Certifications	FCC, CE
Dimensions (W x D x H)	3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Power Supply	External Power Adapter, 9V/0.6A or 5V/1A

MC220L

The MC220L converts 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. It is designed for use with 850nm multi-mode/1310nm single-mode/WDM fiber cable utilizing the LC-Type connector, transmitting data up to 0.55 kilometers or 10 kilometers. What's more, MC220L can work as a stand alone device (no chassis required) or with TP-LINK's 19'' system chassis.

Features:

Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
Supports Auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
FX port support hot-swappable
- Extends fiber distance up to 0.55 km for multi-mode fiber and 10 km for single-mode fiber
Easy-to-view LED indicators provide status to monitor network activity easily

Specifications:

Standards	IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function	Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 10km
Wave Length	Depend on the used SFP module
Interface	1 SFP port 1 1000Mbps RJ45 port (Auto MDI/MDIX)
Network Media	1000BASE-T: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-FX: Multi-mode Fiber
LED Indicators	PWR, LINK, RX
Certifications	FCC, CE
Dimensions (W x D x H)	3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Power Supply	External Power Adapter, 9V/0.6A or 5V/1A

MC100CM

The MC100CM media converter converts 100BASE-FX fiber to 100Base-TX copper media or vice versa. It is designed for use with 1310nm multi-mode fiber cable utilizing the SC-Type connector, transmitting data up to 2 kilometers. What's more, MC100CM can work as a stand alone device (no chassis required) or with TP-LINK's 19'' system chassis, and is equipped with Link Fault Pass Through which minimizes the loss caused by link failure.

Features:

Auto-negotiation of 10/100Mbps and Auto MDI/MDIX for TX port
- Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port
- Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely
- Extend fiber distance up to 2km
Easy-to-view LED indicators provide status to monitor network activity easily

Specifications:

Standards	IEEE 802.3u, IEEE 802.3x
Basic Function	Half/Full-Duplex transfer mode for TX portFull Duplex Flow Control (IEEE 802.3x)Half Duplex Flow Control (Backpressure)Extends fiber distance up to 2kmLink Fault Pass Through and Far End Fault minimize the loss caused by link failure timely
Interface	1 100Mbps SC port1 100Mbps RJ45 port (Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-T: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-FX: Multi-mode Fiber
LED Indicators	PWR, SPD, LFP, FDX/Col, Link/Act
Certifications	FCC, CE
Dimensions (W x D x H)	3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Power Supply	External Power Adapter, 9V/0.6A or 5V/1A

MC110CS

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. It's designed for use with single-mode fiber cable utilizing the SC-Type connector, transmitting data up to 20 kilometers. What's more, MC110CS can work as a stand alone device (no chassis required) or with TP-LINK's 19^ system chassis, and is equipped with Link Fault Pass Through which minimizes the loss caused by link failure.

Features:

• Auto negotiation of 10/100Mbps and Auto MDI/MDIX for TX port
• Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port
• Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely
• Extend fiber distance up to 20 km
  Easy-to-view LED indicators provide status to monitor network activity easily

Specifications:

Standards	IEEE 802.3u, IEEE 802.3x
Basic Function	Half/Full-Duplex transfer mode for TX portFull Duplex Flow Control (IEEE 802.3x)Half Duplex Flow Control (Backpressure)Extends fiber distance up to 20kmLink Fault Pass Through and Far End Fault minimize the loss caused by link failure timely
Interface	1 100Mbps SC port1 100Mbps RJ45 port (Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-T: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-FX: Single-mode Fiber
LED Indicators	PWR, SPD, LFP, FDX/Col, Link/Act
Certifications	FCC, CE
Dimensions (W x D x H)	3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Power Supply	External Power Adapter, 9V/0.6A or 5V/1A

MC111CS

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. It's designed for use with single-mode fiber cable utilizing the SC-Type connector. Adopting WDM technology, MC111CS takes only one fiber to transmit and receive data, which saves you half of the cabling cost. On this fiber, it works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device cooperating with the MC111CS will work at 1310nm on transferring data and at 1550nm on receiving data. Another of TP-LINK's media converters, the MC112CS is just one example of potential devices with which to cooperate with the MC111CS. Moreover, MC111CS can work as a stand alone device (no chassis required) or with TP-LINK's 19'' system chassis, and is equipped with Link Fault Pass Through which minimizes the loss caused by link failure.

Features:

• Auto negotiation of 10/100Mbps and Auto MDI/MDIX for TX port
• Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port
• Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely
  Adopts WDM technology, transmitting and receiving data on one single fiber
• Extend fiber distance up to 20 km
• Easy-to-view LED indicators provide status to monitor network activity easily

Specifications:

Standards	IEEE 802.3u, IEEE 802.3x
Basic Function	Half/Full-Duplex transfer mode for TX portFull Duplex Flow Control (IEEE 802.3x)Half Duplex Flow Control (Backpressure)Extends fiber distance up to 20kmLink Fault Pass Through and Far End Fault minimize the loss caused by link failure timely
Interface	1 100Mbps SC port1 100Mbps RJ45 port (Auto MDI/MDIX)
Wave Length	TX: 1550nmRX: 1310nm
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-T: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-FX: Single-mode Fiber
LED Indicators	PWR, SPD, LFP, FDX/Col, Link/Act
Certifications	FCC, CE
Dimensions (W x D x H)	3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Power Supply	External Power Adapter, 9V/0.6A or 5V/1A

MC112CS

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. It's designed for use with single-mode fiber cable utilizing the SC-Type connector. Adopting WDM technology, MC112CS takes only one fiber to transmit and receive data, which saves you half of the cabling cost. On this fiber, it works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device cooperating with the MC112CS will work at 1550nm on transferring data and at 1310nm on receiving data. Another of TP-LINK's media converters, the MC111CS is just one example of potential devices with which to cooperate with the MC111CS. Moreover, MC112CS can work as a stand alone device (no chassis required) or with TP-LINK's 19'' system chassis, and is equipped with Link Fault Pass Through which minimizes the loss caused by link failure.

Features:

• Auto negotiation of 10/100Mbps and Auto MDI/MDIX for TX port
• Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port
• Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely
  Adopts WDM technology, transmitting and receiving data on one single fiber
• Extend fiber distance up to 20 km
• Easy-to-view LED indicators provide status to monitor network activity easily

Specifications:

Standards	IEEE 802.3u, IEEE 802.3x
Basic Function	Half/Full-Duplex transfer mode for TX portFull Duplex Flow Control (IEEE 802.3x)Half Duplex Flow Control (Backpressure)Extends fiber distance up to 20kmLink Fault Pass Through and Far End Fault minimize the loss caused by link failure timely
Interface	1 100Mbps SC port1 100Mbps RJ45 port (Auto MDI/MDIX)
Wave Length	TX: 1310nmRX: 1550nm
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-T: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-FX: Single-mode Fiber
LED Indicators	PWR, SPD, LFP, FDX/Col, Link/Act
Certifications	FCC, CE
Dimensions (W x D x H)	3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Power Supply	External Power Adapter, 9V/0.6A or 5V/1A

More information of the 100Mbps series Media Converter

Type	Connector	Transmission Distance	Transmission Media Wave Length
MC100CM	RJ45-SC	2km	Multi-mode Fiber,TP	1310nm
MC110CS	RJ45-SC	20km	Single-mode Fiber,TP	1310nm
MC111CS	RJ45-SC	20km	Single-mode Fiber,TP	1550nmTX/1310nmRX
MC112CS	RJ45-SC	20km	Single-mode Fiber,TP	1310nmTX/1550nmRX

More information of the 1000Mbps series Media Converter

Model NO.	Interface	Transmission Distance	Transmission Media Wave Length
MC200CM	RJ45--SC	0.55km(50/125um), 0.22km(62.5/125um)	Multi-mode Fiber,TP	850nm
MC210CS	RJ45--SC	15km	Single-mode Fiber,TP	1310nm
MC220L	RJ45--SFP	0.55km /10km	Multi/Single-mode Fiber, TP	Depend on used SFP module
