USER MANUAL VC48W WOLF
CEILING-MOUNTED HOOD
INSTALLATION GUIDE
SPECIFICATIONS, INSTALLATION, AND MORE
WOLF
Contents
3Ceiling-MountedHood
4SitePreparation
6Specifications
8 Hood Installation: Internal Blower
11 Hood Installation: In-Line/Remote Blower
14 Troubleshooting
Features and specifications are subject to change at any time without notice. Visit wolfappliance.com/specs for the most up-to-date information.
Important Note
To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially important.
CAUTION indicates a situation where minor injury or product damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified.
IMPORTANT NOTE: Save these instructions for the local electrical inspector.
Product Information

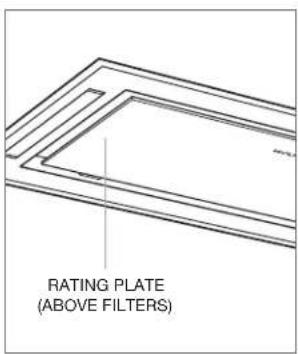

Important product information, including the model and serial number, are listed on the product rating plate. The rating plate is located under the left side of the hood, above the filters (filters must be removed). Refer to the illustration below.
If service is necessary, contact Wolf Factory Certified Service with the model and serial number. For the name of the nearest Wolf Factory Certified Service or for questions regarding the installation, visit the contact and support section of our website, wolfappliance.com, or call Wolf Customer Care at 800-222-7820.
Rating plate location
IMPORTANT INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
c) When cutting or drilling into the wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
Ducting
WARNING
Use only metal ducting.
IMPORTANT NOTE: Consult a qualified HVAC professional for specific installation and ducting applications.
The hood accommodates a 6" (152) round duct. Use only rigid metal ducting.
A straight, short duct run is most effective and will ensure proper performance. If the duct run exceeds 50^ (15 m), a higher CFM blower may be required to maintain proper airflow. A remote blower installed on a short duct run may increase the potential for noise.
Internal and in-line blowers require a roof or wall cap. Use sheet metal screws and aluminum tape or high temperature duct tape to seal joints between ducting sections.
The hood includes a backdraft damper. Local codes may require the use of an additional backdraft and/or make-up air damper. Contact your local HVAC professional for specific requirements.
A make-up air damper is available through an authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com.
CAUTION
To reduce the risk of fire and to properly exhaust air, duct air outside. Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages.
CAUTION
To reduce the risk of fire and electrical shock, only install this range hood with remote blower models rated a maximum of 3A suitable for use with solid state speed control or internal blowers manufactured by Wolf, "Blower-600 CFM".
Ducting
RECIRCULATING APPLICATION

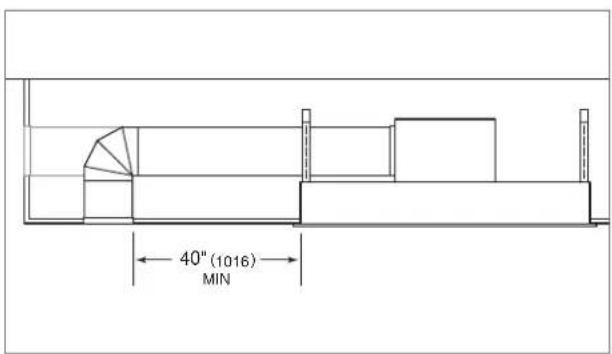

The hood with an internal blower, can be installed in a recirculating application. The air discharge must be a minimum of 40^ (1016) from every side of the hood. Refer to the illustration below.
Ductwork and vent cover are not provided.
A recirculation kit, available through an authorized Wolf dealer, is required.
Recirculating application
Filter Removal
To access the grease filters, pull down the front edge of the bottom panel of the hood and allow it to rotate downward.

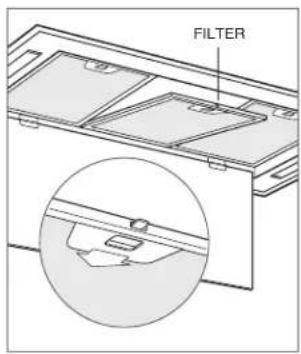

To remove the filters, refer to the illustration below.
IMPORTANT NOTE: Do not operate the ventilation hood without the grease filters.
Filter removal
Installation Requirements
Install the hood 36" (914) to 84" (2134) from the bottom of the hood to the countertop.
The hood requires a 600 CFM internal or in-line blower assembly, or a 600 CFM or 1200 CFM remote blower assembly, available through an authorized Wolf dealer.
Consult a qualified HVAC professional for specific installation and ducting applications.
Electrical Requirements
Installation must comply with all applicable electrical codes.

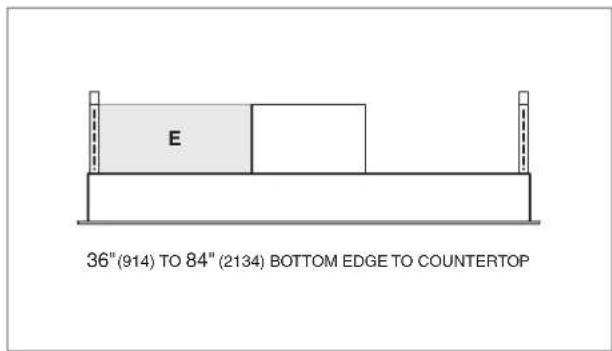

Locate the electrical supply within the shaded area shown in the illustration below. Allow a minimum 12^ (305) wire (Romex) for connection. A separate circuit servicing only this appliance is required.
ELECTRICAL REQUIREMENTS
Electrical Supply grounded, 120 VAC, 60 Hz
Service 15 amp dedicated circuit
Electrical location

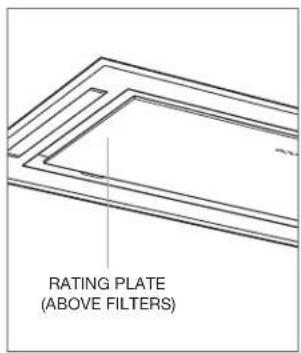

Rating plate location
Ceiling Preparation

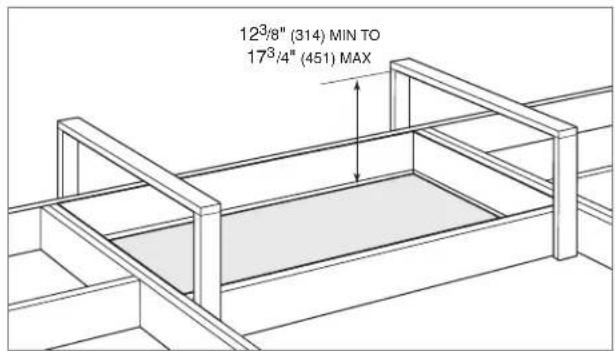

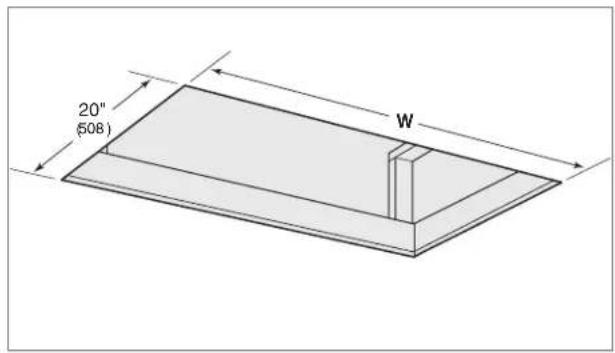

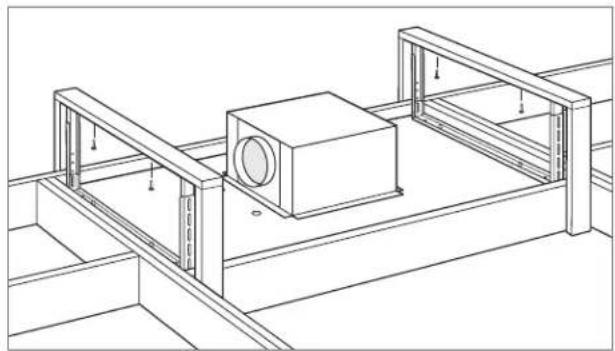

Refer to the chart and illustrations below for opening dimensions and typical framing. Construct the framing using minimum 2^ × 4^ lumber. Framing must be able to support a minimum of 100 lb (45 kg).
| HOOD | W |
| 36" Hood 34 | 1/2" (873) |
| 48" Hood 46 | 1/4" (1175) |
Opening dimensions
Support framing (typical)
Mounting Brackets
To determine the height of the adjustable mounting brackets, subtract 5^ (127) from the support framing height (e.g. support framing height - 5^ = H ).
Use the 3 / 8'' (10) length screws provided to secure the brackets. Refer to the illustration below.
Bracket adjustment
Hood Installation-Internal Blower
BLOWER BOX REMOVAL

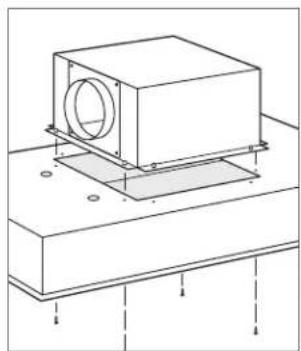

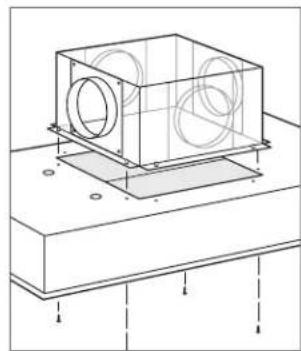

Remove the blower box from the hood by removing the four screws. Refer to the illustration below.
Blower box removal
BLOWER INSTALLATION
IMPORTANT NOTE: The blower must be installed and plugged in prior to making the electrical connection to the hood.
1 Insert the round discharge on the blower into the round discharge on the blower box.
2 Secure the blower to the blower box with the two screws provided with the blower. Refer to the illustration below.
3 Rotate the blower box so the 6" (152) round discharge is properly located. Refer to the illustration below.
4 Secure the blower box to the hood with the existing screws.
Internal blower installation
Discharge direction
Hood Installation-Internal Blower

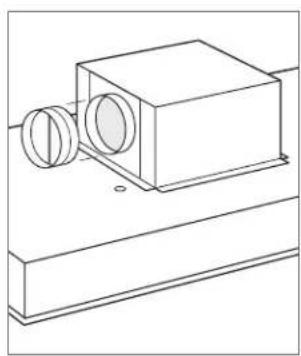

DAMPER INSTALLATION
Place the round damper on the round discharge and secure with duct sealing tape. Refer to the illustration below.
Damper installation

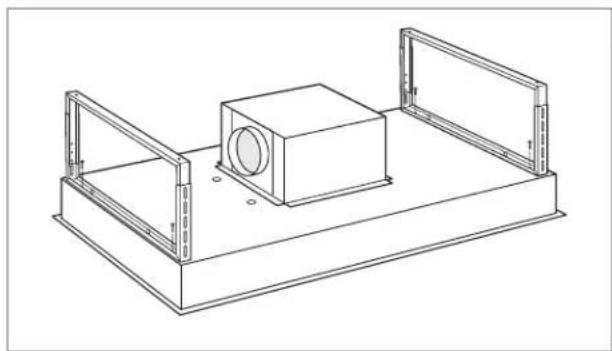

BRACKET INSTALLATION

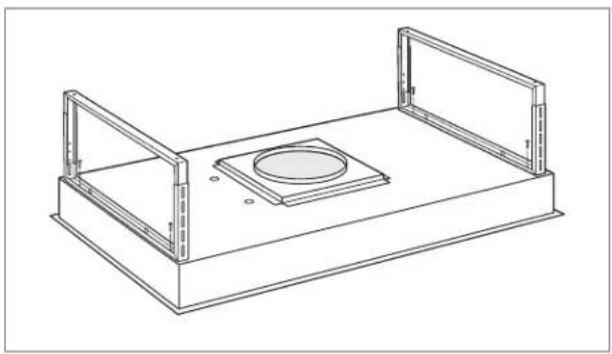

Secure the two mounting brackets to the hood using the four 9 / 16 (14) length screws provided. Refer to the illustration below.
Bracket installation
Hood Installation-Internal Blower
HOOD INSTALLATION
IMPORTANT NOTE: Mounting hardware is not provided.

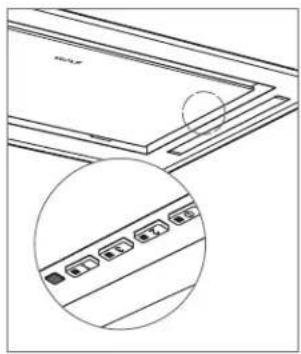

1 Verify the control panel on the hood is located on the right. Refer to the illustration below.
2 Insert the hood into the opening.

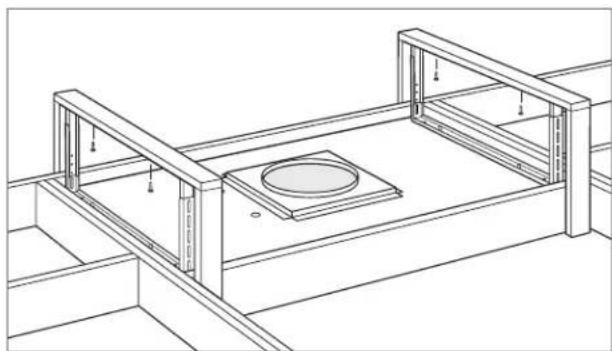

3 Secure the hood to the ceiling support framing. Refer to the illustration below.
4 Connect the ductwork to the damper, then secure with duct sealing tape.
Control panel location
Hood installation
WIRING CONNECTIONS
WARNING
Before making electrical connections, make sure the electrical power is turned off at the service panel.

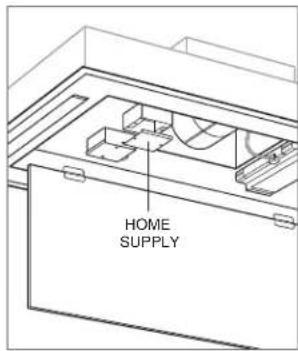

1 Remove the knockout above the home supply junction box, then insert the home electrical supply (Romex) into the electrical box. Refer to the illustration below.
2 Secure the electrical supply to the electrical box with a UL or C/UL approved connector (not provided).
3 Connect the green or bare ground wire to the green grounding screw. Use appropriate wire connectors (not provided) to connect white to white and black to black.
4 Place all wiring connections inside the electrical box and install the cover. Verify all wires are secure and not pinched between the cover and electrical box.

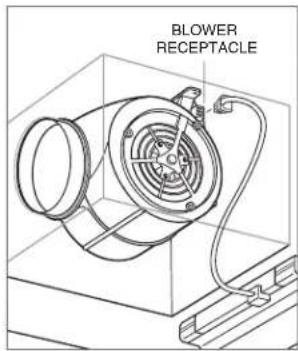

5 Insert the plug from the control board housing into the receptacle on the blower. Refer to the illustration below.
Wiring connections
Blower connection
Hood Installation-In-Line/Remote Blower
BLOWER BOX REMOVAL
1 Remove the blower box from the hood by removing the four screws. Refer to the illustration below.
2 Discard the blower box and screws.
Blower box removal
FLANGE INSTALLATION

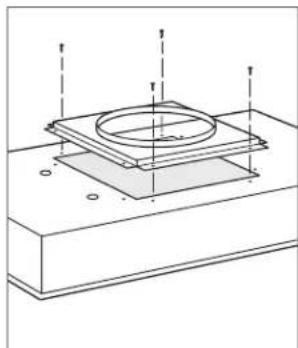

1 Place the flange on the top of the hood.
2 Secure the flange to the hood with the 1/4'' (6) length screws provided. Refer to the illustration below.
Flange installation
Hood Installation-In-Line/Remote Blower
BRACKET INSTALLATION
Secure the two mounting brackets to the hood using the four 9 / 16 (14) length screws provided. Refer to the illustration below.
Bracket installation
HOOD INSTALLATION
IMPORTANT NOTE: Mounting hardware is not provided.

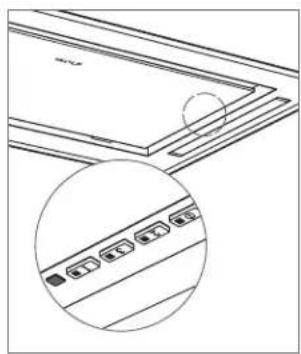

1 Verify the control panel on the hood is located on the right. Refer to the illustration below.
2 Insert the hood into the opening.
3 Secure the hood to the ceiling support framing. Refer to the illustration below.
4 Connect the ductwork to the damper, then secure with duct sealing tape.
Control panel location
Hood installation
Hood Installation-In-Line/Remote Blower
WIRING CONNECTIONS
WARNING
Before making electrical connections, make sure the electrical power is turned off at the service panel.

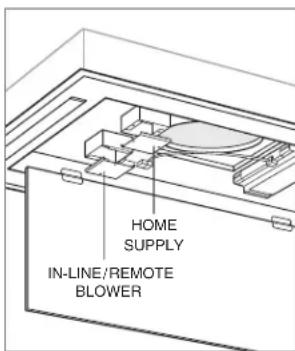

Home Supply:
1 Remove the knockout above the home supply junction box, then insert the home electrical supply (Romex) into the electrical box. Refer to the illustration below.
2 Secure the electrical supply to the electrical box with a UL or C/UL approved connector (not provided).
3 Connect the green or bare ground wire to the green grounding screw. Use appropriate wire connectors (not provided) to connect white to white and black to black.
4 Place all wiring connections inside the electrical box and install the cover. Verify all wires are secure and not pinched between the cover and electrical box.
Wiring connections
In-Line/Remote Supply:
1 Remove the knockout above the in-line/remote blower junction box, then insert the blower electrical supply (Romex) into the electrical box.
2 Secure the electrical supply to the electrical box with a UL or C/UL approved connector (not provided).
3 Connect the green or bare ground wire to the green grounding screw. Use appropriate wire connectors (not provided) to connect white to blue and black to brown.
4 Place all wiring connections inside the electrical box and install the cover. Verify all wires are secure and not pinched between the cover and electrical box.
5 Insert the plug from the control board housing into the receptacle on the side of the junction box.
Completion

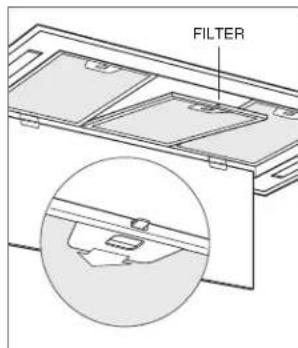

1 Install the grease filters. Refer to the illustration below.
2 Rotate the bottom cover upward and into position.
3 Turn on the electrical supply at the circuit panel and verify operation.
Filter installation
Troubleshooting
IMPORTANT NOTE: If the hood does not operate properly, follow these troubleshooting steps:
1 Verify electrical power is supplied to the hood.
2 Verify proper wiring connections.
3 If the hood does not operate properly, contact Wolf Factory Certified Service. Do not attempt to repair the hood. Wolf is not responsible for service required to correct a faulty installation.
Contedio
Installation des supports
Installation des supports
INSTALLATION DE LA HOTTE
WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
