IAN 311389 - Binoculars AURIOL - Free user manual and instructions

Brand	Auriol
Model	IAN 311389
Product type	Binoculars
Magnification	10x
Objective lens diameter	50 mm
Exit pupil	5 mm
Focusing	Central focusing wheel
Diopter adjustment	Yes, on the right eyepiece
Eyecups	Foldable for eyeglass wearers
Tripod thread	Yes, threaded mount underneath body
Strap	Included, adjustable
Carrying bag	Included, shoulder strap
Objective lens cap and eyepiece cap	Included
Cleaning cloth	Included
Max storage temperature	60 °C
Maintenance	Soft lint-free cloth, pure alcohol if necessary
Safety	Do not look at the sun, risk of retinal damage
Warranty	5 years from the date of purchase
Intended use	Observing distant objects outdoors
Package contents	Binoculars, bag, strap, cloth, instruction manual

Frequently Asked Questions - IAN 311389 AURIOL

How to adjust focus on Auriol IAN 311389 binoculars?

Close the right eye, then turn the central focusing wheel until the image is sharp for the left eye. Open the right eye and close the left, then adjust the diopter setting on the right eyepiece to fine-tune sharpness.

Can I use these binoculars with glasses?

Yes, the plastic eyecups are foldable. Fold them up to enlarge the field of view and facilitate observation with glasses.

How to clean the binocular lenses?

Use the included soft lint-free cloth. For dust residues, dampen the cloth with a little pure alcohol (spirits of wine) and clean without applying strong pressure.

Can I mount the binoculars on a tripod?

Yes, remove the cover from the threaded mount underneath the body, screw a tripod adapter (not included) into the thread, then attach the tripod. Refer to the tripod's manual.

What safety precautions should be observed?

Never look directly at the sun through the binoculars, risk of retinal damage. Do not expose binoculars to more than 60°C. Store them in the provided bag for protection.

How to attach the strap to the binoculars?

Thread the ends of the strap through the loops, then through the strap guides, then back through the loops. Pull firmly to lock. Refer to the illustrations in the instruction manual.

What if the image remains blurry after adjustment?

Check that you have correctly adjusted the diopter to compensate for differences in vision between your eyes. Ensure the lenses are clean. If the problem persists, contact customer service.

What is the warranty period for these binoculars?

The warranty is 5 years from the date of purchase. Keep the receipt as proof of purchase. The warranty covers material and manufacturing defects, but not normal wear or damage due to improper use.

Are the binoculars waterproof?

No, they are not designed for use in rain. Avoid heavy rain and store them in a dry, dust-free place.

What does the box of Auriol IAN 311389 binoculars contain?

The box contains: the 10x50 binoculars, a shoulder bag, an adjustable strap, a cleaning cloth, an objective lens cap, an eyepiece cap, and the instruction manual.

USER MANUAL IAN 311389 AURIOL

Black and white photo of a pair of binoculars with no visible text or symbols on the device itself.

BINOCULARS 10 X 50

GB IE NI

BINOCULARS 10 X 50

Operation and safety notes

FR BE

JUMELLES 10 X 50

GB/IE/NI Operation and safety notes Page 5

Black binoculars with circular arrows indicating rotational direction (no text or symbols)
        direction TB
        A --> A
        B --> B
        C --> C
    end
    subgraph Circle 2
        direction TB
        B --> B
        C --> C
    end
    subgraph Circle 3
        direction TB
        C --> C
    end

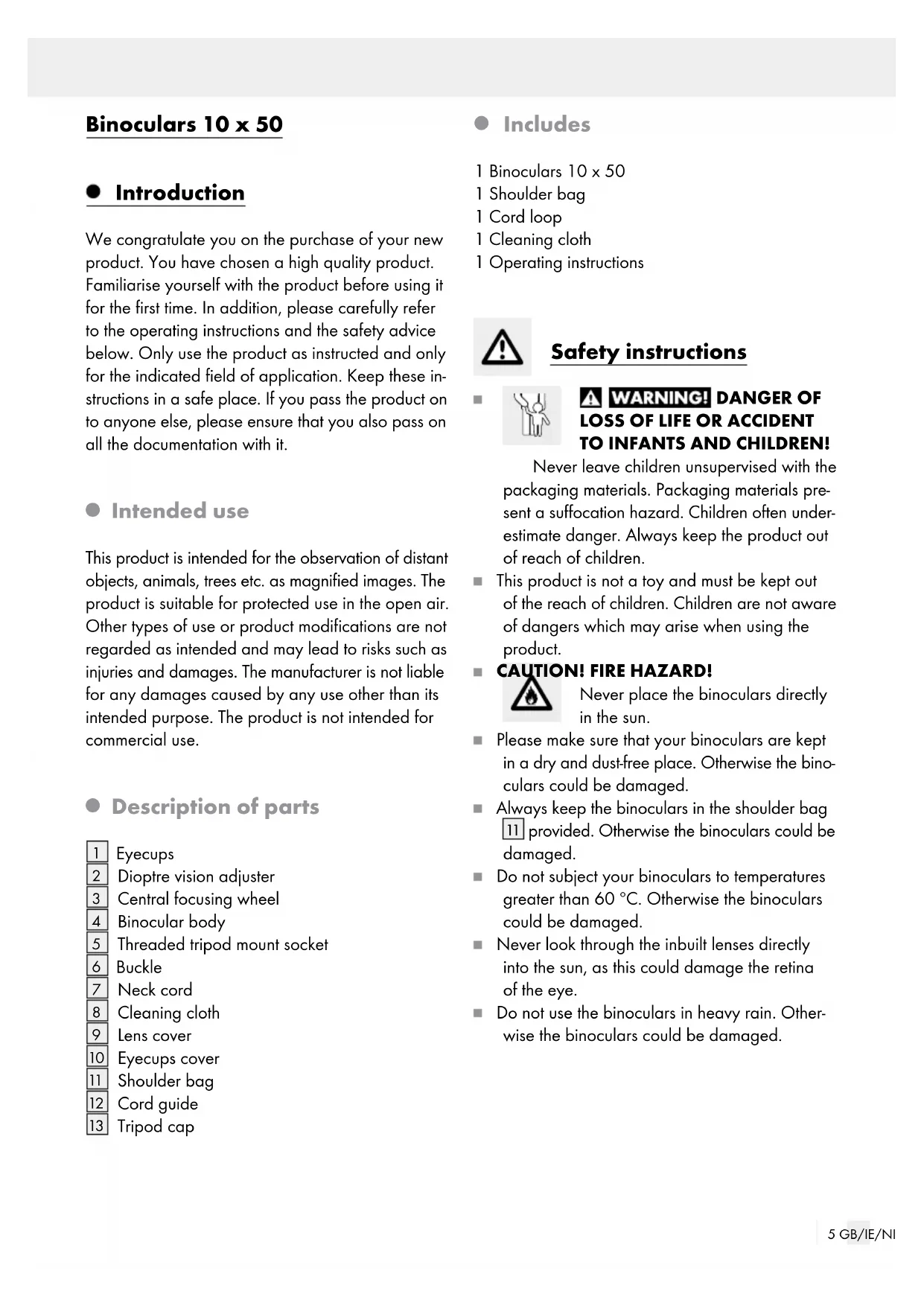

Binoculars 10 x 50

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is intended for the observation of distant objects, animals, trees etc. as magnified images. The product is suitable for protected use in the open air. Other types of use or product modifications are not regarded as intended and may lead to risks such as injuries and damages. The manufacturer is not liable for any damages caused by any use other than its intended purpose. The product is not intended for commercial use.

• Description of parts

1
Eyecups
2
Dioptre vision adjuster
3
Central focusing wheel
4
Binocular body
5
Threaded tripod mount socket
6
Buckle
7
Neck cord
8
Cleaning cloth
9
Lens cover
10
Eyecups cover
11
Shoulder bag
12
Cord guide
13
Tripod cap

- Includes

1 Binoculars 10 x 50
1 Shoulder bag
1 Cord loop
1 Cleaning cloth
1 Operating instructions

Safety instructions

WARNING! DANGER OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Packaging materials present a suffocation hazard. Children often underestimate danger. Always keep the product out of reach of children.

This product is not a toy and must be kept out of the reach of children. Children are not aware of dangers which may arise when using the product.

■ CAUTION! FIRE HAZARD!

Never place the binoculars directly in the sun.

Please make sure that your binoculars are kept in a dry and dust-free place. Otherwise the binoculars could be damaged.
■ Always keep the binoculars in the shoulder bag 11 provided. Otherwise the binoculars could be damaged.
Do not subject your binoculars to temperatures greater than 60 °C. Otherwise the binoculars could be damaged.
■ Never look through the inbuilt lenses directly into the sun, as this could damage the retina of the eye.
- Do not use the binoculars in heavy rain. Otherwise the binoculars could be damaged.

● Preparing for use

- Focusing

□ Close your right eye.

□ Adjust the view by turning the central focusing wheel 3 so that the view for the left eye is sharp and clear.

- Dioptre vision adjuster

□ Open your right eye and close your left eye.

Turn the dioptre vision adjuster 2 until the object is sharp and clear. Retain this position for later use.

+ Focus on a closer object

- Focus on a more distant object

0 No adjustment

- Adjustment for eye positions

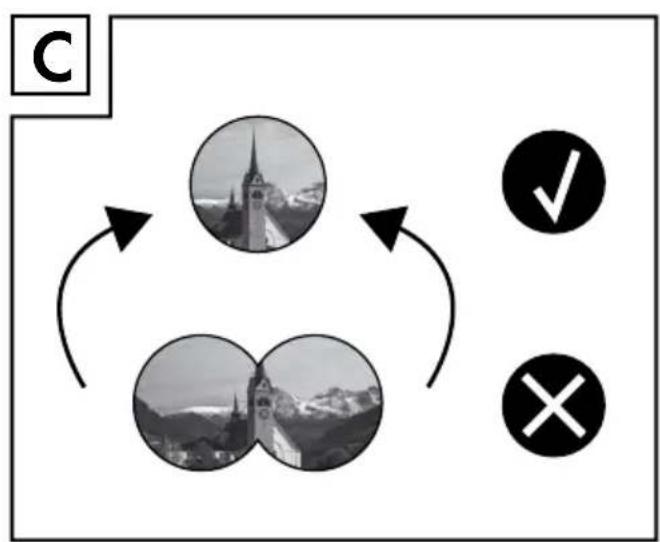

☐ Hold your binoculars with both hands and move the binocular body 4 (see Fig. B) until the two circles are superimposed to form one full circle (see Fig. C).

●Plasticeyecups (for spectacle wearers)

☐ Fold back the eyepiece cups 1. This enlarges the field of vision and makes using the binoculars easier for spectacle wearers.

- Adjusting the neck cord

☐ Thread the ends of the neck cord 7 through the buckles 6.

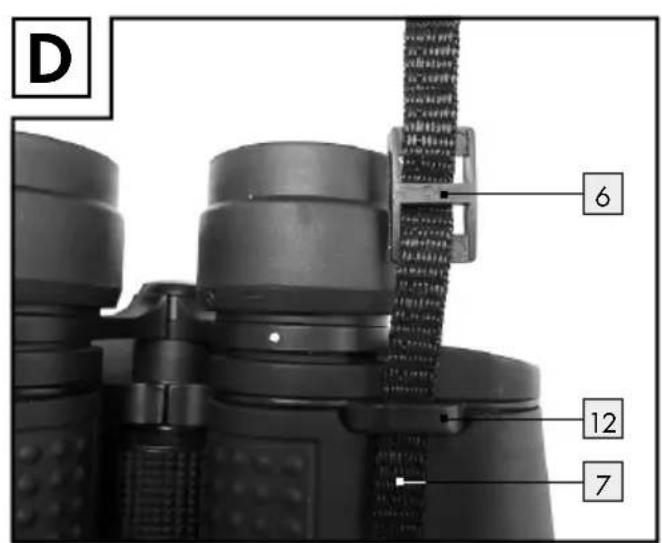

Thread the ends of the neck cord 7 through the cord guides 12 (see Fig. D).

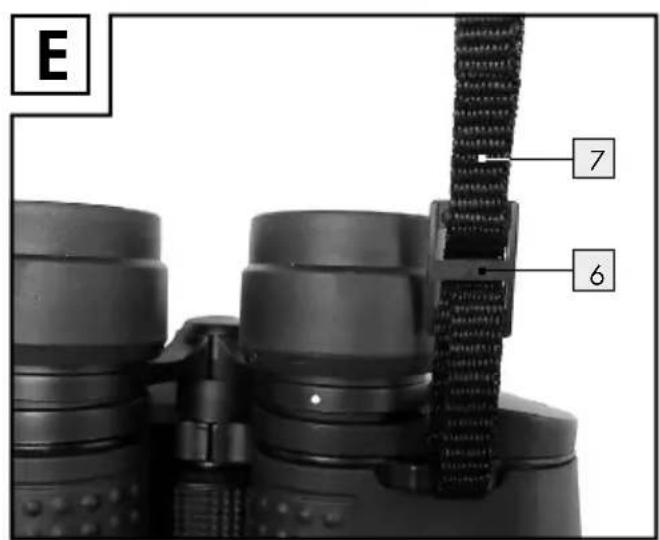

Then thread the ends of the neck cord 7 through the buckles 6 as shown in Fig. E.

☐ Pull the neck cord 7 tight on both sides of the buckle 6. This fixes the neck cord 7 on the buckles 6.

- Use with a tripod

Note: The tripod and the tripod adapter are not included with the product. They can be purchased separately from your specialist dealer.

☐ Observe the operating instructions supplied with your tripod during its assembly and use.

Take out the tripod cap 13 from the threaded tripod mount socket 5 by turning it anti-clockwise.

☐ Screw the threaded connector of the tripod adapter clockwise into the threaded tripod mount socket 5 on the binoculars. Then connect the tripod to the attached tripod adapter.

After use, separate the tripod from the tripod adapter. Then unscrew the threaded connector of the tripod adapter anticlockwise out of the threaded tripod mount socket 5 on the binoculars.

☐ Put the tripod cap 13 back on the threaded tripod mount socket 5 by turning the cap 13 clockwise.

- Cleaning and care

□ Never take your binoculars apart for cleaning.

☐ Use the cleaning cloth 8 provided or a soft cloth without threads to clean the binoculars.

☐ Do not press hard when cleaning the delicate lens surface.

☐ If the lenses are still dirty, dampen the cloth with a little clear alcohol (methylated spirit).

□ Always cover the eyecups 1 and lens by the eyecups cover 10 and lens cover 9 while the binoculars is not in use to avoid scratch on the lens.

☐ Put the binoculars in the shoulder bag 11 while not in use.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
