Product Type	Beer Dispenser Refrigerator
Brand	Lynx
Model	LM24BFR
Dimensions (W x D x H)	61 cm x 64.5 cm x 85.7 - 88.3 cm (adjustable)
Weight	Approximately 68 kg
Power Supply	115 V, 15 A, dedicated circuit with grounding
Temperature Range	1°C to 8°C (34°F to 46°F)
Keg Capacity	1 half keg, or 1 quarter keg, or 2 sixth kegs
Main Functions	Draft beer dispensing, electronic control with display, alarms (open door, temperature, probe fault)
CO₂ Pressure Adjustment	9-14 psi depending on beer type (ale or lager)
Exterior Material	Stainless steel
Supplied Shelves	2 removable shelves
Drainage System	Integrated drainage kit with catch bottle
Maintenance and Cleaning	Regular cleaning of the dispensing system, drip tray, gaskets, and interior
Winterization Preparation	Drain lines, full cleaning, exterior protection
Safety	Mandatory grounding, do not use extension cord, suffocation risk (packaging)
Available Spare Parts	Door gasket, faucet cleaning kit (ref. 42242373), regulator, coupler
Repairability	Lynx customer service at 888-289-5969, authorized service centers
Warranty	1 year (subject to registration within 10 days)
General Information	Manufactured by Lynx Grills, Inc., Downey, CA, USA

Frequently Asked Questions - LM24BFR LYNX

How do I adjust the temperature on my Lynx LM24BFR beer dispenser?

Press and hold the SET button, then use the WARMER or COLDER buttons to adjust the setpoint between 34°F and 46°F (1°C to 8°C). Allow 24 hours for stabilization.

What CO₂ pressure should I use?

For a lager, set between 12 and 14 psi (0.8 to 1 bar). For an ale, between 9 and 12 psi (0.6 to 0.8 bar). Use the adjustment screw on the regulator after opening the valve.

How do I clean the dispensing system?

Close the CO₂ valve, disassemble the faucet and coupler, soak them in a sanitizing solution (no soap), then rinse. For the lines, use the cleaning kit (ref. 42242373) with a pump.

What does error code E1 on the display mean?

The E1 code indicates a temperature sensor failure. Contact Lynx customer service at 888-289-5969 or your dealer.

Can I install a half-barrel keg?

Yes, place the keg on the bottom of the unit, and store the shelves on the side hooks. Make sure the white floor plate is in place.

How do I prepare the unit for winter?

Turn off the unit, empty all contents, unplug, close the CO₂ valve, drain the beer lines, clean the interior and components, and vacuum debris under the grille and at the back.

The unit is not cooling enough. What should I do?

Check the temperature setpoint (lower it if necessary), ensure the front grille is not obstructed, and allow 24 hours for stabilization. If the problem persists, contact a technician.

What type of electrical outlet is required?

A grounded 115 V, 15 A power outlet on a dedicated circuit. Do not use an extension cord or adapter. Do not remove the grounding prong.

How do I disable the audible alarm?

Press any button to temporarily mute the alarm. The visual signal remains active as long as the alert condition persists.

Where do I find the serial number and model number?

They are on the rating plate inside the cabinet, left side near the top (see Figure 1 in the manual). Write down this information before contacting service.

USER MANUAL LM24BFR LYNX

Exterior view of a modern white refrigerant water heater with two vertical outlets (no signage or text visible)

LM24BF

OUTDOOR REFRIGERATOR/BEVERAGE DISPENSER

CARE & USE/INSTALLATION

CONTENTS

Contents

Safety information 2

Unpacking your appliance ....3

Warranty registration ....3

Installing your appliance ....4

Cabinet clearances ....4

Leveling the appliance ....4

Electrical connection ....5

Product dimensions 6

Using your Electronic control 8

Starting your appliance ....8

Turning your appliance "ON" or "OFF" 8

Adjusting the temperature 8

Beverage dispenser operation 8

Alarms 8

Door ajar 8

Temperature sensor fault 8

High and Low temperature alarms 8

Alarm mute 9

Using your beverage dispenser....10

Shelving 10

Tap equipment and assembly....11

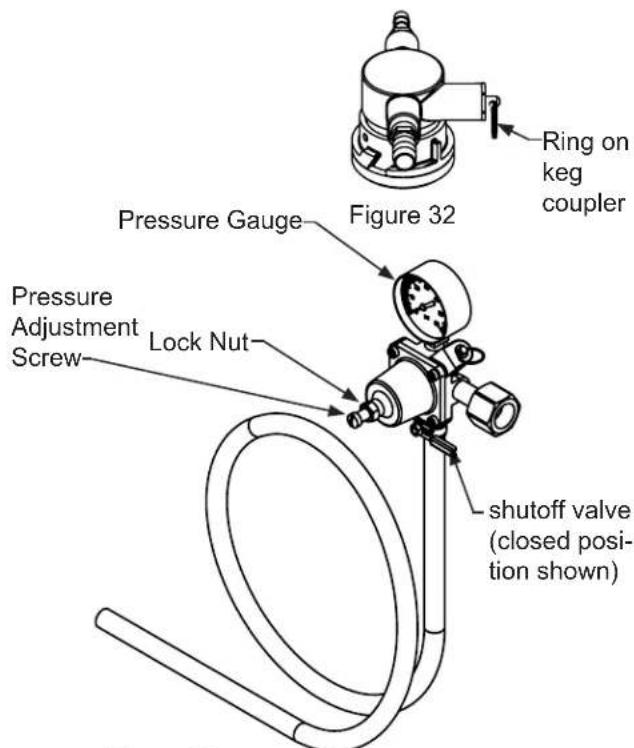

CO _2 regulator .....15

Drain kit 16

Care and cleaning 16

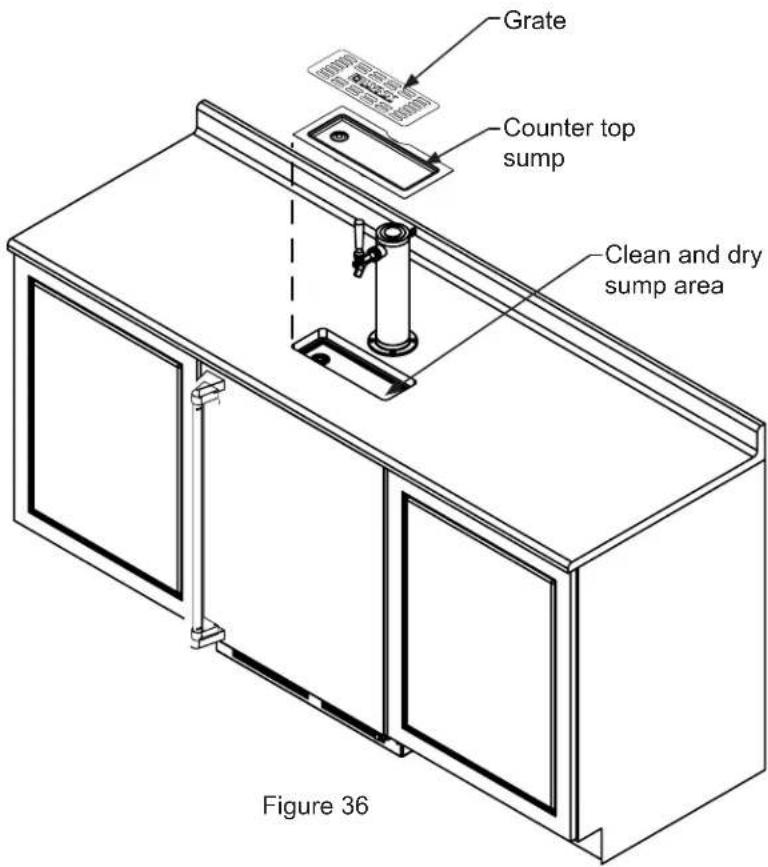

Cleaning the drain sump 16

Keg coupler cleaning 17

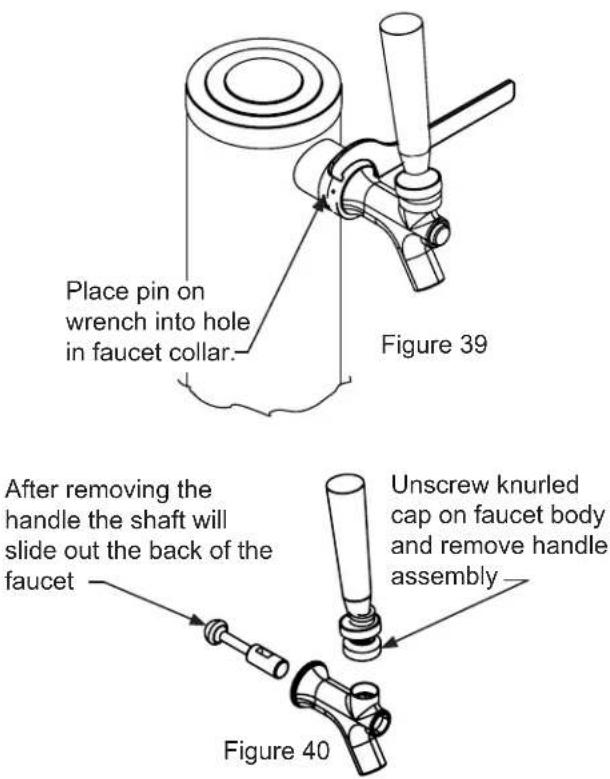

Faucet cleaning 17

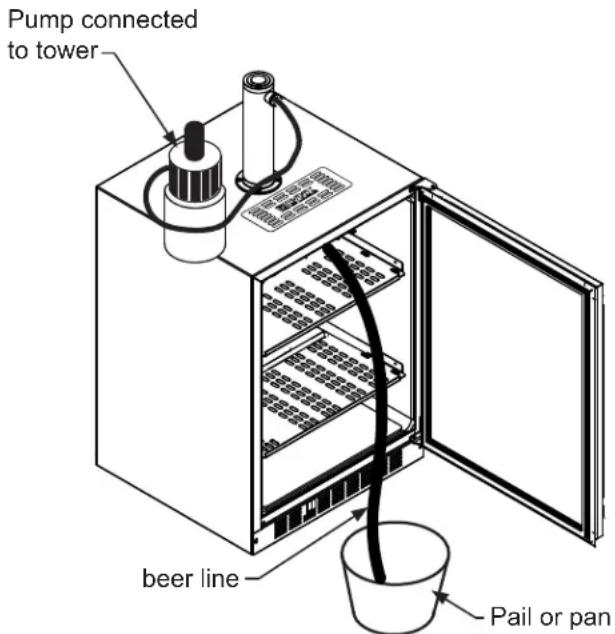

Tap cleaning kit 18

Cleaning the beer line ....18

Front grille 18

Cabinet 18

Interior 18

Long term storage / winterization .....19

Stainless steel maintenance 21

Energy saving tips 21

Obtaining service 22

The Lynx Story 22

Troubleshooting 23

Important Safety Instructions

Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.

Recognize Safety Symbols, Words, and Labels.

WARNING

WARNING - You can be killed or seriously injured if you do not follow these instructions.

CAUTION

CAUTION-Hazards or unsafe practices which could result in personal injury or property / product damage.

NOTE

NOTE-Important information to help assure a problem free installation and operation.

WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known to the State of California to cause cancer.

WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm..

UNPACKING YOUR APPLIANCE

WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.

Failure to do so can result in personal injury.

Remove Interior Packaging

Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened. Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items.

Important

Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly.

WARNING

WARNING - Dispose of the plastic bags which can be a suffocation hazard.

Note to Customer

This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer.

NOTE

DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.

CAUTION

If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the appliance in immediately may cause damage to internal parts.

Warranty Registration

It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at

www.lynxgrills.com/support/registration

The following information will be required when registering your appliance.

Service/Model Number

Serial Number

Date of Purchase

Dealer's name and address

The service/model number and serial number can be found on the serial plate which is located inside the cabinet on the left side near the top. (Figure 1).

LYNX GRILLS, INC DOWNNEY, CA 90242 MODEL NO. XXXXXXXXXXXXXXX SERVICE NO. XXXXXXXXXXXXXXX SERIAL NO. XXXXXXXXXXXXX HZ VOLTS AMPS R134A OZ DESIGN PRESSURES 140 PSI LOW SIDE 300 PSI HIGH SIDE

Figure 1

WARNING

WARNING - Help Prevent Tragedies

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they sit out for "just a few hours".

If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take off the doors or remove the drawers.
- Leave the shelves in place so children may not easily climb inside.

INSTALLING YOUR APPLIANCE

Select Location

The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specifications, the recommended installation location temperature range is from 55 to 115°F (13 to 46°C).

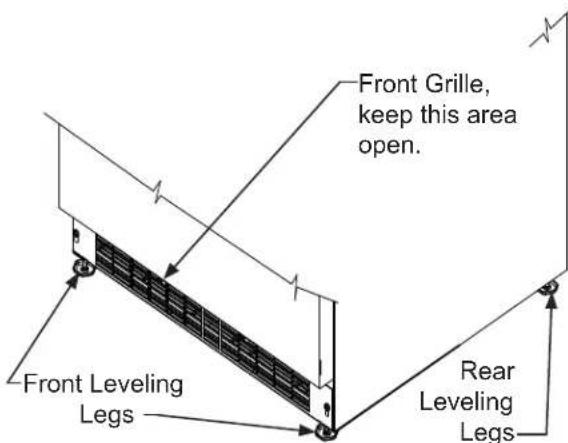

Cabinet Clearance

Ventilation is required from the bottom front of the appliance. Keep this area open and clear of any obstructions. Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstructed.

Front Grille, keep this area open. Front Leveling Legs Rear Leveling Legs

Figure 2

Leveling Legs

Adjustable legs at the front and rear corners of the appliance should be set so the unit is firmly positioned on the floor and level from side to side and front to back. The overall height of your appliance may be adjusted between the minimum, 33 ^3/4 " (85.7 cm), by turning the leveling leg in (CW ♂) and the maximum, 34 ^3/4 " (88.3 cm) by turning the leveling leg out (CCW ♂).

To adjust the leveling legs, place the appliance on a solid surface and protect the floor beneath the legs to avoid scratching the floor. With the assistance of another person, lean the appliance back to access the front leveling legs. Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appliance forward using caution. On a level surface check the appliance for levelness and adjust accordingly.

The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 5).

CAUTION

Front Grille

Do not obstruct the front grille. The openings within the front grille allow air to flow through the condenser heat exchanger. Restrictions to this air flow will result in increased energy usage and loss of cooling capacity. For this reason it is important this area not be obstructed and the grille openings kept clean. Lynx Grills does not recommend the use of a custom made grille as air flow may be restricted. (See Figure 2).

INSTALLING YOUR APPLIANCE

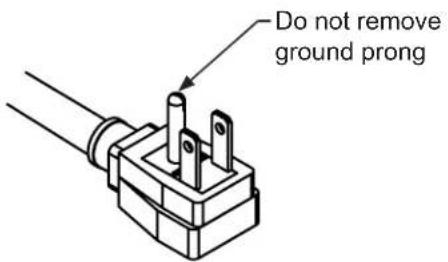

Do not remove ground prong

Figure 3

Prohibition sign showing a crossed-out electrical component (no text or symbols)

Figure 4

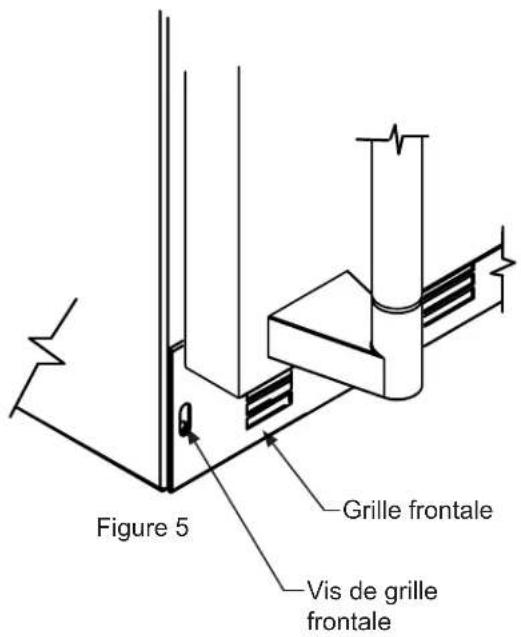

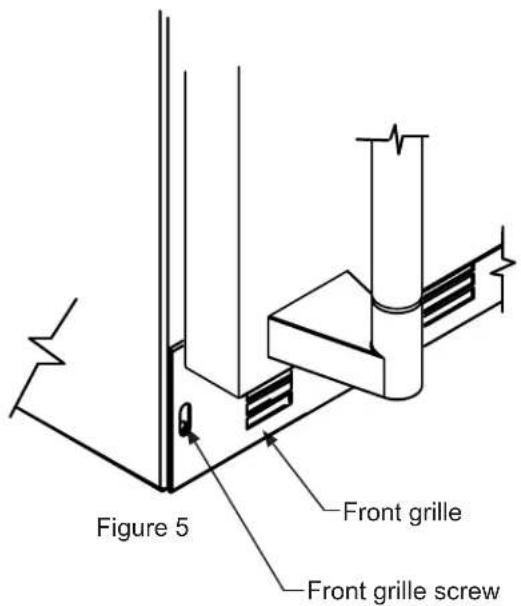

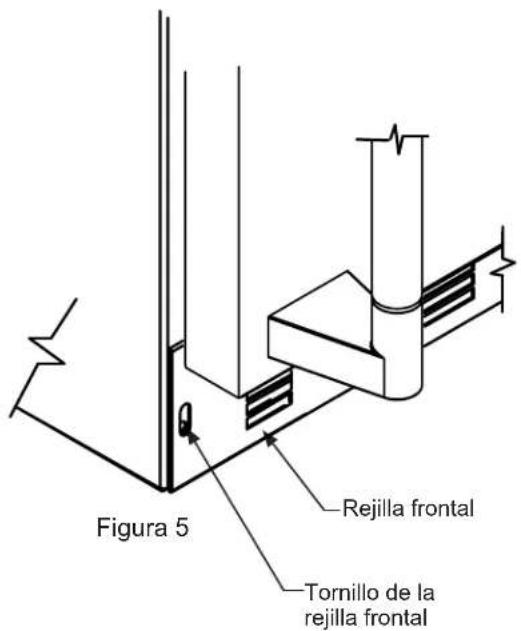

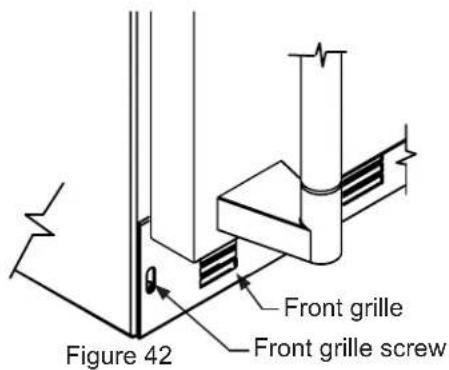

Figure 5 Front grille Front grille screw

WARNING

Electrical Shock Hazard

• Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance.
• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.

Electrical Connection

A grounded 115 volt, 15 amp dedicated circuit is required.

This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 6). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any circumstances, be cut or removed.

Simple line drawing of an electrical plug and two separate socket (no text or symbols)

Figure 6

NOTE

Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down. GFCI's are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances.

PRODUCT DIMENSIONS

MODEL	ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
	"A"	"B"	"C"	"D"	"E"	"F"	"G"	"H"	"J"
LM24BF	24"(61 cm)	**34" to 35"(86.4 to 88.9 cm)	*	23 78 " (60.7 cm)	33 34 " to 34 34 " (85.7 to 88.3 cm)	23 2132 " (60.2 cm)	26 34 " (67.9 cm)	46 1332 " (117.9 cm)	26 34 " (67.9 cm)

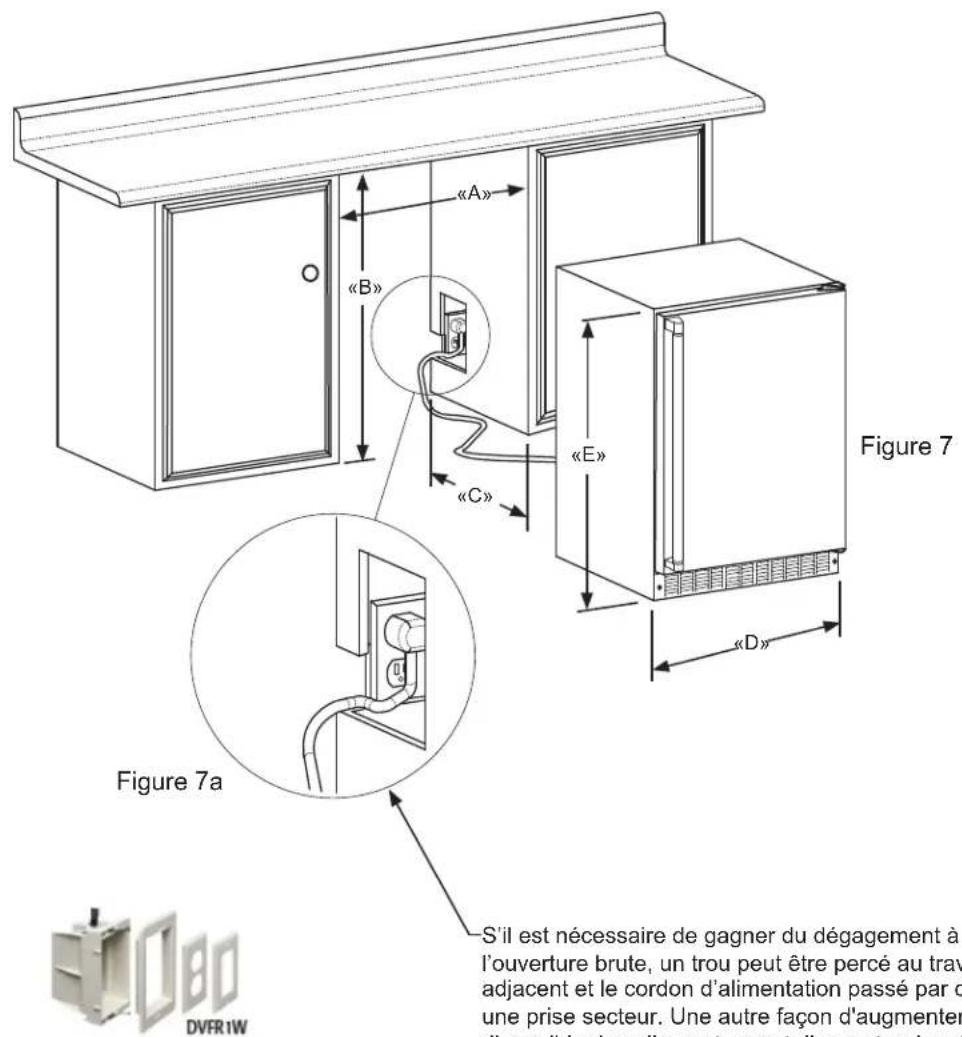

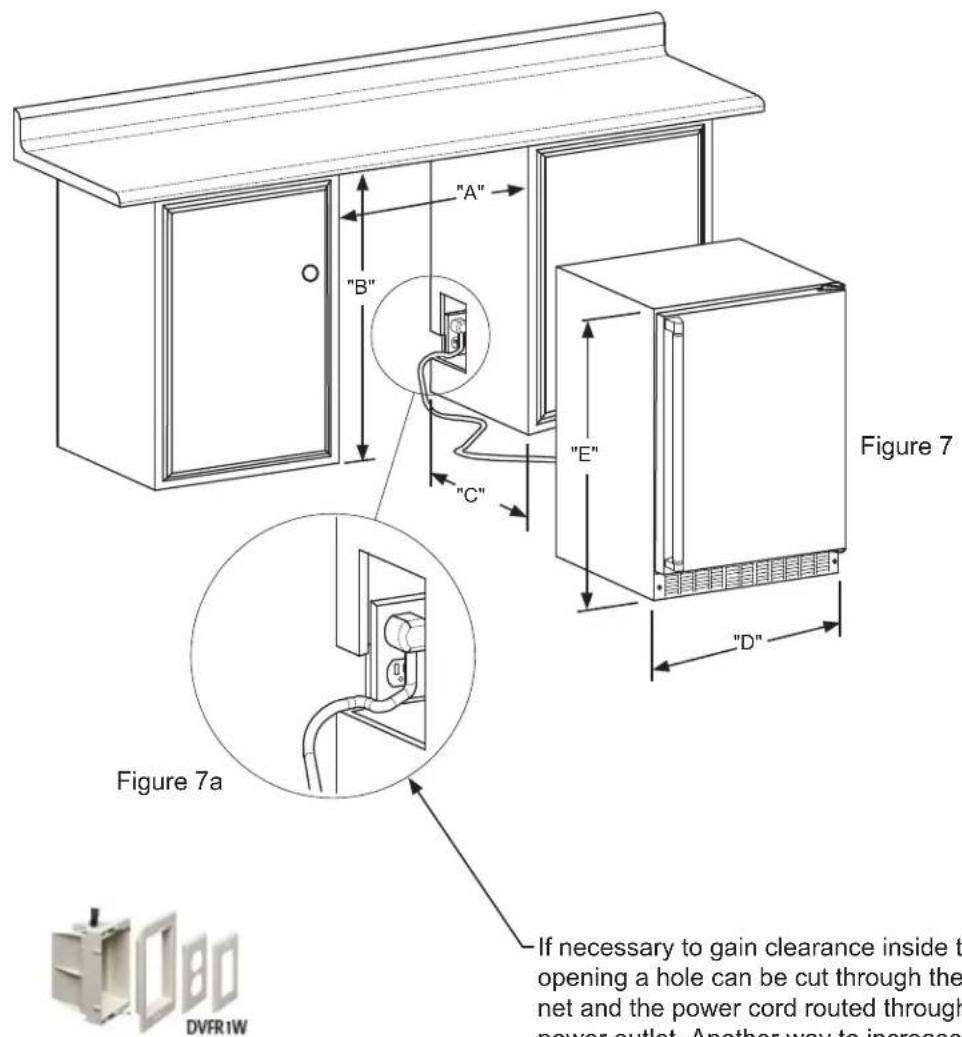

"A" "B" "E" "C" Figure 7 D" Figure 7a If necessary to gain clearance inside t opening a hole can be cut through the net and the power cord routed through power outlet. Another way to increase DVFR1W

Figure 8

- If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug. Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box equivalent to Arlington #DVFR1W is recommended for this application, (see Figure 8).

PRODUCT DIMENSIONS

MODEL	PRODUCT DATA
	ELECTRICAL REQUIREMENTS#	PRODUCT WEIGHT
LM24BF 115V/60Hz/15A		140 lbs(63.6 kg)

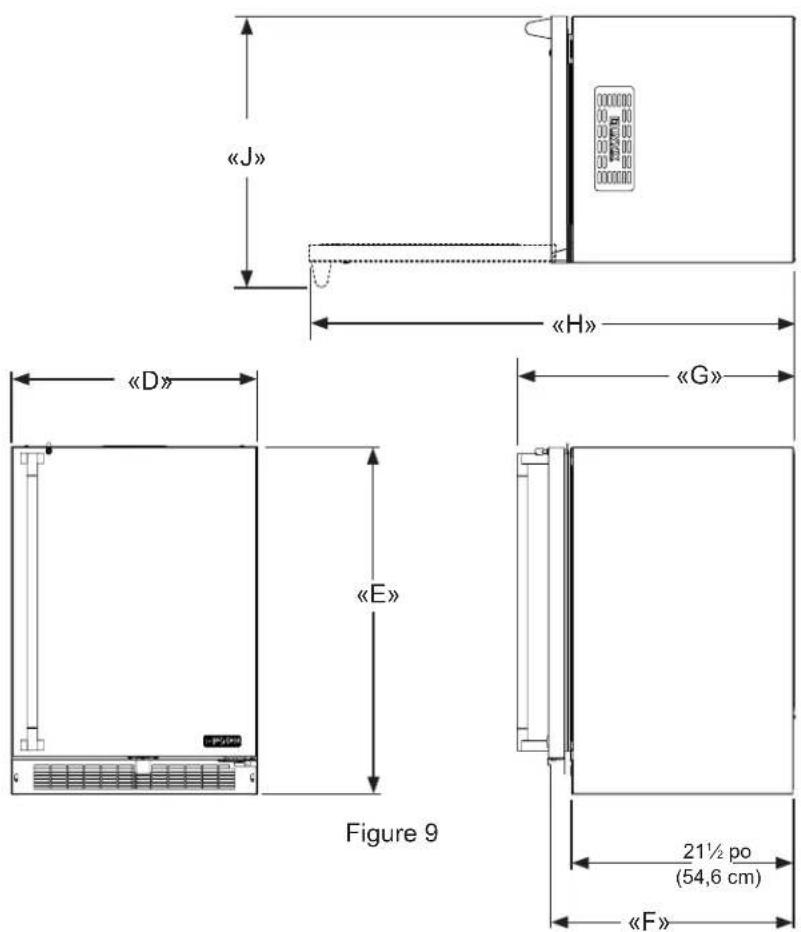

"J" "H" "D" "E" Figure 9 21½" (54.6 cm) "F"

* Depth dimension of rough-in opening may vary depending on each individual installation. To recess entire door "F" dimension plus 1" (2.5 cm) for thickness of power cord plug is required.

** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet.

# A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appliance.

USING YOUR ELECTRONIC CONTROL

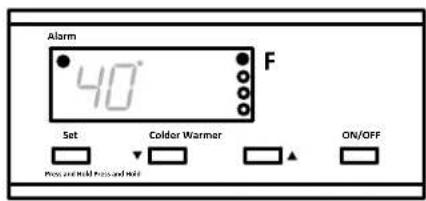

Figure 10 close-up of control

Alarm 40° F Set Colder Warmer ON/OFF

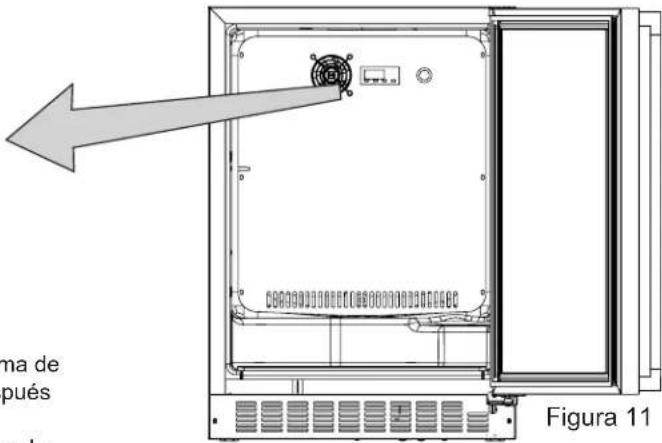

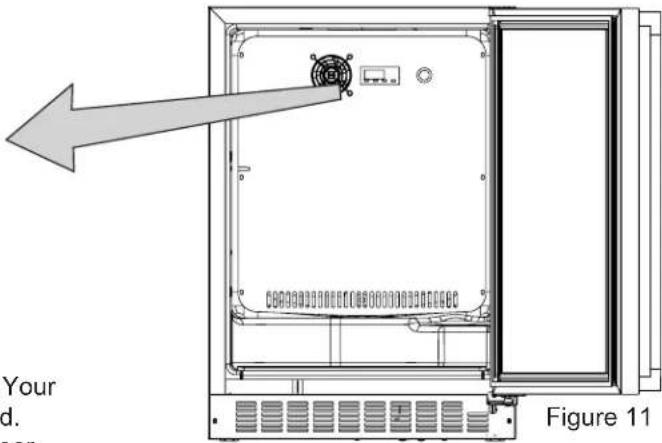

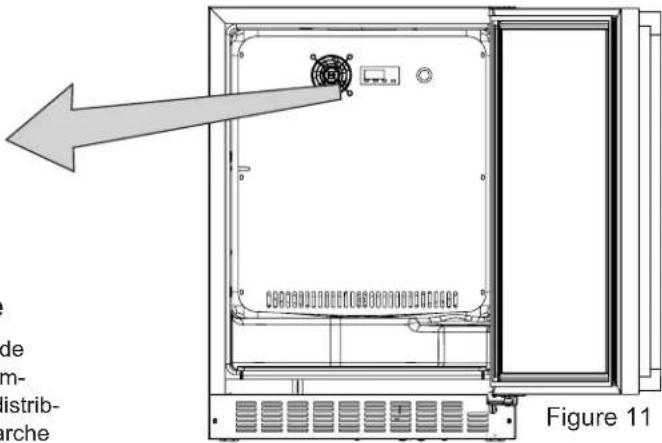

Your d. Figure 11

Starting Your Refrigerator

Plug the beer dispenser power cord into a wall outlet. Your beer dispenser will begin cooling after power is applied. If your beer dispenser does not start, check that the beer dispenser is turned on and the set temperature is cold enough.

Turning Your Refrigerator ON or OFF

If the beer dispenser is on, the beer dispenser temperature will be shown on the display. To turn the beer dispenser off, press and hold the "ON/OFF" button for three (3) seconds. "OFF" will appear on the display.

If the beer dispenser is not on, "OFF" will be shown on the display. To turn the beer dispenser on, press and hold the "ON/OFF" button for three (3) seconds. The beer dispenser temperature will be shown on the display.

Set temperature

To set the beer dispenser temperature, press and hold the "SET" button. When the "SET" button is pressed, the display will show the set temperature. While holding the "SET" button, press the "WARMER" or "COLDER" buttons to adjust set temperature.

Beverage Dispenser Operation

The available temperature range of the beer dispenser is 34^ to 46^ F ( 1^ to 8^ C).

It may take up to 24 hours for your beer dispenser to reach desired temperature. This will depend on amount of content loaded and number of door opening and closings.

For best results allow beer dispenser to "pull down" to desired set temperature before loading. Once contents are loaded, allow at least 48 hours for temperature to stabilize before making any adjustments to the set temperature.

Alarms

Your electronic control will monitor beer dispenser function and alert you with a series of audible and visual alarms.

- Door Ajar Alarm: If the door has been left open for over five (5) minutes, the alarm will sound in one (1) second intervals. The

display panel will flash "do" and the Alarm LED located at the top left of the display below the word "Alarm" will be illuminated. This will stop as soon as the door is closed.

• Temperature Sensor Fault: If the controller detects that the temperature sensor is not properly functioning, a temperature

sensor alarm will sound in one (1) second intervals. "E1" will flash on the display panel and the Alarm LED located at the top left of the display below the word "Alarm" will be illuminated. Please call Lynx Grills Customer Service or your dealer if this error code is displayed.

- High and Low Temperature Alarm: If the storage compartment temperature deviates excessively from the set-point temperature, the alarm will sound in (1) second intervals. The display panel will flash either "Hi" or "Lo" depending upon the condition and the Alarm LED

light at the top left of the display below the word "Alarm" will be illuminated. The alarm will remain active until the condition is corrected.

USING YOUR ELECTRONIC CONTROL

NOTE

After a high temperature alarm condition, check all perishables to ensure they are safe for consumption.

NOTE

The temperature alarm may occur as a result of high usage or introduction of warm contents to the storage compartment. If the temperature alarm continues to occur, your unit may require service.

Alarm Mute

Press any key to mute the audible portion of an alarm.

NOTE

This action will only mute the alarm. If the condition that caused the alarm continues, the alarm code will continue to flash and will sound for 20 seconds every 60 minutes.

USING YOUR BEVERAGE DISPENSER

Shelving

The unit is shipped with the (2) shelves taped in place in the upper and the lower shelf positions. Remove them from the refrigerator and arrange them as follows when setting up your unit.

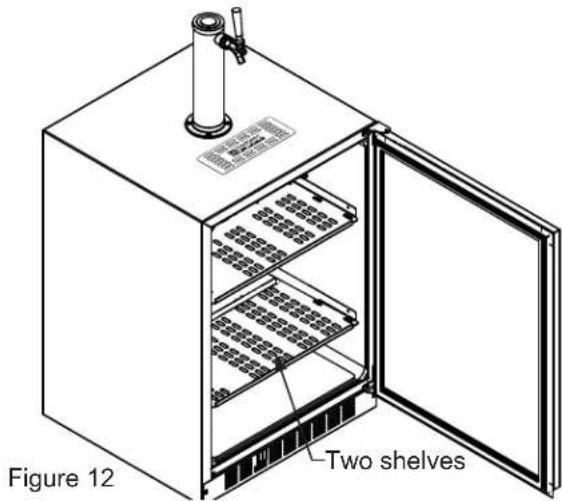

Figure 12 Two shelves

If you are not serving beer on tap, your keg dispenser can be used as a refrigerator by placing both shelves on the mounting brackets as shown in Figure 13. The shelves are marked upper and lower, The upper shelf should be placed in the top shelf position and the shelf marked lower should be placed in the bottom shelf position.

CAUTION

If you are using the appliance as a refrigerator for perishable foods, the set-point temperature should be set between 34^ F and 42^ F ( 1.2^ C and 5.7^ C).

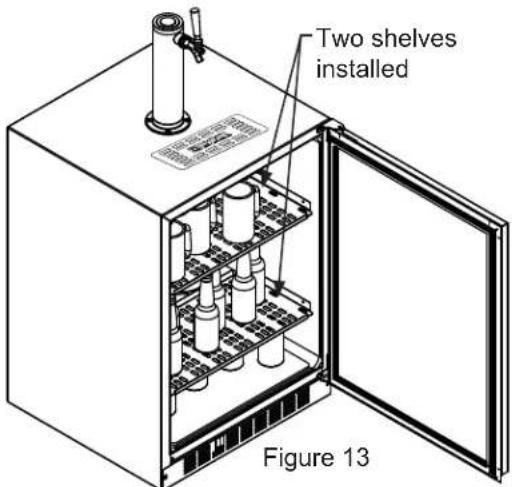

Two shelves installed Figure 13

CARE AND USE/INSTALLATION

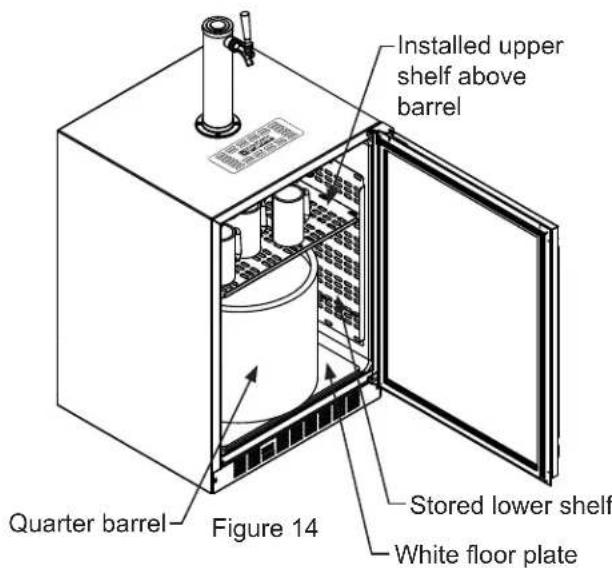

If you are using a quarter barrel of beer, you can add shelf space for keeping your mugs chilled. The quarter barrel must set on the floor, it cannot fit on the shelf, see

Figure 14. Be sure the white floor plate is in the bottom of the interior compartment before positioning the barrel.

Installed upper shelf above barrel Quarter barrel Figure 14 Stored lower shelf White floor plate

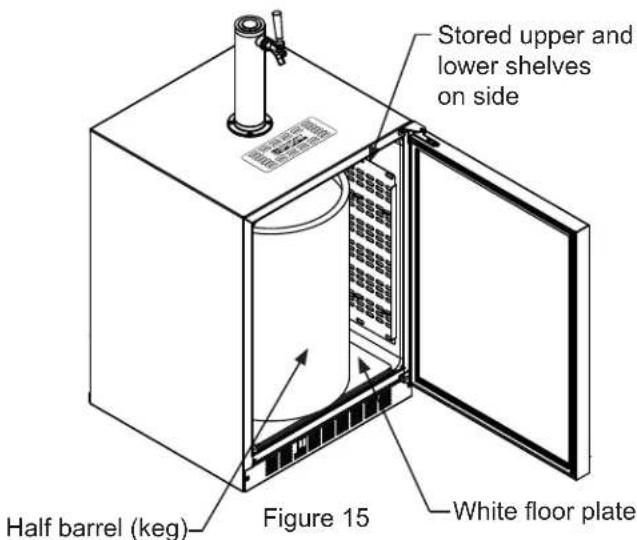

If you are using a half barrel (keg) or (2) 1/6 barrels, place the two shelves on the right side of the keg dispenser on the two mounting hooks for storage. (See Figure 15). Be sure the white floor plate is in the bottom of the interior compartment before positioning the barrel(s).

Stored upper and lower shelves on side Half barrel (keg) Figure 15 White floor plate

USING YOUR BEVERAGE DISPENSER

This beer dispensing unit will support one half ( 12 ) barrel or one quarter ( 14 ) barrel. The double draft tower units can support two sixth ( 16 ) barrels of beer. See chart below for quantity of beer in each barrel size.

	Barrel Sizes
	1/6 barrel 1/4	Barrel 1/2 B	arrel
Height	23516" (59.2 cm)	14^13/_16" (37.6 cm)	23516" (59.2 cm)
Diameter	914" (23.5 cm)	17"(43.2 cm)	17" to 1714" (43.2 to 43 cm)
Gallons 5.1	6 7.75 15.5
#12 ounce Glasses	60 82 163

Table A

Keg Size	#of kegs per 5 pound CO2Tank
5 gallon Corny 15 to 22
1/6 barrel 14 to 21
1/4 Barrel 10 to 14
1/2 Barrel 5 to 7

Table B

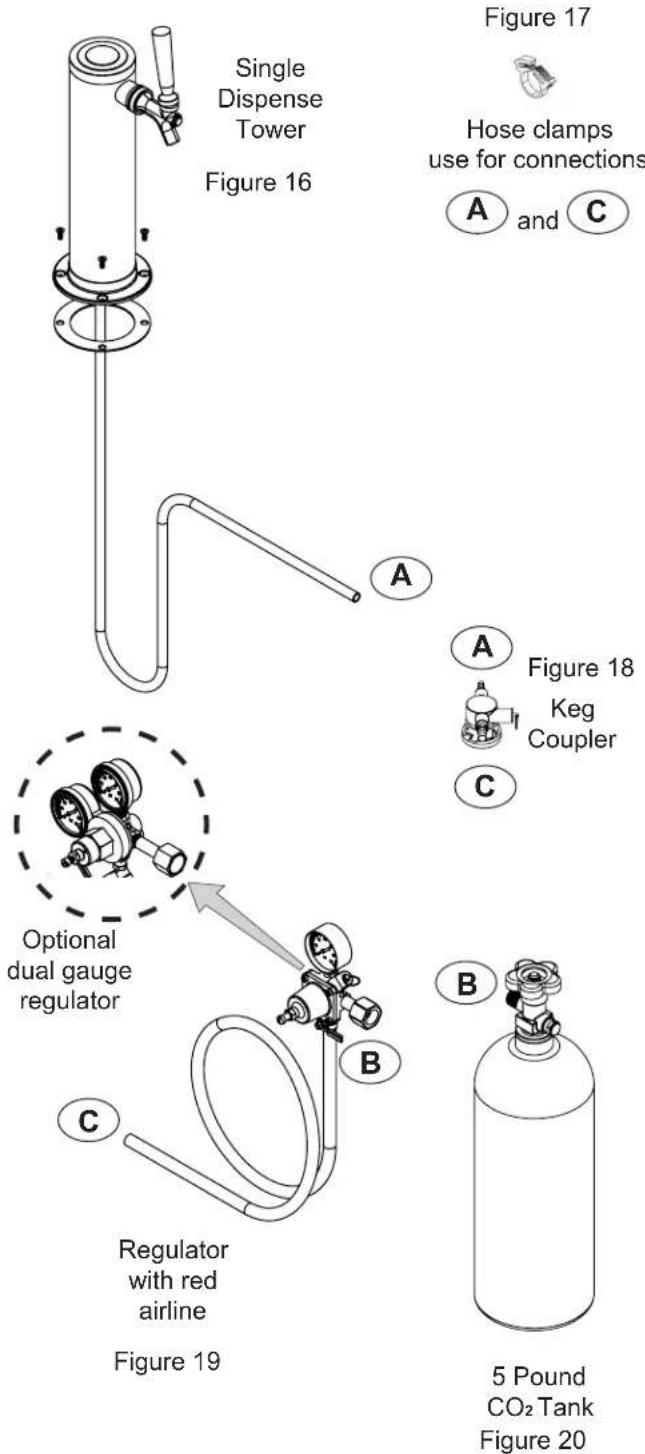

Tap Equipment and Assembly

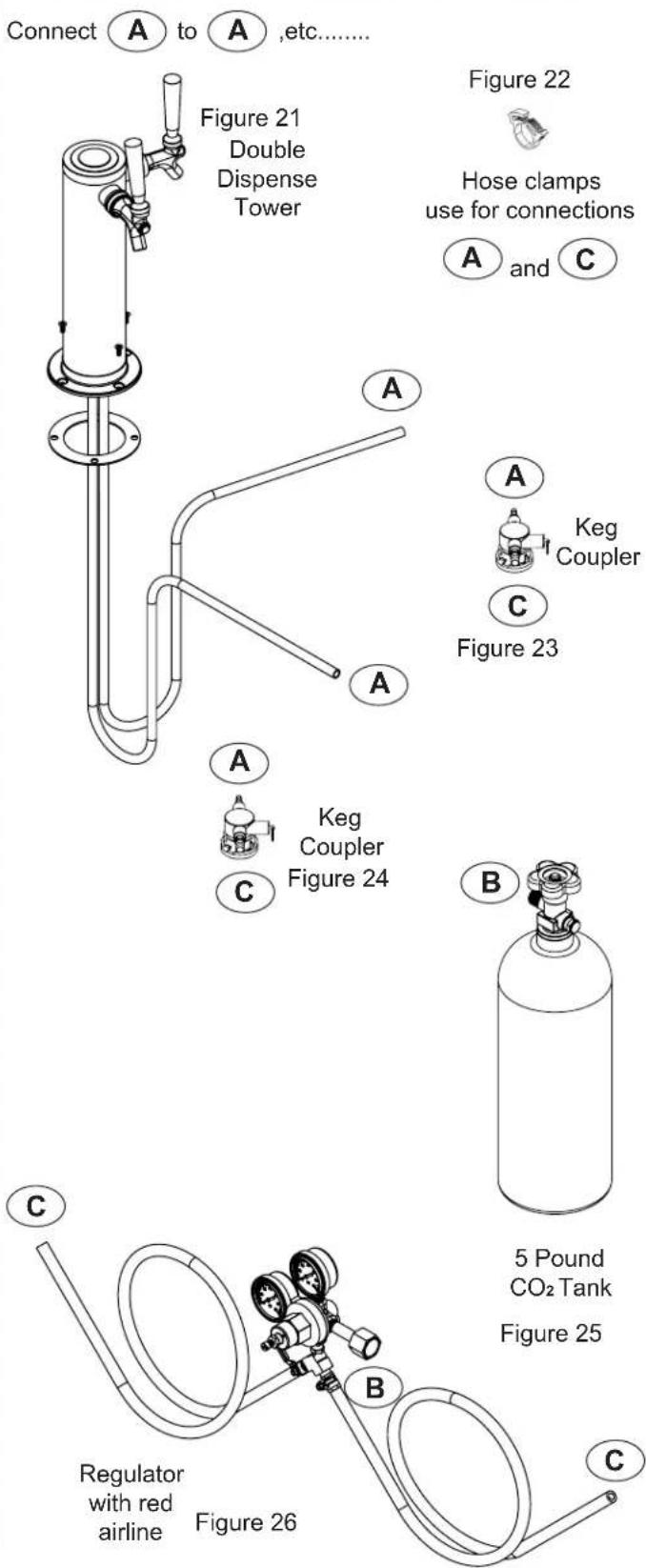

Your dispensing kit includes the following parts:

Polished stainless steel tower with clear beer line (single or double dispense)

Tower Gasket

Phillips oval head screws

Knob for Tower (Faucet Handle)

Keg coupler(s)

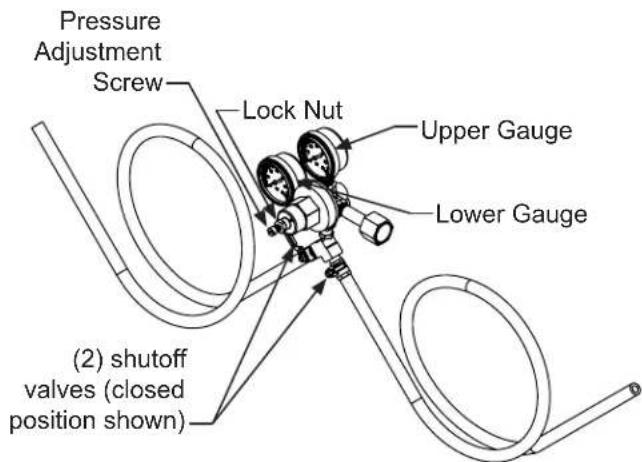

CO _2 regulator with red gas line(s) attached

Empty 5 pound CO _2 tank

Plastic clamp(s) large and small

Faucet wrench

Tools required for installation:

Flat bladed screwdriver

Phillips screwdriver

Pliers

Adjustable wrench or a 1 ^1/8 " open end wrench

12 " open end wrench

WARNING

CO _2 can be dangerous. If it becomes difficult to breathe and/or your head starts to ache, a high concentration of carbon dioxide may be present. Leave the area immediately.

• The CO_2 tank must always be connected to the regulator. Never connect the tank to the keg.
• The CO_2 tank must be securely mounted in the upright position. Secure it with the chain provided.
• Never drop or throw the CO_2 tank.
• Keep the CO_2 tank away from heat.

• Ventilate the area after a CO_2 leak.

• Remove shelving and packaged components from the interior of the refrigerator before beginning the assembly process.

• Take your empty 5 pound CO₂ tank to your local gas supply dealer to be filled. You can usually find them in your "yellow pages" under "Welding Supply" or "Fire Protection". One 5 pound tank can process many kegs (see Table B).
• Tower mounting (if you are installing the unit under a counter skip to step 4). If you are mounting the tower directly to the top of the refrigerator, first remove the four screws from the top of the refrigerator. Remove the foam plug from the large hole in the top of the refrigerator. Feed the clear beer line through the tower gasket and the large hole in the refrigerator top. Align the 4 holes in the tower with the 4 holes in the refrigerator top and secure the tower with the 4 screws removed previously. Skip to step 5.

USING YOUR BEER DISPENSER

Single Dispense Tower Kit Double Dispense Tower Kit

Connect Ⓐ to Ⓐ ,etc......

Hose clamps use for connections

A and C

Figure 18 Keg Coupler C

Connect Ⓐ to Ⓐ ,etc......

Hose clamps use for connections

A and C

A Keg Coupler C

USING YOUR BEER DISPENSER

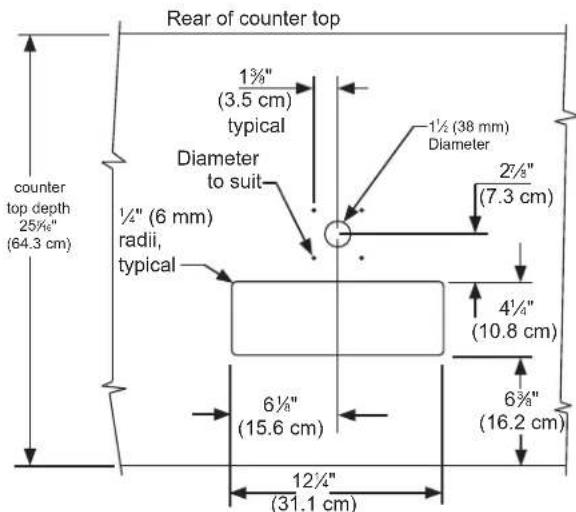

Rear of counter top 1¾" (3.5 cm) typical Diameter to suit ½" (6 mm) radii, typical 1½ (38 mm) Diameter 2¾" (7.3 cm) 4¼" (10.8 cm) 6¾" (16.2 cm) 12¾" (31.1 cm) counter top depth 25¾" (64.3 cm)

Figure 27

CAUTION

The cutout dimensions shown in Figure 27 are based on a 25^5/16 (64.3 cm) deep counter top. Your counter top may be different than this and require other front to back dimensioning. Refer to the product dimensions on pages 6 and 7 when determining the required dimensions.

NOTE

Your tower kit may or may not come with a "sit on top" sump option. To use it please follow the instructions in the tower kit.

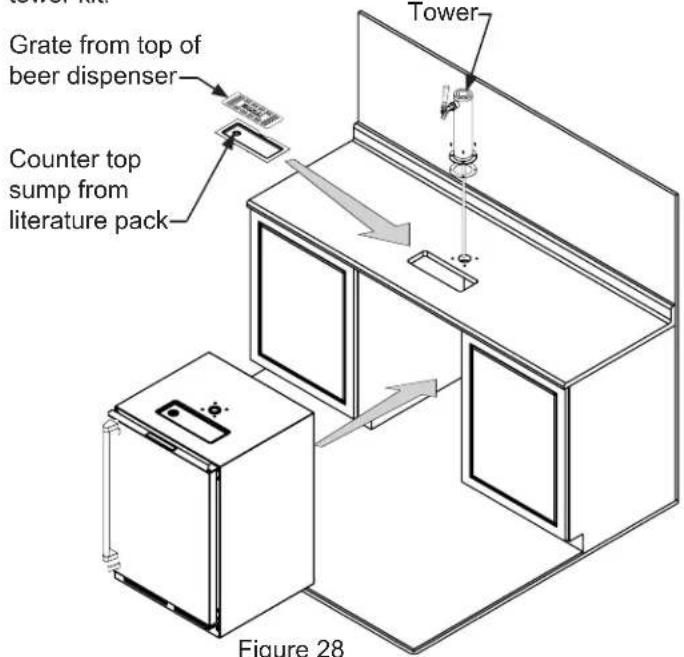

Grate from top of beer dispenser Counter top sump from literature pack Tower Figure 28

Figure 28

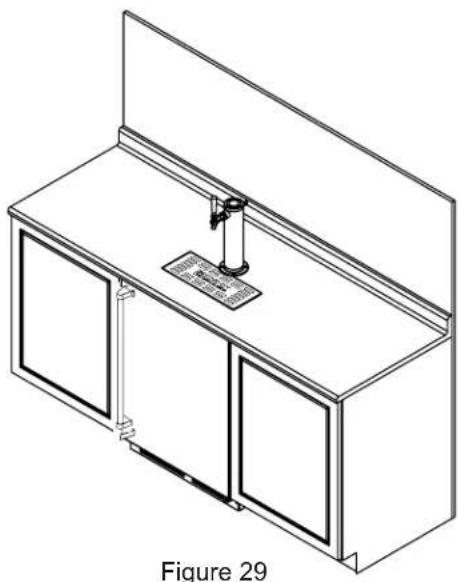

1. If you are installing your keg refrigerator under a counter you will need to drill 5 holes in the counter top to mount the tower. The first hole is a 1 12 " diameter hole located at the center of the tower for the beer line, locate approximately 13 12 " (34.3 cm) from the front edge of the counter top (based on a counter top depth of 25 516 "). Next drill the 4 tower mounting holes per the dimensions in Figure 27. The hole diameter is dependent on the counter top material and if screw anchors are required. The screws supplied are in the literature pack and are a #10 x 1" type AB stainless steel screw. Mark and cut the rectangular cutout for the drain sump. After the holes are drilled and the keg refrigerator is in place under the counter top feed the beer line through the tower gasket, the 1 12 " hole in the counter top and the hole in the top of the keg refrigerator. Mount the tower to the counter top with the 4 screws provided. Place the counter top drain sump, from the literature pack, in the rectangular hole with the radius cutout to the rear around the tower and place the grate in the sump.

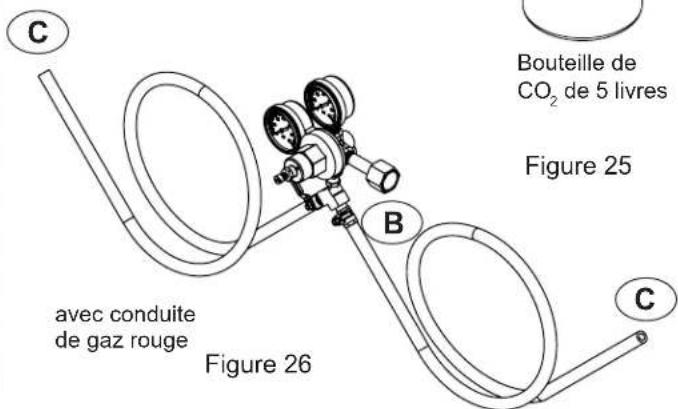

2. Mount the regulator to the CO_2 tank (connection B). Note that the regulator has left hand threads and has to be turned counterclockwise to tighten. Tighten with the adjustable wrench or the 118 " open end wrench.

3. Connect the red air line(s) from the regulator to the large air line fitting on the keg coupler with a large hose clamp (connection ⓒ).

4. Connect the clear beer line from the tower to the small air line fitting on the keg coupler with a small hose clamp (connection A).

5. Locate the CO_2 tank in the corner of the refrigerator as shown in Figure 30 and secure with the chain. Close the faucet handle on the tower.

Isometric line drawing of a cabinet with two doors and a mounted fixture (no text or symbols)

CARE AND USE/INSTALLATION

USING YOUR BEER DISPENSER

1. Hooking up the keg coupler to the keg: Verify the coupler is in the "OFF" position (see Figure 31a). Align the lugs on the keg with the corresponding openings on the keg coupler and turn clockwise until the coupler stops (about 90^ ). Push down and twist the top of the coupler clockwise to allow gas to enter the keg.

Push faucet handle back toward tower to close the faucet

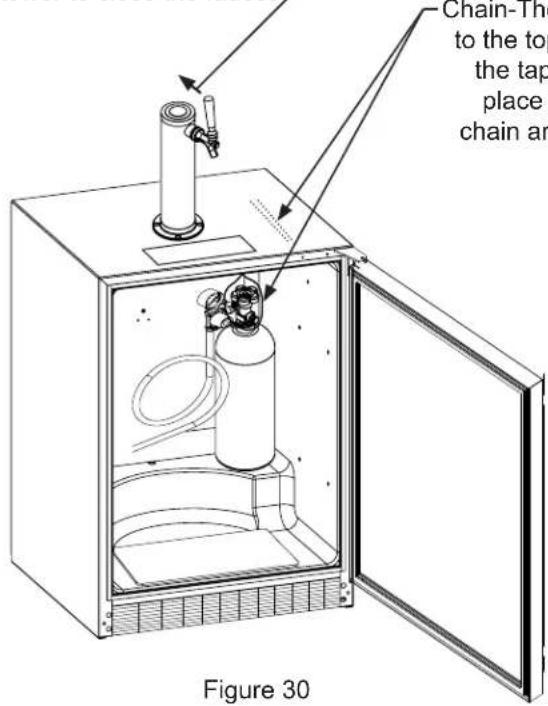

Chain-The to the top the tap place chain an Figure 30

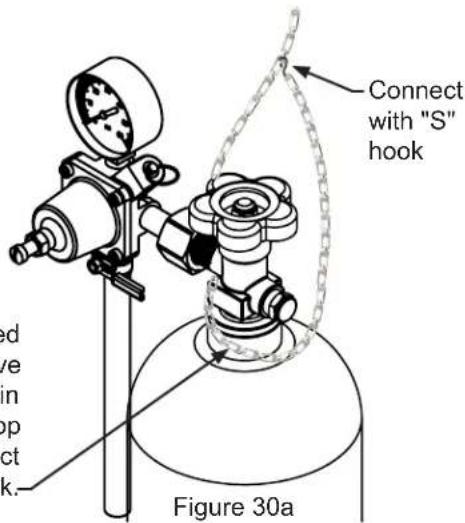

Chain-The chain is fastened and taped to the top of the interior liner. Remove the tape and secure the CO_2 tank in place in the back right corner. Loop chain around top of tank and connect with "S" hook.-

Connect with "S" hook Figure 30a

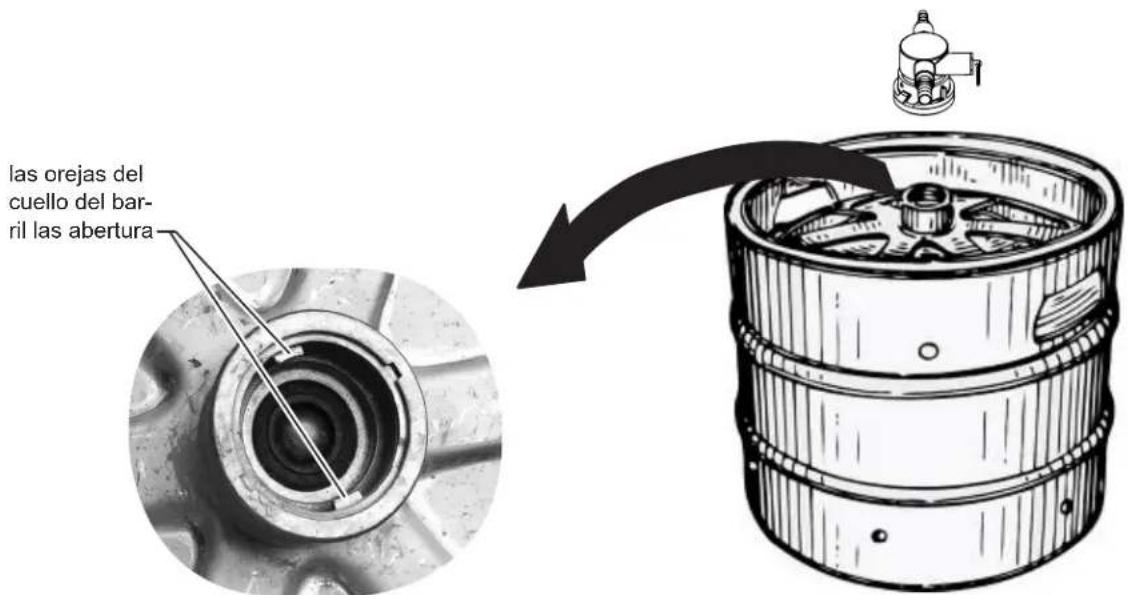

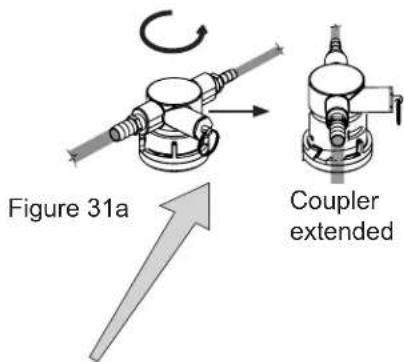

Rotate the top of the coupler counter clockwise to extend the coupler to the to the "OFF" position.

Figure 31a Coupler extended

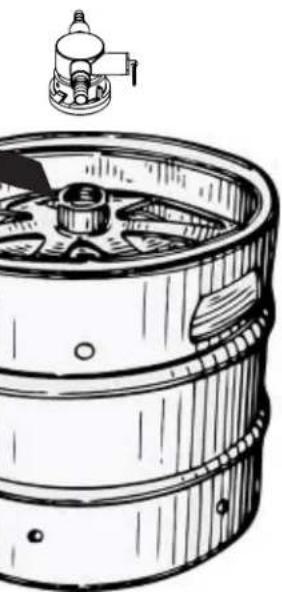

Illustration of a wooden barrel with a mechanical component above it (no text or symbols)

Figure 31

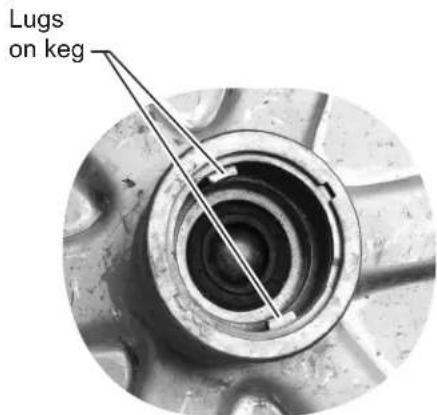

Lugs on keg

Figure 31b

USING YOUR BEER DISPENSER

CO _2 Regulator (Single Dispense Tower)

Your beer dispenser comes equipped with a 5 pound CO _2 tank and a single gauge regulator. The gauge reads the pressure being supplied to the beer keg. Follow the procedure below to adjust the pressure to 12 - 14 psi (0.8 to 1 bar) for lager beer or 9 - 12 psi (0.6 to 0.8 bar) for ale's.

To adjust the pressure (Single Gauge):

1. Close the shutoff valve at the bottom of the regulator.
2. Be sure the faucet handle is closed on the tower (see Figure 30).
3. Loosen the lock nut by turning ∘ counterclockwise using the 12 " open end wrench until loose, this will allow adjustment of the pressure adjustment screw.
4. With the flat bladed screwdriver turn the adjustment screw clockwise to increase the pressure or counterclockwise to decrease the pressure.
5. Open the shutoff valve on the bottom of the regulator. The gauge reading may drop but will return very quickly.
6. Pull the ring on the keg coupler to allow the gas to flow momentarily.
7. Make any fine adjustments if necessary with the adjustment screw.
8. Tighten the locknut with the 12 " open end wrench by turning clockwise o.

Ring on keg coupler Figure 32 Pressure Gauge Pressure Adjustment Screw Lock Nut shutoff valve (closed position shown)

Figure 33 (Regulator for Single Dispense Tower)

CO₂ Regulator (Double Dispense Tower)

Your beer dispenser comes equipped with a 5 pound CO 2 tank and a dual gauge regulator. The lower gauge should be reading approximately 750 psi (52 bar) when the tank is properly filled and the tank is not in the refrigerator (at room temperature). The tank will read less when chilled. Use this lower gauge as an indicator of how much CO 2 you have left in the tank.

The upper gauge reads the pressure being supplied to the beer keg. Follow the procedure below to adjust the pressure to 12 - 14 psi (0.8 to 1 bar) for lager beer or 9 - 12 psi (0.6 to 0.8 bar) for ale's.

To adjust the pressure (Upper Gauge):

1. Close the shutoff valves at the bottom of the regulator.
2. Be sure the faucet handle is closed on the tower (see Figure 30).
3. Loosen the lock nut by turning counterclockwise using the 12 " open end wrench until loose, this will allow adjustment of the pressure adjustment screw.
4. With the flat bladed screwdriver turn the adjustment screw clockwise to increase the pressure or counterclockwise to decrease the pressure.
5. Open the shutoff valve on the bottom of the regulator. The gauge reading may drop but will return very quickly.
6. Pull the ring on the keg coupler to allow the gas to flow momentarily.
7. Make any fine adjustments if necessary with the adjustment screw.
8. Tighten the locknut with the 12 " open end wrench by turning clockwise.

Pressure Adjustment Screw Lock Nut Upper Gauge Lower Gauge (2) shutoff valves (closed position shown)

Figure 34 (Regulator for Double Dispense Tower)

CARE AND USE/INSTALLATION

USING YOUR BEER DISPENSER AND CARE AND CLEANING

Drain kit (All Models):

The drain kit is shipped in place and ready to use. To empty: Pull drain hose out of bottle cap, remove bottle from unit, unscrew cap and discard waste and rinse bottle. Reinstall bottle in unit.

Cleaning the drain sump:

On a free standing beer dispenser remove the grate from in front of the tower, clean with soap and water and dry before reinstalling. Clean the sump area with soapy water and dry. (See Figure 35).

On a built in beer dispenser remove the grate and counter top sump, clean with soap and water and dry before reinstalling. Clean the sump area with soapy water and dry. (See Figure 36).

Push faucet handle back toward tower to close the faucet Unscrew cap Removable grate for cleaning sump area

Figure 35

Grate Counter top sump Clean and dry sump area Figure 36

CARE AND CLEANING

Cleaning and Maintaining Dispensing System

The dispensing system needs to be cleaned between usage to prevent spoilage and/or foul taste in your beer.

Keg Coupler Cleaning

Remove the keg coupler from the keg if necessary. Close the gas valve(s) below the regulator, remove both the red gas line(s) and clear beer line(s) from the keg coupler(s) by removing the plastic hose clamps (See Figure 37). Soak and brush the keg coupler in hot water or a sanitizing solution. Rinse thoroughly with clean water. Dry all parts and reassemble.

Hose clamps can be released by a lateral movement to the head.

Mechanical component diagram labeled Figure 37, showing a gear-like structure with directional arrows (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

Figure 38

Faucet Cleaning

Turn off the gas supply with the shutoff valve(s) under the regulator (see Figure 33 or Figure 34) and open the faucet to relieve the pressure. To remove the faucet from the tower use the spanner wrench provided. Place the pin on the wrench into the hole on the faucet collar and turn clockwise to remove the faucet. (See Figure 39).

Remove the knurled cap from the faucet body just below the handle and pull the handle assembly from the faucet. This will allow the shaft to be removed from the back of the faucet, see Figure 40.

Place pin on wrench into hole in faucet collar. Figure 39 After removing the handle the shaft will slide out the back of the faucet Unscrew knurled cap on faucet body and remove handle assembly Figure 40

Soak all faucet parts in hot clear water or a solution of hot water and a sanitizing solution. Do not use soap. Rinse thoroughly with clean water.

Reassemble faucet, assemble faucet to tower (be sure faucet is in off position), and turn on gas valve.

CARE AND CLEANING

Tap Cleaning Kit

This is an optional item (part number 42242373) Kit includes everything to quickly clean tap. Includes cleaning solution, pump, mixing bottle, brush and wrench.

Cleaning the beer line

(using tap cleaning kit 42242373):

With the faucet removed from the tower (see page 17) and the keg coupler removed from the keg (see page 17), place the end of the beer line in a pail or pan. Secure the pump to the tower with the coupler nut provided on the pump assembly. Pump a sanitizer / cleaner through the beer line until clean. Rinse the pump bottle with hot water, and using the pump, flush the beer line 2 or 3 times with clean hot water.

Pump connected to tower beer line Pail or pan

Figure 41

Front Grille

Be sure that nothing obstructs the required air flow openings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4).

CAUTION

SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water.

Cabinet

The stainless steel cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. NEVER use abrasive scouring cleaners. Dry thoroughly with a terry towel.

Interior

Wash interior compartment with mild soap and water. Do NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent.

Care of Appliance

Avoid leaning on the door, you may bend the door hinges or tip the appliance.

1. Exercise caution when sweeping, vacuuming or mopping near the front of the appliance. Damage to the grille can occur.
2. Periodically clean the interior of the appliance as needed.

In the Event of a Power Failure

If a power failure occurs, try to correct it as soon as possible. Minimize the number of door openings while the power is off so as not to adversely affect the appliance's temperature.

CARE AND CLEANING

Long Term Storage/Winterization

Time to Winterize, when the daily low ambient temperature is at or below 38^ F.

CAUTION

Operating of the unit at ambient temperatures below the recommended Winterization temperature will void your warranty.

1. Turn unit off, (see page 8).
2. Remove all contents.
3. If necessary, move the unit so you can gain access to the rear of the product.
4. Unplug the unit from the power outlet.
5. It is also recommended that the power to the outlet be turned-off if the circuit is not required for other items during the Winter season.
6. Shut-off CO2 tank valve.

7. Drain beer line(s)
   a. Remove Sankey tap (keg coupler), (see page 17).
   b. Remove faucet on tower, (see page 17).
   c. Beer lines will gravity drain.
   d. Clean beer line tubing, (see page 18).

8. Disassemble faucet and clean, (see page 17).

9. Soak and clean Sankey Low-Boy tap, (see page 17).

10. When cleaning unit pay particular attention to any cracks and crevices that may have accumulated dirt and debris.

11. Remove the front toe-grille, (see Figure 42 and Figure 43), and use a brush and vacuum to clean dirt and debris from beneath the unit.

12. Thoroughly clean the toe-grille and re-install on the unit.

13. Remove the rear access cover, (see Figure 44), and use a brush and vacuum to clean dirt and debris from the machine compartment.

- If the plastic defrost drain pan located under the compressor contains water, use a sponge to remove as much water as possible

1. Thoroughly clean the rear access cover and re-install on the unit.

2. Wipe down all interior surfaces with anti-bacterial cleaner to be followed with clean rinse water to remove any residual chemicals which could cause staining. Do not use any abrasive cleaners or scouring pads.

3. Leave door open and allow to completely dry out before closing door.

- Remove plastic floor protector and stainless steel lower edge guard to clean underneath.

Figure 42 Front grille Front grille screw

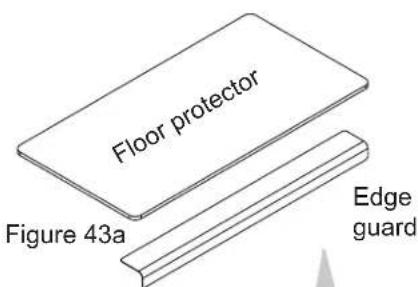

Floor protector Figure 43a Edge guard

Remove floor protector and edge guard and clean

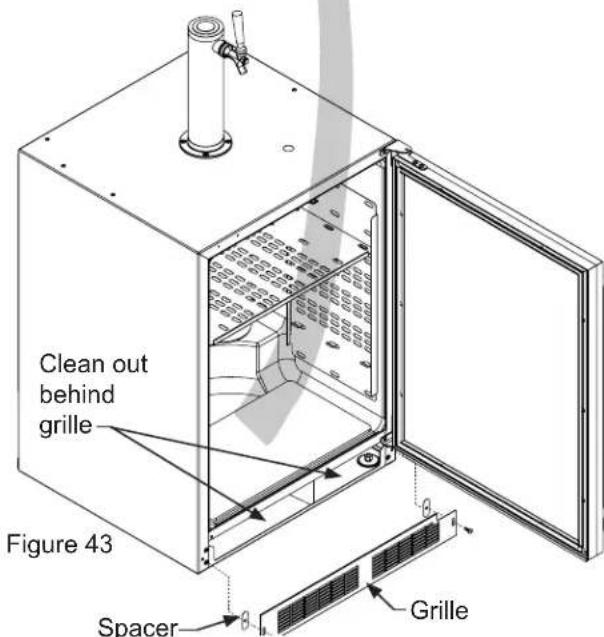

Clean out behind grille Figure 43 Spacer Grille

CARE AND USE/INSTALLATION

CARE AND CLEANING

1. Thoroughly clean the door gasket with anti-bacterial cleaner to be followed with clean rinse water to remove any residual chemicals.
2. Thoroughly clean the exterior with a cleaner approved for stainless steel. Do not use any abrasive cleaners or scouring pads.
3. Any mounting hardware / fasteners that are showing signs of corrosion should be replaced.
4. Once the exterior has been thoroughly cleaned, you may want to apply a coating of car wax to help protect against spotting from moisture, dirt, and debris that may accumulate on the surfaces during the Winterization period.
5. Do not place a cover on the unit, as this can trap condensation.

After completion of the above, you may choose to store the unit indoors, although this is not required.

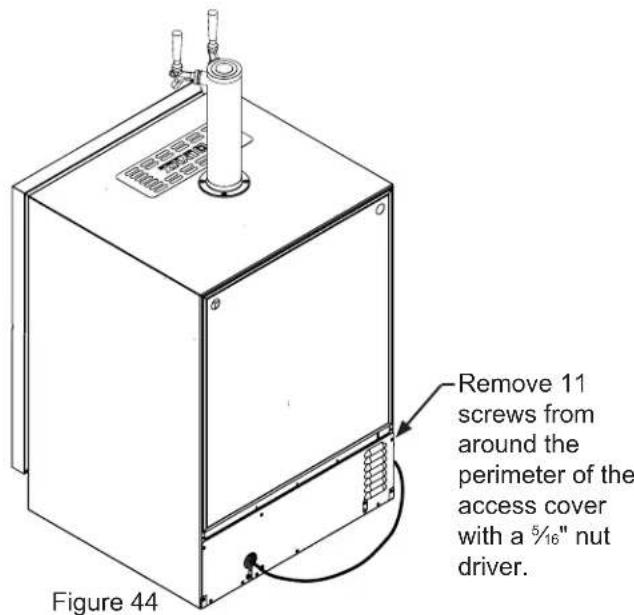

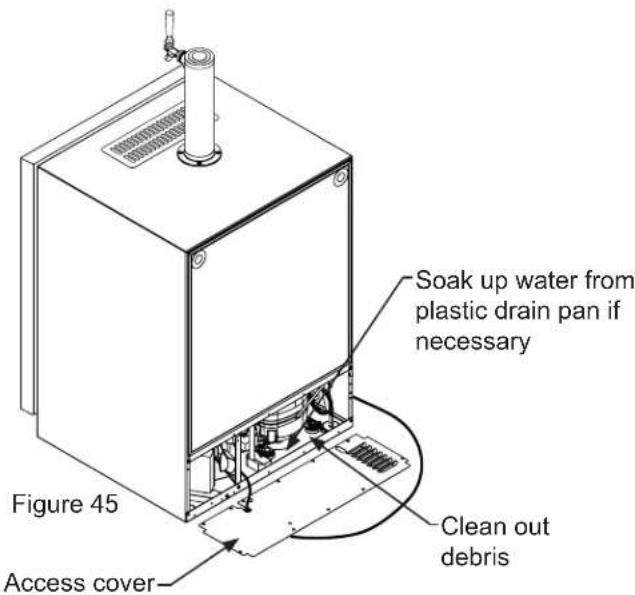

Remove 11 screws from around the perimeter of the access cover with a 5/16" nut driver. Figure 44

Soak up water from plastic drain pan if necessary Clean out debris Figure 45 Access cover

Start-Up After Long-Term Storage:

1. Connect the unit to electrical power.
2. If stored outside, it is recommended that the unit again be thoroughly inspected per the storage instructions above to address any dirt or debris from the weather and/or animals/insects.
3. Turn unit on and confirm your desired control settings.
4. Allow 24-hrs for the unit to stabilize before loading contents.

STAINLESS STEEL MAINTENANCE AND ENERGY SAVING TIPS

Background

Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. Stainless steels can discolor or corrode if not maintained properly.

Stainless steels differ from ordinary carbon steels by the amount of chromium present. It is this chromium that provides an invisible protective film on the surface called chrome-oxide. This protective chrome-oxide film on the surface can be damaged or contaminated, which may result in discoloration, staining, or corrosion of the base metal.

Care and Cleaning

Routine cleaning of the stainless steel surfaces will serve to greatly extend the life of your product by removing contaminants. This is especially important in coastal areas which can expose the stainless to severe contaminants such as halide salts, (sodium chloride).

It is strongly recommended to periodically inspect and thoroughly clean crevices, weld points, under gaskets, rivets, bolt heads, and any locations where small amounts of liquid could collect, become stagnant, and concentrate contaminates. Additionally, any mounting hardware that is showing signs of corrosion should be replaced.

Frequency of cleaning will depend upon the installation location, environmental, and usage conditions.

Choosing a Cleaning Product

The choice of a proper cleaning product is ultimately that of the consumer, and there are many products from which to choose. Depending upon the type of cleaning and the degree of contamination, some products are better than others.

Typically the most effective and efficient means for routine cleaning of most stainless steel products is to give the surfaces a brisk rubbing with a soft cloth soaked in warm water and a gentle detergent, or mild mixture of ammonia. Rubbing should, to the extent possible, follow the polish lines of the steel, and always insure thorough rinsing after cleaning.

Although some products are called "stainless steel cleaners," some may contain abrasives which could scratch the surface, (compromising the protective chrome-oxide film), and some many contain chlorine bleach which will dull, tarnish or discolor the surface if not completely removed.

After the stainless surfaces have been thoroughly cleaned, a good quality car wax may be applied to help maintain the finish.

NOTE

Stainless steel products should never be installed, or stored in close proximity to chlorine chemicals.

Whichever cleaning product you chose, it should be used in strict accordance with the instructions of the cleaner manufacturer.

Energy Saving Tips

The following suggestions will minimize the cost of operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance (cooker, dishwasher, etc.), heating air duct, or other heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance beneath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not shared with other appliances).
5. When initially loading your new product, or whenever large quantities of warm contents are placed within refrigerated storage compartment, minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature.
6. Maintaining a relatively full storage compartment will require less appliance run time than an empty compartment.
7. Ensure door closing is not obstructed by contents stored in your appliance.
8. Allow hot items to reach room temperature before placing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature that meets your personal preference and provides the proper storage for your stored contents.
11. When on vacation or away from home for extended periods, set the appliance to warmest acceptable temperature for the stored contents.
12. Set the control to the "off" position if cleaning the appliance requires the door to be open for an extended period of time.

OBTAINING SERVICE AND THE LYNX STORY

If Service is Required:

• If the product is within the first year warranty period please contact your dealer or call Lynx Grills Customer Service at 888-289-5969 for directions on how to obtain warranty coverage in your area.
• In all correspondence regarding service, be sure to give the service/model number, serial number, and proof of purchase.
• If the product is outside the first year warranty period, Lynx Grills Customer Service can provide recommendations of service centers in your area.
• Try to have information or description of nature of the problem, how long the appliance has been running, the room temperature, and any additional information that may be helpful in quickly solving the problem.
• Table C is provided for recording pertinent information regarding your product for future reference.

For Your Records
Date of Purchase
Dealer's name
Dealer's Address
Dealer's City
Dealer's State
Dealer's Zip Code
Appliance Serial Number
Appliance Service/Model Number
Date Warranty Card Sent (Must be within 10 days of purchase).

Table C

The Lynx Story

Lynx began with a vision.

A small group of manufacturing engineers with over a century of collective experience had a dream. They dared to take their extensive commercial manufacturing know-how and create a line of outdoor cooking products that offer commercial elegance and performance to the consumer market.

Black-and-white photo of a worker carrying a large metal plate, standing in front of stacked crates (no visible text or symbols)

Lynx has taken the quality, workmanship, service and innovation of the commercial market and incorporated it into the Lynx Professional Grills line of consumer and commercial products. The combination of creative design, superior materials and exceptional craftsmanship elevates Lynx products to a class of their own.

Lynx original commercial products are used every day in restaurants, hotels and theme parks across the USA:

Lynx Satisfied Customers

• TGI Fridays
• Conrad International
- Applebee's
• Bellagio
- Houston's
• New York New York
- Red Lobster
• MGM Grand
- Hard Rock Café
- Treasure Island
• Wolfgang Puck's
- Cheesecake Factory
- Mirage
- Red Robin
• Paris
- Planet Hollywood
- Venetian
• Hilton
- Excalibur
• Hyatt
- Mandalay Bay
• Four Seasons Marriott Le Meridian
• Riviera
- Sheraton
- Desert Inn
- Hard Rock Hotel
- Disney World

TROUBLESHOOTING

Before You Call for Service

If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the trouble-shooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. However, it may be required to contact your dealer or a qualified service technician.

WARNING

Electrocution Hazard

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.

CAUTION

In the unlikely event you lose cooling in your unit, do not unplug the product from the electric supply, but do call a qualified service technician immediately. It is possible that the loss of cooling capacity is a result of excessive frost build-up on the evaporator cooling coil. In this case, removing power to the unit will result in the melting of this excessive quantity of ice, which could generate melt water that exceeds the capacity of the defrost drain system and could result in water damage to your home. The end-user will be ultimately responsible for any water damage caused by prematurely turning the unit off without appropriately managing the excess water run-off.

Problem Possible Cause Remedy
Appliance not cold enough(See “Adjusting the temperature” on page 8)	• Control set too warm• Content temperature not stabilized.	• Adjust temperature colder. Allow 24 hours for temperature to stabilize.
	• Excessive usage or prolonged door openings.	• Allow temperature to stabilize for at least 24 hours.
	• Airflow to front grille blocked.	• Airflow must not be obstructed to front grille. See “clearances” on page 4.
	• Door gasket not sealing properly.	• Replace door gasket.
Appliance too cold(See “Adjusting the Temperature” on page 8)	• Control set too cold	• Adjust temperature warmer. Allow 24 hours for temperature to stabilize.
	• Door gasket not sealing properly.	• Replace door gasket.
Noise or Vibration • Appliance not level		• Level appliance, see “Leveling Legs” on page 4.
	• Fan hitting tube obstruction.	• Contact a qualified service technician.
Appliance will not run. • Appliance turned off		• Turn appliance on. See “Starting your appliance” on page 8.
		• Power cord not plugged in.
		• Plug in power cord.
		• No power at outlet.

Lynx®

The best outdoor kitchen products come from: Lynx Grills, Inc. 7300 Flores Street Downey, CA 90242 Service: (888)-289-5969 Fax: [phone] www.lynxgrills.com

PROFITEZ AU MAXIMUM DE VOTRE

Exterior view of a modern white refrigerant water heater with two vertical outlets (no signage or text visible)

LM24BF

RÉFRIGÉRATEUR EXTÉRIEURE / DISTRIBUTEUR DEBREUVAGE

ENTRETIEN ET UTILISATION / INSTALLATION

CONTENU

Contenu

LYNX GRILLS, INC DOWNNEY, CA 90242 MODEL NO. XXXXXXXXXXXXXXX SERVICE NO. XXXXXXXXXXXXXXX SERIAL NO. XXXXXXXXXXXXX HZ VOLTS AMPS R134A OZ DESIGN PRESSURES 140 PSI LOW SIDE 300 PSI HIGH SIDE

Figure 1

AVERTISSEMENT

Prohibition sign of a mechanical component with diagonal line (no text or symbols)

Figure 4

Figure 5 Grille frontale Vis de grille frontale

AVERTISSEMENT

Illustration of a power plug and two separate electrical socket (no text or symbols)

Figure 6

REMARQUE

DIMENSIONS DU PRODUIT

MODÈLE	DIMENSIONS D'OUVERTURE BRUTE DIMENSIONS D'ARMOIRE
	«A» «B»	«C» «D» «E» «F» «G»	«H» «J»
LM24BF	24 po(61 cm)	**34 po to 35 po(86,4 to 88,9 cm)	*	2378 po(60,7 cm)	3334 po to 3434 po(85,7 to 88,3 cm)	232332 po(60,2 cm)	2634 po(67,9 cm)	461332 po(117,9 cm)	2634 po(67,9 cm)

DIMENSIONS DU PRODUIT

MODÈLE	DONNÉES DE PRODUIT
	BESOINS ÉLECTRIQUES #	POIDS DU PRODUIT
LM24BF 115V/60Hz/15A		140 lb(63,6 kg)

Alarm 40° F Set Colder Warmer ON/OFF

de m- distrib- arche Figure 11

Line drawing of a gas cylinder with a flower-shaped top and label B (no text or symbols on the object itself)

Line drawing of a cylindrical gas cylinder with a flower-shaped top and label B (no text or symbols on the object itself)

Isometric line drawing of a cabinet with two doors and a mounted fixture (no text or symbols)

ENTRETIEN ET UTILISATION / INSTALLATION

UTILISATION DE VOTRE DISTRIBUTEUR DE BIÈRE

Technical line drawing of a mechanical component with no visible text or symbols

Figure 38

Black-and-white photo of a person carrying a large metal object in a warehouse or storage area (no visible text or symbols)

Exterior view of a modern white refrigerant water heater with two vertical outlets (no signage or text visible)

LM24BF

LYNX GRILLS, INC DOWNNEY, CA 90242 MODEL NO. XXXXXXXXXXXXXXX SERVICE NO. XXXXXXXXXXXXXXX SERIAL NO. XXXXXXXXXXXXX HZ VOLTS AMPS R134A OZ DESIGN PRESSURES 140 PSI LOW SIDE 300 PSI HIGH SIDE

Figura 1

ADVERTENCIA

Prohibition sign of a mechanical component with diagonal line (no text or symbols)

Figura 4

Figura 5 Rejilla frontal Tornillo de la rejilla frontal

ADVERTENCIA

Simple line drawing of an electrical plug and two separate socket (no text or symbols)

Figura 6

NOTA

DIMENSIONES DEL PRODUCTO

MODELO	DIMENSIONES DE LA ABERTURA DE INSTALACIÓN pulgadas (cm) DIMENSIONES DEL GABINETE pulgadas (cm)
	"A"	"B"	"C"	"D"	"E"	"F"	"G"	"H"	"J"
LM24BF	24"(61 cm)	**34" to 35"(86,4 to 88,9 cm)	*	23 78 "(60,7 cm)	33 34 " to 34 34 "(85,7 to 88,3 cm)	23 2332 "(60,2 cm)	26 14 "(67,9 cm)	46 1332 "(117,9 cm)	26 34 "(67,9 cm)

DIMENSIONES DEL PRODUCTO

MODELO	DATOS DEL PRODUCTO
	REQUISITOS ELÉCTRICOS #	PESO DEL PRODUCTO
LM24BF 115V	/60Hz/15A	140 lbs(63,6 kg)

"J" "H" "D" "E" Figura 9 21½" (54,6 cm) "F"

Alarm 40° F Set Colder Warmer ON/OFF

ma de pués Figura 11

Isometric line drawing of a cabinet with two doors and a mounted fixture (no text or symbols)

Line drawing of a wooden barrel with a mechanical component above it (no text or symbols)

Figura 31

Technical line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Figura 38

Limpieza del grifo

Man carrying a large metal crate in a warehouse setting (no visible text or symbols)
