USER MANUAL IR 9330 HS TEKA

Pure geometric diagram with circular and rectangular shapes, no text or symbols present

⚠️ If the ceramic glass breaks or cracks, immediately unplug the stovetop to avoid electric shocks.

⚠ This appliance is not designed to work with an external timer (not built into the appliance) or a separate remote control system.

Do not steam clean this device.

⚠ The device and its accessible parts may heat up during operation. Avoid touching the heating elements. Children younger than 8 years old must stay away from the hob unless they are permanently supervised.

⚠ This device may solely be used by children 8 years old or older, people with impaired physical, sensory or mental abilities, or those who lack experience and knowledge, ONLY when supervised or if they have been given adequate instruction on the use of the device and understand the dangers its use involves. User cleaning and maintenance may not be done by unsupervised

children.

Children must not play with the device.

Caution. It is dangerous to cook with fat or oil without being present, as these may catch fire. NEVER try to extinguish a fire with water! In this event disconnect the device and cover the flames with a lid, a plate or a blanket.

⚠ Do not store any object on the cooking areas of the induction hob. Prevent possible fire hazards.

⚠ The induction generator complies with current EU legislation. We however recommend that anyone fitted with a device such as a pacemaker should refer to their physician, or if in doubt abstain from using the induction areas.

⚠ Metal object such as knives, forks, spoons and lids may not be placed on the surface of the hob as they may overheat.

⚠️ After use always disconnect the hot plate, do not simply remove the pot or pan. Otherwise a malfunction may

occur if inadvertently another pot or pan is placed on it within the detection period. Prevent possible accidents!

⚠️ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

⚠ WARNING: Use only stovetop protectors designed by appliance manufacturer or indicated by the manufacturer in the instructions for use as adequate or stove-top protectors incorporated into the device. The use of inadequate protectors can cause accidents.

⚠ It is necessary to allow the appliance disconnection after installation. Disconnection devices must be incorporated to the fixed electrical installation, according to the installation regulations.

Installation

Installation with cutlery drawer

If you wish to install furniture or a cutlery drawer under the hob, a separation board must be fitted between the two. Accidental contact with the hot surface of the device's housing is thus prevented.

The board must be fitted 20 mm beneath the under part of the stovetop.

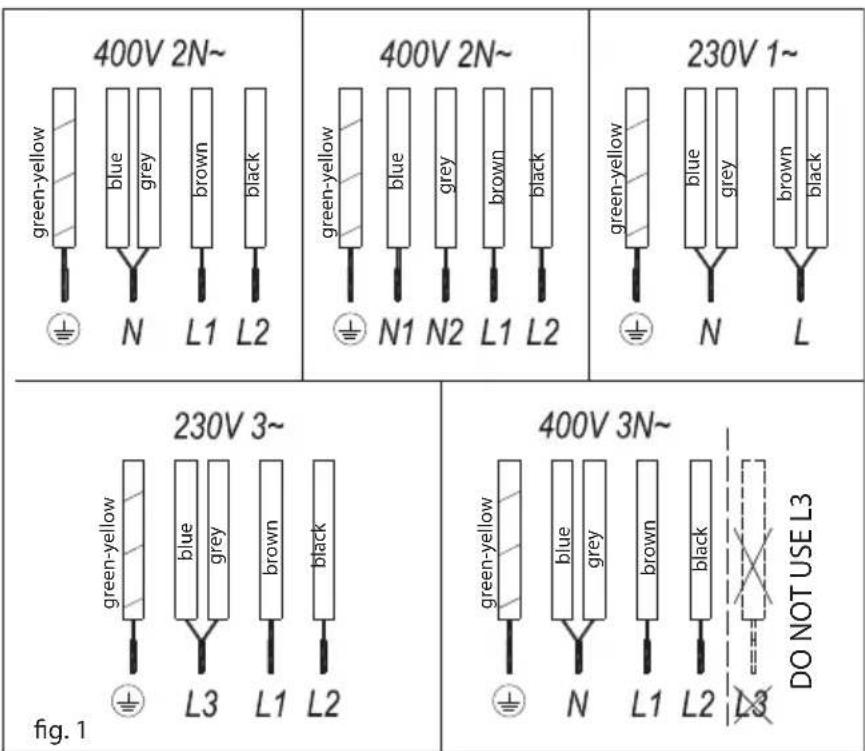

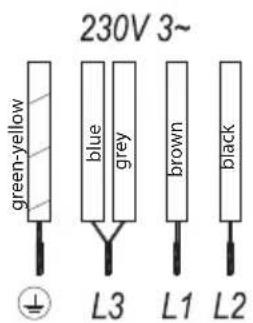

Electrical connection

Before you connect the stovetop to the mains, check that the voltage and frequency match those specified on the stovetop nameplate, which is underneath it, and on the Guarantee Sheet, or if applicable on the technical data sheet, which you must keep together with this manual throughout the product's service life.

The electrical connection will be via an allpole circuit breaker or plug, whenever accessible, in accordance with the current and with a minimum 3 mm distance between contacts. This ensures disconnection in emergencies and allows stovetop cleaning.

Ensure that the inlet cable does not come into contact with the induction top housing or the oven housing, if it is installed in the same unit.

Warning:

The electrical connection must be properly grounded, following current legislation, otherwise the induction hob may malfunction.

Unusually high power surges can damage the control system (like with any electrical appliance).

It is advised to refrain from using the induction hob during the pyrolytic cleaning function in the case of pyrolytic ovens, due to the high temperature that this type of device attains.

Only the TEKA official technical service can handle or repair the appliance, including replacement of the power cable.

Before disconnecting the hob from the mains, we recommend switching off the cutoff switch and waiting for approximately 25 seconds before pulling the plug. This time is required to allow for the complete discharge of the electronic circuitry and thus preclude the possibility of electric shock from the contacts of the plug.

Keep the Guarantee Certifi cate or the technical data sheet together with the instructions manual throughout the product's service life. These contain important technical information.

Use and Maintenance

User instructions of the Touch Control

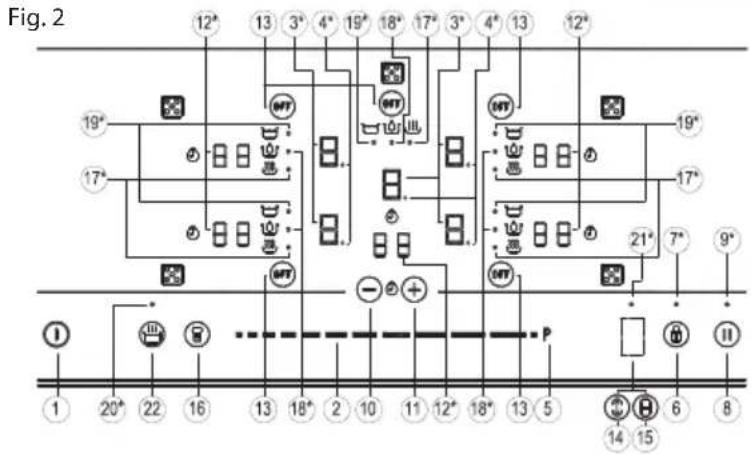

HANDLING ELEMENTS (fig. 2)

① General on/off sensor.
② Cursor “slider” for controlling power.
③ PLATE SELECTION SENSORS and Power and/or residual heat indicator.
④ Decimal dot of power and/of residual heat indicator*.
⑤ Direct Access to "Power" function.
⑥ Activation sensor for "Block" function.
⑦ Pilot indicator light "Block" function activated*.
⑧ Activation sensor for "Stop&Go" function.
⑨ Pilot indicator light "Stop&Go" function activated*.
10 "Minus" sensor "for timer.
⑪ "Plus" sensor "for timer.
12 Timer indicator*.
13 Individual "off" sensor.
14 Activation sensor for "Synchro" function. (depending on model).
15 Activation sensor for "Flex Zone" function. (depending on model).
16 Activation sensor for "iCooking" functions.
⑰ Pilot indicator light "Keep Warm" function activated*.
18 Pilot indicator light "Melting" function activated.*
19 Pilot indicator light "Simmering" function activated*.
20 Pilot indicator light "iQuickBoiling" function activated*.
21 Pilot indicator light "Synchro" or "Flex Zone" function activated*.
22 Activation sensor for "IQuickboiling" function.

400V 2N~ green-yellow blue grey brown black N L1 L2 400V 2N~ green-yellow blue grey brown black N1 N2 L1 L2 230V 1~ green-yellow blue grey brown black N L 230V 3~ green-yellow blue grey brown black L3 L1 L2 400V 3N~ green-yellow blue grey brown black N L1 L2 DO NOT USE L3 fig. 1

NOTE: * Visible only when in use. Operations are carried out by using the sensors marked on the control panel.

It's not necessary to push hard on the glass. Simply place your finger on the sensor to activate the desired function.

Use the cursor slider (2) to adjust power levels (0 - 9, and P) by sliding your finger over it. Sliding towards the right increases the value, whereas sliding towards the left decreases it. It's also possible to directly select a power level by placing your finger directly on a desired point of the cursor slider.

In order to select a plate on these models, directly touch the POWER INDICATER NUMBER (3).

TURNING THE APPLIANCE ON

The first time the cooktop is plugged in (or after a power outage), the Block function will appear as activated (pilot light 10 on). In this case, you must deactivate the block function in order to turn the cooktop on. To do this, push sensor ⏻ (6) until pilot (7) turns off.

1 Touch sensor ⏻(1) for at least one second.

Touch Control is now activated and a 0 appears in all power indicators (3). If a cooking zone is hot, the corresponding indicator will show an H and a 0 alter natively.

Once the Control is on, you must activate a plate within 10 seconds, otherwise the Touch Control will automatically turn off.

While the touch control is activated, it can be disconnected at any moment by touching the general on/off sensor ① (1) even if it has been blocked (see section "Blocking cooktop sensors"). Sensor Ⓐ (1) always has priority in disconnecting the touch control.

ACTIVATING PLATES

Once the Touch Control is activated with sensor ⏻ (1), any plate can be turned on by following these steps:

1 Select the plate by using the corresponding sensor (3). In other words, press with your finger the NUMBER INDICATOR. If the glass is hot, the said indicator will go from showing an H to showing level 0. The decimal point to the bottom right of the number lights up, indicating that the plate has been selected.

2 Use the cursor slider (2) to choose a cooking level between 0 and 9.

As long as the plate is selected, in other words, with the decimal point lit up, its power level can be modified.

TURNING A PLATE OFF

A plate can be turned off by decreasing its cooking level to 0. In order to do this, the plate must have been previously selected (decimal point lit up).

It can also be turned off by means of the correspondent "off" sensor (13).

Once a plate has been turned off, an H will appear on the corresponding power indicator if the glass surface of the cooking area reaches an elevated temperature. Burn risk exists. When the temperature decreases, the indicator turns off (if the cooktop is disconnected), or it will show a 0 if it is still on.

TURNING ALL PLATES OFF

All plates can be simultaneously disconnected by using the general on/off sensor ⏻ (1). All plate indicators will turn off.

Pan detector

Induction cooking zones have a built-in pan detector. This way, the plate will stop working if there is no pan present or if the pan is not suitable.

The power indicator will show a symbol to designate "there is no pan" if, while the zone is on, no pan is detected or the pan is not suitable.

If a pan is taken off the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for "there is no pan". When a pan is once again placed on the cooking zone, energy supply will resume at the same power level previously selected.

The time for pan detection is 1 minutes. If a pan is not placed within this time period, or the pan is unsuitable, the cooking zone shuts off. The power indicator will go from showing the symbol "there is no pan" to showing 0.

When finished, turn off the cooking zone by using the touch controls. Otherwise an undesired operation could occur if a pan is accidentally placed on the cooking zone during the next three minutes. Avoid possible accidents!

Block Function

With the Block Function, you can block the other sensors, except for the on/off sensor ① (1), in order to avoid undesired operations. This function is useful as a childproof safety.

To activate this function, touch sensor (6) for at least one second. Once you have done so, the pilot (10) turns on indicating that the control panel is blocked. To deactivate the function, simply touch sensor (6) again.

If the on/off sensor (1) is used to turn off the appliance while the block function is activated, it won't be possible to turn the cooktop on again until it unblocks.

Stop&Go Function

This function puts the cooking process on pause. The timer will also be paused if it is activated.

Activating the Stop&Go function

Touch the Stop&Go sensor (8) for one second. The pilot (9) lights up and the power indicators will show the symbol // to indicate cooking has been paused.

Deactivating the Stop&Go function

Tap again on Stop&Go (8) and slider cursor sensors (2); the indicator light will go off (9) and cooking will be resumed in same conditions of power and timer levels that were set before the pause.

Power Function

This function supplies "extra" power to the plate, above the nominal value. Said power depends on the size of the plate, (see values specified with * in the presentation section), with the possibility of reaching the maximum value permitted by the generator.

1 Select the desired plate with the corresponding sensor (3). The decimal point will light up.
2 On the cursor Slider, push directly on position (5). The power level indicator will show the symbol P, and the plate will start to supply extra power.

The Power function has a maximum duration as specified in table 1. After this time, the power level will automatically adjust to 9.

Function IQuickboiling

This innovative function is of an enormous help if you want to cook pasta, rice, eggs, or boil any kind of food. This function allows you to perform this cooking method "almost" automatically.

This function is available only in the plates where this symbol appears 📊.

Pot requirements

For properly using boil control, the pot must have the following characteristics:

Bottom size as close as possible to the diameter of the plate.

• NO COVER.
• Filled more than halfway of its capacity with room temperature water (never use lukewarm or hot water). Not fulfilling these requirements will result in inadequate control of boiling.

WARNING: do not use this function for cooking methods other than boiling water. Never use oil. It can overheat and create flames. Activating the function:

Select the proper plate. The decimal point lights up.

Push sensor (22). An R will appear on the plate indicator and the pilot (20) will turn on. In the timer for this plate, a moving segment will appear which indicates that the system has started to monitor cooking.

When the system detects that it is about to boil, an initial beep will go off. Take this time to prepare the food you want to boil or cook.

After 30 seconds, a second beep will go off. If you haven't done it already, now is time to put the food into the pot. After the second beep, the system will activate the timer as a chronometer so that you can control how long the food has been boiling.

A few seconds after the chronometer is activated, a third beep will go off indicating that, from this moment on, the system will reduce the energy supplied in order to maintain a gentle and steady boil. The chronometer will remain active until cooking has finished.

If desired, the chronometer can be deactivated and you can set a time for the countdown to occur and the plate to automatically turn off (see section Timer Function).

Deactivating the function

You can cancel the function at any time by simply turning off the plate or modifying the power level.

Special functions: iCooking

The Touch Control has special features that help the user to cook through the iCooking sensor (16). These functions are available depending on the model.

To activate a special feature on a zone:

1 First it should be selected; and then, the decimal point (4) will be active on the power indicator (3).
2 Now click on the iCooking sensor (16). The sequentially successive presses will go over all the Cooking functions available in each zone one by one. These functions will show the activation with the corresponding leds (17), (18), and (19).

If you want to cancel a special active function at any time, you should touch the "slider" cursor sensor (2) of the related zone to select it. The decimal point (4) of the power indicator (3) will light up. Then, touch again the "slider" (2) cursor to set a new power level or to power off the zone, or you can choose a different special function touching again on the iCooking sensor (16).

KEEP WARM FUNCTION

This function automatically sets an appropriate power level to keep the cooked food hot.

To activate it, select the plate, and press on the iCooking sensor (16) until the LED (17) located on the icon lights up. Once the function is activated, the symbol R will appear on the power indicator (3).

EN

You can override the function at any time by turning off the plate, by changing the power level or by choosing a different special function.

MELTING FUNCTION

This function maintains a low temperature in the cooking zone. Ideal for defrosting food or for slowly melting other food types as chocolate, butter, etc.

To activate it, select the plate, and press on the iCooking sensor (16) until the LED (18) located on the icon lights up. Once the function is activated, the symbol R will appear on the power indicator (3).

You can override the function at any time by turning off the plate, by changing the power level or by choosing a different special function.

SIMMERING FUNCTION

This feature allows you to keep simmered.

After the food is boiled, enable the plate by selecting it, and press the iCooking sensor (16) until the LED (19) located on the icon lights up. Once the function is activated, the symbol R will appear on the power indicator (3).

You can override the function at any time by turning off the plate, by changing the power level or by choosing a different special function.

Safety shut off

If due to an error one or several heating zones do not switch off, the appliance will be automatically disconnected after a set amount of time (see table 1).

Table 1

Selected power level	TEMPO MÁXIMO DE MAXIMUM OPERATING TIME (in hours)
	0
1	8
2	8
3	5
4	4
5	4
6	3
7	2
8	2
9	1
P 10 minutes, readjusts to 9

When the "safety switch off" function has been triggered, a 0 is displayed if the glass surface temperature is not dangerous for the user or an H if there is a burn risk.

Keep in mind that this safety function turns on even when the touch control is off!

Take precaution and do not place objects on the touch control!

Timer function (countdown clock)

This function facilitates cooking given that you don't have to be present: You can set a timer for a plate, and it will turn off once the desired time is up.

For these models, you can simultaneously program each plate for durations ranging from 1 to 90 minutes.

Setting a timer on a plate

To set a timer on a plate, you should take the following steps.

1 Select the desired plate by directly touching its corresponding indicator (3) and choose a power level with the cursor slider (2).

2 The two digits of the timer for the plate selected will turn on, showing "- - ". You can set the amount of time desired with sensors ⊖ (10) and ⊕(11).

3 After a few seconds, the countdown

begins. When there is less than one minute left, the clock will begin to count down in seconds.

Once the countdown has finished, the timed plate will turn off and a series of beeps will be heard. They can be stopped by touching either of the sensors (10) or (11) associated with the clock.

Disconnecting the clock

If you wish to stop the clock before the programmed time is up, this can be done at any time by simply adjusting its value to '--'.

1 Select the plate you wish to stop the timer on by directly touching its corresponding indicator (3).

2 Adjust the value of the clock to "--" by using the "less" sensor ⊖ (10). This can also be done more quickly by pushing the "less" and "more" sensors ⊖ (10) and ⓣ11 at the same time.

Flex Zone and Synchro (depending on model)

By using this function it is possible to achieve that two plates, as shown in the screen, function at the same time, both for selecting a power level as well as for activating the timer function.

To activate this function you should press the sensor Ⓗ (14) or Ⓝ (35). Upon doing so, the decimal points (14) of the plates light up and both turn to power level 5.

The timer (12) of the lower plate will turn off, and from then on it will be the upper one that indicates the values of the clock for both.

To deactivate this function you should press the sensor again Ⓗ (14) or Ⓗ (15). cal service can handle or repair the appliance, including replacement of the power cable.

Suggestions and recommendations

* Use pots or pans with thick, completely flat bottoms.

* Pots/pans with a smaller diameter than the shown heating area are not recommended.
* Do not slide pots and pans over the glass because they could scratch it. * Although the glass can take knocks from large pots and pans without sharp edges, try not to knock it.
* To avoid damaging the ceramic glass surface, do not drag pots and pans over the glass and keep the undersides of them clean and in good condition.
* Recommended diameters of the pot bottoms(ver Table 2)

Table 2

Zone (mm.)	Recommended minimum diameter (mm.)
∅145 ∅100
∅180 ∅120
∅210 ∅130
∅260 ∅140
∅280 ∅150
∅280DZ ∅110/200
∅300DZ ∅120/210
Flex 235x180 ∅120
Flex 270x180 ∅140

Try not to spill sugar or products containing sugar on the glass as while the surface is hot these could damage it.

Cleaning and maintenance

To keep the appliance in good condition, clean it using suitable products and implements once it has cooled down. This will make the job easier and avoid the build-up of dirt. Never use harsh cleaning products or tools that could scratch the surface, or steamoperated equipment.

Light dirt not stuck to the surface can be cleaned using a damp cloth and a gentle detergent or warm soapy water. However, for deeper stains or grease use a special cleaner for ceramic hot plates and follow the instructions on the bottle. Dirt that is firmly stuck due to being burned repeatedly can be removed using a scraper with a blade. Slight tinges of colour are caused by pots and pans with dry grease residue underneath or due to grease between the glass and the pot during cooking. These can be removed using a nickel scourer with water or a special cleaner for ceramic hot plates. Plastic objects, sugar or food containing a lot of sugar that have melted onto the surface must be removed immediately using a scraper.

Metallic sheens are caused by dragging metal pots and pans over the glass. These can be removed by cleaning thoroughly using a special cleaner for ceramic glass hot plates, although you may need to repeat the cleaning process several times.

Warning:

A pot or pan may become stuck to the glass due to a product having melted between them. Do not try to lift the pot while the heating zone is cold! This could break the glass.

Do not step on the glass or lean on it as it could break and cause injury. Do not use the glass as a surface for placing objects.

TEKA INDUSTRIAL S.A. reserves the right to make changes to its manuals that it deems necessary or useful, without affecting the product's essential features.

Environmental considerations

The symbol on the product or its packaging means that this product cannot be treated like ordinary household waste. This product must be taken to a recycling collection point for electrical and electronic appliances. By ensuring that this product is disposed of correctly, you will avoid harming the environment and public health, which could happen if this product is not handled properly. For more detailed information about recycling this product, please contact your local authority, household waste service or the store where you pur chased the product.

The packaging materials used are environmentally friendly and can be recycled completely. Plastic components are marked >PE<, >LD<, >EPS<, etc. Dispose of packaging materials, like household waste, in your local container.

Fulfillment with Energy Efficiency of the appliance:

-Appliance has been tested according to standart EN 60350-2 and the obtained value, in Wh/Kg, is available in the appliance's rating plate.

Following advices will help you to save energy anytime you cook:

* Use the correct lid for each pot whenever is possible. Cooking without lid uses more energy.
* Use pans with flat bases and appropriate base diameters in order to match size of the cooking zone. Pan manufacturers usually provide top diameter of the pot that is always larger than base diameter.
* When water is used for cooking, use little quantities in order to preserve vitamins and minerals of vegetables and set the minimum power level that allows maintaining the cooking. High power level is unnecessary and a waste of energy.
* Use small pots with small quantities of food.

If something does not work

Before calling the technical service, perform the verifications described below.

The appliance does not work:

Ensure that the power cable is plugged in.

The induction zones do not produce heat:

The container is not appropriate (it does not have a ferromagnetic bottom or is too small). Check that the bottom of the container attracts a magnet, or use a larger container.

A humming is heard when starting to cook in the induction zones: With

EN

containers which are not very thick or not of one piece, the humming results from the transmission of energy directly to the bottom of the container. The humming is not a defect, but if you wish to avoid it anyway, reduce the power level slightly or use a container with a thicker bottom, and/or of one piece.

The touch control does not light up or, despite lighting, does not respond:

No heating zone has been selected. Be sure to select a heating zone before operating it. There is humidity on the sensors, and/or your fingers are wet. Keep the touch control surface and/or your fingers clean and dry. The locking function is activated. Unlock the controls.

The sound of a fan is heard while cooking, which continues even after cooking has ended:

The induction zones have a fan to keep the electronics cool. This only operates when the electronic circuits get hot. It stops again when the circuits cool whether the hob is turned on or not.

When frying or cooking stew, it seems as though the energy of the induction zones decreases ("the induction element heats less").

If the temperature of the glass or of the electronic system becomes too high while cooking, an auto-protection system will begin working which regulates the power of the heating elements so that the temperature does not continue increasing. Excess temperature problems during cooking only occur in extreme situations (an extended period of time coo king at maximum power) or when ins tallation is inadequate. Verify that installation has been done in accordance with the indications in the instructions manual.

The hotplate will switch off and the message C81 or C82 will appear on the indicators:

Excessive temperature in the electronics or on the glass. Wait for a while for the electronics to cool down or remove the pot or pan so that the glass can cool.

The hob suddenly starts to bleep.

There is a cloth, container or liquid on

the Touch Control. Remove any object covering the Touch Control and/or clean any liquid that might have been spilt on it. The timer was activated and the preset time has finished. Touch the clock sensor to deactivate the bleep.

The hob (or any of the hotplates) powers off during cooking.

There is a container, cloth or liquid covering the Touch Control. Remove any object that might be covering the Touch Control. One or several of the hotplates has overheated. Allow the overheated hotplates to cool down for a few minutes before powering them up again.

A timed hotplate failed to power off at the end of the set time.

The hotplate had not been set correctly. Make sure that the time was set following the instructions manual.

When cooking at a level below 9, there are fluctuations in the power.

The induction generator of the cooker turns on and off alternately in order to keep the chosen cooking level. This is not a defect.

The symbol will appear — on the power indicator of a hotplate:

The induction system does not find a pot or pan on a hotplate or it is of an unsuited type.

INSCHAKELEN VAN HET APPA-RAAT

400V 2N~green-yellow N blue grey brown black L1 L2	400V 2N~green-yellow N1 N2 grey brown black L1 L2	230V 1~green-yellow N blue grey brown black L
fig. 1		400V 3N~green-yellow N blue grey brown black L1 L2 DO NOT USE L3

Country Subsidiary Address City Phone

AustriaKüppersbusch Austria	Eitnergasse, 13	1231 Wien	[phone]
BelgiumKüppersbusch Belgium S.P.R.L.	Doomveld Industrie, Asse 3, No. 11 - Boite 7	1731 Zellik	[phone]
BulgariaTeka Bulgaria EOOD	Blvd. “Tsarigradsko Shosse” 135	1784 Sofia	[phone]
ChileTeka Chile S.A.	Avd El Retiro Parque los Maitenes, 1237. Parque Enea	Pudahuel, Santiago de Chile	+ 56 24 386 000
ChinaTeka International Trading (Shanghai) Co. Ltd.	No.1506, Shengyuan Henghua Bldg. No.200 Wending Rd.	Xuhui, Dist. 200030 Shanghai	[phone]
Czech RepublicTeka CZ S.R.O.	V Holesovickách, 593	182 00 Praha 8 - Liben	[phone]
EcuadorTeka Ecuador S.A.	Parque Ind. California 2, Via a Daule Km 12	Guayaquil	[phone]
GreeceTeka Hellas A.E.	Thesi Roupaki - Aspropyrgos	193 00 Athens	[phone]
HungaryTeka Magyarország Zrt.	Terv u. 92	9200 Mosonmagyaróvár	[phone]
IndonesiaPT Teka Buana	Jalan Menteng Raya, Kantor Taman A9 Unit A3	12950 Jakarta	[phone]
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd	10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie	40150 Shah Alam, Selangor Darul Ehsan	[phone]
MexicoTeka Mexicana S.A. de C.V.	Blvd Manuel A. Camacho 126, Piso 3 Col. Chapultepec	11000 Mexico D.F.	[phone]
MoroccoTeka Maroc S.A.	73, Bd. Slimane, Depôt 33, Route de Ain Sebaa	Casablanca	[phone]
PeruTeka Küchentechnik Perú S.A.	Av. El Polo 670 local A 201, CC El polo, Surco	Lima	[phone]
PolandTeka Polska Sp. ZO.O.	ul. 3-go Maja 8 / A2	05-800 Pruszkow	[phone]
PortugalTeka Portugal S.A.	Estrada da Mota - Apdo 533	3834-909 Ilhavo, Aveiro	[phone]
RomaniaS.C. Teka Küchentechnik Romania S.R.L.	Sevastopol str., no 24, 5th floor, of. 15	010992 Bucharest Sector 1	[phone]
Russia/RocciaTeka Rus LLC/OOO "Teka Pyc"	Neverovskogo 9, Office 417, 121170, Moscow, Russia	121087 Россия, Москва	[phone]
SingaporeTeka Singapore PTE Ltd	Clemenceau Avenue, 83, 01-33/34 UE Square	239920 Singapore	[phone]
SpainTeka Industrial, S.A.	C/ Cajo,17	39011 Santander	[phone]
ThailandTeka (Thailand) Co. Ltd.	364/8 Sri-Ayuttaya Road, Phayathai, Ratchatavee	10400 Bangkok	[phone]
TurkeyTeka Teknik Mutfak Aletleri Sanayi Ve	Büyükdere Cad. 24/13	80290 Mecidiyeköy, Istanbul	[phone]
UkraineTeka Ukranie LLC	86-e, Bozhenko Str .2nd floor,4th entrance	03150 Kyiv	[phone]
United Arab EmiratesTeka Middle East Fze	Building LOB 16, Office 417	P.O. Box 18251 Dubai	[phone]
United Arab EmiratesTeka Küchentechnik U.A.E LLC	Bin Khedia Centre	P.O. Box 35142 Dubai	[phone]
VenezuelaTeka Andina S.A.	Ctra. Petare-Santa Lucia, km 3 (El Limoncito)	1070 Caracas	[phone]
VietnamTEKA Vietnam Co., Ltd.	803, Fl 8th, Daiminh Convention Center, 77, Hoang Van	Thai, Tan Phu Ward, District 7, Ho Chi Minh	[phone]

тека
