USER MANUAL Facile Si NGM

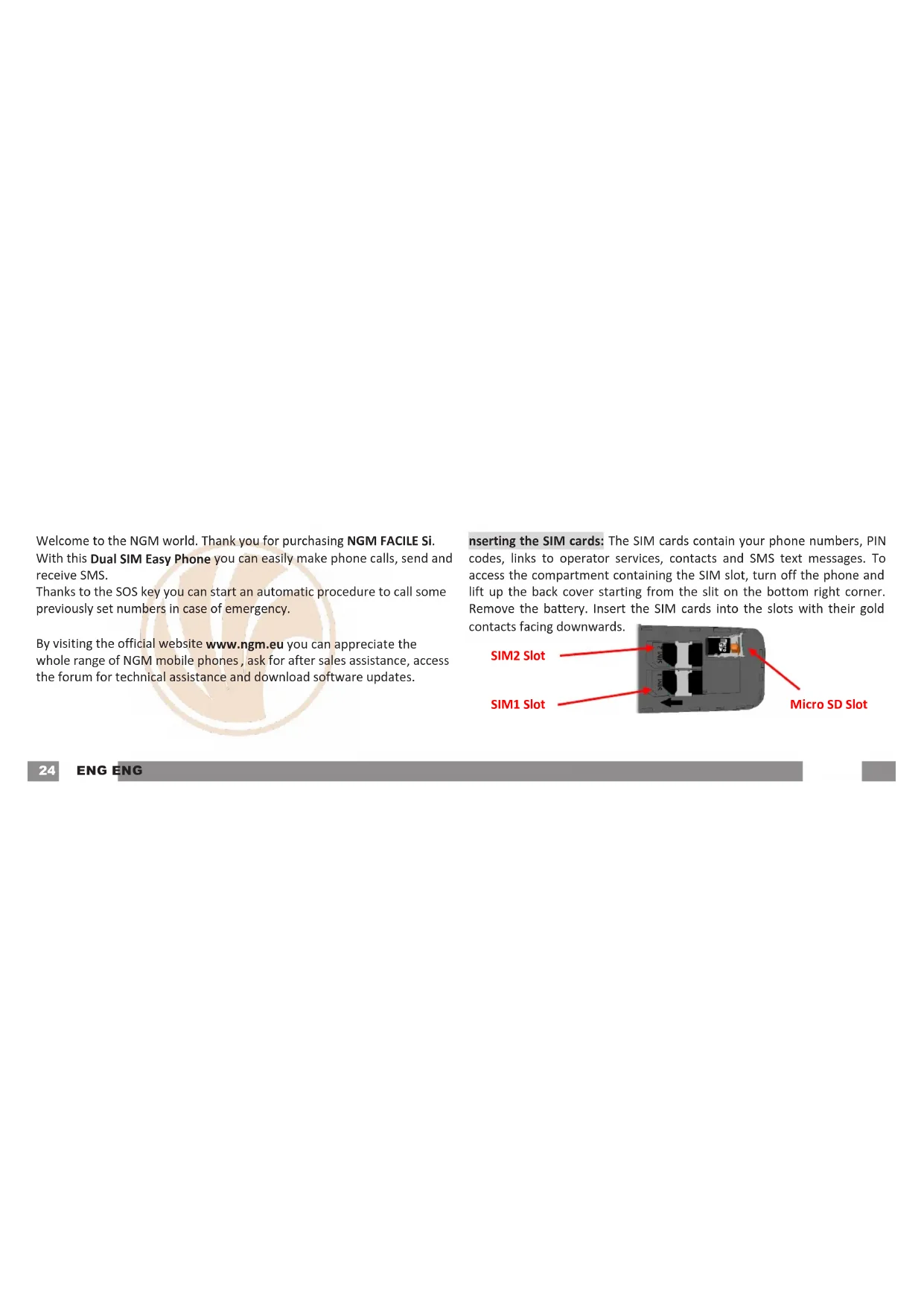

Thanks to the SOS key you can start an automatic procedure to call some previously set numbers in case of emergency.

By visiting the official website www.ngm.eu you can appreciate the whole range of NGM mobile phones , ask for after sales assistance, access the forum for technical assistance and download software updates.

nserting the SIM cards: The SIM cards contain your phone numbers, PIN codes, links to operator services, contacts and SMS text messages. To access the compartment containing the SIM slot, turn off the phone and lift up the back cover starting from the slit on the bottom right corner. Remove the battery. Insert the SIM cards into the slots with their gold contacts facing downwards.

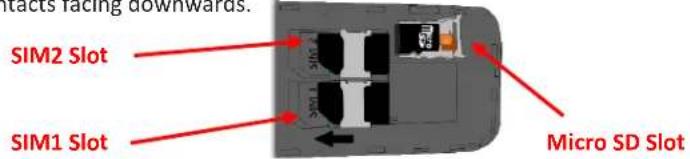

Micro SD Slot SIM1 Slot SIM2 Slot26 27ENG ENG Inserting a memory card: In order to use camera and media player functions of NGM FACILE Si, a micro-SD memory card is required (not included in the package): the card must be placed on the backside of the phone, below the SIM2 slot. Unlock the grid by pushing it towards "open". Slide in SD card, as shown below, with the gold contacts facing down wards. Lock the grid onto the micro-SD by sliding it to the opposite direction ("close").

Camera: to activate the camera from the main menu select Multimedia > Camera . Take the picture by pressing the up selection key. Connecting to a PC: Use the USB cab le to connect NGM FACILE Si to a computer. Select USB Storage on your phone. You can save songs to play with the music player in " My Music" folder, on SD card. SD card slot

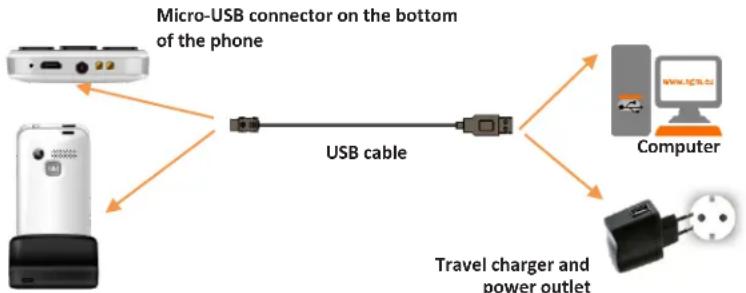

Charging base with micro-USB connector on the back side Computer Travel charger and power outlet

USB cable Micro-USB connector on the bottom of the phone28 29ENG ENG Inserting the battery Your device is provided with a lithium -ion battery and is designed to be used exclusively with original NGM batteries and chargers. Insert the battery into the battery compartment with the contacts facing down, matching with those of the phone. When done, put the hind cover back into position as shown in the following illustrations.

Inserting the battery Placement of the cover Charging the battery: Charge the battery before starting to use the device. Connect the charger to a provided wall socket adapter and then plug the jack into the charging base or insert it directly into its connector on the lower side of the phone. The charging base can also be connected to a micro USB cable to charge your phone. An animation on the screen will indicat e the charging is in progress and a pop-up will indicate that charging is complete and the device may be disconnected safely from the grid.

To preserve the functionality of the product and the integrity of the warranty, we recommend the use of original NGM chargers. Please charge the battery indoors, in a dry and favorable environment. It’s normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.30 31ENG ENG

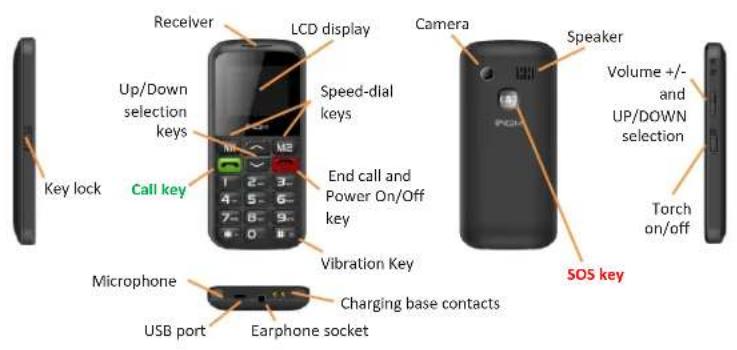

Key lock Call key Speed-dial keys Up/Down selection keys

Receiver End call and Power On/Off key

Vibration Key LCD display SOS key Speaker Camera Volume +/- and UP/DOWN selection keys Torch on/off

USB port Microphone Earphone socket Charging base contacts Turn ON, Turn OFF and keypad lock: To turn on and turn off the phone, press and hold the red end call key

To rapidly lock and unlock the keypad, use the dedicated Lock Key on the left side of the phone . You can also choose the time lapse after which the keypad is automatically blocked in Menu > Settings > Security > Keys lock

Dual SIM: To enable or disable the SIM separately at any time, select Menu > Settings > Dual SIM.32 33ENG ENG Main Menu To access the Main Menu on your phone, press the left selection key (M1). Scroll through the items in the menu with the up and down keys

Messaging to write and read SMS text messages

Phonebook to manage and save contacts

Calls: call settings and call log

Multimedia: camera, gallery, camcorder, video player, audio recorder, radio and file manager

Settings to personalize your phone (Profiles, Dual SIM..)

Tools: with Alarm, Calendar, To Do and Calculator

SOS: to enable and customize the SOS function Making a call: To make a call from the home screen, type the desired number with the keypad, press the green call key and then choose the the SIM you want to use with the keys; finally press OK with the left selection key (M1). To end the call, press the red end call key . Answer an incoming call

The main screen displays the caller number or the name if the contact has been saved on Phonebook. Take an incoming call simply by pressing . During the conversation, by selecting Options with M1, you can mute the microphone, put the call on hold, end the call, open the address book, call log or messages and record the call.

Call a number from the Phonebook: From the main menu, go to Phonebook or press Names with M2 from the Home screen. Scroll34 35ENG ENG through the contacts with the UP and DOWN keys and press the green call key and select the desired SIM card to call a selected contact. Call a number from the call log: from the main screen, press ; the missed, received and outgoing calls will be automatically displayed. Scroll them with the keys and press again the green call key and select the desired SIM card when you found the number you want to call back.

Add contacts to the Phonebook: Select Menu > Phonebook > Add new > Select and choose the storage between one of the SIM cards or the Phone. Enter the name and the new number, then press Options > Save. Speed Dial: in Menu > Contacts > Options > Advanced Settings > Speed dial you have access to the screen from which you can assign to keys 2-9

set Numbers) and to keys M1-M2 phone numbers from your address book which will be called automatically if the key is pressed and held from the Home screen. This feature can be turned on and off under

you can check how many free storage locations there are on phone and on the SIM cards.

Send SMS: From the main screen, choose Menu > Messaging > Write message and write your message. Press Options > Send to > Enter Number and enter the number using the numeric keypad or Add from phonebook to select from the Phonebook the contact you want to text. Read SMS:

When you receive a new SMS, a pop up notification appears in the main screen. Press View (with the M1 key) to access the Received36 37ENG ENG folder or open it from the main screen by selecting Menu > Messages > Received

In the messaging menu, you can access additional features such as Templates (short preset messages) and Memory status in SMS Settings, to control how many messages there are in the phone memory and on the SIM cards.

Speech: NGM FACILE Si can speak out each key that is pressed; select Settings > Profiles > General > Customize > Keypad > Options > Change. From the same men u, you can also choose a tone for the keypad or a click.

[Warning: speech is available for the Italian language only]

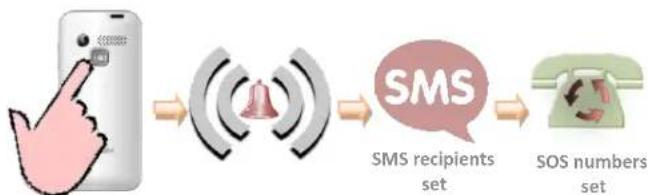

S.O.S. Function: NGM FACILE Si is equipped with a dedicated SOS key on the back of the phone for the fast forwarding of emergency calls (*).

This feature can be turned on and off by selecting Menu> SOS > Status (on/off).

In case of emergency, the user can use this function to ask for help up to five phone numbers, previo usly set in Menu > SOS > SOS numbers. As soon as the SOS function is activated, the phone will send out a high volume alarm. Then, it will send an SOS message that can be personalized in " SOS Message" to the SOS numbers. Afterwards, the phone will call the 5 SOS numbers, for about 20 seconds each. If there is no answer, there will be a second cycle of calls. This procedure will be repeated for 5 times. If one of the called numbers38 39ENG ENG answers, the cycle will be interrupted and the call will automatically swi tch to speaker phone (handsfree). Attention: The S.O.S. calls cycle will be interrupted if the answering machine or voicemail of one of the called SOS numbers takes the call.

SOS numbers set SMS recipients set Setting the ringtones From the main screen, select Menu > Settings > User Profiles > General > Options > Customize . Select SIM1/SIM2 Ringtone and set the desired tone from those available for each SIM. You can also customize the following features: Alert type, Ringtone Volume, Keypad Volume, Message tone, Ringtone type.

Quickly turn on/off the Vibration mode

To turn off all the phone ringtones and activate the vibration for calls and messages, press and hold the key. By pressing again , the phone will enter to General mode. Phone Settings: from Menu > Settings > Phone, you can access various settings such as Date and Time, Language and Display.40 41ENG ENG Restore factory settings: select Menu > Settings > Restore to reset the factory settings of NGM FACILE Si: enter the phone password 1122 to confirm the reset.

FM radio: Select Menu > Multimedia > FM Radio. The radio also works without a headset. By selecting Options you have access to the following functions:

Channel list to manually browse saved channels

Manual for the manual search of radio channels

Auto search to automatic search radio stations

Settings for the radio playback

Select the 5 key to turn on and off the radio and key to browse through the stations.

*Limitation of Liability this is not a life-saving device but a mobile phone. NGM will not be liable for any indirect, special, incidental or consequential damage arising from, or in connection with the use of this product.42 43ENG DEU

Warning: The manufacturer assumes no responsibility for any failure of the

policies set out above, or for any misuse of the phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this man ual may vary from the actual content displayed in the mobile phone. In such case, the latter shall govern.
