K5722 Digital - Watch Calypso - Free user manual and instructions

Product type	Digital watch
Brand	Calypso
Model	K5722 Digital
Display	Digital with electroluminescent backlight (EL)
Main functions	Time, minutes, month, date, day of the week, PM, alarm, stopwatch with lap measurement, timer, hourly chime, dual time zone, 12/24 hour selector
Accuracy	± 30 seconds per month at normal temperature (25 °C)
Operating temperature	10 °C to 40 °C
Power supply	Battery (not specified, standard type for digital watch)
Backlight	Electroluminescent (EL) light – may lose brightness over time
Shock resistance	Designed to withstand shocks from normal use, avoid violent impacts
Water resistance	Not waterproof – do not immerse or use buttons in water
Maintenance	Clean with a soft cloth and clean water only, avoid chemicals and soap
Precautions	Do not open the case, avoid extreme temperatures, strong electric fields and static electricity
Recycling	Product subject to selective collection of waste electrical and electronic equipment
Warranty	Not specified in the manual

Frequently Asked Questions - K5722 Digital Calypso

How to set the time on the Calypso K5722 Digital watch?

To set the time, use the watch buttons. Refer to the full manual for detailed steps, as the procedure may vary depending on the modes. Generally, press and hold the MODE button to enter setting mode, then use the START/RESET buttons to adjust the values.

How to use the alarm function?

The watch has an alarm function with a signal. To set it, access alarm mode by pressing MODE several times, then use the buttons to set the alarm time. Make sure the alarm is activated (icon visible on the screen).

How to use the stopwatch?

The stopwatch allows measuring time with a lap measurement function. Press MODE to access stopwatch mode, then use START to start/stop and RESET to reset. For intermediate times, refer to the manual.

How to change the watch battery?

The manual advises against opening the case. It is recommended to have the battery replaced by a professional or at an authorized retailer to avoid damaging electronic components.

Is the watch waterproof?

No, the watch is not waterproof. Do not immerse it or use the buttons under water. If water or condensation appears inside, have it checked immediately.

How to maintain the watch?

Clean the watch with a soft cloth and clean water only. Avoid chemicals, soap, and extreme temperatures. Protect it from violent impacts and strong electric fields.

Why is the backlight less bright?

The backlight uses an electroluminescent (EL) light that may lose brightness after prolonged use. This is normal. Avoid direct sunlight exposure to better perceive the light.

What is the accuracy of the watch?

The watch has an accuracy of ± 30 seconds per month at a normal temperature of 25 °C. The recommended operating temperature is between 10 °C and 40 °C.

How to set the 12/24 hour format?

The watch has a 12/24 hour format selector. In setting mode, look for the option to switch between formats. Refer to the manual for specific buttons.

What to do if condensation appears inside the watch?

If water or condensation appears inside, have the watch checked immediately by a professional. Water may corrode the electronic parts inside the case.

USER MANUAL K5722 Digital Calypso

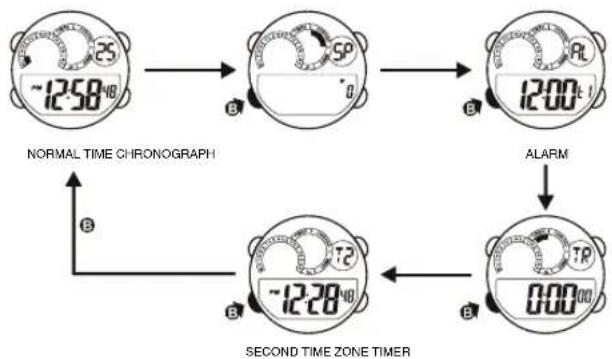

1. HOW TO CHANGE THE DISPLAY MODE

2. HOW TO DISPLAY CALENDAR

20 21

4. HOW TO SET NORMAL TIME

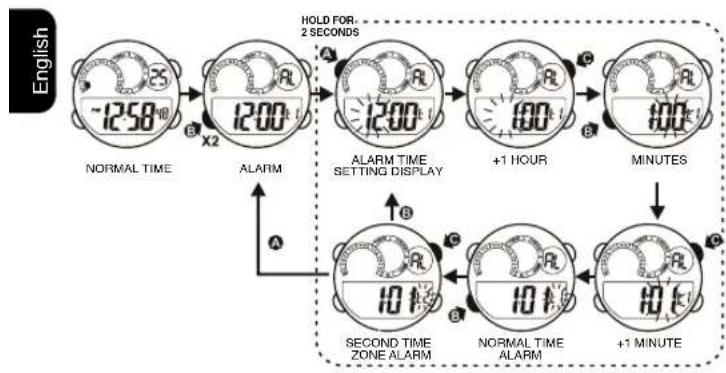

5. HOW TO SET ALARM TIME 6. HOW TO USE ALARM AND CHIME DISPLAY

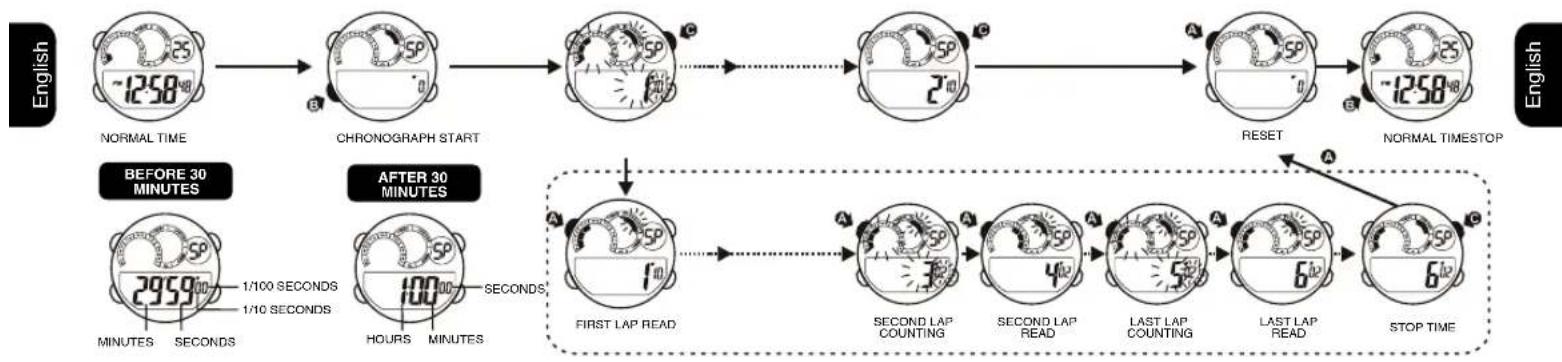

7. HOW TO USE THE CHRONOGRAPH

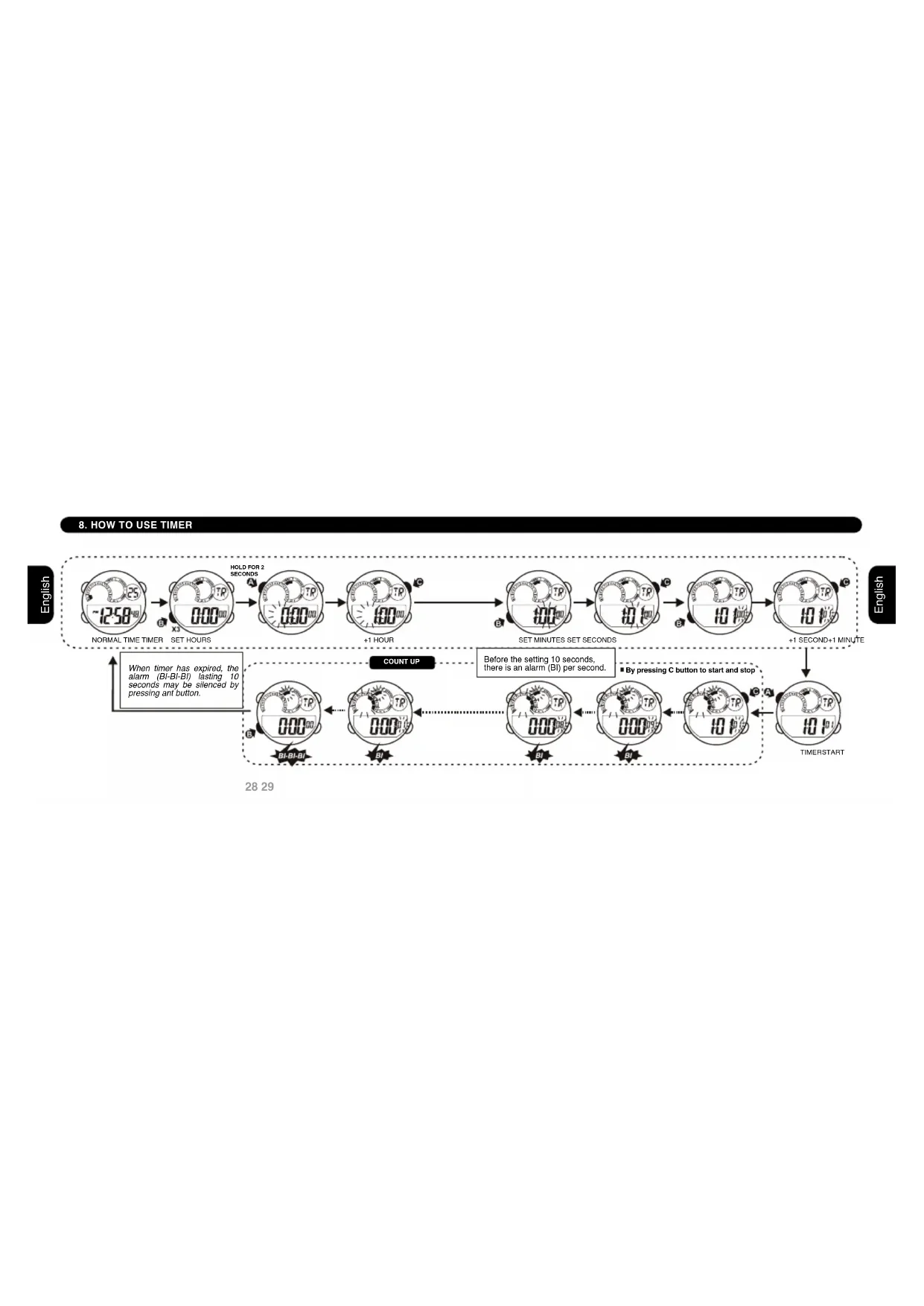

8. HOW TO USE TIMER

9. HOW TO SET SECOND TIME ZONE

10. HOW TO USE EL LIGHT

NOTE:
1. This watch features an electro-luminescent (EL) backlight, which tends to lose illuminating power after very long use.
2. The illumination provided by backlight may be hard to see under direct sunlight.

11. CARE OF YOUR WATCH

12. FEATURES AND SPECIFICATIONS

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.

7. Keep your watch away from the conditions of strong electric field and static electricity.

8. Standard display mode: Hour, minutes, seconds, month, day of the week.

9. Function:

Year, Month, date AM/PM and Electro-Luminiscent light.
- Alarm function with buzzer signal output.
- Chronograph function with lap operation.
- Hourly chime.
- 12/24 hour format switch option.
Second time zone.

1. Accuracy at normal temperature (25^) : + - 30 seconds a month.
2. Normal operating temperature range: 10^ - 40^

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your

quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

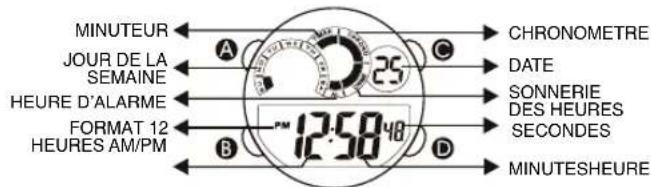

1.AFFICHAGE NORMALE ET BOUTON D'UTILISATION

BOUTONS D'UTILISATION

REGLAGE

ADJUSTMENT, MARCHE/ARRETER

MODE

LUMIÈRE

2.COMMENT CHANGER LE MODE D'AFFICHAGE
3.COMMENT AFFICHER LE MOIS, LA DATE

5. COMMENT RÉGLER L'ALARME 6. COMMENT UTILISER L'AFFICHAGE ALARME ET CARILLON

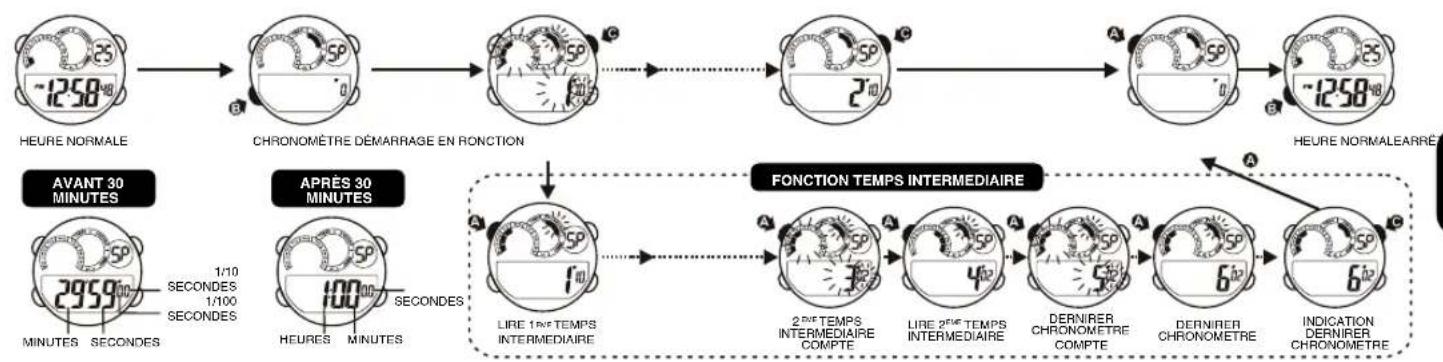

7. COMMENT UTILISER LE CHRONOMÉTURE

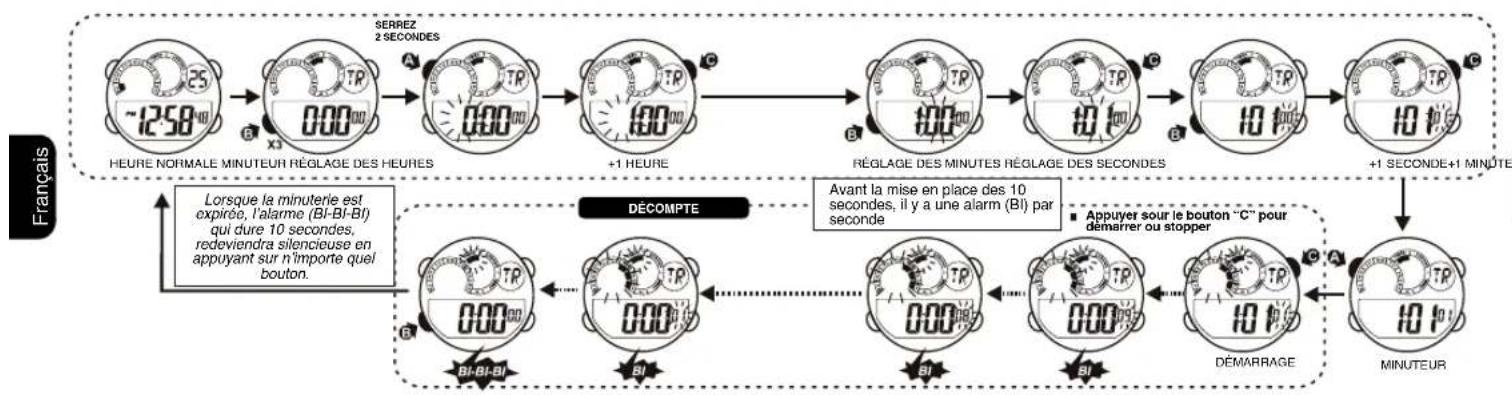

8. POUR UTILISER LE MINUTEUR DU COMPTE A REBOURS
