K5051 - Watch Calypso - Free user manual and instructions

Product type	Quartz wristwatch
Brand	Calypso
Model	K5051
Category	Watch
Movement type	Quartz (battery)
Power supply	Button cell battery (type not specified)
Battery life	Approximately 2 to 3 years (estimated)
Main functions	Time display (hours, minutes, seconds), date, chronograph up to 59 min 59 sec
Chronograph	Second precision, measures up to 59 min 59 sec
Date setting	Crown in position 1, counterclockwise rotation
Chronograph reset	Button B to reset
Chronograph zero reset	Procedure after battery change (crown position 2, button A to adjust)
Case diameter	Approximately 40 mm (estimated)
Case thickness	Approximately 10 mm (estimated)
Weight	Approximately 80 g (estimated)
Case material	Stainless steel (estimated)
Glass material	Mineral (estimated)
Strap width	20 mm (estimated)
Water resistance	Not specified
Maintenance	Clean with a soft, dry cloth. Avoid contact with chemicals.
Cleaning	Use a lint-free cloth. Do not immerse in water.
Safety	Comply with WEEE regulations for recycling at end of life.
Spare parts and repairability	Contact Calypso customer service for any repair or battery replacement.
General information	User manual available in multiple languages.

Frequently Asked Questions - K5051 Calypso

How to set the time on my Calypso K5051 watch?

Pull the crown to the 2nd position, then turn it to set the hour and minute hands. Then push the crown back to the normal position to start the second hand.

How to set the date?

Pull the crown to the 1st position. Turn it counterclockwise to set the date. Caution: avoid setting the date between 9 PM and 1 AM to prevent a day skip. Push the crown back to the normal position.

How to use the chronograph?

Press button A to start the chronograph. Press A again to stop it. The chronograph measures up to 59 minutes and 59 seconds. Use button B to reset to zero.

How to reset the chronograph to zero?

When the chronograph is stopped, press button B. The chronograph hands (second hand and minute hand) return to the zero position.

What to do if the chronograph second hand does not return to zero after reset?

Pull the crown to the 2nd position. Press button A to adjust the chronograph second hand to zero (press continuously to speed up). Once set, push the crown back in.

What battery does the Calypso K5051 watch use?

The watch operates with a button cell battery. The exact type is not specified in the manual, but it is common to use a SR626SW or similar battery. Have it replaced by a professional.

How to change the battery?

The manual does not detail the battery change. It is recommended to have the replacement done by a professional watchmaker to avoid damaging the movement.

Is the Calypso K5051 watch waterproof?

The manual does not mention the water resistance level. It is advised to avoid contact with water to preserve functionality.

What to do in case of malfunction?

First consult the full manual. If the problem persists, contact Calypso customer service or an authorized watchmaker.

Where can I find the manual for the Calypso K5051 watch?

The manual is available for free in PDF format on the website notice-facile.com. You can download it in several languages.

USER MANUAL K5051 Calypso

CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO CALYPSO MALYPSO

IKMOS10

CHRONOGRAPH

■ MANUAL DE INSTRUCCIONES 4
■ INSTRUCTION MANUAL 10
■ MANUEL D'INSTRUCTION 16
■ BETRIEBSANLEITUNG 22
■ MANUALE DI FUNZIONAMENTO 28

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

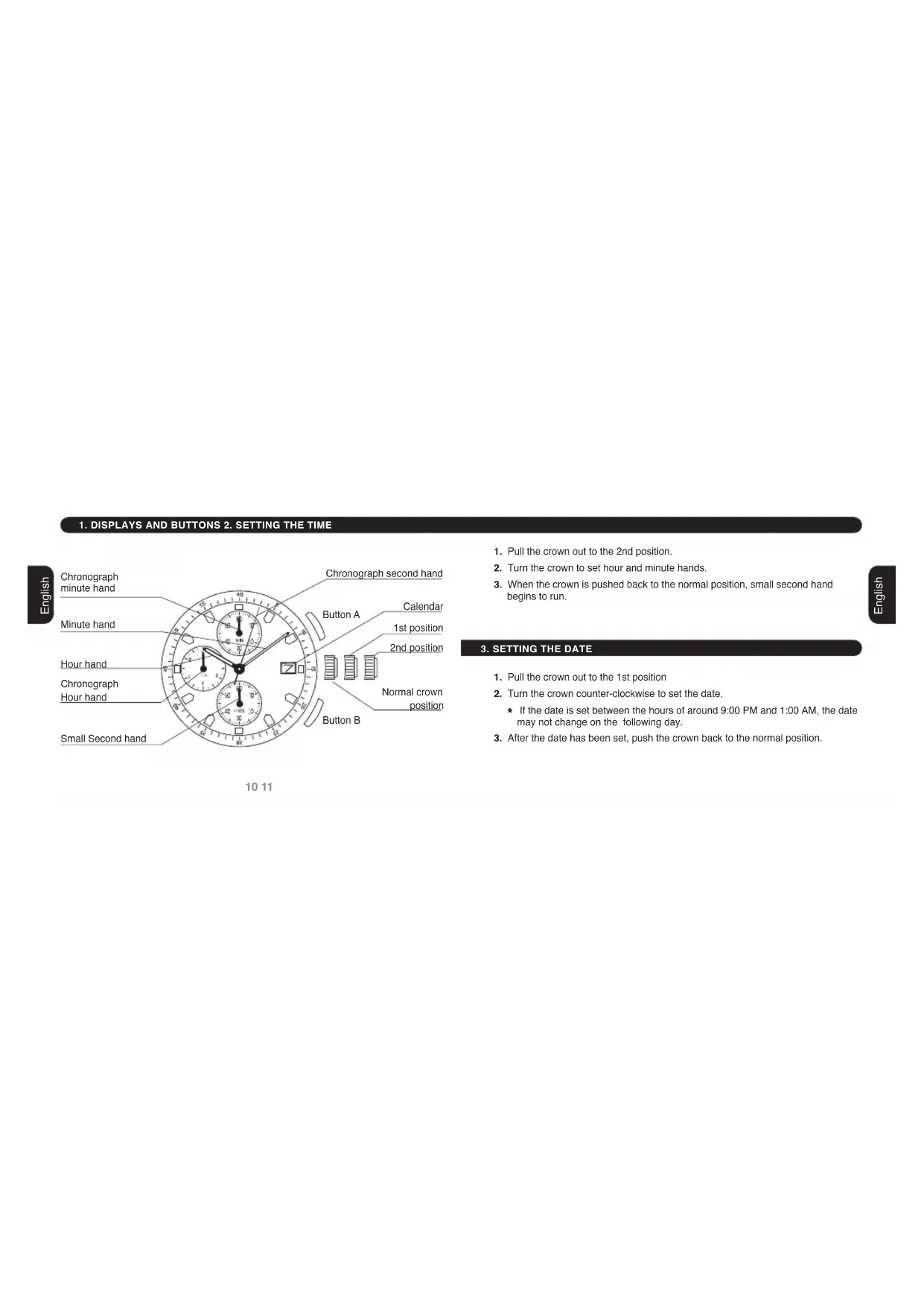

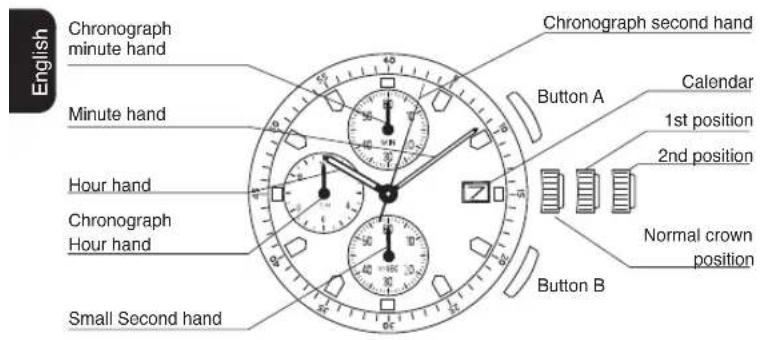

1. DISPLAYS AND BUTTONS 2. SETTING THE TIME


English Chronograph minute hand Minute hand Hour hand Chronograph Hour hand Small Second hand Chronograph second hand Button A Calendar 1st position 2nd position Normal crown position Button B

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

3. SETTING THE DATE

1. Pull the crown out to the 1st position
2. Turn the crown counter-clockwise to set the date.

* If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

1. After the date has been set, push the crown back to the normal position.

4. USING THE CHRONOGRAPH 5. CHRONOGRAPH RESET

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

[Measuring time with the chronograph]

1. The chronograph can be started and stopped each time button "A" is pressed.
2. Pressing button "B" resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

12 13

(incl. after replacing battery)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button "A" to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button "A".
3. Once the hand have been zeroed, return the crown to the normal position.
   * Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your watch making products at any of our retail outlets or any other authorized collection the selective collection, processing, rating and recycling of these products helps to safeguarding the environment and protecting our health.

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

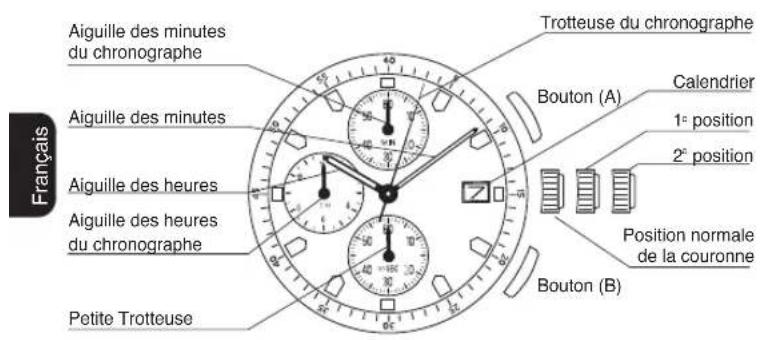

1. INDICATIONS ET BOUTONS 2. RÉGLAGE DE L'HEURE
