1 Appliance at a glance

1.1 Description of appliance and equip-

ment Fig. 1 (1) Operating and controlelements(9) Coldest zone(2) Butter and cheesecompartment(10) Drain hole (3) Fan* (11) Bottle holder (4) Shelf (12) Bottle rack (5) Can holder (13) Vegetable bin* (6) Can rack (14) Type plate (7) Shelf, can be split (15) Soft closing fittings (8) LED interior light Note

Place food inside the appliance as shown in the diagram. This allows the appliance to save energy during operation.

Shelves, drawers and baskets are arranged for optimum energy efficiency on delivery.

1.2 Appliance range of use

Intended use The appliance is only suitable for cooling food products in a domestic or household-like envi- ronment. This includes, for example, use:

in staff kitchens, bed and breakfast establish- ments,

by guests in country houses, hotels, motels and other accommodation,

for catering and similar services in the whole- sale trade. Appliance at a glance 18 * Depending on model and optionsThe appliance is not suitable for freezing food; All other types of use are not permitted. Foreseeable misuse The following applications are expressly forbidden:

Storing and refrigerating medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Device Directive 2007/47/EC

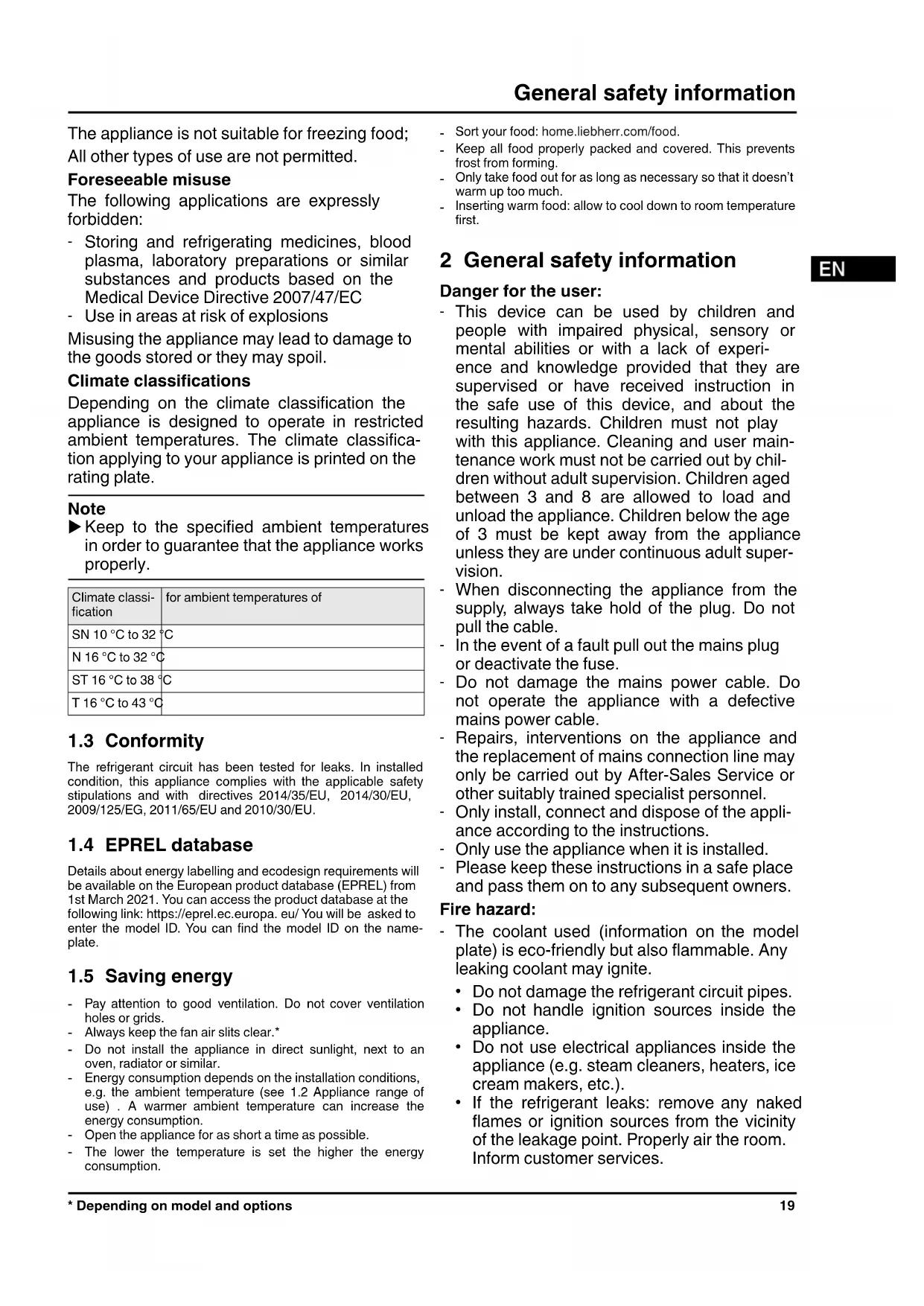

Use in areas at risk of explosions Misusing the appliance may lead to damage to the goods stored or they may spoil. Climate classifications Depending on the climate classification the appliance is designed to operate in restricted ambient temperatures. The climate classifica- tion applying to your appliance is printed on the rating plate. Note

Keep to the specified ambient temperatures in order to guarantee that the appliance works properly. Climate classi-ficationfor ambient temperatures ofSN 10 °C to 32 °CN 16 °C to 32 °CST 16 °C to 38 °CT 16 °C to 43 °C

The refrigerant circuit has been tested for leaks. In installed condition, this appliance complies with the applicable safety stipulations and with directives 2014/35/EU, 2014/30/EU,2009/125/EG, 2011/65/EU and 2010/30/EU.

Details about energy labelling and ecodesign requirements willbe available on the European product database (EPREL) from1st March 2021. You can access the product database at thefollowing link: https://eprel.ec.europa. eu/ You will be asked to enter the model ID. You can find the model ID on the name- plate.

Pay attention to good ventilation. Do not cover ventilation holes or grids. Always keep the fan air slits clear.*

Do not install the appliance in direct sunlight, next to an oven, radiator or similar. Energy consumption depends on the installation conditions, e.g. the ambient temperature (see 1.2 Appliance range of use) . A warmer ambient temperature can increase the energy consumption. Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy consumption. Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents frost from forming. Only take food out for as long as necessary so that it doesn’twarm up too much. Inserting warm food: allow to cool down to room temperaturefirst. 2 General safety information Danger for the user:

This device can be used by children and people with impaired physical, sensory or mental abilities or with a lack of experi- ence and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting hazards. Children must not play with this appliance. Cleaning and user main- tenance work must not be carried out by chil- dren without adult supervision. Children aged between 3 and 8 are allowed to load and unload the appliance. Children below the age of 3 must be kept away from the appliance unless they are under continuous adult super- vision.

When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.

In the event of a fault pull out the mains plug or deactivate the fuse.

Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.

Repairs, interventions on the appliance and the replacement of mains connection line may only be carried out by After-Sales Service or other suitably trained specialist personnel.

Only install, connect and dispose of the appli- ance according to the instructions.

Only use the appliance when it is installed.

Please keep these instructions in a safe place and pass them on to any subsequent owners. Fire hazard:

The coolant used (information on the model plate) is eco-friendly but also flammable. Any leaking coolant may ignite.

Do not damage the refrigerant circuit pipes.

Do not handle ignition sources inside the appliance.

Do not use electrical appliances inside the appliance (e.g. steam cleaners, heaters, ice cream makers, etc.).

If the refrigerant leaks: remove any naked flames or ignition sources from the vicinity of the leakage point. Properly air the room. Inform customer services. General safety information

• Depending on model and options 19- Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components. Danger of tipping and falling:

Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particu- larly to children. Danger of food poisoning:

Do not consume food which has been stored too long. Danger of frostbite, numbness and pain:

Avoid prolonged skin contact with cold surfaces or refrigerated/frozen goods or take protective measures, e.g wear use gloves. Danger of injury and damage:

Hot steam can lead to injury. Do not use elec- trical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.

Do not use sharp implements to remove the ice. Danger of crushing:

Do not hold the hinge when opening and closing the door. Fingers may get caught. Symbols on the appliance: The symbol can be located on the compressor. It refers to the oil in the compressor and indicates the following danger: Swallowing or inhaling can be fatal.This is only relevant for recycling. There is nodanger in normal operation.This symbol is found on the compressor andindicates the danger of flammable materials.Do not remove the sticker. A sticker to this effect may be applied to the rear of the appliance. It refers to thefoam-padded panels in the door and/or thehousing. This is only relevant for recycling. Donot remove the sticker. Please observe the specific information in the other sections: DANGER identifies a situation involving directdanger which, if not obviated, may result in death or severe bodily injury.WARNING identifies a dangerous situationwhich, if not obviated, may result indeath or severe bodily injury.CAUTION identifies a dangerous situationwhich, if not obviated, may result inminor or medium bodily injury.NOTICE identifies a dangerous situationwhich, if not obviated, may result indamage to property.Note It contains useful instructions andtips. 3 Controls and displays

3.1 Operating and control elements

Fig. 2 (1) On/Off button (6) Fan button*(2) Temperature display (7) Fan symbol* (3) "+/-" setting button (8) Menu symbol (4) Fast Cool button (9) Child lock symbol(5) Fast Cool symbol

3.2 Temperature display

During normal operation, the display shows: the chiller temperature settingThe temperature display flashes if/when: You change the temperature setting Controls and displays 20 * Depending on model and optionsThe following displays indicate a fault. Possible causes and solutions: (see 7 Malfunctions) .

F0 to F9 4 Putting into operation

4.1 Transporting the appliance

Transport the appliance only in suitable packaging. Transport the appliance upright. Do not transport the appliance on your own.

4.2 Switching on the appliance

Open the door. Press the On/Off button Fig. 2 (1)

The temperature display lights up. The interior light goes on when the door is opened. The appli-ance is switched on. If “DEMO” is displayed, demo mode is activated.Please contact the after sales service. 5 Control

The child-proofing function enables you to makesure that the appliance is not inadvertently switchedoff by playing children.

5.1.1 Setting the child lock

To activate the setting mode: Press the Fast Cool button Fig. 2 (4) for approx. 5 seconds. The Menu symbol is shown on the display, Fig. 2 (8)

c1 appears on the display.

c flashes on the display.

The child lock function is switched on.If the function is to be switched off: Briefly confirm using the Fast Cool buttonFig. 2 (4)

c0 appears on the display.

c flashes in the display.

The child lock function is switched off.To end the setting mode: Briefly press the On/Off button Fig. 2 (1)

The temperature display shows the temperature again.

5.2 Refrigerating food

The coldest areas are directly above the vegetable compart-ments and along the back wall. The warmest area is at the topfront and in the door. Note The energy consumption increases and the cooling perform-ance decreases if the ventilation is inadequate.* Always keep the air slits of the fan free.

Store perishable foods such as ready-to-eat meals, meat and sausages in the coldest area. Place butter andpreserves in the top area and in the door. (see 1 Applianceat a glance)

Use reuseable plastic, metal, aluminium, glass containers and foil wrap to store food. Always store raw meat and fish in clean, sealed containerson the bottom shelf of the refrigerator, to prevent themcoming into contact with or dripping onto other foods. Foods that easily absorb or give off smell or taste, as well asliquids, should be stored in sealed containers or covered.The following applies for appliances from 1218 mm: Use the front area of the base shelf only to temporarily setdown refrigerated foods, for example while rearranging or sorting the contents. Remember not to leave refrigerated foods here as they could shift to the back or tip over whenyou close the door. Do not pack foods too closely together, as the air needs tocirculate.

5.3 Setting the temperature

The temperature depends on the following factors: the frequency of opening the door how long the door is open for the room temperature of the installation location the type, temperature and quantity of the foodRecommended temperature setting: 5 °CThe temperature can be adjusted continually. Once the 1 °Csetting is reached, the sequence starts again at 9 °C . Call up the temperature function: Press the "+/-"setting button Fig. 2 (3)

The previously-set value will flash in the tempera-ture display.

Change the temperature in 1 °C steps: Press the "+/-" setting button Fig. 2 (3) until therequired temperature is indicated in the tempera-ture display.

Change temperature continually: hold down setting button. During adjustment the value flashes on the display. The new setting is adopted approx. 5 seconds after thelast time the button was pressed and the set temperature displayed again. The temperature in the interior gradually adjusts to the new value.

Use FastCool to quickly cool large quantities of food.The fan* runs when FastCool is activated*. The appliance works at maximum refrigerating power. Any noises from the cooling unit may be temporarily louder as a result.Fast Cool has a slightly higher energy consumption

The cooling temperature drops to the coldest value. Fast Cool is switched on. Putting into operation

• Depending on model and options 21w Fast Cool automatically switches itself off after approx. 12 h. The appliance continues to function in the energy-saving normal mode.

5.4.2 To switch off Fast Cool ahead of time

The Fast Cool symbol Fig. 2 (5) goes out in the display. Fast Cool is switched off.

With the fan you can rapidly cool large quantities offresh food or achieve a relatively even distribution oftemperature across all the storage levels.The forced-air cooling is to be recommended: at high room temperature (above33 °C ) at high humidityThe forced-air cooling uses slightly more energy. To save energy, the fan switches off automatically when the door is open.

The fan symbol Fig. 2 (7) illuminates. The fan is active. In some appliances, the fan is only acti-vated when the compressor is running.

The fan symbol Fig. 2 (7) goes out. The fan is switched off.

5.6.1 Moving or removing shelves

The shelves are prevented from being pulled out accidentallyby pull out stops.Fig. 3 Lift the shelf and pull forward a little. Adjust the height of the shelf. To do this move the slots alongthe supports. In order to remove the shelf fully, place it at a slant and pullout towards the front.

Insert shelf with the raised edge pointing upwards at the back. The food does not freeze onto the rear wall.

5.6.2 Dismantling shelves

The shelves can be disman-tled for cleaning.

5.7 Using the sectioned shelf

Slide the sectioned shelfunder, as shown in theillustration.Fig. 4 The glass shelf with stop face (2) has to be at the back. The glass plate (1) with pull-out stops must be at the front sothat the stops (3) face downwards.

Remove storage rack according toillustration.Always remove the butter and cheesecompartment together with the lid. To remove lid: Press one side part ofthe butter and cheese compartmentoutwards until the lid pin is clear andthen remove the lid sideways.

5.9 Removing the bottle holder

Remove the bottle holder according tothe illustration.

Control 22 * Depending on model and options5.11 Vegetable drawers on roller plates* Fig. 6 Roller plates can be removed for cleaning. 6 Maintenance

6.1.1 Defrosting refrigerator compartment

The fridge compartment defrosts automatically. The defrostedwater will evaporate. Water drops or a thin layer of frost or icecan form on the back wall; this is a completely normal part ofthe machine’s function. Clean the drain hole at regular intervals to allow the defrostwater to drain (see 6.2 Cleaning the appliance) .

6.2 Cleaning the appliance

Clean the appliance regularly. WARNING Risk of injury and damage as a result of hot steam!Hot steam can lead to burns and can damage the surfaces. Do not use any steam cleaners! NOTICE Incorrect cleaning damages the appliance! Do not use cleaning agents in concentrated form. Do not use any scouring or abrasive sponges or steel wool. Do not use any sharp or abrasive cleaning agents, nor anythat contain sand, chloride or acid. Do not use chemical solvents. Do not damage or remove the type plate on the inside of theappliance. It is important for the customer service.

Do not pull off, bend or damage cables or other compo- nents. Do not allow any cleaning water to enter the drain channel,ventilation grille or electrical parts. Please use soft cleaning cloths and a universal pH-neutralcleaning agent. Please use cleaning and care products suitable for contactwith foodstuffs in the appliance interior. Empty appliance. Pull out the power plug. Clean the vent grille regularly. Dust deposits increase energy consumption.

Clean plastic outer and inner surfaces with lukewarm water and a little washing-up liquid. Clean drain hole: Remove depositswith a narrow instrument, e.g. acotton bud. Most of the parts can be dismantled for cleaning: see therelevant chapter.

Clean drawers by hand with lukewarm water and a little washing up liquid. All the other fittings can be put in the dishwasher.After cleaning: Wipe dry the appliance and items of equipment. Connect the appliance and switch it on again.When the temperature is sufficiently cold: Put the food back inside.

6.3 Customer service

First check whether you can correct the fault yourself by refer-ence to the list (see 7 Malfunctions) . If this is not the case,please contact the customer service whose address is given inthe enclosed customer service list. WARNING Risk of injury if repair work is not carried out professionally! Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see 6 Maintenance) Read the appliancedesignation Fig. 7 (1) service No. Fig. 7 (2)and serial No.Fig. 7 (3) off the typeplate located insidethe appliance on theleft-hand side.Fig. 7 Notify the customer service, specifying the fault, appliancedesignation Fig. 7 (1), service No. Fig. 7 (2) and serial No.Fig. 7 (3)

This will help us to provide you with a faster and more accu-rate service. Keep the appliance closed until the customer servicearrives. The food will stay cool longer. Pull out the mains plug (not by pulling the connecting cable)or switch off the fuse. 7 Malfunctions Your appliance is designed and manufactured for a long lifespan and reliable operation. If a malfunction nonethelessoccurs during operation, check whether it is due to a handlingerror. In this case you will have to be charged for the costsincurred, even during the warranty period. You may be able torectify the following faults yourself:Appliance does not work. The appliance is not switched on. Switching on the appliance. The power plug is not properly inserted in the wall socket. Check power plug. The fuse of the wall socket is not in order. Check fuse.The compressor runs for a long time. The compressor switches to a low speed when little cold isneeded. Although the running time is increased as a result,energy is saved. This is normal in energy-saving models. Fast-Cool is activated. Maintenance

• Depending on model and options 23u The compressor runs for longer in order to rapidly cool thefood. This is normal.A LED on the bottom rear of the appliance (at thecompressor) flashes repeatedly every 5 seconds*. There is a fault. Please contact the after-sales service (see 6 Mainte-nance) .Excessive noise. Due to the various speed steps, speed-regulated* compres-sors can generate different running noises. The sound is normal.A bubbling and gurgling noise. This noise comes from the refrigerant flowing in the refriger-ation circuit. The sound is normal.A quiet clicking noise. The noise is produced whenever the refrigeration unit(motor) automatically switches on or off. The sound is normal.A hum. It is briefly a little louder when the refrigerationunit (the motor) switches on. The refrigeration increases automatically when the Fast-Cool function is activated, fresh food has just been placed in the appliance or the door has been left open for awhile. The sound is normal. The ambient temperature is too high. Solution: (see 1.2 Appliance range of use)A low hum.* The sound is produced by air flow noise of the fan. The sound is normal.Vibration noises The appliance is not standing firmly on the floor. As a resultobjects and adjacent units start to vibrate when the refriger-ator is running. Check the installation and realign the appliance. Keep bottles and jars apart.Flow sound at the soft stop mechanism. The noise is produced when the door is opened andclosed. The sound is normal.The temperature display indicates: F0 to F9 There is a fault. Please contact the after-sales service (see 6 Mainte-nance) .DEMO shines in the temperature display. The demo mode is activated. Please contact the after-sales service (see 6 Mainte-nance) .The outer surfaces of the appliance are warm*. The heat of the refrigeration circuit is used to preventcondensate from forming. This is normal.The temperature is not cold enough. The door of the appliance is not properly closed. Close the door of the appliance. Insufficient ventilation. Keep ventilation grille clear, and clean it. The ambient temperature is too high. Solution: (see 1.2 Appliance range of use) . The appliance was opened too frequently or for too long.

Wait to see whether the appliance reaches the required temperature by itself. If not, please contact the after salesservice (see 6 Maintenance) . The temperature is incorrectly set. Set the temperature to a colder setting and check after 24hours. The appliance is too close to a source of heat (stove, heateretc). Change the position of the appliance or the source of heat. The appliance was not inserted properly into the recess.

Check whether the appliance was inserted correctly and the door closes properly.The internal light does not come on. The appliance is not switched on. Switch the appliance on. The door was open for longer than 15 minutes. The internal light switches itself off automatically after about15 minutes if the door is open. The LED illumination is faulty or the cover is damaged: WARNING Risk of injury due to electric shock!There are live electrical parts under the cover. Only ever have the inside LED light replaced or repaired bycustomer service or trained personnel. WARNING Risk of injury from LED bulb!The light intensity of the LED light corresponds to hazard groupRG 2.If the cover is defective: Do not look directly into the light from close range. It causeinjury to the eyes. 8 Decommissioning

8.1 Switching off the appliance

Press On/Off button Fig. 2 (1) forapprox. 2 seconds. A long beep is emitted. The temperature displayis dark. The appliance is switched off. If the appliance cannot be switched off, the childlock function is active (see 5.1 Child proofing) .

8.2 Taking the appliance out of service

Empty the appliance. Switch off the appliance (see 8 Decommissioning) . Remove mains connector. Clean the appliance (see 6.2 Cleaning the appli-ance) . Leave the door open to prevent odour. 9 Disposing of the appliance The appliance contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordancewith the current local regulations and laws.Do not damage the disused appliance while removing it fromthe cooling circuit, in case the coolant (information on themodel plate) ) or oil inside leaks out.For Germany: Decommissioning 24 * Depending on model and optionsThe appliance can be disposed of free of charge in Class 1 collection containers at your local recycling centre. When purchasing a new fridge/freezer and if your sales area is > 400

, the retailer with also take back the old appliance free of charge. Decommission the appliance:

Cut through the connecting cable. Disposing of the appliance
