10021360 - Kettle Klarstein - Free user manual and instructions

Product Type	Electric Kettle
Brand	Klarstein
Model	10021360
Maximum Capacity	1.7 L
Minimum Capacity	0.5 L
Power Supply	220-240 V ~ 50/60 Hz
Power	2200 W
Automatic Shut-off	Yes, when water boils
Dry Boil Protection	Yes, automatic shut-off if empty
Light Indicator	Operation LED
Integrated Thermometer	Yes
Lid	Manually open
Spout	Integrated
Base	With electric connector
Main Material	Stainless steel
Anti-slip Feet	Yes
Intended Use	Heating water
Exterior Care	Wipe with a damp cloth, no spray
Safety	Do not immerse, unplug after use
Repairs	By qualified personnel only
First Use	Boil water twice before use

Frequently Asked Questions - 10021360 Klarstein

How to use the kettle for the first time?

Before first use, boil clear water twice in the appliance to clean it. Fill the kettle with at least 0.5 L, place it on the base, plug it in and turn it on. Let the water boil then discard it.

What is the maximum and minimum capacity of the kettle?

The maximum capacity is 1.7 L and the minimum capacity is 0.5 L. Do not exceed the maximum mark to avoid overflow. If the water level is below 0.5 L, the kettle may turn off before boiling.

Can I open the lid during boiling?

No, do not open the lid during the boiling process. This could cause burns from steam or hot water. Wait until the kettle switches off automatically before opening.

What to do if the kettle does not turn on?

First check that the kettle is correctly placed on its base and that the lid is properly closed. Make sure the power button is not obstructed. If the problem persists, check the power outlet and cable. If necessary, contact a professional.

How to clean the kettle?

Unplug the appliance and let it cool down. Wipe the exterior with a damp, soft cloth. Do not use spray or abrasive products. For the interior, you can use diluted white vinegar to descale, then rinse thoroughly.

Why does the kettle turn off before the water boils?

This may be due to insufficient water level (less than 0.5 L) or a sensor malfunction. Make sure the kettle contains enough water and the lid is properly closed. If the problem persists, the appliance may need servicing.

Can I use the kettle without water?

No, never operate the kettle empty. It has a dry boil protection that switches it off automatically, but this can damage the appliance. If this happens, let it cool down before reuse.

How to safely plug in the kettle?

Plug the kettle into a 220-240 V power outlet. Make sure the outlet is in good condition and the cable is not twisted. Do not touch the plug with wet hands. Position the kettle so that it can be unplugged quickly if needed.

What to do if the power button is stuck?

If the power button is obstructed, the kettle will not turn on. Check that no object is blocking the button. If the problem persists, do not force it, but contact an authorized repair service.

Where to find the serial number of the kettle?

The serial number is usually on the product label, under the base or on the packaging. It may be required for after-sales service or warranty.

USER MANUAL 10021360 Klarstein

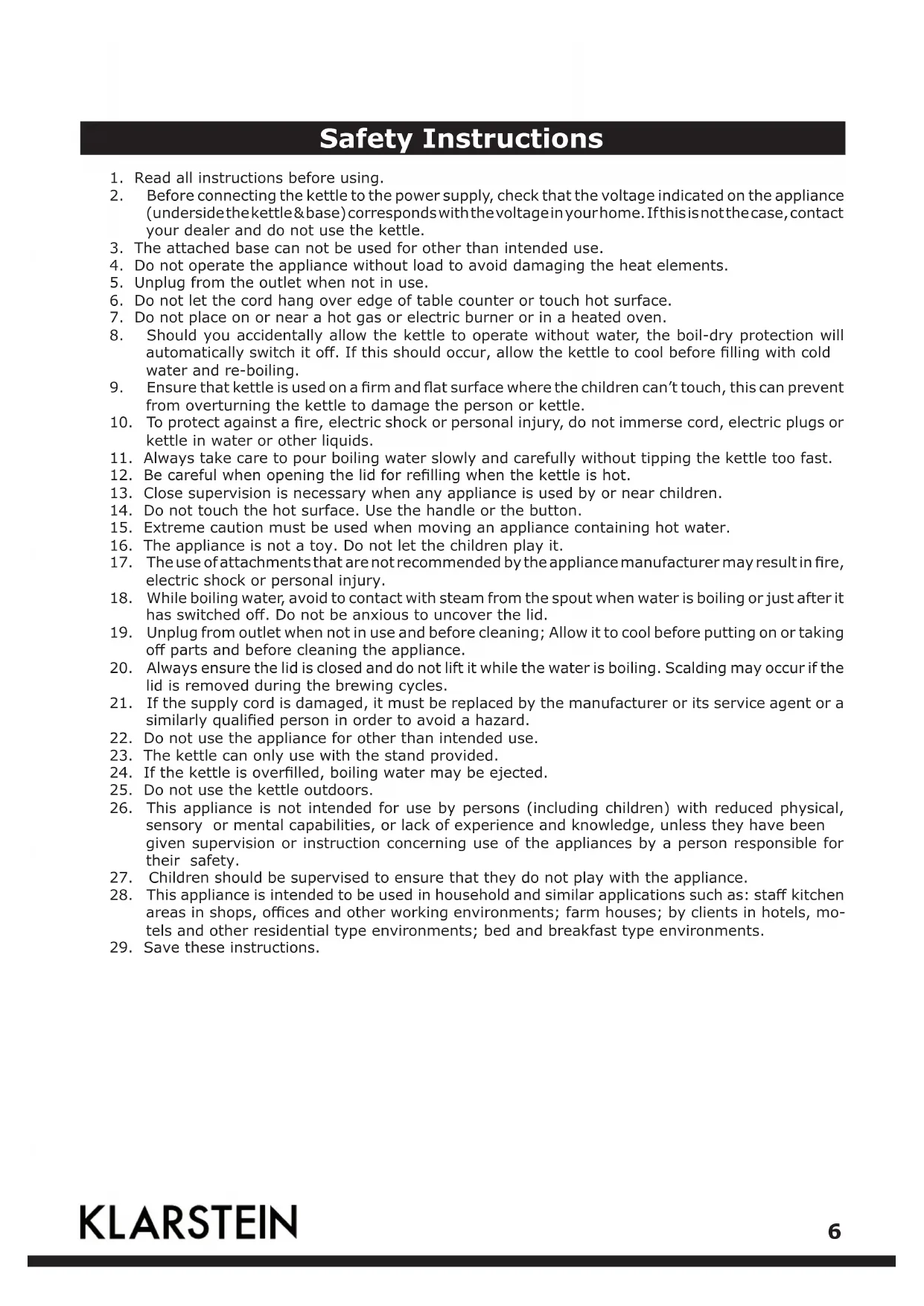

1. Read all instructions before using.
2. Before connecting the kettle to the power supply, check that the voltage indicated on the appliance (underside the kettle&base) corresponds with the voltage in your home. If this is not the case, contact your dealer and do not use the kettle.
3. The attached base can not be used for other than intended use.
4. Do not operate the appliance without load to avoid damaging the heat elements.
5. Unplug from the outlet when not in use.
6. Do not let the cord hang over edge of table counter or touch hot surface.
7. Do not place on or near a hot gas or electric burner or in a heated oven.
8. Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.
9. Ensure that kettle is used on a firm and flat surface where the children can't touch, this can prevent from overturning the kettle to damage the person or kettle.
10. To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or kettle in water or other liquids.
11. Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.
12. Be careful when opening the lid for refilling when the kettle is hot.
13. Close supervision is necessary when any appliance is used by or near children.
14. Do not touch the hot surface. Use the handle or the button.
15. Extreme caution must be used when moving an appliance containing hot water.
16. The appliance is not a toy. Do not let the children play it.
17. The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
18. While boiling water, avoid to contact with steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.
19. Unplug from outlet when not in use and before cleaning; Allow it to cool before putting on or taking off parts and before cleaning the appliance.
20. Always ensure the lid is closed and do not lift it while the water is boiling. Scalding may occur if the lid is removed during the brewing cycles.
21. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
22. Do not use the appliance for other than intended use.
23. The kettle can only use with the stand provided.
24. If the kettle is overfilled, boiling water may be ejected.
25. Do not use the kettle outdoors.
26. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
27. Children should be supervised to ensure that they do not play with the appliance.
28. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
29. Save these instructions.

Kettle

A Lid Cover
B Filer
C Body
D Base
E Power Indicator Light
F On/Off Switch]
G Handle
H Thermometer

Before initial use

If you are using the kettle for the first time, it is recommended that you clean your kettle before use by boiling a full kettle of water twice and then discarding the water.

Operation

1. To fi ll water into the kettle, remove it from the power base and open the lid by pressing the lid open button, fi ll with the desired amount of water to the kettle. Always fi ll the kettle between the minimum (0.5L) and maximum (1.7L) marks. Too little water will result in the kettle switching off before the water has boiled.
   NOTE: Do not fi II the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is fi rmly in place before connecting the power cord to the outlet.
2. Position the kettle on the power base.
3. Connect the plug into a power outlet. Press the switch button below the handle. The indicating lights inside the kettle will light up. Then start to boil the water. The kettle will switch off automatically once the water has boiled and the light extinguishes. You can shut off the power by pressing the switch button at any moment during boiling water.

NOTE: Ensure that switch is clear of obstructions and the lid is firmly closed. The kettle will not turn off if the switch is constrained or if the lid is left open.

1. Lift the kettle from the power base and then pour the water.

NOTE: Operate carefully when pouring the water from your kettle as boiling water may result in scald, besides, don't open the lid while the water in the kettle is hot.

1. The kettle will not re-boil until the switch is uplifted. Allow to cool for 15 20 seconds before reopening to boil water. The kettle may be stored on the power base when not in use.

NOTE: Ensure power supply is turned off when kettle is not in use.

Boil-dry protect

Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

Care and cleaning

Always disconnect the appliance from the power outlet before cleaning. Never immerse the kettle or cord in water, or allow moisture to contact with these parts.

Removal of mineral deposits

Mineral deposits in tap water may cause the kettle interior to discolor. To remove this build-up, use Liquid Descaler, a simple to use non-toxic cleaner.

Alternatively:

1. Fill the kettle with 3 cups of white vinegar and the remainder with water and be allowed to stand overnight. DO NOT BOIL.
2. Empty the solution from the kettle. Any stains remaining inside the spout can be removed by rubbing with a damp cloth, fill the kettle with clean water, bring to boil and then discard the water. Repeat and the kettle will then be ready to use. The outside of the kettle can be wiped over with a damp cloth.

Cleaning appearance of housing

Wipe the appearance of housing with a wild and damp cloth or cleaner, never use a poisonous cleaner.

Cleaning the filter

Remember to clean the filter with a wild and damp cloth at intervals. The filter can be detached for easier cleaning simply by pulling it out. To attach, insert the filter into the support dent.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle.

Storage

When not in use or storage, the power cord may be wound around the cord storage under the bottom of kettle.

Technical Specifications

Technical specifications: 220-240V 50/60Hz 2200W

Hints on Disposal

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
