USER MANUAL BLC10650MB BLACK & DECKER

Please Read and Save this Use and Care Book

Register your product online at www.prodprotect.com/applica,

for a chance to WIN $100,000!

For US residents only

Accessories/Parts (USA/Canada)

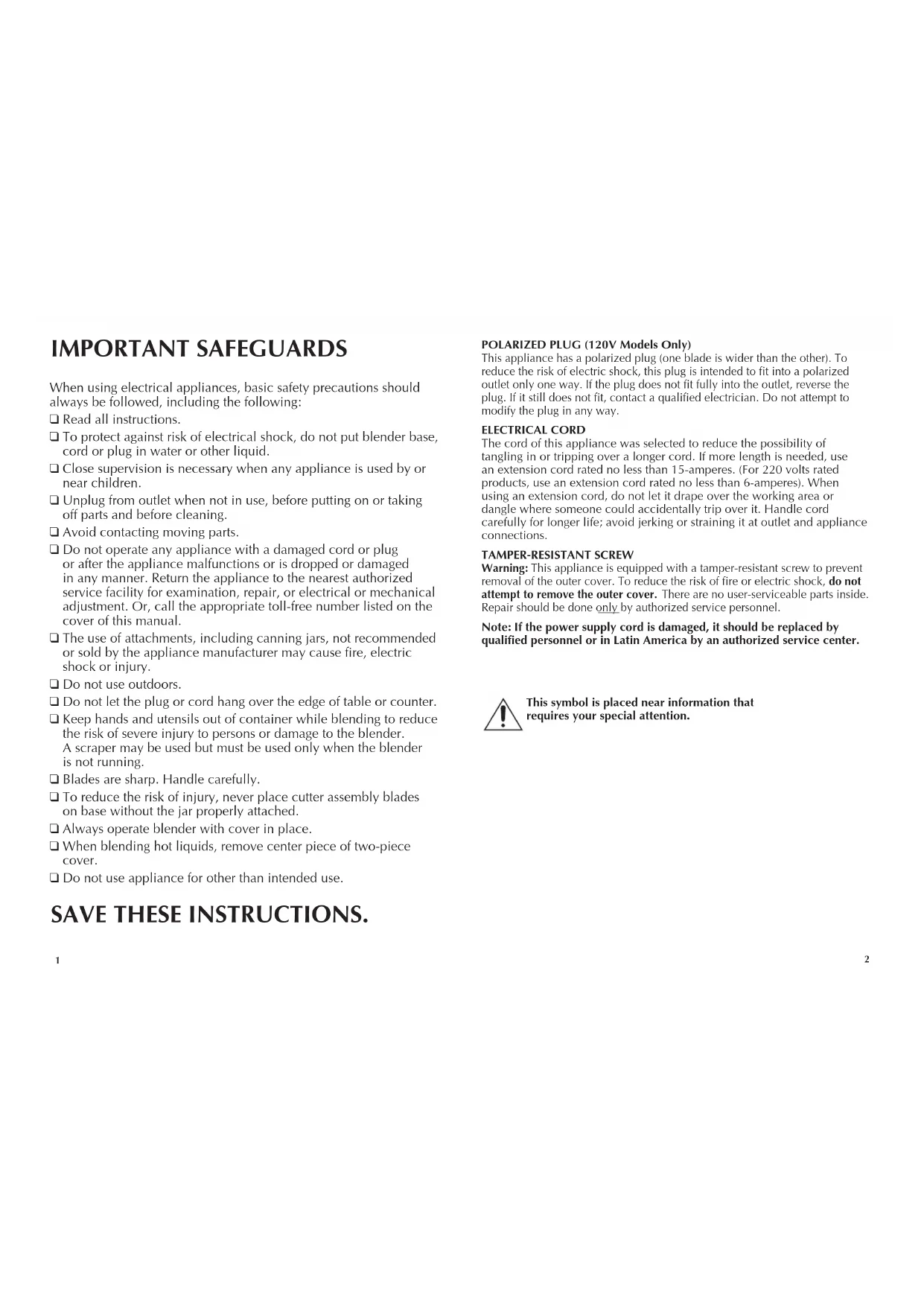

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
To protect against risk of electrical shock, do not put blender base, cord or plug in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
- Avoid contacting moving parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of attachments, including canning jars, not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.
Do not use outdoors.
Do not let the plug or cord hang over the edge of table or counter.
- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
Blades are sharp. Handle carefully.
To reduce the risk of injury, never place cutter assembly blades on base without the jar properly attached.
Always operate blender with cover in place.
- When blending hot liquids, remove center piece of two-piece cover.
Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

ELECTRICAL CORD

The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 15-amperes. (For 220 volts rated products, use an extension cord rated no less than 6-amperes). When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

This symbol is placed near information that requires your special attention.

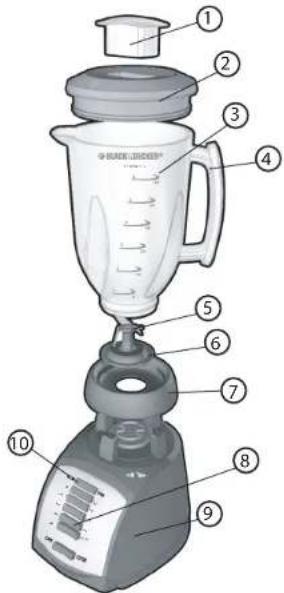

Product may vary slightly from what is illustrated.

1. Lid cap (Part# BLC12650-01)
   † 2. Lid (Part# BLC12650-02)

2. Jar (Part# BLC12650-03)

3. Handle

† 5. Blade assembly (Part# BLC12650-05)

† 6. Gasket (Part# BLC12650-04)
7. Jar base (Part# BLC12650-06)

1. Speed buttons

2. Base

3. PULSE/OFF button

† Consumer replaceable/removable parts

How to Use

This unit is for household use only.

GETTING STARTED

• Remove all packing material and any stickers from the product.
• Wash all removable parts as instructed in CARE AND CLEANING section of this manual.

BLENDER JAR ASSEMBLY

1. Turn blender jar upside-down and place flat on countertop or work surface.
2. Put the gasket on top of the blade assembly.
3. Place the blade assembly with gasket in bottom opening of the jar, with blades down.

1. Place jar base onto jar and rotate clockwise until it is tight (A).
2. Turn assembled jar right-side-up.
3. Place lid with lid cap on blender jar.
4. Uncoil power cord from storage area under the base.

1. Place jar in unlocked position on base and turn jar clockwise until jar is in locked position on base (B).
2. Blender is now ready for use.

READY TO USE

1. Make sure appliance is OFF.
2. Place foods to be blended into jar.
3. Place lid on jar; make sure lid cap is in place.
4. Plug power cord into standard electrical outlet.

Note: When in use, do not leave blender unattended. When using hard foods, such as ice, cheese, nuts and coffee beans, keep one hand on the lid to keep blender in place.

1. Select the speed that best suits your desired task.

1. For blending tasks such as grinding coffee beans or nuts - or when blending thick mixtures - use the PULSE button for several seconds; then release. Repeat until food has desired consistency. Releasing the PULSE button automatically turns the blender off (C).

1. Open the lid cap to add ingredients while the blender is running, and drop ingredients through the opening (D).

Important: Do not remove the lid while the blender is running.

1. When finished, press the PULSE/OFF button. Make sure blades have completely stopped before attempting to remove the blender jar from the base.

2. To remove the jar, grasp the handle, turn slightly counterclockwise to unlock position and lift up.

3. Remove the lid to pour.
4. Always unplug the appliance when not in use.

BLENDING TIPS AND TECHNIQUES

Cut food into pieces no larger than 34 -inch for use in the blender.
- When preparing foods that have several different kinds of ingredients, always add liquid ingredients first.
- When ingredients splatter onto the sides of the jar or the mixture is very thick, press the PULSE/OFF button to turn appliance off. Remove the lid and use a rubber spatula to scrape down the sides of the jar and to redistribute the food, pushing food toward the blades. Replace the lid and continue blending.

Important: Appliance should always have lid in place when in use.

Caution: Do not place blender jar onto base when motor is running.

• The lid cap holds up to 2 oz, of liquid and can be used as a measure when adding ingredients such as juices, milk, cream and liquor (E).
• When making bread crumbs, chopping nuts or grinding coffee beans, make sure blender jar is completely dry.

• When using PULSE function, use short bursts. Allow the blades to stop rotating between pulses. Do not use PULSE for more than 2 minutes.

• Use the PULSE/OFF button to begin the blending process when preparing beverages that include ice cubes; this helps to produce a smoother texture.

• The PULSE function is helpful when short bursts of power are needed, such as when preparing thick smoothies or milkshakes, chopping nuts or grinding coffee beans.
• It is helpful to begin the blending process on the lowest speed and then increase to a higher speed, if necessary.
• To stop blending at any time, press the PULSE/OFF button.

• When blending hot ingredients, always open the lid cap and replace it ajar with the opened side away from you. Cover lid with a cloth to avoid splattering and only use the lowest speed. Do not blend more than 212 to 3 cups at a time (F).

DO NOT place any of the following in the blender:

Large pieces of frozen foods

Tough foods such as raw turnips, sweet potatoes and potatoes

Bones

Hard salami, pepperoni

Boiling liquids (cool for 5 minutes before placing in blender jar)

Several other don'ts:

Do not operate blender without the lid on the blender jar.

Do not store foods in the blender jar.

Do not overfill the blender (the blender is more efficient with less rather than more).

Do not put boiling liquids into blender.

Do not use PULSE for more than 10 seconds at a time; release the PULSE/OFF button regularly, allow the blender to rest briefly, then continue.

Do not run blender for longer than 112 minutes at a time. Scrape down sides of blender jar, if necessary, and continue blending.

Do not use if blender jar is chipped or cracked.

Tasks not recommended for the blender:

Whipping cream

Beating egg whites

Mixing dough

Mashing potatoes

Grinding meals

Extracting juice from fruits and vegetables

SELECTING A SPEED

PULSE/OFF Use for thick mixtures

STIR Reconstitute frozen juices, drink mixes and condensed soupsPrepare salad dressingsBlend puddingsPuree hot liquids

AERATE Aerate soups and beverages

PUREE Puree baby foods - fruits and vegetables

CHOP Chop fruits and vegetablesChop cooked meats

BLEND Blend salsaSPrepare saucesRemove lumps from gravies

CLEAN Blend drop of dishwashing liquid and hot water to clean blender

GRATE Grate hard cheeses and vegetablesMake superfine sugar

GRIND Chop nuts, coarse-to-fineGrind coffee beans, spices and chocolateGrind hard cheese, cooked meats and coconut

LIQUEFY Blend protein drinksLiquify frozen drinks; smoothies

SMOOTHIE Blend milk shakes and maltsPrepare smoothies

HI/LOW Select to change speed between Hi and LowHi - the button is outLow - the button is in

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Before cleaning, turn off and unplug the appliance.
2. Lift the jar off the power base by the handle.
3. Remove jar base by turning it counterclockwise until loose.
4. Remove the gasket and the blade assembly.

Caution: Blades are sharp, handle carefully.

1. Remove lid and lid cap.
2. Wash removable parts by hand or in the dishwasher. Place the jar on the bottom rack and the rest of the parts on the top rack only.

Helpful Tip:

• For quick cleanup, combine 1 cup hot water and a drop of liquid dish soap in the blender jar.
  Cover and blend on CLEAN for about 30 seconds.
  Discard liquid and rinse thoroughly.

Important:

• Do not place the jar parts in boiling liquids.
• Do not immerse the base in liquid. Wipe the unit base with a damp cloth and dry thoroughly.
• Remove stubborn spots by rubbing with a damp cloth and nonabrasive cleaner.

Note: If liquids spill onto the power base, wipe with a damp cloth and dry thoroughly. Do not use rough scouring pads or cleansers on blender parts or finish.

TROUBLE SHOOTING
PROBLEM POSSIBLE	CAUSE SOLUTION
Jar bottom does A vacuum has been Place the jar on the not come off of jar. for counterclockwise until jar is released from the bottom.
Liquid is leaking Gas from bottom of jar. or	set is either missing Check that jar is not in place correctly. assembled correctly.
Appliance does Appl not turn on. a working outlet.	ance is not Check that appliance plugged in.	is plugged into
Mixture in blender does not seem to be blending. the food; add some liquid and pulse the mixture to aid in the blending process.	Not enough liquid in mixture being blended or too much ice.	Turn the blender off and use a rubber spatula to redistribute
Herbs or bread are sticking to sides of blender and not getting chopped.	Blender jar, food to be chopped and blade are not dry. are dry.	Always make sure that the jar, the blade and the food to be chopped
Jar separates from bottom when being removed from blender. Liquid not spills onto counter.	Jar was twisted when being removed from base of blender. twist.	When removing jar from blender base, simply lift up; do

RECIPES

WILD BERRY YOGURT COOLER

2 cups pineapple juice

1 cup wild berry frozen yogurt
1 cup frozen cubed mango
1 cup frozen hulled strawberries

Combine all ingredients in order listed in blender jar and close with lid. PULSE for several seconds, three to four times. Press SMOOTHHIE and let cycle run until mixture is smooth and well blended; about 30 seconds.

Makes about 412 cups.

CRAN-PINEAPPLE COLADA

112 cups cran-apple juice
1 cup fresh pineapple chunks
13 cup frozen pina colada drink mix
1 ripe banana, cut into pieces
2 cups ice cubes

In blender jar, combine all ingredients in order listed and close with lid. PULSE several times, for about 5 seconds each time, to blend ingredients and begin crushing ice. Press LIQUEFY and blend until smooth and creamy; about 25 seconds. Serve immediately.

Makes about 3 12 cups.

PEAR BERRY DELIGHT

112 cups pear nectar
1 cup pineapple/passion fruit sorbet
2 cups fresh strawberries
2 cups ice cubes

In blender container, combine all ingredients in order listed. Place lid on jar. PULSE several times, for about 5 seconds each time, to blend ingredients and begin crushing ice. Press LIQUEFY and run until smooth and well blended; about 30 seconds. Turn blender OFF and serve immediately.

Makes about 3 cups.

MANGO RASPBERRY FIZZ

1½ cups pineapple mango juice
1½ cups raspberry sorbet
1 cup frozen sliced peaches

Cold club soda

Mint sprigs

Combine first 3 ingredients in order listed in blender jar. Close cover. PULSE for several seconds, three to four times. Press SMOOTHIE and let run until mixture is smooth and well blended; about 30 seconds.

Fill tall beverage glasses half-full with raspberry mixture; top of with club soda. Stir to blend. Garnish with mint sprig.

Makes 4 to 6 drinks.

BREAKFAST IN A GLASS

1 cup milk

12 cup plain yogurt

½ cup creamy peanut butter

1 banana, cut into pieces

14 cup wheat germ

cuppeanuts

1 tbsp. honey

2 cups ice cubes.

In blender jar, combine all ingredients in order listed. Place lid on jar. PULSE several times, for about 5 seconds each, to blend ingredients and begin crushing ice. Press SMOOTHIE and run until smooth and well blended; about 30 seconds. Turn blender OFF and serve immediately.

Makes about 4 cups.

MANGO AND CORN SALSA

12 cup orange pepper, cut into 34 -inch chunks

12 cup purple onion, cut in 12 -inch pieces

2 to 3 medium jalapes, seeded and quartered

2 large cloves garlic

Juice of 1 lime

112 cups tomato, cubed

1 large mango, cubed

12 cup fresh cilantro leaves

1 cup canned whole kernel corn

In blender jar, combine pepper, onion, jalapenos and garlic. Place lid on jar. PULSE several times, for about 5 seconds each, to chop ingredients. Add lime juice, tomato, mango and cilantro and PULSE several times until vegetables are chopped and mixture is blended. Spoon mixture into bowl; stir in corn. Cover and refrigerate until ready to serve.

Serve with tortilla chips.

Makes about 4% cups.

BALSAMIC TOMATO VINAIGRETTE

1 small purple onion, cut in 14 -inch pieces

2 large cloves garlic

1 small tomato, cut in 34 -inch pieces

3 tbsp. Balsamic vinegar

tsp.salt

_4 tsp. black pepper

2 / 3 cup olive oil

In blender jar, combine onion, garlic and tomato. Place cover on jar. PULSE several times, for about 5 seconds each, to chop ingredients. Add vinegar, salt and pepper. Replace lid on jar; remove lid cap. With blender running on STIR, add oil through opening in a slow, steady stream until mixture is completely blended.

Cover and refrigerate until ready to serve.

Use as dressing for crisp green salad or to marinate cooked vegetables such as asparagus or broccoli.

Makes about 1¼ cups.

PEA AND POTATO BISQUE

1 small onion, chopped

2 medium cloves garlic, minced

2 tbsp. butter or margarine

4 cups chicken broth or stock

2 cups cubed peeled potatoes

_2 tsp. ground ginger

V_2 tsp.salt

% tsp. black pepper

1½ cups frozen peas

14 cup loosely packed parsley leaves

12 cup heavy cream

In medium saucepan, cook onion and garlic in butter over medium heat until lender. Add chicken broth, potatoes ginger, salt and pepper. Bring to boil. Cover and simmer 8 minutes. Add peas and parsley; continue cooking until potatoes are tender. Remove from heat and let stand at least 5 minutes.

Spoon about 212 cups soup mixture into blender jar. Cover and remove lid cap; replace it ajar with open side facing away. Cover lid with cloth. Blend on STIR until creamy and smooth; pour into measuring cup. Repeat with remaining mixture until all is pureed. Return soup to saucepan; stir in cream. Heat, stirring; do not allow bisque to boil.

Serve with a dollop of sour cream, if desired. Garnish with additional chopped parsley.

Makes about 6 12 cups.

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.

• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.

If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

JNECESITA AYUDA?

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO

BLACK&DECKER is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Marca registrada de The Black & Decker Corporation, Towson, Maryland, E.U.

Copyright © 2008 Applica Consumer Products, Inc.

Made in People's Republic of China

Printed in People's Republic of China

Importado por:

APPLICA DE MEXICO, S. DE R. L. DE C. V.

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO
