USER MANUAL EQLP4520IK ELECTROLUX

3.3 OptiHeat Control (3 staps

7. PROBLEEMOPLOSSING

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.RegisterElectrolux.com Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

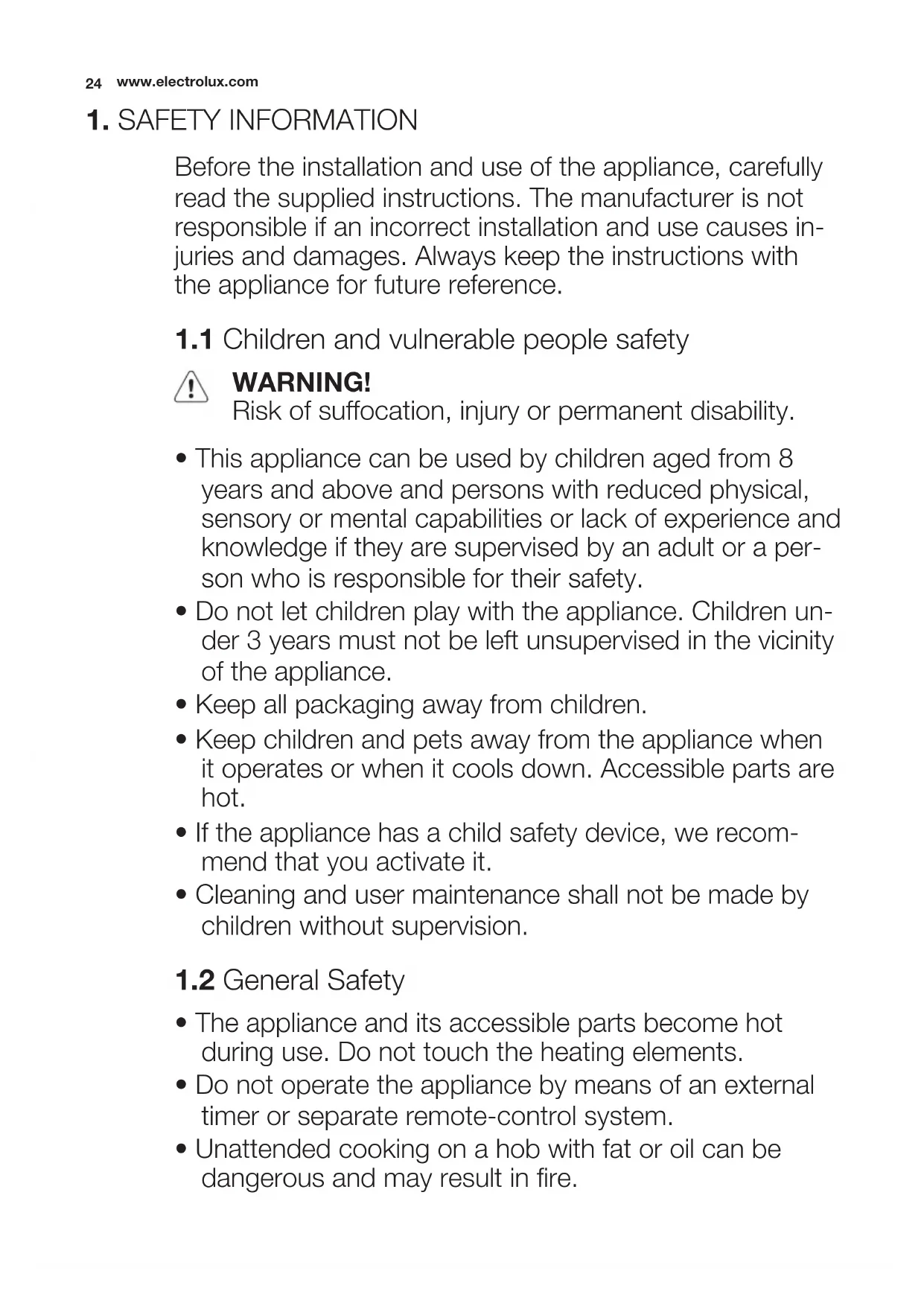

ENGLISH 231. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes in- juries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a per- son who is responsible for their safety.

• Do not let children play with the appliance. Children un- der 3 years must not be left unsupervised in the vicinity of the appliance.

• Keep all packaging away from children.

• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.

• If the appliance has a child safety device, we recom- mend that you activate it.

• Cleaning and user maintenance shall not be made by children without supervision.

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.

• Do not operate the appliance by means of an external timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

www.electrolux.com• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.

• Do not use a steam cleaner to clean the appliance.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• If the glass ceramic surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• After use, switch off the hob element by its control and do not rely on the pan detector.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.

WARNING! Only a qualified person must in- stall this appliance.

• Remove all the packaging.

• Do not install or use a damaged appli- ance.

• Obey the installation instruction sup- plied with the appliance.

• Keep the minimum distance from the other appliances and units.

• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.

• Protect the bottom of the appliance from steam and moisture.

• Do not install the appliance adjacent to a door or under a window. This pre- vents hot cookware to fall from the ap- pliance when the door or the window is opened.

• If the appliance is installed above draw- ers make sure that the space, between the bottom of the appliance and the up- per drawer, is sufficient for air circula- tion.

• Make sure that the ventilation space of 2 mm, between the worktop and the front of the below unit, is free. The war- ranty does not cover damages caused by the lack of an adequate ventilation space.

• The bottom of the appliance can get hot. We recommend to install a non- combustile separation panel under the appliance to prevent access to the bot- tom. Electrical connection WARNING! Risk of fire and electrical shock.

• All electrical connections must be made by a qualified electrician. ENGLISH 25• The appliance must be earthed.

• Before carrying out any operation make sure that the appliance is disconnected from the power supply.

• Make sure the mains cable or plug (if applicable) does not touch the hot ap- pliance or hot cookware, when you connect the appliance to the near sock- ets

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.

• Make sure that a shock protection is in- stalled.

• Use the strain relief clamp on cable.

• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact the Service or an electrician to change a damaged mains cable.

• The electrical installation must have an isolation device which lets you discon- nect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

WARNING! Risk of injury, burns or electric shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.

• Use this appliance in a household envi- ronment.

• Do not change the specification of this appliance.

• Do not let the appliance stay unatten- ded during operation.

• Do not operate the appliance with wet hands or when it has contact with wa- ter.

• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.

• Set the cooking zone to “off” after each use. Do not rely on the pan detector.

• Do not use the appliance as a work surface or as a storage surface.

• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.

• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the ap- pliance is in operation.

• When you place food into hot oil, it may splash. WARNING! Risk of fire or explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.

• The vapours that very hot oil releases can cause spontaneous combustion.

• Used oil, that can contain food rem- nants, can cause fire at a lower temper- ature than oil used for the first time.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance. WARNING! Risk of damage to the appliance.

• Do not keep hot cookware on the con- trol panel.

• Do not let cookware to boil dry.

• Be careful not let objects or cookware fall on the appliance. The surface can be damaged.

• Do not activate the cooking zones with empty cookware or without cookware.

• Do not put aluminium foil on the appli- ance.

• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass or glass ceram- ic. Always lift these objects up when you have to move them on the cooking surface.

www.electrolux.com2.3 Care and Cleaning WARNING! Risk of damage to the appliance.

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal ob- jects.

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for in- formation on how to discard the appli- ance correctly.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

Induction cooking zone

Induction cooking zone

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. sensor field function

To activate and deactivate the appliance.

To lock / unlock the control panel.

To activate and deactivate the Bridge function.

Heat setting display To show the heat setting.

Timer indicators of cooking zones To show for which of the cooking zones you set the time.

To show that the CountUp Timer function operates.

To increase or decrease the time.

To set the cooking zone.

Control bar To set the heat setting.

3.2 Heat setting displays

Display Description The cooking zone is deactivated.

The cooking zone operates. The function operates. The Automatic Heat Up function operates. Power function operates. + digit There is a malfunction.

OptiHeat Control (3 step Residual heat indicator) : contin- ue cook / stay warm / residual heat. Lock / The Child Safety Device operates. Not correct cookware or too small or no cookware on the cooking zone. The Automatic Switch Off function operates.

3.3 OptiHeat Control (3 step

Residual heat indicator) WARNING! \ \ The risk of burns from residual heat! OptiHeat Control shows the level of the residual heat. The induction cooking zones make the heat necessary for cook- ing directly in the bottom of the cookware. The glass ceramic is hot from the heat of the cookware.

4.1 Activation and deactivation

Touch for 1 second to activate or de- activate the appliance.

All cooking zones are deactivated (

• You do not set the heat setting after you activate the appliance.

• You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth, etc.). An acoustic signal sounds some time and the appliance deactivates. Remove the object or clean the control panel.

• The appliance becomes too hot (e.g. when, a saucepan boils dry). Before you use the appliance again, wait for the cooking zone to cool down.

• You use incorrect cookware. The sym- bol comes on and the cooking zone deactivates automatically after 2 mi- nutes.

• You do not deactivate a cooking zone or change the heat setting. After some time comes on and the appliance deactivates. See below.

• The relation between heat setting and times of the Automatic Switch Off func- tion:

4.3 The heat setting

Touch the control bar at the heat setting. Move your finger along the control bar to change the setting. Do not release before you have a correct heat setting. The dis- play shows the heat setting.

The Bridge function connects two cook- ing zones and they operate as one. First set the heat setting for one of the cooking zones. To activate the Bridge function touch

To set or change the heat setting touch one of the control sensors. To deactivate the Bridge function touch . The cooking zones operate inde- pendently. When you use only one cooking zone of the pair we recommend that you use the rear cooking zone. Also when you use large cookware we recommend that you put it near to the rear cooking zone.

4.5 Automatic Heat Up

You can get a necessary heat setting in a shorter time if you activate the Automatic Heat Up function. This function sets the highest heat setting for some time (see the diagram), and then decreases to the necessary heat setting. To start the Automatic Heat Up function for a cooking zone:

Touch ( comes on in the dis- play).

Immediately touch the necessary heat setting. After 3 seconds comes on in the display. To stop the function change the heat set- ting. ENGLISH 291

The Power function makes more power available to the induction cooking zones. The Power function can be activated for a limited period of time ( see Technical In- formation chapter). After that, the induc- tion cooking zone automatically sets back to highest heat setting. To activate, touch , comes on. To deactivate, change the heat setting.

4.7 Power management

The power management divides the pow- er between two cooking zones in a pair (see the illustration). The power function increases the power to the maximum level for one cooking zone in the pair. The power in the second cooking zone auto- matically decreases. The heat setting dis- play for the reduced zone changes be- tween two levels.

The Count Down Timer. Use the Count Down Timer to set how long the cooking zone operates for only this one time. Set the Count Down Timer after the selection of the cooking zone. The selection of Timer function is possible for cooking zones that are active and the heat setting is set.

To set the cooking zone: touch again and again until the indicator of a necessary cooking zone comes on. When this function is activated, comes on.

• To activate the Count Down Timer: touch of the timer to set the time (

minutes). When the indicator of the cooking zone starts to flash slow, the time counts down.

• To see the remaining time: set the cooking zone with . The indicator of the cooking zone starts to flash quickly. The display shows the remaining time.

To change the Count Down Tim- er:set the cooking zone with touch or .

• To deactivate the Count Down Time: set the cooking zone with

Touch . The remaining time counts back to

. The indicator of the cook- ing zone goes out. When the timer countdown comes to an end, the sound operates and

To deactivate the sound: touch The Count up timer Use the Count up timer to monitor how long the cooking zone operates.

The selection of the cooking zone (if more than 1 cooking zone oper- ates) : touch again and again until the indicator of a necessary cooking zone comes on.

www.electrolux.comWhen this function is activated, comes on.

• To activate the Count up timer: Touch The symbol goes out and comes on.

To see how long the cooking zone operates:set the cooking zone with . The indicator of the cooking zone starts to flash quickly. The display shows the time that the zone operates. The display shows the time of the cooking zone that operates for longer period of time.

To deactivate the Count up timer: set the cooking zone with and touch or to deactivate the timer. the symbol goes out and comes on. When the two Timer functions op- erate at the same time, the display shows the Count Up Timer first. The Minute minder. You can use the timer as a minute mind- er while the cooking zones do not oper- ate. Touch

Touch or of the timer to set the time. When the time comes to an end, the sound operates and

To stop the sound: touch

The function sets all cooking zones that operate to the lowest heat setting (

When operates, you cannot change the heat setting. The function does not stop the timer function.

The symbol comes on.

To deactivate this function touch . The heat setting that you set before comes on.

When the cooking zones operate, you can lock the control panel, but not . It prevents an accidental change of the heat setting. First set the heat setting. To start this function touch . The sym- bol comes on for 4 seconds. The Timer stays on. To stop this function touch . The heat setting that you set before comes on. When you stop the appliance, you also stop this function.

4.11 The Child Safety Device

This function prevents an accidental oper- ation of the appliance. To activate The Child Safety Device

Activate the appliance with . Do not set the heat settings.

Touch for 4 seconds. The symbol comes on.

Deactivate the appliance with

To deactivate The Child Safety Device

Activate the appliance with . Do not set the heat settings. Touch for 4 seconds. The symbol comes on.

Deactivate the appliance with . To override The Child Safety Device for only one cooking time

Activate the appliance with . The symbol comes on.

Touch for 4 seconds. Set the heat setting in 10 seconds. You can oper- ate the appliance.

• When you deactivate the appliance with , The Child Safety Device operates again.

4.12 OffSound Control

(Deactivation and activation of the sounds) Deactivation of the sounds Deactivate the appliance. Touch for 3 seconds. The displays come on and go out. Touch for 3 sec- onds. comes on, the sound is on. Touch , comes on, the sound is off. When this function operates, you can hear the sounds only when: ENGLISH 31• you touch

• the Minute Minder comes down

• the Count Down Timer comes down

• you put something on the control panel. Activation of the sounds Deactivate the appliance. Touch for 3 seconds. The displays come on and go out. Touch for 3 sec- onds. comes on, because the sound is off. Touch , comes on. The sound is on.

For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.

5.1 Cookware for induction

cooking zones Use the induction cooking zones with correct cookware. Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, the bottom made of multi-layer (with correct mark from a manufacturer).

• not correct: aluminium, copper, brass, glass, ceramic, porcelain. Cookware is correct for an induction hob if …

• ... some water boils very quickly on a zone set to the highest heat setting..

• ... a magnet pulls on to the bottom of the cookware. The bottom of the cookware must be as thick and flat as possi- ble.

5.2 Use of the cooking zones

IMPORTANT Put the cookware on the cross which is on the surface that you cook. Cover the cross fully. The magnetic part of the bot- tom of the cookware must be 125 mm minimum. Induction cooking zones adapt to the dimension of the bottom of the cookware automatically. You can cook with the large cookware on two cooking zones at the same time.

5.3 The noises during operation

• crack noise: cookware is made of dif- ferent materials (Sandwich construc- tion).

• whistle sound: you use one or more cooking zones with high power levels and the cookware is made of different materials (Sandwich construction).

• humming: you use high power levels.

• clicking: electric switching occurs.

• hissing, buzzing: the fan operates. The noises are normal and do not re- fer to appliance malfunction.

• If it is possible, always put the lids on the cookware.

• Put cookware on a cooking zone be- fore you start it.

• Use the residual heat to keep the food warm or to melt it. The cooking zone efficiency The cooking zone efficiency is related to the diameter of the cookware. The cook- ware with a smaller diameter than the minimum receives only a part of the pow- er generated by the cooking zone. For the minimum diameters see the Technical In- formation chapter.

www.electrolux.com5.5 Öko Timer (Eco Timer) To save energy, the heater of the cooking zone deactivates before the count down timer sounds. The difference in the operation time depends on the heat setting level and the length of the cooking op- eration.

5.6 The Examples of cooking

applications The relation between the heat setting and the cooking zone consumption of power is not linear. When you increase the heat setting it is not proportional to the increase of the cooking zone consumption of power. It means that the cooking zone with the medium heat setting uses less than a half of its power. The data in the table is for guid- ance only.

Keep warm the food you cooked as required Put a lid on a cook- ware 3 %

5 - 25 min Mix from time to time 3 – 8 %

Solidify: fluffy ome- lettes, baked eggs

Simmer rice and milk- based dishes, heating up ready-cooked meals

25 - 50 min Add the minimum

twice as much liquid as rice, mix milk dishes part proce- dure through 8 – 13 %

Steam vegetables, fish, meat

Cook larger quantities of food, stews and soups

Gentle fry: escalope, veal cordon bleu, cut- lets, rissoles, saus- ages, liver, roux, eggs, pancakes, doughnuts as necessa-

Turn halfway through 25 – 45 %

5 - 15 min Turn halfway through 45 – 64 %

Use to: Time Hints Nominal power consump- tion 14 Boil water, cook pasta, sear meat (goulash, pot roast), deep- fry chips 100 % Boil large quantities of water. Power function is activated.

6. CARE AND CLEANING

Clean the appliance after each use. Always use cookware with clean bottom. Scratches or dark stains on the glass-ceramic cause no effect on how the appliance operates. To remove the dirt:

• –Remove immediately: melted plas- tic, plastic foil, and food with sugar. If not, the dirt can cause damage to the appliance.

Remove after the appliance is sufficiently cool: limescale rings , water rings, fat stains, shiny metallic discolorations. Use a special cleaning agent for glass ceramic.

• The surface of the hob has horizontal grooves. Clean the appliance with a moist cloth and some detergent with a smooth movement from left to right.

• At the end rub the appliance dry with a clean cloth.

Problem Possible Remedy You cannot activate the appliance or operate it. Activate the appliance again and set the heat setting in less than 10 seconds. You touched 2 or more sensor fields at the same time. Touch only one sensor field. The STOP+GO function operates. Refer to the chapter “Dai- ly use”. There is water or fat stains on the control pan- el. Clean the control panel. An acoustic signal sounds and the appliance deactivates. An acoustic signal sounds when the appli- ance is deactivated. You put something on one or more sensor fields. Remove the object from the sensor fields.

www.electrolux.comProblem Possible Remedy The appliance deacti- vates. You put something on the sensor field

Remove the object from the sensor field. The residual heat indica- tor does not come on. The cooking zone is not hot because it operated only for a short time. If the cooking zone oper- ated sufficiently long to be hot, speak to the serv- ice centre. The Automatic Heat Up function does not oper- ate. The cooking zone is hot. Let the cooking zone be- come sufficiently cool. The highest heat setting is set. The highest heat setting has the same power as the Automatic Heat Up function. The heat setting changes between two levels. The Power management is activated. Refer to “Power manage- ment”. The sensor fields become hot. The cookware is too large or you put it too near to the controls. Put large cookware on the rear cooking zones if necessary. There is no signal when you touch the panel sen- sor fields. The signals are deactiva- ted. Activate the signals (refer to “OffSound control”). comes on. The Automatic Switch Off operates. Deactivate the appliance and activate it again. comes on. The Child Safety Device or the Lock function op- erates. Refer to the chapter “Dai- ly use”. comes on. No cookware is on the cooking zone. Put cookware on the cooking zone. The cookware is incor- rect. Use the correct cook- ware. The diameter of the bot- tom of the cookware is too small for the cooking zone. Use cookware with cor- rect dimensions. The cookware does not cover the square / cross. Cover the square / cross fully. and a number come on. There is an error in the appliance. Disconnect the appliance from the electrical supply for some time. Discon- nect the fuse from the electrical system of the house. Connect it again.

comes on again, speak to the service cen- tre. ENGLISH 35Problem Possible Remedy comes on. The electrical connection is incorrect. The supply voltage is out of range. Speak to a qualified elec- trician to check the instal- lation. comes on. There is an error in the appliance because a cookware boils dry. The overheating protection for the cooking zones and the Automatic Switch Off operate. Deactivate the appliance. Remove the hot cook- ware. After approximately 30 seconds, activate the cooking zone again. If the cookware was the prob- lem, the error message goes out of the display, but the residual heat indi- cator can stay. Let the cookware become suffi- ciently cool and refer to “Cookware for the induc- tion cooking zone” to see if your cookware is com- patible with the appli- ance. The cooling fan is blocked. Check if objects block the cooling fan. If the error message comes on again, speak to the serv- ice center. comes on. The electrical connection is incorrect. The appli- ance is connected only to one phase. Connect the appliance as you see it on the connec- tion illustration. If you tried the above solutions and can- not repair the problem, speak to your dealer or the customer service. Give the data from the rating plate, three digit letter code for the glass ceramic (it is in the cor- ner of the glass surface) and an error message that comes on. Make sure, you operated the appliance correctly. If not the servicing by a custom- er service technician or dealer will not be free of charge, also during the warranty period. The instructions about the cus- tomer service and conditions of guarantee are in the guarantee booklet.

WARNING! Refer to the Safety chapters. Before the installation Before the installation of the appliance, re- cord the information below from the rating plate. The rating plate is on the bottom of the appliance casing.

8.1 Built-in appliances

• Only use the built-in appliances after you assemble the appliance into correct built-in units and work surfaces that align to the standards.

• The appliance is supplied with the con- nection cable.

• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90°C; or higher). Speak to your local Service Centre.

8.3 To attach the seal.

• Clean the worktop in the area of the cut out section.

• Bond the seal stripe supplied on the lower edge of the appliance along the outer edge of the glass ceramic. Do not extend it. Let stay the cut ends in the middle of one side. When, you cut it to length (add some mm), push the two ends together.

8.5 The installation of more than one appliance

Added parts:connection bar(s), heat re- sistant silicon, rubber shape, sealing strap. Only use special a heat - resistant silicon. 580 mm520 mm490 mm360 mm 20 mm 920 mm The worktop cut out Distance from the wall : minimum 50 mm Depth : 490 mm Width : sum widths of all the appliances to be built-in and subtract 20 mm (see al- so "Overview of all appliance widths" ) The installation of more than one appli- ance

Put down the dimension of the work- top cut out and saw it out.

Put the appliances one at time on some soft surface, a blanket for ex- ample, with the bottom side up.

Put the seal stripe around the lower edge of the appliance along the outer edge of the glass ceramic.

Loosely screw the fixing plates into the appropriate holes in the protec- tive casing.

www.electrolux.com5. Put the first appliance in the worktop cut out. Put the connection bar in the worktop cut out and push up half of the width against the appliance.

Loosely turn in fixing plates from be- low on the worktop and on the con- nection bar.

Put the subsequent appliance in the worktop cut out . Make sure that the front ends of the appliances are on the same level.

Tighten the fixing plate / retaining grip screws.

Seal the gap between the worktop and appliances and between applian- ces with silicone.

Put some soapy water on the silicon.

Press the rubber shape with some strength against the glass ceramic and move it slowly along the space.

Do not touch the silicon until it be- come hard, it can last about a day.

Carefully remove silicon that came out with a shaving blade.

Clean glass ceramic fully.

Standard Guarantee Conditions and Exclusions.To see our guarantee condi- tions and exclusions please visit www.electrolux.co.uk or contact our Cus- tomer Care Department. Service & Spare Parts. Please contact your local Service Force Centre on; 08445 616616 (Your call will automatically be routed to your local centre) For the ad- dress of your local centre please visit; www.electrolux.co.uk Please ensure you read the information under ‘What to do if’ in your instruction booklet before contact- ing us for service. Servicing and/ or instal- lation of your product, including electrical connections and water connections should be carried out by a suitably quali- fied engineer. In the user manual and on our web site, www.electrolux.co.uk you will find some useful information on how to deal with minor faults and how to take care of your product. When contacting us for Service please ensure that you have your purchase receipt and the following information available: Model No...................................... Serial No.................................... Product No.................................... Purchase Date:............................ Customer Care. Please contact Electro- lux Major Appliances, Addington Way, Lu- ton, Bedfordshire, LU4 9QQ Electrolux : 08445 613613 Republic of Ireland: For Customer Care or Service please contact us at the follow- ing address, Electrolux Group(Ir) Ltd, Long Mile Rd, Dublin 12, Republic of Ire- land. Tel No. +353 (0) 1 4090751, E mail; service.eid@electrolux.ie Through our website you can get more help and download user manuals. Regis- ter your product and get easy access to more helpful information about your prod- uct: www.RegisterElectrolux.com

11. ENVIRONMENT CONCERNS

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
