46220 - Barbecue KORONA - Free user manual and instructions

Brand	KORONA
Model	46220
Category	Electric barbecue on legs
Product type	Electric grill with water tray
Power supply	220-240 V ~ 50/60 Hz
Water tray capacity	0.4 to 0.9 L (MAX level)
Main material	Painted steel with anti-corrosion coating
Heating element type	Sheathed resistance with protective coating
Temperature adjustment	Adjustable thermostat from MIN to MAX with indicator light
Adjustable grill height	2 positions: high and low
Safety device	Safety switch cuts power if housing is twisted
Windshield	Included, reduces heat loss
Storage rack	Integrated into legs for accessories
Usage	Ventilated room or protected outdoor
Cleaning	Tray and grill washable with soapy water; never immerse the appliance
Warranty	2 years against material and manufacturing defects
Assembly	Legs and grill to be assembled before use
Accessories included	2 silicone sleeves, screws and nuts
Estimated number of people	4 to 6 people
Approximate weight	8 kg (estimation)

Frequently Asked Questions - 46220 KORONA

How to assemble the legs of the Korona 46220 barbecue?

Assemble the legs by inserting the long and short tubes into the metal plates, forming a trapezoidal frame. Fix with the provided screws and nuts. Then, push in the rubber caps and place the storage rack. For more details, refer to the Leg Assembly section of the manual.

How much water should I put in the drip tray?

Fill the removable drip tray with 0.4 L to 0.9 L of water, without exceeding the MAX mark. Never operate the appliance without water, as this would damage the heating element.

Can I use the barbecue indoors?

Yes, provided the room is well ventilated, as cooking may produce smoke. Avoid flammable surfaces (tablecloths, curtains) and place the appliance on a stable, heat-resistant surface.

How to clean the barbecue after use?

Unplug the appliance and let it cool down. Remove the drip tray and grill, and wash them with warm water and a mild detergent. Never immerse the barbecue body. Wipe the exterior with a damp cloth.

What to do if the appliance does not heat up?

Check that the water tray is properly in place and that the safety switch is not activated (the housing must not be twisted). Make sure the plug is properly connected and the outlet works. If the problem persists, contact Korona customer service.

Can I use metal utensils on the grill?

Avoid sharp or pointed metal utensils that could scratch the coating. Preferably use wooden or silicone tongs to handle food.

How to adjust the cooking temperature?

Turn the temperature control knob to the desired position between MIN and MAX. The built-in thermostat maintains a constant temperature. The indicator light turns on and off during the heating cycle.

Why does the indicator light turn on and off?

This is normal: the thermostat regulates the temperature. The light turns on when the heating element heats up and turns off when the set temperature is reached. This ensures even cooking.

How to store the barbecue after use?

Clean it and dry it thoroughly. Store it in a clean and dry place, out of reach of children. You can use the storage rack to store accessories.

Where can I find spare parts or after-sales service?

Contact Korona Service at: Am Steinbach 9, 59872 Meschede-Enste, Germany. Phone: [phone], email: [e-mail]. The warranty is 2 years on material defects.

USER MANUAL 46220 KORONA

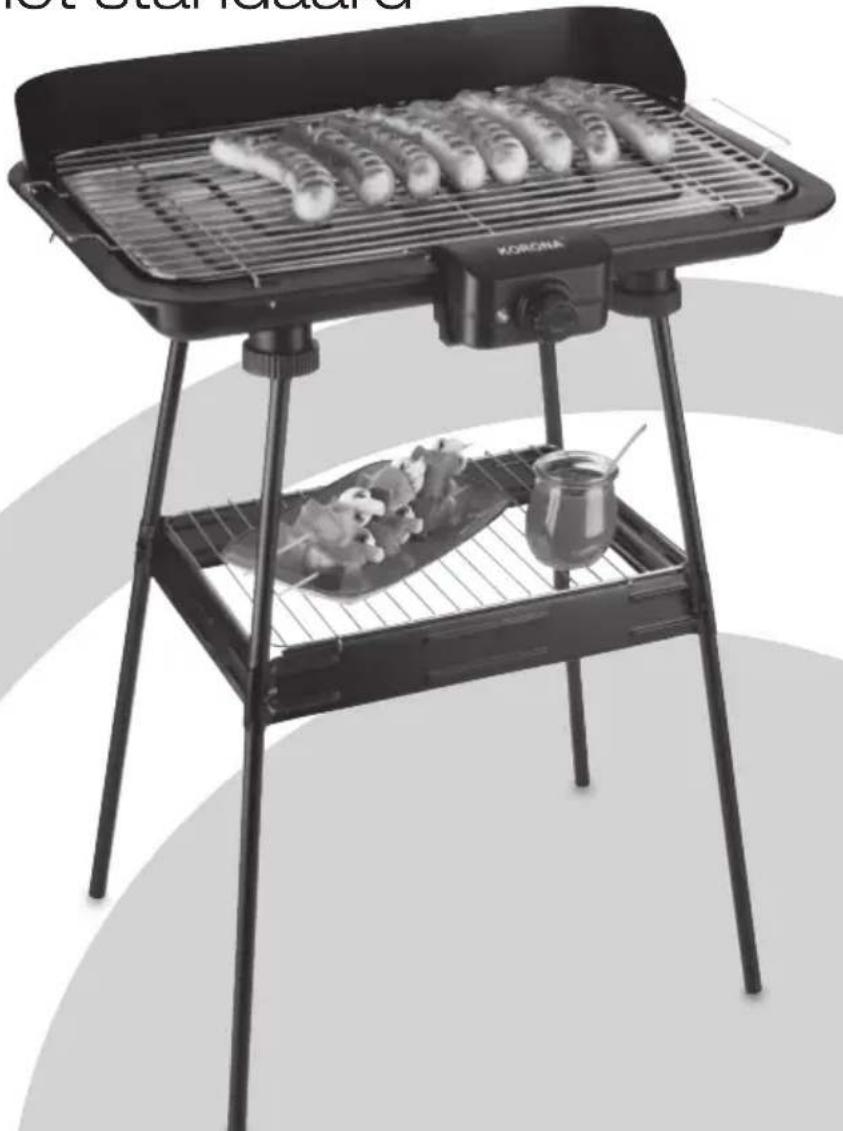

Barbecue grill with stand

Dutch

Handleiding

Black-and-white photo of a plated dish with lettuce, bread, and sliced vegetables (no text or symbols visible)

Black outdoor grill setup with grating and meatballs, no visible text or symbols

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Exploded view diagram of a refrigerator with numbered parts for identification and assembly reference.

Close-up of a mechanical device with a black component and cable, no visible text or symbols

Labeled diagram of a mechanical component with numbered parts for identification

3D rendering of a rectangular metal grate with vertical slats, labeled with number 5 (no text or symbols on the grate itself)

Vor Erstgebrauch

Close-up of a metal mechanical component with bolt holes and a dashed line indicating alignment (no text or symbols)

Langes Metallrohr

Close-up of a hand holding a metal pipe fitting with a circular hole, no visible text or symbols

Exterior view of a metal truss structure with ribbed metal panels (no text or symbols visible)

Two views of a metal bracket with vertical supports, shown from different angles (no text or symbols visible)

Close-up of a finger pressing a black cylindrical component with a dashed arrow indicating a step (no text or symbols visible)

Close-up of a metal shelving unit with slatted panels and a vertical rod (no text or symbols visible)

Black metal grate with slatted top and vertical legs (no text or symbols visible)

Close-up of a mechanical component with a downward arrow indicating motion or force, no visible text or symbols

Close-up of a car door panel with a tool and arrow pointing to a dashed line (no text or symbols visible)

Close-up of a metallic tool with a curved tip and a separate flat strip, no text or symbols visible.

Close-up of a mechanical component with a circular hole and a metallic knob, shown from two angles (no text or symbols visible)

Close-up of a car hood with a mesh grille and two circular annotations highlighting specific components (no text or symbols present)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended and suitable for broiling foods. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

caused by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall

supervised.

before cleaning.

surfaces to avoid any damage to the appliance.

cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

modifications to or repair the appliance yourself.

Special Safety Instructions

To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

described in this manual.

Do not place it on top of a metal surface.

exchange accessories or clean it.

the drip pan of the housing enclosure

(0.9L) filling mark inside the housing enclosure

When filling up, make sure not to splash water onto the heating element.

burns from hot water!

the protected control panel area to set the cooking temperature. When handling food on the grill always use tongs, spatulas or forks. Never touch the heating element with these utensils! Danger of serious burns!

gas sources.

appliance.

objects, e.g. table cloth, curtains, wall cabinets.

easily ignite and catch fire.

indoors, as smoke may develop.

assembled! When the heating element is detached from the barbecue, never connect it to the mains. Danger of serious burns!

an integrated safety switch (see photo underneath). Fixing the heating element to the barbecue enclosure's sheet metal activates this switch. Should the enclosure be bent, the safety switch might not be able to operate, i.e. the appliance would not heat. If necessary, adjust sheet metal manually.

resetting of the thermal cut out, this appliance must not be supplied through an external switching device, such as an external timer, or connected to a circuit that is regularly switched on and off by the utility.

Exploded view diagram of a smart appliance with numbered parts for identification

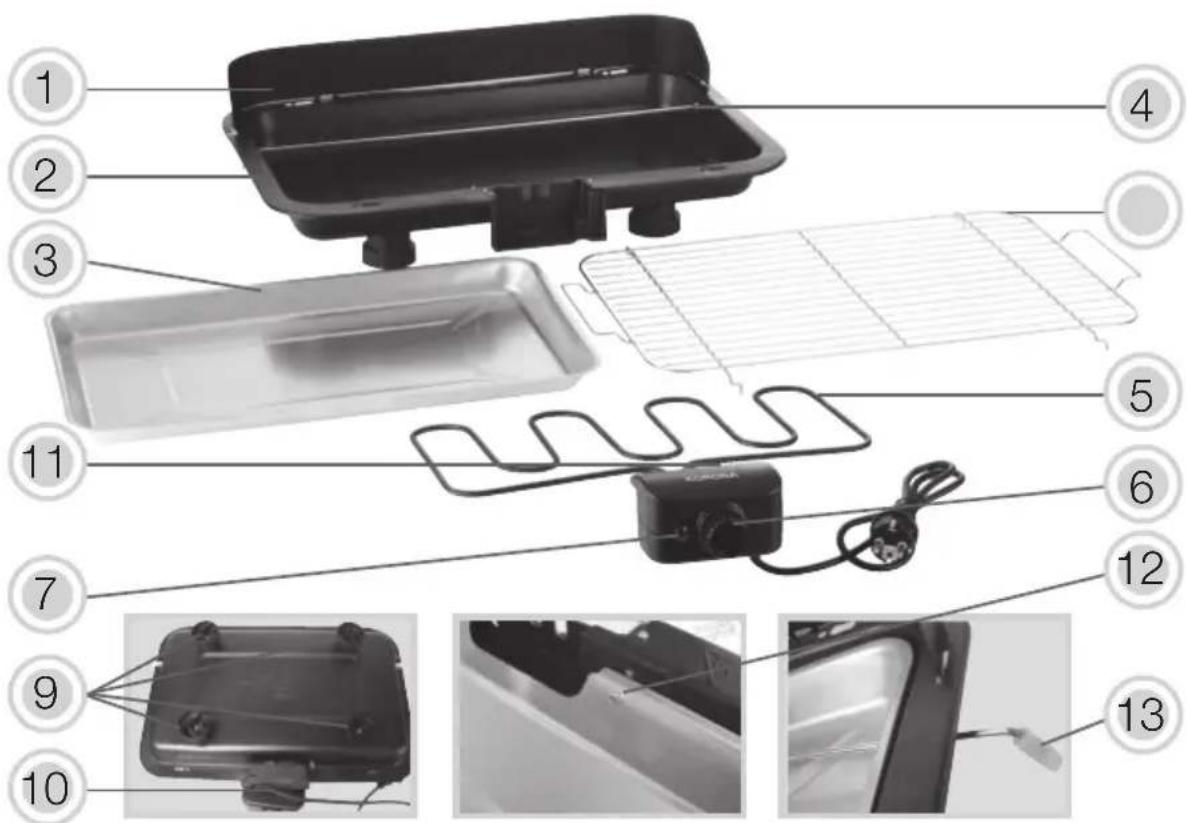

Product Description

1. Detachable windshield
2. Barbecue enclosure (housing)
3. Removable drip tray
4. Stabilizer bar for heating element and drip tray

5. Heating element

6. Indicator light

7. 4 rubber feet (rear side)

8. Power cord and plug

9. Safety switch

10. Silicone protection sleeve (x2)

Temperature control knob/Thermostat:

-MIN

MIN MAX

During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the indicator light cycling on and off.

Windshield

When using the barbecue outside, the windshield can help to avoid heat loss owing to strong wind and thus prolonged cooking times.

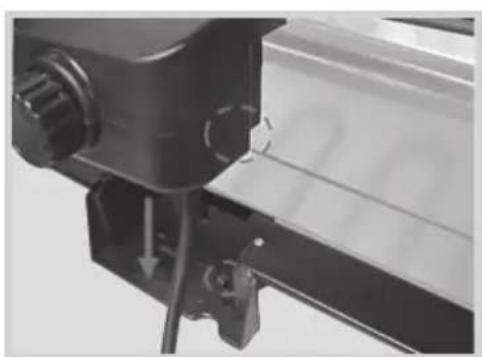

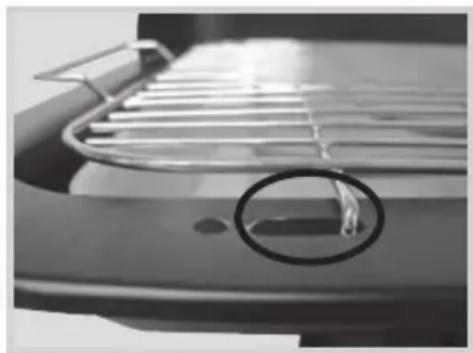

Safety Switch

Close-up of a mechanical assembly with a black component and white panel, showing no visible text or symbols.

Note: The Safety switch ensures that the heating element will only start the heating process, once it is properly sitting on the barbecue enclosure!

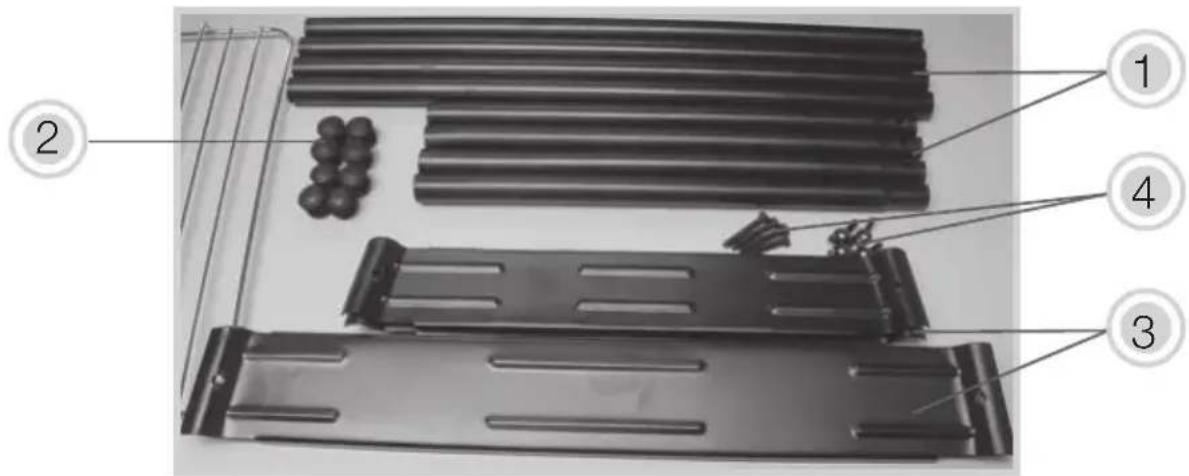

Stand

1. Legs (long metal poles (4x) / short metal poles (4x))

2. Rubber caps (8x)

3. Metal plates (long (2x), short(2x))
4. Screw and nuts (4x)

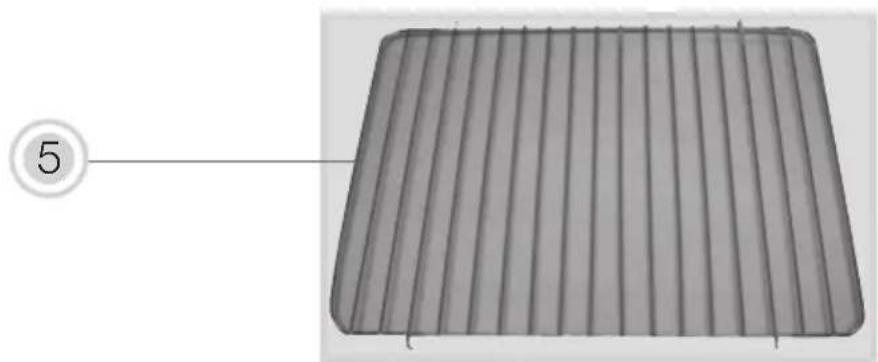

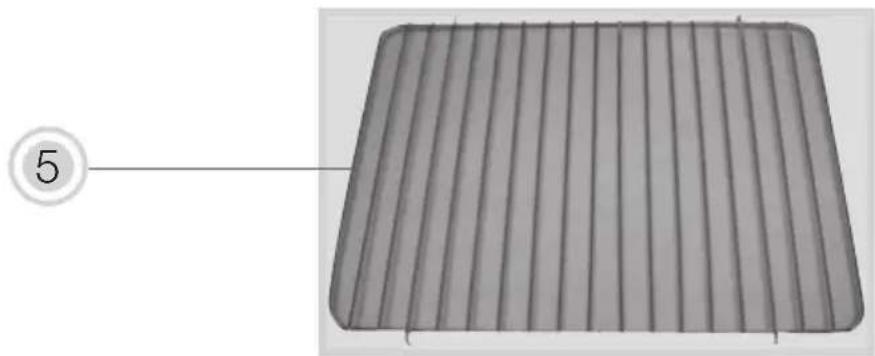

5. Storage rack

Labeled diagram of a mechanical component with numbered parts for identification

3D rendering of a rectangular metal grate with parallel grooves, labeled with number 5 (no text or symbols on the grate itself)

Before First Use

appliance is complete.

resistant surface.

a properly installed wall socket.

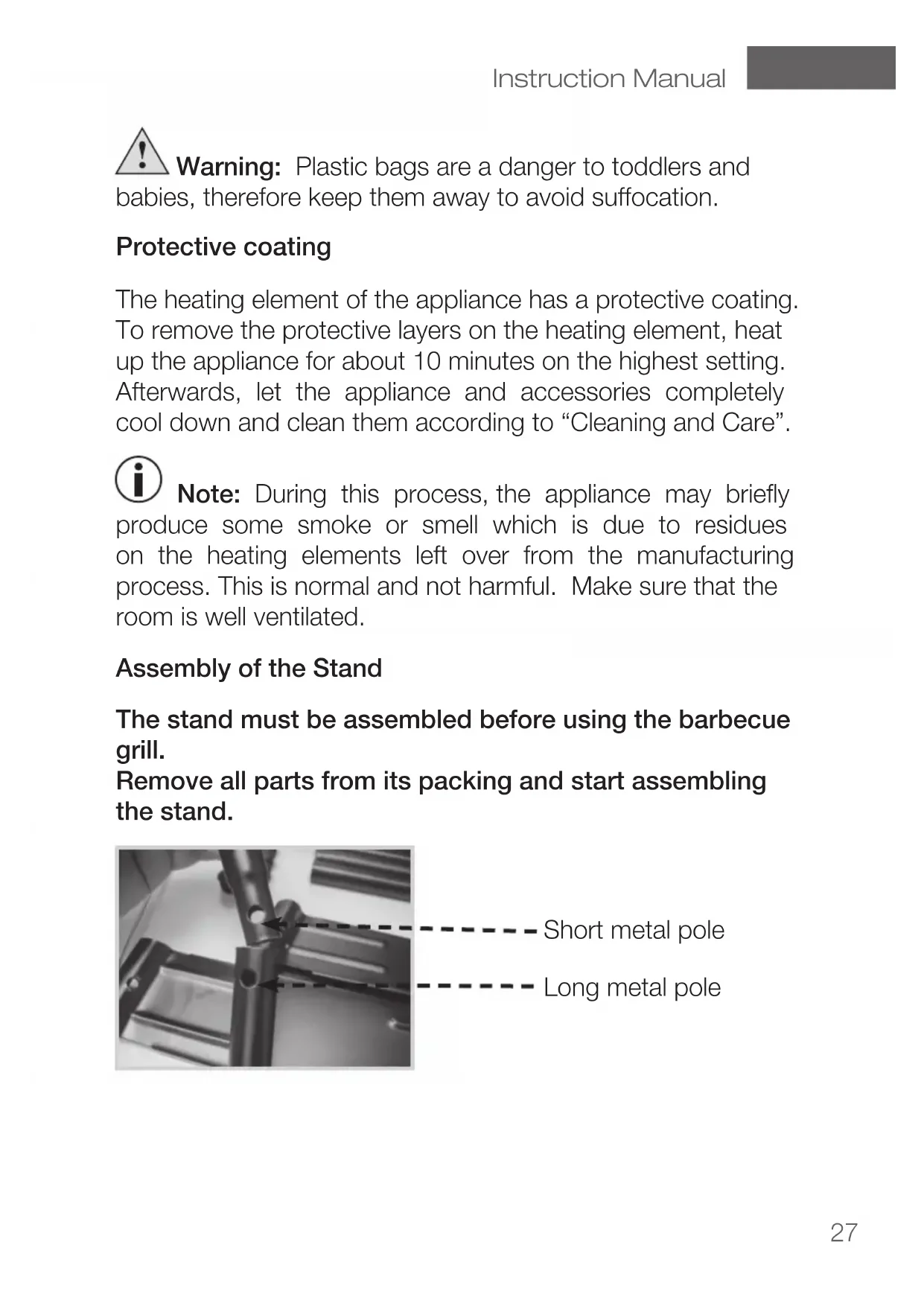

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Protective coating

The heating element of the appliance has a protective coating. To remove the protective layers on the heating element, heat up the appliance for about 10 minutes on the highest setting. Afterwards, let the appliance and accessories completely cool down and clean them according to “Cleaning and Care”.

Note: During this process, the appliance may briefly produce some smoke or smell which is due to residues on the heating elements left over from the manufacturing process. This is normal and not harmful. Make sure that the room is well ventilated.

Assembly of the Stand

The stand must be assembled before using the barbecue grill.

Remove all parts from its packing and start assembling the stand.

Close-up of a metal bracket with a dashed line indicating alignment or alignment (no text or symbols visible)

Short metal pole

Long metal pole

Close-up of a hand holding a metal mechanical component with a circular hole, no visible text or symbols

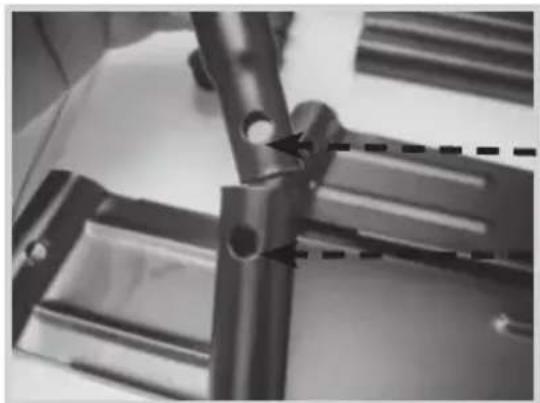

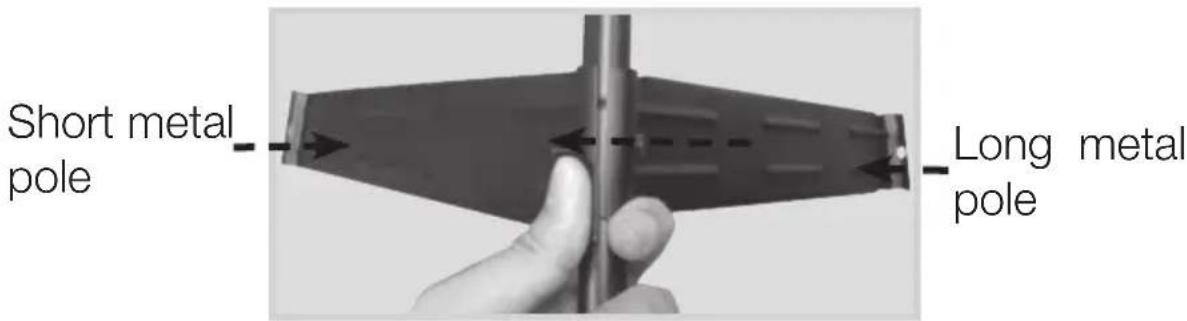

1. Take the metal poles (1) and insert the long pole (1) into the short pole (1). Make sure that the holes of both poles (1) are aligned. The shorter metal pole (1) should be facing upwards towards the grill unit.

Short metal pole Long metal pole

1. Attach the legs (metal poles) (1) of the stand to the metal plates (3).

plates (3) over the holes of the metal poles (1) and insert the screw (4).

The long metal plates (3) should be attached to the front and the short metal plates (3) should be attached to the sides of the stand.

Close-up of a black metal truss structure with a vertical rod and flange (no text or symbols visible)

Two views of a metal bracket with vertical rods, shown from different angles (no text or symbols visible)

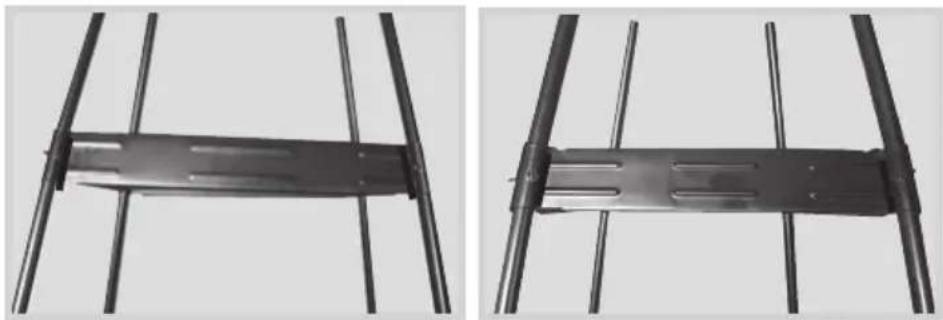

Note: The mounted stand has a trapezoidal shape. The narrow side is facing upward.

Close-up of a finger pressing a small cylindrical object with serrated edges (no text or symbols visible)

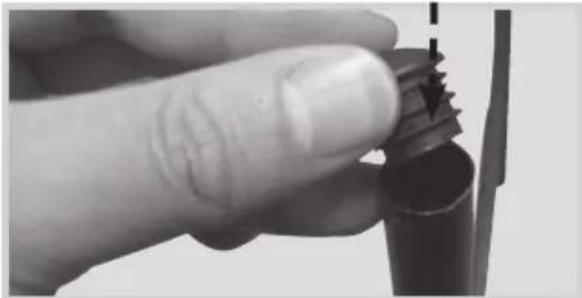

1. Insert the rubber caps (2) into each opening of the assembled leg (1).

Close-up of a metal grate with slatted edges and a small object on top (no text or symbols visible)

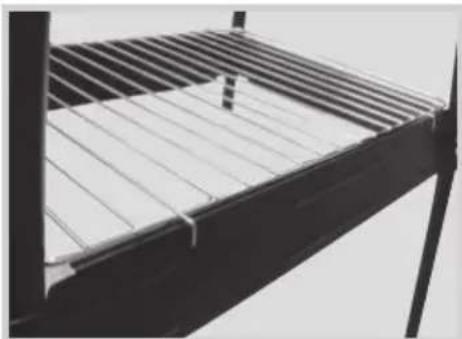

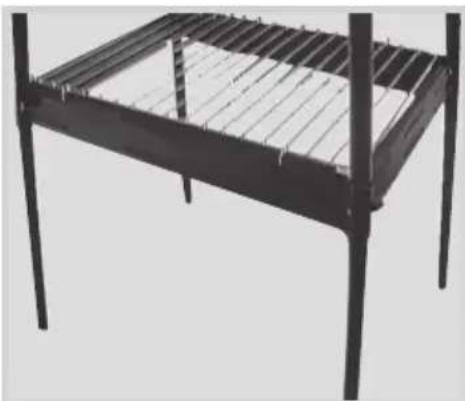

1. Insert the storage rack.

Black metal fence structure with slatted top and vertical supports (no text or symbols)

1. The stand is now fully assembled.

Assembly of the Grill

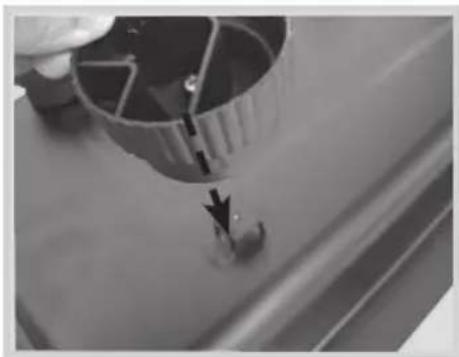

1. Attach the 4 rubber feet (9) to appliance (rear side).

Close-up of a mechanical component with a downward arrow indicating a process (no visible text or symbols)

1. Attach the windshield (1) by inserting the prongs into the respective openings of the housing (2). Make sure to properly secure it.

enclosure (housing) (2).

Close-up of a white kitchen sink with a lid and metal utensils (no visible text or symbols)

Close-up of a metallic tool tip with a separate rectangular object beside it (no text or symbols visible)

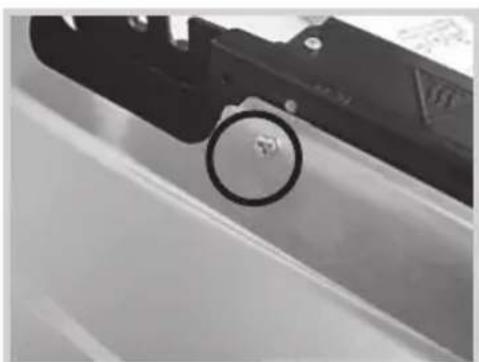

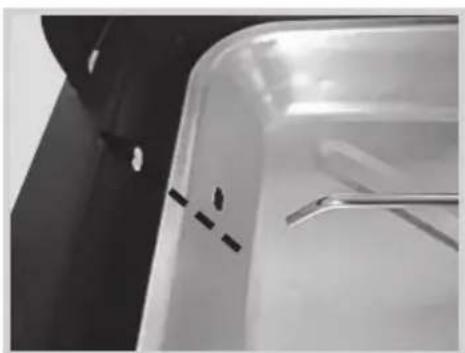

1. Insert the stabilizer bar (4) for the heating element (5) through the holes of the drip tray (3) and the barbecue enclosure (housing) (2) and secure it with the supplied screw and nut (12).

Close-up of a mechanical component with a circular hole and a small hole, no visible text or symbols

Close-up of a mechanical component with a circular hole and metallic pins (no visible text or symbols)

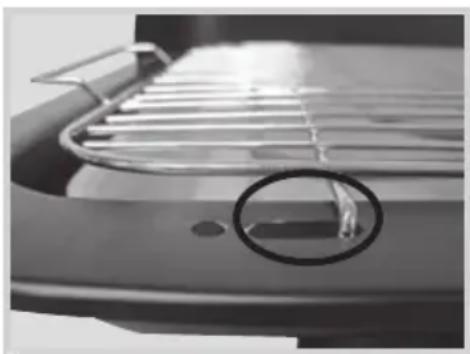

1. Insert the two prongs of the heating element (5) into the drilling holes of the appliance housing (2). Make sure when inserting the thermostat (6) that it is properly positioned into the guides on both sides and press it down firmly until it clicks into place.

make sure that it is properly secured. The height of the grill rack is adjustable: High or Low.

Close-up of a car's front grille with a circular highlight on the grille (no text or symbols visible)

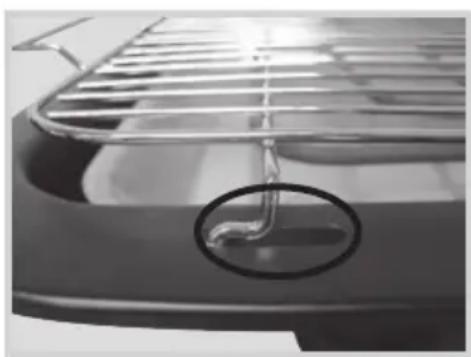

Higher Level

Close-up of a grater with a circular mark highlighting a small object on the surface (no text or symbols visible)

Lower level

Operation

Always make sure to fill water into the drip pan of the barbecue enclosure (2) before operating the appliance. The removable drip tray (3) will be placed on top, after the drip pan of the barbecue enclosure (2) has been filled with water.

Never operate the appliance without water in the barbecue enclosure drip pan (2)!

The appliance should only by used in a well-ated room or a wind protected outer area!

heating element (5) stabilizer bar (4) and drip tray (3).

1. Fill between 0.4L to 0.9L of water into the drip pan of the barbecue enclosure (housing) (2). Make sure not to exceed the MAX (0.9L) level.

2. Connect the appliance plug to a properly installed and easy accessible wall socket.

3. Switch the appliance on by turning the temperature control knob (6) to the highest level (MAX). Heat the appliance up for approx. 10 Minutes. The indicator light (7) lights up. After this heating up process, adjust the temperature by turning the temperature control knob (6) to your desired level. The integrated thermostat will keep the pre set temperature at a constant level.
4. As soon as the respective temperature is reached the indicator light (7) goes out.

Caution! Make sure the appliance is shut off and gged! Danger of electric shock.

Attention: The temperature control (6) is continuously able.

During use the indicator light will will cycle on and off the thermostat keeps the heating element at the right temperature.

The temperature of accessible surfaces may high during operation. Therefore, do not touch the chance during and/or immediately after operation. Not handlers when handling the food.

Warning: This appliance should only be connected to a properly installed wall socket and should not be operated

system.

Cleaning and Care

Due to hygienic reasons clean your appliance on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Remove the heating element before cleaning and wipe it off with a dry cloth. Make sure that it has completely cooled down

Clean the housing of the appliance with a moistened soft

other hard objects to clean the appliance.

Once the drip pan and grill rack have cooled down, clean them in warm water using some dishwashing detergent, rinse and dry them thoroughly.

The parts of the appliance are not dishwasher safe.

Cleaning and user maintenance shall not be made by en without supervision.

Storage

Disconnect the appliance from the mains and let it completely cool down.

and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Barbecue Grill with Stand 46220 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Rated Power: 2200 W

Protection Class: I

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Exploded view diagram of a refrigerator with numbered parts for identification and assembly reference.

Productbeschrijving

Close-up of a mechanical device with a black component and cable, no visible text or symbols

Labeled diagram of a refrigerated cooling rack system with numbered components

Close-up of a black metal truss structure with ribbed panels and a vertical rod (no text or symbols visible)

Two black metal structural components with vertical rods, shown from different angles (no text or symbols visible)

Close-up of a finger pressing a black cylindrical component with serrated edges (no text or symbols visible)

Close-up of a metal shelving unit with slatted panels and a vertical rod (no text or symbols visible)

Exterior view of a black metal firecracker with ribbed structure (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating motion or force, no visible text or symbols

Close-up of a kitchen sink with metal fixtures and a close-up of a glass tube (no text or symbols visible)

Close-up of a mechanical component with a circular hole and a small metallic part, no visible text or symbols.

Close-up of a mechanical component with a threaded bolt and a circular detail (no visible text or symbols)

Close-up of a car's front grille and handle, showing a circular detail (no text or symbols visible)

Hoge stand

Close-up of a grater's grille and handle with a circled detail (no text or symbols visible)

Lage stand

Gebruik

Exploded view diagram of a refrigerator with numbered parts for identification

Close-up of a mechanical device with a black lever and white panel, showing no visible text or symbols.

Labeled diagram of a refrigerated kitchen appliance showing internal components and exterior view

Close-up of metallic mechanical components with arrows indicating alignment or movement (no visible text or symbols)

Tube en métal court

Tube en métal long

Close-up of a hand holding a metallic mechanical component with a circular hole, no visible text or symbols

Close-up of a metal support structure with ribbed metal panels and a vertical pole (no text or symbols visible)

Two views of a metal bracket with vertical rods, shown from different angles (no text or symbols visible)

Close-up of a finger pressing a black cylindrical component (no visible text or symbols)

Close-up of a metal shelving unit with slatted panels and a vertical rod (no text or symbols visible)

Black metal grate with slatted top and vertical legs (no text or symbols visible)

Close-up of a precision tool tip cutting a small cylindrical component (no visible text or symbols)

bien le sécuriser.

Close-up of a kitchen sink with metal tools and a close-up of a tool tip (no text or symbols visible)

Close-up of a mechanical component with a circular knob and a metallic screw, shown from two angles (no text or symbols visible)

Close-up of a grating with a coiled tube and a circular inset showing the internal structure (no text or symbols visible)
