46112 - Barbecue KORONA - Free user manual and instructions

Product type	Electric table barbecue (grill)
Brand	Korona
Model	46112
Rated power	2200 W
Protection class	I
Supply voltage	220-240 V ~ 50/60 Hz
Water tray capacity	0.4 L to 0.9 L (max 0.9 L)
Temperature control	Adjustable thermostat from MIN to MAX with constant temperature maintenance
Indicator light	Indicates power-on and heating cycles
Safety switch	Prevents operation if the housing is twisted
Stabilizer bar	To secure the heating element and the drip tray
Wind shield	Reduces heat loss in strong wind
Feet	4 non-slip rubber feet
Housing material	Metal (steel)
Heating element material	Metal with protective coating
Recommended use	Ventilated room or protected outdoor area
Care	Clean after cooling with mild detergent
Safety	Do not use without water; hot surfaces; do not immerse
Warranty	2 years (material and manufacturing defects)
After-sales service	Korona Service, Am Steinbach 9, 59872 Meschede-Enste, Germany

Frequently Asked Questions - 46112 KORONA

How to turn on the Korona 46112 barbecue?

Fill the drip tray with 0.4 L to 0.9 L of water, place it in the housing, plug in the appliance, turn the temperature knob to MAX, wait 10 minutes, then set the desired temperature.

How much water should be put in the tray?

Fill between 0.4 L and 0.9 L of water. The level must not exceed the MAX mark (0.9 L). Never operate the appliance without water.

Can I use this barbecue indoors?

Yes, but only in a well-ventilated room. The appliance produces smoke, adequate ventilation is necessary. Outdoor protected use is also possible.

How to clean the barbecue after use?

Unplug the appliance and let it cool completely. Remove the drip tray and the grill, clean them with water and a mild detergent. Never immerse the barbecue body in water.

What to do if the barbecue does not heat?

Check that the drip tray is correctly inserted and the safety switch is activated (the housing must not be twisted). Make sure the socket works and the knob is not on MIN. If the problem persists, contact customer service.

Does the barbecue have a safety switch?

Yes, an integrated safety switch prevents operation if the housing is twisted or improperly assembled. It ensures that the heating element only heats when the housing is correctly in place.

Can I leave the barbecue unattended?

No. Like any electrical appliance, it should not be left unattended during operation. Always monitor cooking and unplug after use.

How to assemble the barbecue?

Attach the 4 rubber feet under the housing. Place the drip tray filled with water into the housing. Insert the stabilizer bar into the holes of the tray and housing, then screw. Finally, insert the pins of the heating element into the sockets of the housing and lower the stabilizer bar. The heating element can be adjusted to high or low position.

What is the power of the barbecue?

The rated power is 2200 W, with a voltage of 220-240 V ~ 50/60 Hz and protection class I.

Where can I find spare parts?

Contact Korona customer service at: KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, Germany, by phone at 02933 90284-80 or by email at [e-mail].

USER MANUAL 46112 KORONA

Table Barbecue Grill

Dutch

Handleiding

Tafelbarbecue/-grill

Français

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended and suitable for broiling foods. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!
This symbol warns of hot surfaces. Risk of burns!
This symbol identifies electric shock hazards!
! General Safety Instructions

caused by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall

supervised.

before cleaning.

surfaces to avoid any damage to the appliance.

cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

modifications to or repair the appliance yourself.

Special Safety Instructions

1 3

To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

described in this manual.

Do not place it on top of a metal surface.

exchange accessories or clean it.

the drip pan of the housing enclosure

(0.9L) filling mark inside the housing enclosure

When filling up, make sure not to splash water onto the heating element.

burns from hot water!

the protected control panel area to set the cooking temperature. When handling food on the grill always use tongs, spatulas or forks. Never touch the heating element with these utensils! Danger of serious burns!

gas sources.

apppliance.

objects, e.g. table cloth, curtains, wall cabinets.

easily ignite and catch fire.

indoors, as smoke may develop.

assembled! When the heating element is detached from the barbecue, never connect it to the mains. Danger of serious burns!

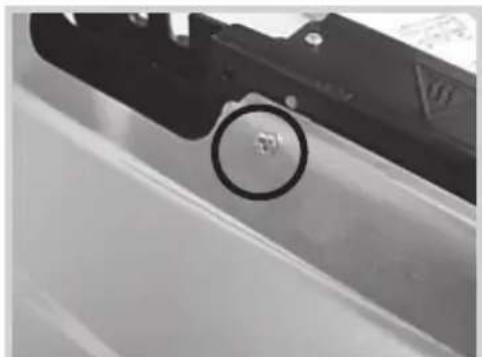

an integrated safety switch (see photo underneath). Fixing the heating element to the barbecue enclosure's sheet metal activates this switch. Should the enclosure be bent, the safety switch might not be able to operate, i.e. the appliance would not heat. If necessary, adjust sheet metal manually.

resetting of the thermal cut out, this appliance must not be supplied through an external switching device, such as an external timer, or connected to a circuit that is regularly switched on and off by the utility.

Product Description

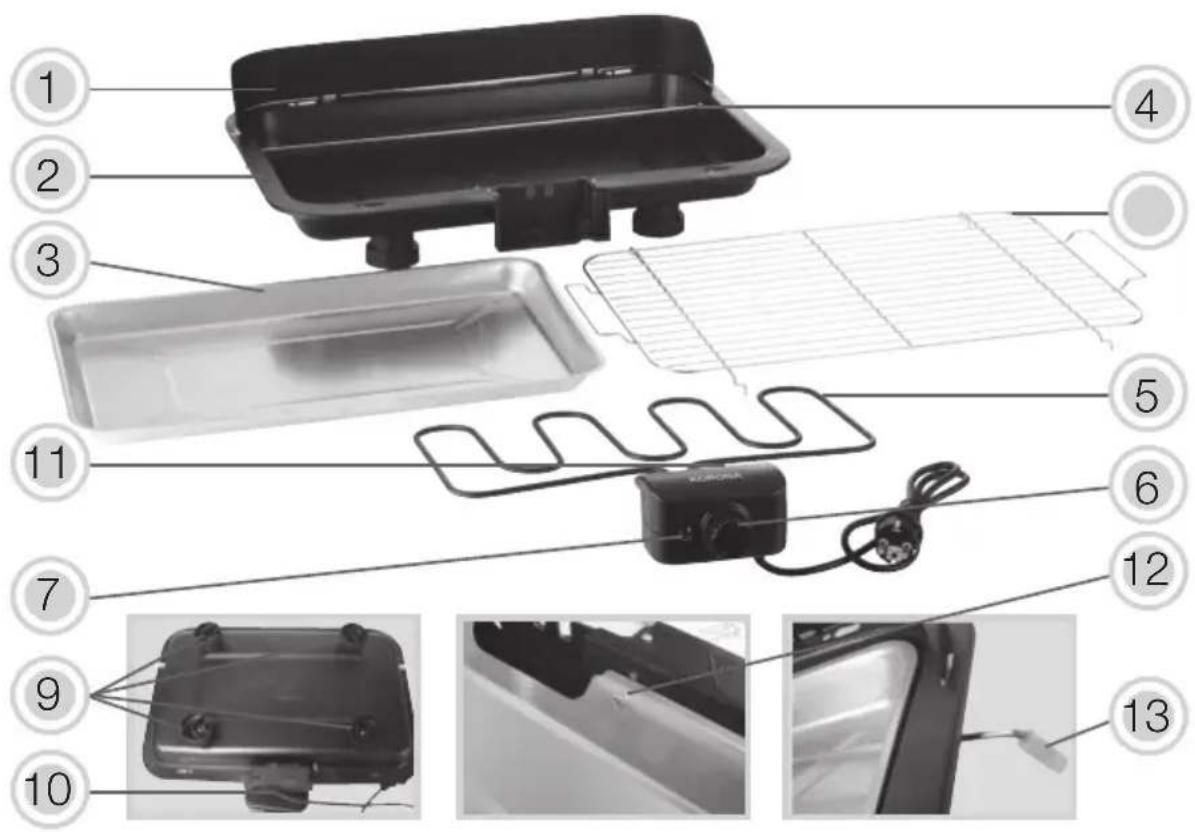

1. Detachable windshield
2. Barbecue enclosure (housing)
3. Removable drip tray
4. Stabilizer bar for heating element and drip tray
5. Heating element
6. Indicator light
7. 4 rubber feet (rear side)
8. Power cord and plug
9. Safety switch
10. Silicone protection sleeve (x2)

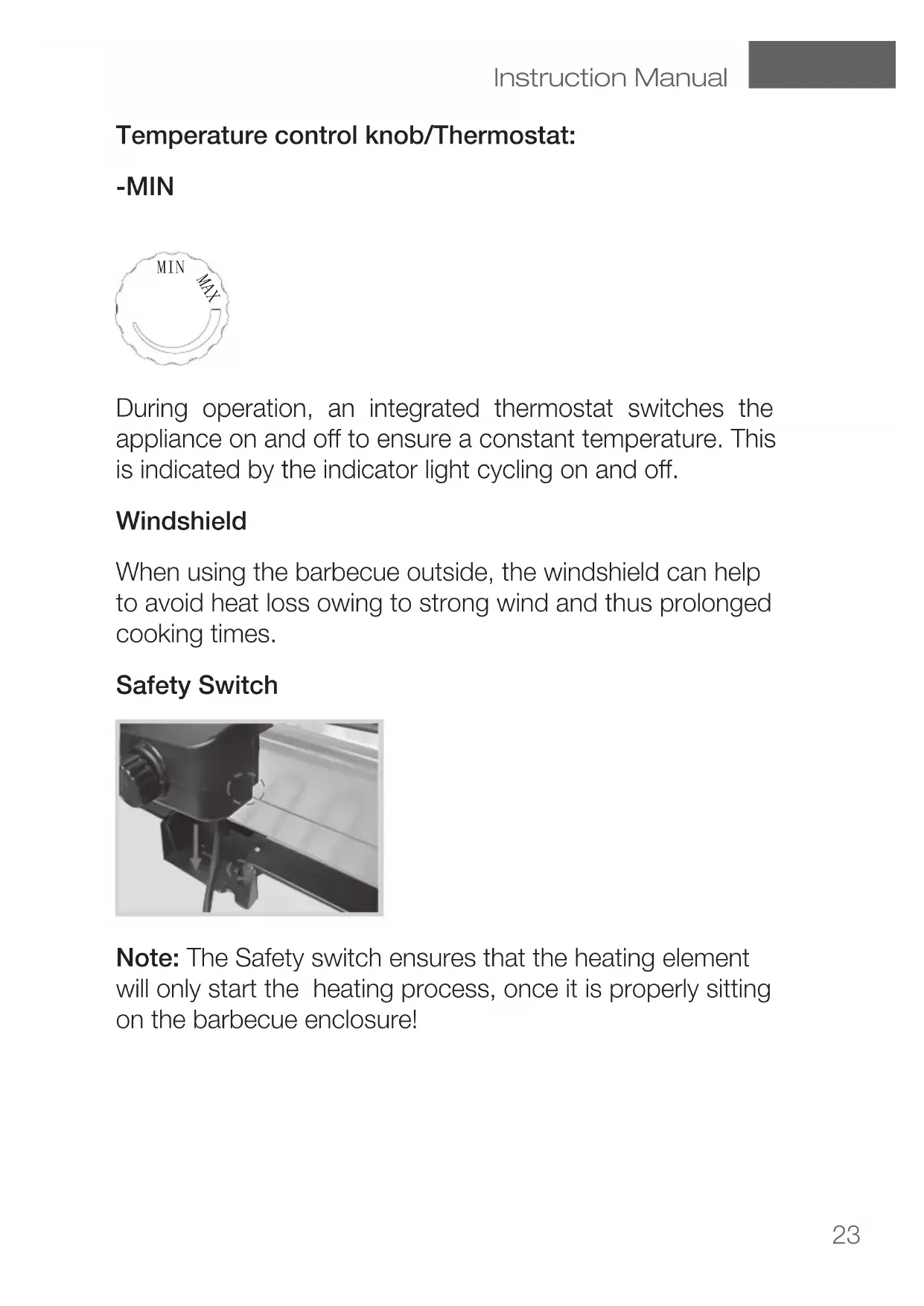

Temperature control knob/Thermostat:

-MIN

During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the indicator light cycling on and off.

Windshield

When using the barbecue outside, the windshield can help to avoid heat loss owing to strong wind and thus prolonged cooking times.

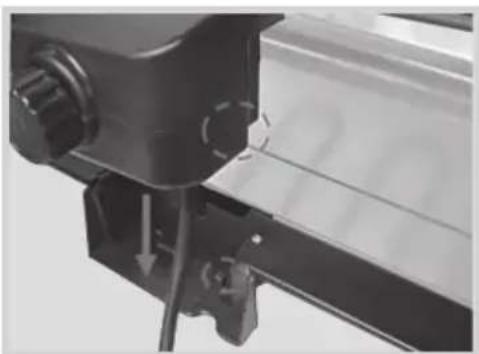

Safety Switch

Note: The Safety switch ensures that the heating element will only start the heating process, once it is properly sitting on the barbecue enclosure!

Before First Use

appliance is complete.

resistant surface.

a properly installed wall socket.

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation.

Protective coating

The heating element of the appliance has a protective coating. To remove the protective layers on the heating element, heat up the appliance for about 10 minutes on the highest setting. Afterwards, let the appliance and accessories completely cool down and clean them according to "Cleaning and Care".

Note: During this process, the appliance may briefly

produce some smoke or smell which is due to residues on the heating elements left over from the manufacturing process. This is normal and not harmful. Make sure that the room is well ventilated.

Assembly

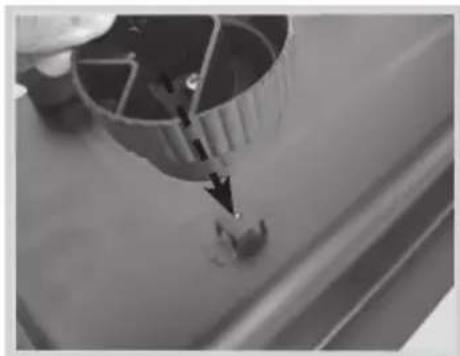

1. Attach the 4 rubber feet (9) to appliance (rear side).

1. Attach the windshield (1) by inserting the prongs into the respective openings of the housing (2). Make sure to properly secure it.

enclosure (housing) (2).

1. Insert the stabilizer bar (4) for the heating element (5) through the holes of the drip tray (3) and the barbecue enclosure (housing) (2) and secure it with the supplied screw and nut (12).

1. Insert the two prongs of the heating element (5) into the drilling holes of the appliance housing (2). Make sure when inserting the thermostat (6) that it is properly positioned into the guides on both sides and press it down firmly until it clicks into place.

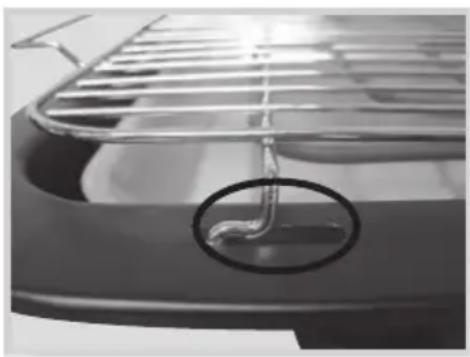

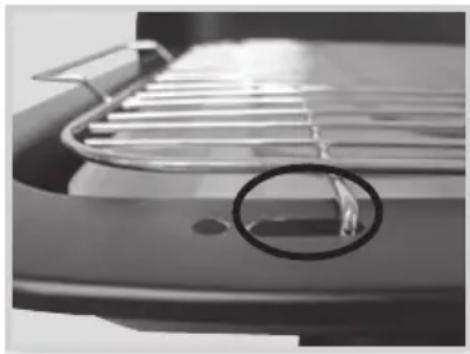

make sure that it is properly secured. The height of the grill rack is adjustable: High or Low.

Higher Level

Lower level

Operation

Always make sure to fill water into the drip pan of the barbecue enclosure (2) before operating the appliance. The removable drip tray (3) will be placed on top, after the drip pan of the barbecue enclosure (2) has been filled with water.

Never operate the appliance without water in the barbecue enclosure drip pan (2)!

The appliance should only be used in a well-ated room or a wind protected outer area!

heating element (5) stabilizer bar (4) and drip tray (3).

1. Fill between 0.4L to 0.9L of water into the drip pan of the barbecue enclosure (housing) (2). Make sure not to exceed the MAX (0.9L) level.

2. Connect the appliance plug to a properly installed and easy accessible wall socket.

3. Switch the appliance on by turning the temperature control knob (6) to the highest level (MAX). Heat the appliance up for approx. 10 Minutes. The indicator light (7) lights up. After this heating up process, adjust the temperature by turning the temperature control knob (6) to your desired level. The integrated thermostat will keep the pre set temperature at a constant level.
4. As soon as the respective temperature is reached the indicator light (7) goes out.

Caution! Make sure the appliance is shut off and gged! Danger of electric shock.

Attention: The temperature control (6) is continuously

variable.

During use the indicator light will will cycle on and off

while the thermostat keeps the heating element at the right temperature.

The temperature of accessible surfaces may

be high during operation. Therefore, do not touch the appliance during and/or immediately after operation.

Use pot handlers when handling the food.

Warning: This appliance should only be connected to

a properly installed wall socket and should not be operated

system.

Cleaning and Care

Due to hygienic reasons clean your appliance on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Remove the heating element before cleaning and wipe it off with a dry cloth. Make sure that it has completely cooled down

Clean the housing of the appliance with a moistened soft

other hard objects to clean the appliance.

Once the drip pan and grill rack have cooled down, clean them in warm water using some dishwashing detergent, rinse and dry them thoroughly.

The parts of the appliance are not dishwasher safe.

Cleaning and user maintenance shall not be made by

children without supervision.

Storage

Disconnect the appliance from the mains and let it completely cool down.

and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special

collection points for disposal or your local dealer.

Your Table Barbecue Grill 46112 is packed in a retail box.

Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Rated Power: 2200 W

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede,

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
