57158 - Oven KORONA - Free user manual and instructions

Brand	KORONA
Model	57158
Product type	Multifunction toaster oven
Capacity	24 liters
Rated power	1500 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Protection class	I
Temperature range	100 °C to 230 °C
Timer	Up to 60 minutes, with automatic shut-off and audible signal
Cooking functions	Top heat (grill), bottom heat, top and bottom heat, top and bottom heat with convection
Included accessories	Baking tray, grill rack, pizza stone, crumb tray, handle
Indicator light	Yes (indicates that the timer is active)
Glass door	With handle
Housing material	Metal and glass
Cleaning and maintenance	Clean the body with a soft damp cloth; baking tray and grill rack in dishwasher or with soapy water; pizza stone with clear water without detergent; removable crumb tray
Safety	Automatic shut-off at end of timer; hot surfaces indicated; built-in thermostat; do not immerse; recommended safety distance
Warranty	2 years against material and manufacturing defects
Customer service	KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, Germany; [e-mail]; 02933 90284-80
Intended use	Household only: reheating, cooking, grilling, roasting, baking
Convection	Yes, with recommended temperature reduction of 30 °C
Installation	On worktop, distances: 10 cm rear, 5 cm sides, 20 cm above

Frequently Asked Questions - 57158 KORONA

Do I need to preheat before first use?

Yes, heat the empty appliance at maximum temperature for about 15 minutes with the door open to remove the protective coating from the heating elements. Slight smoke may appear – ventilate the room.

How to clean the pizza stone?

Let it cool completely, then clean it only under running water with a synthetic sponge. Do not use detergent and never soak it in water. It is not dishwasher safe.

What is the difference between the cooking modes?

The modes are: top heat (grill), bottom heat, top and bottom heat, and top and bottom heat with convection. The convection mode distributes heat evenly and reduces cooking time; reduce the temperature by 30 °C compared to the recipe.

How to use the timer?

Turn the timer knob clockwise to the desired time (max 60 min). The appliance turns on and the indicator lights up. At the end, a beep sounds and the appliance switches off automatically. To stop earlier, turn the knob to OFF.

Can I use aluminum foil in the oven?

Yes, to cover food during warming or to line the baking tray. Make sure the foil does not touch the heating elements.

What to do if the appliance does not heat up?

Check that the timer is set to a duration (the oven only works if the timer is activated). Check the plug and cord. If the problem persists, contact customer service.

What utensils can I use?

Use only heat-resistant utensils. The provided accessories (baking tray, grill rack, pizza stone) are suitable. Do not place sharp metal objects that could scratch surfaces.

How to avoid burns?

Never touch hot surfaces – use oven mitts. The glass door and housing become very hot. Keep a safety distance and do not leave the appliance unattended.

Can I cook frozen foods?

Yes, for example in convection mode for frozen pizzas or baguettes. Follow the instructions on the packaging, adjusting the temperature (reduce by 30 °C if using convection).

How to store the appliance?

After use, unplug it and let it cool completely. Clean it, then store it in a clean, dry place, out of reach of children. Never wrap the cord around it.

USER MANUAL 57158 KORONA

Black and white close-up of a textured surface with floral patterns (no text or symbols visible)

White Korona® portable toaster oven with open lid showing cooked meat inside (no visible text or symbols on main body)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Close-up of a kitchen appliance with ventilation grilles and a fan (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Pizza Stein

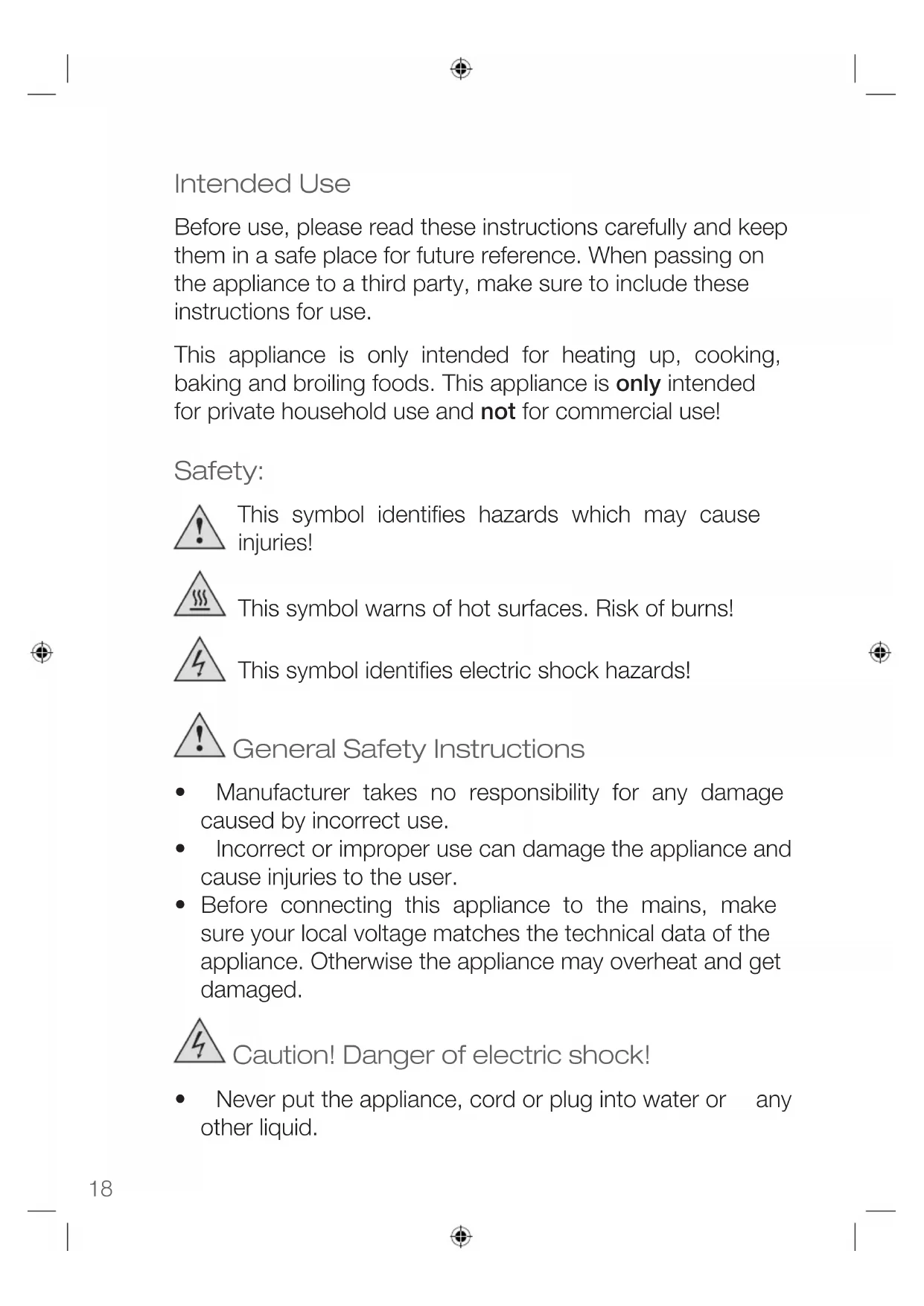

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for heating up, cooking, baking and broiling foods. This appliance is only intended for private household use and not for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

- Never put the appliance, cord or plug into water or any other liquid.

• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

• Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
  • Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, fire and risk of burns!

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on a even and heat-resistant surface. Do not place it on top of a metal surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation.

Danger of serious burns!

- Do not touch the accessible heating elements. Danger of serious burns.

- Do not move the appliance during operation.

- Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets.

- Do not support yourself on the glass door. Do NOT place objects on the glass door. This would cause damage to the hinges.

- Do not leave appliance unattended while in use.

- Never cover the ventilation slots. Make sure that the equipment is kept in a well ventilated place with sufficient distance to the walls.

• Attention: Foods with a high oil and fat content might easily ignite and catch fire.
• Do not place any heat sources and magnetic objects near or on top of the appliance and make sure that the surrounding environment shall be dry and free of damp.
• Do not connect any other household appliances to the same receptacle/multiple receptacle, as in an emergency the plug must be quickly accessible.
• Never use the appliance to store food or other material.
  • Only use heat-resistant cookware.
• Always unplug the appliance after use and let it completely cool down before cleaning.

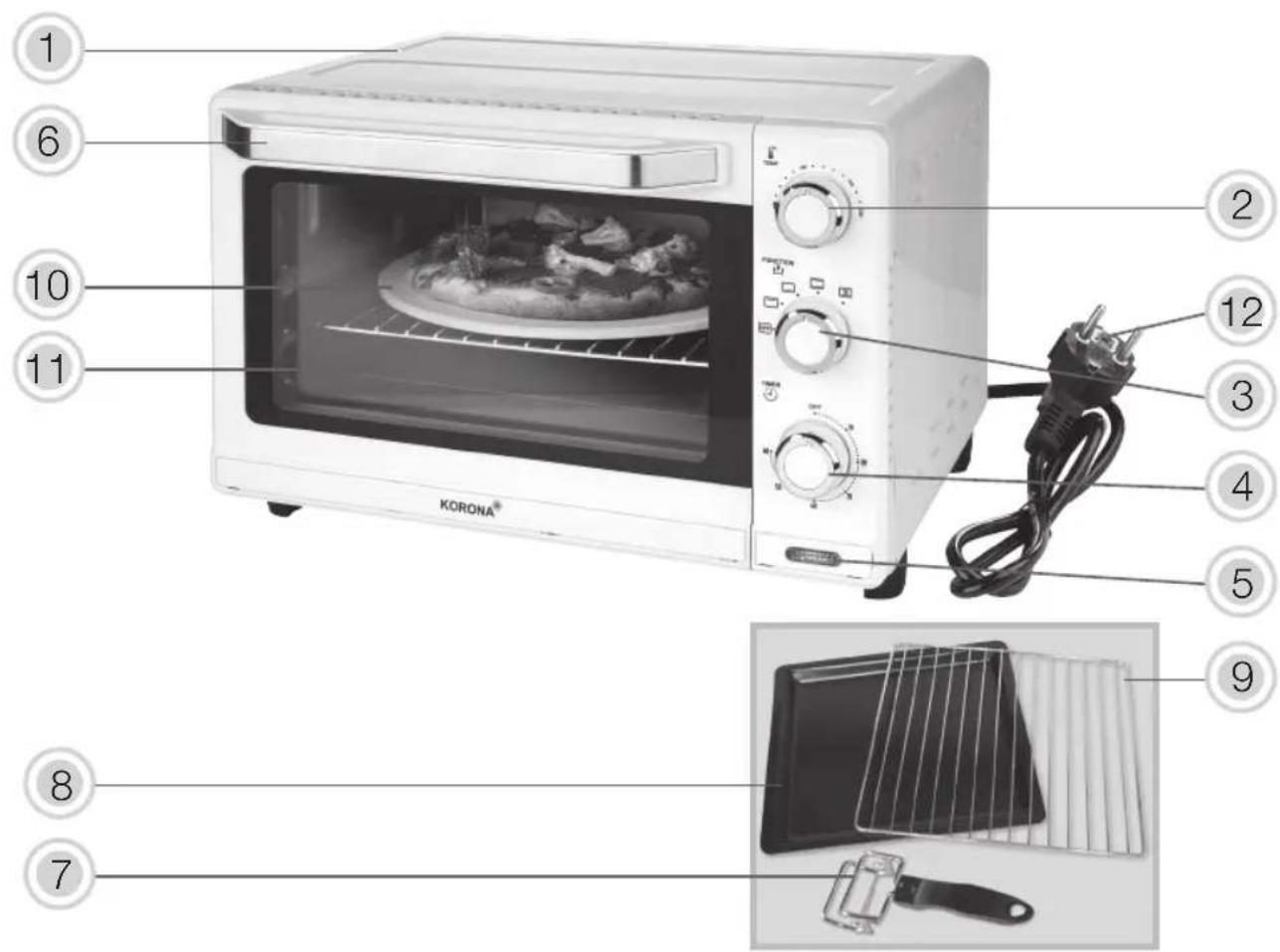

1 6 10 11 2 12 3 4 5 9 8 7 KORONA®

Product Description

1. Housing
2. Temperature control switch
3. Function control switch
4. Timer / On/Off switch
5. Indicator light
6. Glass door handle
7. Handle for baking tray and grill rack
8. Baking tray
9. Grill rack
10. Pizza Stone
11. Crumb Tray
12. Power cord and plug

Temperature Control Switch

The temperature control sets the desired temperature level (100°C - 230°C).

Function Control Switch

Enables you to choose between

• Off setting OFF
• Upper heat
• Lower heat
• Lower and upper heat
  • Upper and lower heat with convection

FUNCTION FUNCTION OFF

Timer / On/Off switch

The appliance is only ready to be used once the timer is set.

Settings:

• Off
  • Time up to 60 Minutes

TIMER OFF 10 20 30 40 50 60 70 80 90 100 TIMER OFF 10 20 30 40 50 60

After the preset time has elapsed an acoustic sound (DING) can be heard and the appliance shuts down automatically.

Before First Use

• Remove all packaging material and check whether appliance is complete and undamaged.
  • Completely unwind the power cord.
• Do not use the appliance if it shows any sign of damage.

The heating elements of the appliance do have a protective coating. To remove the protective layers on the heating elements, heat up the appliance for about 15 minutes on the highest setting without food. Leave the appliance door completely open.

This could cause a slight build-up of smoke and oc. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

Afterwards, let the appliance completely cool down and clean it according to Cleaning and Care.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Location

Warning: This appliance should only be connected to a properly installed wall socket and should not be operated

by any means of an external timer or separate remote-control system.

This appliance is a countertop product and should not be used for built-in solution. In case of emergency, the socket must be easily accessible.

Place the appliance on an even and heat resistant surface. Make sure to adhere to the following safety distance between the appliance and the wall.

• 10 cm, rear
• 5 cm, each side
• 20 cm, above

Operation

The temperature of accessible surfaces may igh during operation. Therefore, do not touch the ance during and/or immediately after operation. not handlers when handling the food.

Keeping food warm

Set the temperature (2) to 100^ C, switch the function control (3) to lower and upper heat and preset the respective keeping warm time (4).

If the food needs to be kept warm for longer than minutes, it should be covered with tinfoil, to prevent it from becoming too dry.

Do not leave the food in the oven for an extended period of time.

Upper heat / Grill:

Cookies, Pizza, pies etc.

Lower and upper heat:

Cakes, Pizza, roasts, etc.

Combination of lower and upper heat with convection

Cakes, (frozen) baguette, roasts, (frozen) pizza, fish etc.

The air circulation system of the convection mode provides an equal and rapid distribution of heat in the appliance.

Note: When operating in convection mode the erature might vary up to -30^ C.

Attention: Always make sure that the food is not ing the upper heating element.

These are only recommendations, while using the appliance resp while preparing the food, also rely on your cooking experience.

Remove the baking tray (8) and the grill rack (9) for appliance and line it, if necessary with some baking paper or apply evenly some butter/oil to the baking tray (8). Before each use, depending on the temperature setting (2) allow the appliance to heat up for approx. 10 minutes to the required temperatures. Choose the desired temperature (2) and set the timer (4) to 10 Minutes.

1. Place the appliance on an even and heat-resistant surface and connect it to the mains.

2. Preheat the appliance, using upper and lower heat, for approx. 10 minutes depending on the required temperature. Leave the door closed during this process.

3. After the preheating process is finished, place the food to be cooked/baked/broiled onto the baking tray (8) / grill rack (9), insert it in one of the guide rails and close the door.

Note: When cooking food with a high fat content, do he baking tray (8) to avoid any dripping into the interior e unit.

To obtain an even baking / cooking result, we recommend to use the middle guide rail when inserting the baking tray (8) / grill rack (9).

1. Choose the desired heat function (3), set the required temperature (2) and preset the respective time (4) by turning each switch into clockwise direction.

When using the grill function, always choose the highest temperature (230°C) and upper heat.

1. The indicator light (5) of the appliance will light up as soon as the time has been set by the timer (4).

Note: During the cooking/baking/broiling process, the net heat / time can be adjusted at any time during the less.

1. Once the preset time has elapsed, you will hear an alarm sound (“DING”) and the appliance switches off automatically. The On/Off switch (4) moves to OFF position.
2. After use, always make sure that the function control (3) and timer (4) switch are switched OFF and disconnect the appliance from the mains.

Thermostat:

During operation, an integrated thermostat switches appliance on and off to ensure a constant temperature.

Removing the baking tray/ grill rack

When removing the baking tray (8) / grill rack always use the provided handle (7) or pot handlers. Let the accessories cool down before cleaning. Danger of burns!

To lift the grill rack (9) / baking tray (8) out, see underneath.

Close-up of a kitchen appliance with ventilation grilles and fan-shaped components (no visible text or symbols)

Close-up of a mechanical component with metal rods and a curved bracket (no visible text or symbols)

Pizza stone

1. Always place the pizza stone in a cold oven and reheat it at 180^ C.
2. After approx. 20 min take it out and place your prepared pizza (frozen or fresh) onto the stone. Dust the pizza stone with some flour or semolina to avoid any food sticking.

Attention: Never grease or oil the stone.

1. Return the pizza stone (10) to the oven and bake the pizza according to your liking.

Warning: The pizza stone (10) should never be placed into a hot oven, as it could break due to thermal shock.

Cleaning and Care

Due to hygienic reasons clean your toast oven on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance, it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

When cleaning the appliance never use any

• aggressive cleaning agents and/or other hard objects.
  • commercial oven cleaners / steam cleaners.

Clean the body of the appliance with a moistened soft cloth.

Clean both sides of the oven door, the door sealing and adjacent areas with a moistened damp cloth.

Once the baking tray (8) / grill rack (9) has cooled clean it in warm water using some dishwashing detergent, rinse and dry it thoroughly.

Remove splatter/food residues inside the appliance with a damp soft cloth. If necessary, use a mild washing up liquid.

Make sure that no water gets into the air vents and other parts inside the appliance.

Once, the pizza stone (10) has completely cooled down clean it only under running tap water using a synthetic sponge.

Do not use any dishwashing detergent and do never soak/immerse the pizza stone (10) in water.

The pizza stone (10) is not dishwasher safe.

Pull out the crumb tray (11) after each use and c properly with a moistened soft cloth. After cleaning simply push it back in.

Cleaning and user maintenance shall not be made by en without supervision.

Storage

After use disconnect the appliance from the mains and let it completely cool down.

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your toast oven 57158 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 /60 Hz

Rated Power: 1500 W

Protection Class: I

Capacity: 24 L

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Two-panel image showing a kitchen appliance with a grid-patterned panel and a close-up of its internal structure (no visible text or symbols)

Pizzasteen

Interior view of a kitchen appliance with cooling fans and a grid-patterned tray (no visible text or symbols)

Close-up of a metal bracket with curved metal joints, mounted on a metal frame (no visible text or symbols)

Pierre à pizza

Abstract geometric shape with curved and angular lines, no text or symbols present

Ref: 57158/2019.05
