Product type	Warming drawer
Brand	Pelgrim
Model	ACW624RVS
Category	Warming drawers and cabinets
Maximum load capacity	20 kg
Temperature range	30°C to 70°C
Timer	Yes, with automatic shut-off and buzzer
Heating system	Hot air with fan
Supply voltage	220-240 V ~ single-phase
Recommended fuse	10 A
Power cable cross-section	3 × 1 mm²
Front material	Stainless steel
Drawer bottom	Removable non-slip bottom
Use	Preheating dishes only
Controls	Temperature selector and timer (accessible with drawer open)
Power indicator	Yes, on the front
Protection grille	Yes, to prevent contact with heating element and fan
Maintenance	Do not use steam cleaners, abrasive products; use sponge and dishwashing liquid
Installation	Requires a bipolar disconnection device
Built-in	Fixing with 4 screws and brackets supplied

Frequently Asked Questions - ACW624RVS Pelgrim

What is the capacity of the ACW624RVS warming drawer?

The maximum load capacity is 20 kg.

What temperature range can be set?

The temperature is adjustable from 30°C to 70°C.

How to clean the warming drawer?

Use a sponge, dishwashing liquid and hot water. Do not use a steam cleaner or abrasive products. The stainless steel front requires a special non-abrasive detergent.

Can I preheat all types of dishes?

Yes, but the appliance is designed exclusively for preheating dishes. Do not use it to cook food.

How to install the appliance in a cabinet?

The appliance is built into a niche and fixed to the side walls with the 4 screws and brackets supplied.

What is the required supply voltage?

The appliance operates on 220-240 V ~ single-phase with a 10 A fuse.

What to do if the power cable is damaged?

It must be replaced by an equivalent cable (H05RNF 3 × 1 mm²) available from after-sales service.

How does the timer work?

Set the duration (minimum 10 minutes). The indicator lights up. At the end, the heating stops and a beep sounds. To stop the beep, set to 0.

What is the recommended preheating time?

At 60°C, allow approximately 30 minutes for 6 persons and 40 minutes for 12 persons, depending on the dishes.

Is there a protection grille?

Yes, a protection grille prevents contact with the heating element and the fan.

USER MANUAL ACW624RVS Pelgrim

Manual Warming drawer

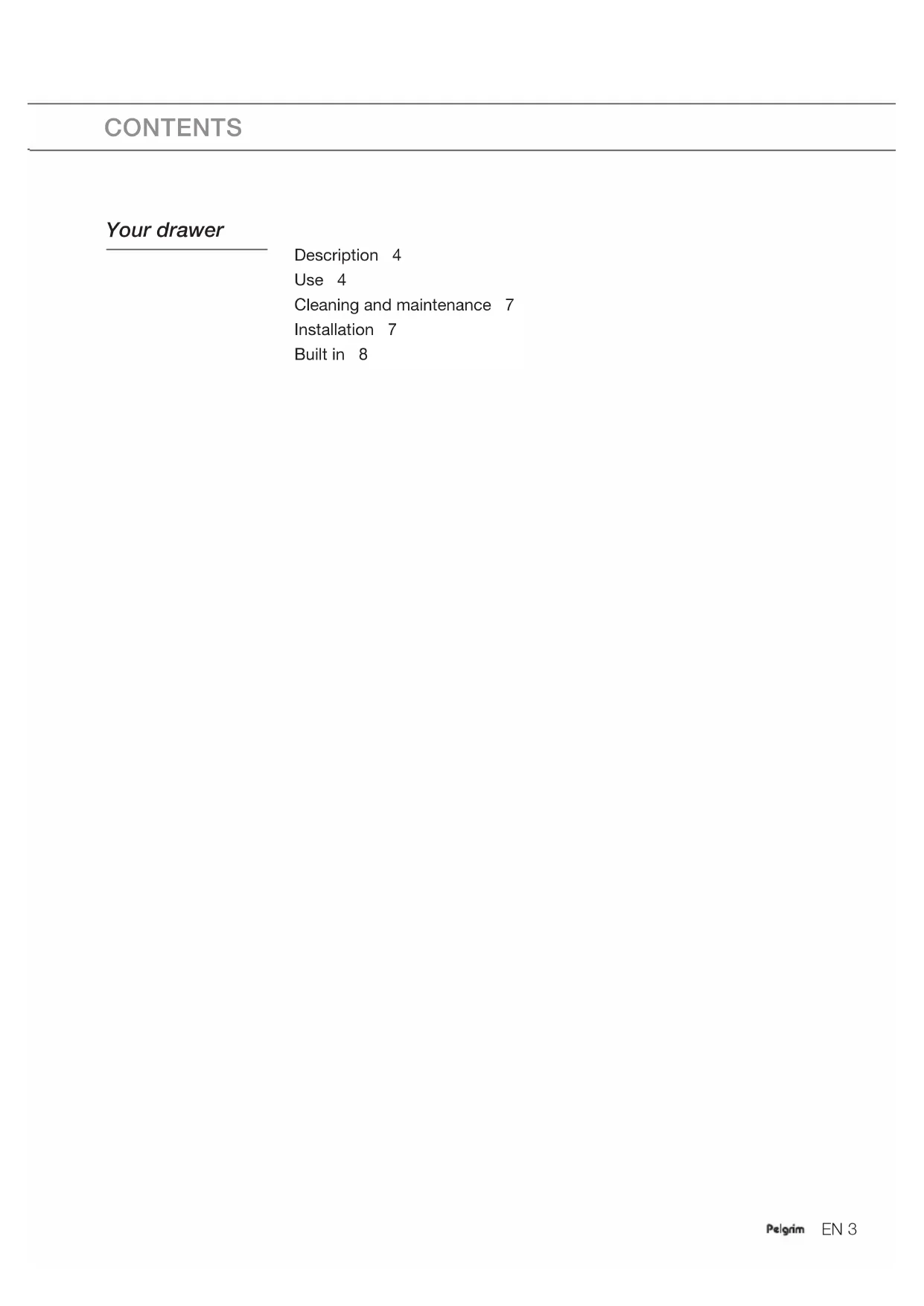

Cleaning and maintenance 7

Installation 7

Built in 8

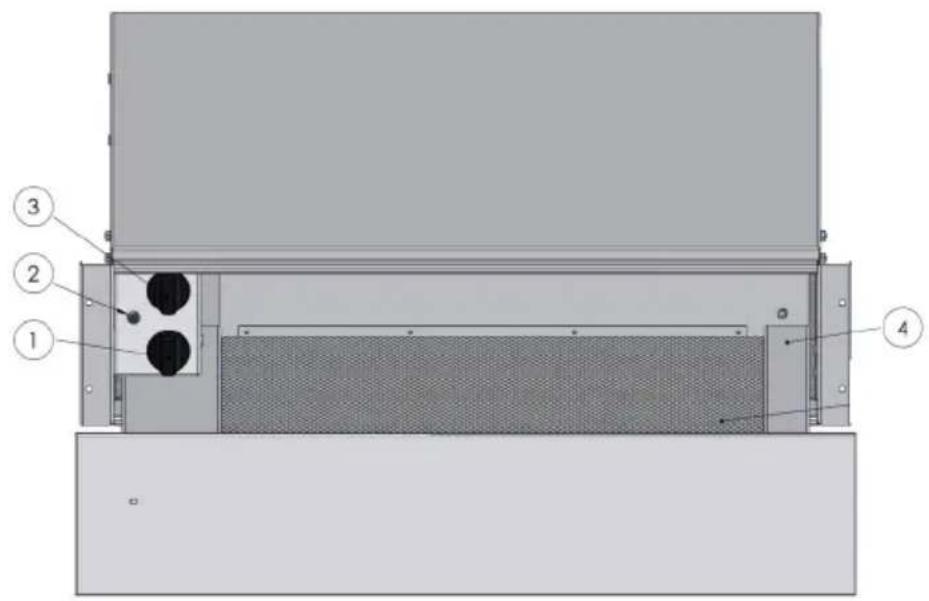

Description

1. Timer.stop/start switch
2. Signal light on the front showing that power is on
3. Temperature control
4. Drawer for dishes

Use

Information before use:

• The appliance should be used exclusively to preheat dishes.
• The appliance uses a hot air system to heat the dishes. A fan distributes the heat from the resistor in the drawer. The dishes are heated rapidly and uniformly by circulation of hot air.
• A protective grid prevents the dishes from coming into contact with the resistor or the fan.

Controls:

• The controls include a temperature knob and a Start/Stop switch. These are only visible when the drawer is open.
• When the drawer is closed, the signal light on the front of the drawer comes on when the appliance is running.

Setting the controls:

• Put the dishes in the drawer.
• Select the temperature.
• Set the timer (minimum 10 minutes).
  The signal light shows that the power is on.
• Close the drawer
• When the timer runs out, the hot air heating system stops and a bell rings.
• To turn the bell off, turn the knob to 0.

Selecting the temperature:

The temperature knob adjusts the temperature between 30 and 70^ .

The most appropriate temperatures for the types of dishes used are as follows:

• 40^ : for cups or glasses. Hot drinks stay hot long ger when poured into cups or glasses preheated to this temperature, without danger of burns when people drink from them.
• 60^ : for plates and dishes. Food served on prehea ted plates or dishes maintain their heat and the dishes can be touched without burning the hands.

Preheating time:

Preheating time depends on several factors:

• the thickness of the dishes and the material they are made from
  the load
• disposal of the load
  temperature setting

Consequently, we cannot give times that will correspond systematically.

A few hints

For a temperature setting of 60^ , heated evenly:

• dishes for a meal for six take about 30min
• dishes for a meal for twelve take about 40 min.

After using the drawer a few times, you will know for yourself how long it takes to heat your dishes.

Capacity:

• Capacity depends on the height of the model and the weight and size of your dishes.
  The model has maximum capacity of 20kg
• The following examples are given as an indication only (quantities are determined by volume):

Dishes for 6:
6 dinner plates Ø 28 cm
6 soup plates Ø 22 cm
1 serving bowl Ø 22 cm
1 serving bowl Ø 20 cm
1 serving bowl Ø 18 cm
2 serving platters 36 cm
or 16 large plates Ø 28 cm
+ 8 bowls Ø 10 cm
or 24 soup plates Ø 22 cm
or 40 bowls Ø 10 cm
or 60 cups Ø 8 cm

Cleaning and maintenance

• Before any maintenance, turn off the appliance and let it cool.
• Clean all surfaces with a sponge, dish washing soap and warm water. Then dry it off with a soft cloth.
• Do not steam clean the appliance.
• The use of scouring powders, alcohol or grease-cutting products is not recommended - they could damage the appliance.
• The stainless steel front can be scratched. Use a special non-abrasive cleanser for stainless steel.

Installation

Before connecting the appliance to the power supply, check that the wires of your electric installation have sufficient diameter to supply power to the appliance during normal use. The fuse for the installation should be 10 amps.

• It is necessary to provide a bipolar cut-off device in the power supply circuit, with an open contact gap of more than 3mm .
• The electric connection should be done before the appliance is set in the cabinet.

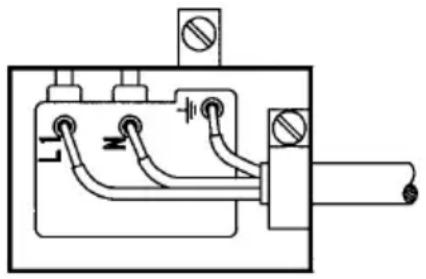

• The drawer should be connected by a (standard) power cord with three 1mm^2 wires (1 single phase + 1 N + ground) to the 220-240 V single phase power supply via an electric circuit corresponding to the CEI 60083 standard or complying with the installation rules. The protective wire (green/yellow) corresponds to ground on the appliance and should be connected to the ground of the installation.
• In the case of a connection via an electric outlet, the outlet should be accessible even with the appliance installed. The neutral on the heating drawer (blue wire) should be connected to neutral on the power supply.

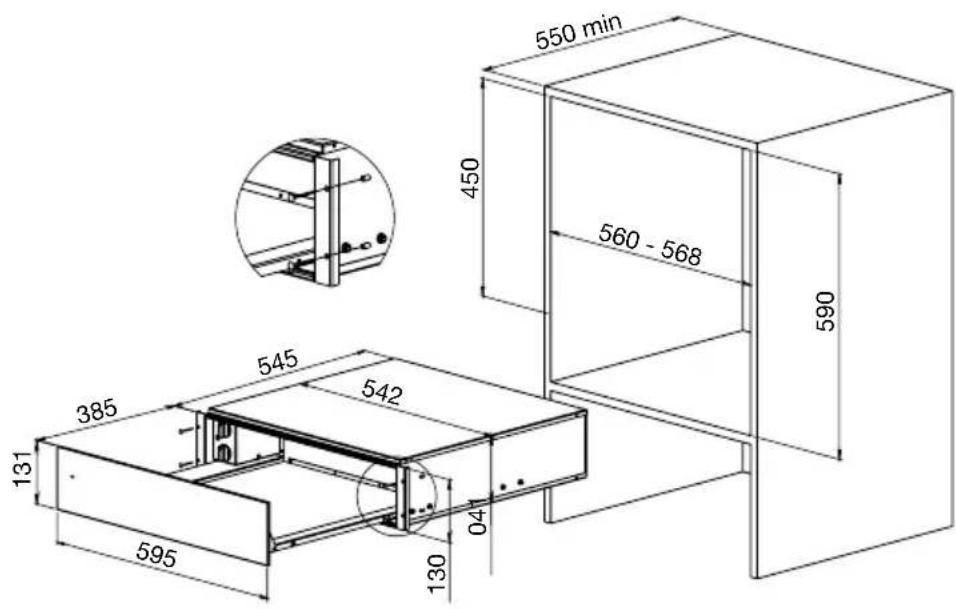

Built in

• Set the appliance into the niche in the cabinet. Make certain that the body of the appliance is positioned correctly.
• Open the drawer and fasten the appliance to the sides of the cabinet with 4 screws and the 4 spacers delivered with the appliance.
